2020692 Shaft
$1.00piece

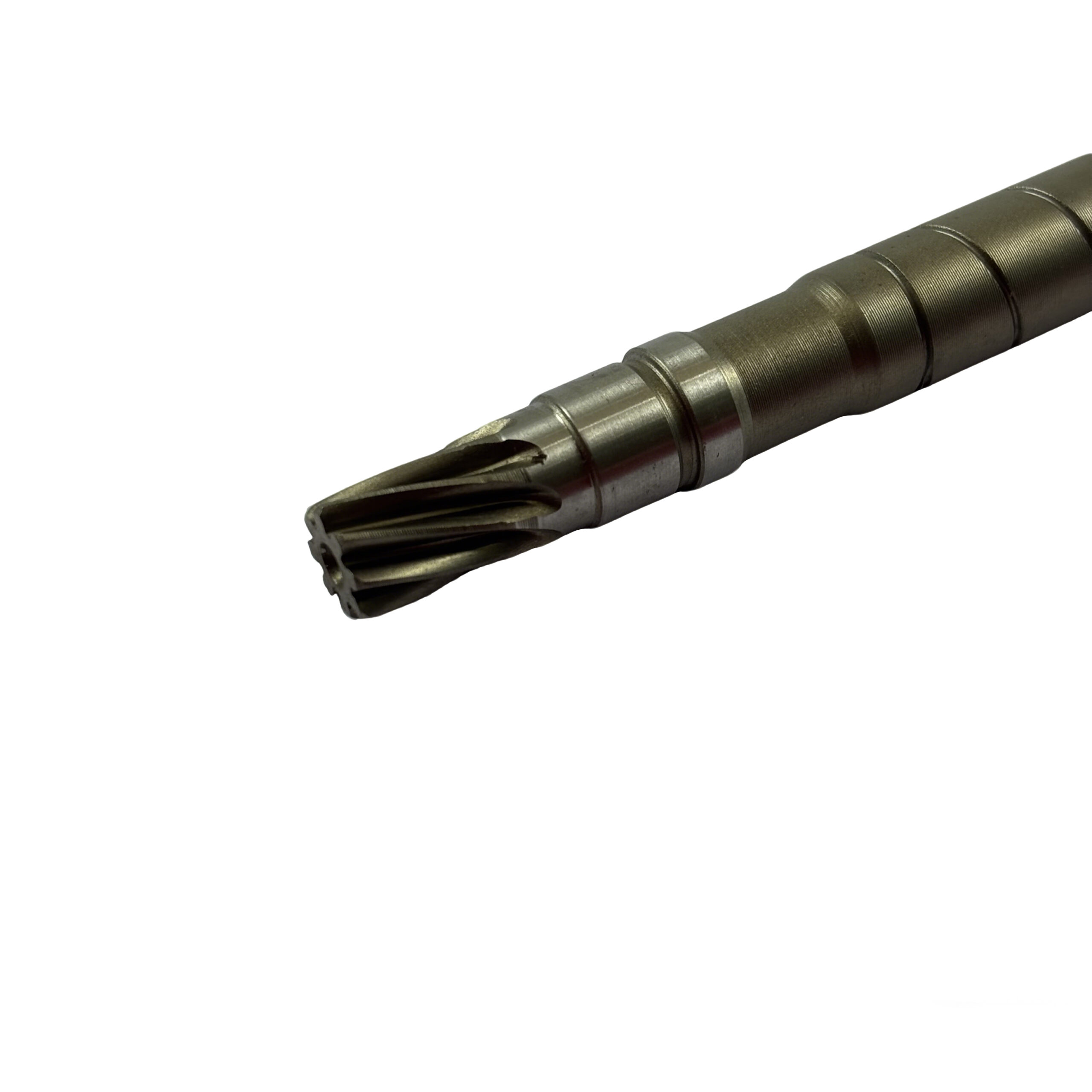

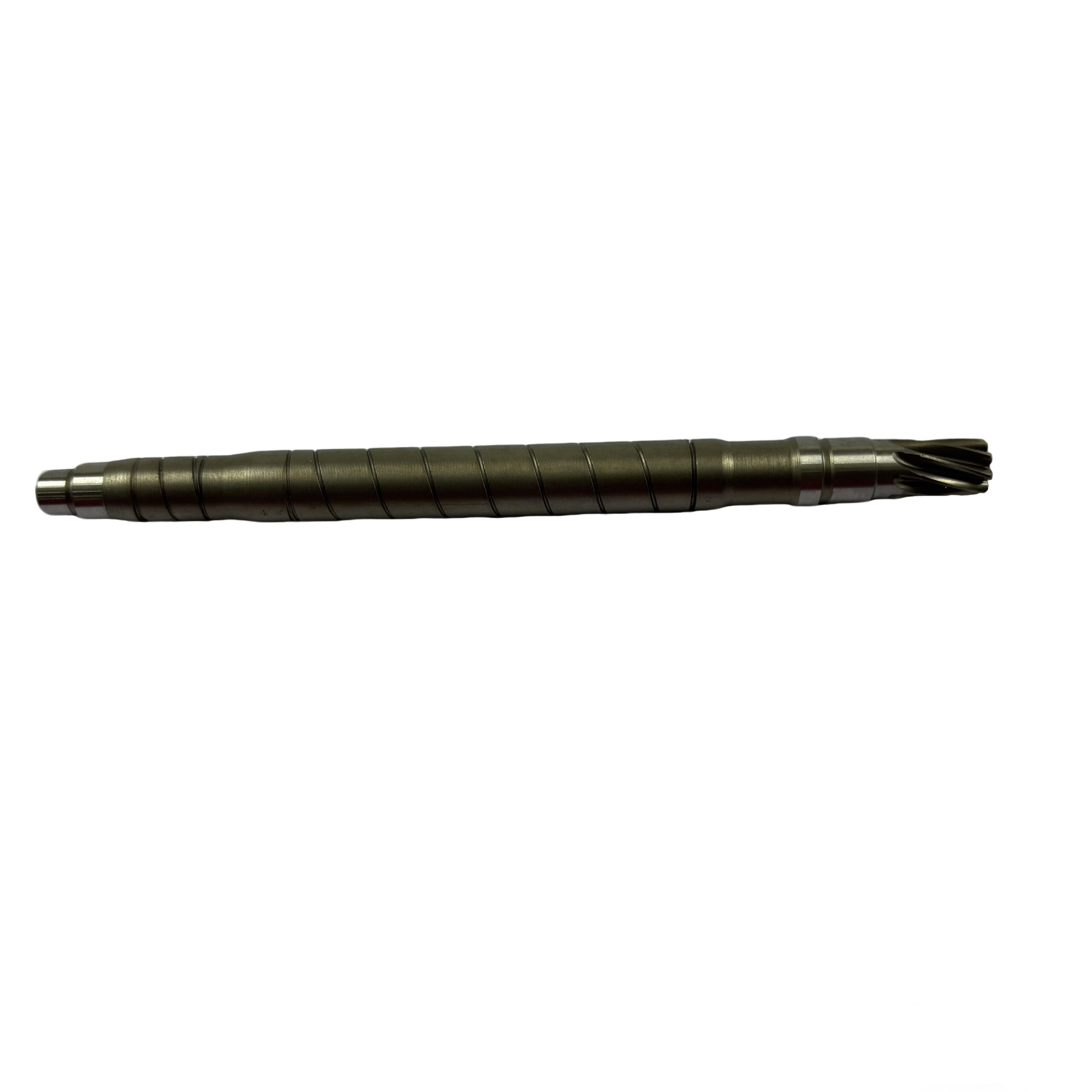

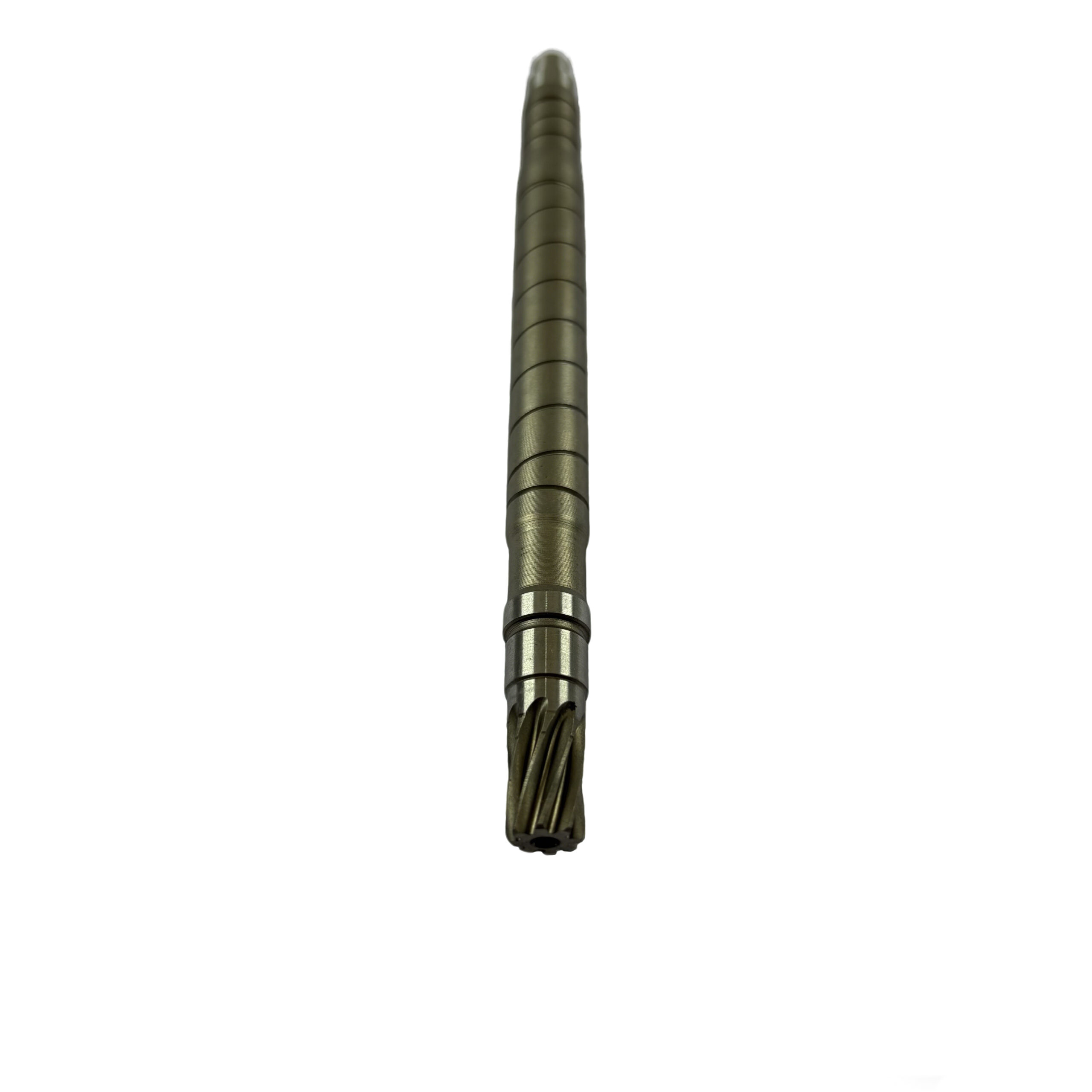

2020692 gear shaft (helical gear) is made of 20CrMo, with a pressure angle of 20°, module of 0.8, 8 teeth and 15° right-hand helix angle. It has a tooth outer diameter of 10.8mm, total length of 142.3mm and weight of 0.0870kg. Produced via precision processes including hobbing, heat treatment correction and multiple grinding, it is a dedicated transmission component for power tools.
Description
Additional information
| weight |
0.0870 |
|---|---|
| Core Components |
gear |
| Craftsmanship |
Hobbing |
Reviews (0)
Shipping & Delivery
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
Related products
12925004 Small Helical Gear
The 12925004 small helical gear (helical gear type) has a module of 0.9769, pressure angle of 14.5° and helix angle of 45°/L, with 15 teeth. Made of 20CrMo material, it is fabricated via sophisticated processes including normalizing, hobbing and nitriding heat treatment. Boasting a compact size (addendum circle diameter 22.67mm, total length 17mm, weight 0.0171kg), it is a dedicated transmission component for sewing equipment, featuring stable transmission, wear resistance and long service life.
1533-6 Tooth Gear and 1533-T36 Gear
1533-6 Tooth Helical Gear: 20CrMo helical gear for sewing machines, module 0.8, 6 teeth, 15.12°R helix angle, precision-engineered, stable and efficient transmission
1533-T36 Helical Gear: 20CrMo helical gear for sewing equipment, module 0.8, 36 teeth, 15.12°R helix angle, high-precision, strong adaptability
2020869
The 2020869 helical gear (dedicated for power tools) has a pressure angle of 20°, module of 0.8, 8 teeth and helix angle of 15°/R. With a shaft diameter of 8mm, outer diameter of 8.7mm, total length of 87mm and weight of 0.045kg, it is made of 20CrMo material through precision processes including normalizing, hobbing and heat treatment + correction, featuring stable transmission and high fatigue resistance.
2024379 Gear
The 2024379 helical gear (dedicated for power tools) has a pressure angle of 20°, module of 0.8, 35 teeth and helix angle of -15°/L. It has an inner diameter of 7.92mm, outer diameter of 30.2mm, total length of 9mm and weight of 0.0298kg. Made of 20CrMnTi material and manufactured through precision processes including normalizing, hobbing and heat treatment, it features stable transmission, wear resistance and long service life.
2024409（2024502）
The 2024409 (2024502) helical gear (dedicated for power tools) has a pressure angle of 20°, module of 1.25, 19 teeth and helix angle of 20°/R. With an inner diameter of 17mm, outer diameter of 28.9mm, total length of 12mm and weight of 0.0289kg, it is made of 20CrMnTi material through precision processes including normalizing, hobbing and heat treatment, featuring stable transmission, wear resistance and impact resistance.
2024421(2024524)
The 2024421 (2024524) helical gear (dedicated for power tools) has a pressure angle of 20°, module of 1.25, 51 teeth and helix angle of 20°/L. With an inner diameter of 14mm, outer diameter of 69.5mm, total length of 10.5mm and weight of 0.1747kg, it is made of 20CrMo material through precision processes including normalizing, hobbing, heat treatment and boring. It is characterized by high torque resistance, stable transmission and long service life.
