32001099-00

$1.20piece

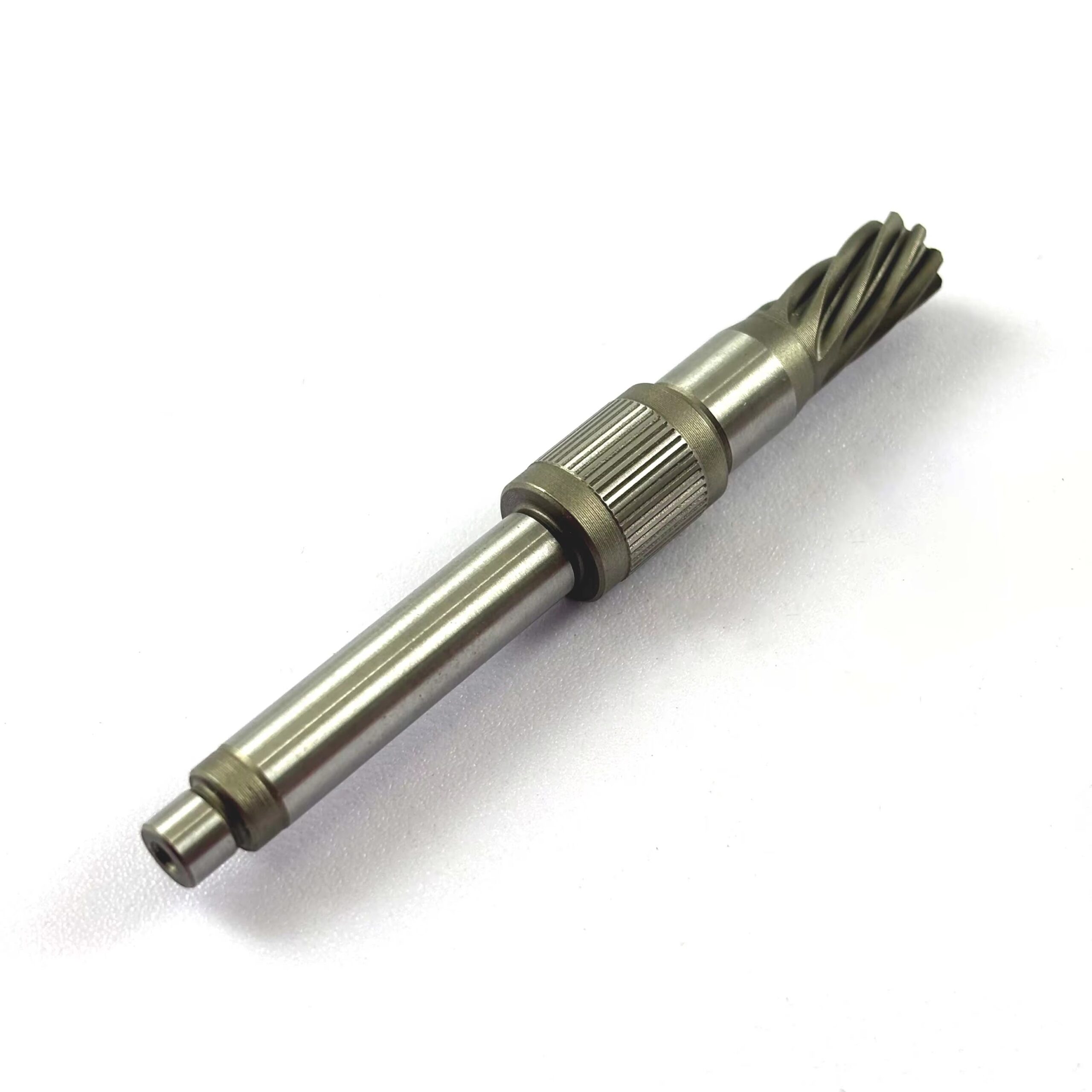

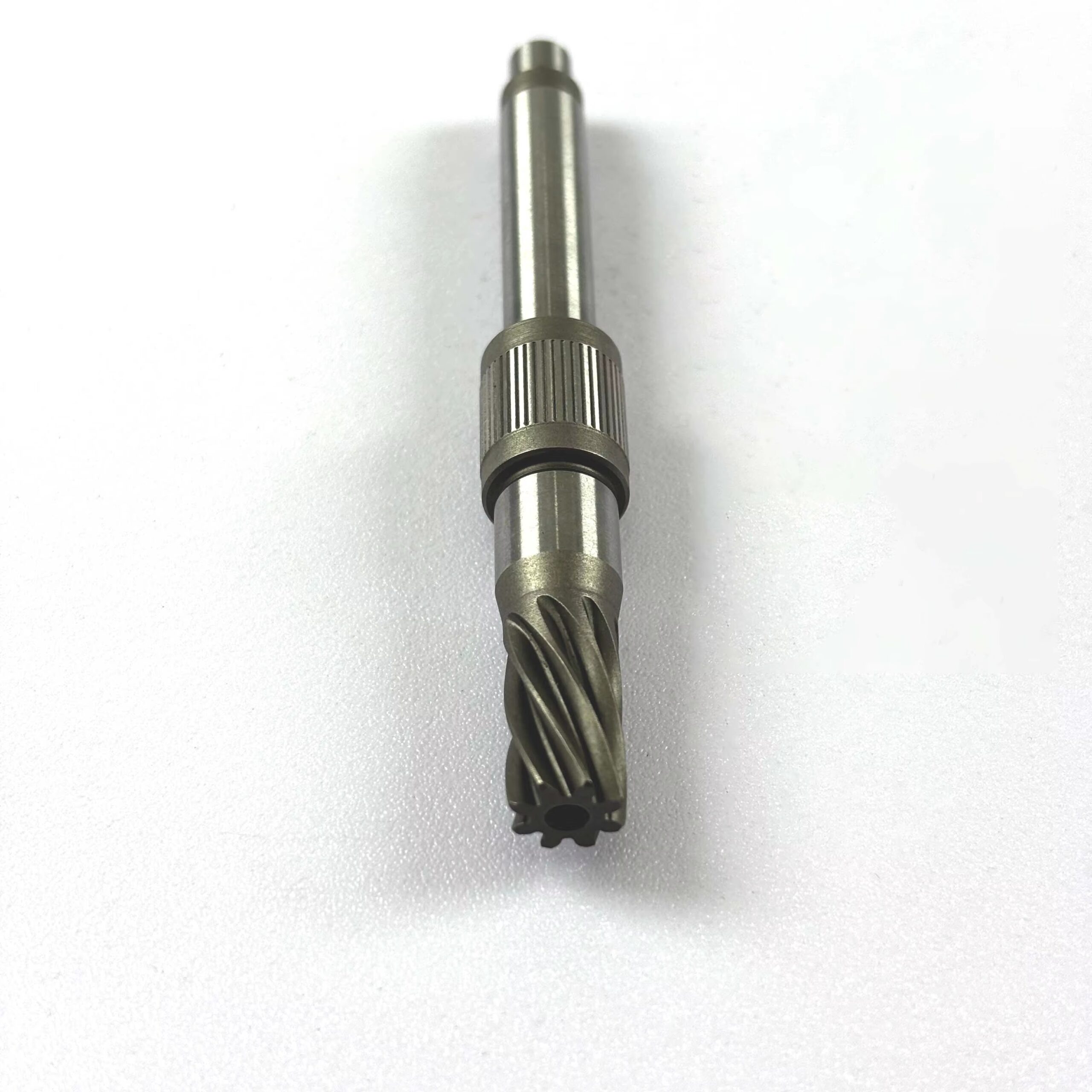

Model 32001099-00 helical gear is made of 20CrMo, produced via precision processes including normalizing, hobbing, heat treatment correction and multiple outer diameter grinding. It has a pressure angle of 20°, module of 0.8, 8 teeth, 20° left-hand helix angle, 8mm shaft diameter, 8.894mm tooth outer diameter and 0.0429kg weight, serving as a dedicated transmission component for power tools.

Add to compare
Add to wishlist
SKU: XDS-003-C Category:
Description
Product Name: 32001099-00Product Category: Helical Gear
This product is made of 20CrMo alloy structural steel and manufactured through a series of precision processes: Normalizing → Turning → Rough Grinding for Datum Correction → Hobbing → Heat Treatment Correction → Shot Blasting → Four-pass Outer Diameter Grinding → Full Visual Inspection. Every step is strictly controlled to ensure dimensional accuracy and structural stability, thus guaranteeing reliable gear transmission.
The product features precise and controllable core technical parameters: pressure angle of 20°, module of 0.8, 8 teeth, helix angle of 20° (left-hand), shaft diameter of 8mm, tooth outer diameter of 8.894mm, total length of 86.3mm, and a single unit weight of 0.0429kg.Thanks to the high strength, wear resistance and fatigue resistance of 20CrMo material, combined with the advantages of heat treatment correction, multiple outer diameter grinding and other processes, this gear is suitable for high-frequency and high-load transmission conditions. Specially designed for the power tool field, it can provide efficient and stable power transmission support for equipment.
Additional information
weight

0.0429
Core Components

gear
Craftsmanship

Hobbing
