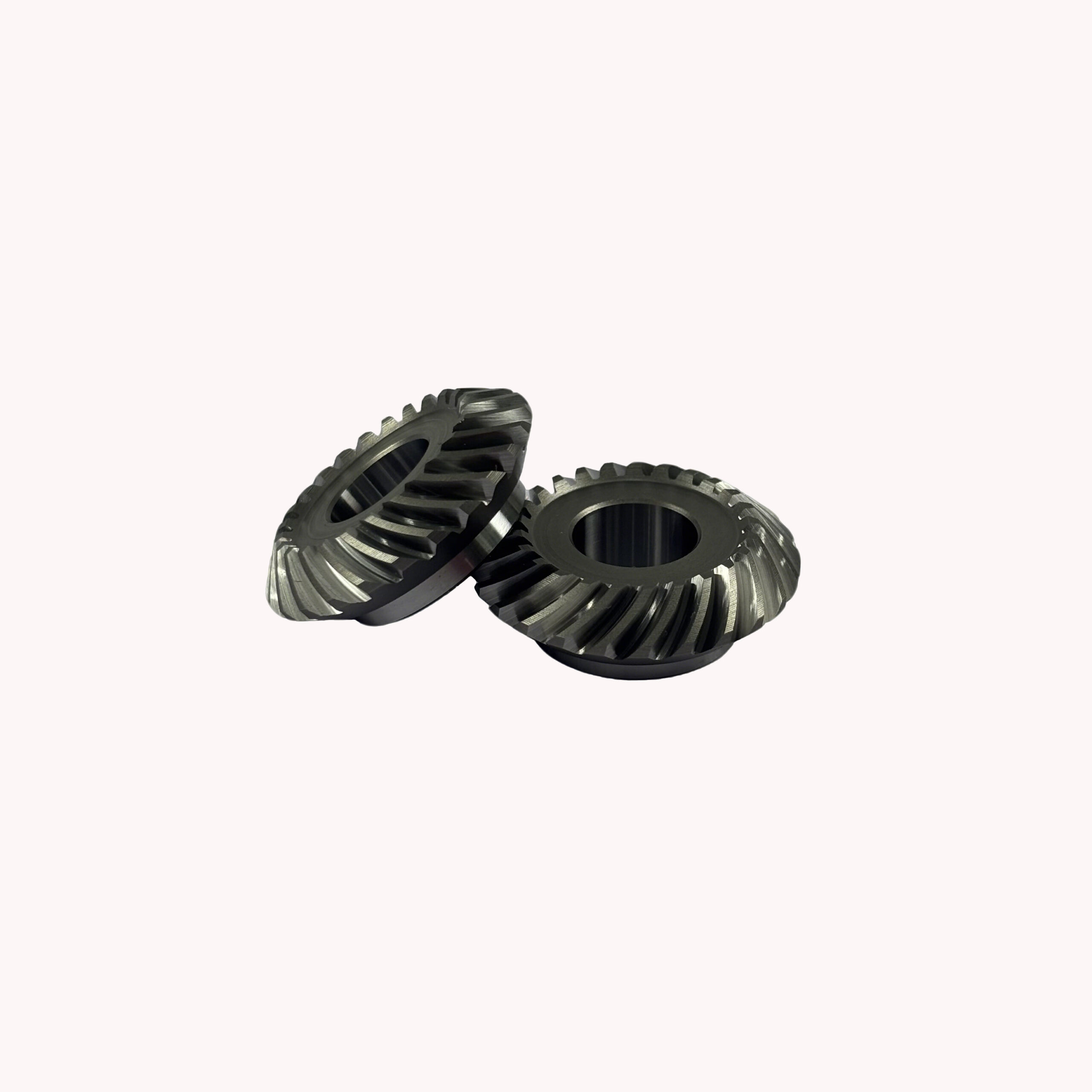

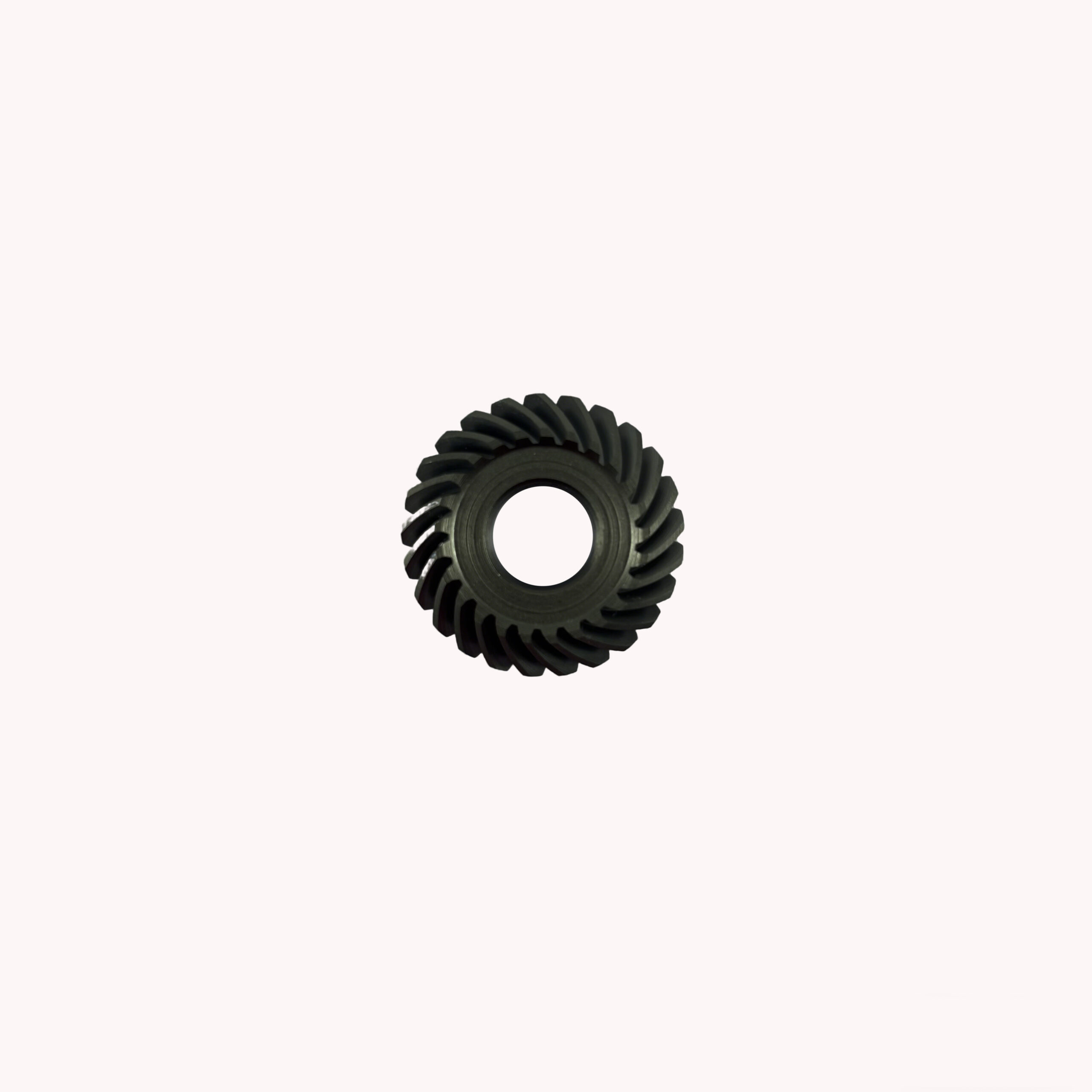

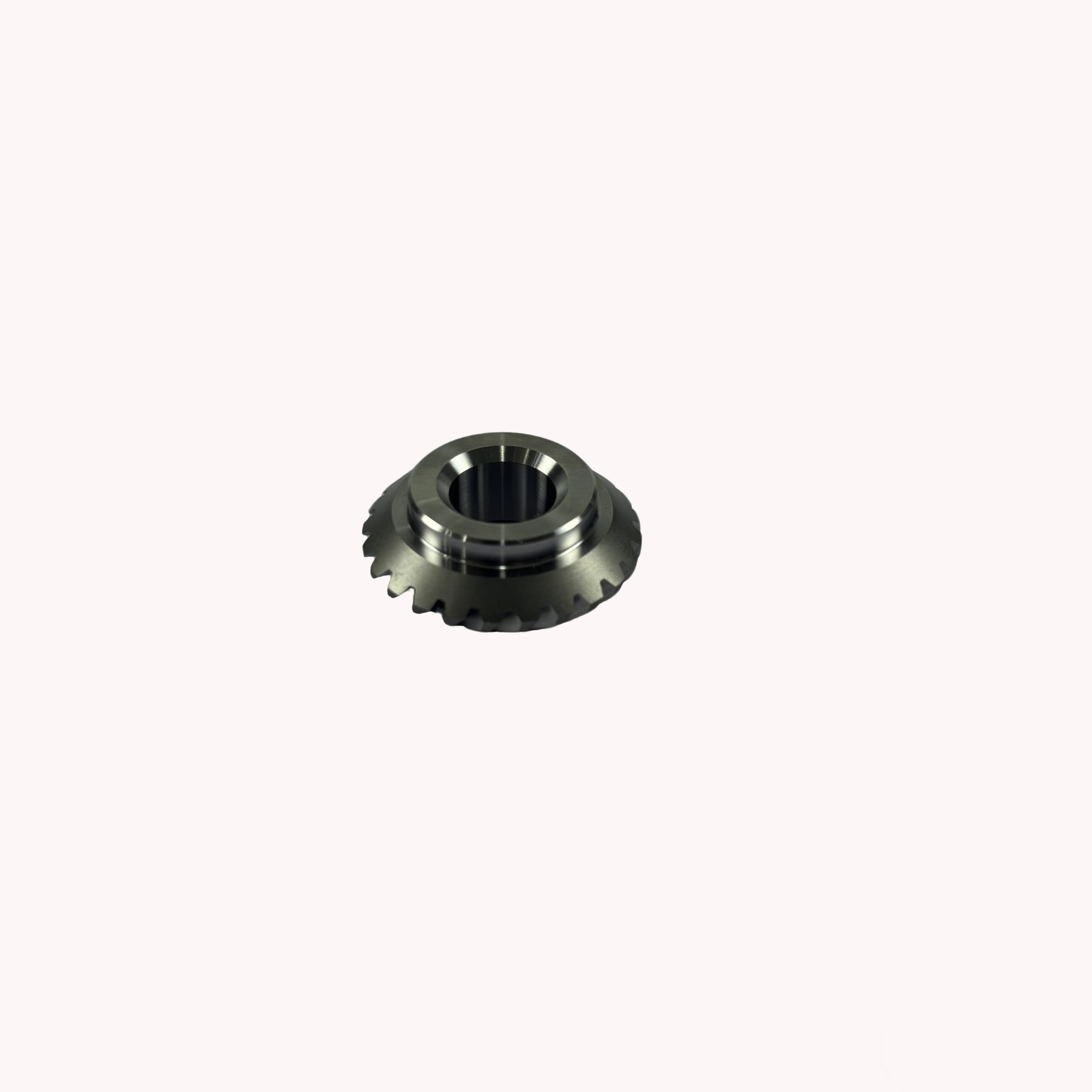

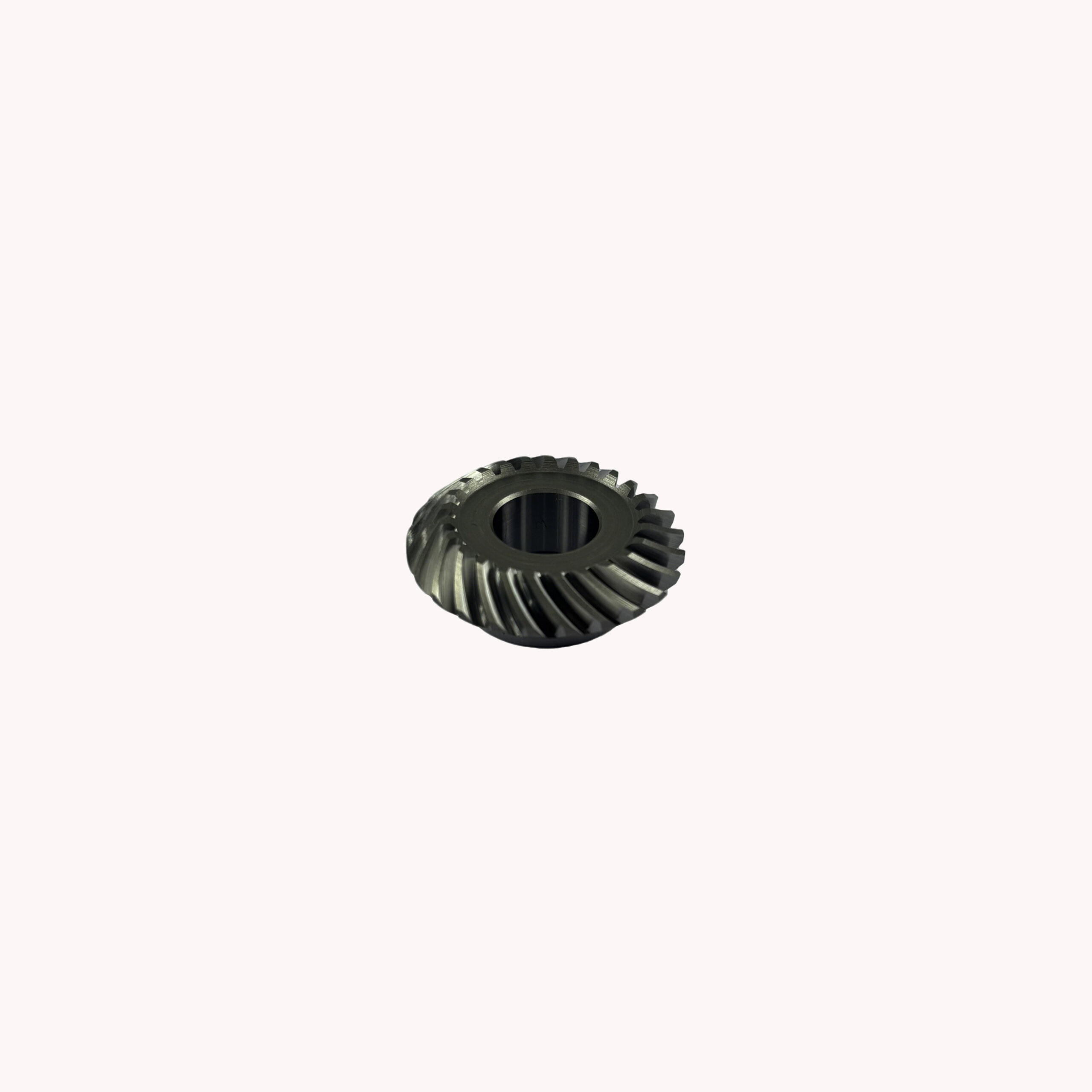

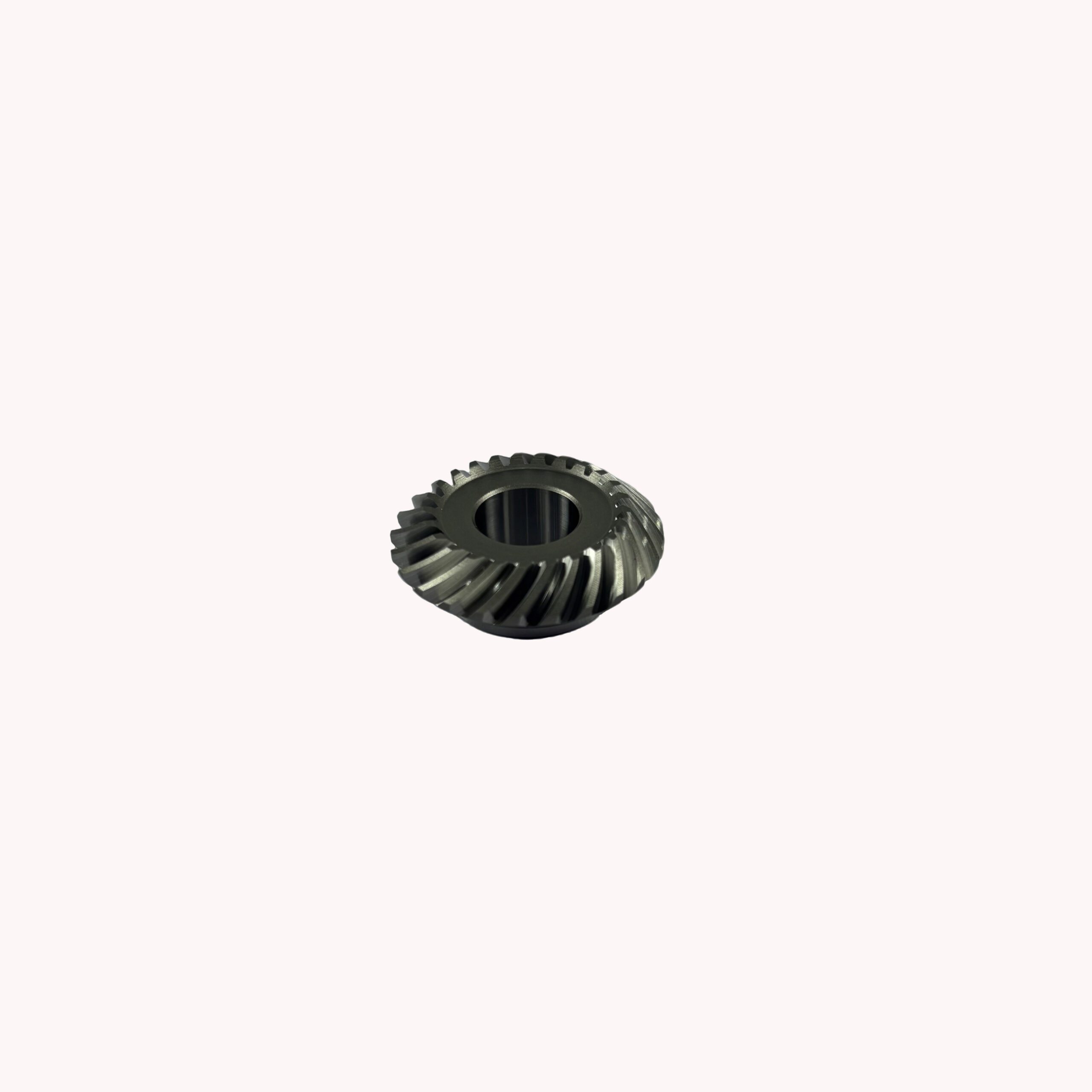

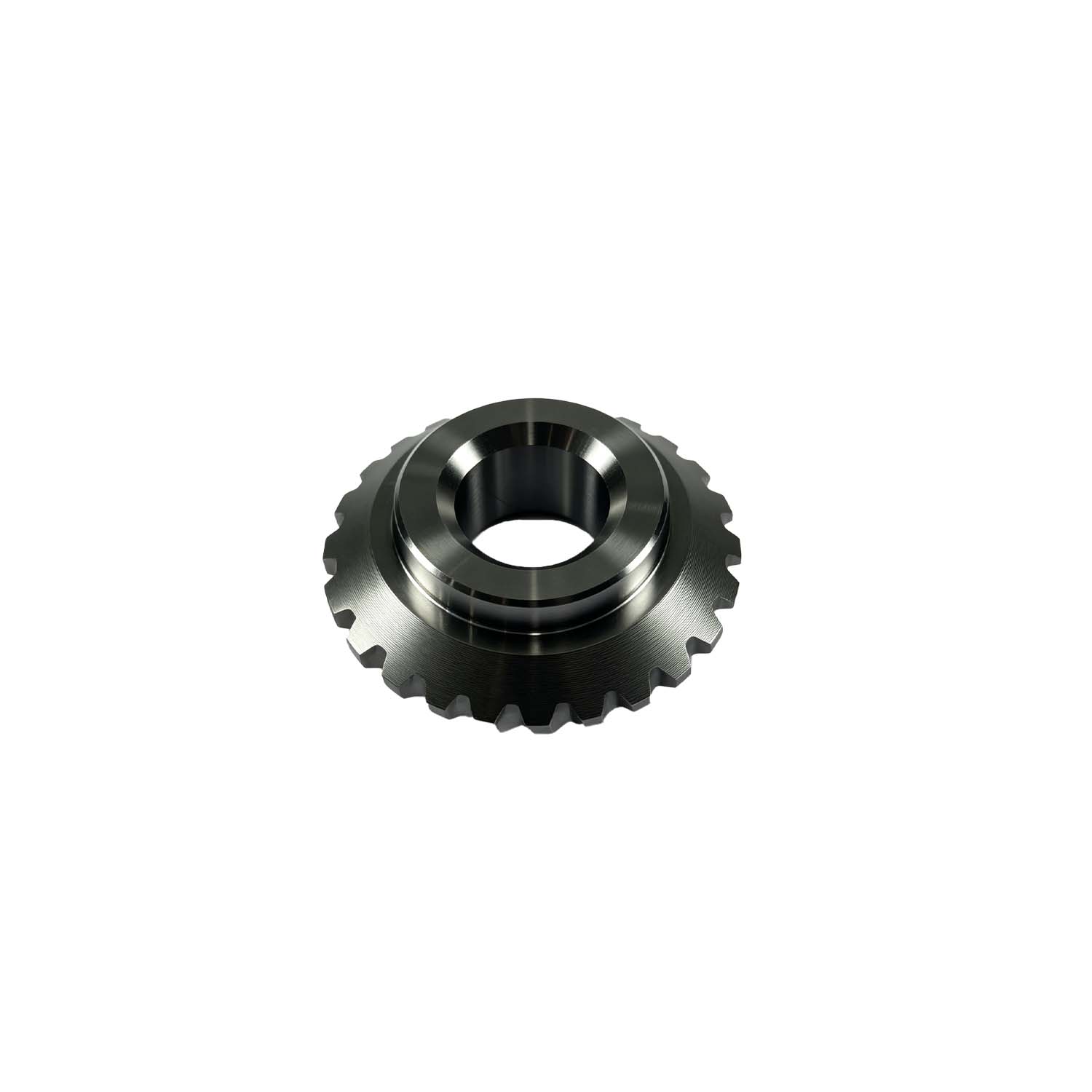

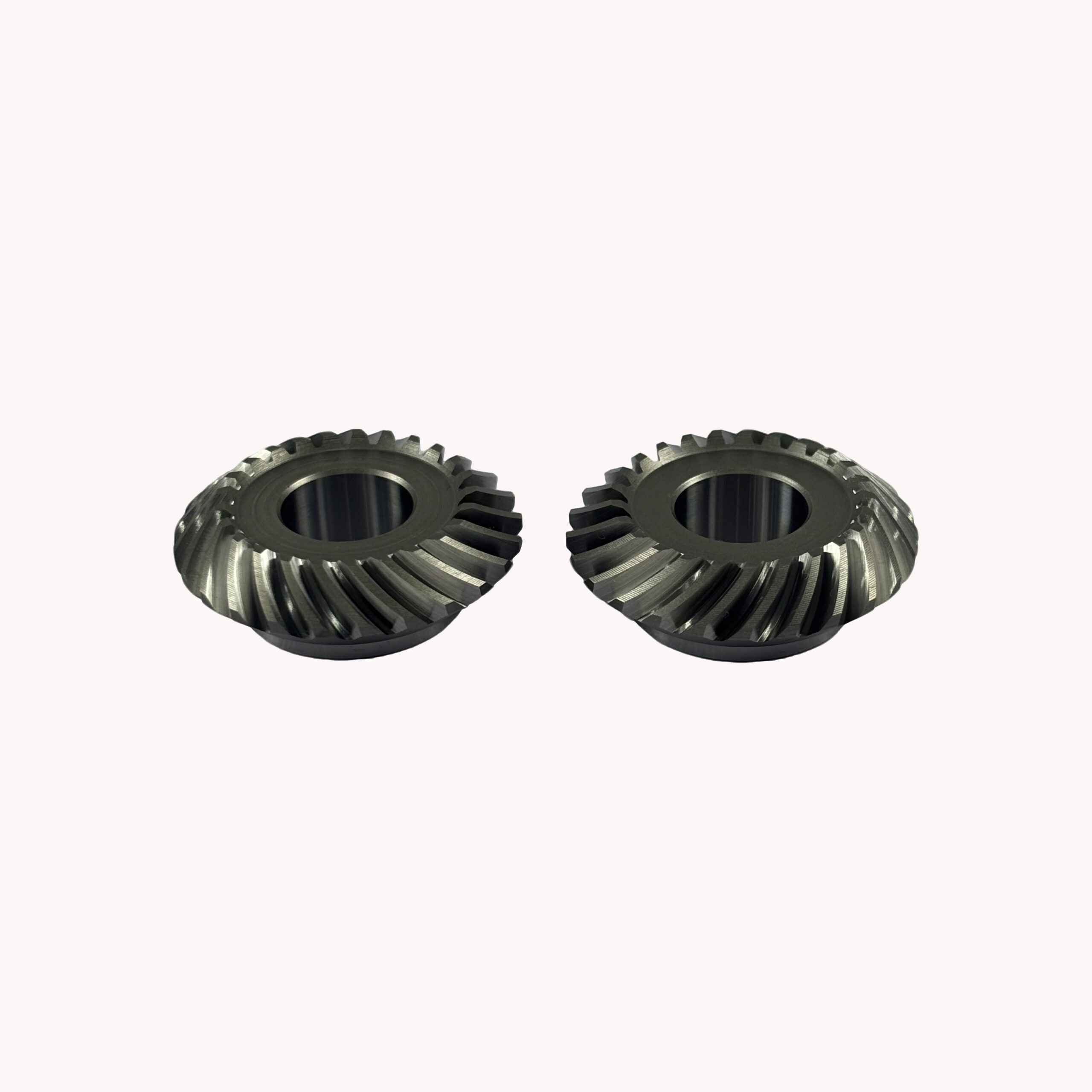

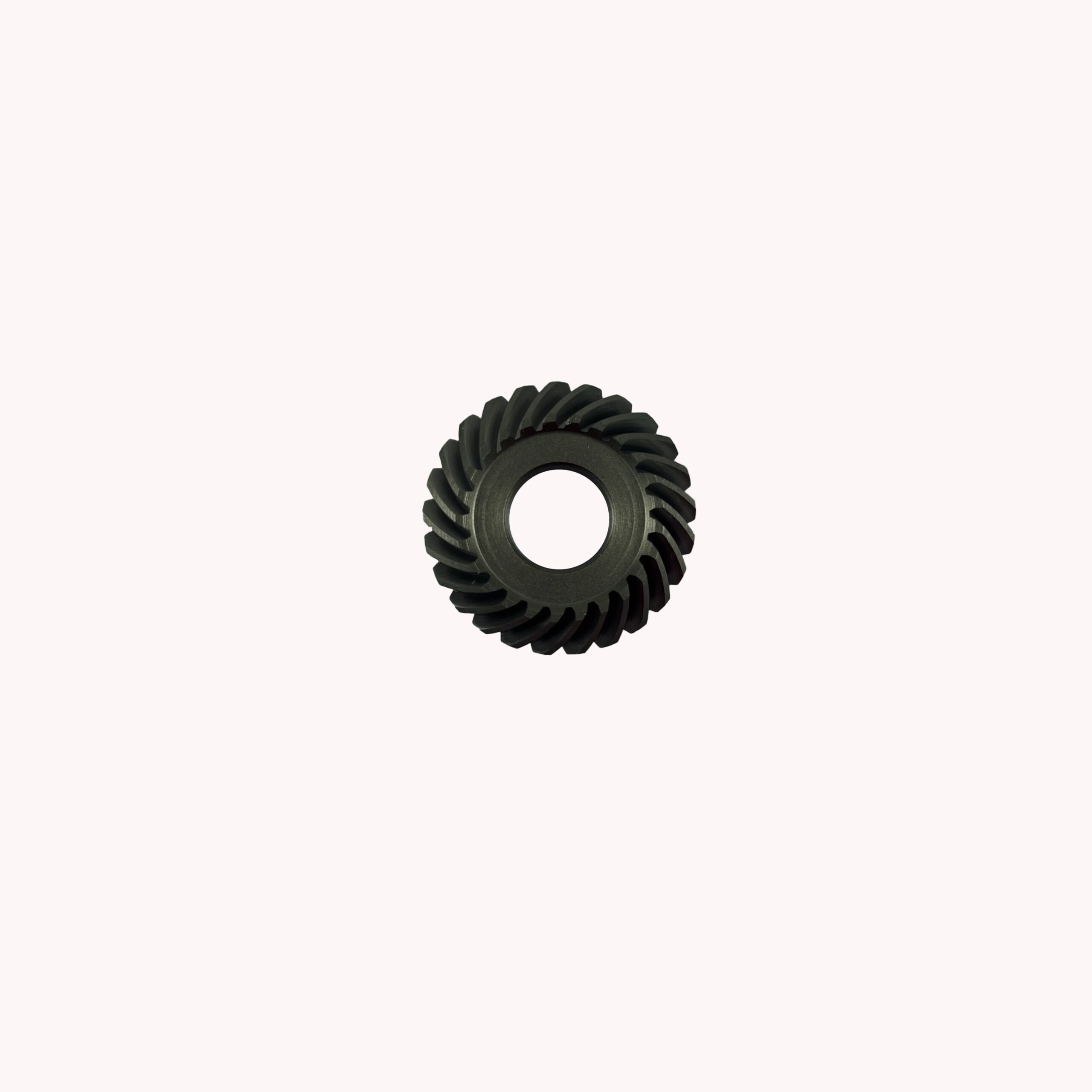

TIGL060-XXX-1687 Left-hand (Gear Ground) and TIGL060-XXX-1687 Right-hand (Gear Ground)
$20.38piece
SYDH-002-C1 (TIGL060-XXX-1687)
Right-hand spiral bevel gear. Parameters: pressure angle 20°, module 1.25, 25 teeth, gear ratio 1, spiral angle 35°(R). Inner diameter 12 mm, outer gear diameter 31.75 mm, overall length 11.23 mm, weight 0.0333 kg. Made of 20CrMo with multiple precision processes. Wear-resistant and low-noise, matched for sewing equipment.
Description
SYDH-001-C1 (TIGL060-XXX-1687 Left-hand Ground Spiral Bevel Gear)
This is a left-hand spiral bevel gear with ground teeth. It has a pressure angle of 20°, module 1.25, 25 teeth, gear ratio 1 and a left-hand spiral angle of 35°. The inner diameter is 12 mm, outer gear diameter 31.75 mm, overall length 11.23 mm, and unit weight 0.0335 kg. Made of 20CrMo alloy steel, it features high strength, wear resistance and fatigue resistance. The manufacturing processes include cutting, turning, gear milling, heat treatment, hanging shot blasting, boring, facing, outer diameter turning and gear grinding. With high precision and smooth meshing, it operates stably with low noise and serves as a transmission gear for sewing equipment.
Additional information
| SYDH-001-C1 and SYDH-002-C1 weight |
0.0335and0.0333 |
|---|---|
| SYDH-001-C1 and SYDH-002-C Core Components1 |
gear |
| SYDH-001-C1 and SYDH-002-C Craftsmanship |
Millng |
