1616A-JG052 (Transmission Gear)
$16.30piece
SB-007-C (1616A-JG052)

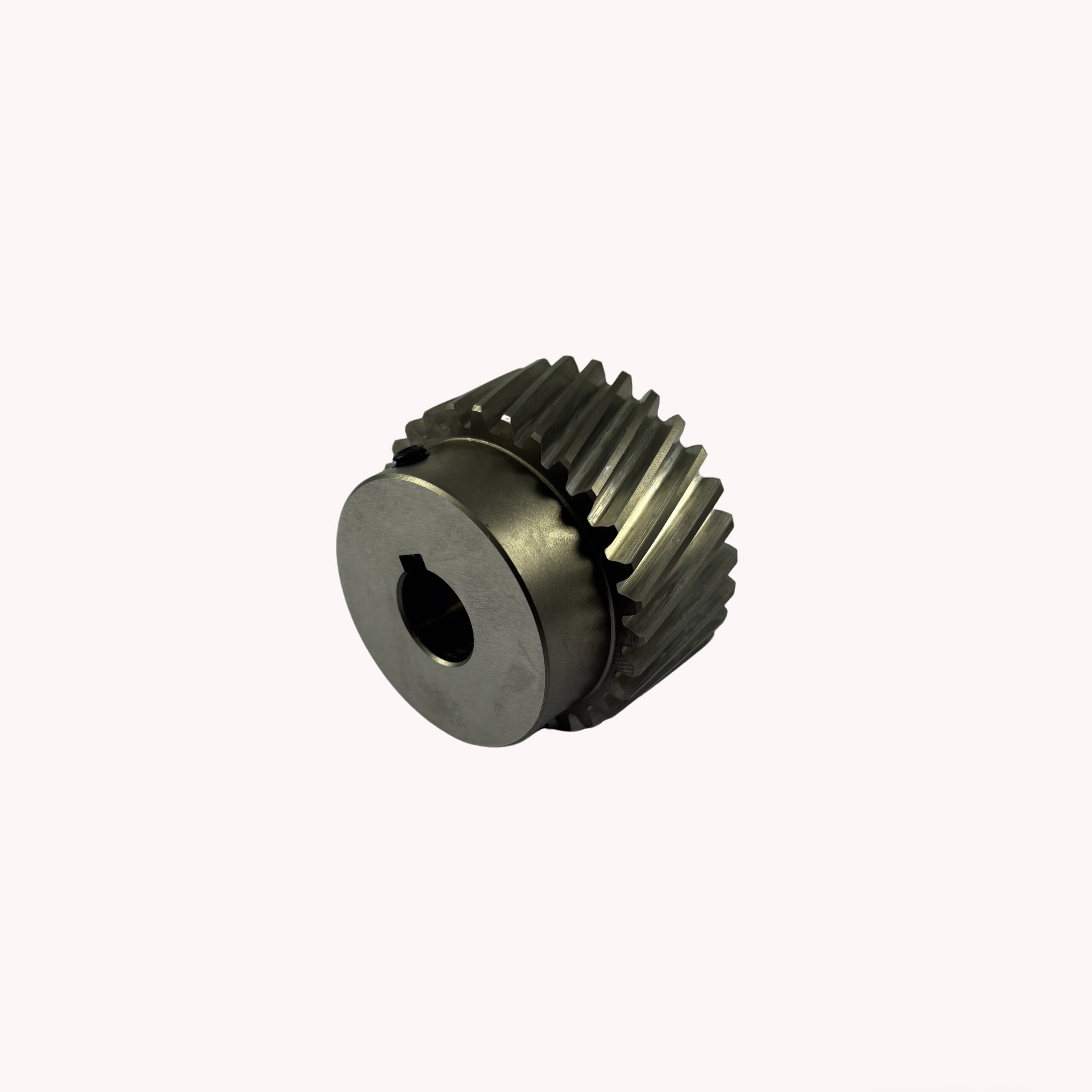

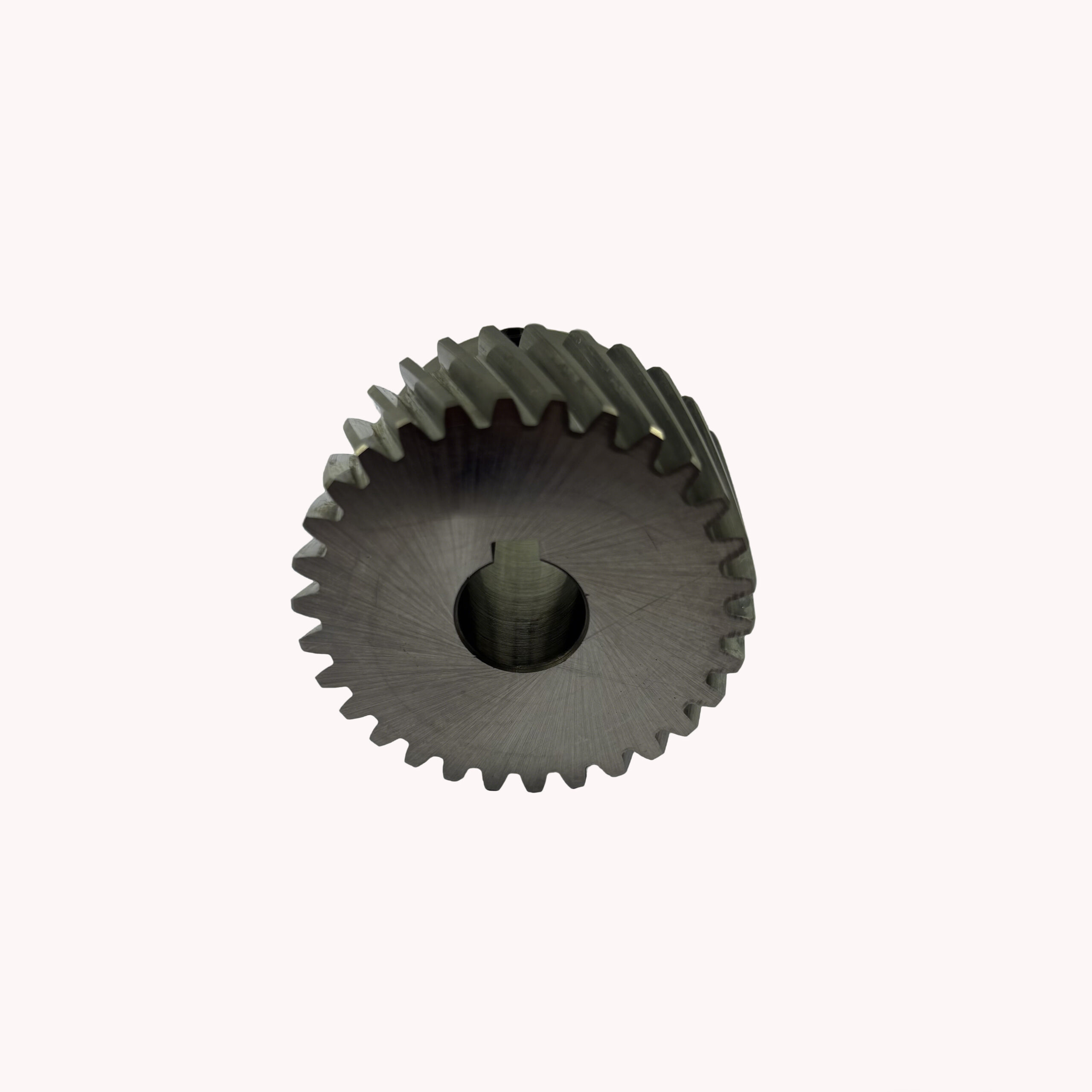

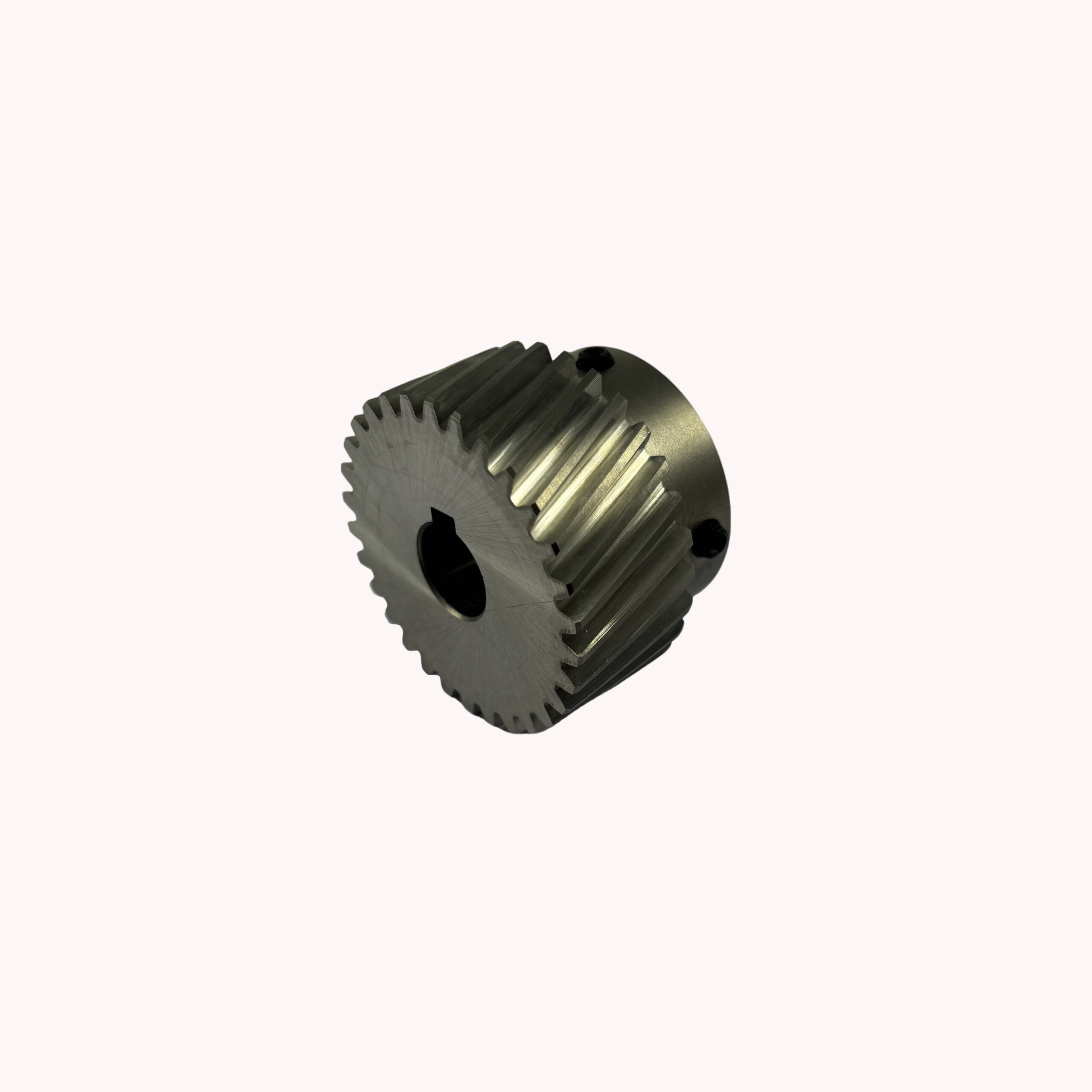

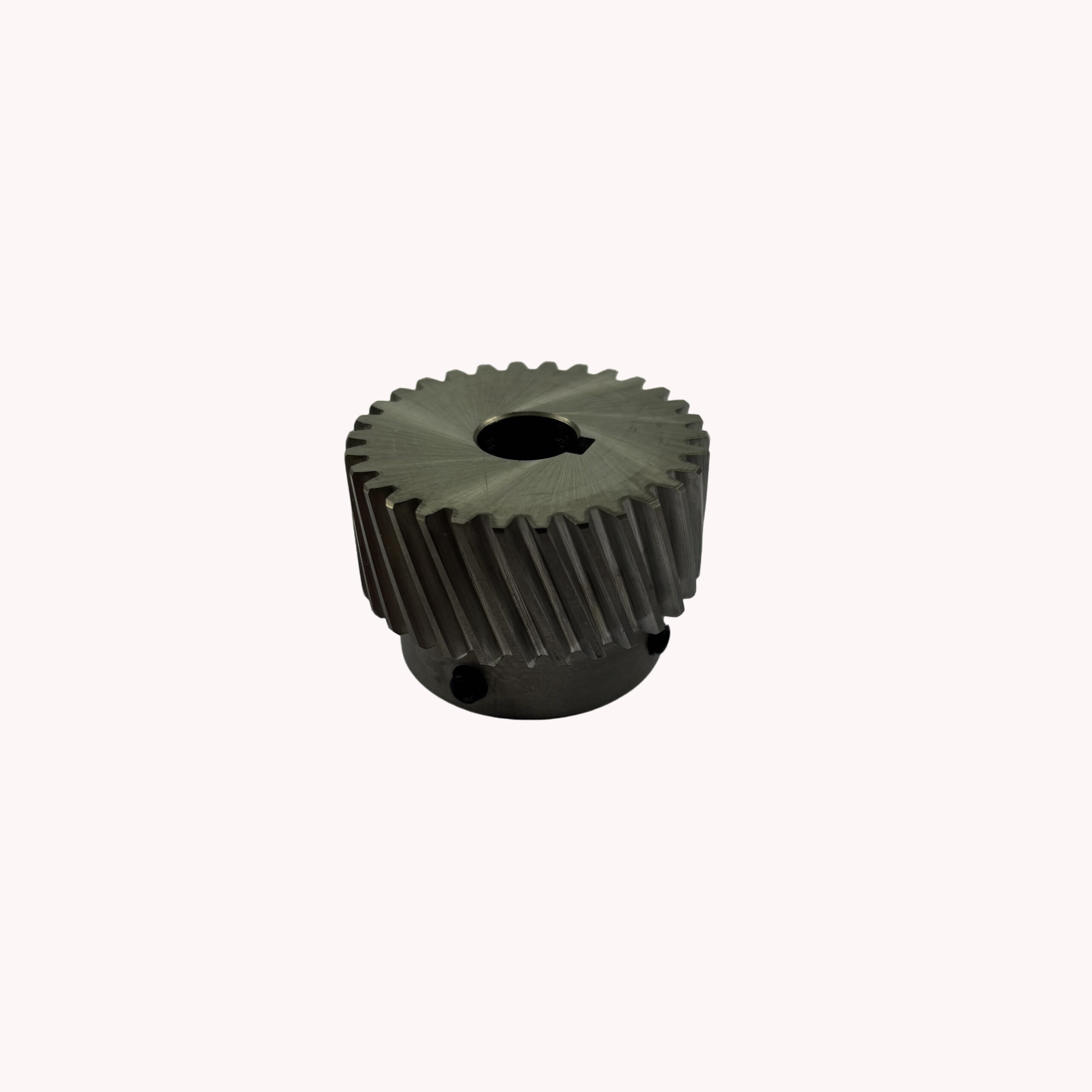

Left-hand transmission helical gear. Parameters: pressure angle 20°, module 1.5, 30 teeth, helix angle 19.512°(L). Inner diameter 14 mm, outer gear diameter 50.72 mm, overall length 35 mm, weight 0.3983 kg. Manufactured from 20CrMo via complete precision processes including hobbing, grinding, wire cutting and assembly. High precision and stable operation, matched for sewing equipment.
Description
SB-007-C (1616A-JG052 Transmission Helical Gear)
Model SB-007-C is a left-hand transmission helical gear. It has a pressure angle of 20°, module 1.5, 30 teeth and a left-hand helix angle of 19.512°. The inner diameter is 14 mm, outer gear diameter 50.72 mm, overall length 35 mm, and unit weight 0.3983 kg. Made of 20CrMo alloy steel, it features high strength, good wear resistance and fatigue resistance. The processes include cutting, turning, threaded hole machining, reaming, rough hobbing, heat treatment, hanging shot blasting, secondary reaming, facing, gear grinding, wire cutting for keyways and screw assembly. With high tooth precision and stable transmission, it is used as a transmission gear for sewing equipment.
Additional information
| SB-007-C weight |
0.3983 |
|---|---|
| SB-007-C Core Components |
gear |
| SB-007-C Craftsmanship |
Hobbing |
