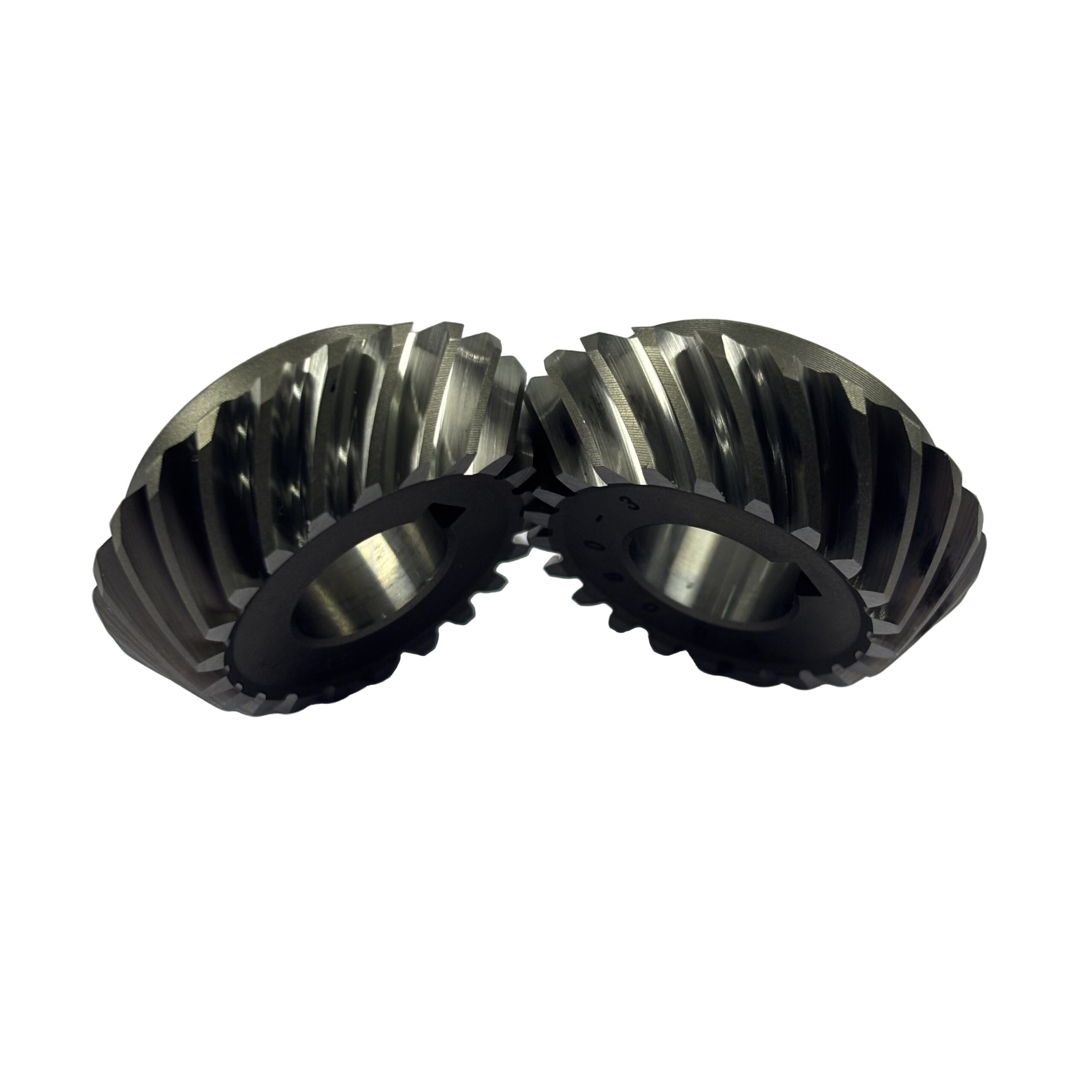

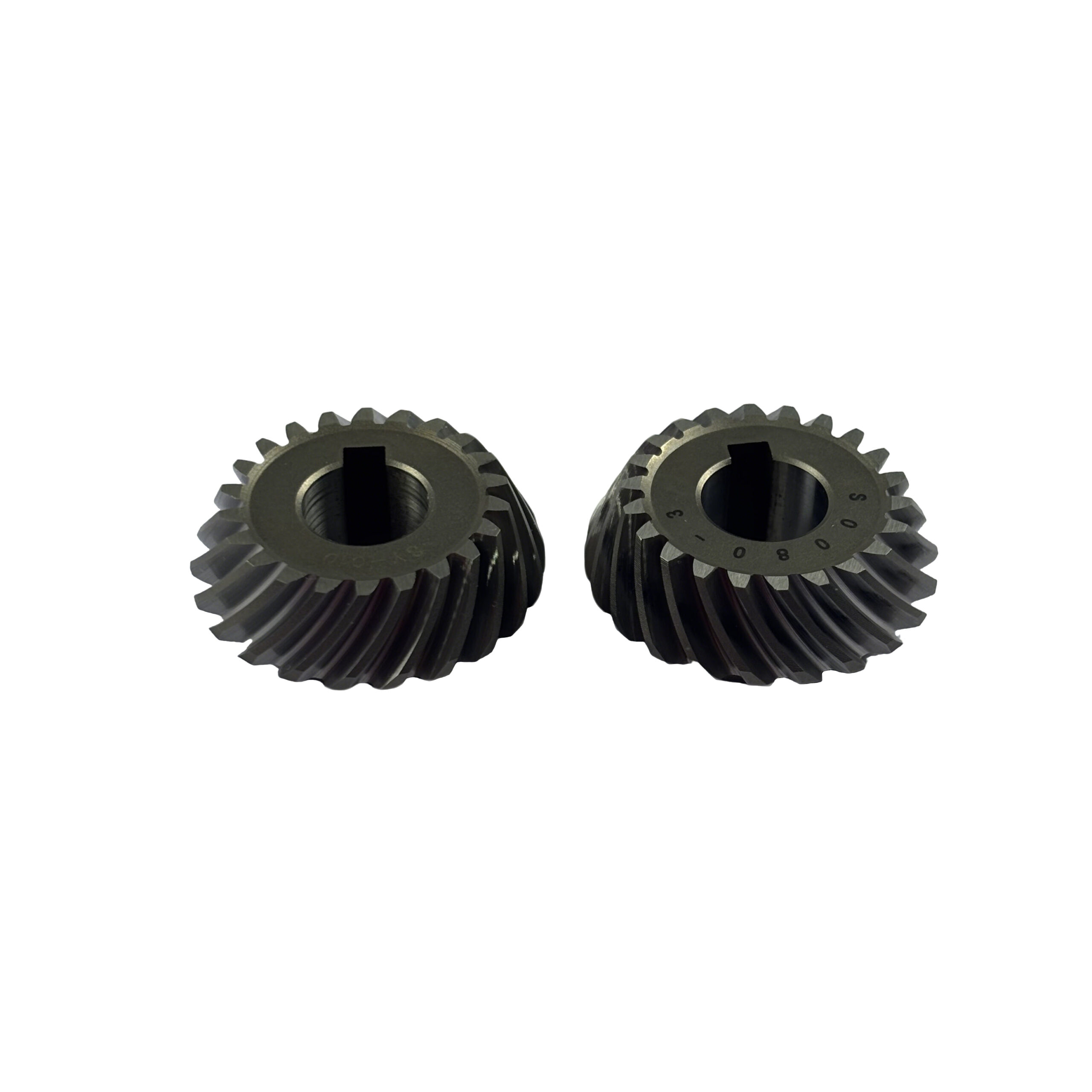

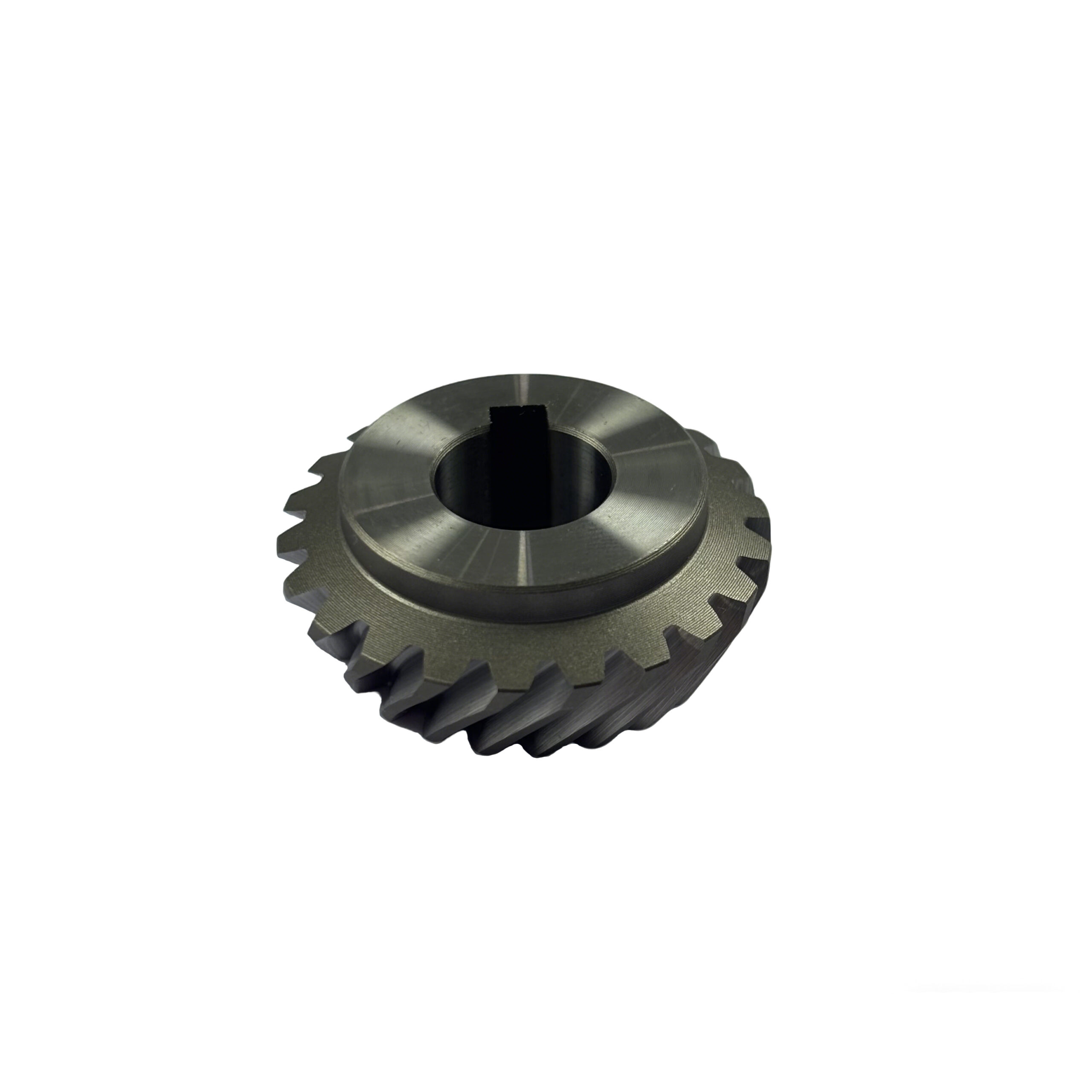

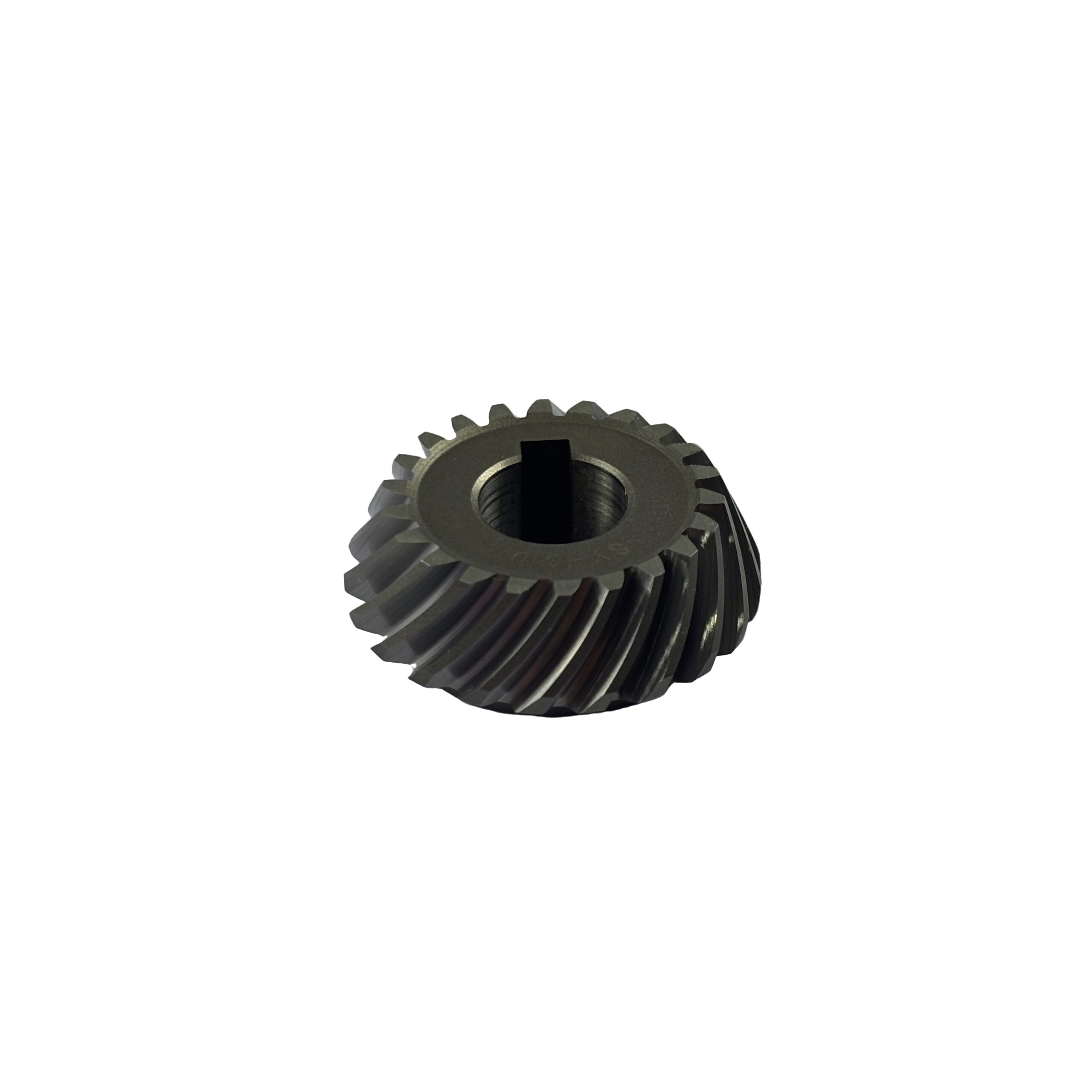

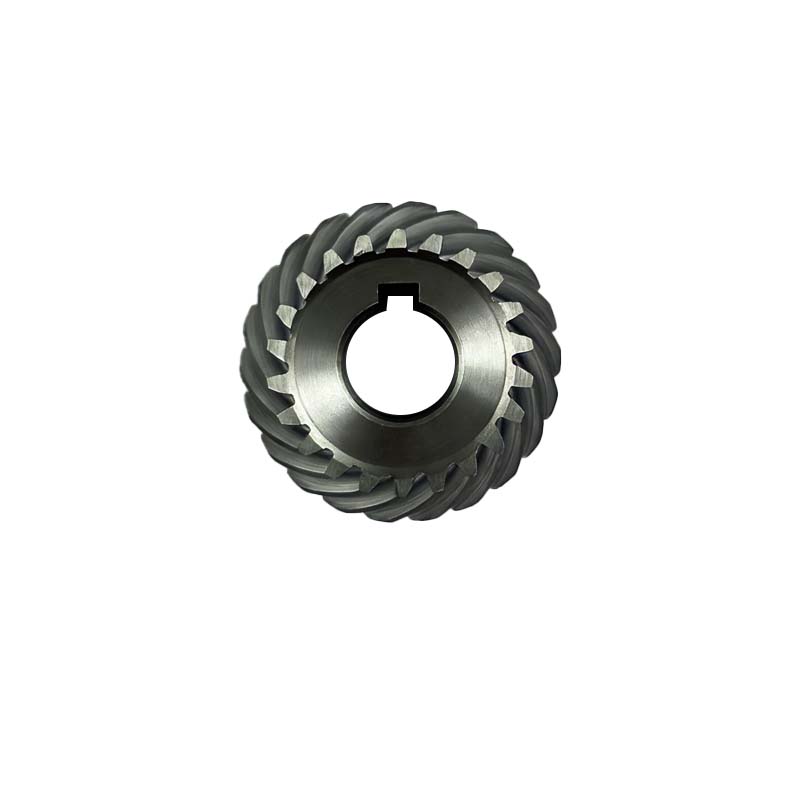

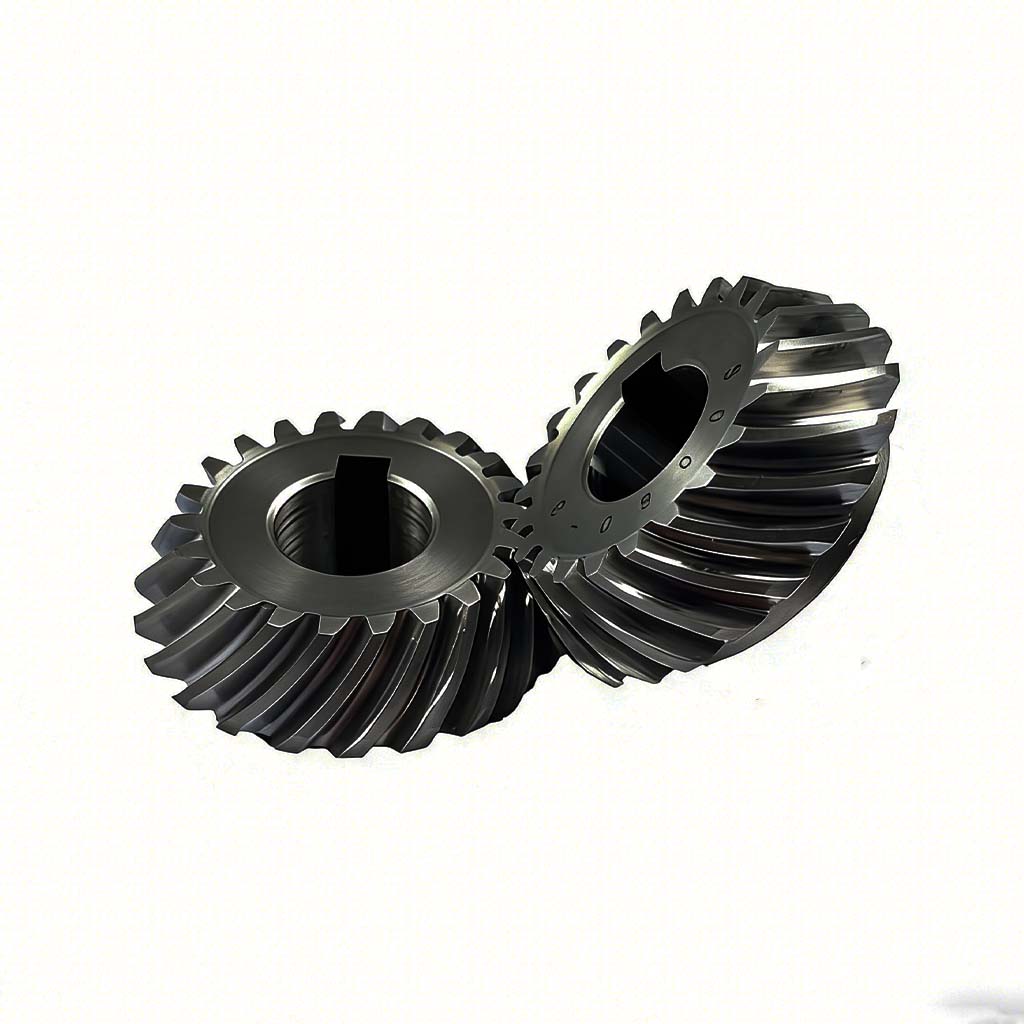

SUY-S0081 No.3 Spiral Bevel Gear A (1.5M, 22 Teeth, Right-Hand)
$7.00piece
SuYou-010 is a 35° right-hand spiral bevel gear made of 20CrMo, with module 1.5 and 22 teeth. Manufactured by precision milling, grinding and heat treatment, it features high precision, stable transmission and good wear resistance.
描述
Model: SuYou-010
Product Name: SUY-S0081 No.3 Spiral Bevel Gear A (1.5 Module, 22 Teeth, Right-Hand)
Type: Spiral Bevel Gear
Main Parameters: Pressure angle 20°, module 1.5, number of teeth 22, helix angle 35° right-hand, inner bore 12 mm, outer diameter 34 mm, total length 13.5 mm, weight 0.0556 kg
Material: 20CrMo alloy steel
Process: Sawing, turning, gear milling, heat treatment, shot blasting, boring & facing, total length grinding, gear grinding, keyway by wire cutting
This gear is made through precision machining and heat treatment, with high dimensional accuracy, good tooth surface finish, stable transmission, and excellent strength and wear resistance, suitable for various precision transmission mechanisms.
其他信息
| weight |
0.0556 |
|---|---|
| Core Components |
gear |
| Craftsmanship |
Milling |
