SUY-S0079 Gear 1 Spiral Bevel Gear and SUY-S0078 Gear 2 Spiral Bevel Gear A
$16.24piece
Two spiral bevel gears made of 20CrMo: SuYou‑007‑C (left‑hand, module 1.5, 40 teeth, ratio 2) and SuYou‑008‑C (right‑hand, module 1.5, 20 teeth). Precision machined for power tool transmission.
Description

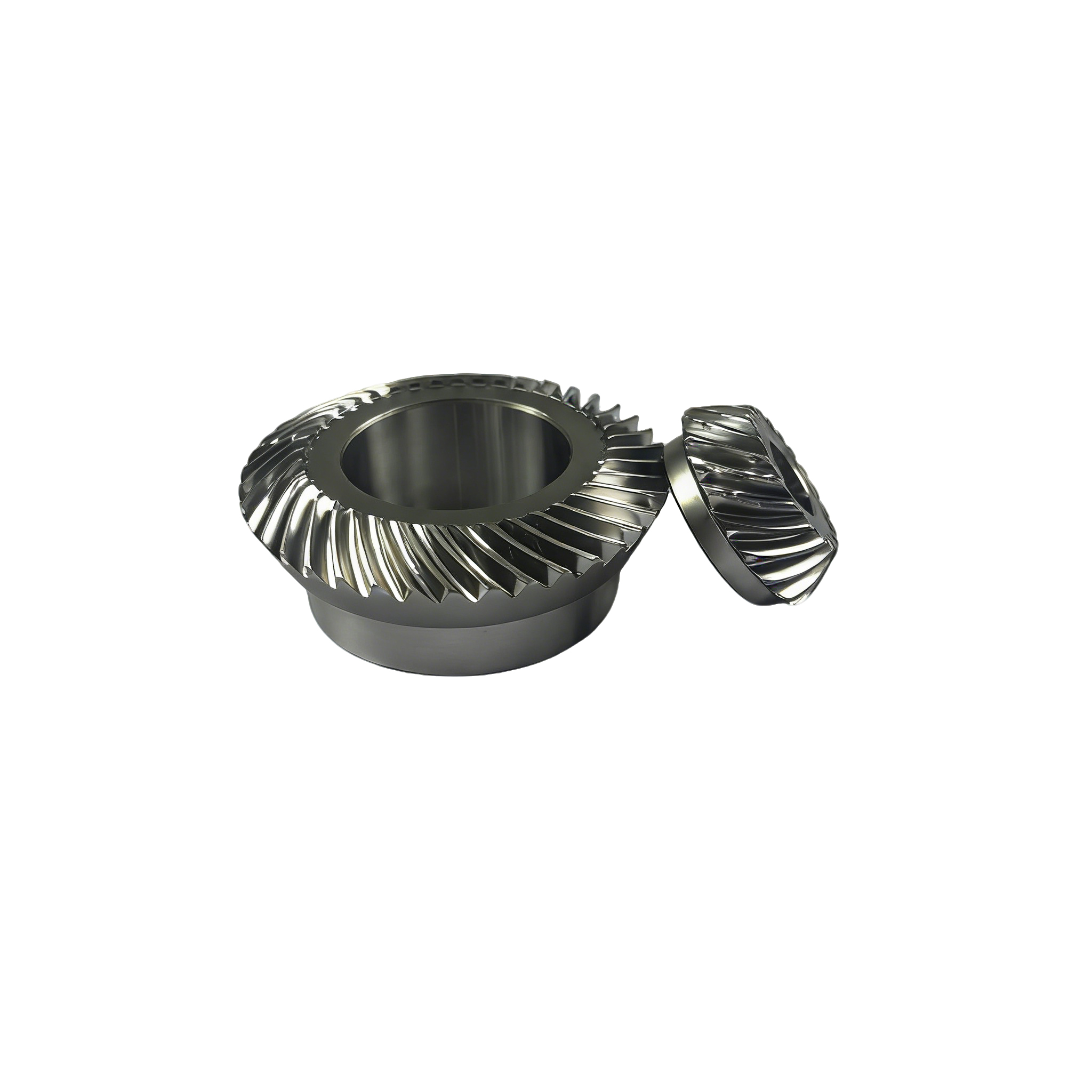

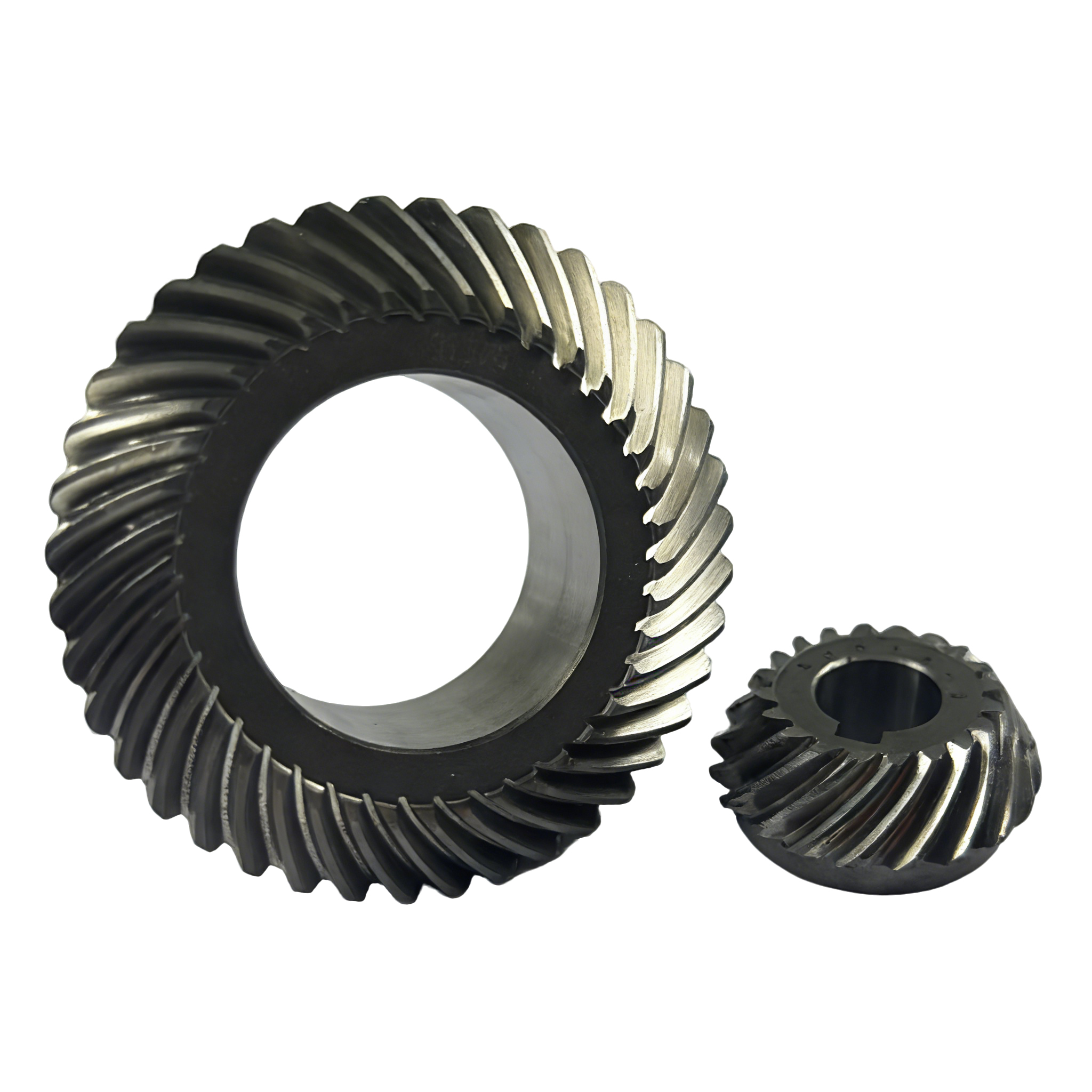

This series includes two matched spiral bevel gears: SuYou‑007‑C (SUY‑S0079 Gear 1 Spiral Bevel Gear) and SuYou‑008‑C (SUY‑S0078 Gear 2 Spiral Bevel Gear A). Both are made of 20CrMo and used for power tool transmission.

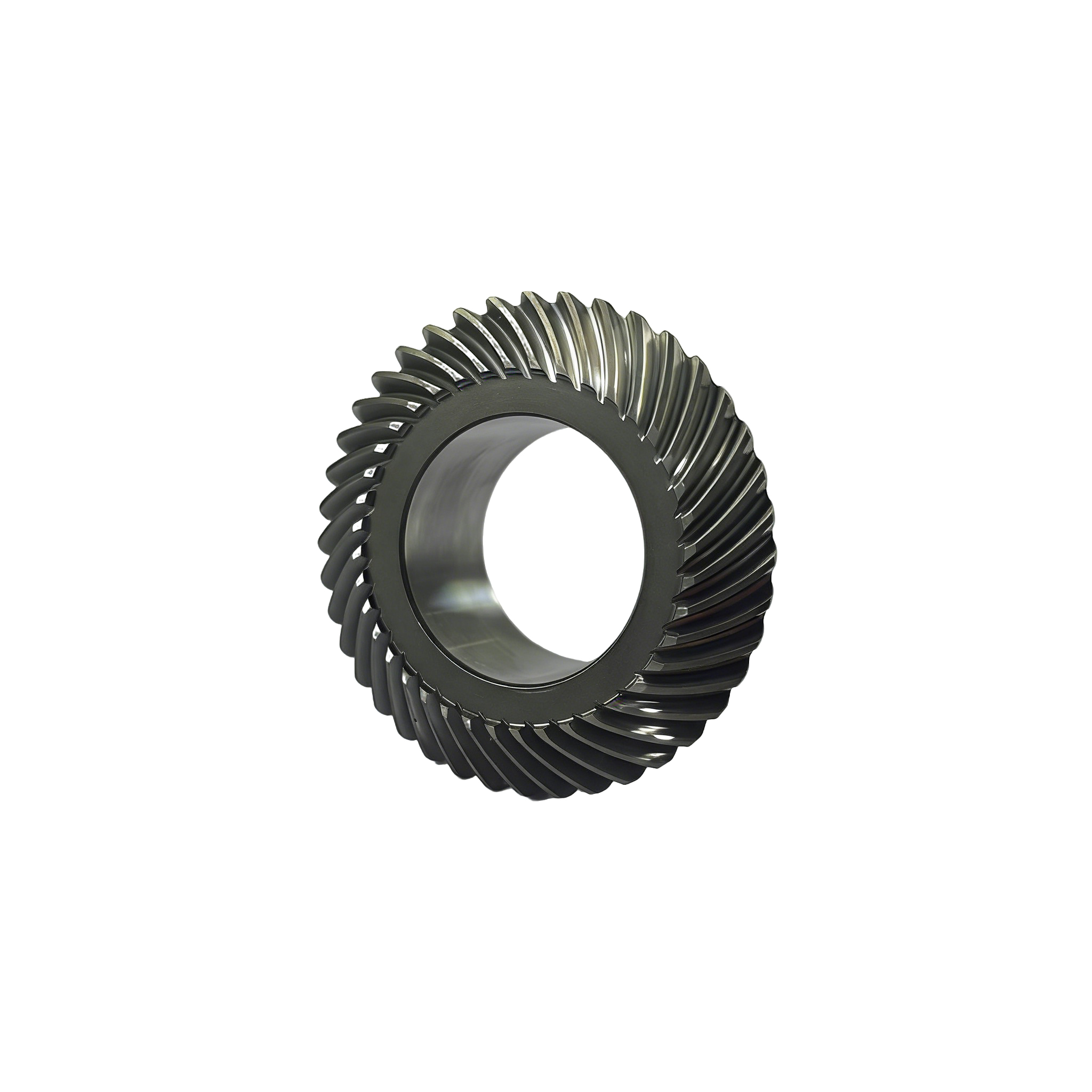

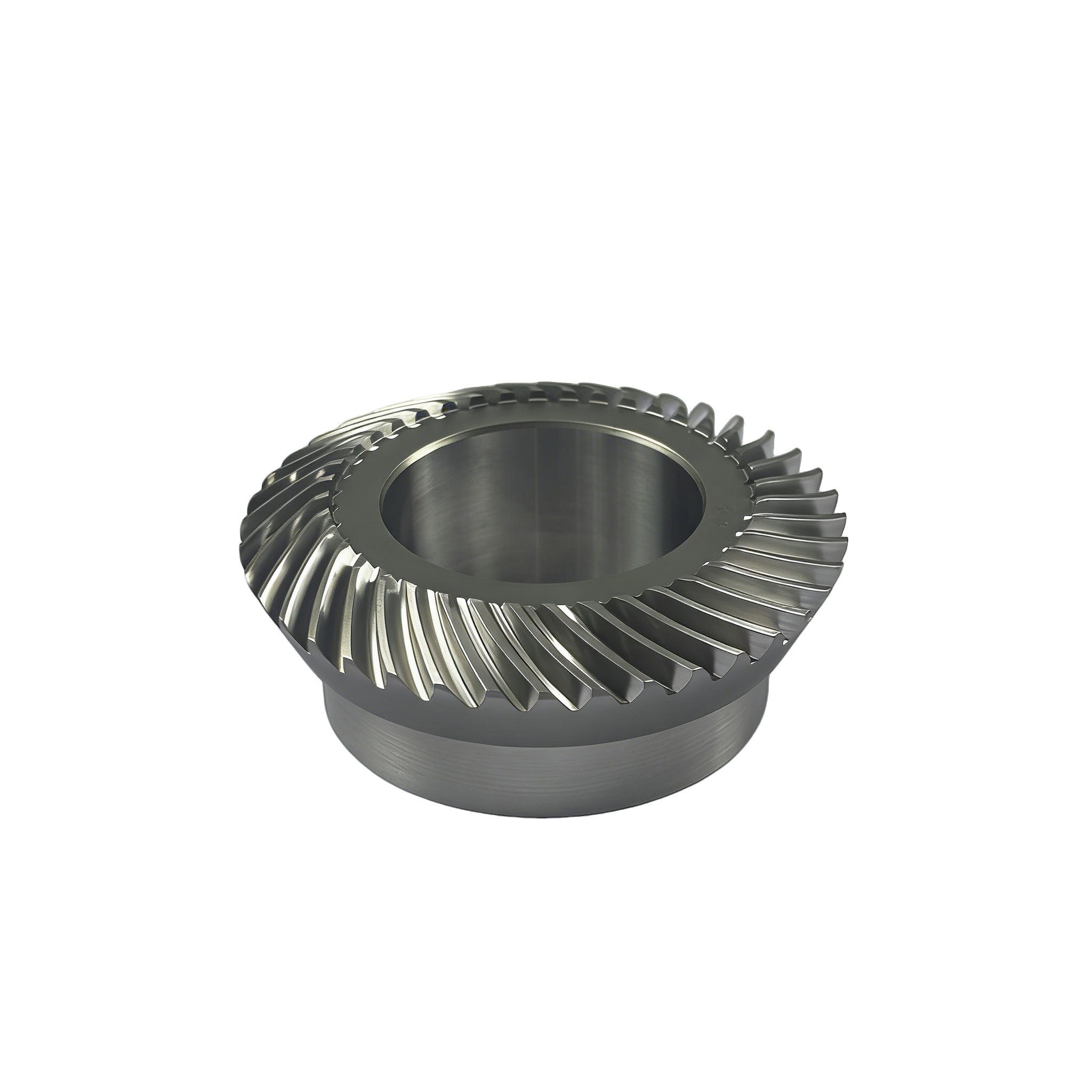

SuYou‑007‑C has a pressure angle of 20°, module 1.5, 40 teeth, speed ratio 2, 35° left‑hand spiral angle, inner diameter 31.5mm, gear outer diameter 60mm, total length 22.4mm, weight 0.2092kg. It is processed via sawing, turning, screw hole machining, gear milling, screw assembly, heat treatment, screw removal, shot blasting, boring, end facing, OD turning, total length grinding and gear grinding.

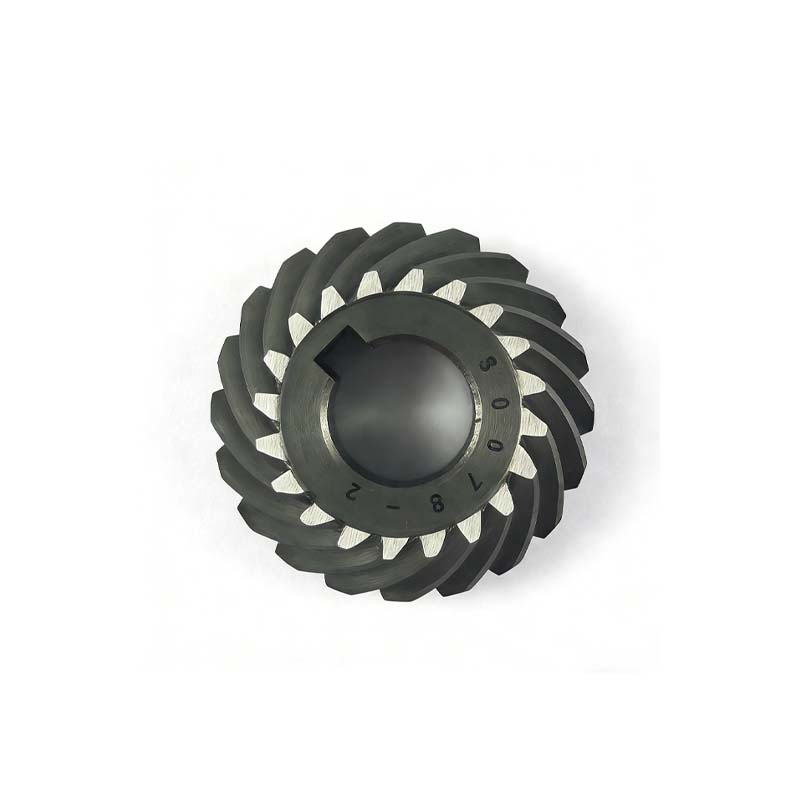

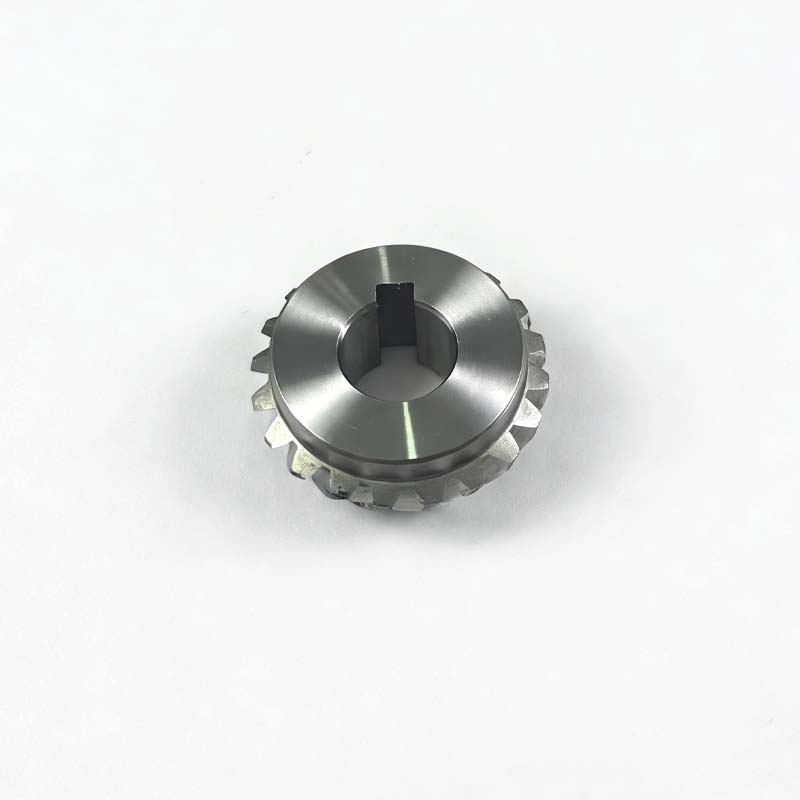

SuYou‑008‑C has a pressure angle of 20°, module 1.5, 20 teeth, 35° right‑hand spiral angle, inner diameter 12mm, gear outer diameter 32mm, total length 13.9mm, weight 0.0473kg. It is manufactured through sawing, turning, gear milling, heat treatment, shot blasting, boring, end facing, total length grinding, gear grinding and wire‑cut keyway.
Additional information
| SuYou-007-C and SuYou-008-C weight |
0.2092and0.0473 |
|---|---|
| SuYou-007-C and SuYou-008-C Core Components |
gear |
| SuYou-007-C and SuYou-008-C Craftsmanship |
Milling |
