Gear 1, 60T Left-Hand (Module 1.5, 60 Teeth) and Gear 2, 60T Left-Hand (Module 1.5, 60 Teeth) and Gear 3, 30T Right-Hand (Module 1.5, 30 Teeth)
$17.50piece
Three spiral bevel gears made of 20CrMnTi, with 20° pressure angle and module 1.5. SuYou-011-C and 012-C are 60-tooth left-hand gears, while SuYou-013-C is a 30-tooth right-hand gear. Precision machined for power tool transmission.
Description
This series includes three spiral bevel gears for power tools, all made of 20CrMnTi with 20° pressure angle and module 1.5. They are manufactured through sawing, turning, gear milling, heat treatment, shot blasting, boring and end facing.

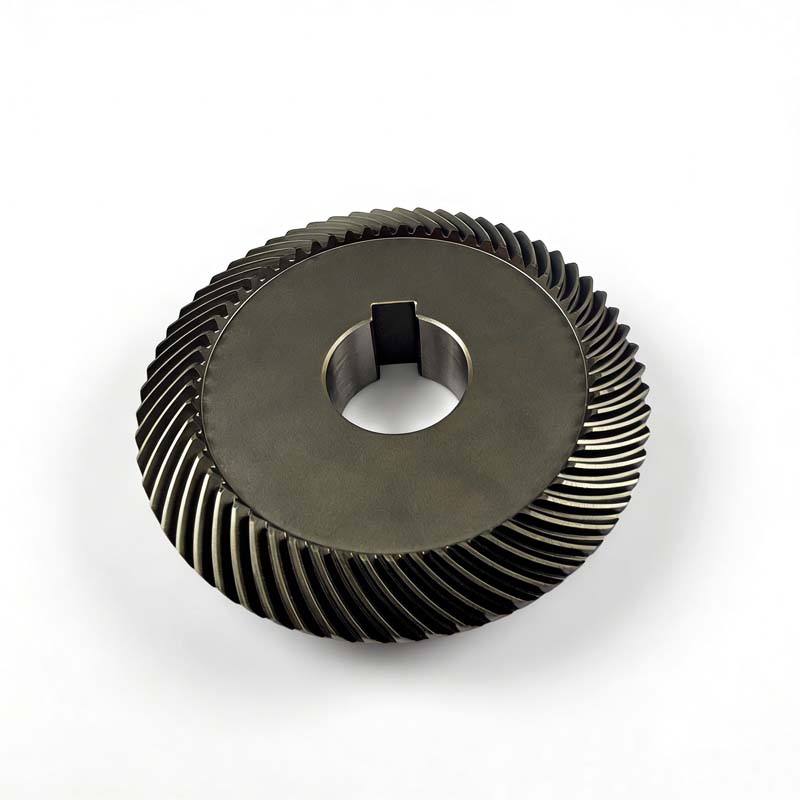

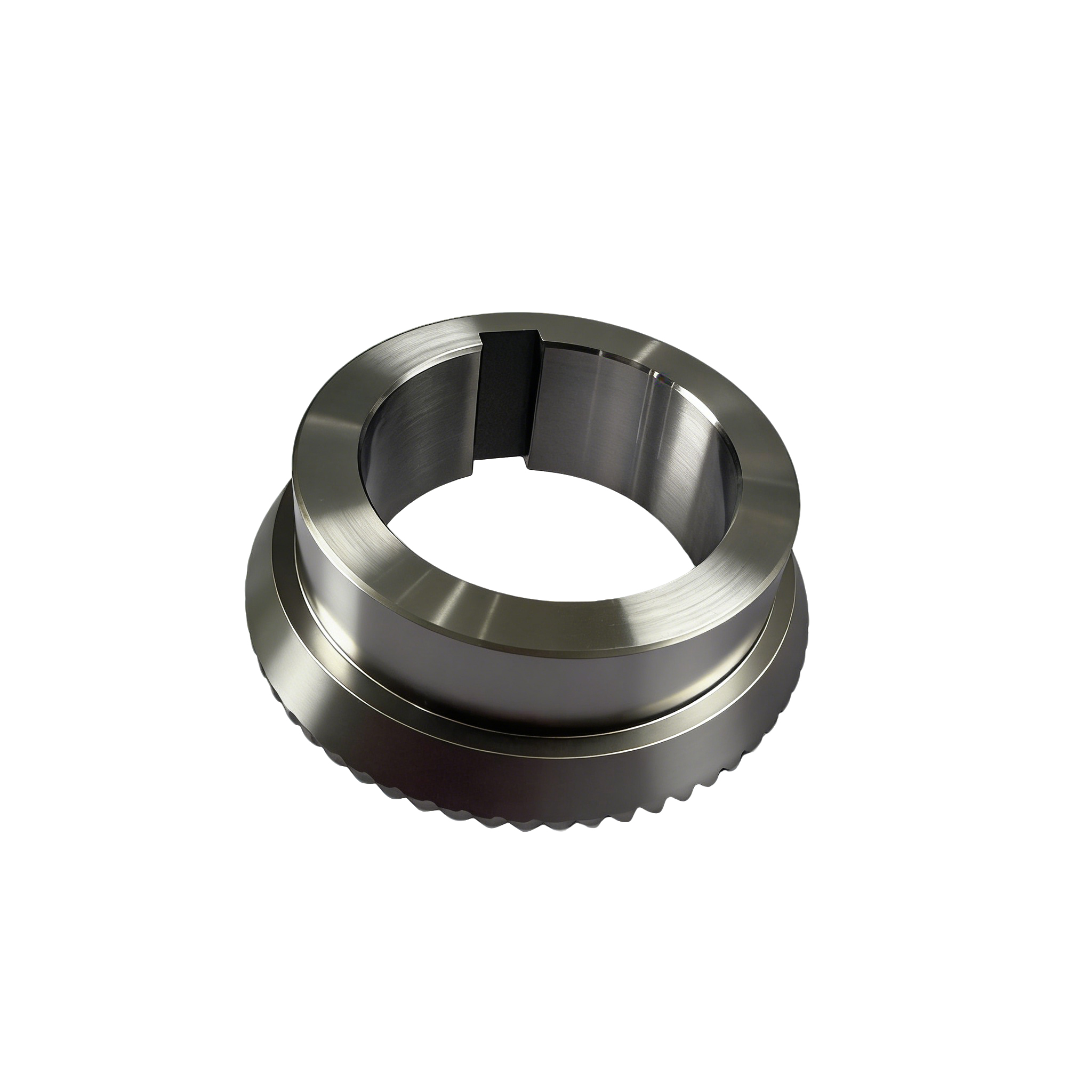

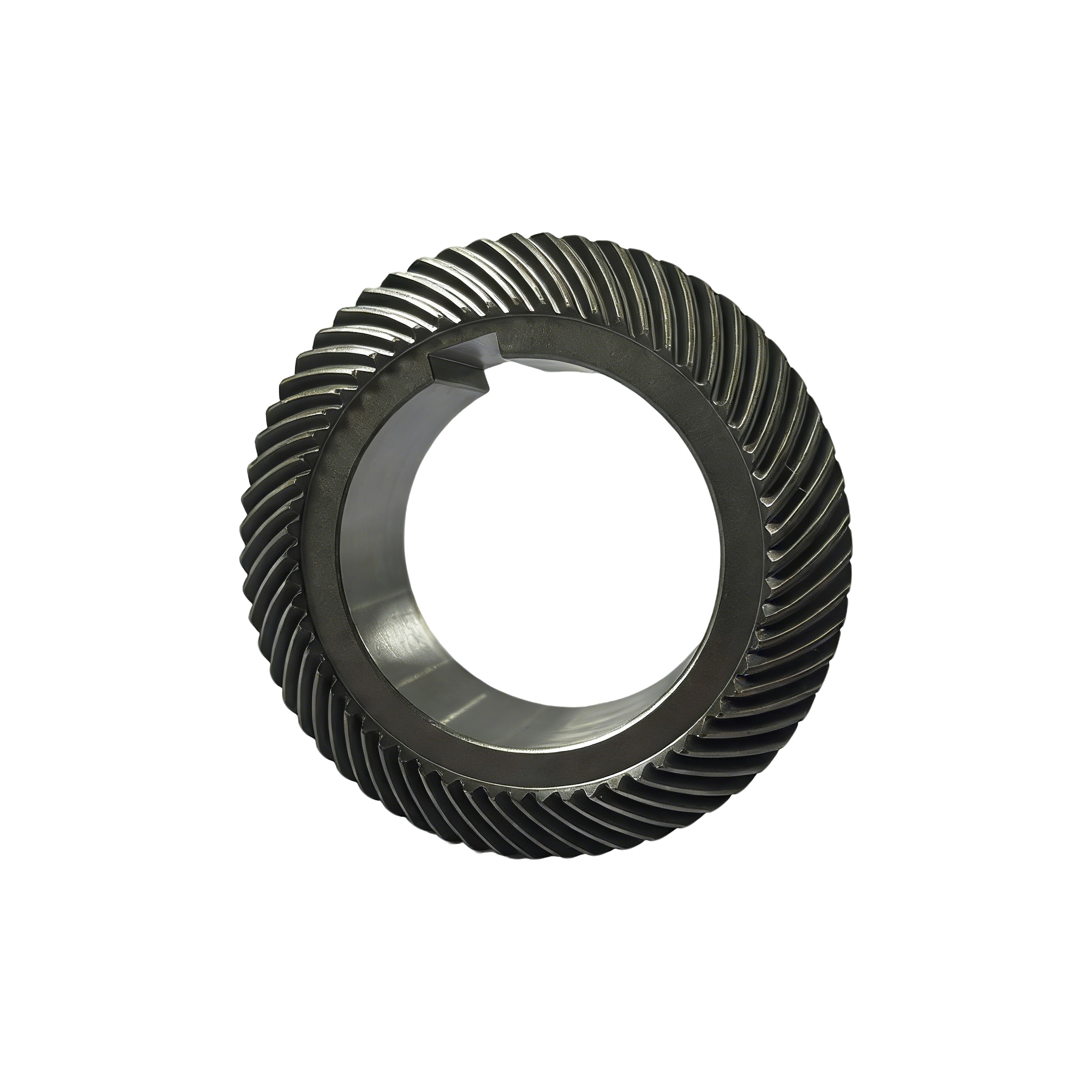

- SuYou-011-C (Gear 1, 60T LH): 60 teeth, 37.5° left-hand spiral, speed ratio 2, ID 55mm, OD 89mm, total length 31.5mm, weight 0.5571kg.

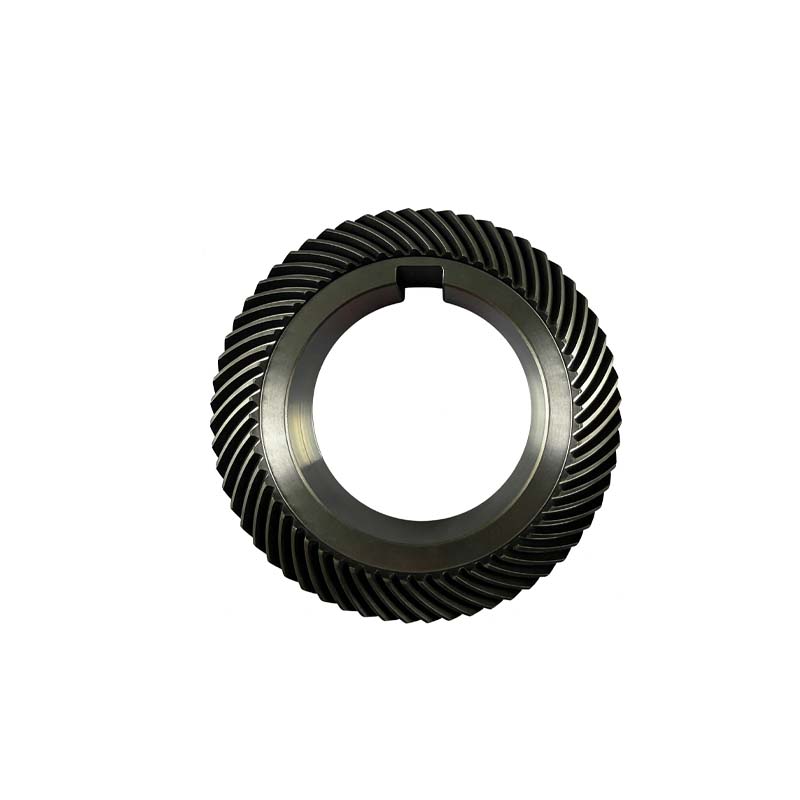

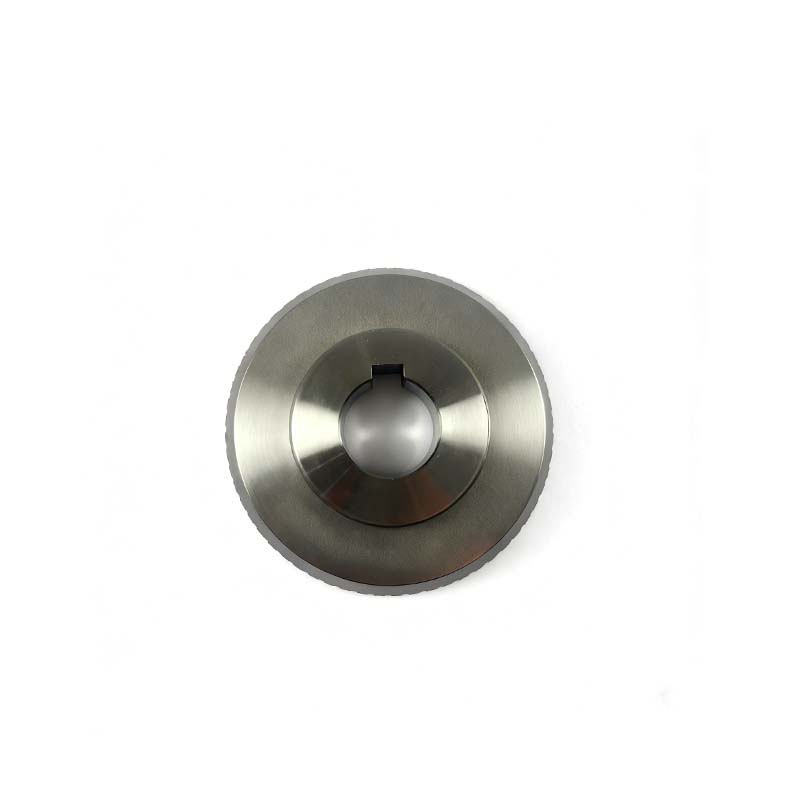

- SuYou-012-C (Gear 2, 60T LH): 60 teeth, 37.5° left-hand spiral, ID 25mm, OD 89mm, total length 22mm, weight 0.5585kg.

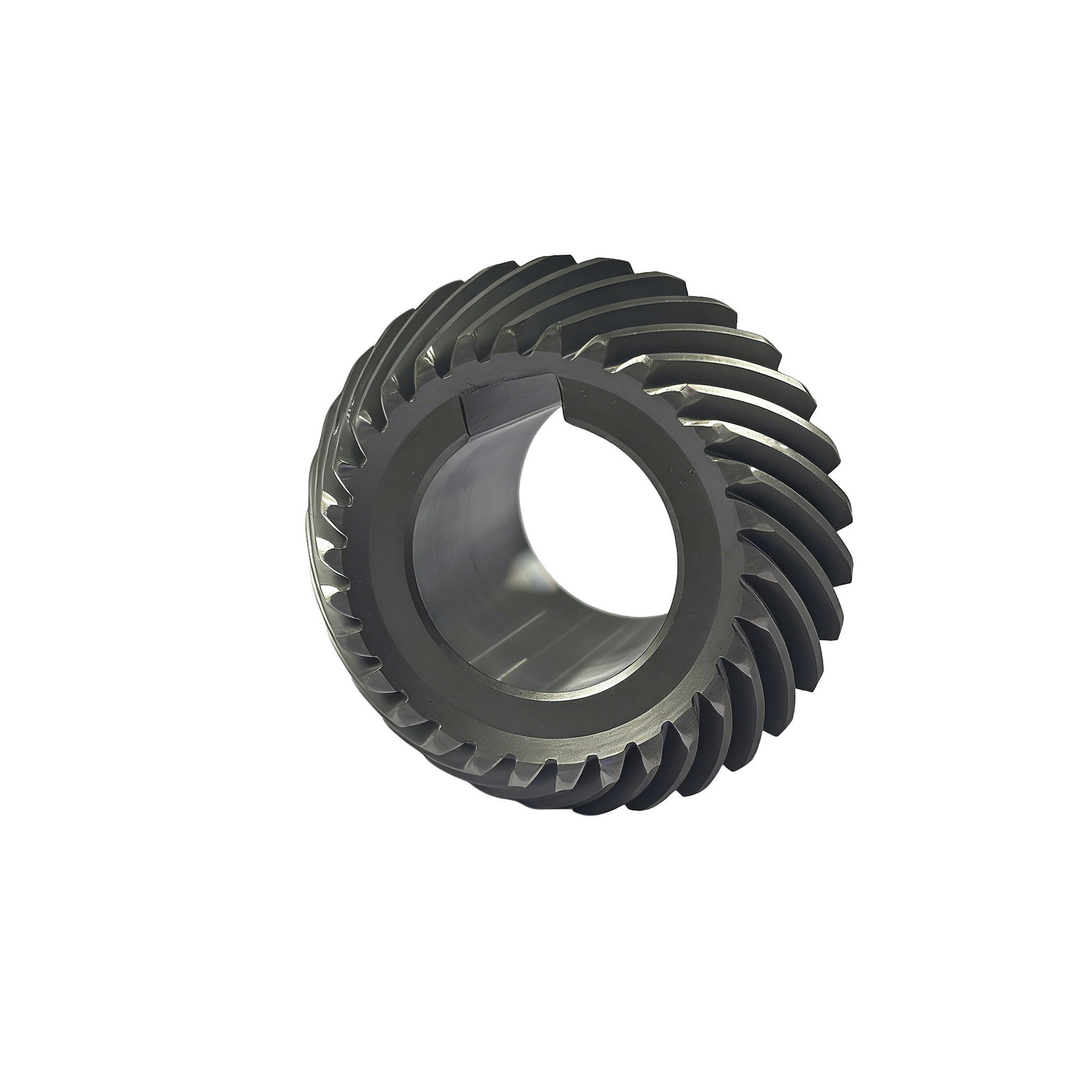

- SuYou-013-C (Gear 3, 30T RH): 30 teeth, 37.5° right-hand spiral, ID 22mm, OD 47mm, total length 31.5mm, weight 0.175kg.
They feature good matching, high strength and wear resistance, ideal for power tool transmission systems.
Additional information
| SuYou-011-C and SuYou-012-C and SuYou-013-C weight |
0.5571and0.5585and0.175 |
|---|---|
| SuYou-011-C and SuYou-012-C and SuYou-013-C Core Components |
gear |
| SuYou-011-C and SuYou-012-C and SuYou-013-C Craftsmanship |
Milling |
