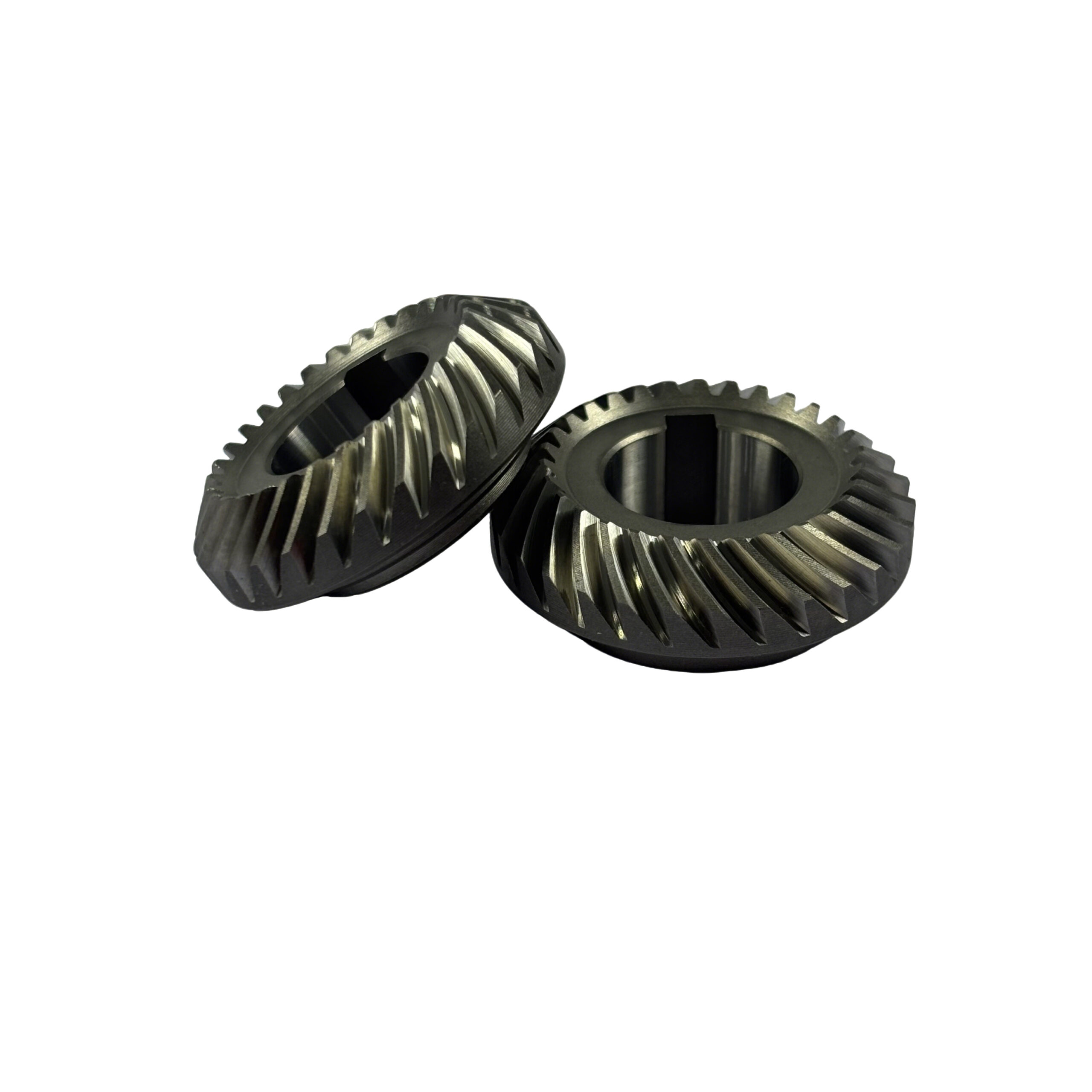

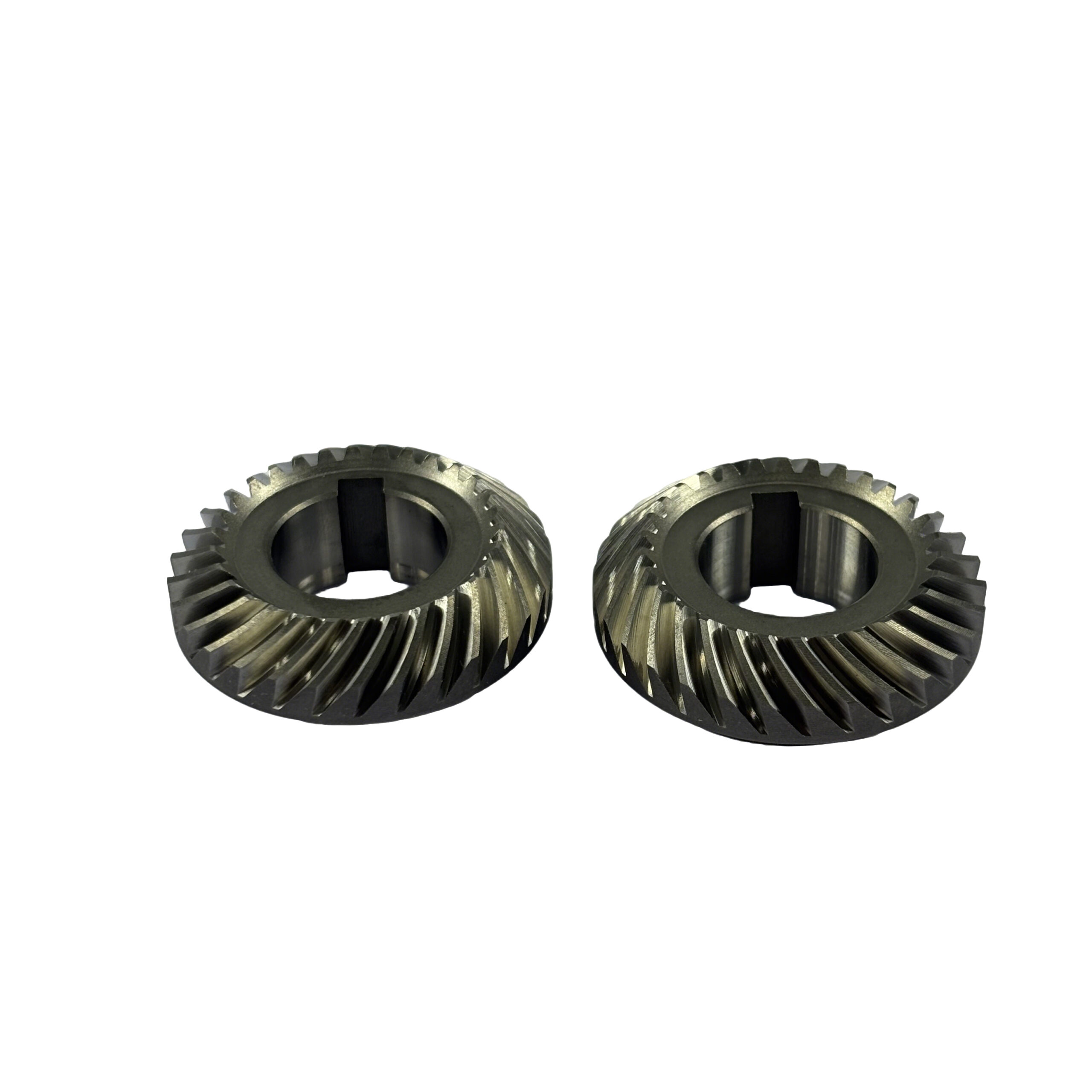

PFZ060001-20 Left Spiral Bevel Gear and PFZ060001-21 Right Spiral Bevel Gear
$12.22piece
RD-005-C (PFZ060001-20)

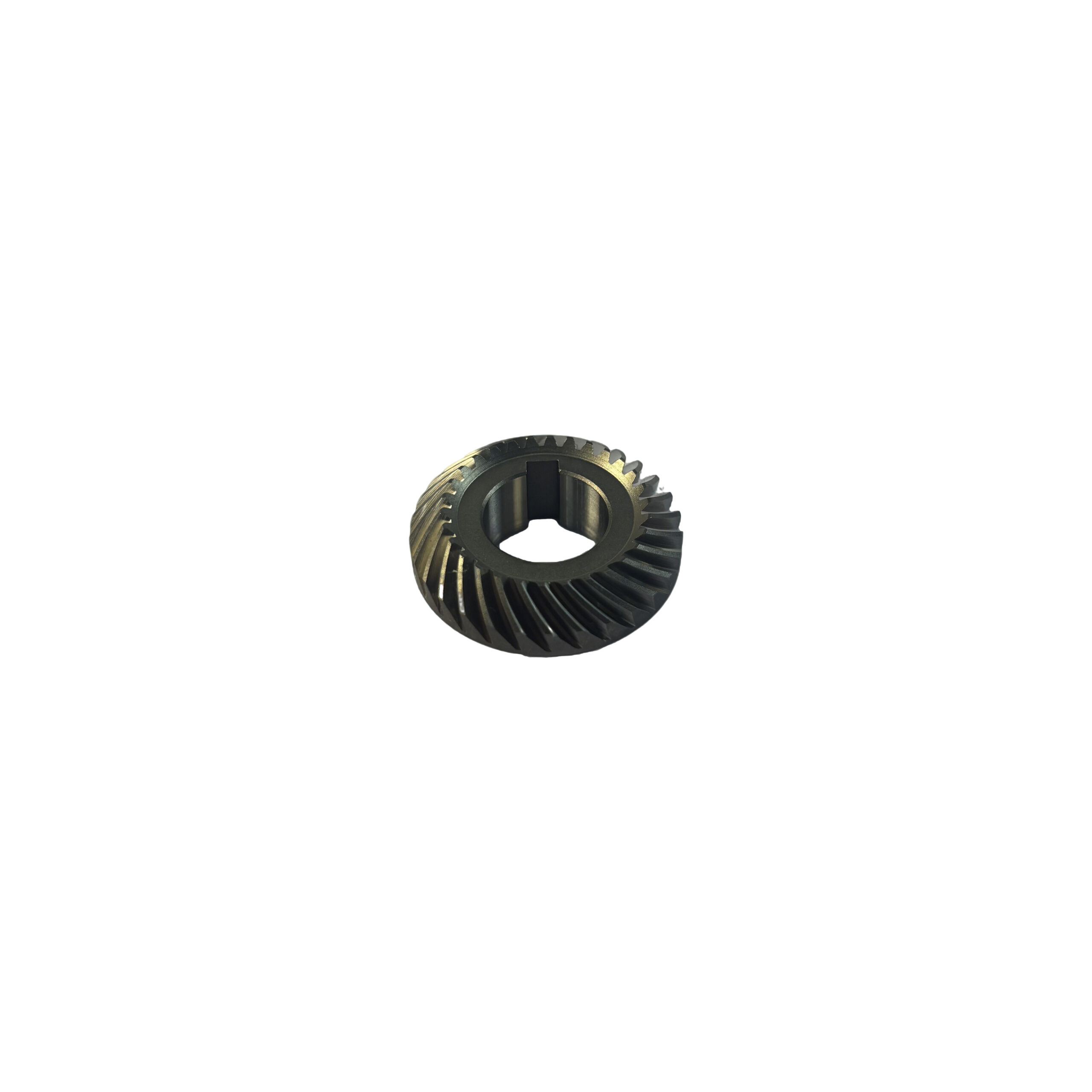

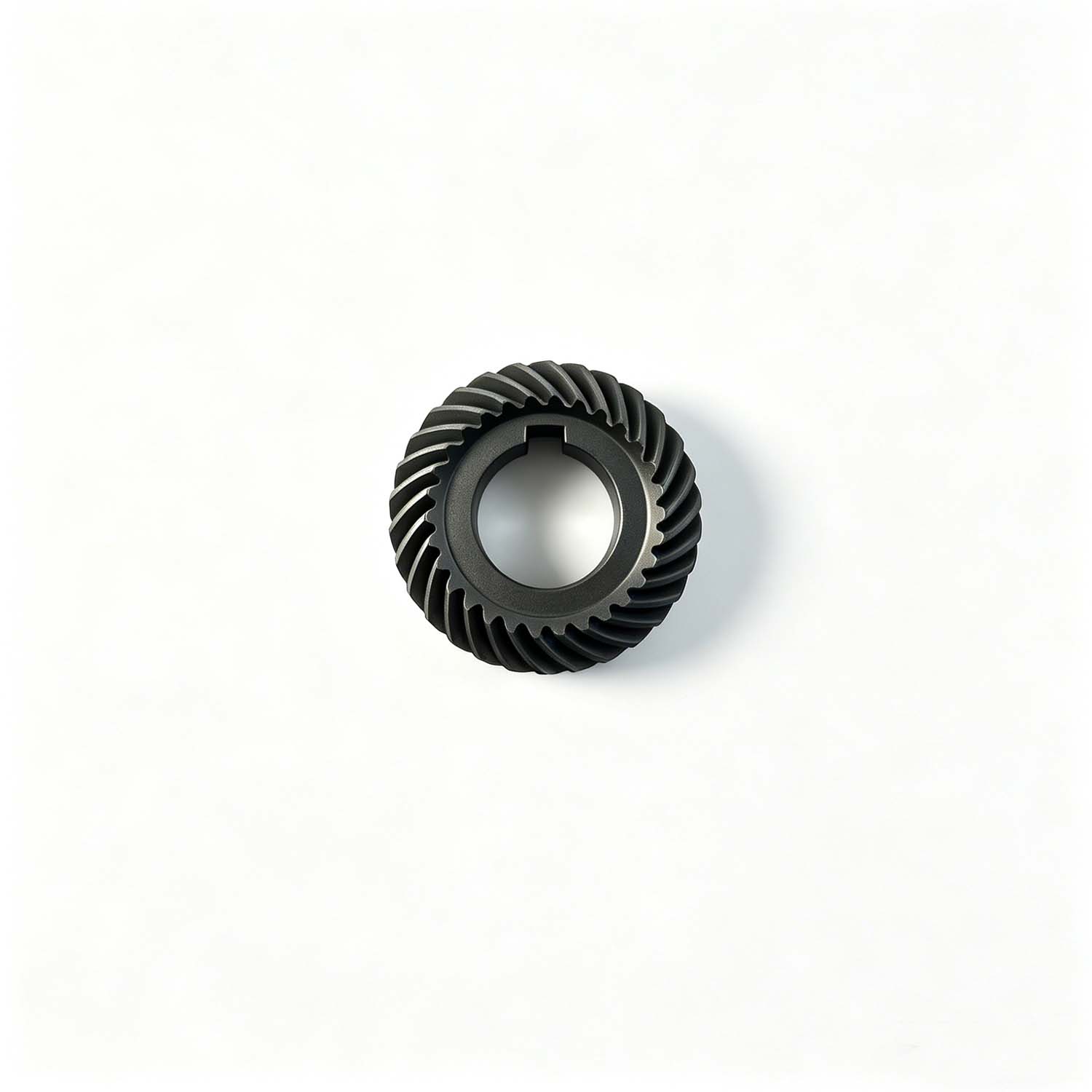

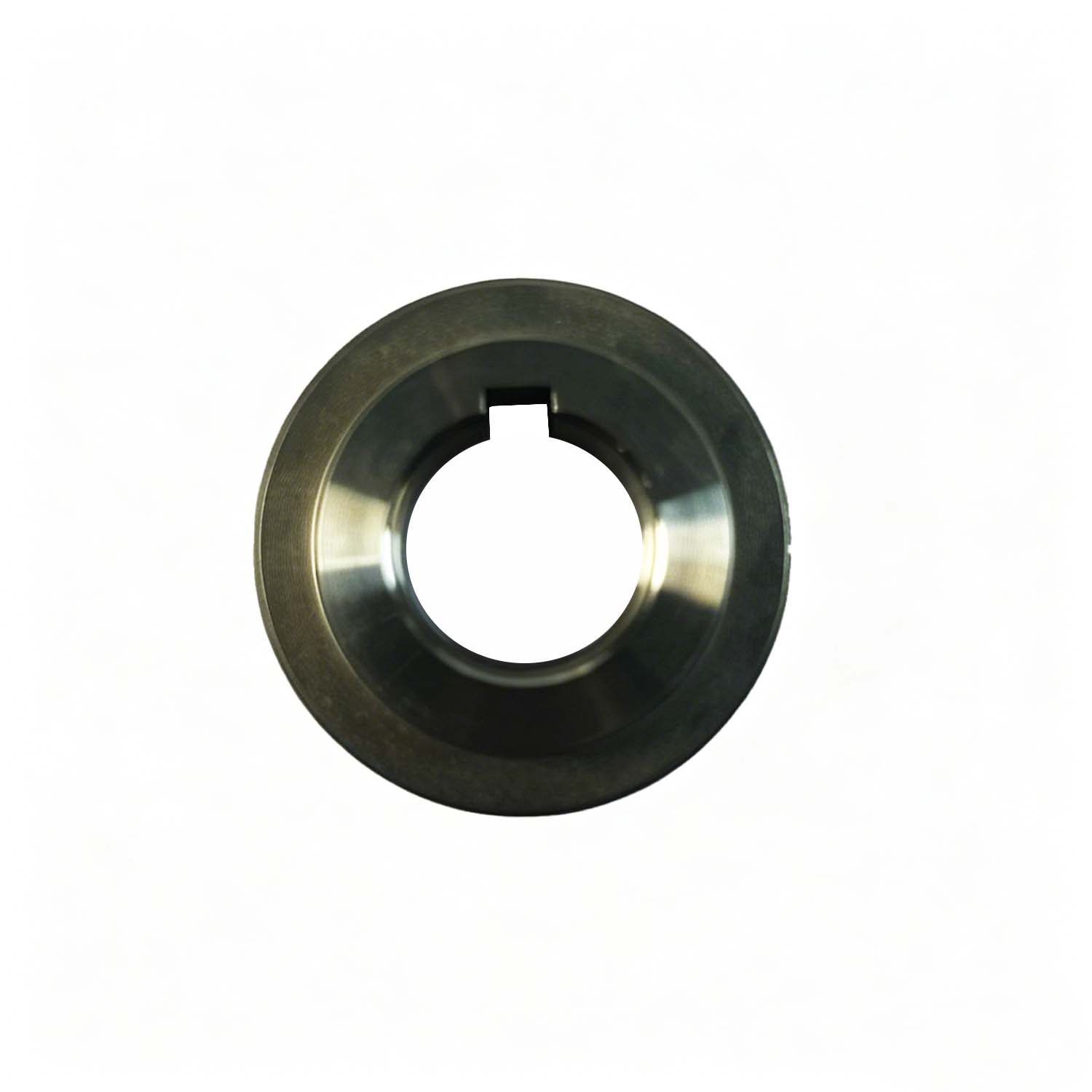

Left-hand spiral bevel gear. Parameters: pressure angle 20°, module 1.125, 30 teeth, gear ratio 1, spiral angle 35°(L). Inner diameter 15 mm, outer gear diameter 32.9 mm, overall length 12 mm, weight 0.0405 kg. Manufactured from 20CrMnTi via precision machining, suitable for speed reducers.
RD-006-C (PFZ060001-21)

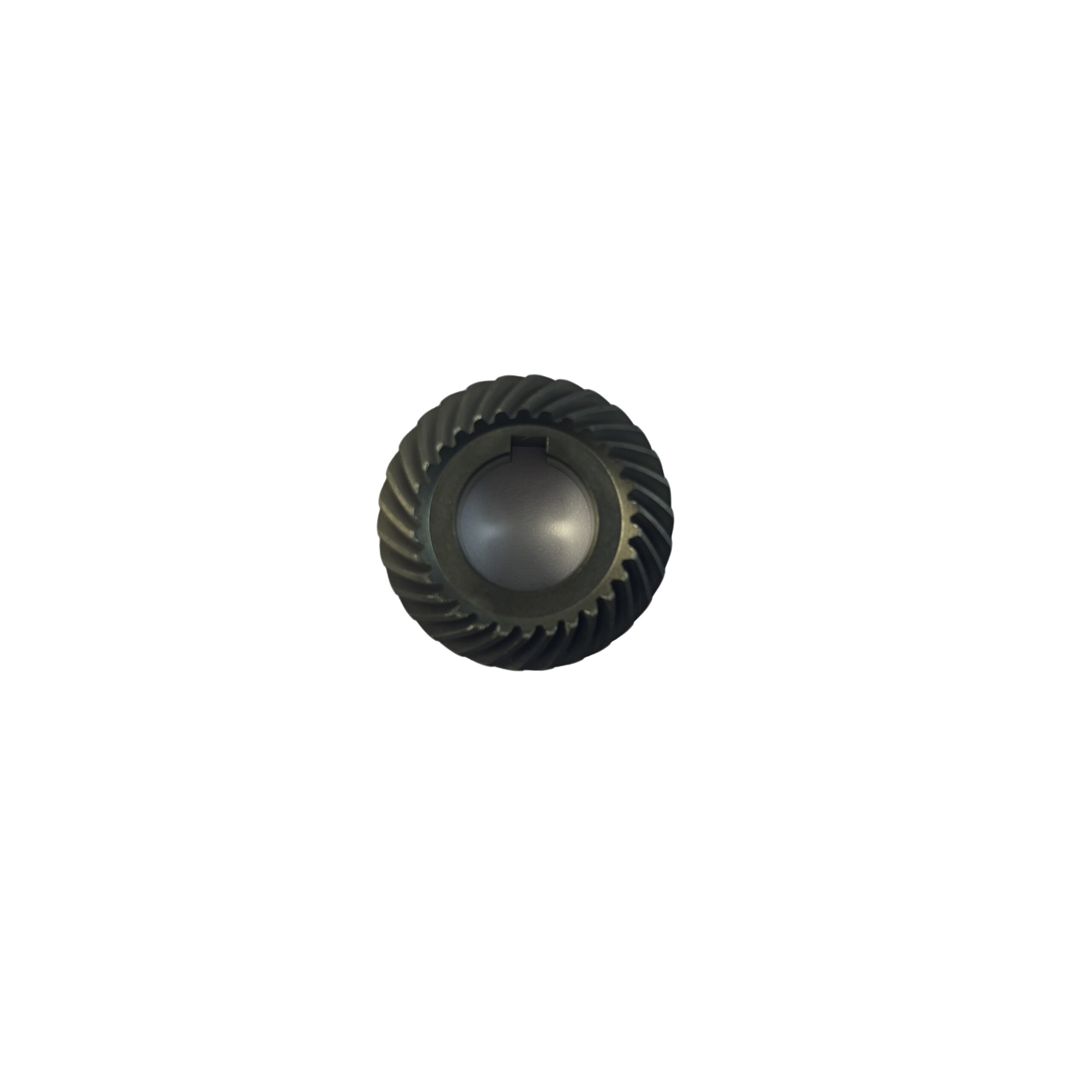

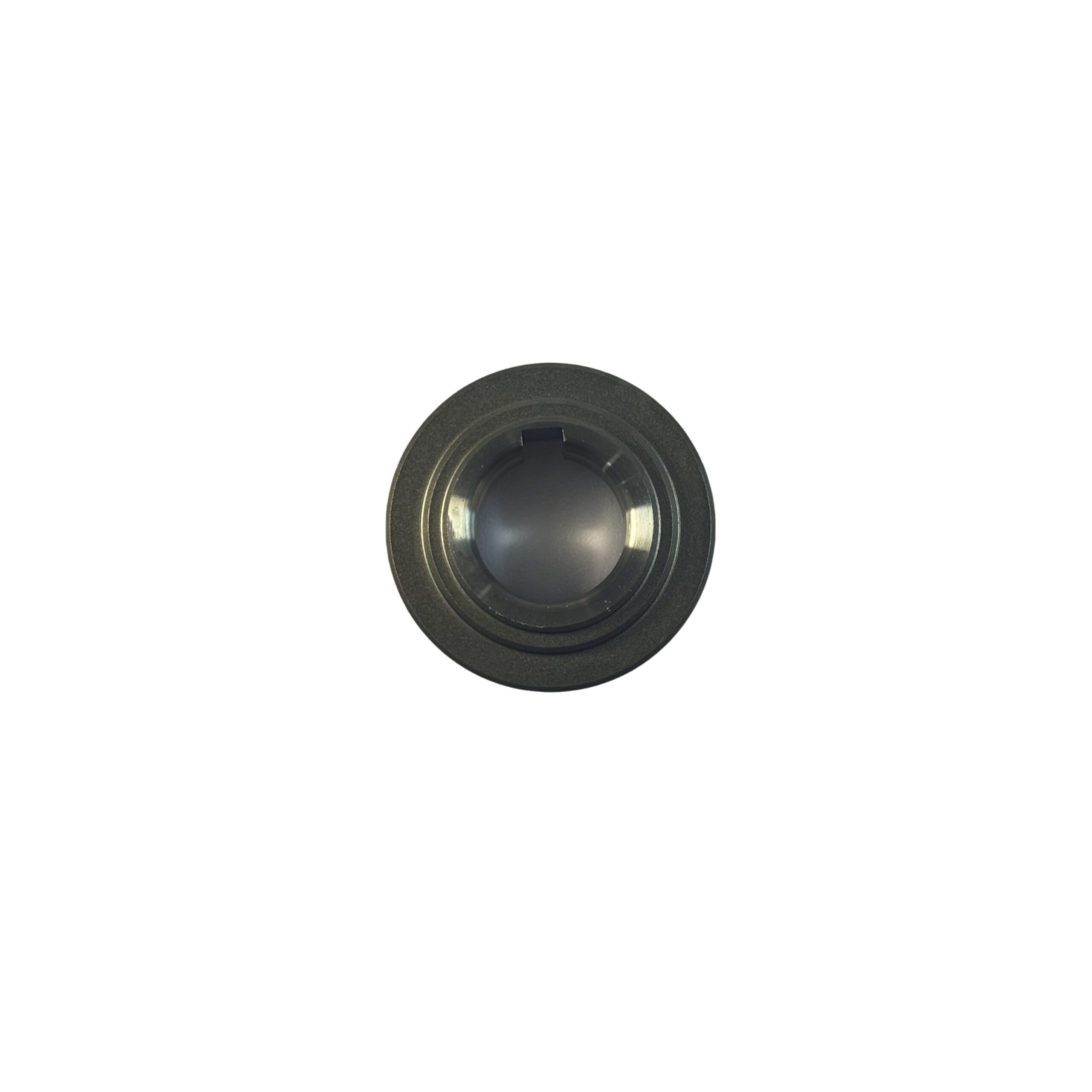

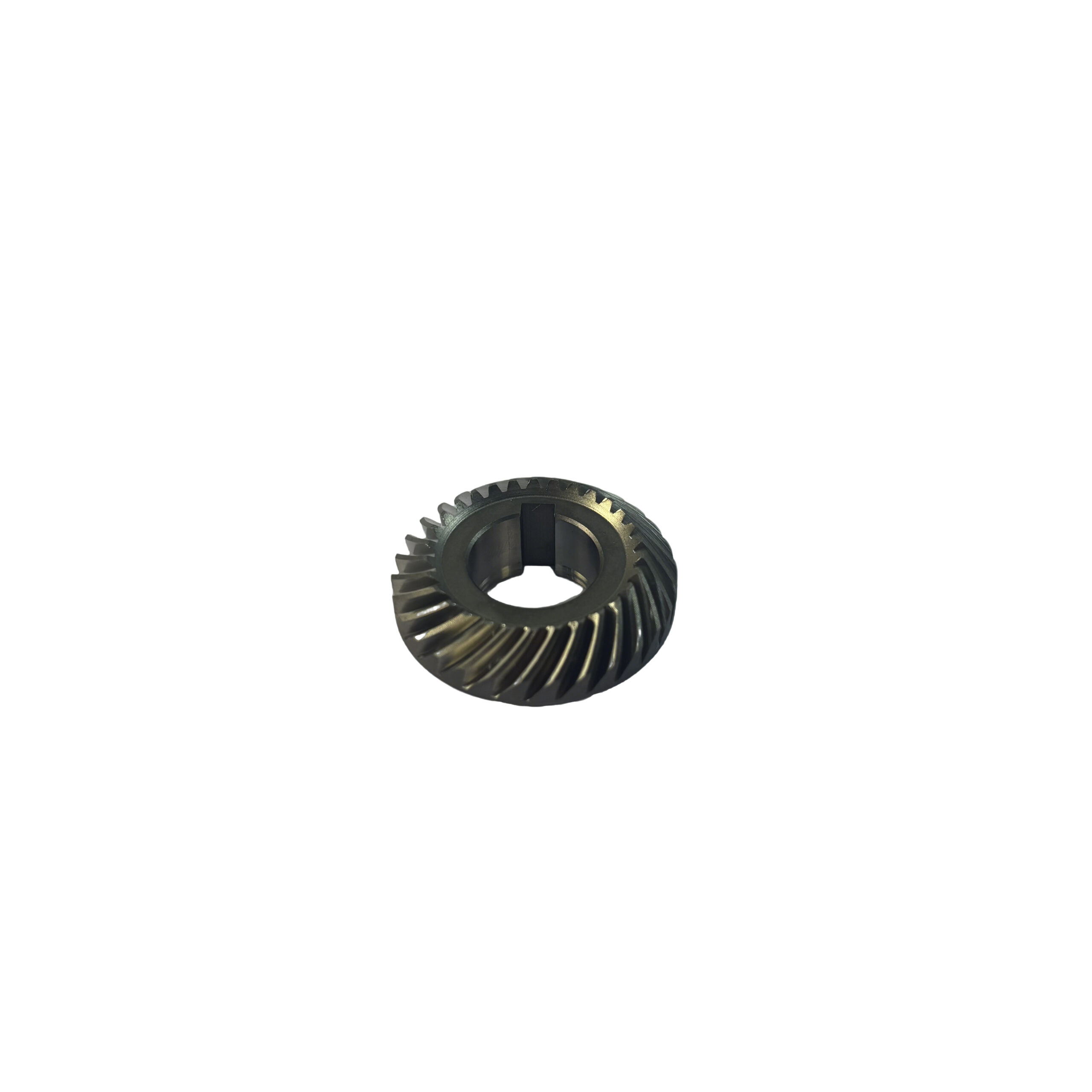

Right-hand spiral bevel gear. Parameters: pressure angle 20°, module 1.125, 30 teeth, gear ratio 1, spiral angle 35°(R). Inner diameter 15 mm, outer gear diameter 32.9 mm, overall length 12 mm, weight 0.0384 kg. Made of 20CrMnTi with fine processing, for speed reducer assembly.
Description
RD-005-C (PFZ060001-20 Left Spiral Bevel Gear)
Model RD-005-C is a left-hand spiral bevel gear. It has a pressure angle of 20°, module 1.125, 30 teeth and a gear ratio of 1, with a left-hand spiral angle of 35°. The inner diameter is 15 mm, outer gear diameter 32.9 mm, overall length 12 mm, and unit weight 0.0405 kg. Made of 20CrMnTi steel, it is processed through cutting, turning, gear milling, heat treatment, hanging shot blasting, boring, facing, guide circular arc chamfering and gear grinding. Featuring high precision and stable transmission, it is used as a gear for speed reducers.
RD-006-C (PFZ060001-21 Right Spiral Bevel Gear)
Model RD-006-C is a right-hand spiral bevel gear. It has a pressure angle of 20°, module 1.125, 30 teeth and a gear ratio of 1, with a right-hand spiral angle of 35°. The inner diameter is 15 mm, outer gear diameter 32.9 mm, overall length 12 mm, and unit weight 0.0384 kg. Adopting 20CrMnTi as raw material, it undergoes the complete processes of cutting, turning, gear milling, heat treatment, hanging shot blasting, boring, facing, guide circular arc chamfering and gear grinding. This product is wear-resistant and operates steadily, specially applied to speed reducers.
Additional information
| RD-005-C and RD-006-C weight |
0.0405and0.0384 |
|---|---|
| RD-005-C and RD-006-C Core Components |
gear |
| RD-005-C and RD-006-C Craftsmanship |
Milling |
