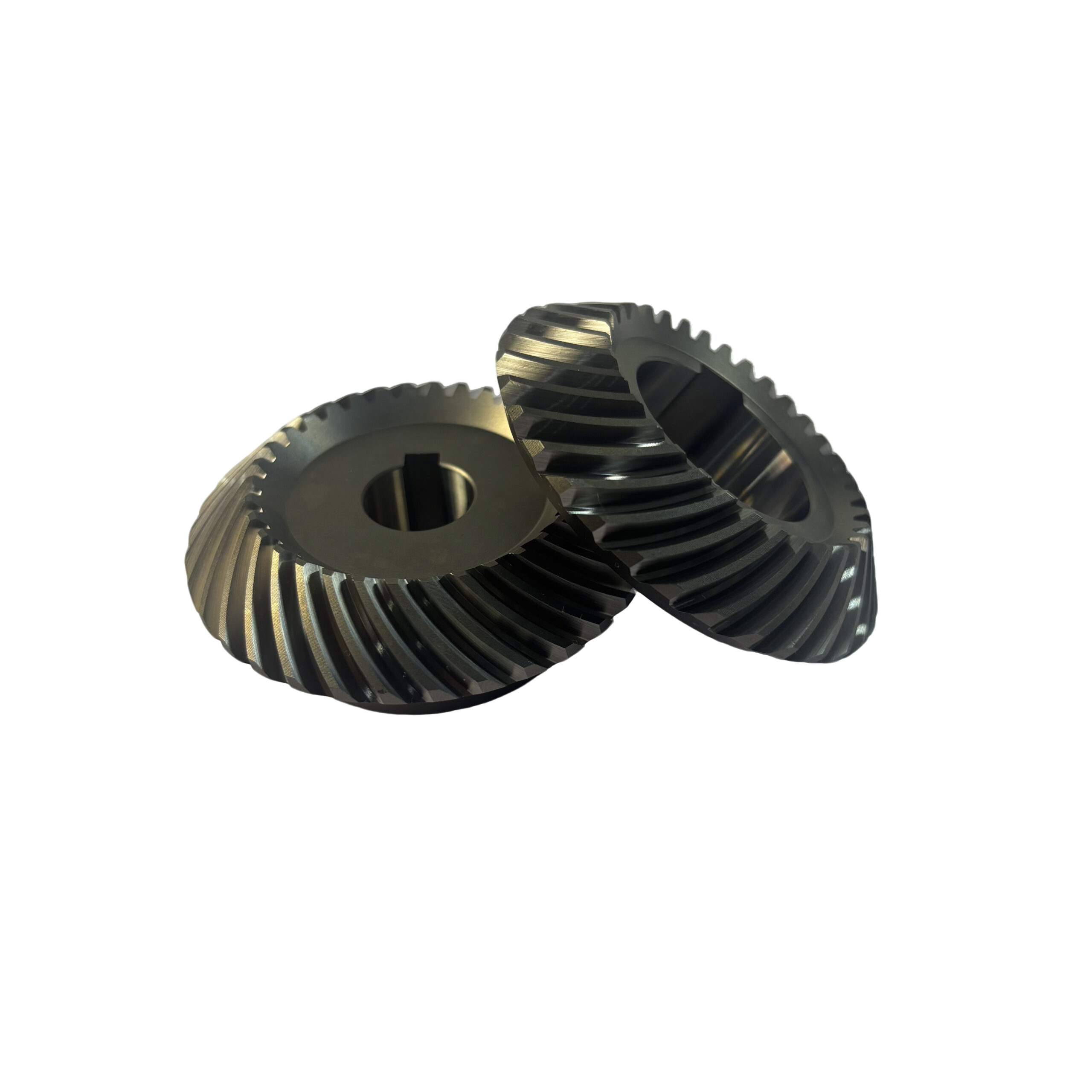

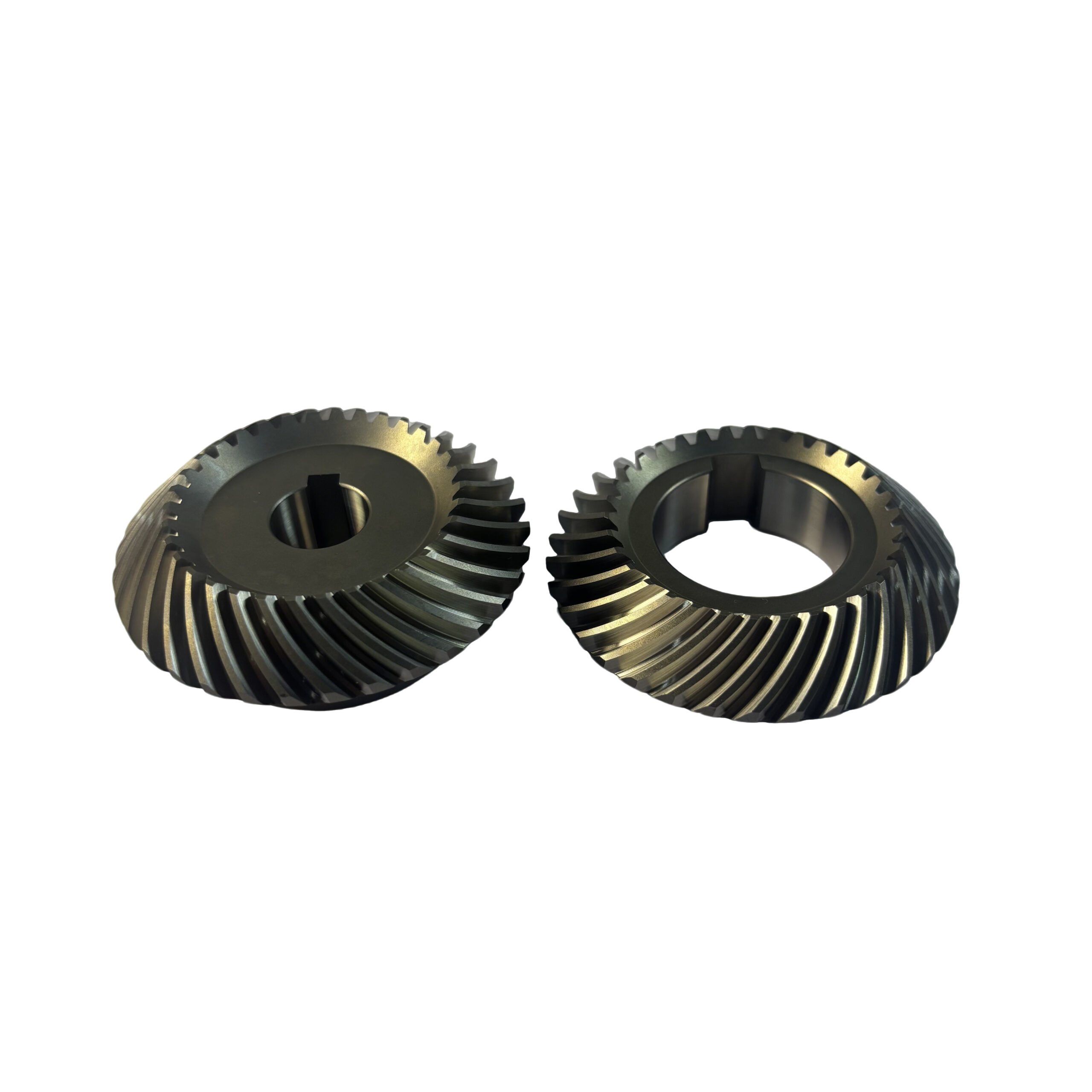

ABR115001-20 Left Spiral Bevel Gear and ABR115001-21 Right Spiral Bevel Gear
$20.38piece
RD-009-C (ABR115001-20)
Left-hand spiral bevel gear. Parameters: pressure angle 20°, module 1.9, 34 teeth, gear ratio 1, spiral angle 35°(L). Inner diameter 15 mm, outer gear diameter 64.6 mm, overall length 24 mm, weight 0.3290 kg. Manufactured from 20CrMnTi via precision machining, suitable for speed reducers.
RD-010-C (ABR115001-21)
Right-hand spiral bevel gear. Parameters: pressure angle 20°, module 1.9, 34 teeth, gear ratio 1, spiral angle 35°(R). Inner diameter 30 mm, outer gear diameter 64.6 mm, overall length 17.5 mm, weight 0.2018 kg. Made of 20CrMnTi with fine processing, for speed reducer assembly.
Description

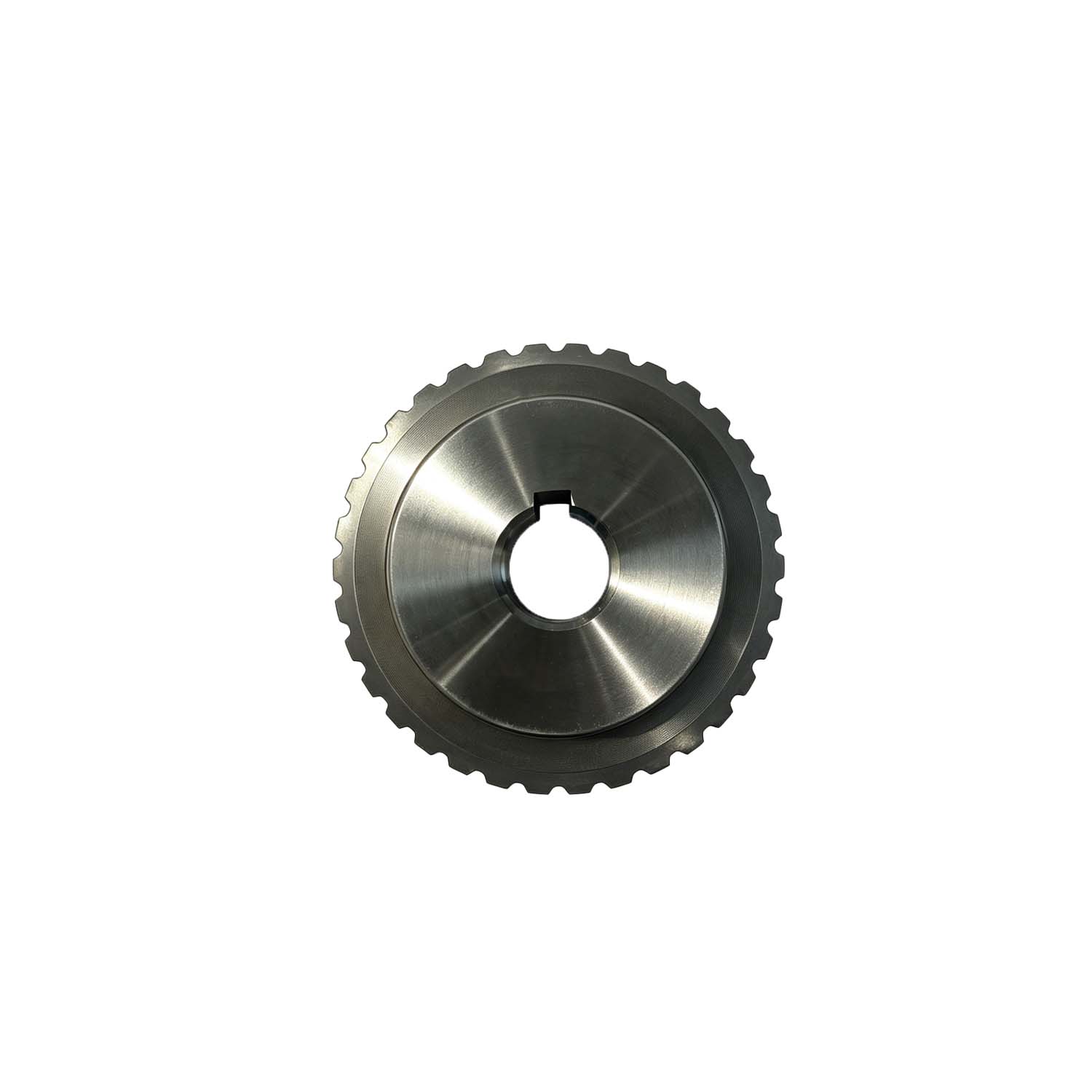

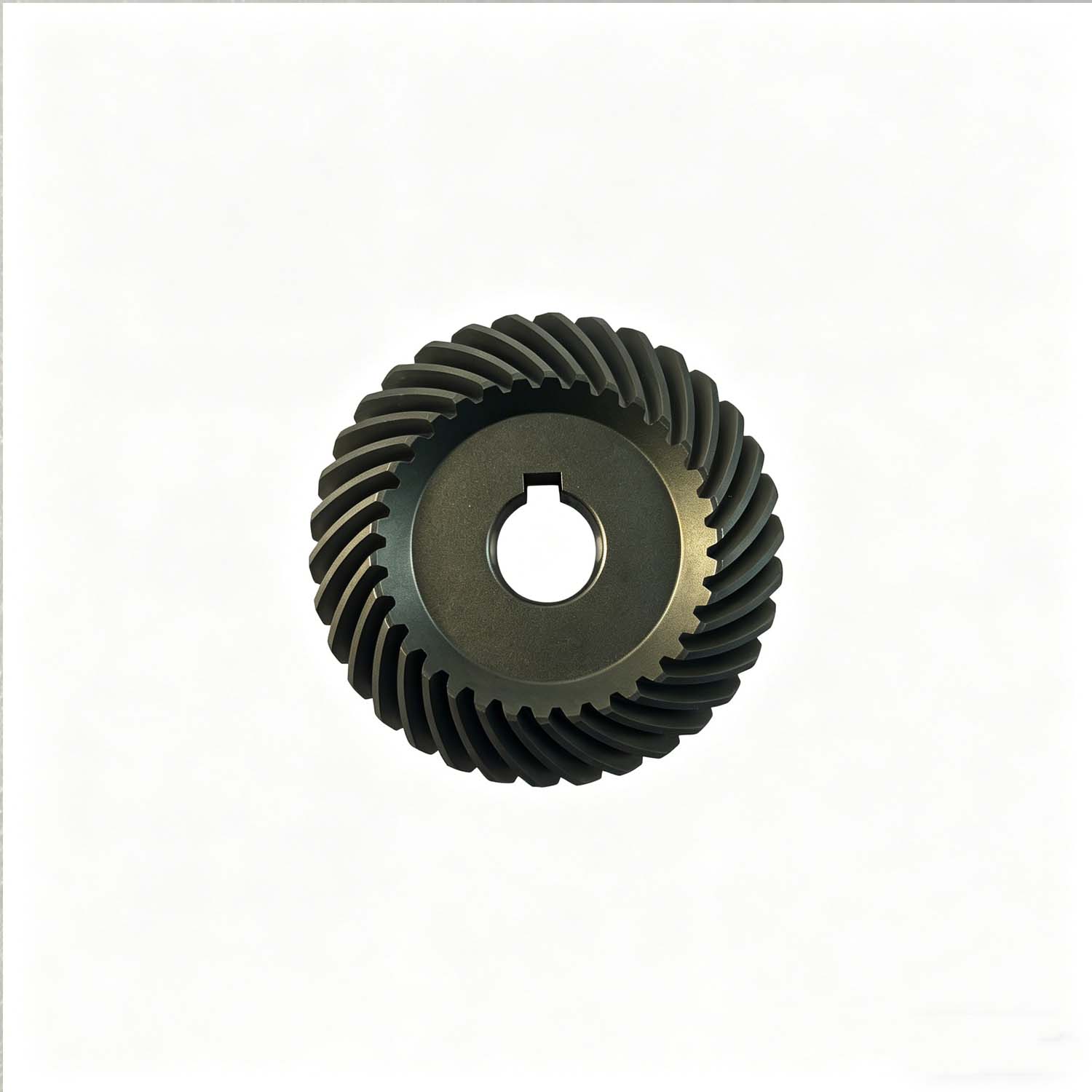

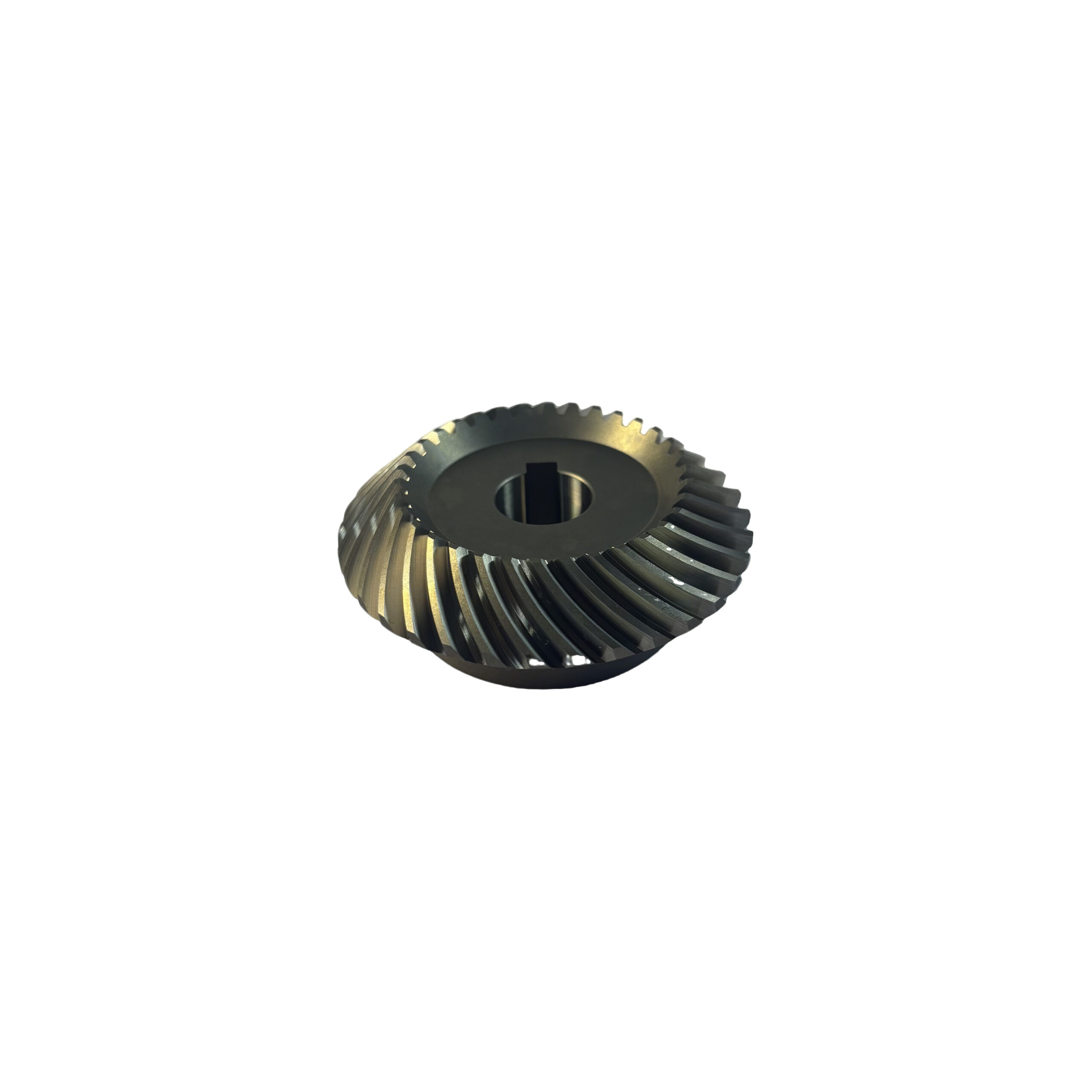

RD-009-C (ABR115001-20 Left Spiral Bevel Gear)
Model RD-009-C is a left-hand spiral bevel gear. It has a pressure angle of 20°, module 1.9, 34 teeth and a gear ratio of 1, with a left-hand spiral angle of 35°. The inner diameter is 15 mm, outer gear diameter 64.6 mm, overall length 24 mm, and unit weight 0.3290 kg. Made of 20CrMnTi steel, it is processed through cutting, turning, gear milling, heat treatment, hanging shot blasting, boring, facing, guide circular arc chamfering and gear grinding. It features high precision and stable transmission, and is used for speed reducers.

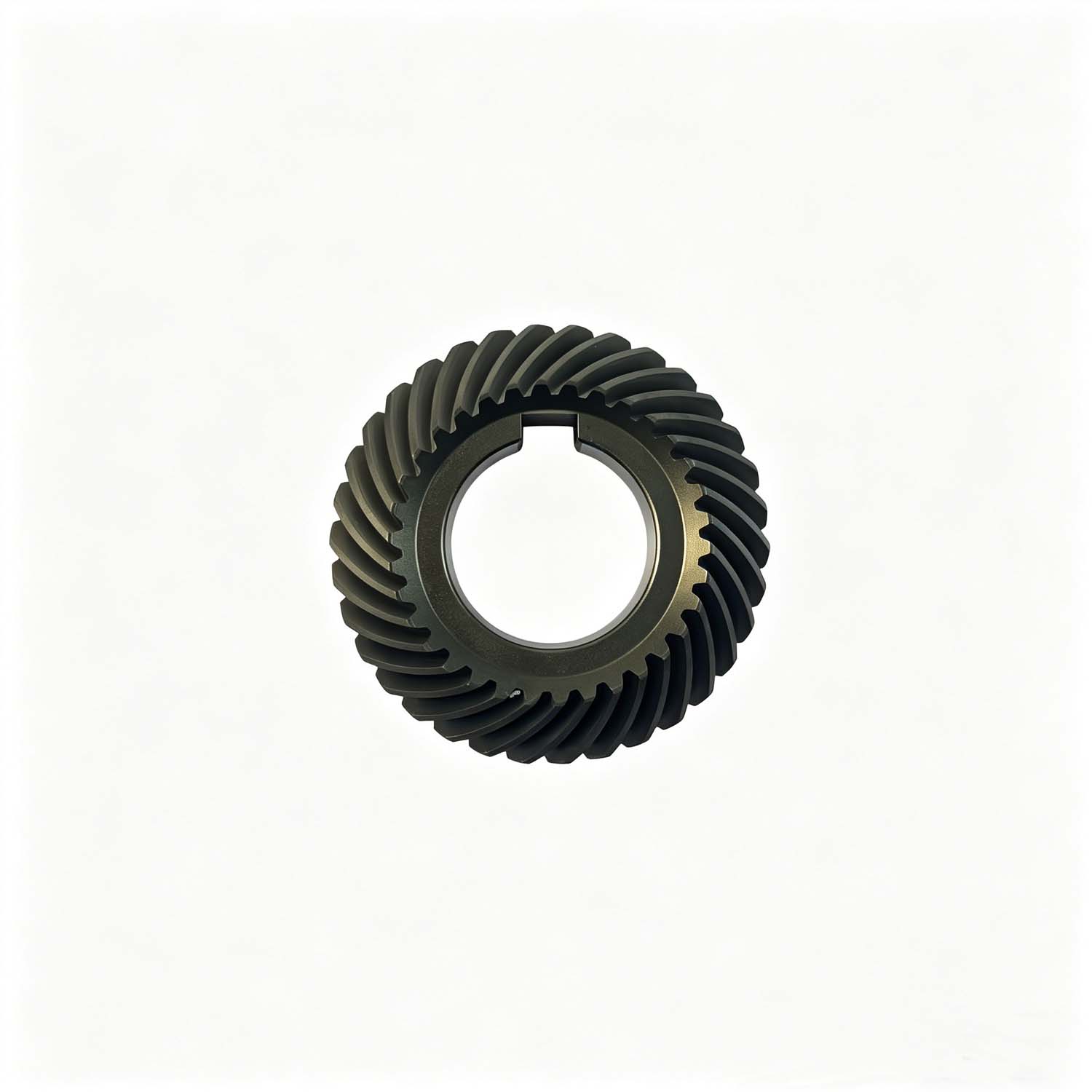

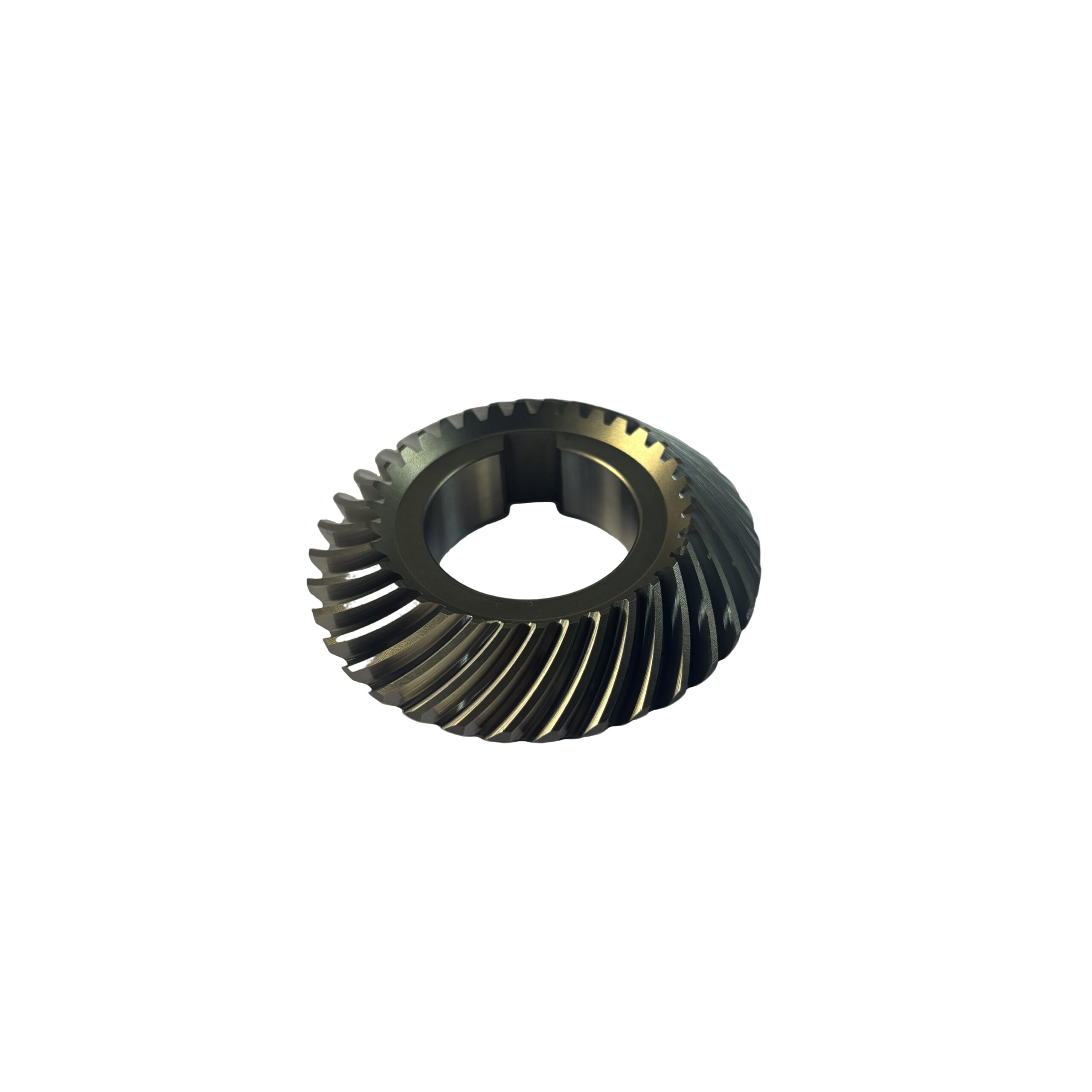

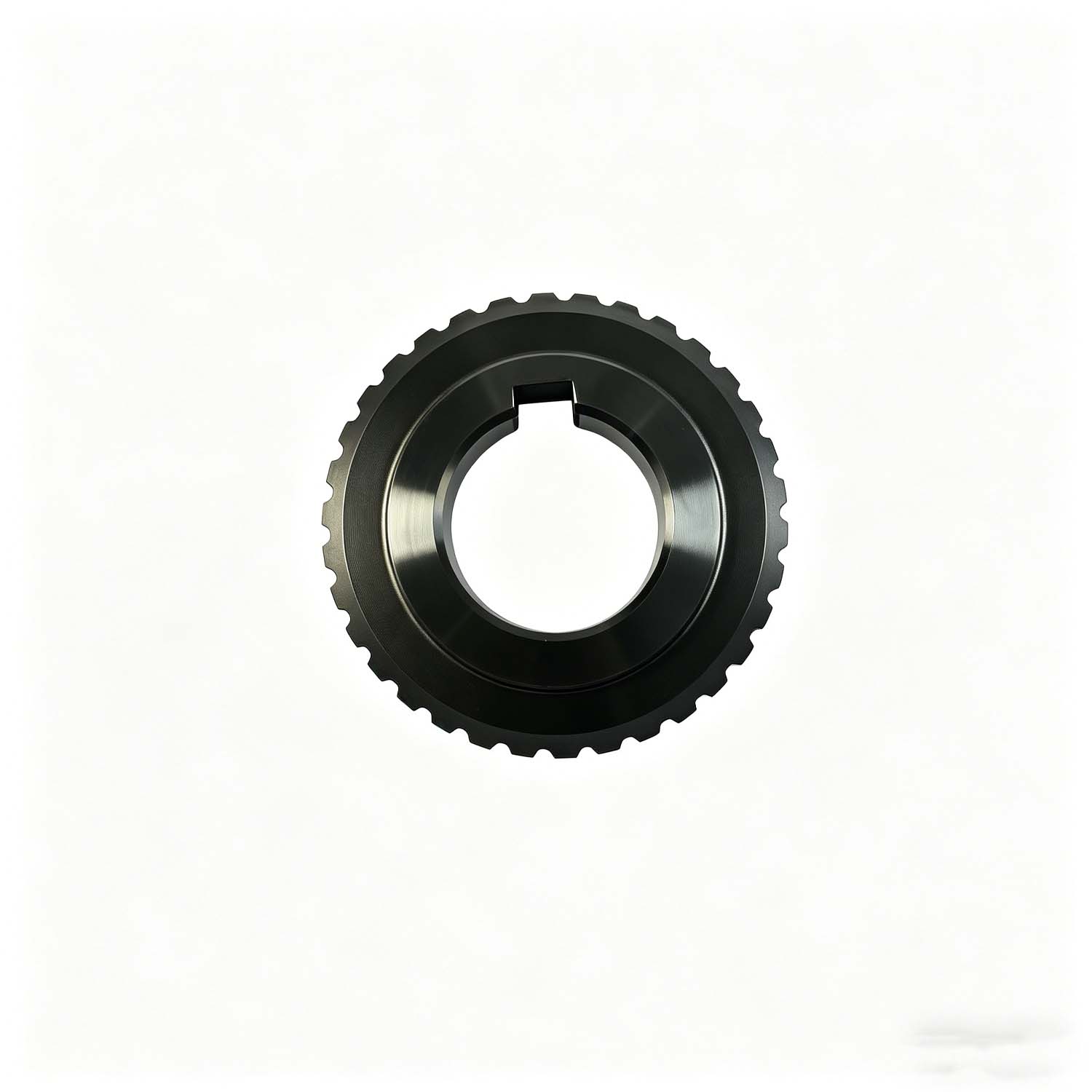

RD-010-C (ABR115001-21 Right Spiral Bevel Gear)
Model RD-010-C is a right-hand spiral bevel gear. It has a pressure angle of 20°, module 1.9, 34 teeth and a gear ratio of 1, with a right-hand spiral angle of 35°. The inner diameter is 30 mm, outer gear diameter 64.6 mm, overall length 17.5 mm, and unit weight 0.2018 kg. Adopting 20CrMnTi as raw material, it undergoes cutting, turning, gear milling, heat treatment, hanging shot blasting, boring, facing, guide circular arc chamfering and gear grinding. With excellent wear resistance and reliable operation, it is specially applied to speed reducers.
Additional information
| RD-009-C and RD-010-C weight |
0.3290and0.2018 |
|---|---|
| RD-009-C and RD-010-C Core Components |
gear |
| RD-009-C and RD-010-C Craftsmanship |
Milling |
