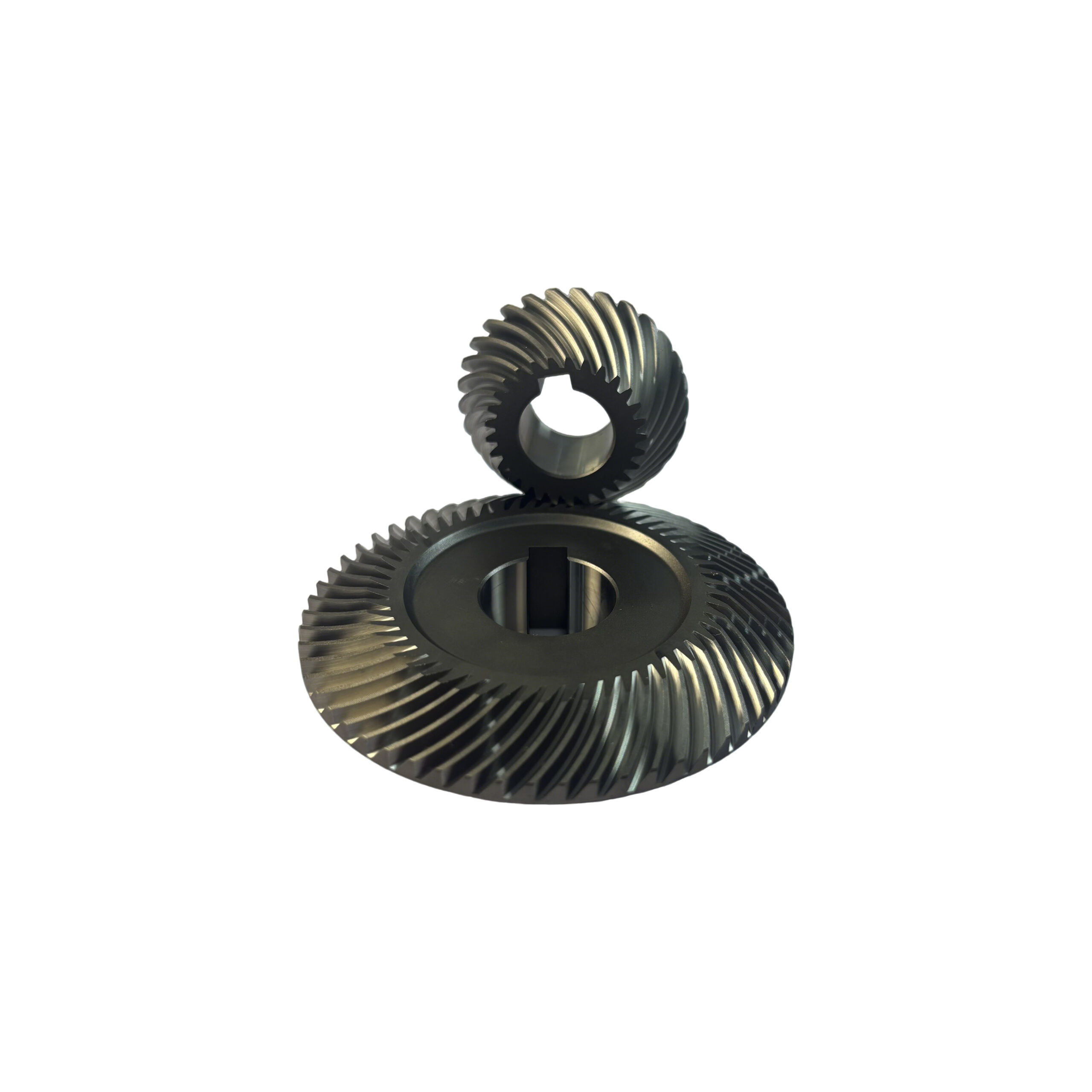

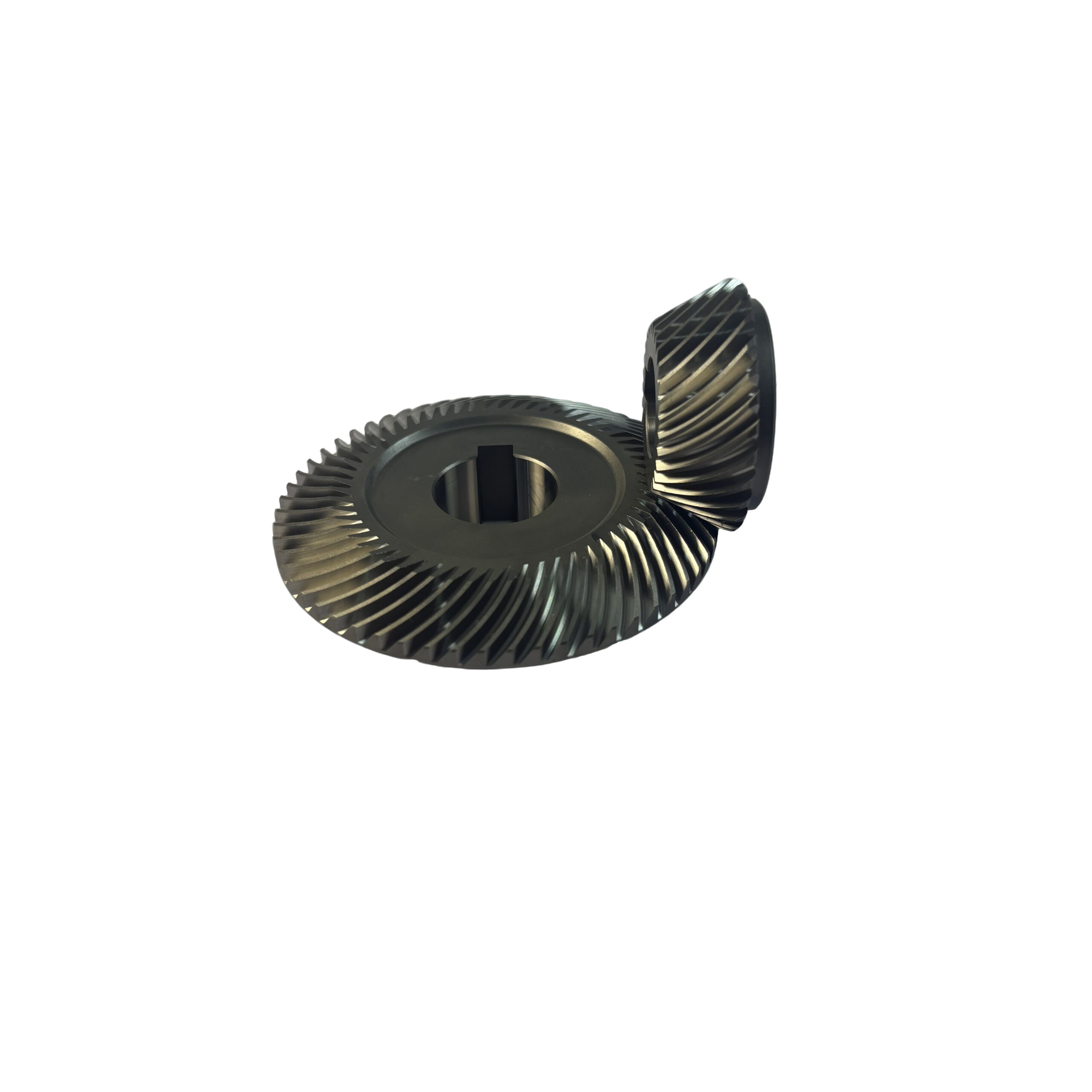

ABR090002-20 Small Bevel Gear and ABR090002-21 Large Bevel Gear
$18.34piece
RD-003-C (ABR090002-20)

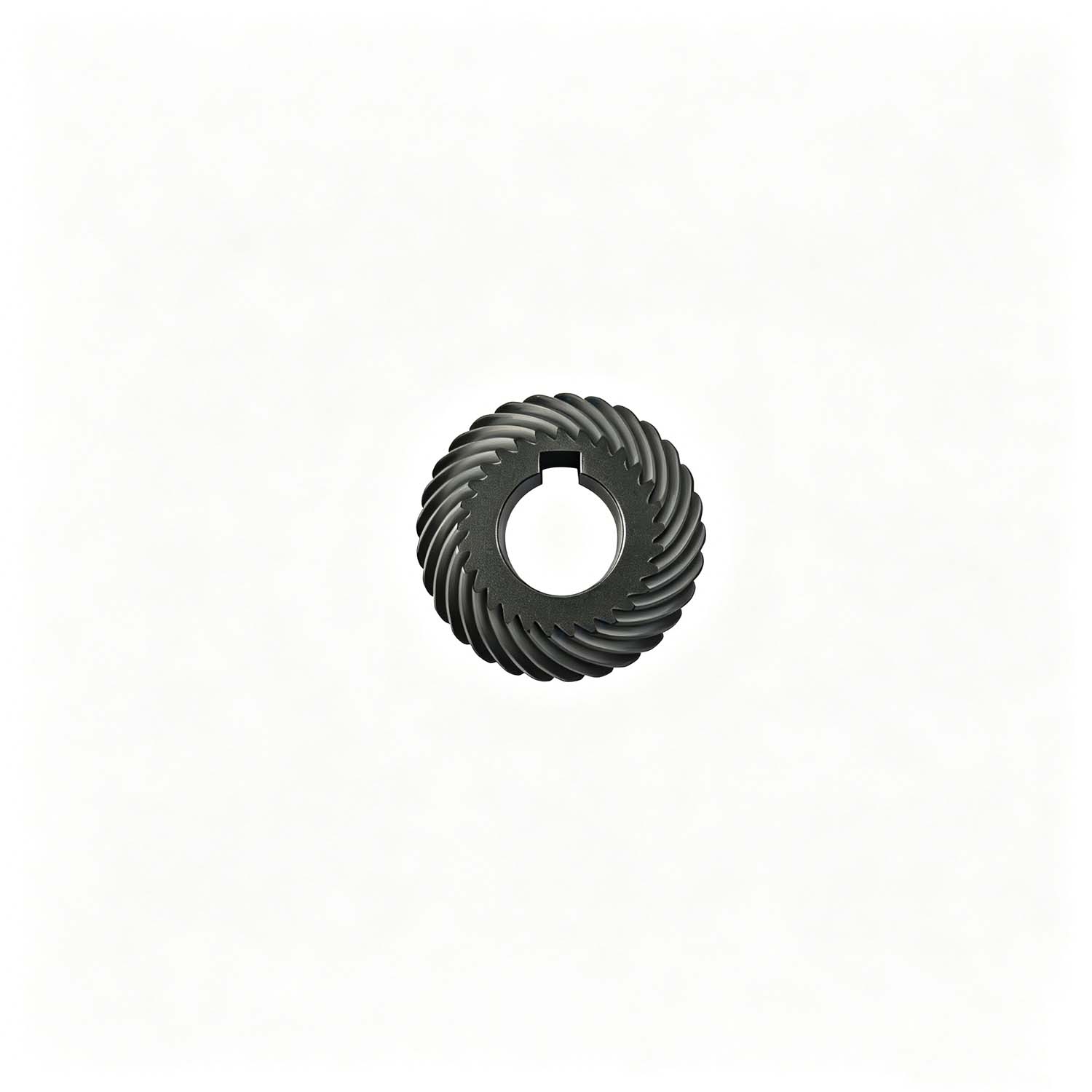

Small left-hand spiral bevel gear. Parameters: pressure angle 20°, module 1.25, 26 teeth, gear ratio 2, spiral angle 35°(L). Inner diameter 15 mm, outer gear diameter 38.5 mm, overall length 16 mm, weight 0.0747 kg. Manufactured from 20CrMnTi via precision processes, suitable for speed reducers.
RD-004-C (ABR090002-21)

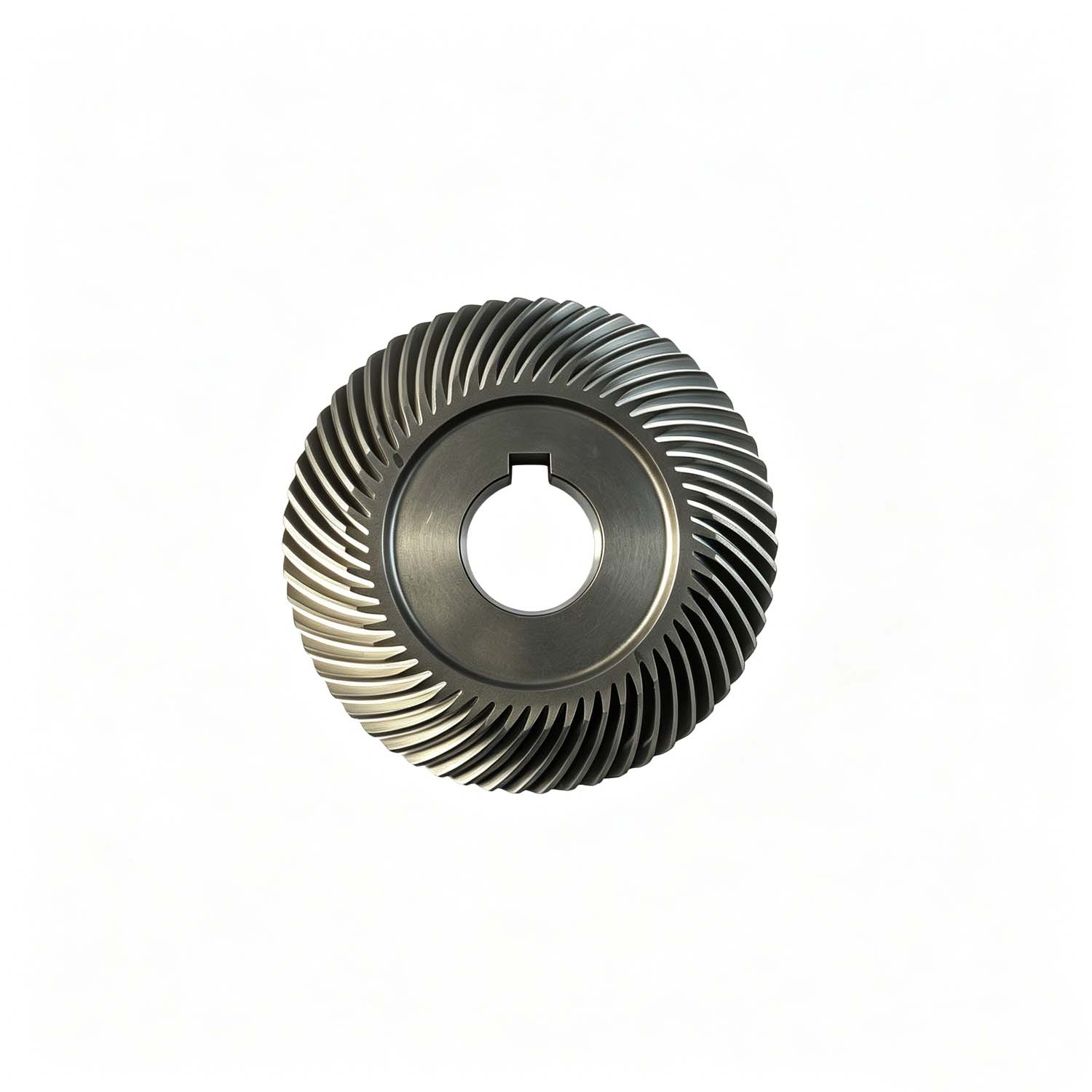

Large right-hand spiral bevel gear. Parameters: pressure angle 20°, module 1.25, 58 teeth, gear ratio 2, spiral angle 35°(R). Inner diameter 20 mm, outer gear diameter 72 mm, overall length 17.3 mm, weight 0.2728 kg. Made of 20CrMnTi with fine machining, for speed reducer assembly.
Description
RD-003-C (ABR090002-20 Small Spiral Bevel Gear)
Model RD-003-C is a small left-hand spiral bevel gear. It has a pressure angle of 20°, module 1.25, 26 teeth and a gear ratio of 2, with a left-hand spiral angle of 35°. The inner diameter is 15 mm, outer gear diameter 38.5 mm, overall length 16 mm, and unit weight 0.0747 kg. Made of 20CrMnTi steel, it is processed through cutting, turning, gear milling, heat treatment, hanging shot blasting, boring, facing, chamfering with guide circular arc and gear grinding. This gear features high precision and stable performance, and is applied to speed reducers.
RD-004-C (ABR090002-21 Large Spiral Bevel Gear)
Model RD-004-C is a large right-hand spiral bevel gear. It has a pressure angle of 20°, module 1.25, 58 teeth and a gear ratio of 2, with a right-hand spiral angle of 35°. The inner diameter is 20 mm, outer gear diameter 72 mm, overall length 17.3 mm, and unit weight 0.2728 kg. Adopting 20CrMnTi as raw material, it undergoes cutting, turning, gear milling, heat treatment, hanging shot blasting, boring, facing, guide circular arc chamfering and gear grinding. With reliable transmission performance, it is used as a matching gear for speed reducers.
Additional information
| RD-003-C and RD-004-C weight |
0.0747and0.2728 |
|---|---|
| RD-003-C and RD-004-C Core Components |
gear |
| RD-003-C and RD-004-C Craftsmanship |
Milling |
