M0217M10 (120-1:1) Left-hand Gear (without keyway) and M0218M10 (120-1:1) Right-hand Gear (without keyway)
$18.20piece
AEP-19-C1 (left-hand) and AEP-20-C1 (right-hand) are a pair of customized keyless spiral bevel gears for reducers made of 20CrMnTi, with module 1.58, 20° pressure angle and 30 teeth, precision-machined for 1:1 reducer transmission.
描述

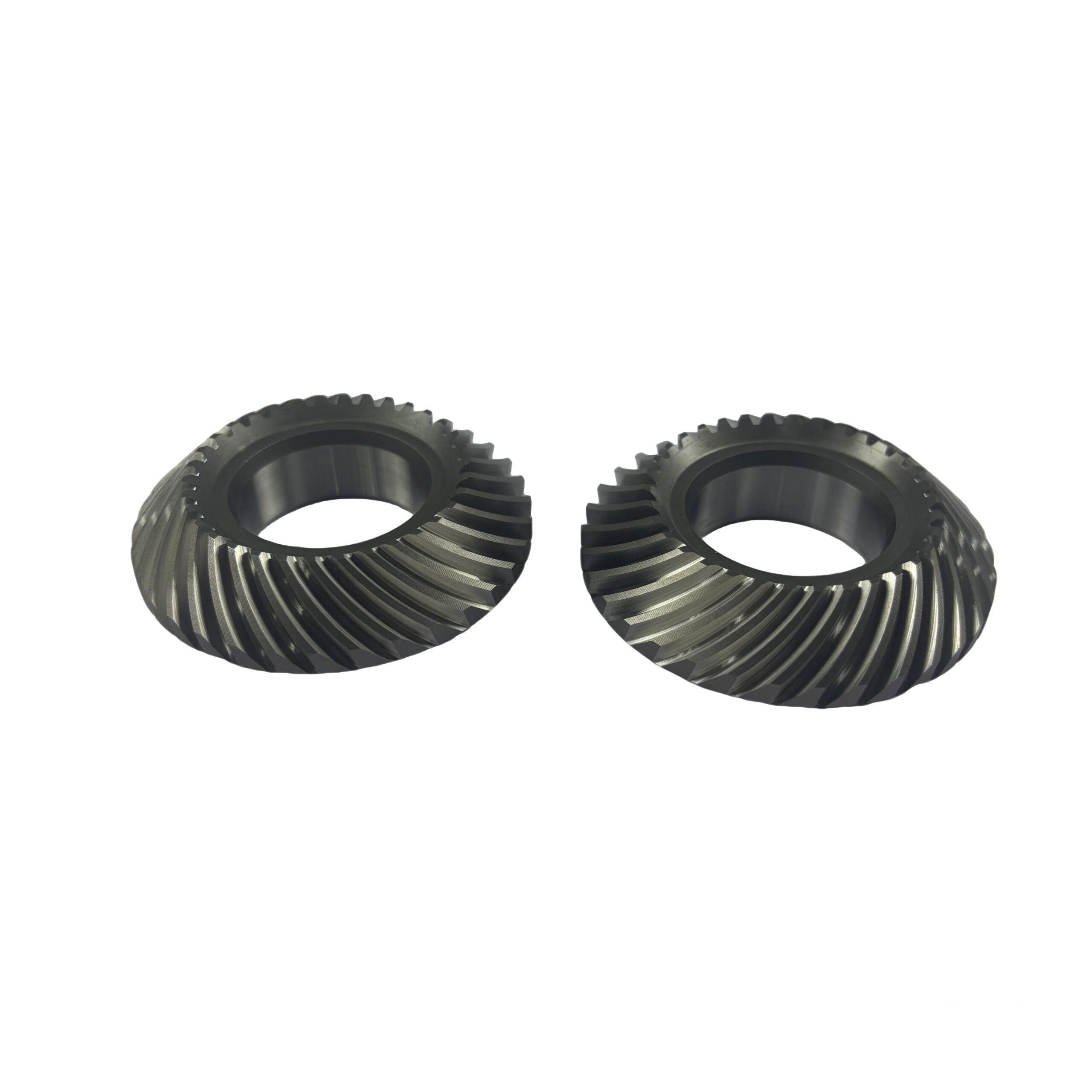

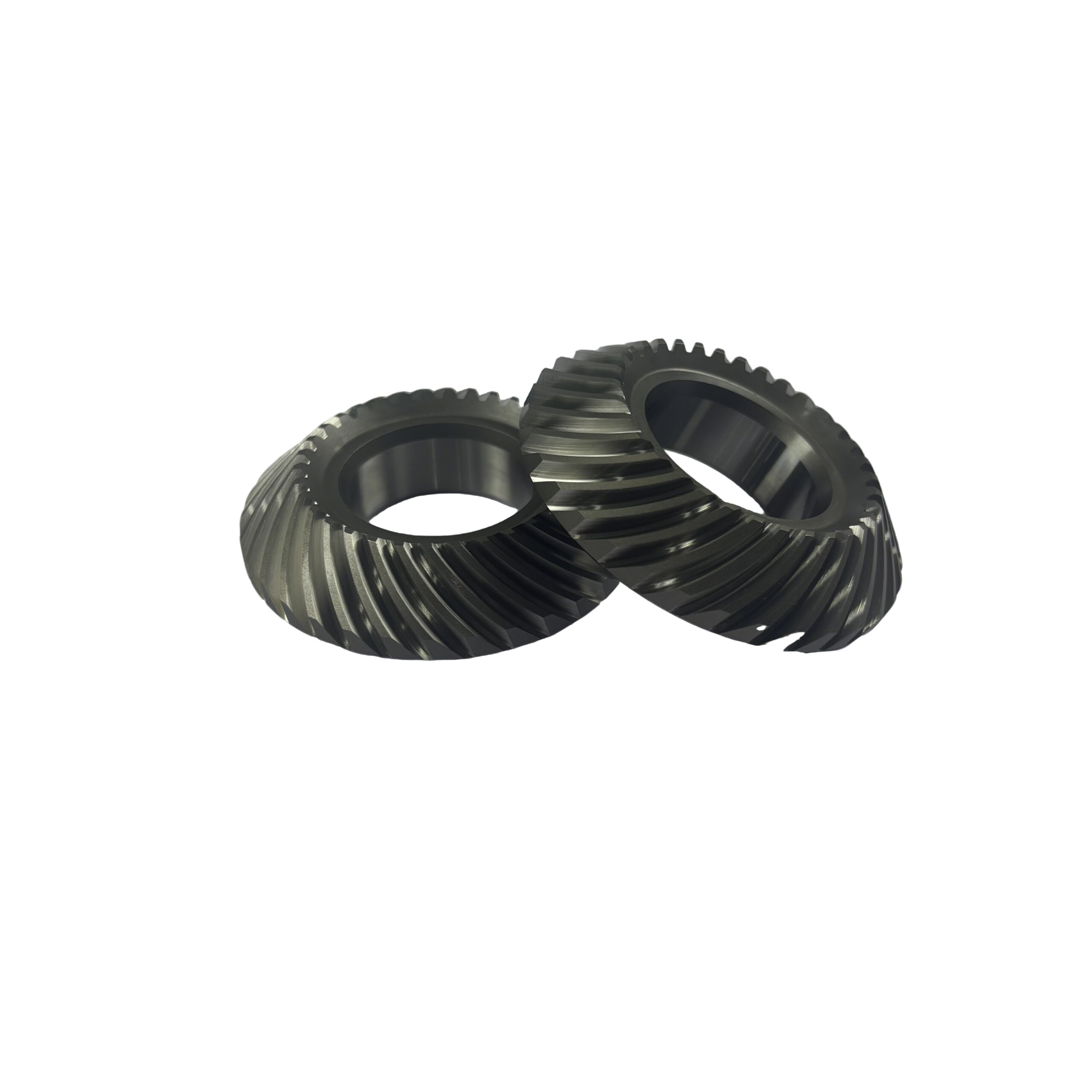

This series is a pair of keyless spiral bevel gears for reducers, which are customized products, including left-hand and right-hand versions. The models are AEP-19-C1 (M0217M10 (120-1:1) Left-hand Gear, keyless) and AEP-20-C1 (M0218M10 (120-1:1) Right-hand Gear, keyless). They have opposite directions and the same specifications, specially designed for reducer transmission systems, suitable for installation scenarios without keyway connection, balancing transmission stability and installation convenience.
The two gears have prominent core commonalities: both are made of 20CrMnTi, with excellent structural strength, wear resistance and transmission stability, suitable for conventional transmission conditions of reducers; pressure angle of 20°, module of 1.58, 30 teeth, speed ratio of 1, spiral angle of 35°, inner diameter of 20mm, gear outer diameter of 64.6mm, total length of 17mm, and weight of 0.2095kg each; the processing technology is completely uniform, including sawing, turning, gear milling, heat treatment, shot blasting, boring + end facing + guide arc chamfering, and gear grinding. The keyless structure design does not affect the transmission accuracy, runs stably and reliably, and adapts to the special transmission needs of customized products.
Specific parameter differences and product attributes:

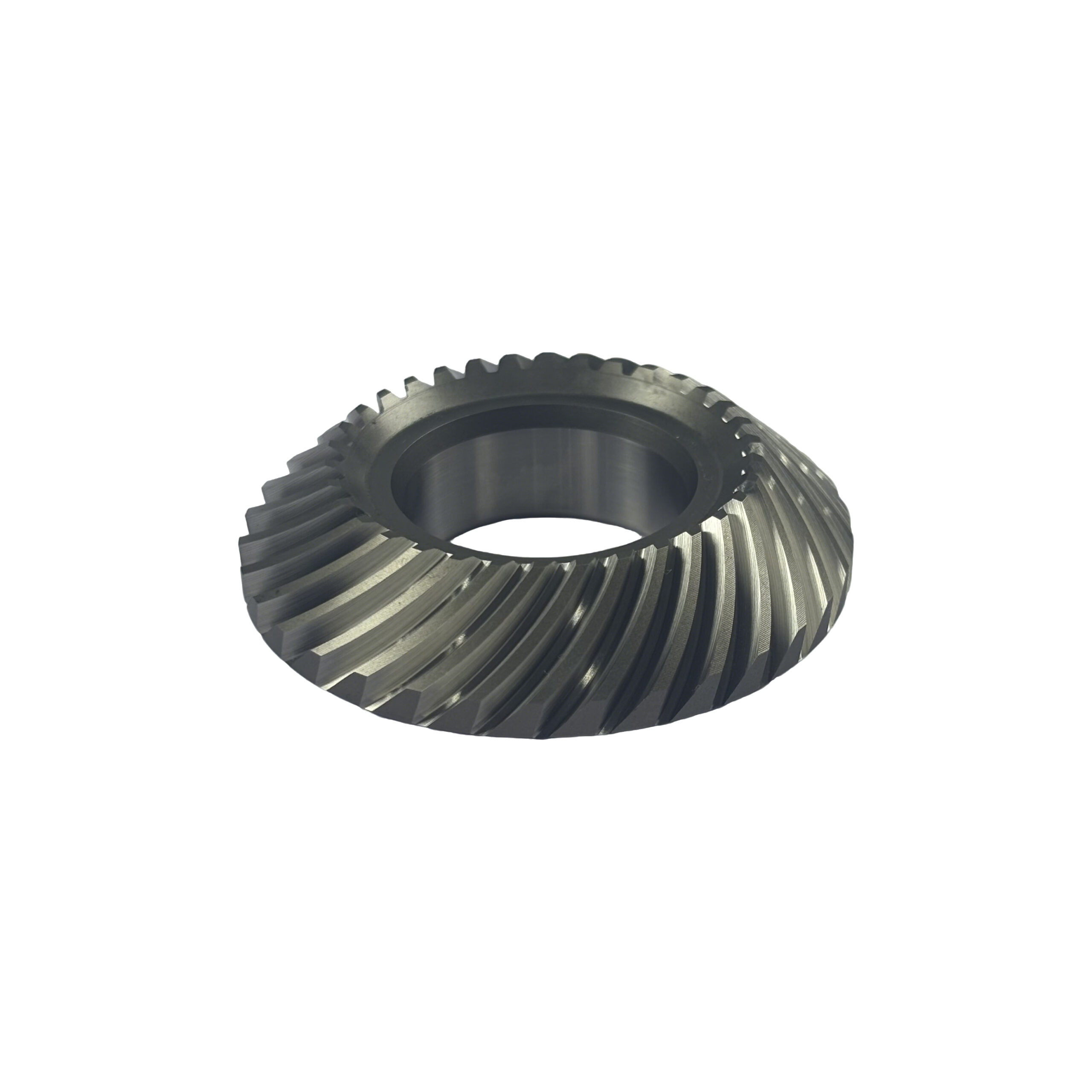

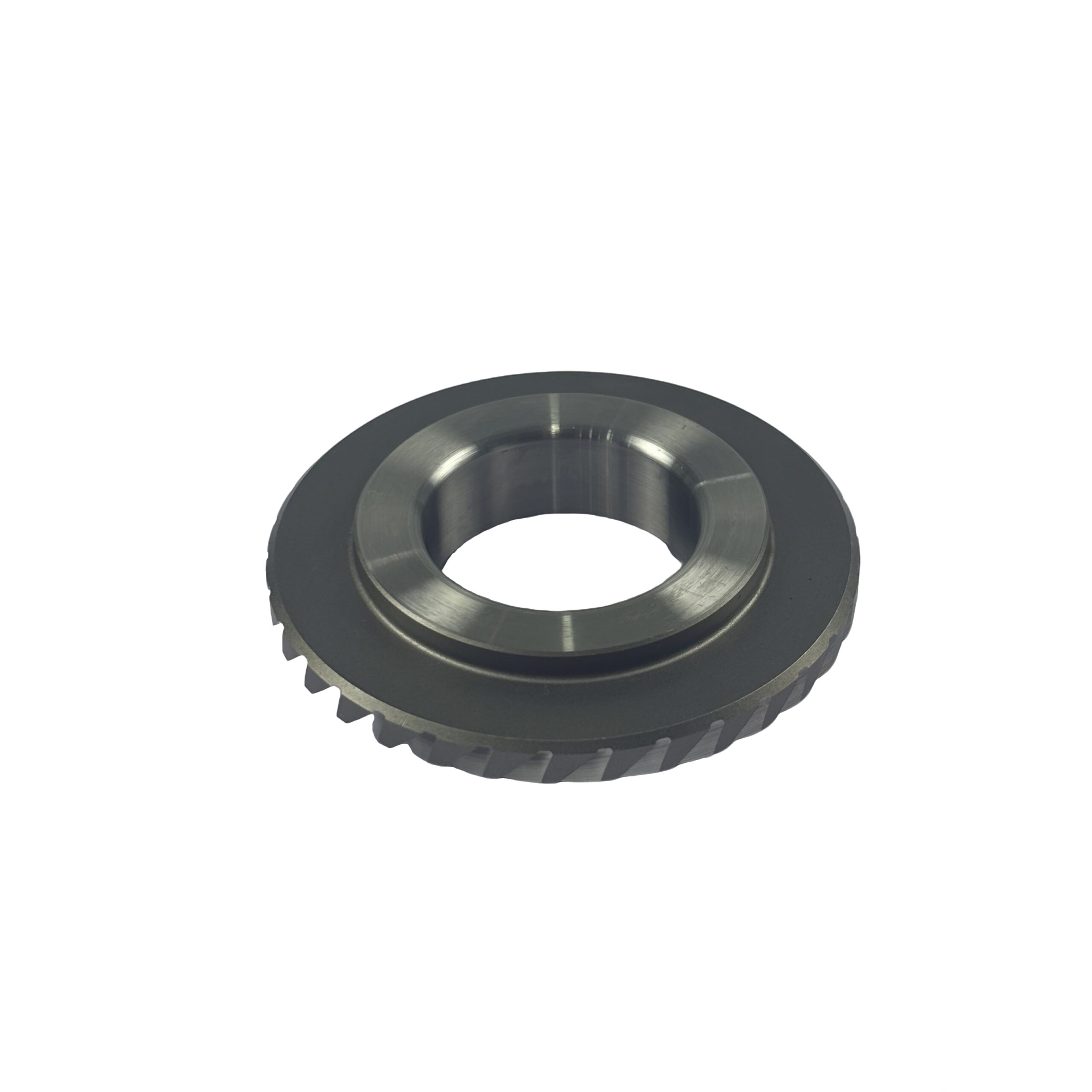

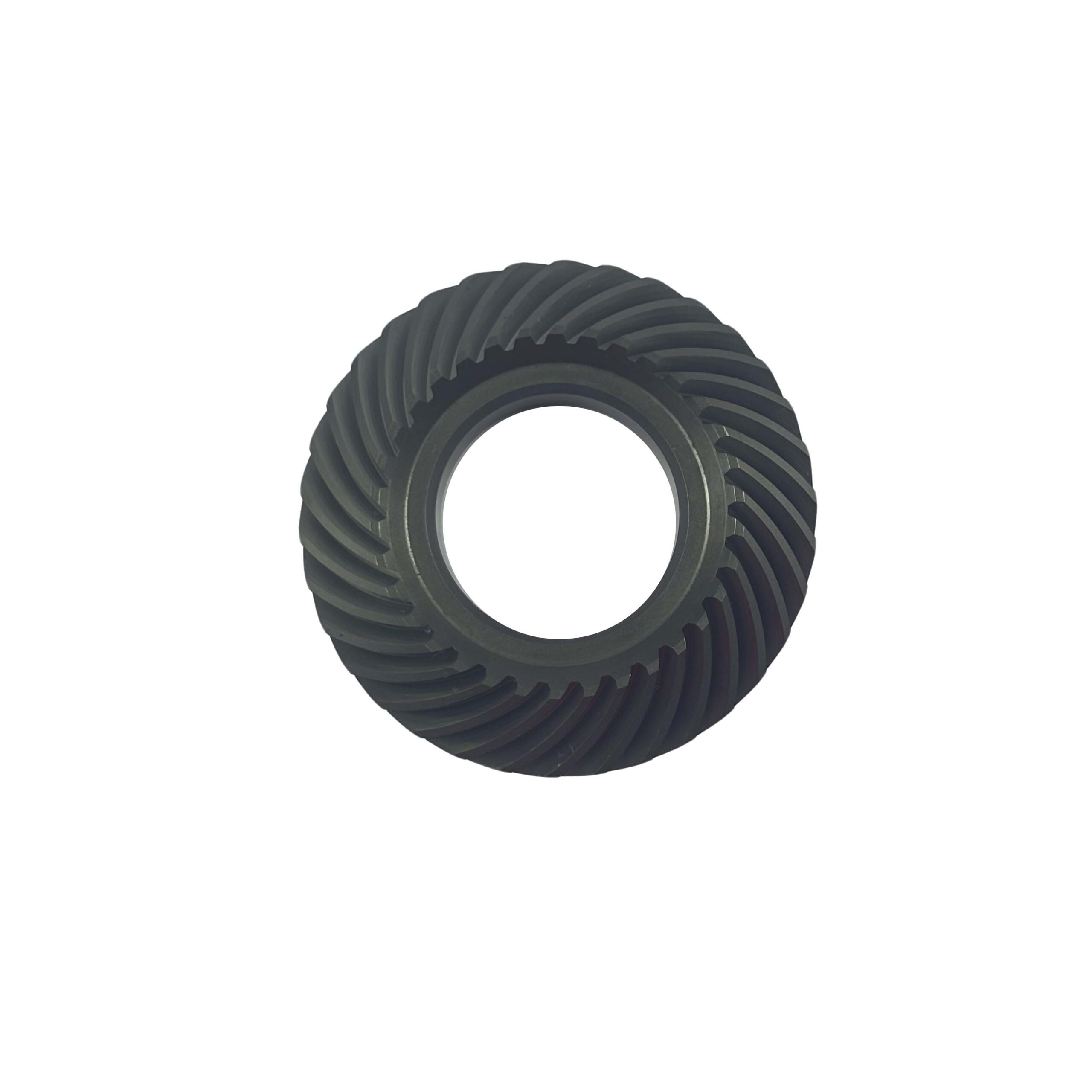

– AEP-19-C1 Left-hand Gear (keyless): Spiral angle 35°/L, a customized product, suitable for the keyless installation scenario where the reducer needs left-hand transmission.

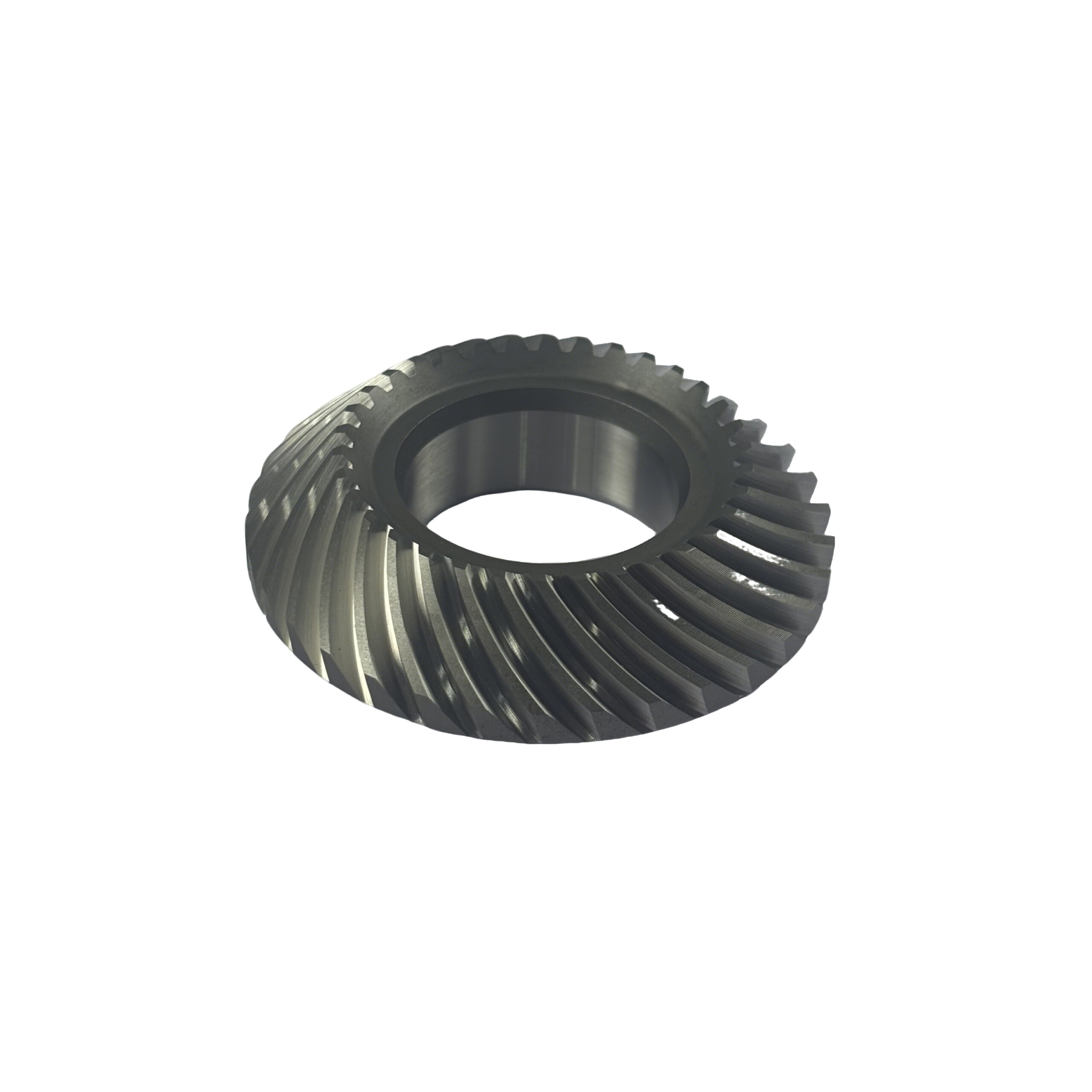

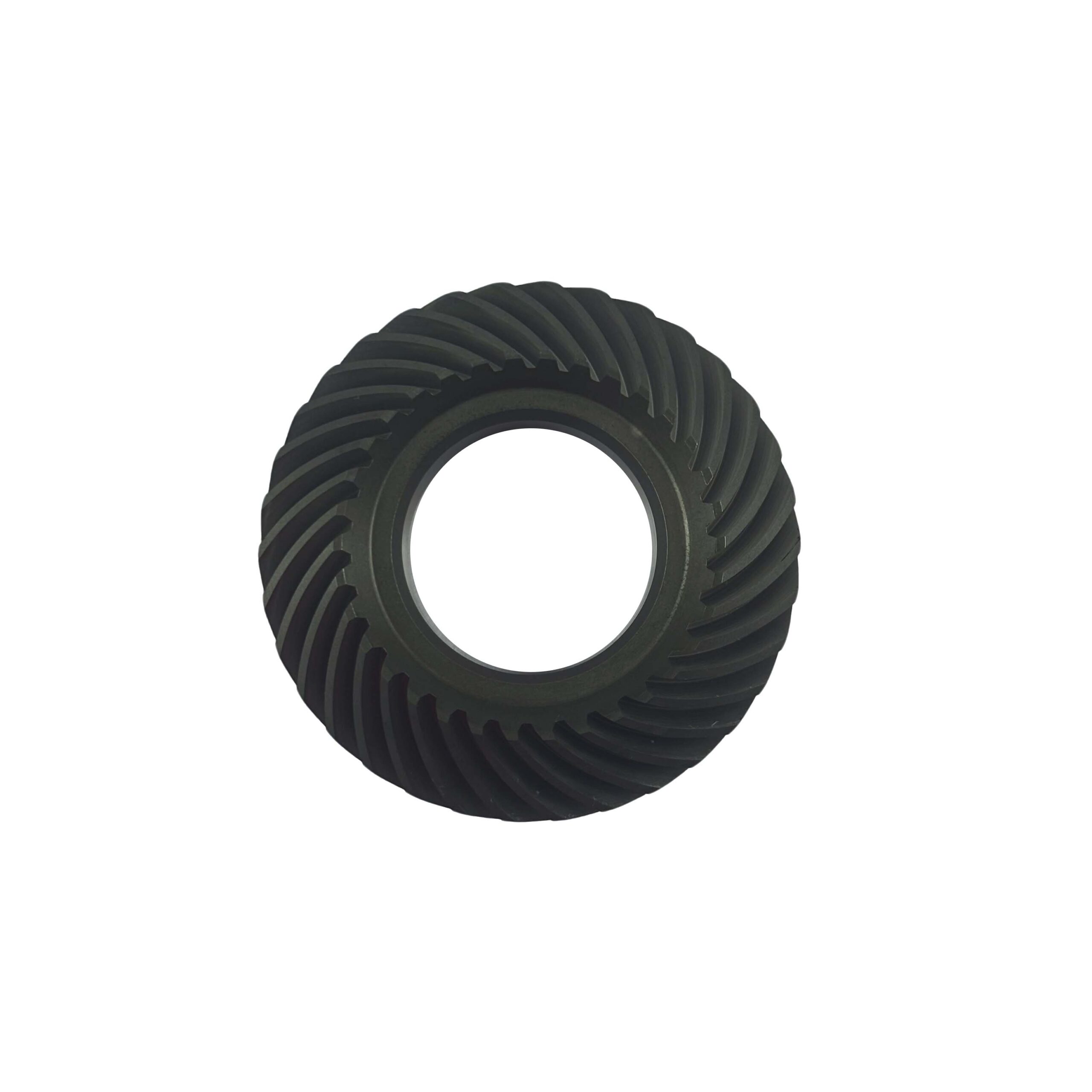

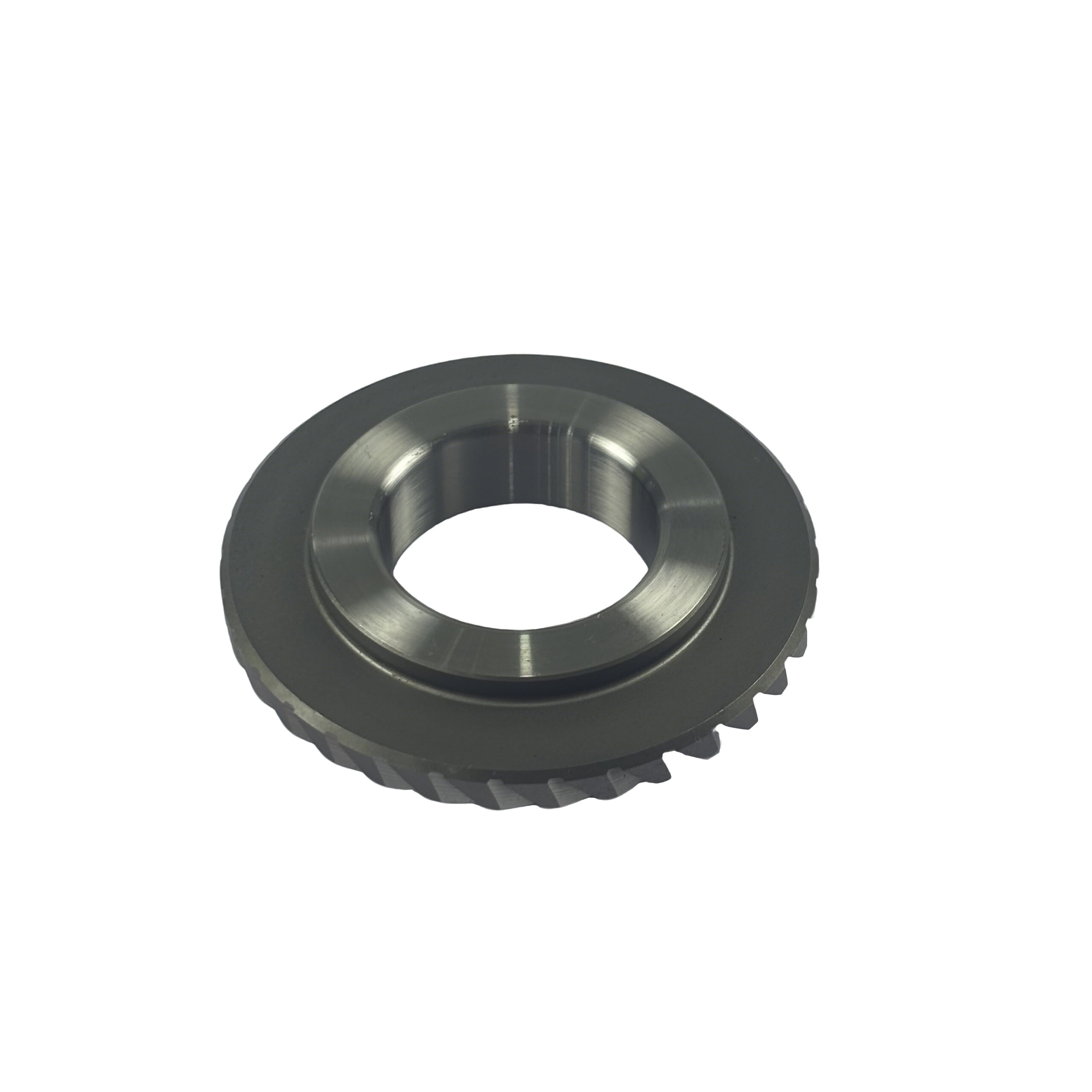

– AEP-20-C1 Right-hand Gear (keyless): Spiral angle 35°/R, a customized product, suitable for the keyless installation scenario where the reducer needs right-hand transmission; both can be used alone to adapt to the corresponding direction, or used in pairs to meet the two-way transmission needs of the reducer.
其他信息
| AEP-19-C1 and AEP-20-C1 weight |
0.2095and0.2095 |
|---|---|
| AEP-19-C1 and AEP-20-C1 Core Components |
gear |
| AEP-19-C1 and AEP-20-C1 Craftsmanship |
Milling |
