M0217M10 (120-1:1) Left-hand Gear and M0218M10 (120-1:1) Right-hand Gear
$12.60piece

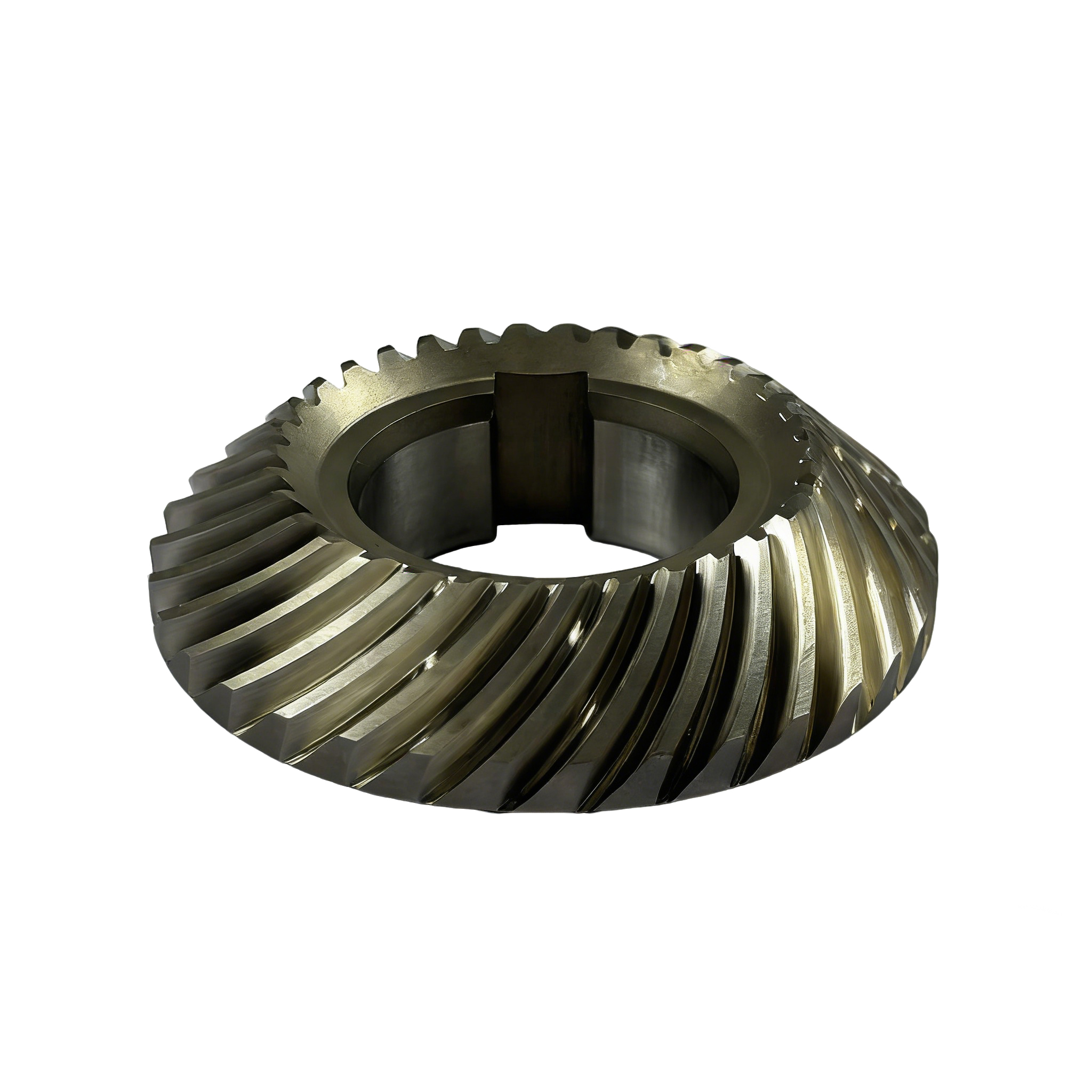

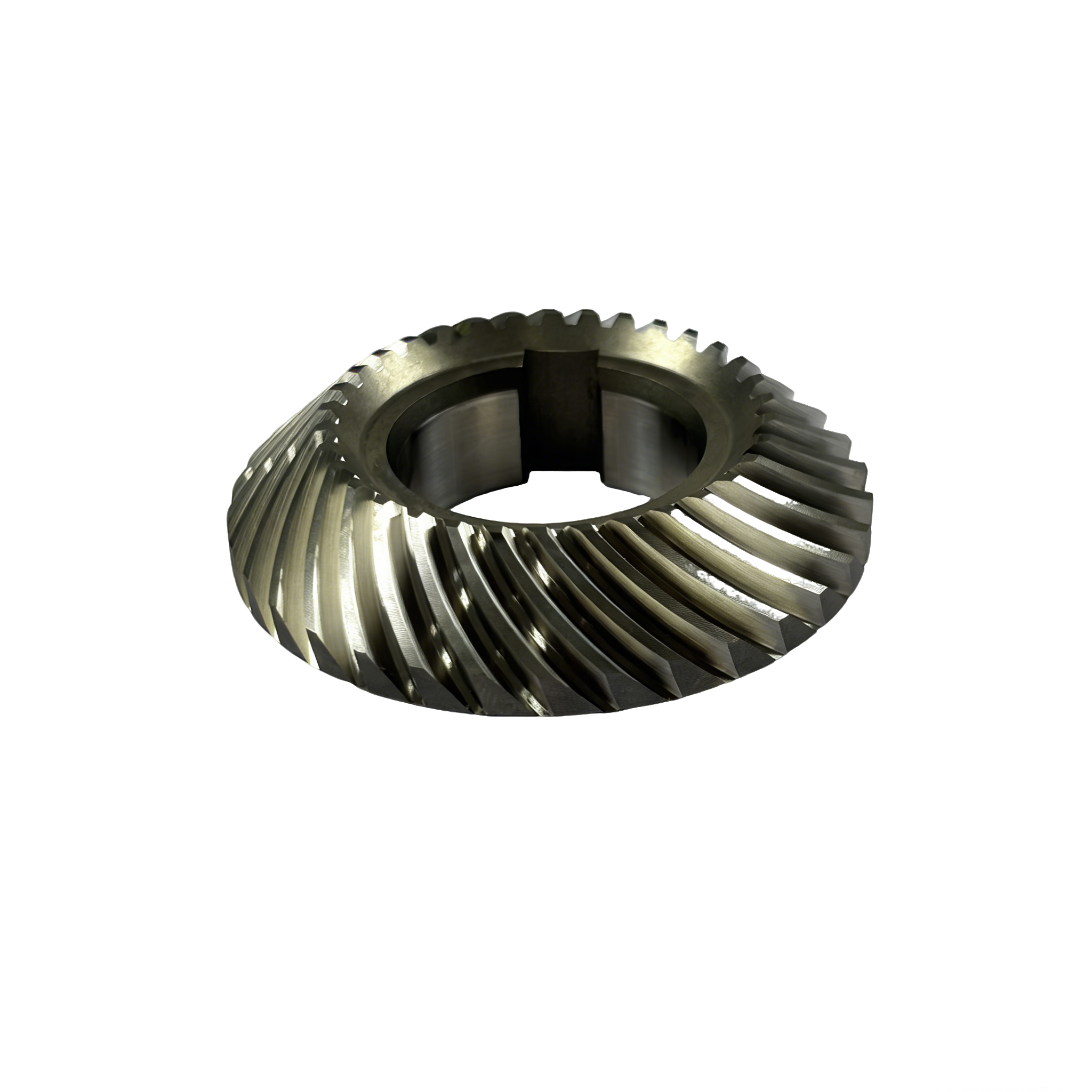

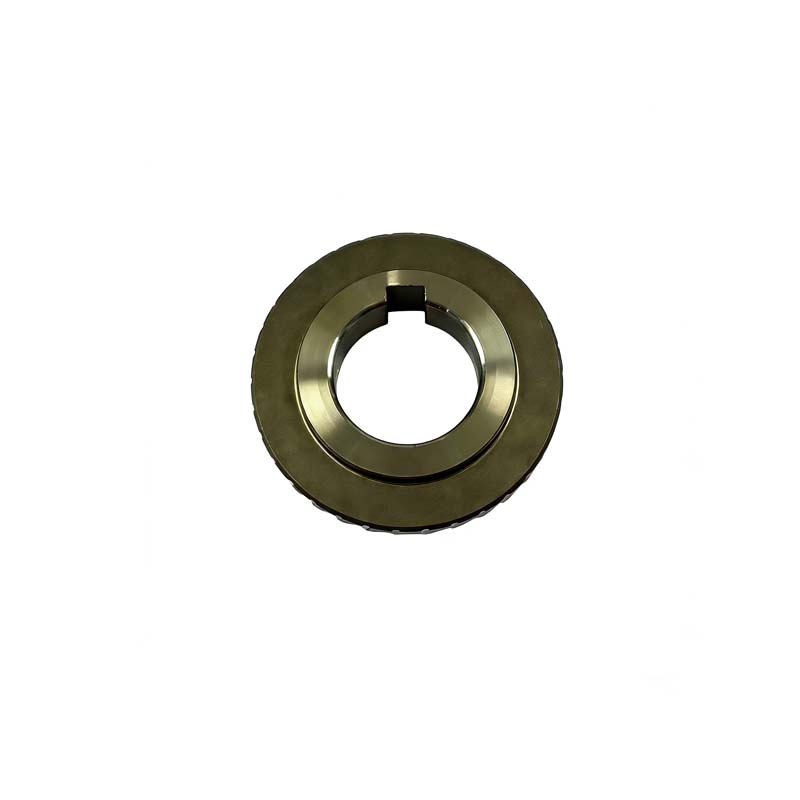

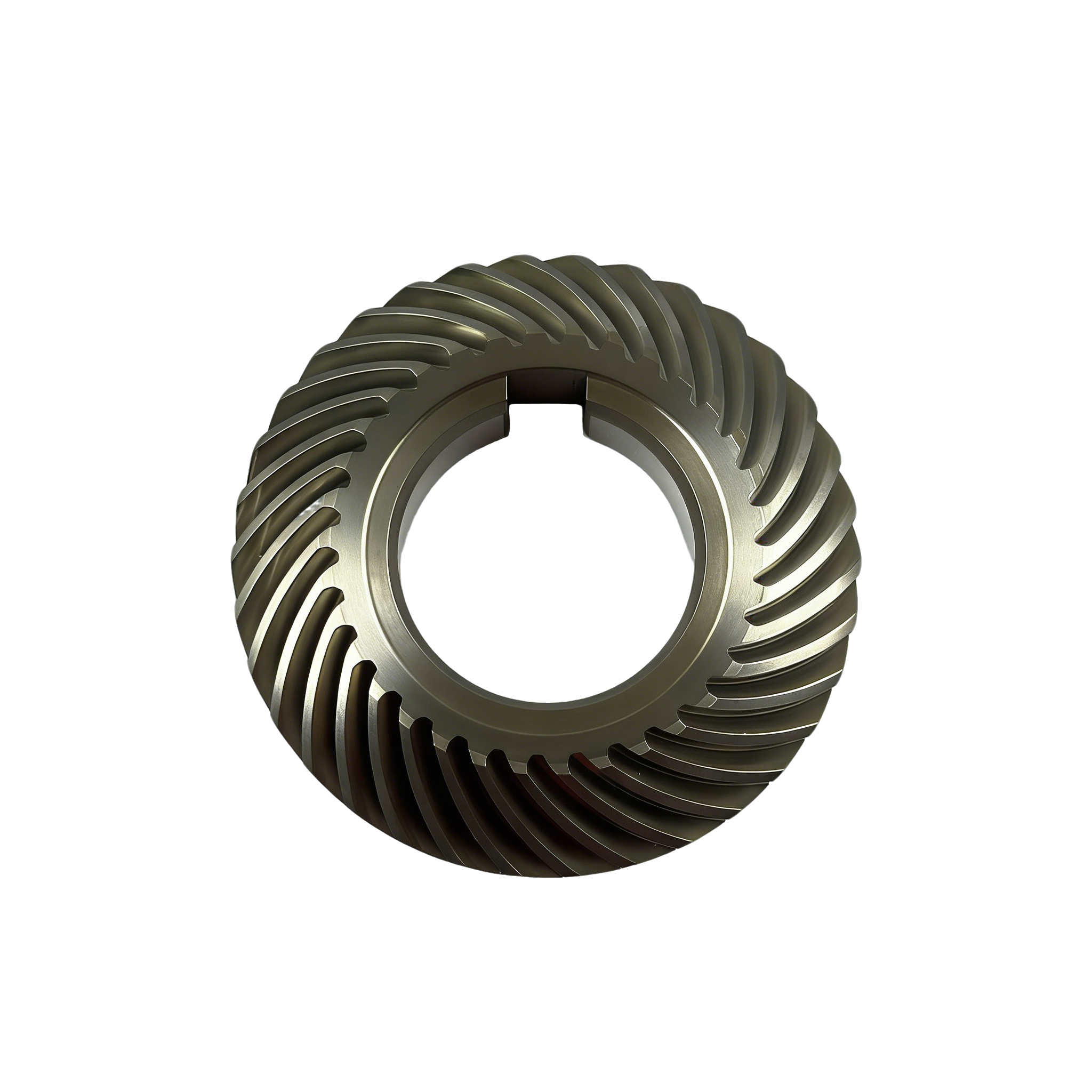

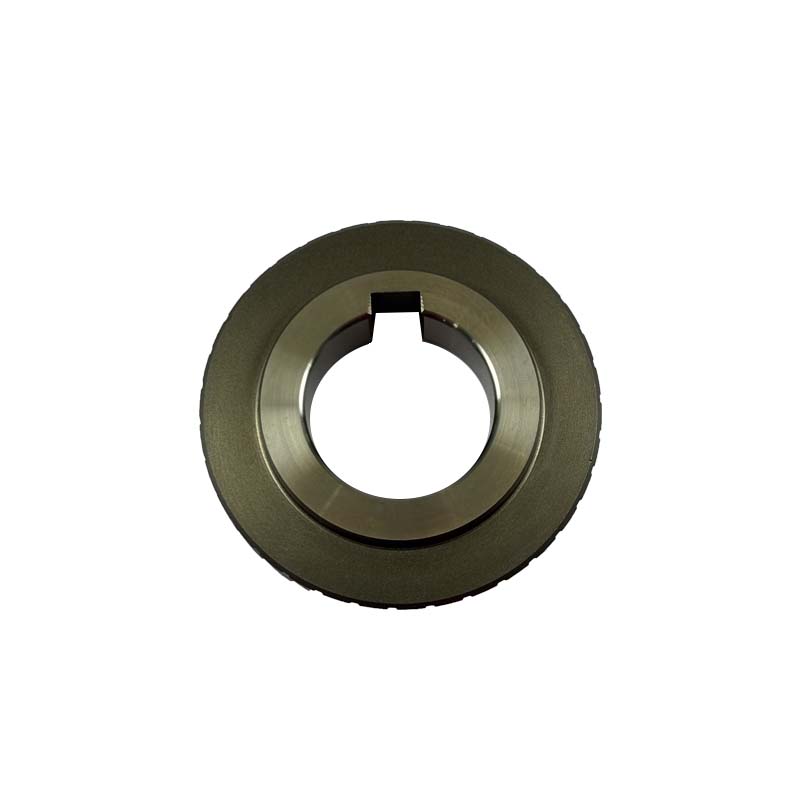

AEP‑19‑C left-hand and AEP‑20‑C right-hand are a pair of 20CrMnTi spiral bevel gears for reducers, module 1.58, 20° pressure angle, 30 teeth with keyway, for 1:1 transmission.
Description
This series consists of a pair of spiral bevel gears with keyway for reducers, including left-hand AEP‑19‑C and right-hand AEP‑20‑C, suitable for 1:1 constant speed transmission.Both gears are made of 20CrMnTi, with pressure angle 20°, module 1.58, 30 teeth, speed ratio 1, spiral angle 35°, inner diameter 20mm, gear outer diameter 64.6mm, total length 17mm, weight 0.2078kg.They are manufactured through precise processes: sawing, turning, keyway machining, gear milling, heat treatment, shot blasting, boring, end facing, guide arc chamfering and gear grinding, with high precision, good wear resistance and reliable keyway connection.
Additional information
| AEP-19-C and AEP-20-C weight |
0.2078and0.2078 |
|---|---|
| AEP-19-C and AEP-20-C Core Components |
gear |
| AEP-19-C and AEP-20-C Craftsmanship |
Milling |
