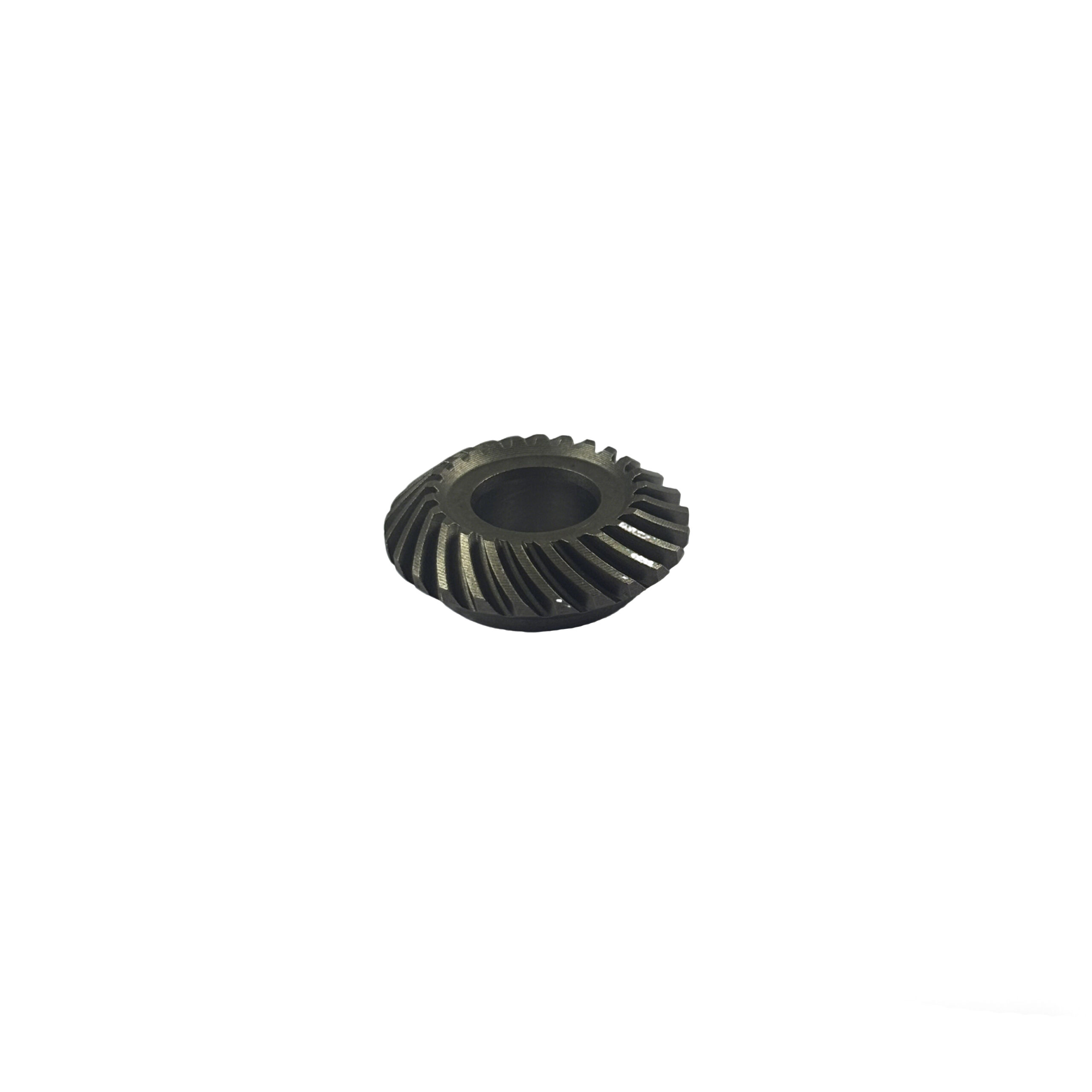

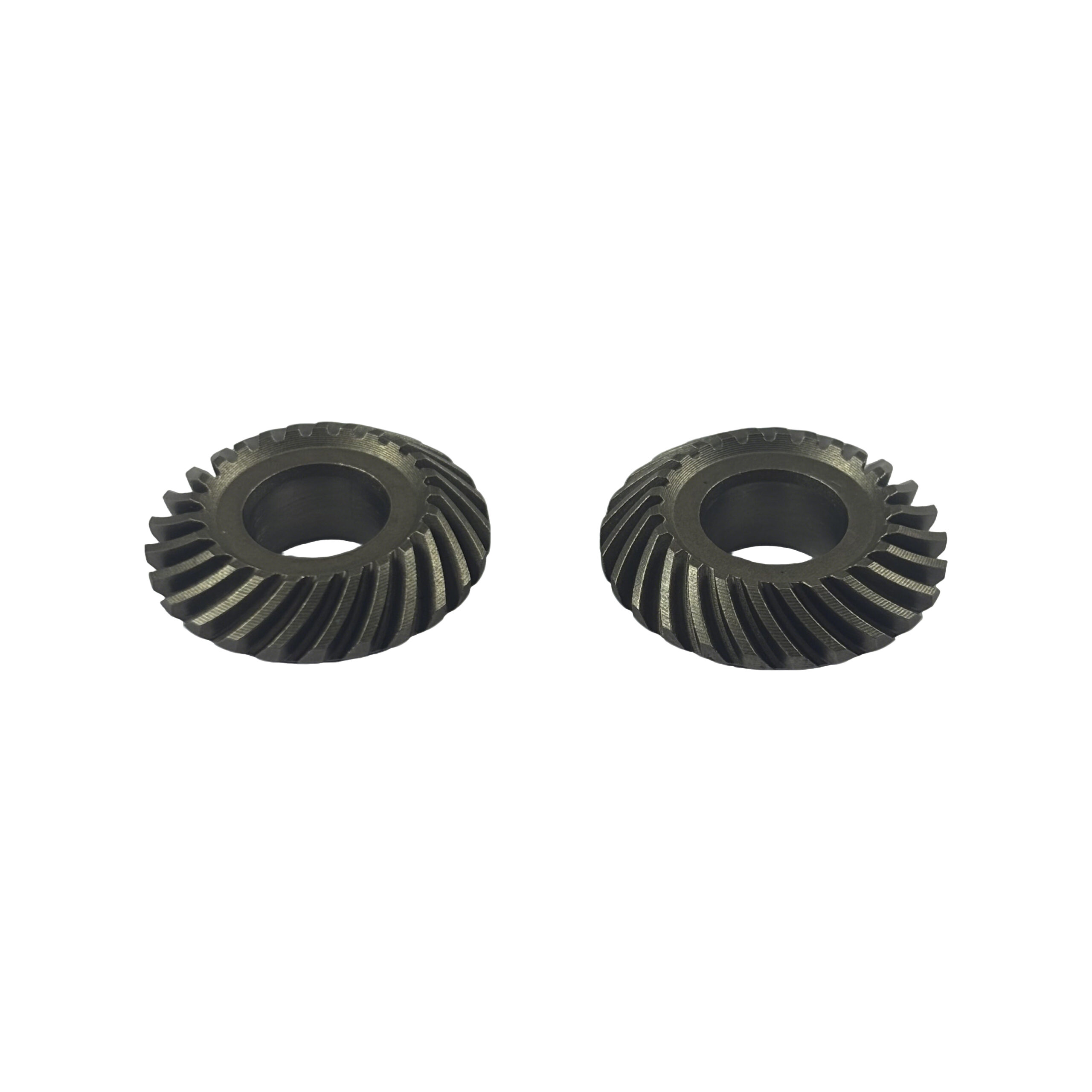

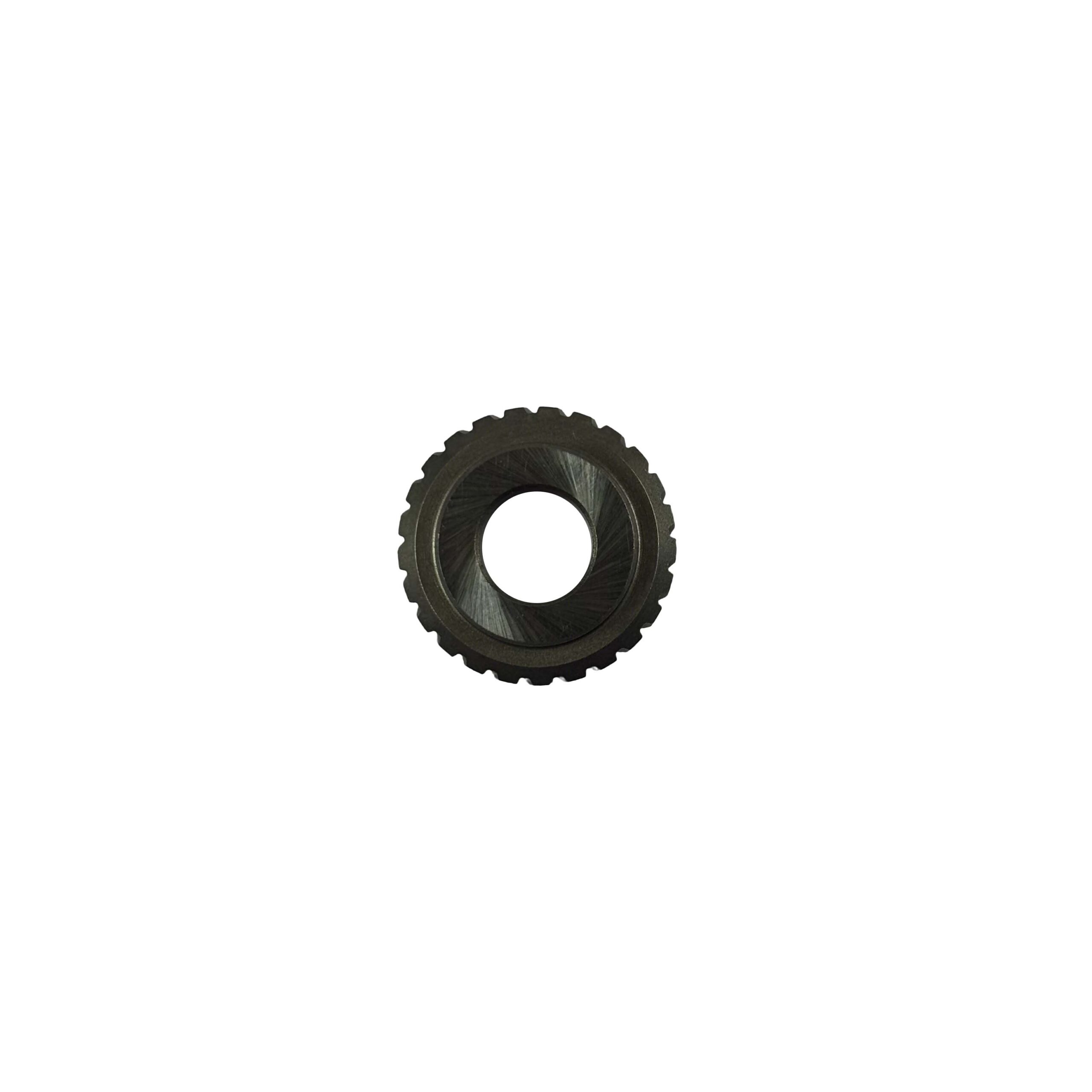

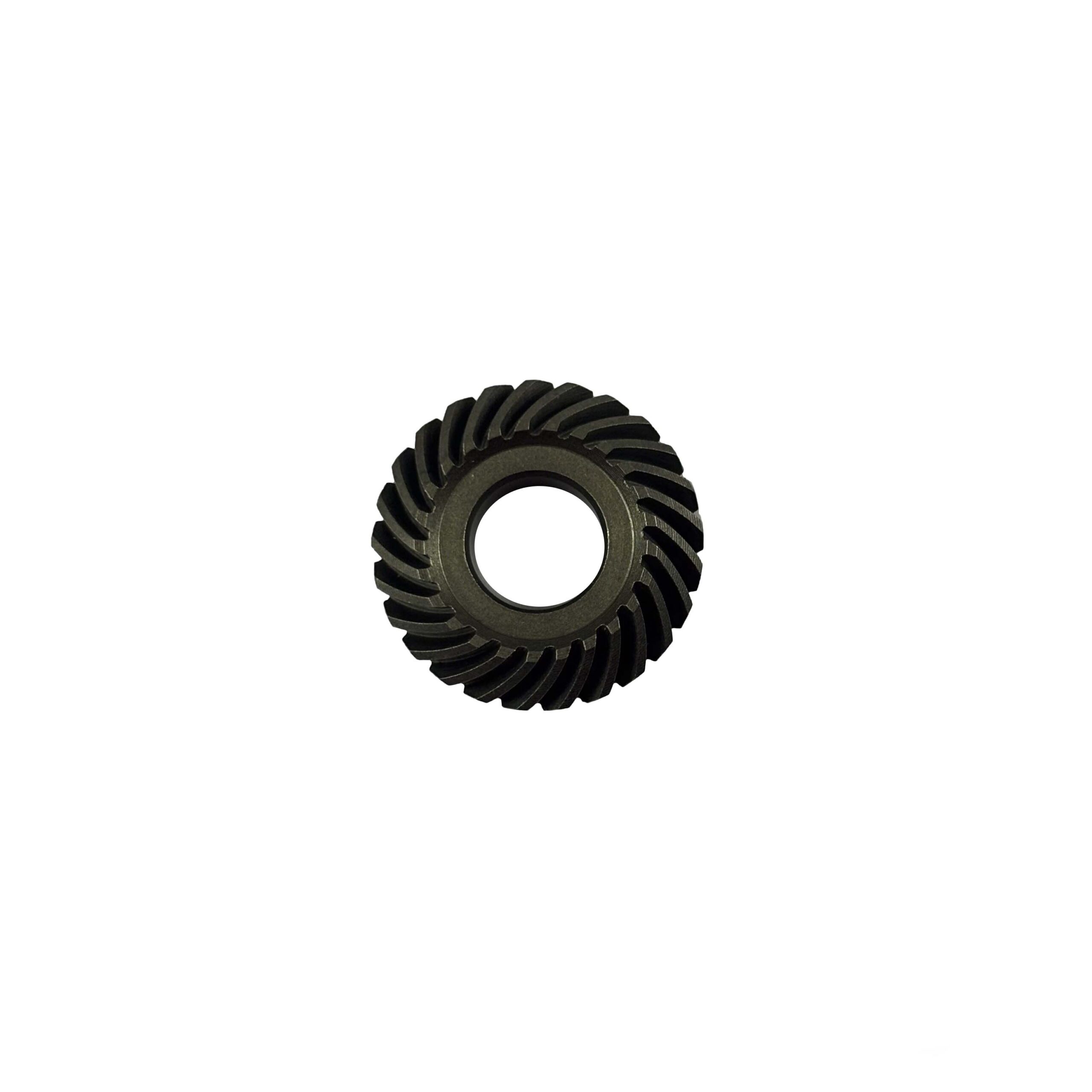

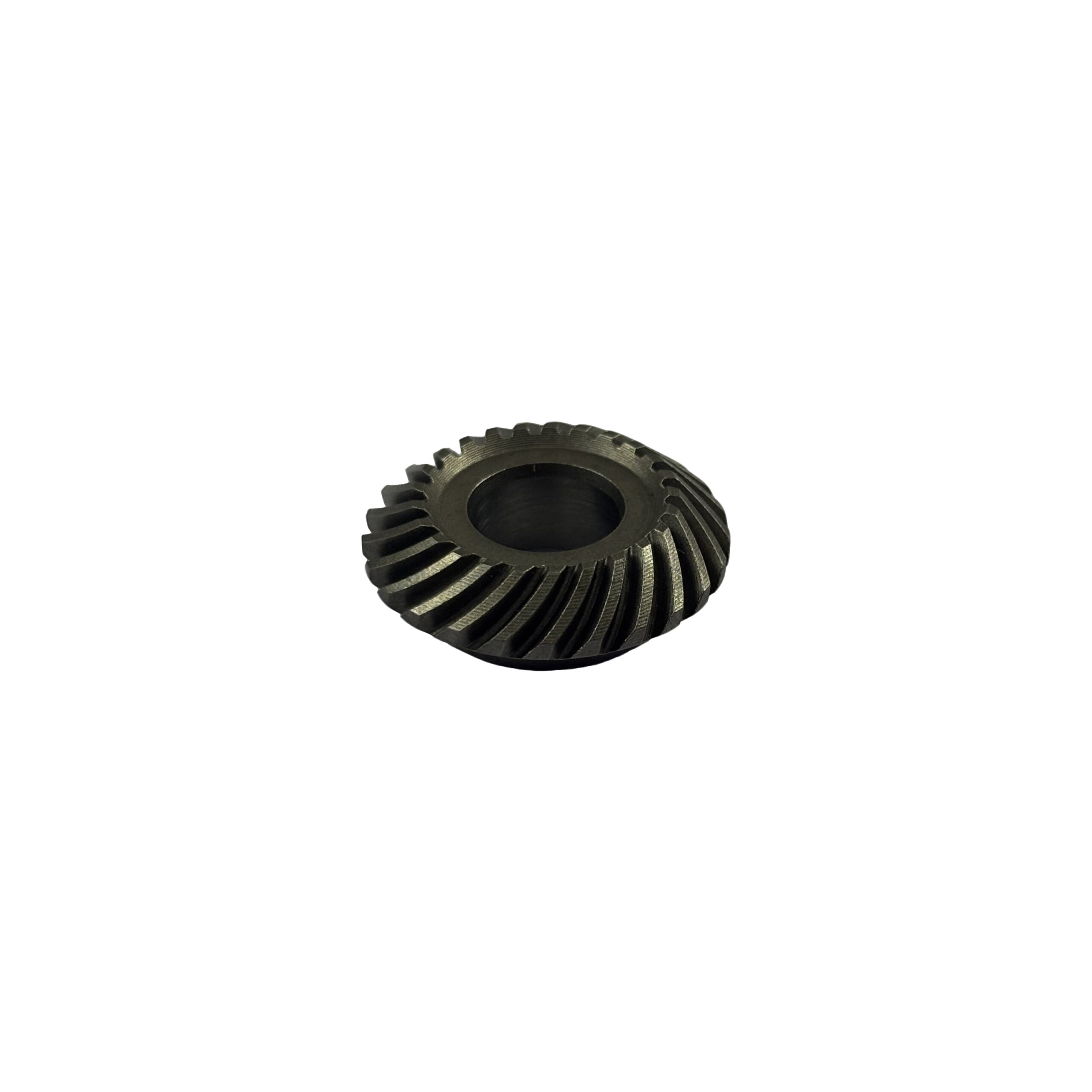

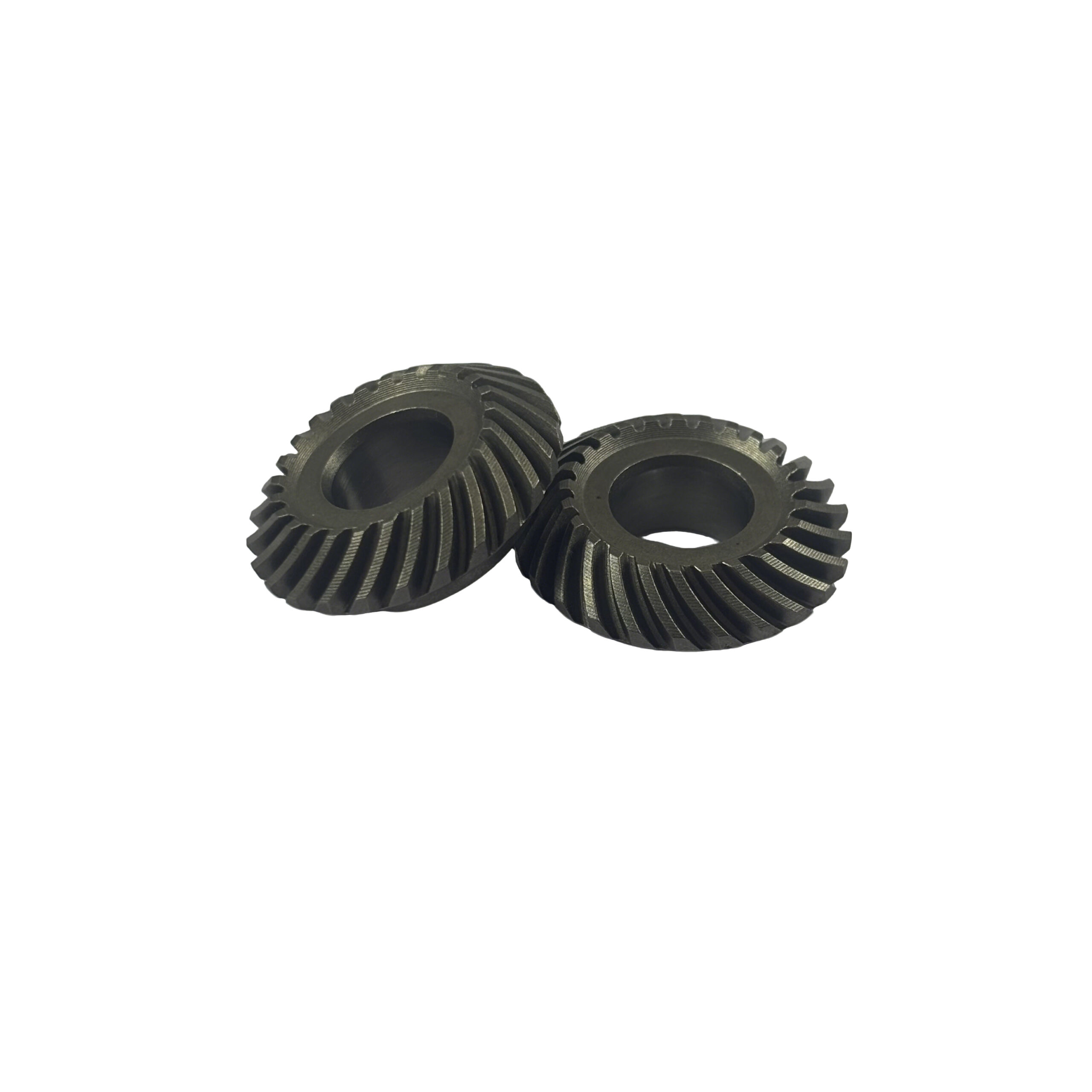

M0239G10 Bevel Gear, Left-hand and M0240G10 Bevel Gear, Right-hand
$5.32piece
AEP-21-C left-hand and AEP-22-C right-hand are a pair of 20CrMnTi spiral bevel gears with module 0.95 and 25 teeth, precision-machined for reducer transmission.
Description
AEP-21-C (left-hand) and AEP-22-C (right-hand) are a pair of precision spiral bevel gears for reducer transmission systems. Both gears are made of 20CrMnTi, with a pressure angle of 20°, module 0.95, 25 teeth, 35° spiral angle, inner diameter 9.5mm, gear outer diameter 23.8mm, total length 8mm, and unit weight 0.0235kg.
They are manufactured through precise processes including sawing, turning, gear milling, heat treatment, shot blasting, boring, end facing, guide arc chamfering and gear grinding, featuring compact structure, stable transmission and good wear resistance, suitable for high-precision reducer transmission.
Additional information
| AEP-21-C and AEP-22-C weight |
0.0235and0.0235 |
|---|---|
| AEP-21-C and AEP-22-C Core Components |
gear |
| AEP-21-C and AEP-22-C Craftsmanship |
Milling |
