J80672512 (C_IG_22G-040) Gear
$5.22piece
RJ-022-C (J80672512, C_IG_22G-040)

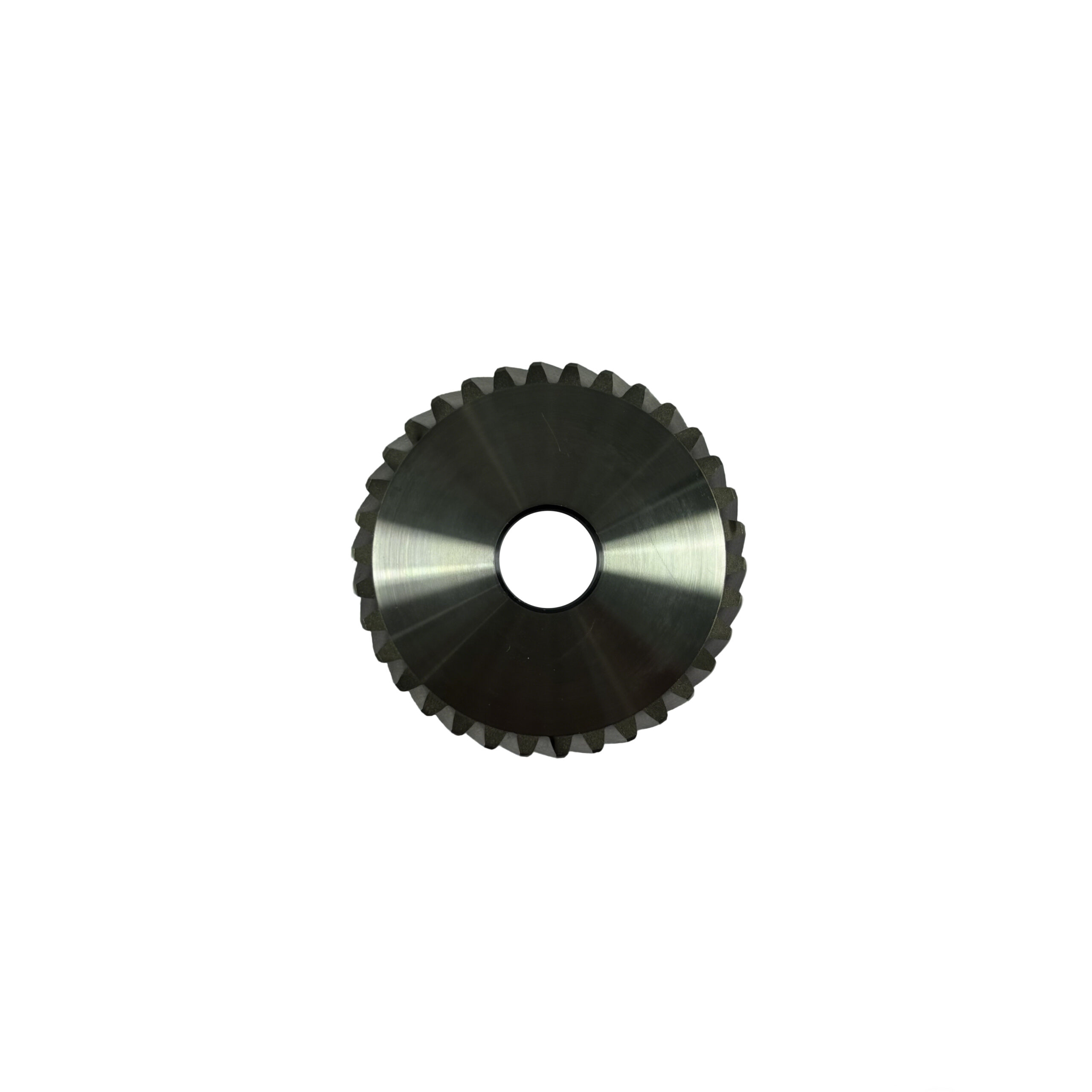

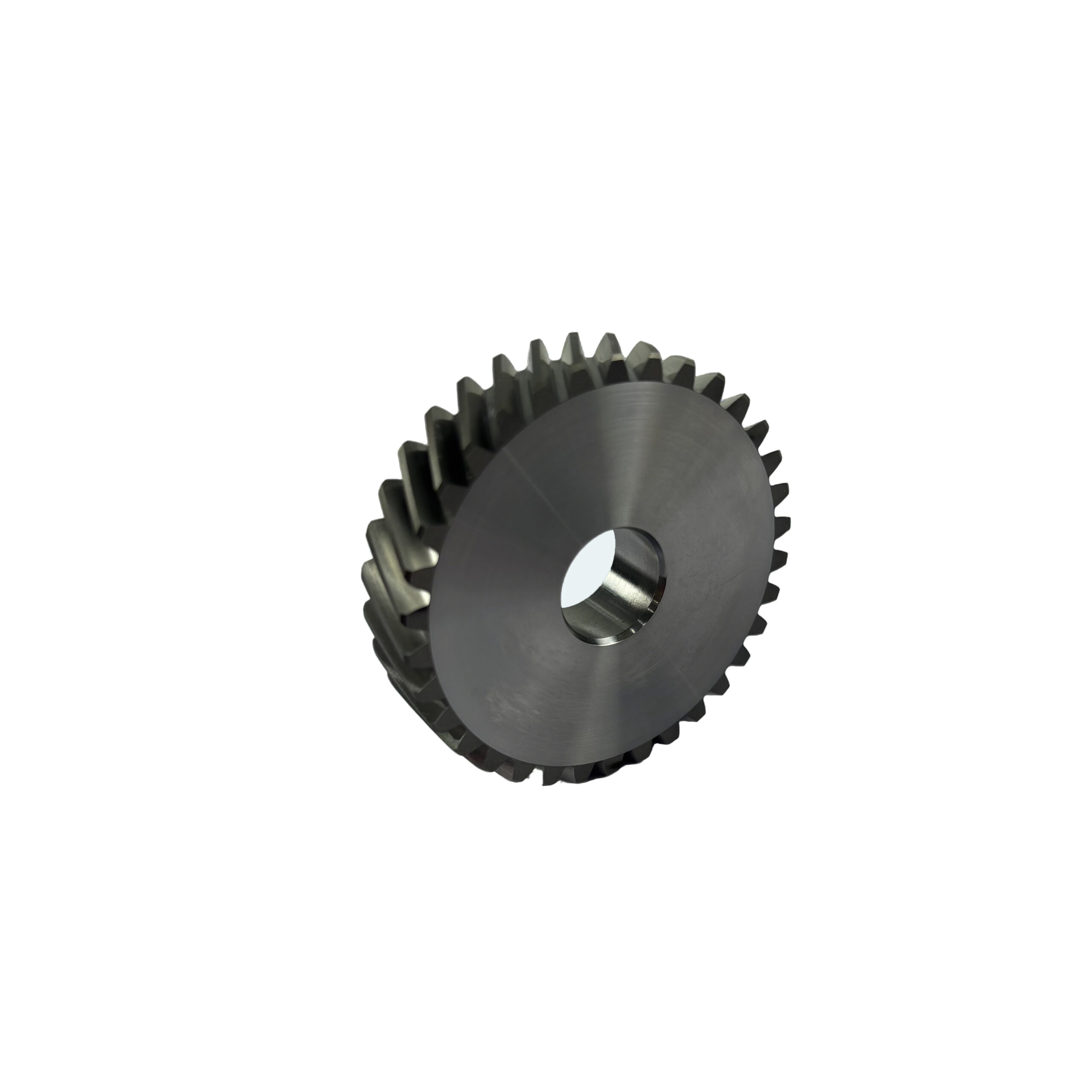

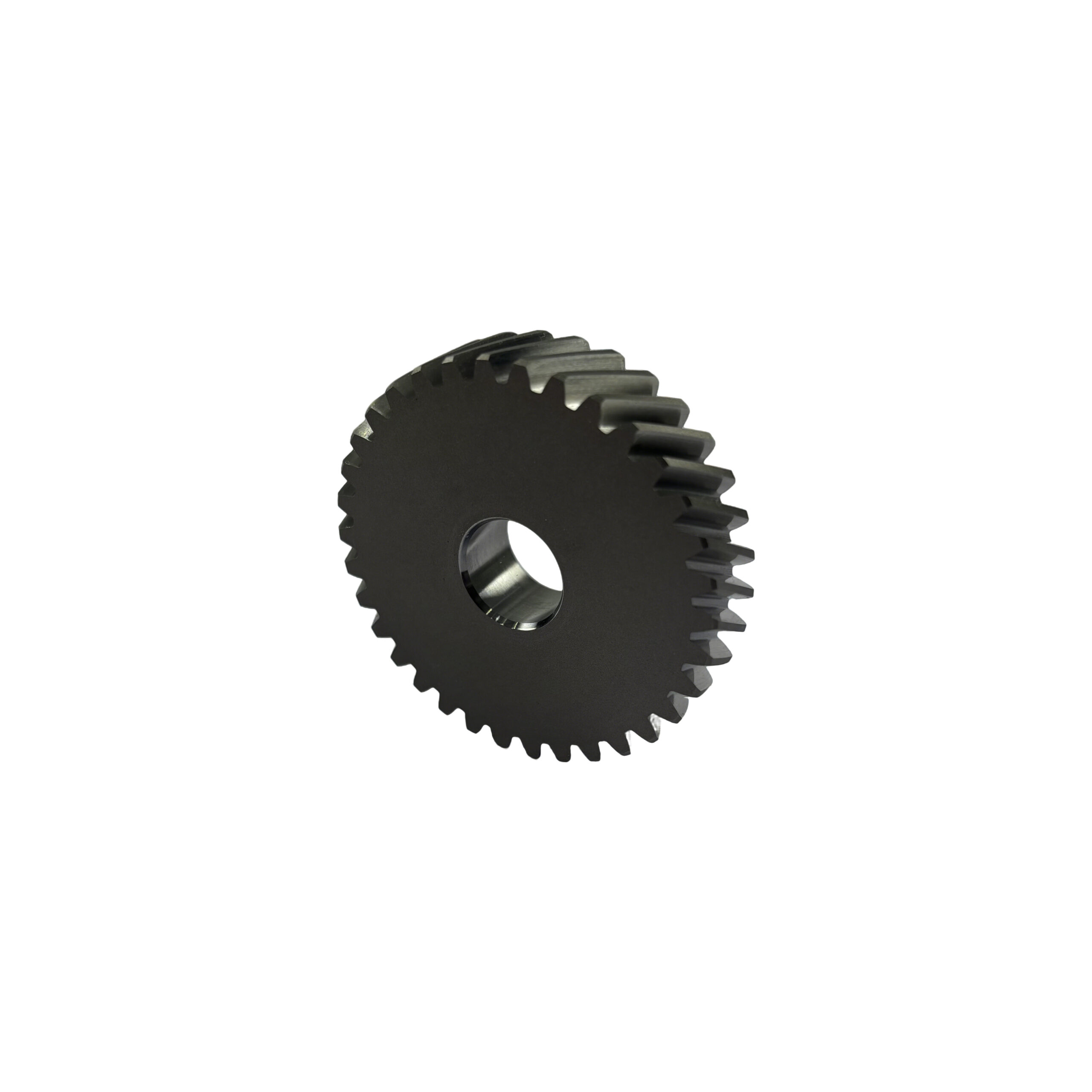

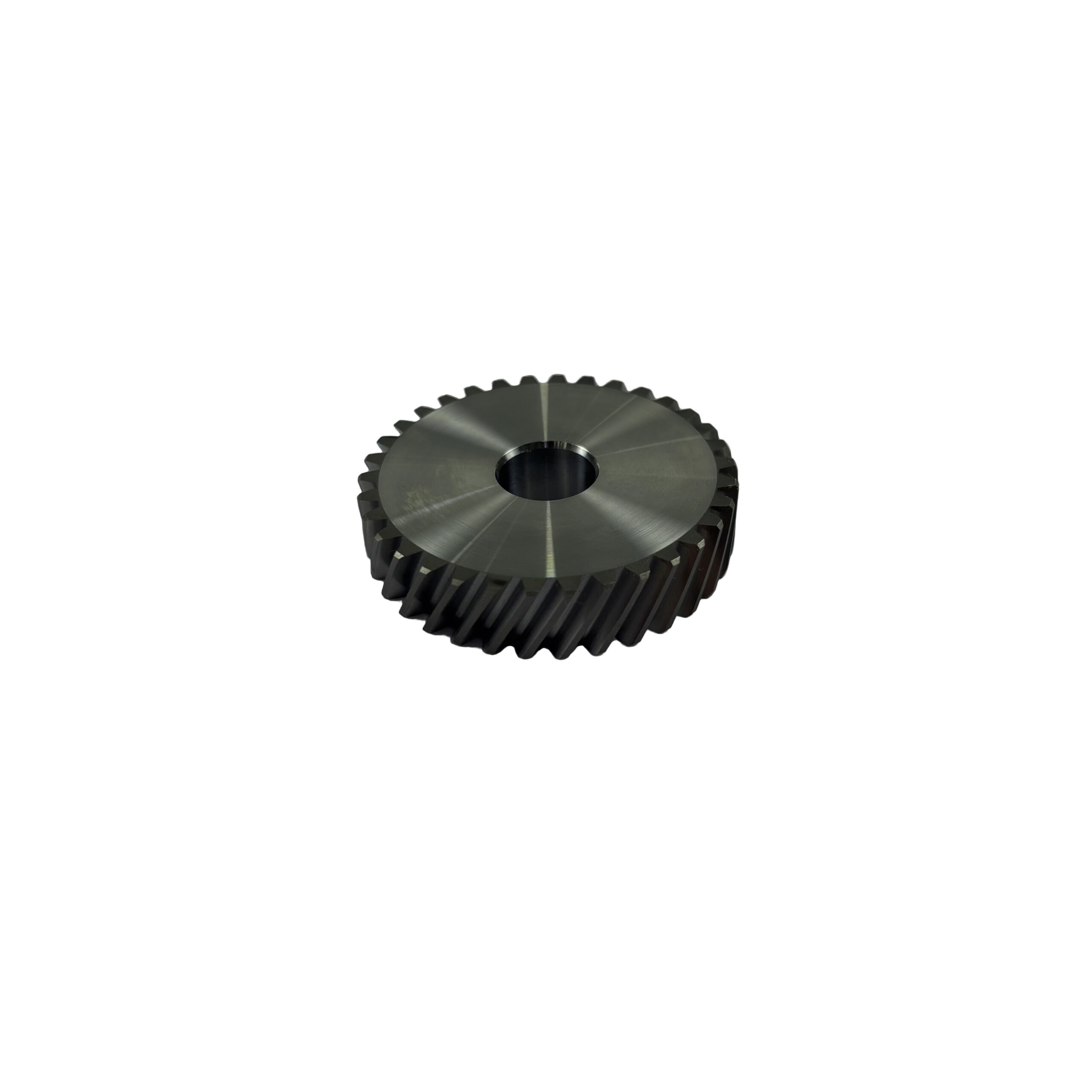

Right-hand helical gear. Parameters: pressure angle 20°, module 1.25, 34 teeth, helix angle 28°(R). Inner diameter 13 mm, outer gear diameter 50.65 mm, overall length 11 mm, weight 0.1457 kg. Made of 20CrMo through precision machining and full inspection. Low noise and wear-resistant, suitable for speed reducer transmission.
Description
RJ-022-C (J80672512, C_IG_22G-040 Helical Gear)
Model RJ-022-C is a right-hand helical gear. It has a pressure angle of 20°, module 1.25, 34 teeth and a right-hand helix angle of 28°. The inner diameter is 13 mm, outer gear diameter 50.65 mm, overall length 11 mm, and unit weight 0.1457 kg. Made of 20CrMo alloy steel, it features high strength, good toughness and excellent wear resistance. The manufacturing processes include cutting, turning, rough hobbing, heat treatment, hanging shot blasting, rough boring, chamfering, finish boring, facing, gear grinding and full visual inspection. With high tooth profile accuracy, low noise and stable operation, it is used for speed reducers.
Additional information
| RJ-022-C weight |
0.1457 |
|---|---|
| RJ-022-C Core Components |
gear |
| RJ-022-C Craftsmanship |
Hobbing |
