HAT085 (1:1) Left-hand Bevel Gear
$7.28piece

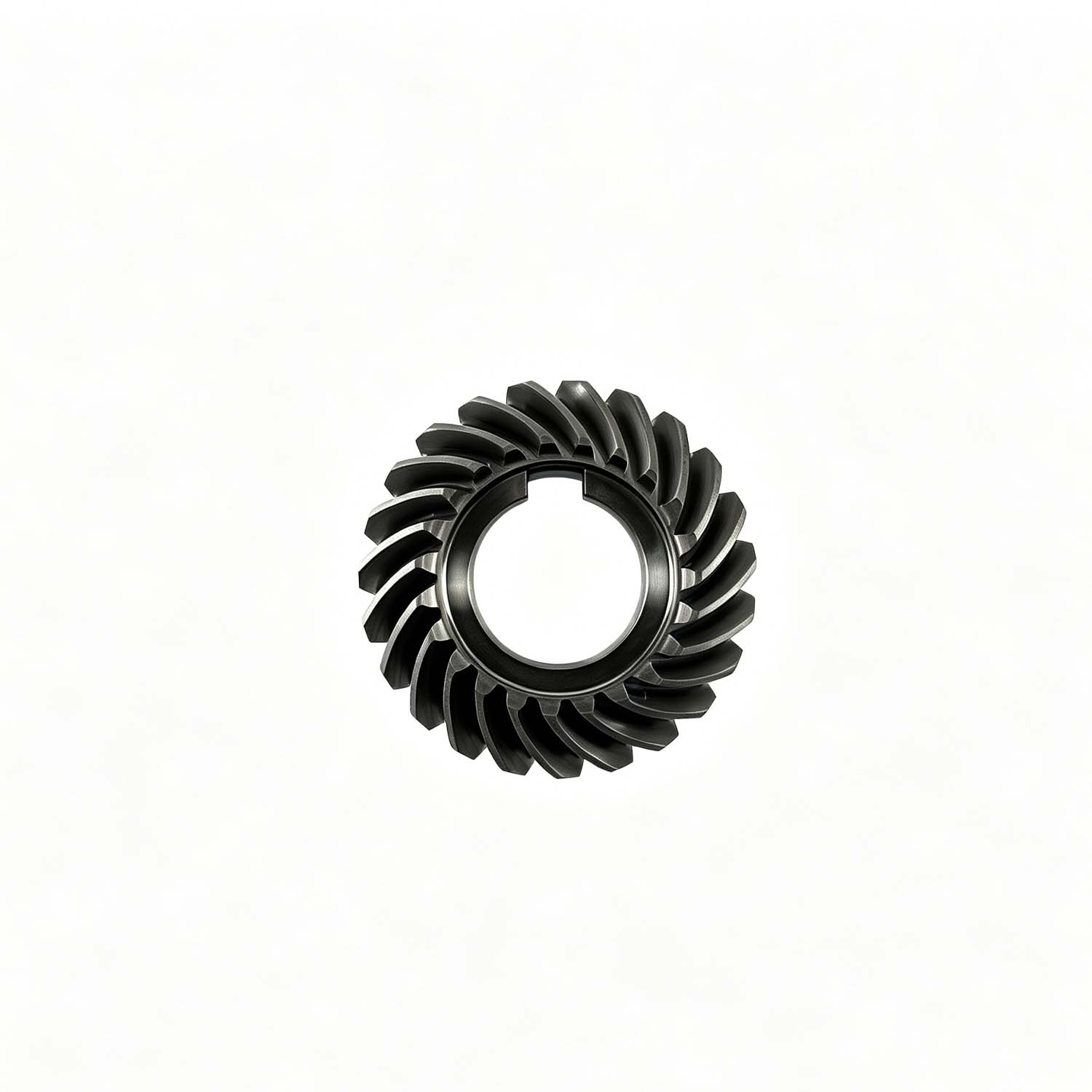

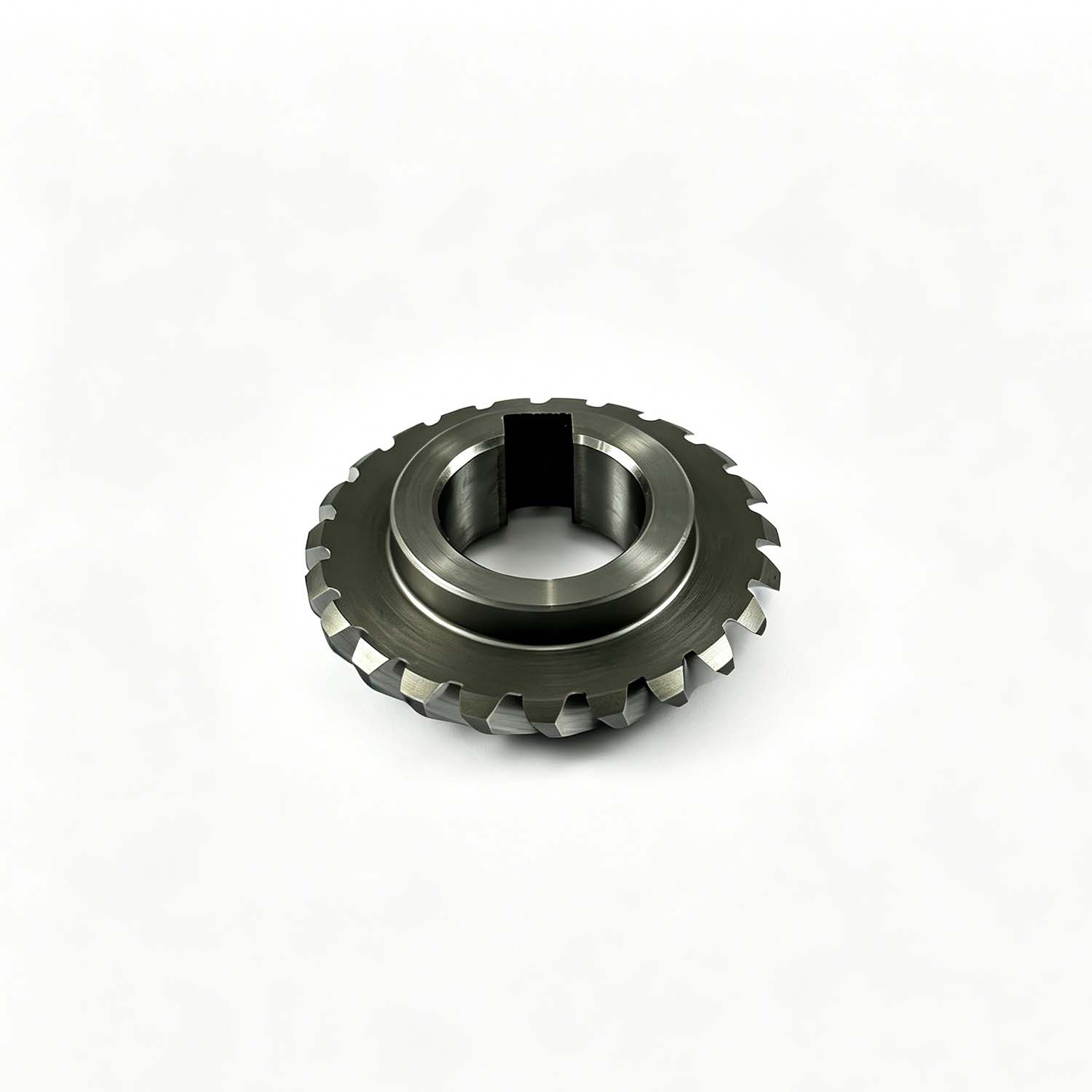

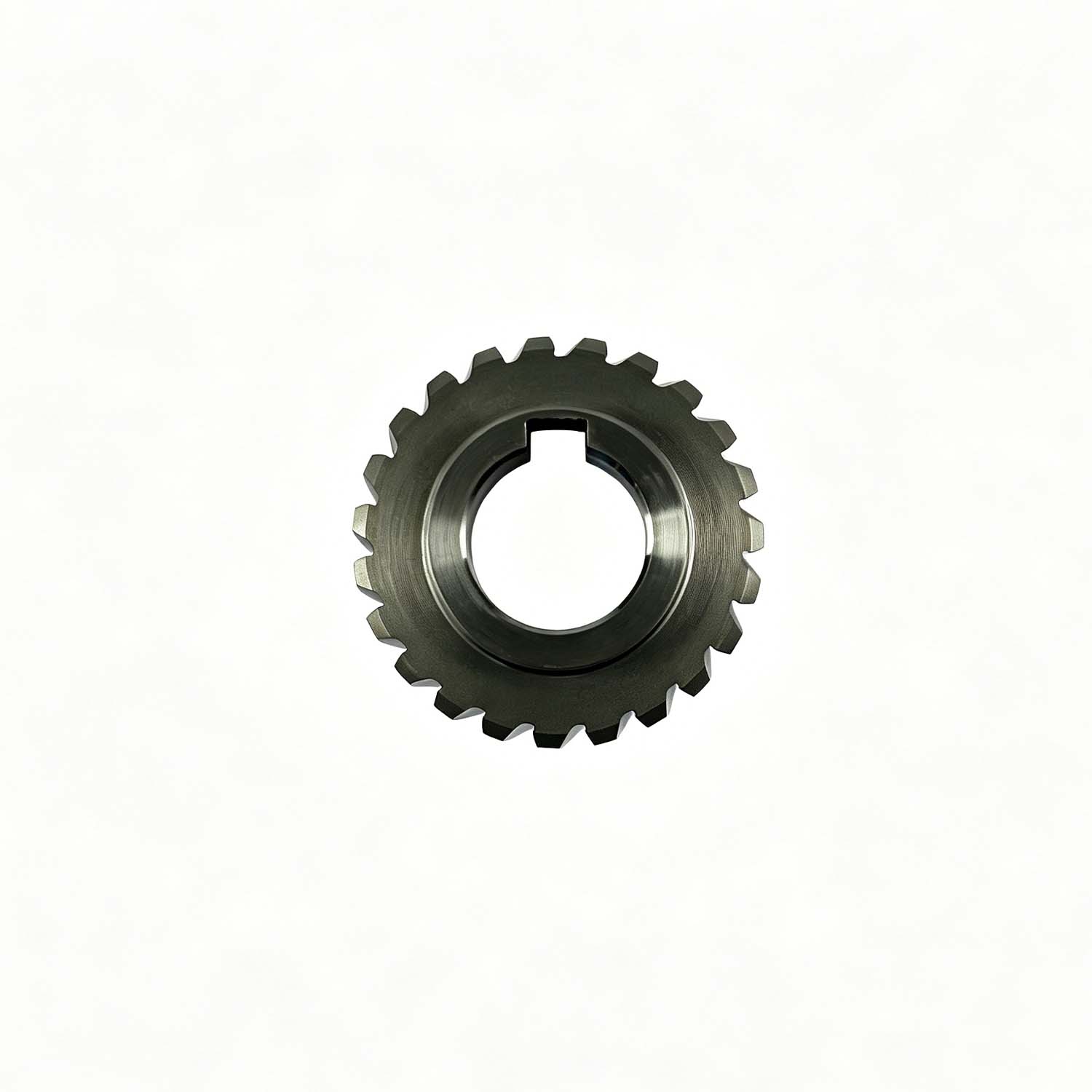

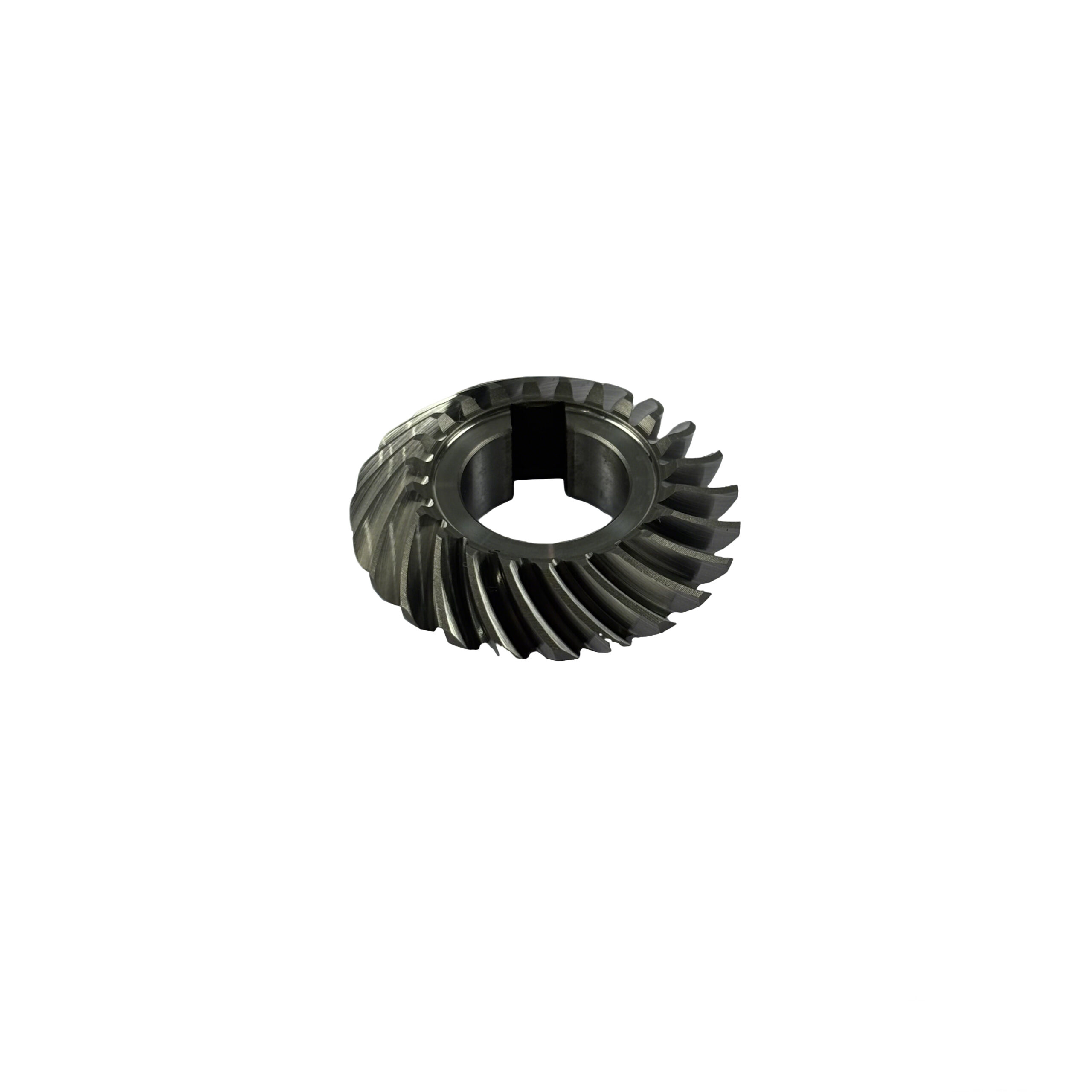

HYD-158-C is HAT085(1:1) left-hand spiral bevel gear with 20° pressure angle, module 1.5, 23 teeth, speed ratio 1 and 35° left-hand spiral angle.
Manufactured from 20CrMo through turning, gear milling, heat treatment, shot peening, facing, gear grinding and wire-cut keyway processes.
It has high precision, good wear resistance and stable transmission performance, ideal for reducer transmission assembly.
Description
Model HYD-158-C is HAT085(1:1) Left-hand Spiral Bevel Gear, specially used as transmission gear for reducers.
Technical parameters: Pressure angle 20°, module 1.5, number of teeth 23, speed ratio 1:1, spiral angle 35° left-hand, inner diameter 15mm, tooth outer diameter 35mm, overall length 9.65mm, unit weight 0.0320kg.
Made of 20CrMo alloy steel.
Processing flow: Sawing → Turning → Gear milling → Heat treatment → Hanging shot peening → Boring & facing → Re-facing → Gear grinding → Wire-cut keyway.
Processed by multiple precision machining, heat treatment and gear grinding procedures, the gear features high tooth profile accuracy, uniform hardness, excellent wear and fatigue resistance, smooth meshing, stable transmission and low noise. It is suitable for matching transmission mechanism of various reducers.
Additional information
| HYD-158-C weight |
0.0320 |
|---|---|
| HYD-158-C Core Components |
gear |
| HYD-158-C Craftsmanship |
Milling |
