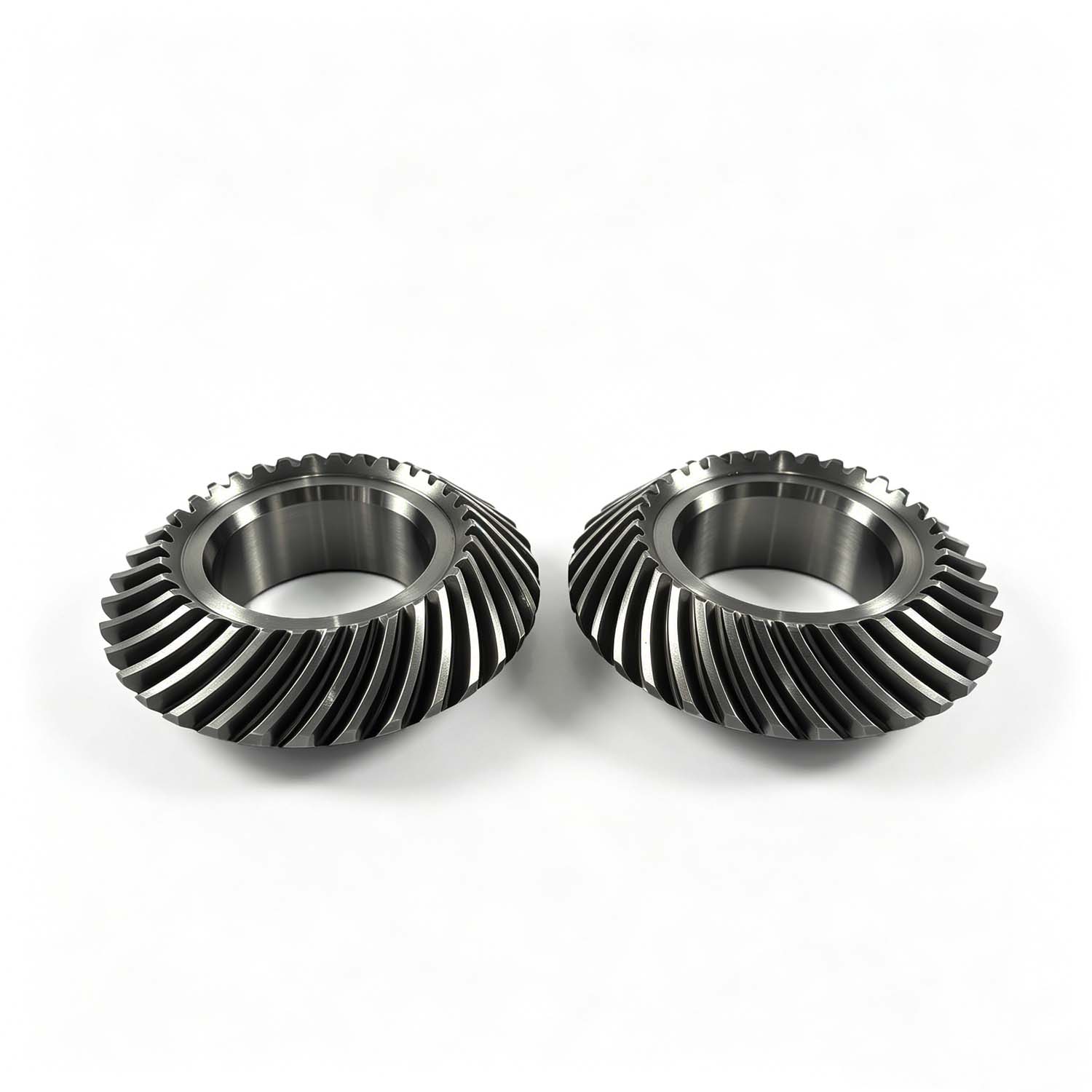

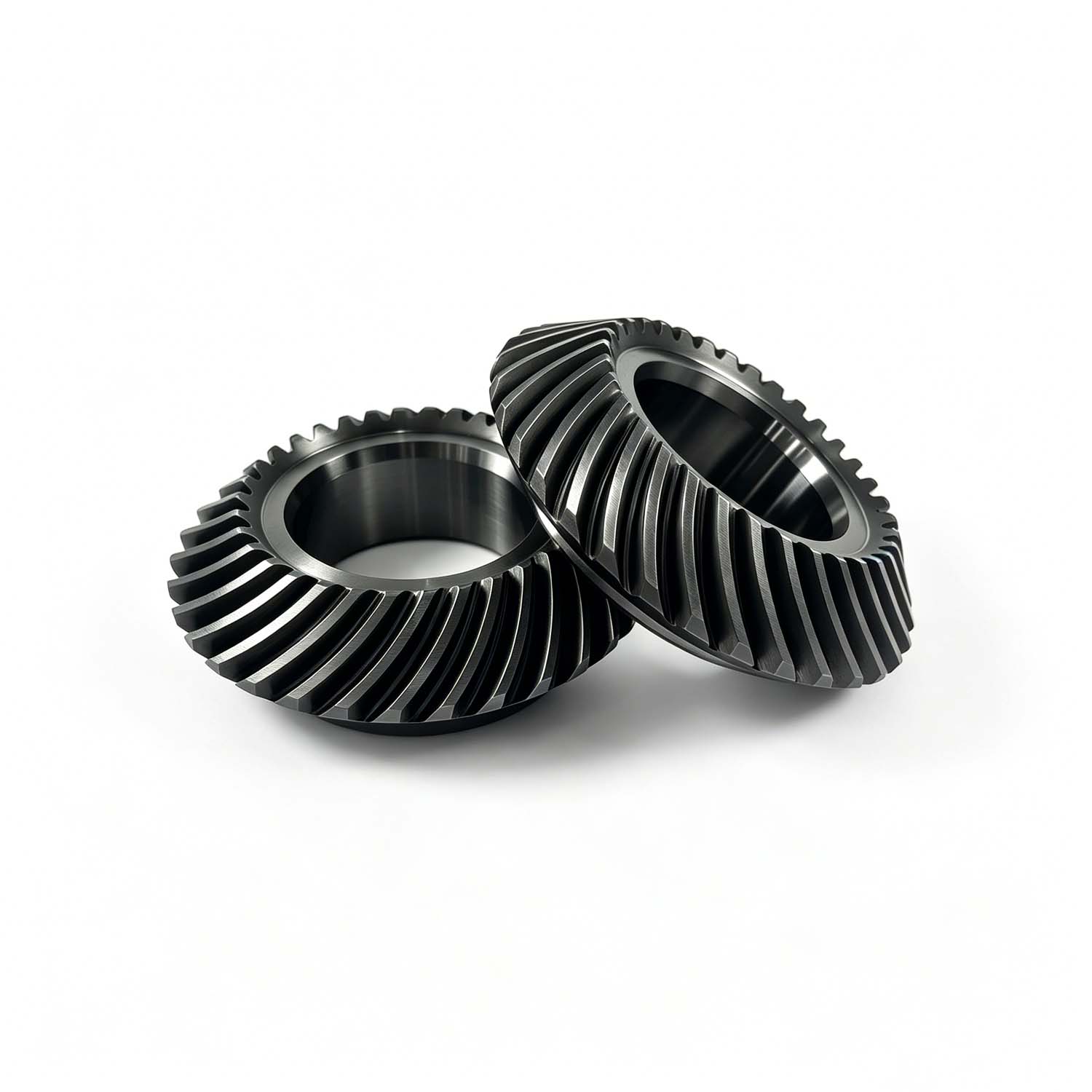

BQLB0501070 Right-hand Spiral Bevel Gear (155) and BQLB0501080 Left-hand Spiral Bevel Gear (155)
$25.48piece
- XB-009-C (BQLB0501070): Right-hand spiral bevel gear. Pressure angle 20°, module 2.4, 34 teeth, spiral angle 35°. Material: 20CrMnTi. Weight: 0.4154 kg. Precision machined for reducer.
- XB-010-C (BQLB0501080): Left-hand spiral bevel gear with identical specs, material and process, for reducer.
Description

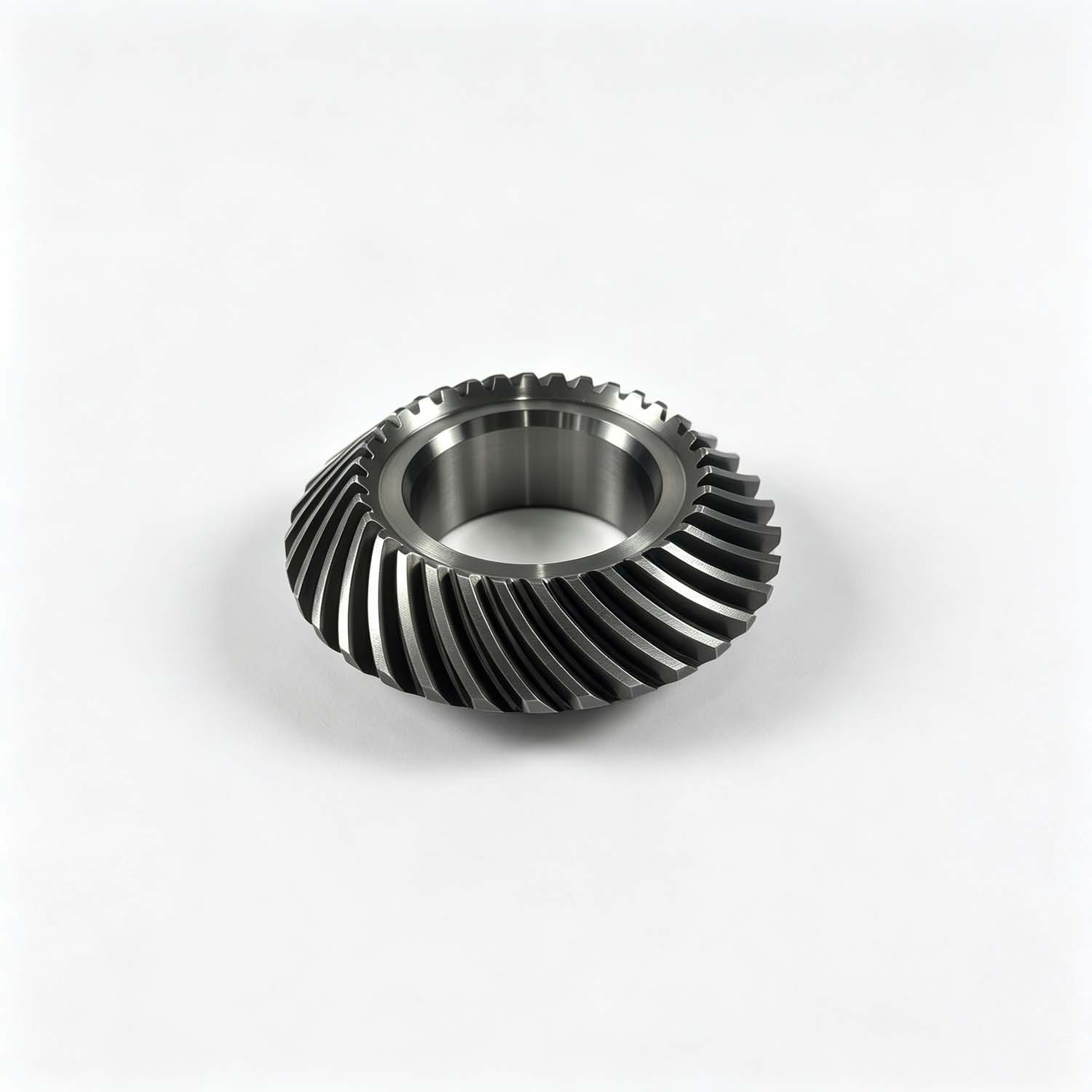

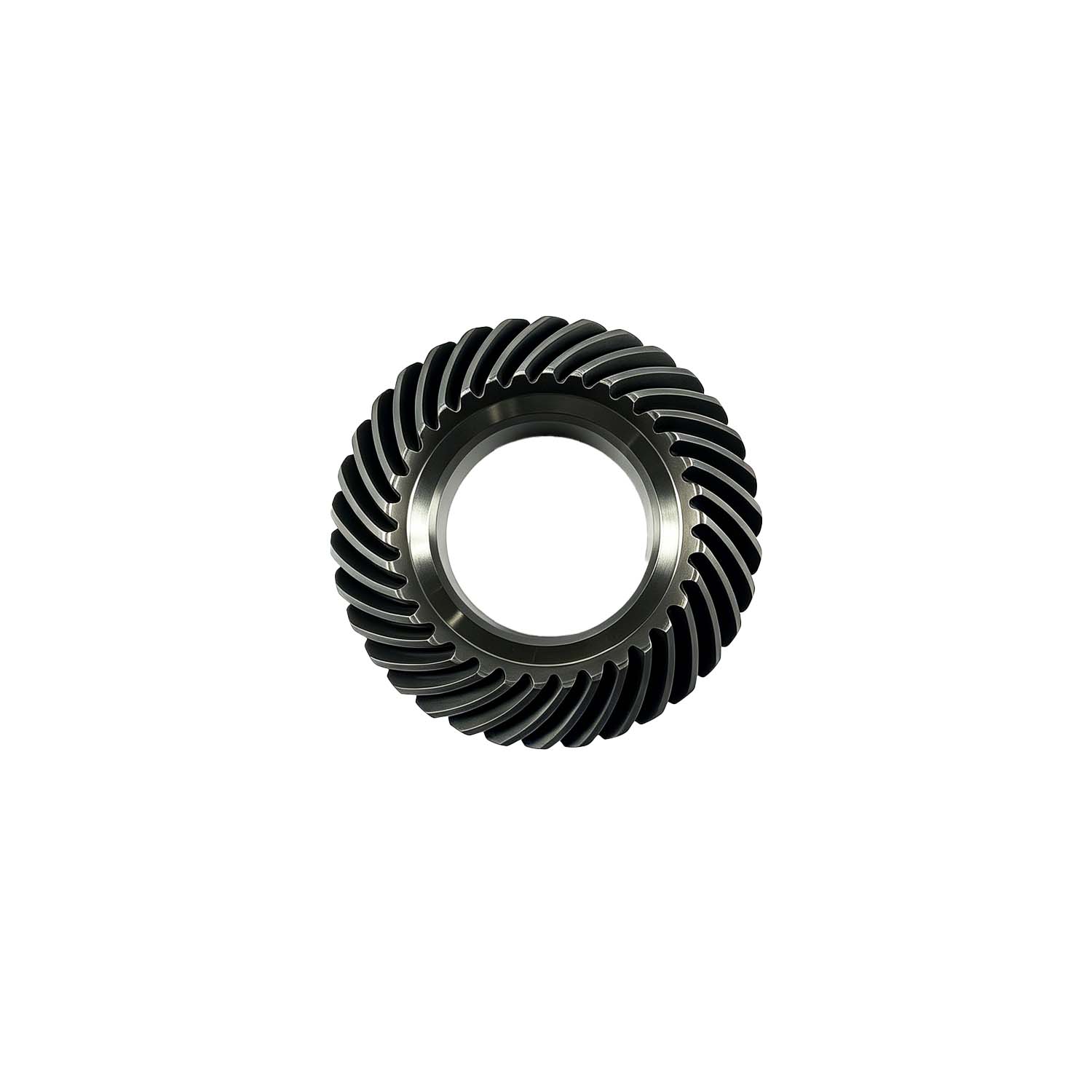

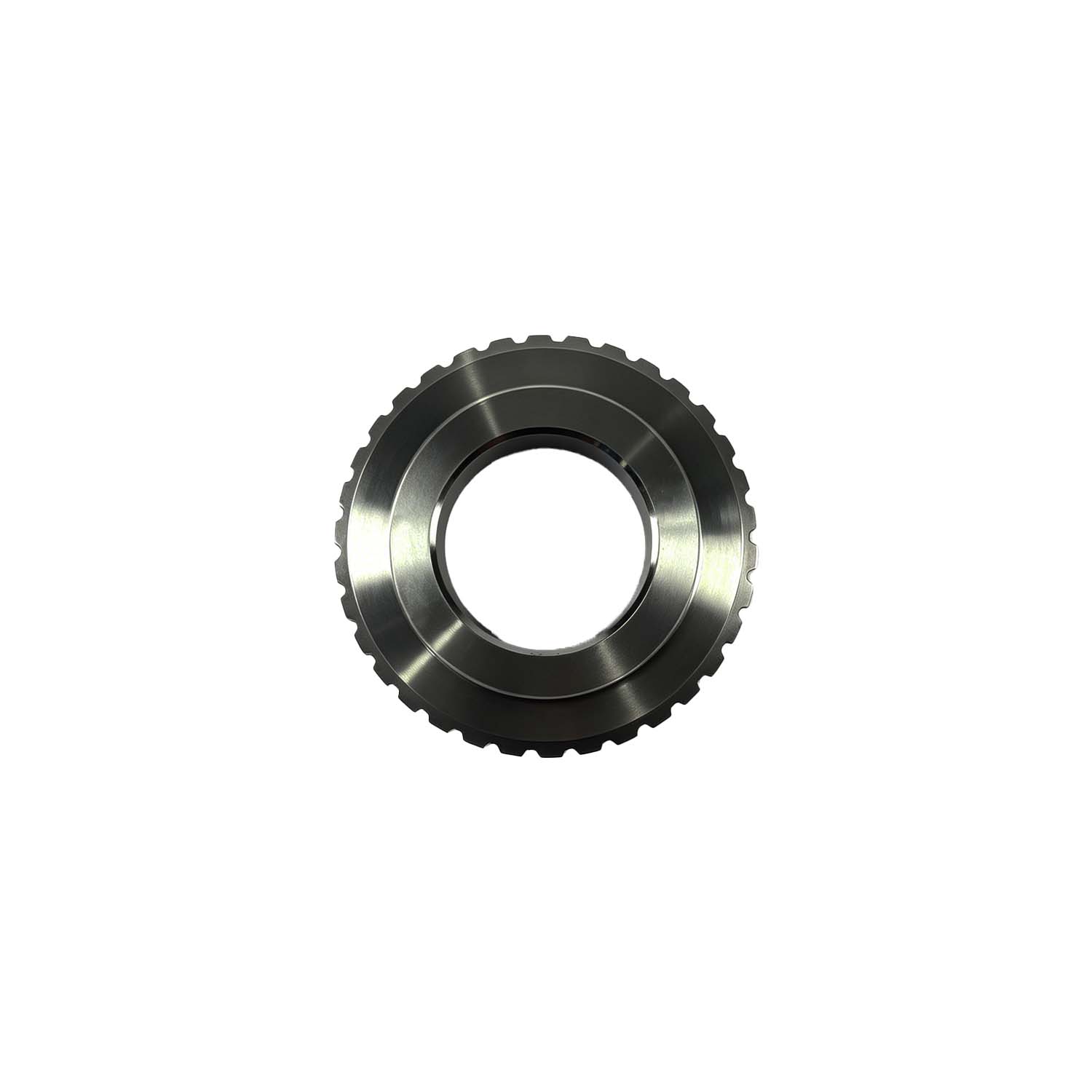

XB-009-C (BQLB0501070 Right-hand Gear)
This is a right-hand spiral bevel gear, part No. XB-009-C, model BQLB0501070. It has a pressure angle of 20°, module 2.4, 34 teeth and gear ratio of 1, with a spiral angle of 35°. The inner diameter is 40 mm, gear tip diameter 81.6 mm, overall length 24.5 mm, and unit weight 0.4154 kg.
Made of 20CrMnTi steel, it is processed by sawing, turning, keyway machining, gear milling, heat treatment, shot blasting, boring, facing, guide radius chamfering and gear grinding. It features high precision and stable quality, applied as transmission gear for reducers.

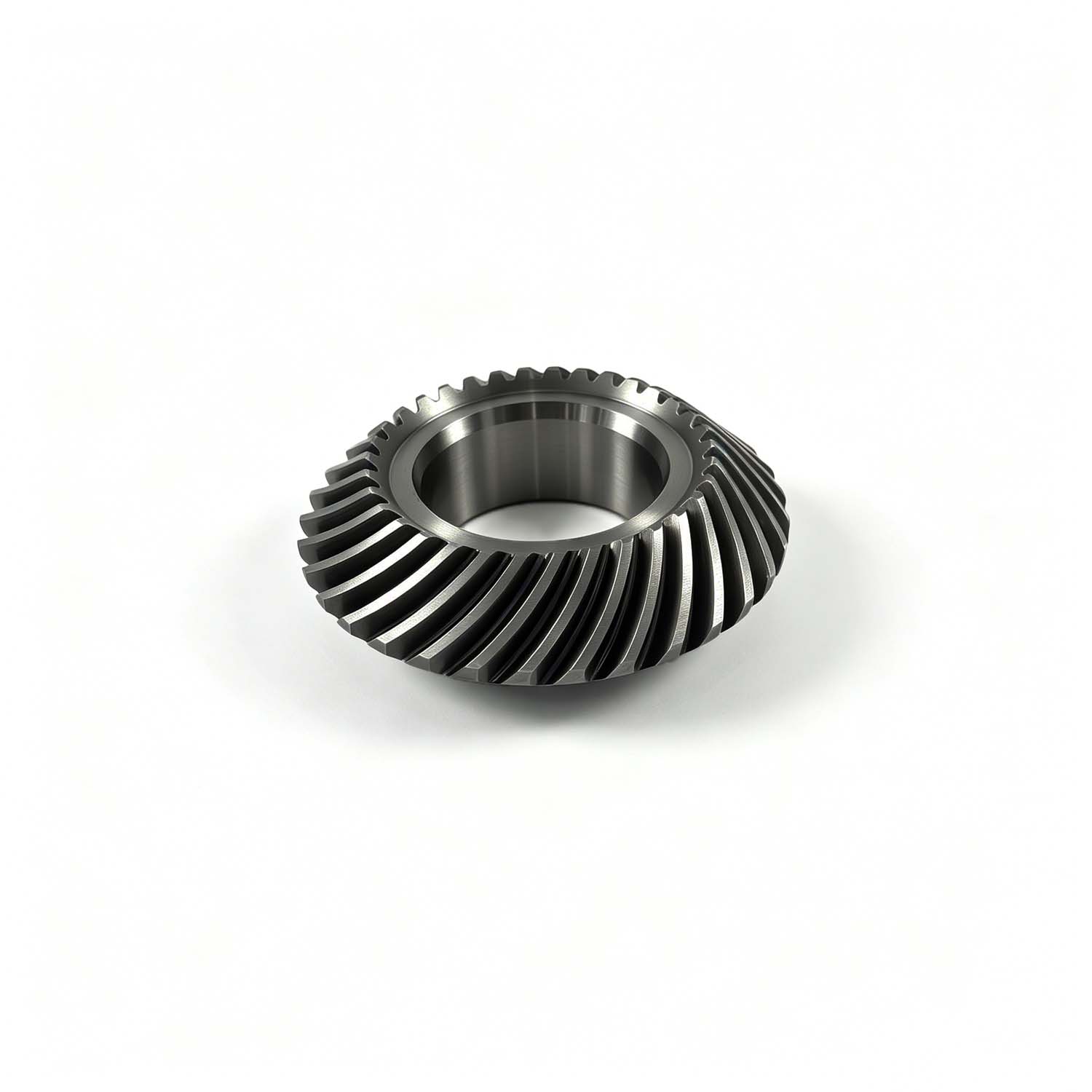

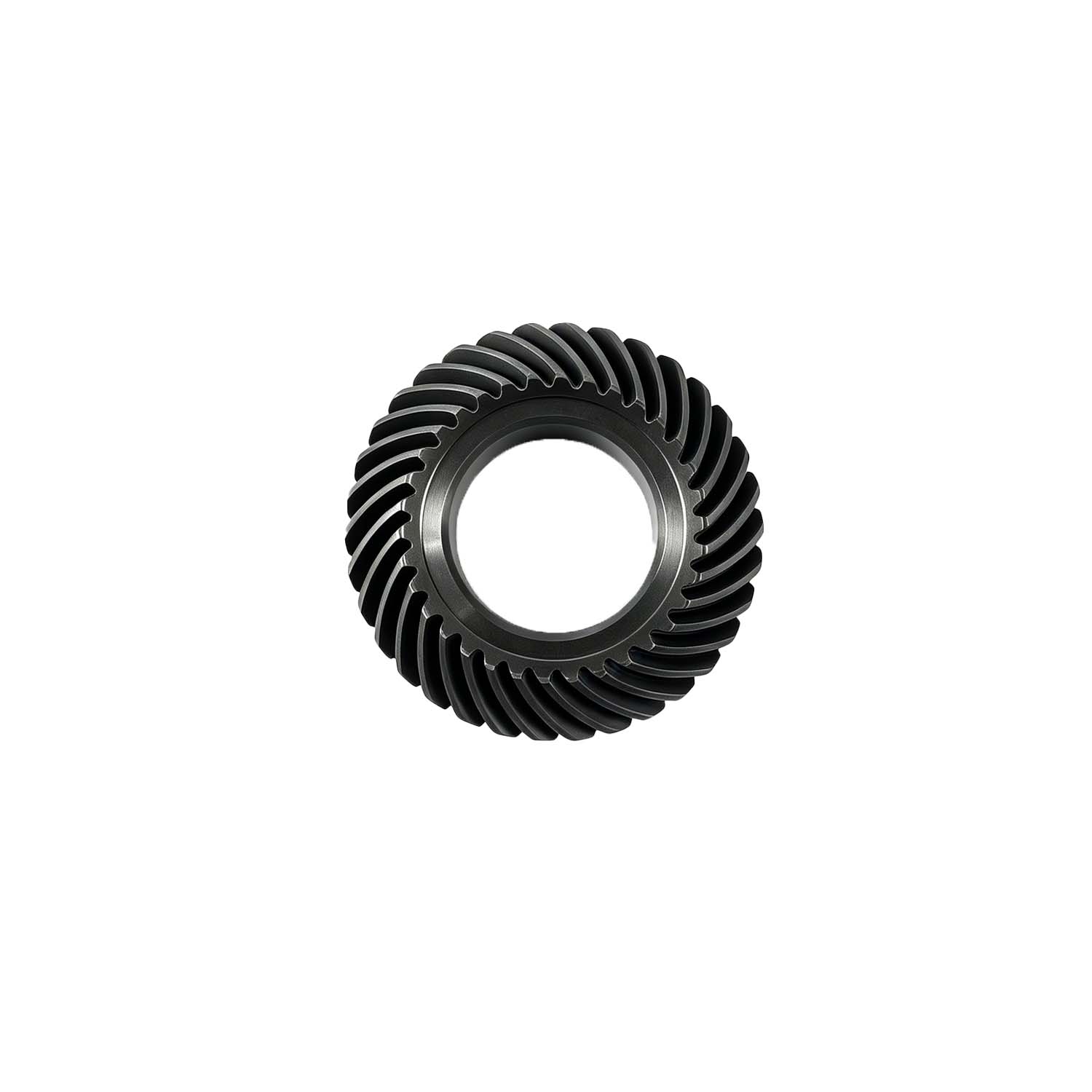

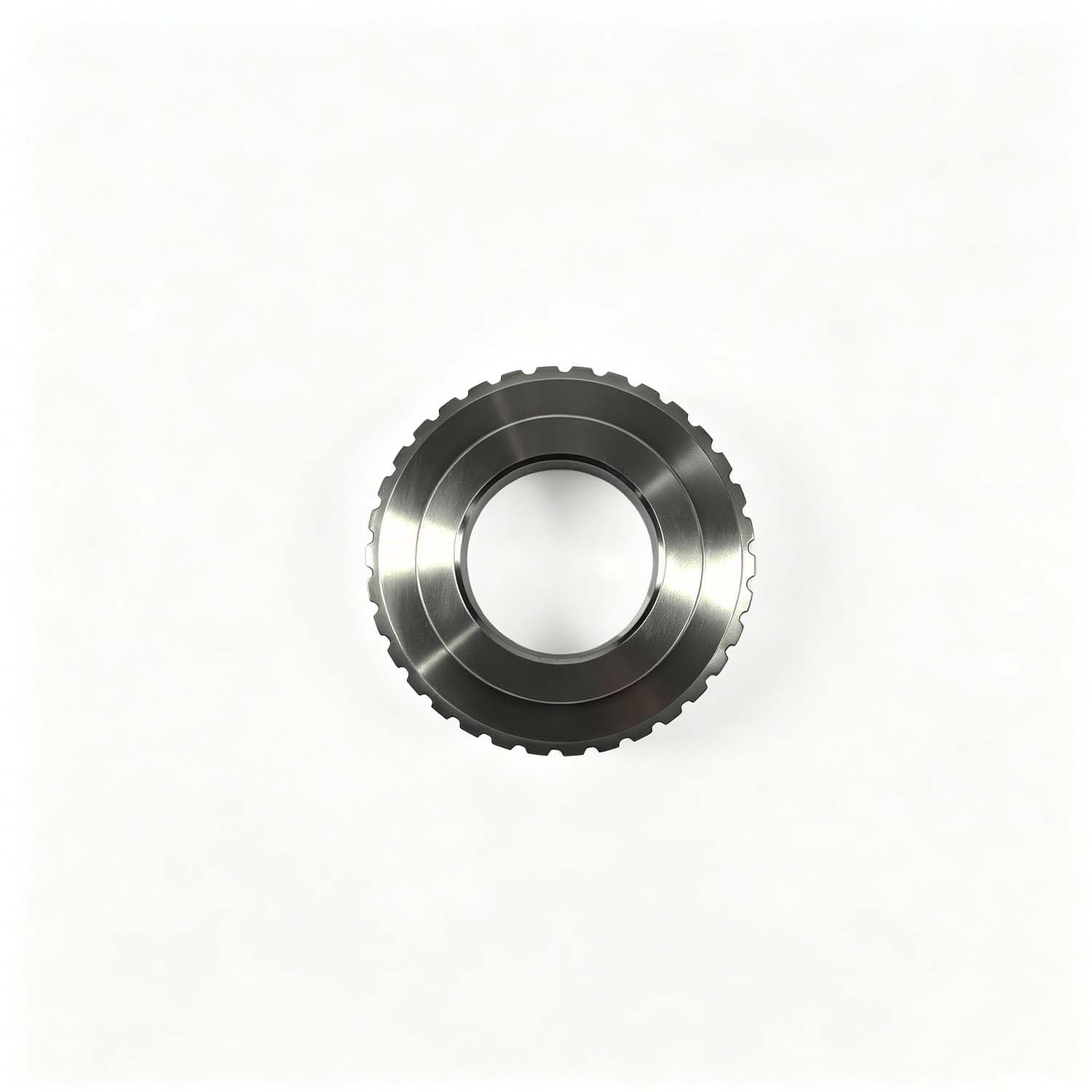

XB-010-C (BQLB0501080 Left-hand Gear)
This is a left-hand spiral bevel gear, part No. XB-010-C, model BQLB0501080. Its technical parameters, dimensions, weight, material and manufacturing process are the same as the above model. It is widely used for reducer transmission.
Additional information
| XB-009-C and XB-010-C weight |
0.4154and0.4154 |
|---|---|
| XB-009-C and XB-010-C Core Components |
gear |
| XB-009-C and XB-010-C Craftsmanship |
Milling |
