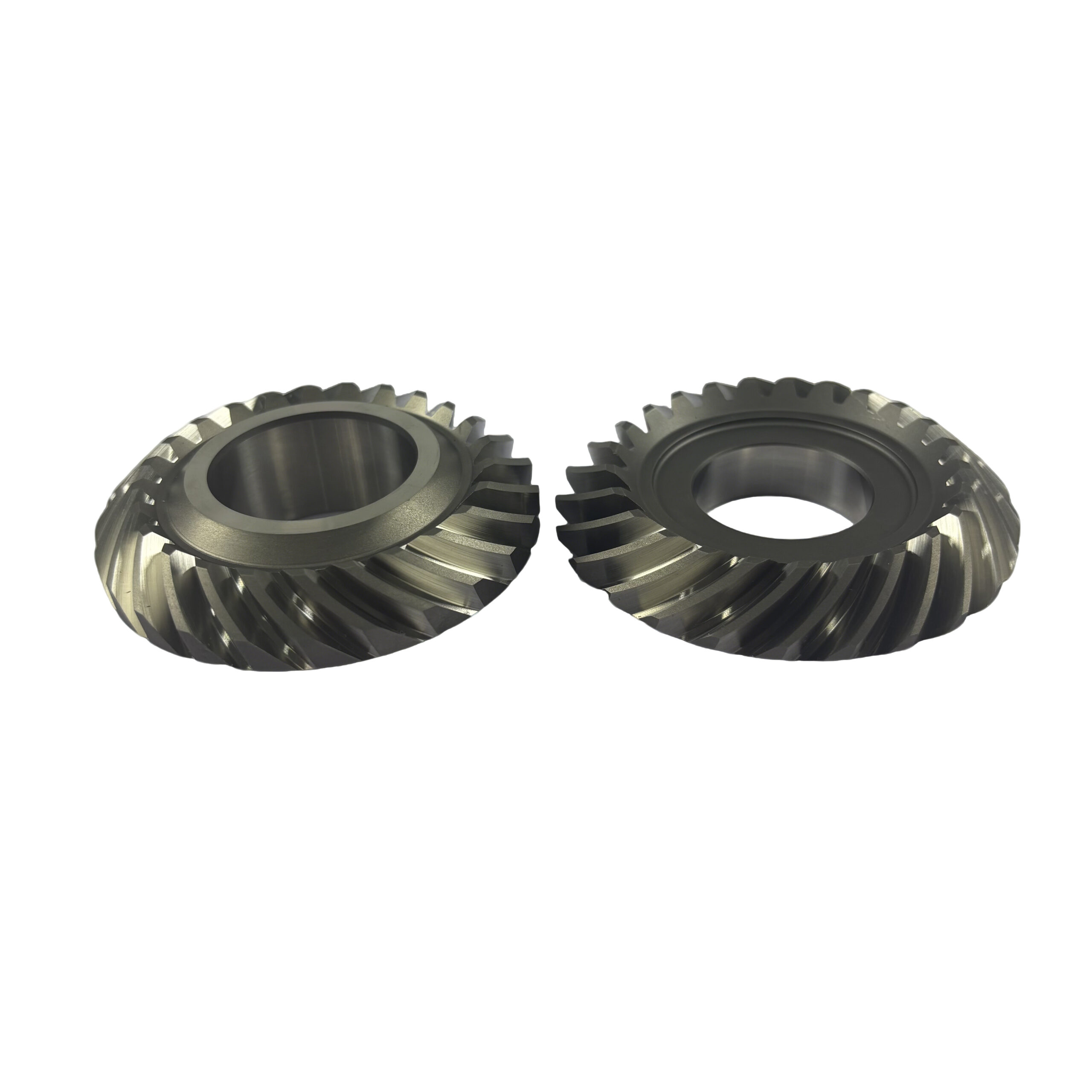

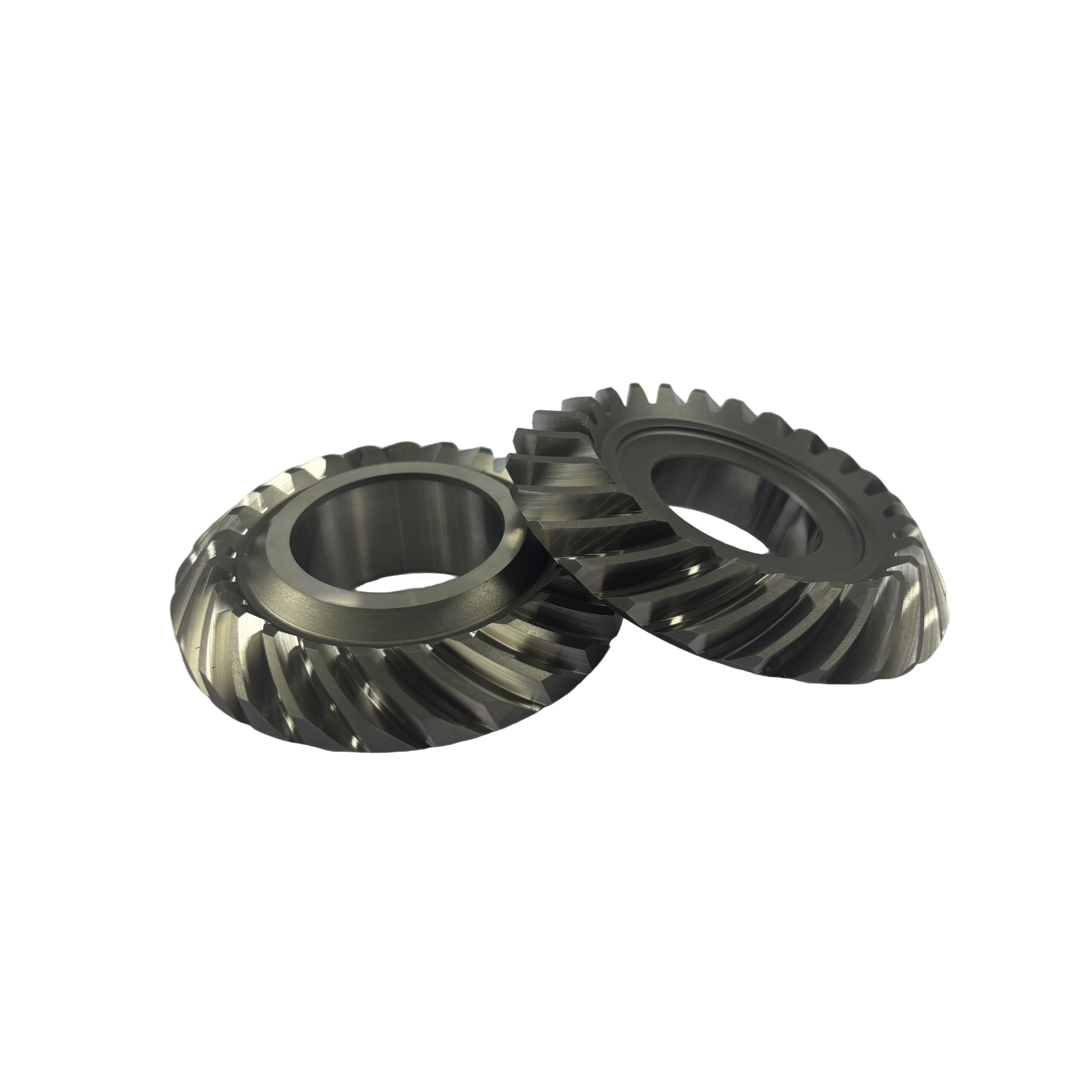

200007 – Left Hand and 200007 – Right Hand
$22.56piece
QZ-019-C
Module 2 Left-Hand Spiral Bevel Gear, 20° pressure angle, 25 teeth, 35°L spiral angle.
ID 34mm, gear OD 75mm, total length 21.5mm, weight 0.3486kg.
20CrMo steel, finished by heat treatment, shot blasting and precision grinding, for power tools.
QZ-020-C
Module 2 Right-Hand Spiral Bevel Gear, 20° pressure angle, 25 teeth, 35°R spiral angle.
ID 30mm, gear OD 78.5mm, total length 17.17mm, weight 0.2272kg.
20CrMo alloy steel with complete precision machining, used for power tool transmission parts.
Description
QZ-019-C（200007-Left Hand）

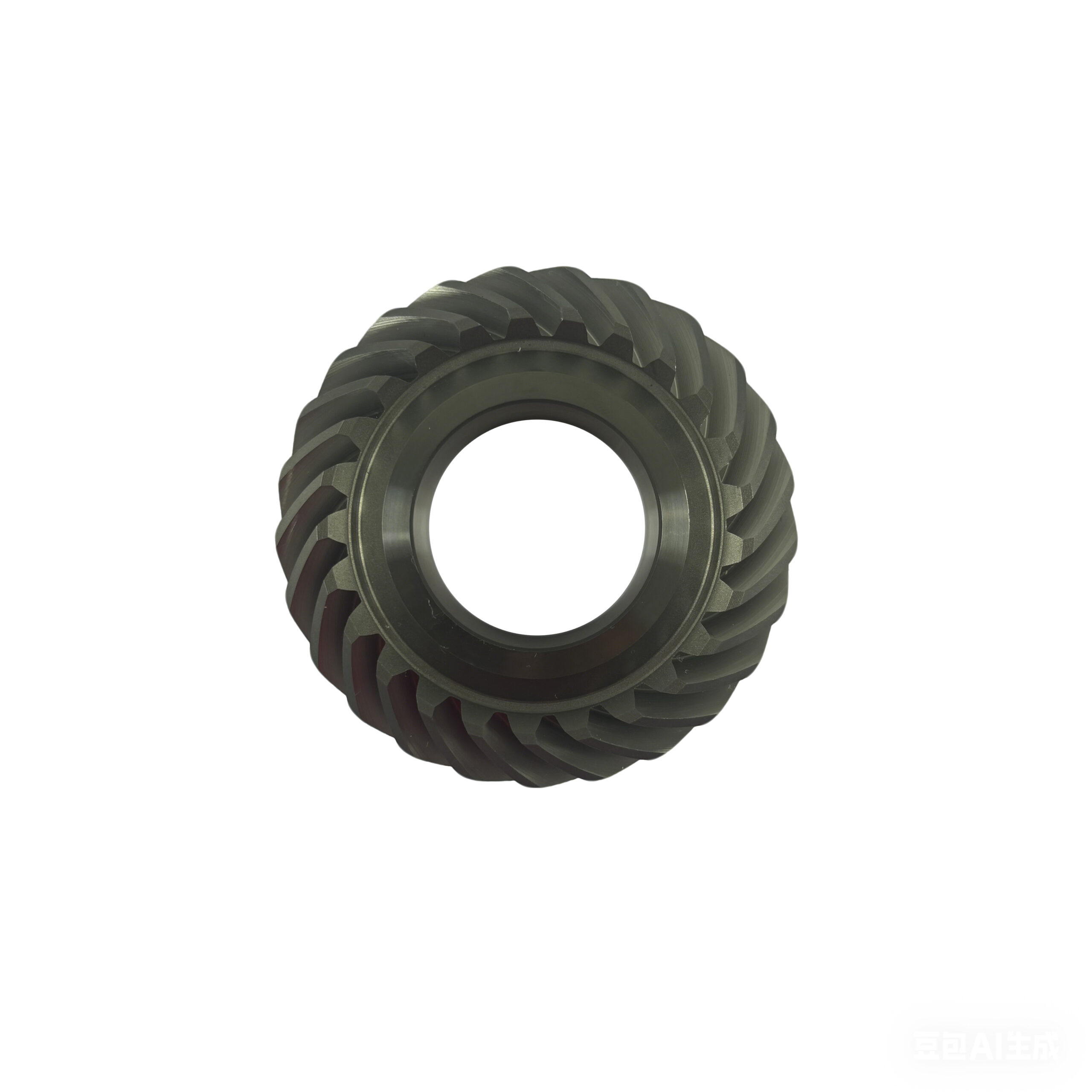

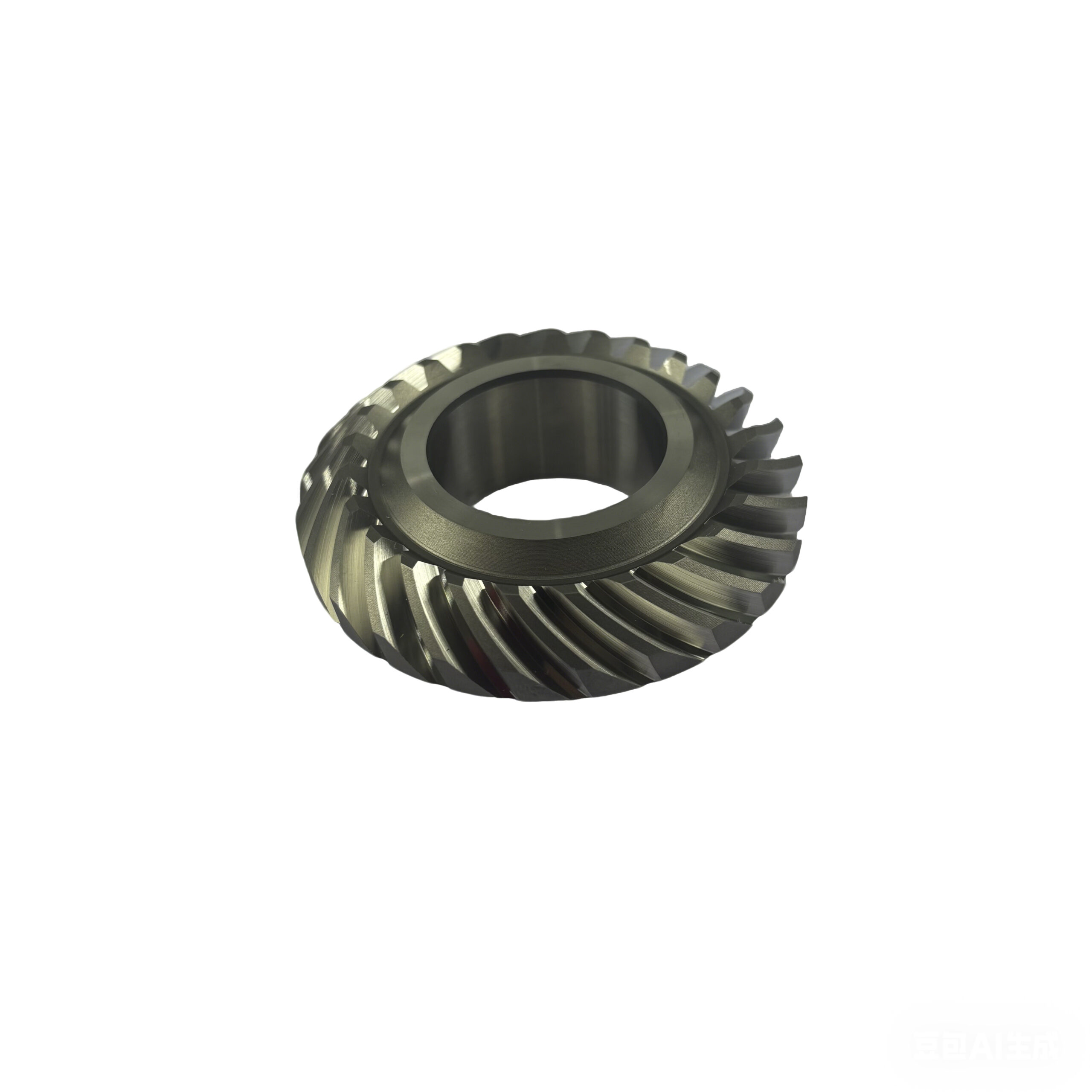

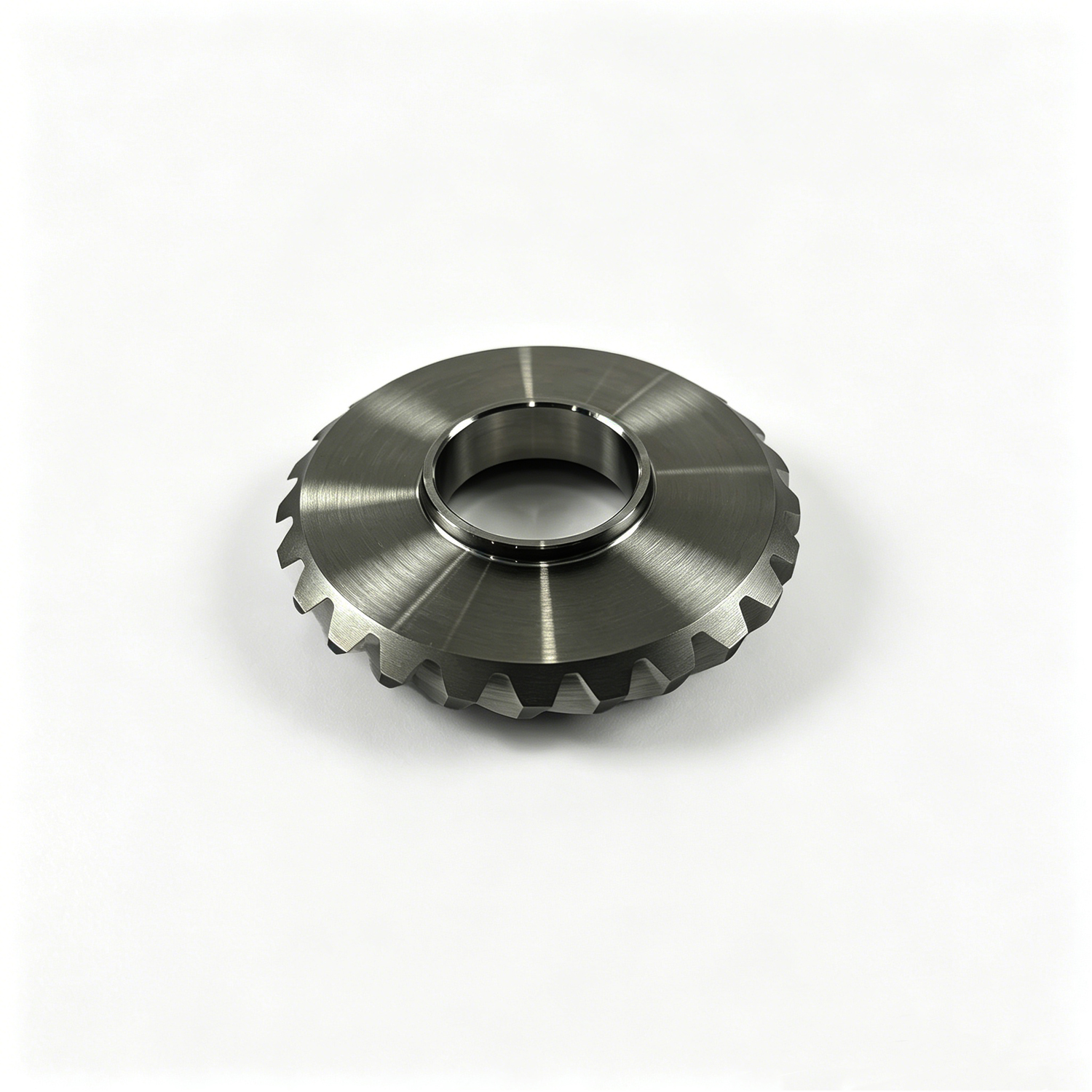

This is a Module 2 Left-Hand Spiral Bevel Gear.
Pressure angle 20°, module 2, number of teeth 25, gear ratio 1, spiral angle 35°L.
Inner diameter 34mm, gear outer diameter 75mm, total length 21.5mm, weight 0.3486kg.
Made of 20CrMo alloy steel with good hardness, wear resistance and impact toughness.
Processing procedure: Sawing material, turning, gear milling, heat treatment, hanging shot blasting, boring & facing, surface finishing, gear grinding, marking, wire-cutting keyway.
High dimensional accuracy and smooth transmission, specially applied for power tool drive system.
QZ-020-C（200007-Right Hand）

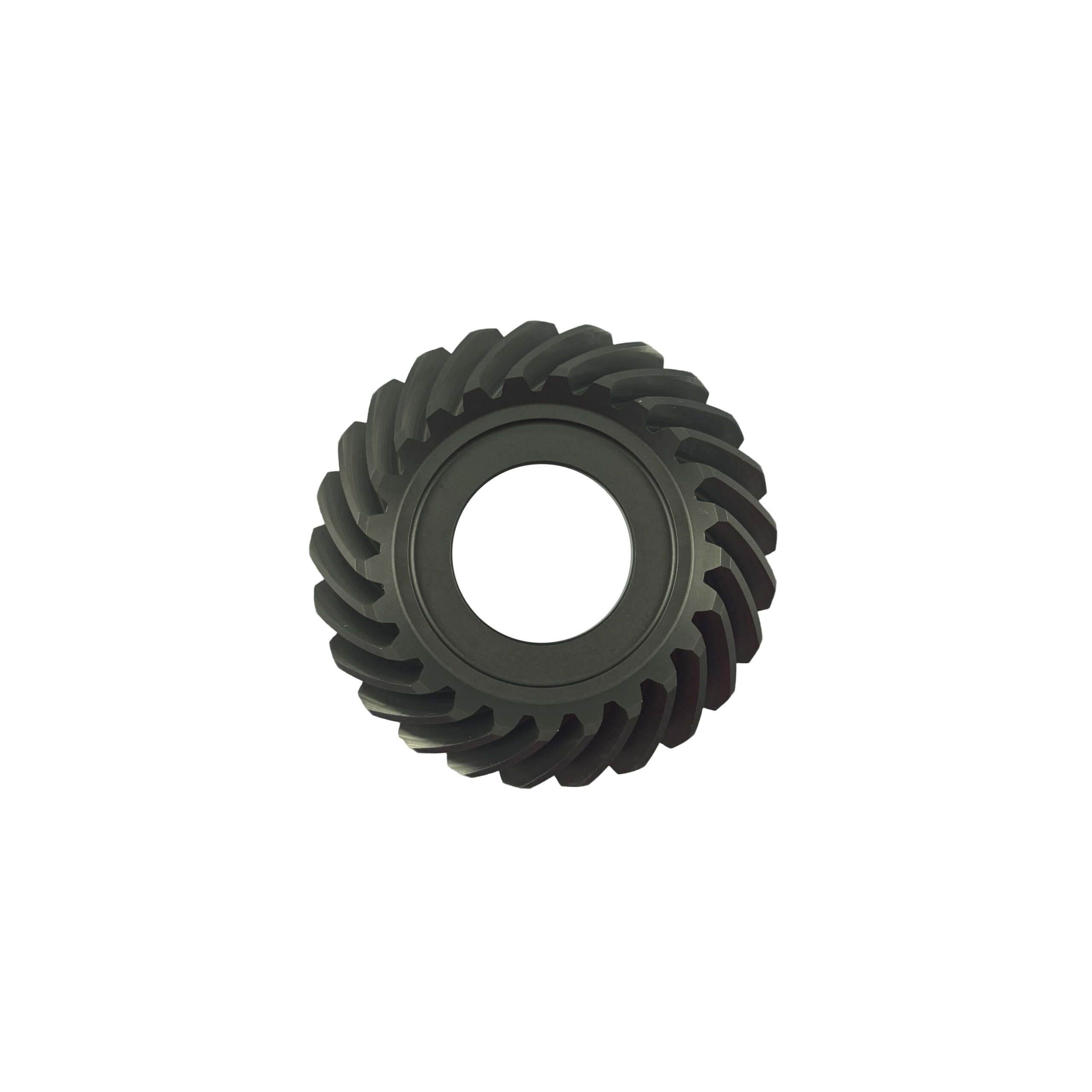

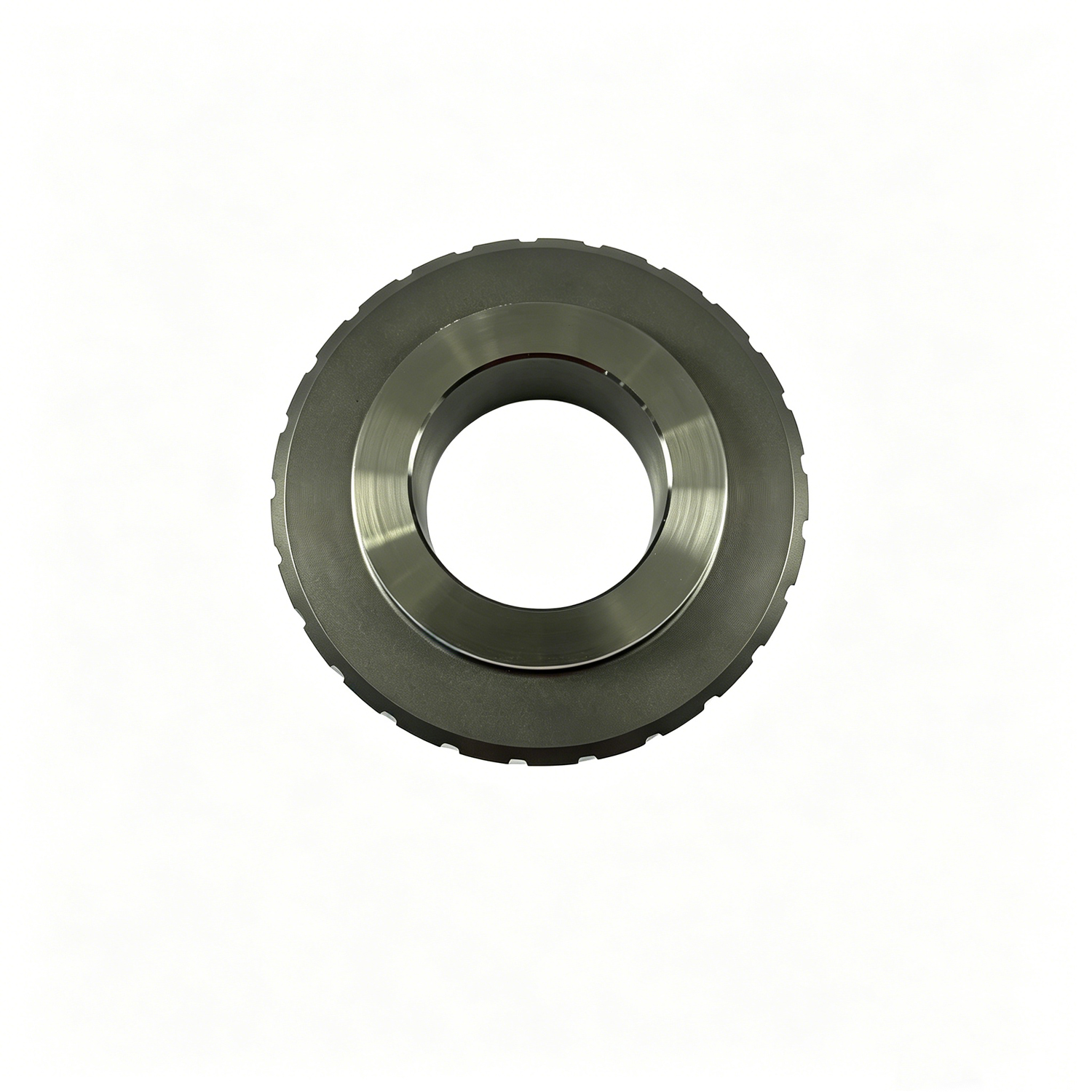

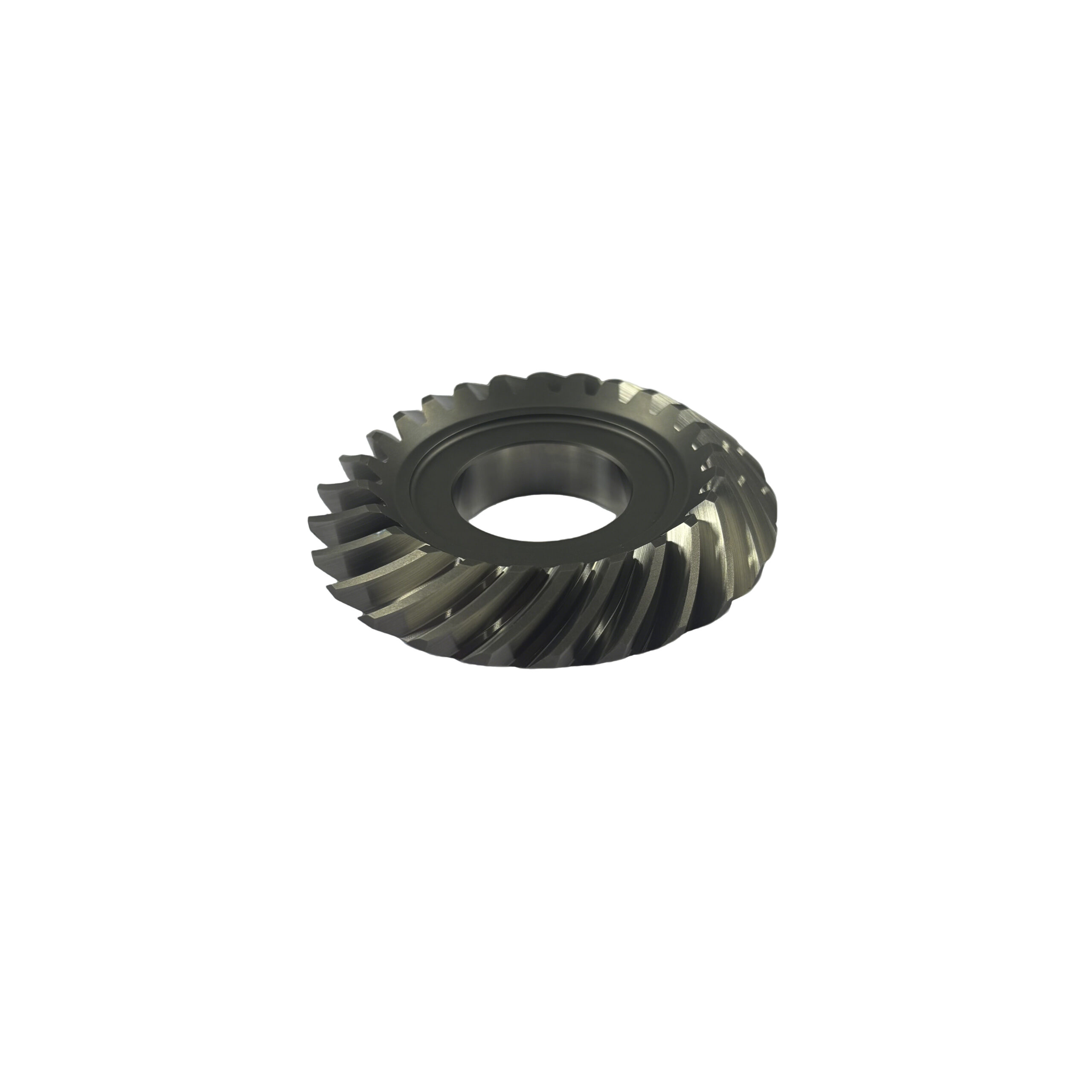

This is a Module 2 Right-Hand Spiral Bevel Gear.
Pressure angle 20°, module 2, number of teeth 25, spiral angle 35°R.
Inner diameter 30mm, gear outer diameter 78.5mm, total length 17.17mm, weight 0.2272kg.
Adopts 20CrMo alloy steel material.
Manufacturing process: Sawing, turning, gear milling, heat treatment, hanging shot blasting, boring & facing, surface finishing, gear grinding, marking and wire-cutting keyway.
Stable performance and long service life, suitable for power tool gear assembly.
Additional information
| QZ-019-C and QZ-020-C weight |
0.3486and0.2272 |
|---|---|
| QZ-019-C and QZ-020-C Core Components |
gear |
| QZ-019-C and QZ-020-C Craftsmanship |
Milling |
