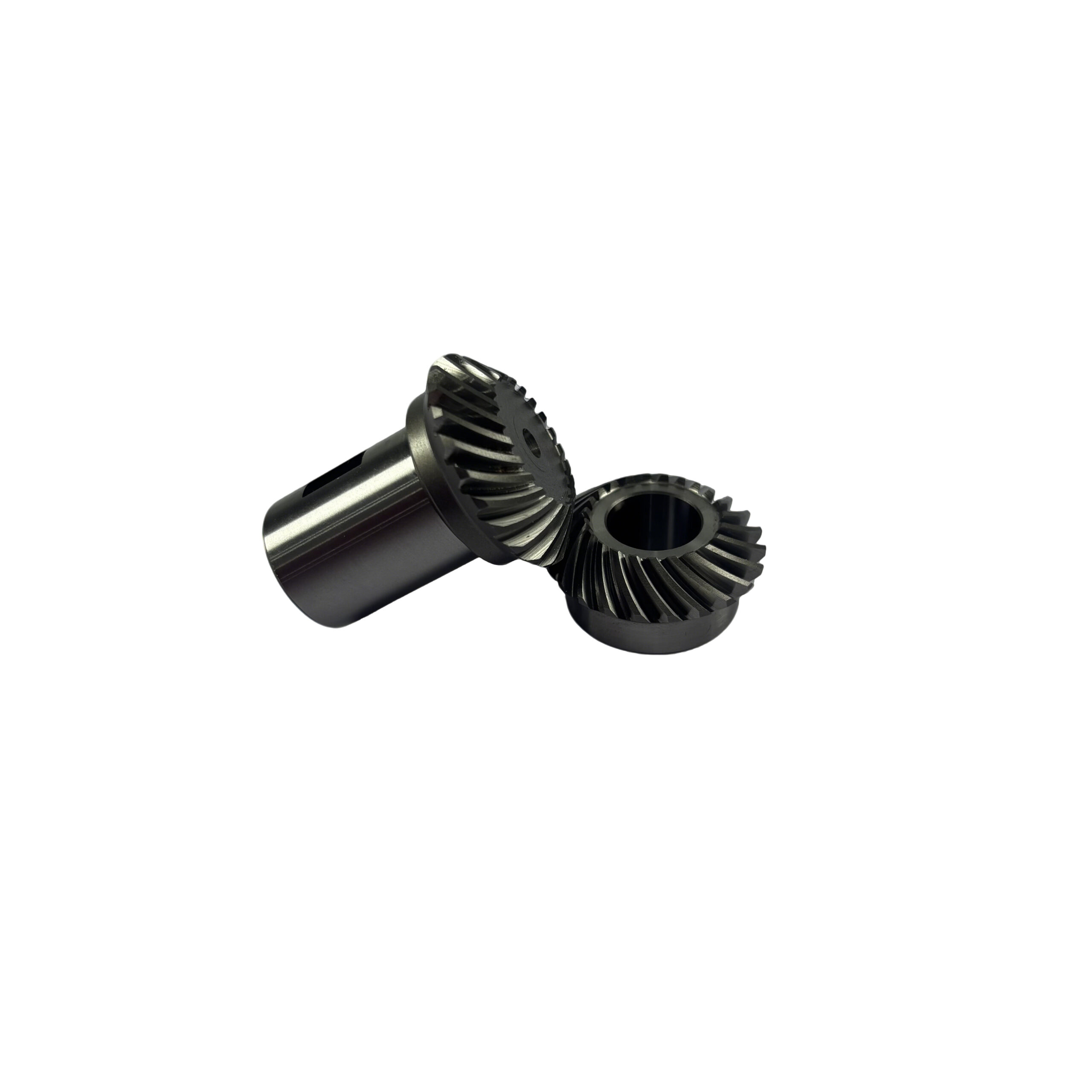

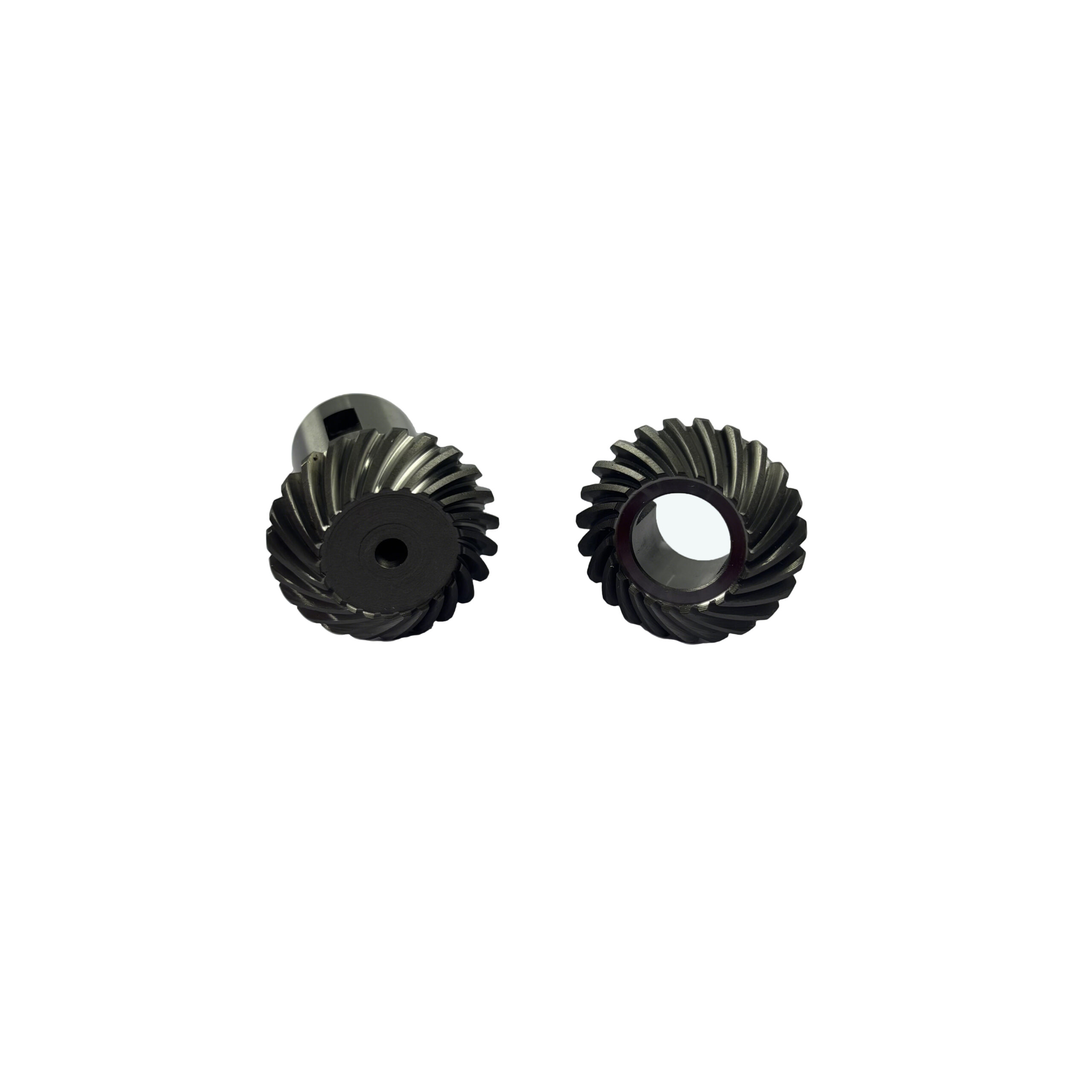

139252 Left Hand Spiral Bevel Gear and 139252 Right Hand Spiral Bevel Gear
$46.58piece
QZ-032-C
Module 1.32 spiral bevel gear, 20° pressure angle, 23 teeth, 35°L spiral angle; ID 13mm, OD 32mm, total length 38mm, weight 0.1058kg. 20CrMo steel, precision machined and heat treated for power tools.
QZ-033-C
Module 1.32 spiral bevel gear, 20° pressure angle, 23 teeth, 35°R spiral angle; shaft diameter 20mm, OD 32mm, total length 15mm, weight 0.0442kg. 20CrMo alloy steel with fine finishing, for power tool transmission parts.
Description

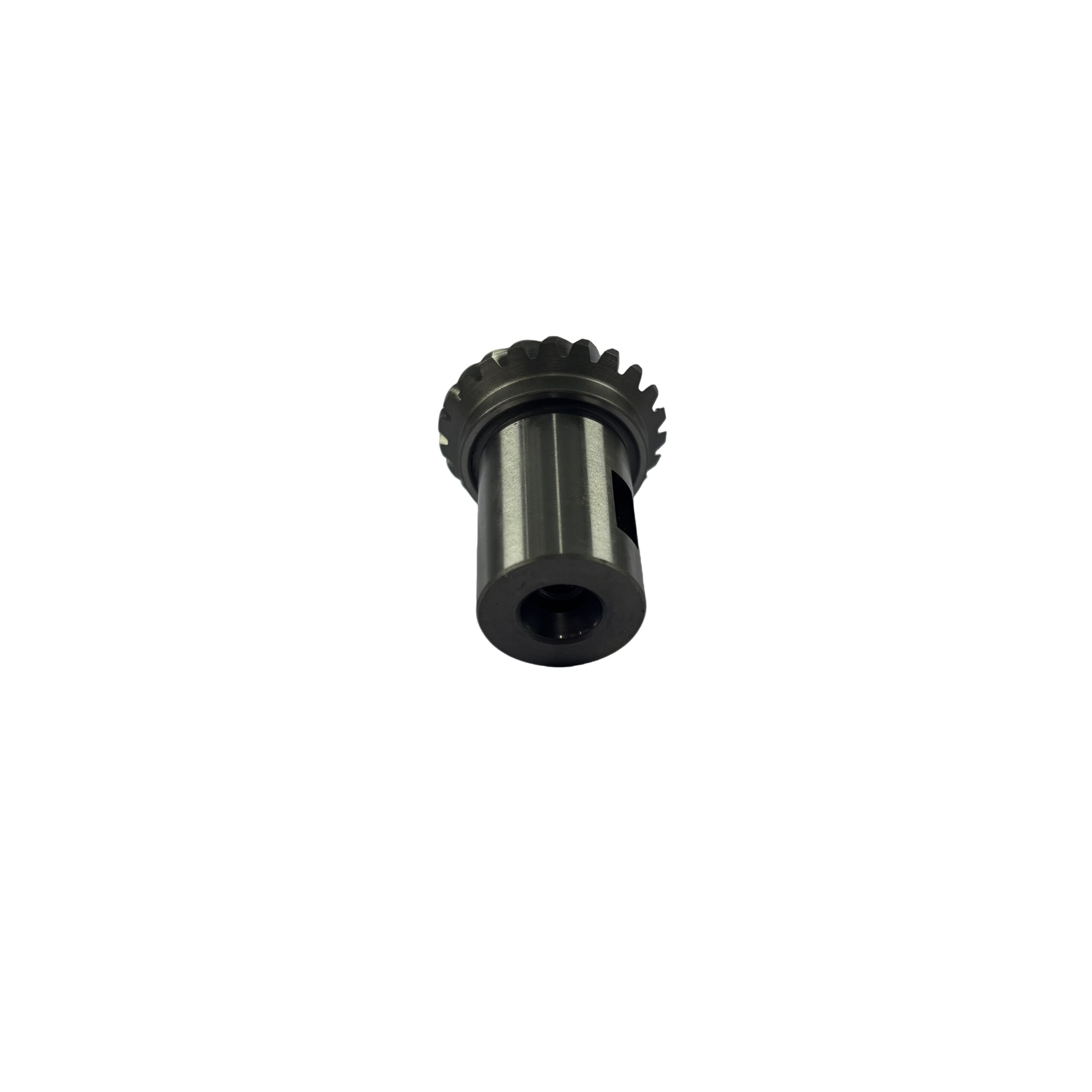

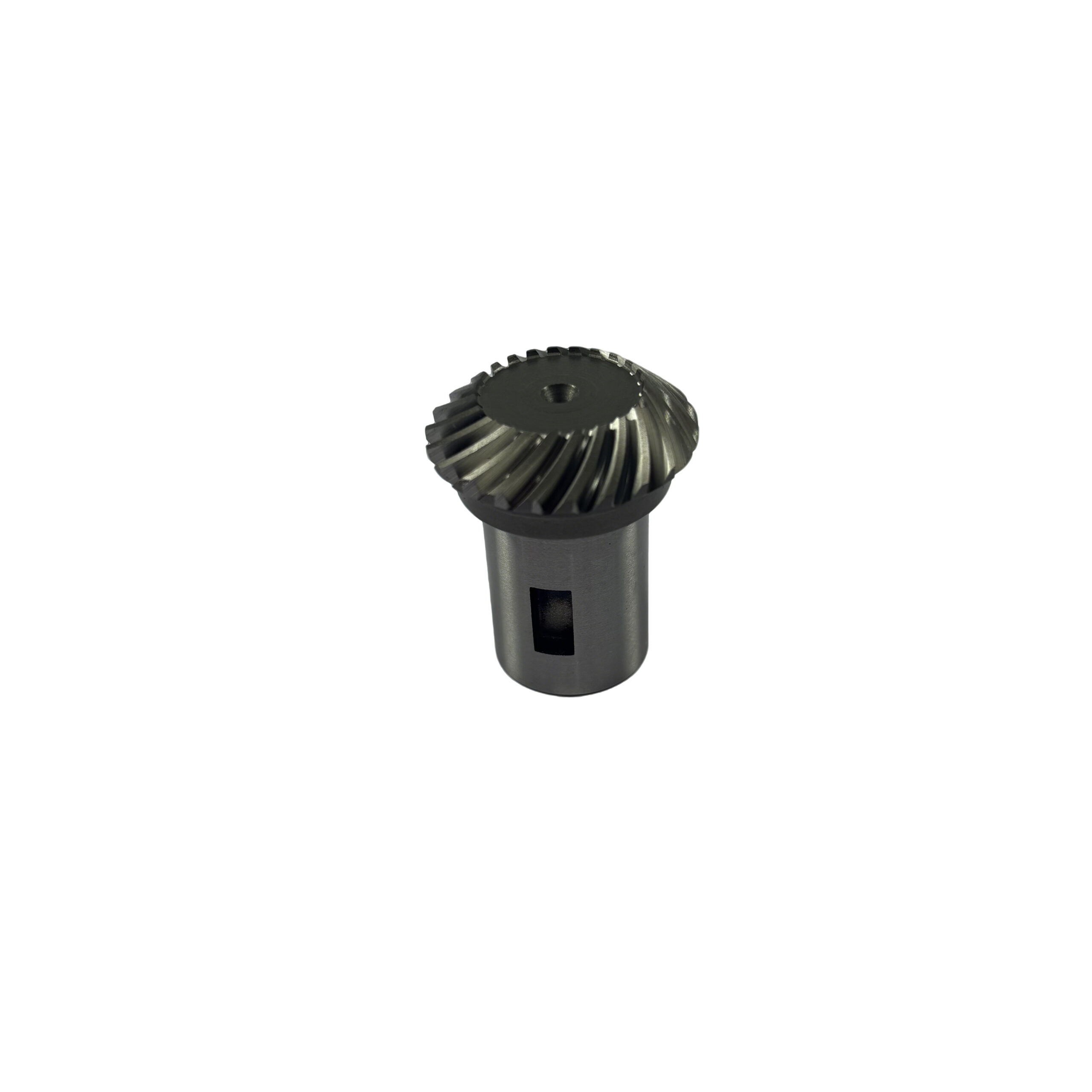

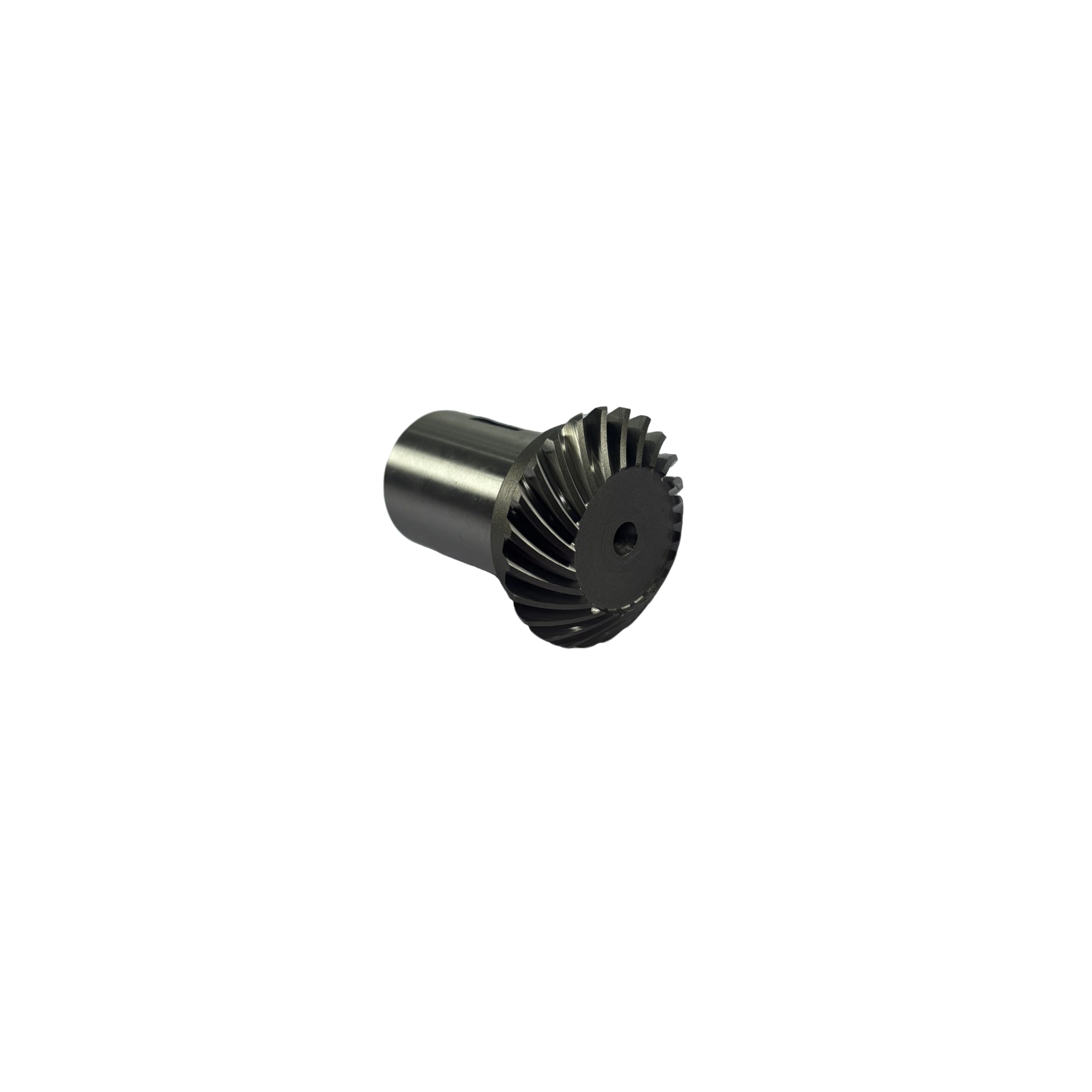

QZ-032-C (139252 Right Hand Gear)
Spiral bevel gear, pressure angle 20°, module 1.32, 23 teeth, gear ratio 1, spiral angle 35°L.
Inner diameter 13mm, gear outer diameter 32mm, total length 38mm, weight 0.1058kg.
Material: 20CrMo alloy steel.
Process: Sawing, turning, rough grinding clamping position, gear milling, heat treatment, screw assembly, hanging shot blasting, screw removal, outer diameter grinding, facing, gear grinding.
Designed for power tool transmission gears.

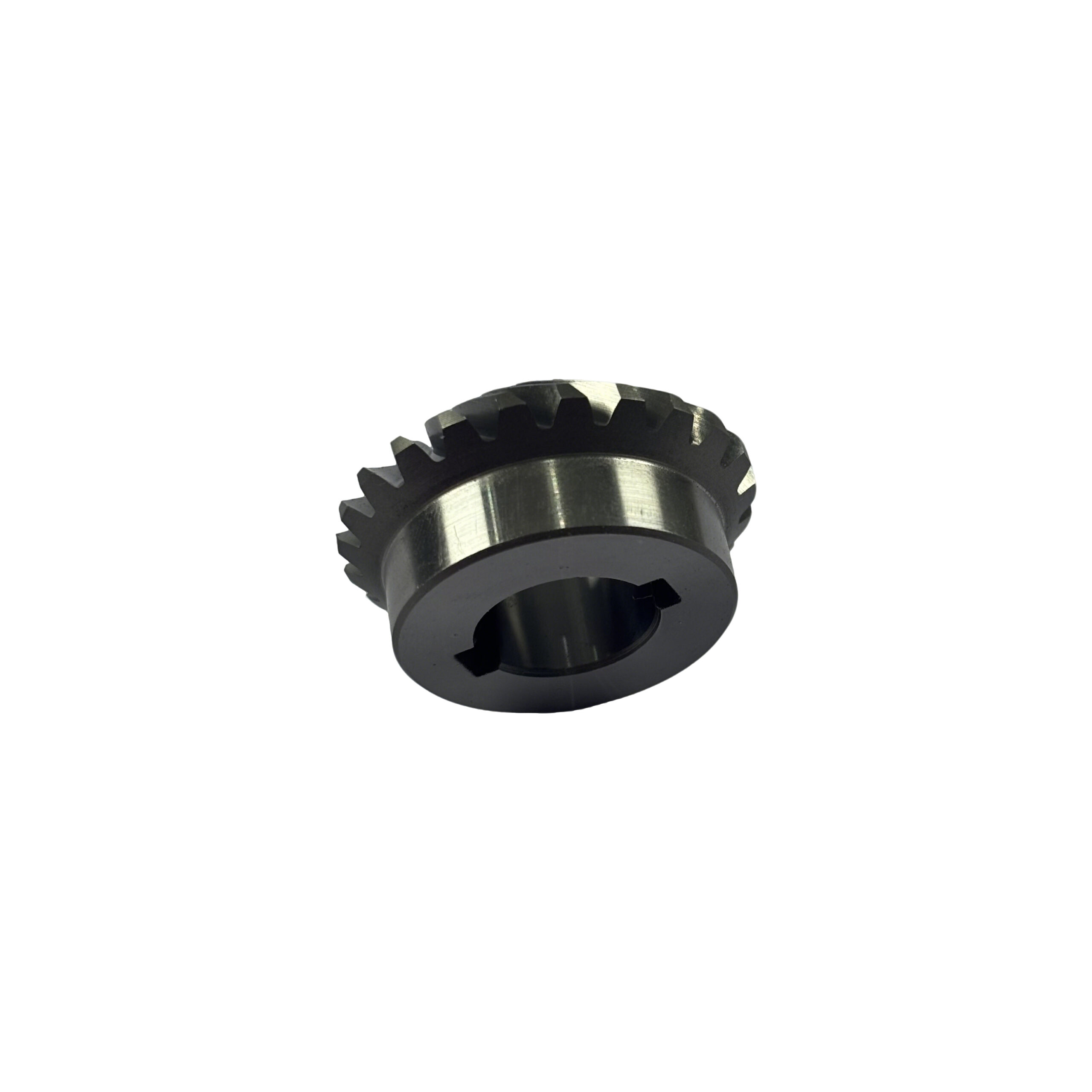

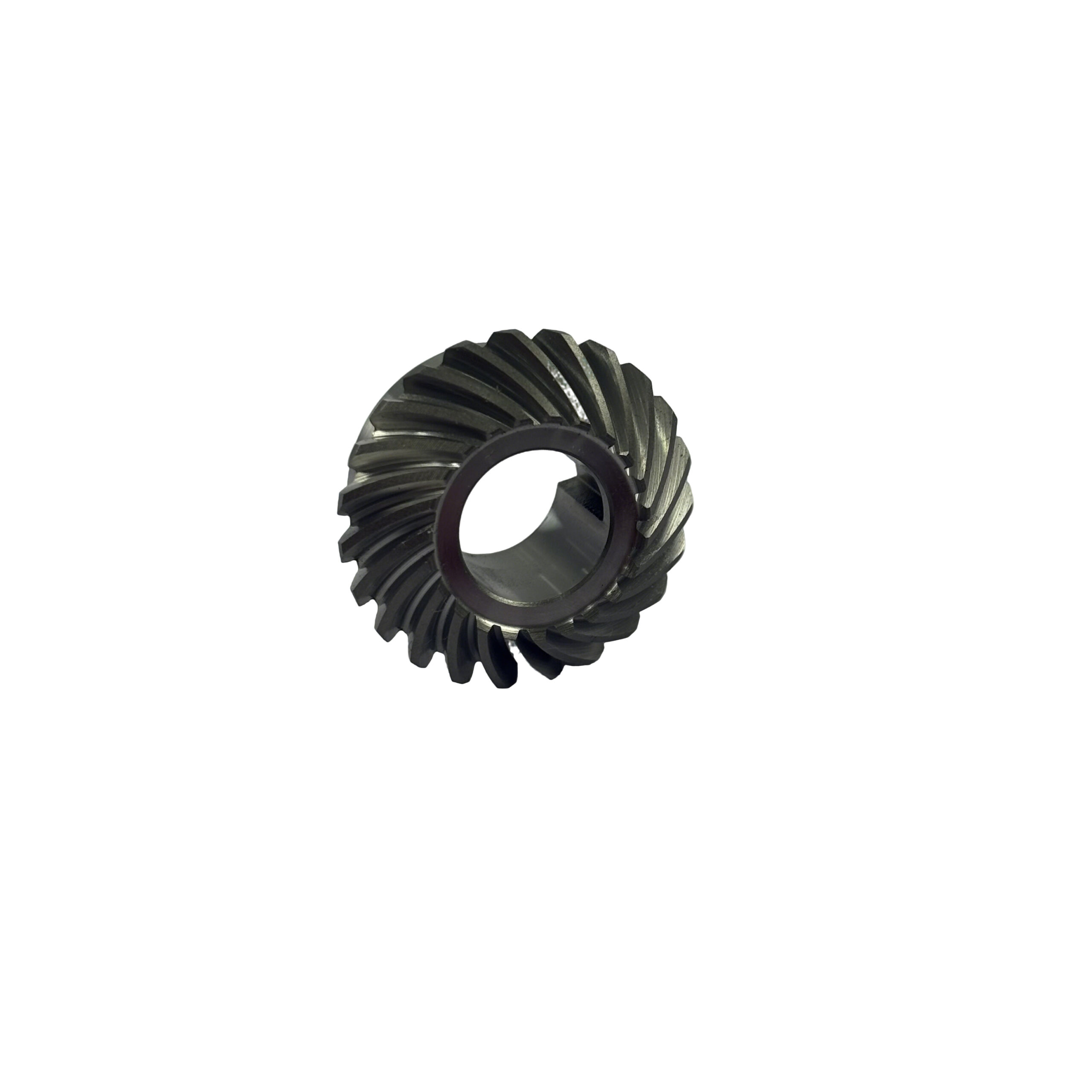

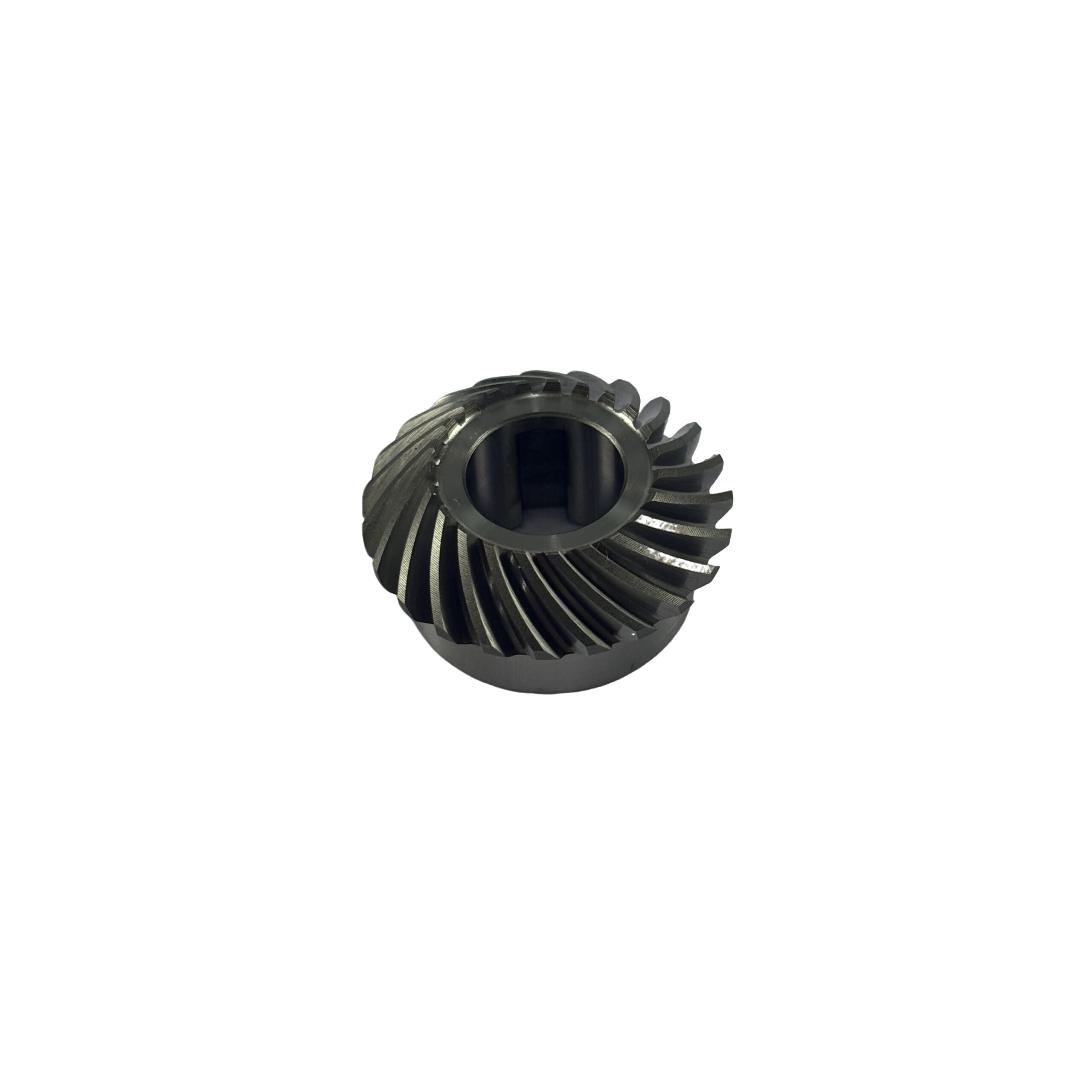

QZ-033-C (139252 Left Hand Gear)
Spiral bevel gear, pressure angle 20°, module 1.32, 23 teeth, spiral angle 35°R.
Shaft diameter 20mm, gear outer diameter 32mm, total length 15mm, weight 0.0442kg.
Material: 20CrMo alloy steel.
Process: Sawing, turning, gear milling, heat treatment, hanging shot blasting, boring & facing, length finishing, gear grinding.
Suitable for power tool gear assembly.
Additional information
| QZ-032-C and QZ-033-C weight |
0.1058and0.0442 |
|---|---|
| QZ-032-C and QZ-033-C Core Components |
gear |
| QZ-032-C and QZ-033-C Craftsmanship |
Milling |
