03.08.0049-L (Bevel Gear – L)
$4.34piece

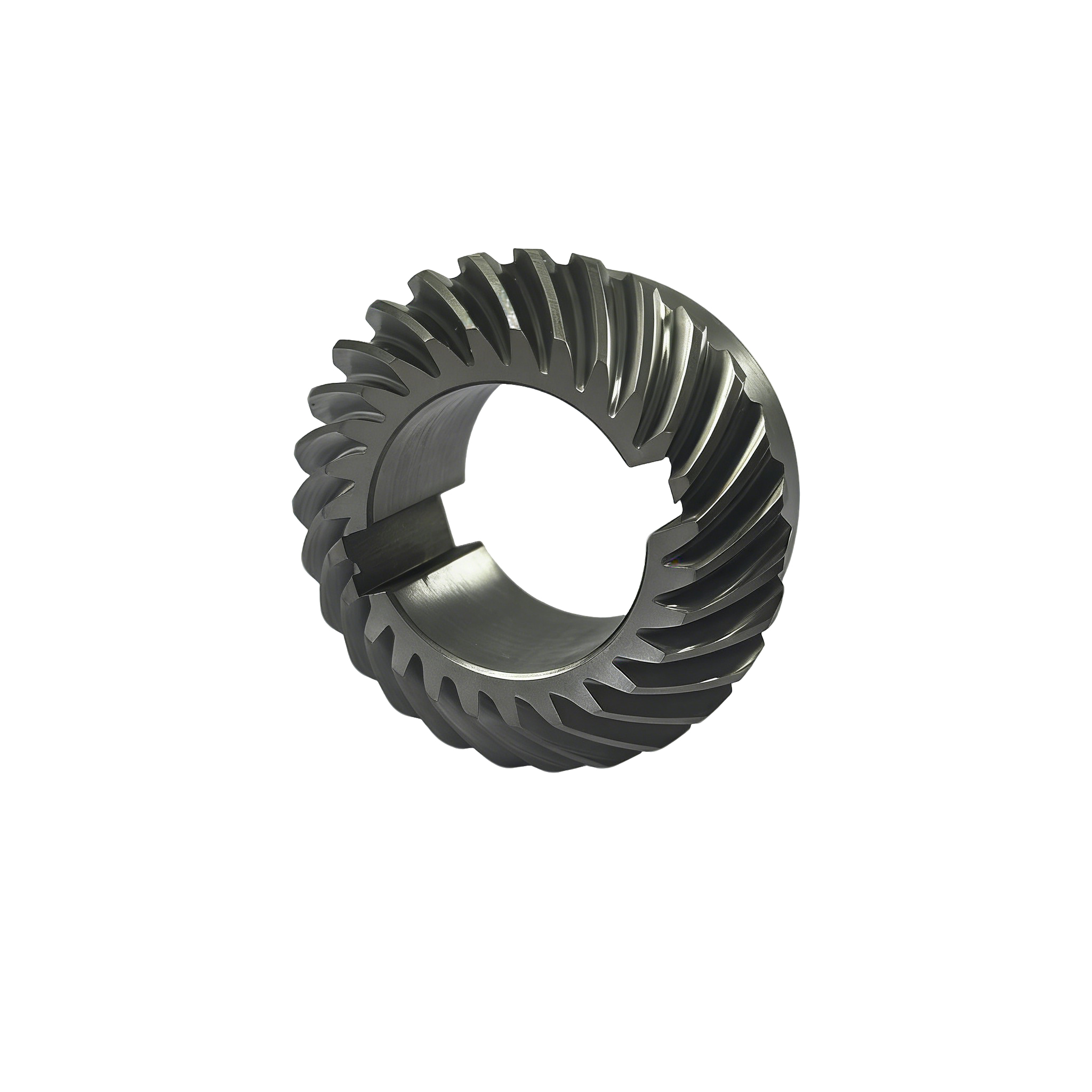

SuYou-021-C (03.08.0049-L) left-hand spiral bevel gear, made of 20CrMnTi, with module 1.5, 27 teeth and 20° pressure angle, precision-machined for reducer transmission.
描述
SuYou-021-C is a spiral bevel gear suitable for reducers, with the model 03.08.0049-L (Bevel Gear – L). Made of 20CrMnTi, it has good strength, wear resistance and transmission stability, specially designed for the transmission system of reducers.
The core parameters of the product are clear: pressure angle of 20°, module of 1.5, 27 teeth, 35° left-hand spiral angle, inner diameter of 22mm, gear outer diameter of 39mm, total length of 18mm, and weight of 0.0889kg. The processing technology includes sawing, turning, gear milling, heat treatment, shot blasting, wire-cut keyway, boring, end facing, surface grinding, gear grinding and other precise processes, ensuring high gear precision and smooth transmission, which can meet the power transmission needs of the reducer and adapt to the working conditions of the reducer.
其他信息
| weight |
0.0889 |
|---|---|
| Core Components |
gear |
| Craftsmanship |
Milling |
