DK90-M1.25-19R14.5-L20-D10 Left-hand Gear and DK90-M1.25-19R14.5-L20-D10 Right-hand Gear
$12.04piece

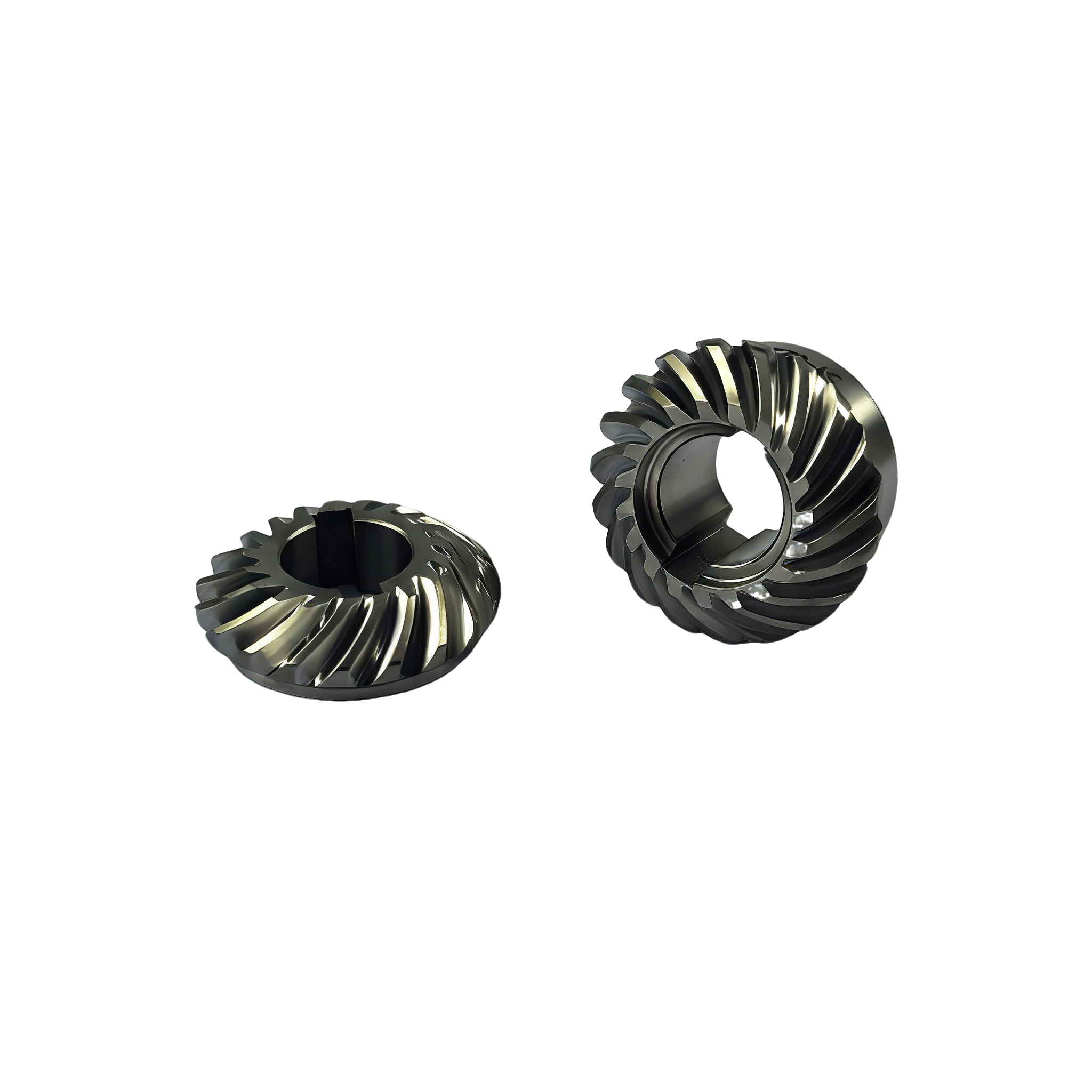

Two spiral bevel gears made of 20CrMnTi, with module 1.25, 19 teeth and 20° pressure angle. SuYou-022-C is left-hand and SuYou-023-C is right-hand, precision machined for power tool transmission.
Description
This series includes two spiral bevel gears for power tools, both made of 20CrMnTi with 20° pressure angle, module 1.25, 19 teeth, gear outer diameter 23.5mm and inner diameter 10mm. They are manufactured through precise processes including sawing, turning, gear milling, heat treatment, shot blasting, wire-cut keyway, boring, end facing, surface grinding and gear grinding.
- SuYou-022-C Left-hand Gear: 35° left-hand spiral, total length 7mm, weight 0.0132kg.
- SuYou-023-C Right-hand Gear: 35° right-hand spiral, total length 12.5mm, weight 0.0235kg.
With high transmission accuracy and good wear resistance, they can be used in pairs for power tool transmission systems.
Additional information
| SuYou-022-C and SuYou-023-C weight |
0.0132and0.0235 |
|---|---|
| SuYou-022-C and SuYou-023-C Core Components |
gear |
| SuYou-022-C and SuYou-023-C Craftsmanship |
Milling |
