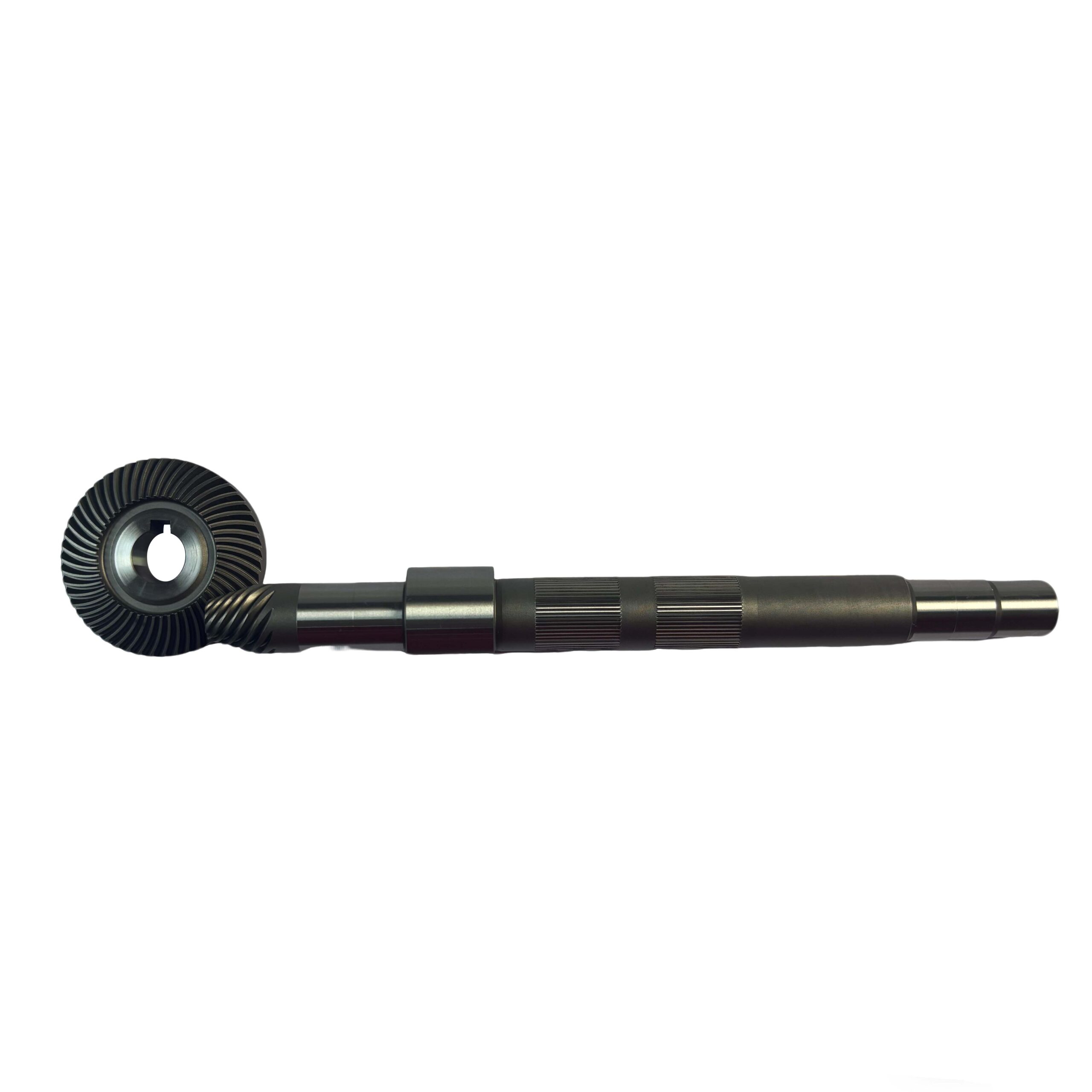

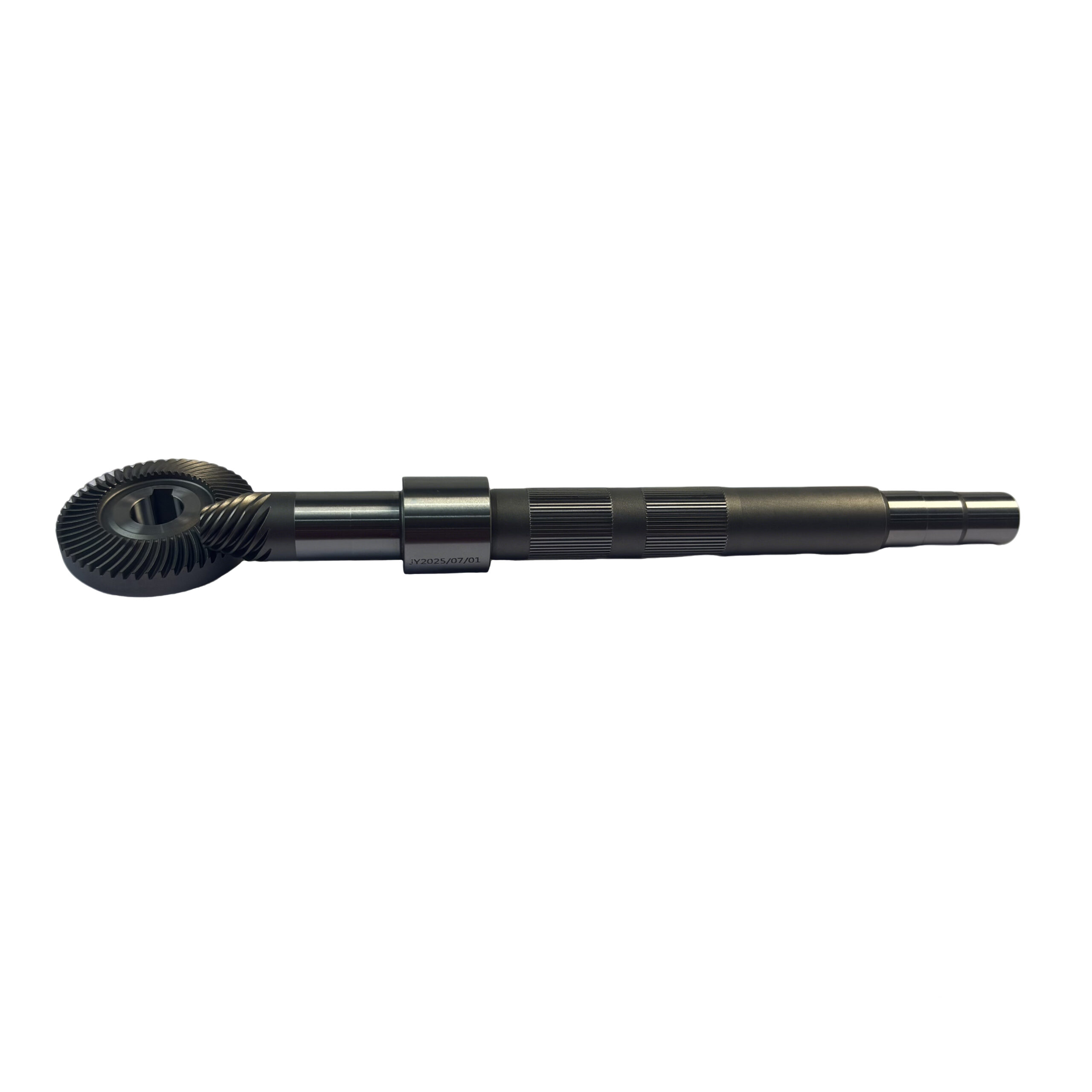

ZDF3-25H5-200-516-002 Primary Driven Gear and ZDF3-25H5-200-S3-013-00002 Shaft
$9.30piece
ZD-013-C is a hypoid primary driven gear made of 20CrMnTi, module 0.96, 51 teeth, 35° right-hand helix, designed for reducers with stable and durable transmission.
ZD-014-C is a hypoid gear shaft made of 20CrMnTi, module 0.96, 10 teeth, 35° left-hand helix, for reducers with high precision and stable performance.
描述
Model: ZD-013-C

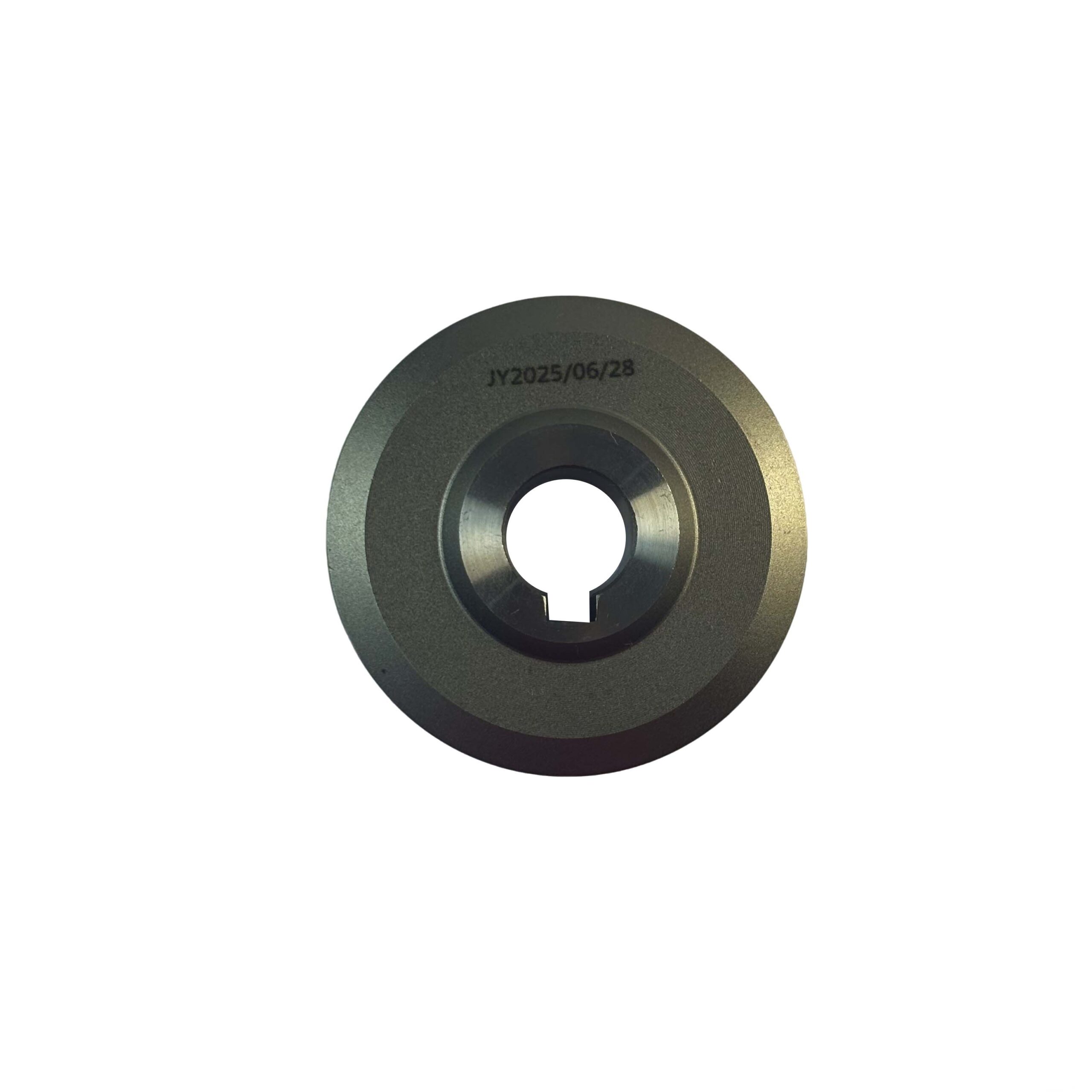

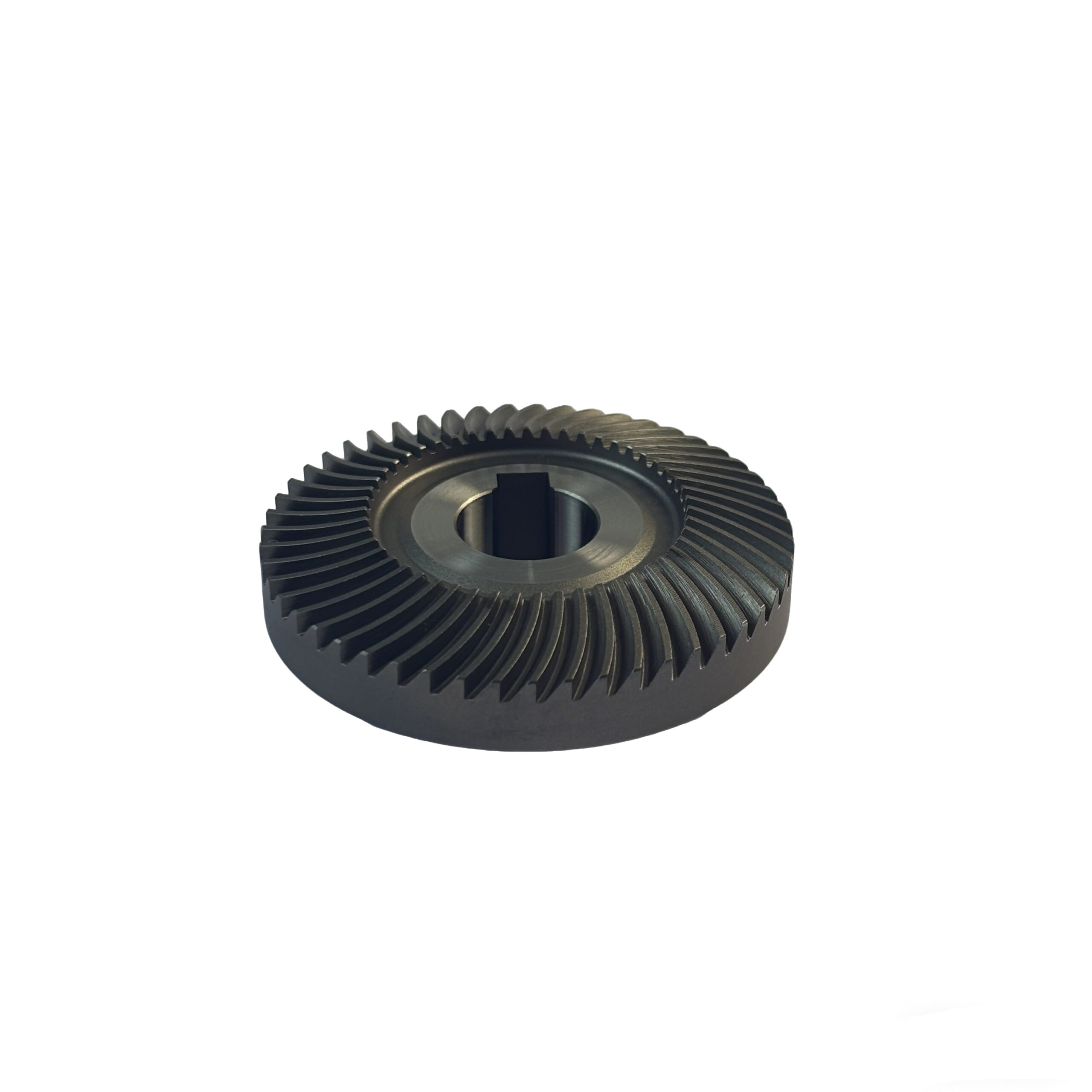

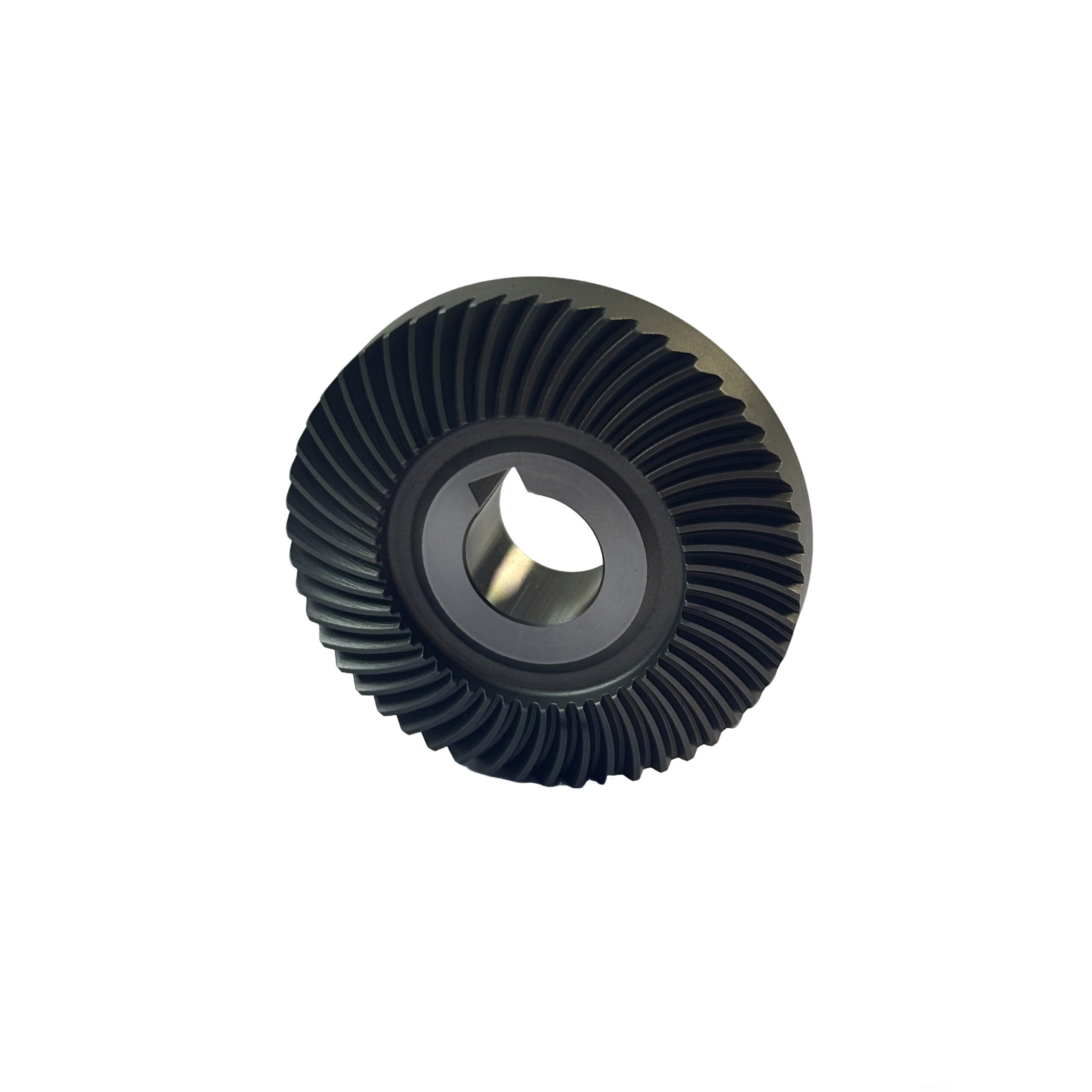

Product Name: ZDF3-25H5-200-516-002 Primary Driven Gear
Type: Hypoid Gear
Parameters: Pressure angle 20°, module 0.96, 51 teeth, offset distance 11, helix angle 35° RH, inner bore 13 mm, tooth outer diameter 49 mm, total length 13.88 mm, weight 0.1324 kg
Material: 20CrMnTi
Process: Sawing, turning, gear milling, heat treatment, shot blasting, boring, total length facing, marking, full appearance inspection
Application: Reducer gear
Made of 20CrMnTi alloy steel, this primary driven gear features high machining accuracy and good wear resistance after heat treatment. It is compact and lightweight, suitable for stable primary transmission in reducers.

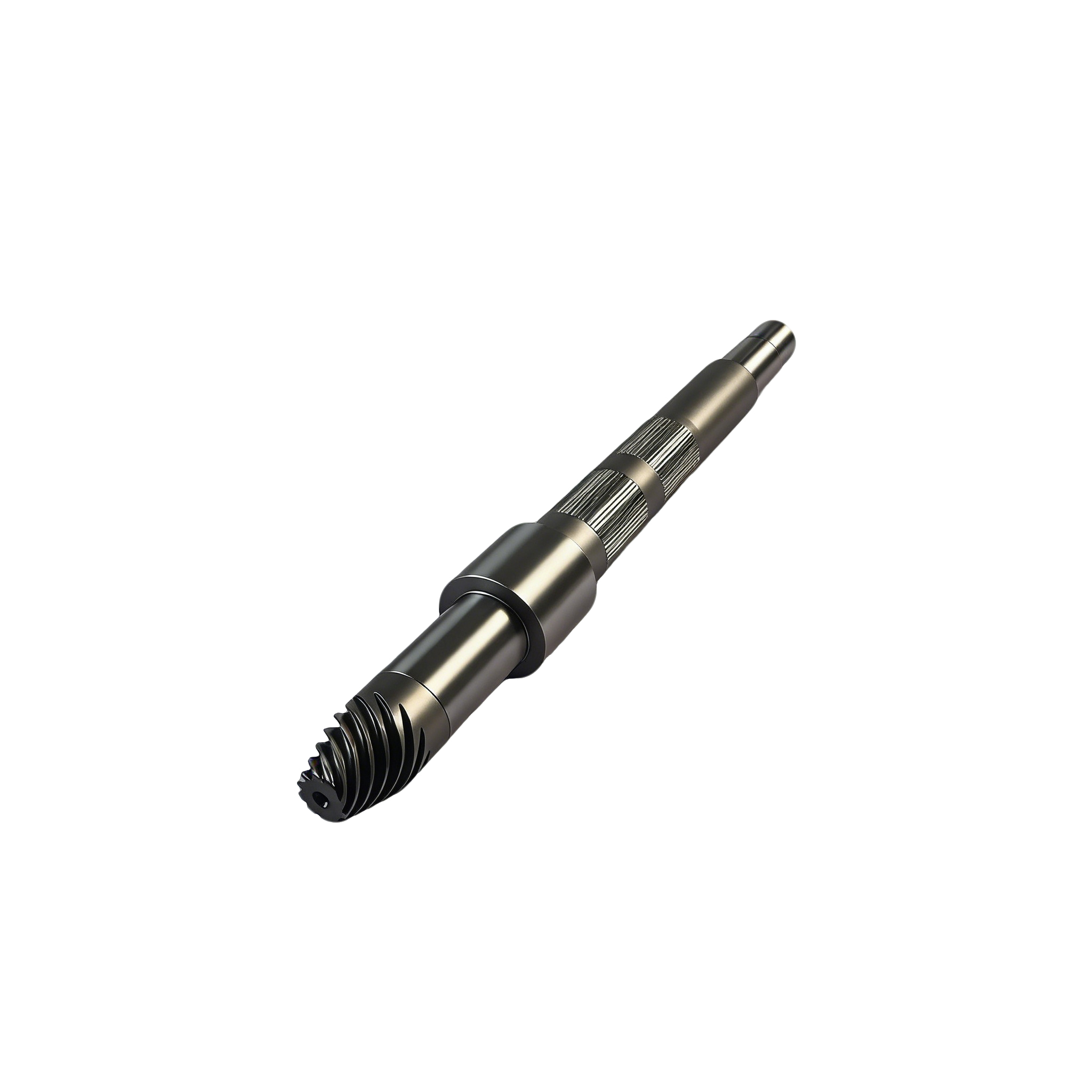

Model: ZD-014-C

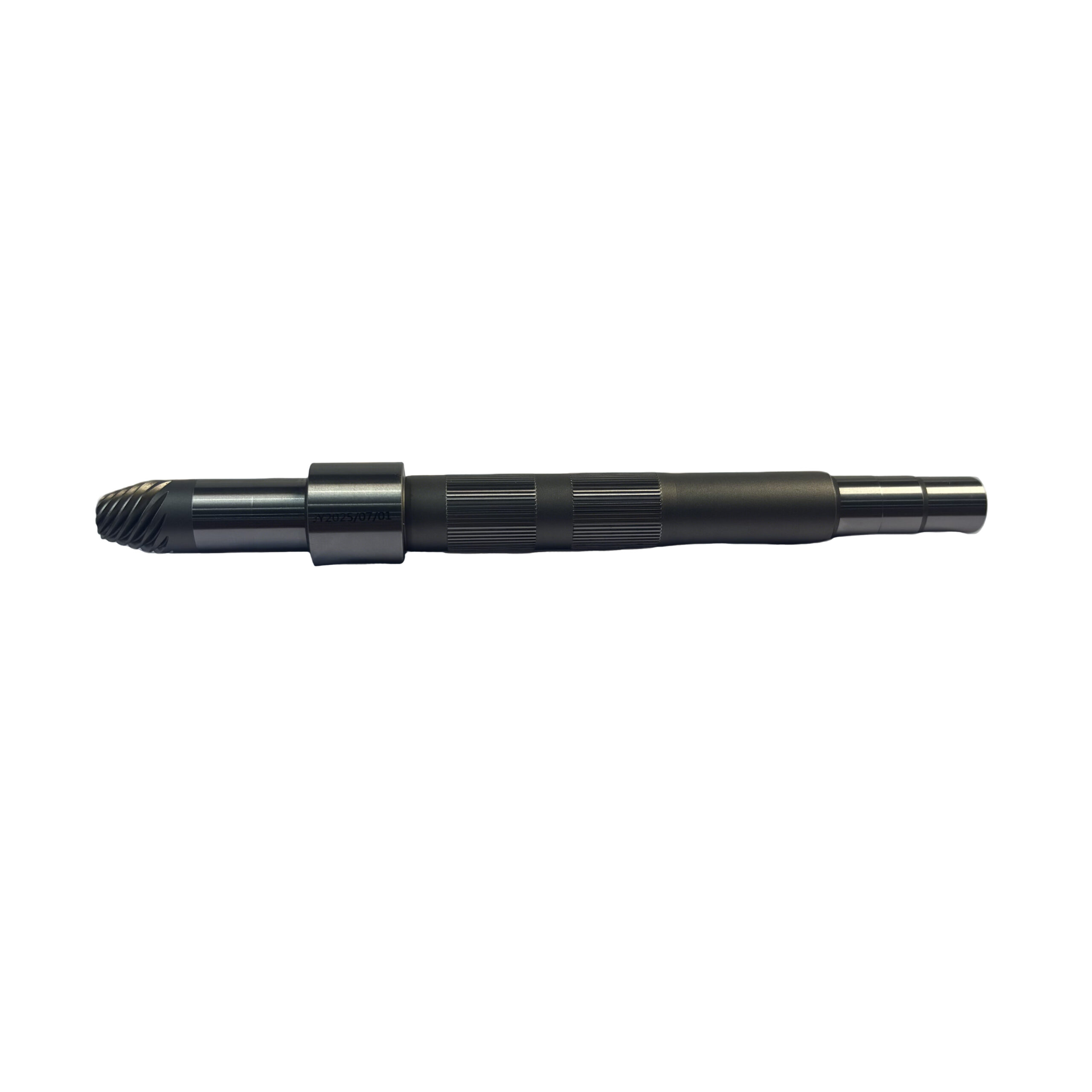

Product Name: ZDF3-25H5-200-S3-013-00002 Shaft
Type: Hypoid Gear
Parameters: Pressure angle 20°, module 0.96, 10 teeth, offset distance 11, helix angle 35° LH, shaft diameter 24 mm, tooth outer diameter 16.78 mm, total length 205.12 mm, weight 0.3904 kg
Material: 20CrMnTi
Process: Sawing, turning, rough grinding for positioning, rough grinding for clamping, rough grinding for reference, gear milling, heat treatment & straightening, shot blasting, outer diameter grinding, marking, full appearance inspection
Application: Reducer gear
This hypoid gear shaft is precision-processed with multiple grinding and straightening procedures. It offers high dimensional stability, excellent strength and wear resistance, ensuring reliable transmission in reducers.
其他信息
| ZD-013-C and ZD-014-C weight |
0.1324and0.3904 |
|---|---|
| ZD-013-C and ZD-014-C Core Components |
gear |
| ZD-013-C and ZD-014-C Craftsmanship |
Milling |
用户评价 (0)
Shipping & Delivery
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
相关产品
SCK50-2-2-02
✅ Core Advantages: High-precision transmission, high load-bearing capacity, low noise, long service life, lightweight
✅ Key Parameters (SCK50-2-2-02): 20° Pressure Angle | 1.36 Modulus | 38 Teeth | 28°26′/R Helix Angle | 9mm Offset | 14mm Inner Diameter | 51.65mm Tooth Outer Diameter | 16mm Total Length | 0.1205kg Weight
✅ Exquisite Craftsmanship: Normalizing - Turning - Gear Milling - Heat Treatment - Chamfering - Shot Blasting - Reaming - Facing - Pairing Grinding - Marking - Full Inspection, Full-process Precision Control
✅ Application Scenarios: Power transmission for automobiles, construction machinery, precision instruments, automation equipment, etc.
✅ Product Features: High-quality alloy material | Precise meshing | Impact resistance | Low loss | Compliance with international industrial standards | Adaptation to high-load working conditions
SCK75-2-1-03 and SCK75-2-2-04
1. XG-025-C (SCK75-2-1-03)
XG-025-C (SCK75-2-1-03) Hypoid Gear Shaft, 20CrMnTi, module 1.55, 11T, speed ratio 4, helix angle 48°L, shaft Ø16mm, gear OD 28.62mm, total length 62mm, weight 0.1484kg, precision lapped, for reducers.
2. XG-026-C (SCK75-2-2-04)
XG-026-C (SCK75-2-2-04) Hypoid Gear, 20CrMnTi, module 1.55, 45T, helix angle 25°10′R, inner bore Ø19mm, gear OD 69.9mm, total length 21.36mm, weight 0.3465kg, precision processed, matched with XG-025-C for reducers.
ZDF3-35H5-750-516-002 Primary Driven Gear and ZDF3-35H10-750-S3-013-00002 Shaft
ZD-015-C is a hypoid primary driven gear made of 20CrMnTi, module 1.47, 51 teeth, 50° right-hand helix, for stable and wear-resistant transmission in reducers.
ZD-016-C is a hypoid gear shaft made of 20CrMnTi, module 1.47, 10 teeth, 50° left-hand helix, designed for reliable and stable transmission in reducers.
ZDF3-45H20-1500-S-013-00001 Rotating Shaft and ZDF3-45H60-1500-516-002 Primary Driven Gear
ZD-011-C is a hypoid gear shaft made of 20CrMnTi, with module 2.586, 4 teeth and 50° left-hand helix. It is precision-machined and heat-treated for stable, durable transmission in reducers.
ZD-012-C is a hypoid primary driven gear made of 20CrMnTi, with module 2.586, 41 teeth and 50° right-hand helix. It is ideal for reducer primary transmission with stable performance and long service life.
