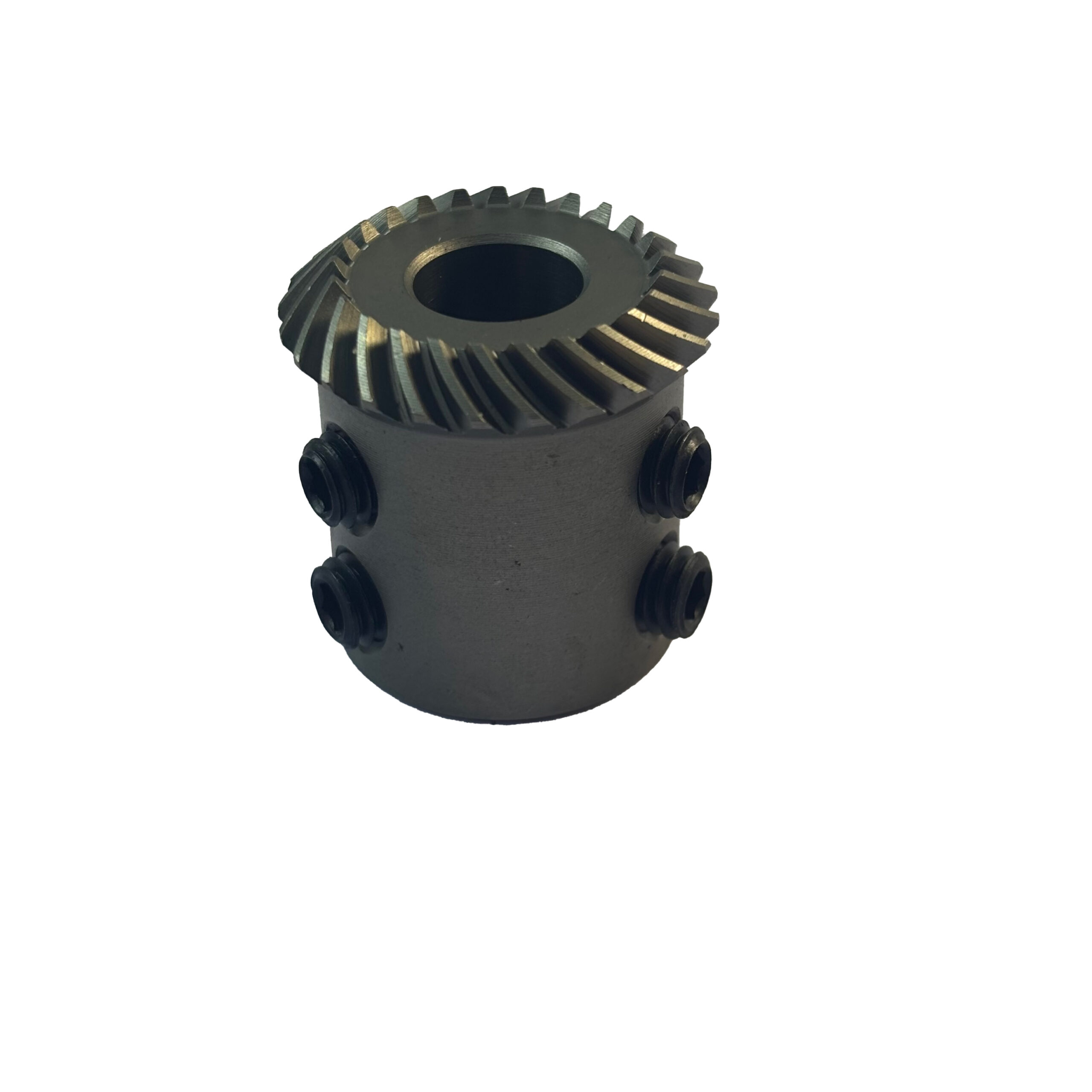

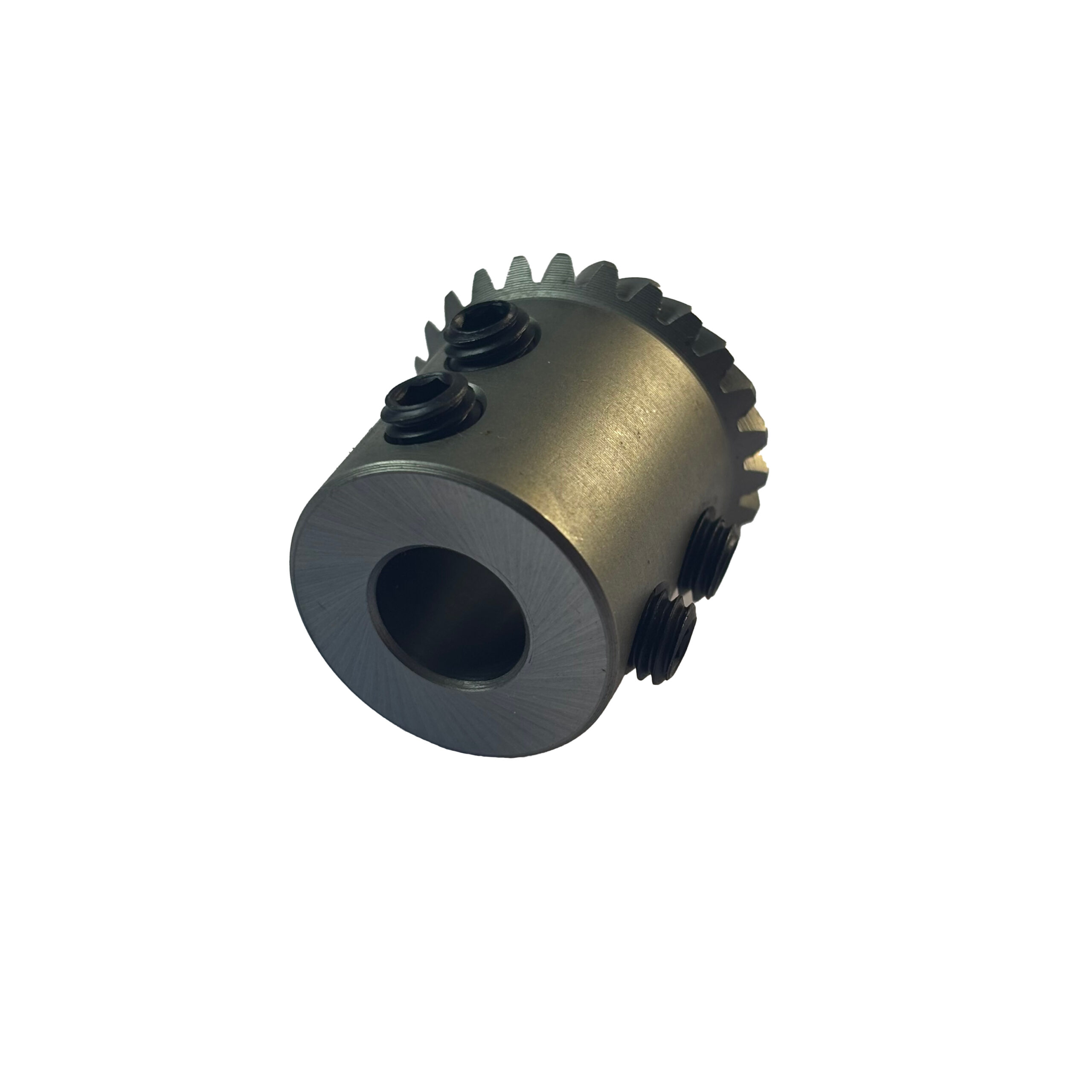

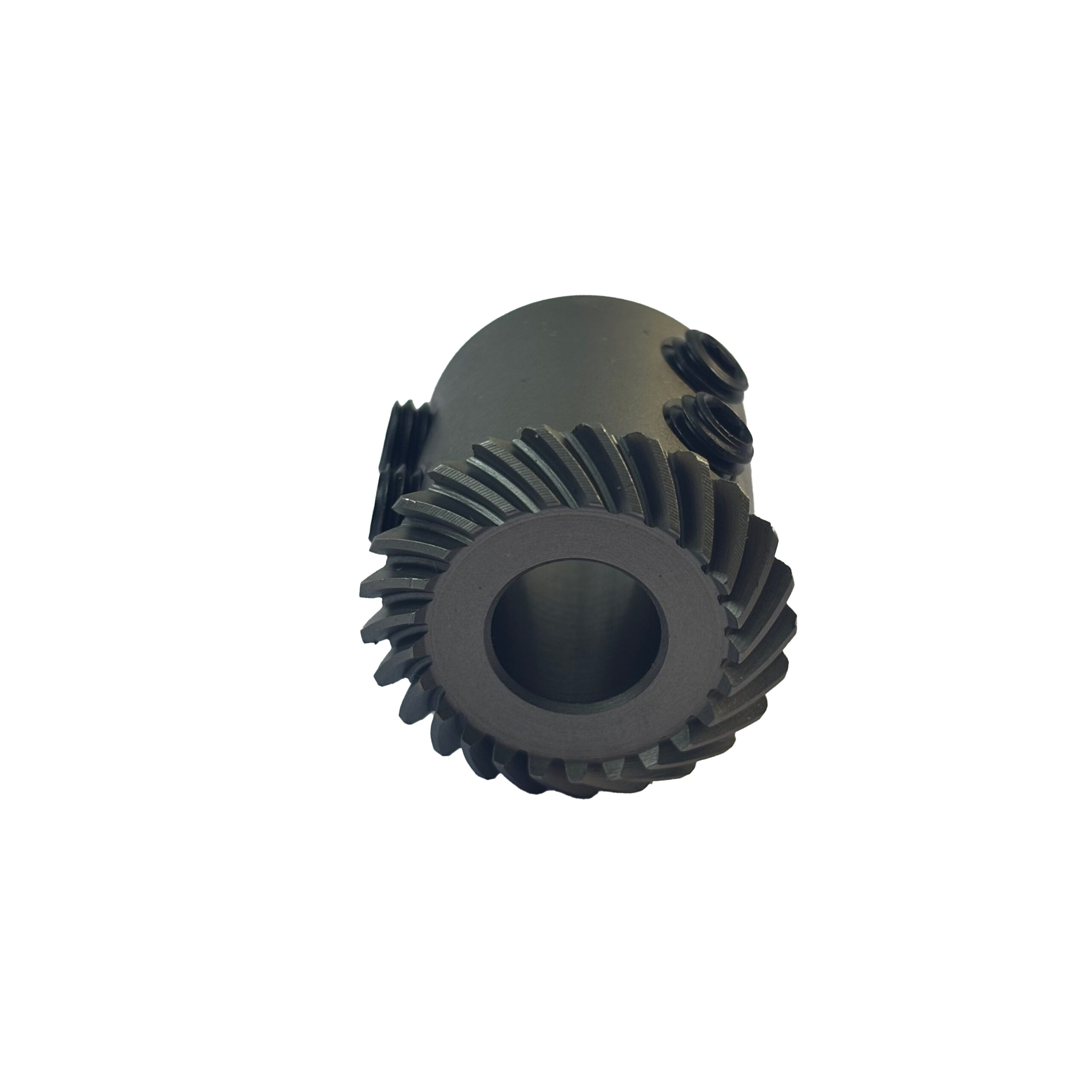

Z-91-380787 Driven Gear
$13.00piece
Z-91-380787 driven spiral bevel gear is made of 20CrMo, with module 1 and pressure angle 20°. Manufactured via a series of precision processes, it weighs 0.0554kg, features precise meshing and stable operation, and is suitable for the transmission system of sewing equipment.
Description
Additional information
| weight |
0.0554 |
|---|---|
| Core Components |
gear |
| Craftsmanship |
Precision Casting |
Reviews (0)
Shipping & Delivery
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
Related products
2024044
2024044 Spiral Bevel Gear is a dedicated transmission component for electric tools. Made of 20CrMnTi material, it has a pressure angle of 20°, a module of 1.5, 38 teeth, and a spiral angle of 35°/R, with an inner diameter of 37mm, an outer diameter of 57.4mm, a total length of 33.49mm, and a single weight of 0.1706kg. Produced via multiple precision machining and full inspection procedures, it ensures stable transmission and high durability.
50WF1-043 Hook Gear (341 Pinion)and50WF1-040 Lower Shaft (341 Gear Wheel)
BZ-008-C (50WF1-043 Hook Gear/341 Pinion) and BZ-009-C (50WF1-040 Lower Shaft/341 Gear Wheel) are exclusive supporting spiral bevel gears for 341 model sewing equipment. Both are made of 20CrMo and processed through multiple precision processes. Core parameters: pressure angle 20°, module 0.7, helix angle 36.393° (right-hand/left-hand rotation respectively); BZ-008-C: 16 teeth, speed ratio 2, inner diameter 7.94mm, addendum diameter 12mm, weight 0.0617kg; BZ-009-C: 32 teeth, inner diameter 9.5mm, addendum diameter 29.421mm, weight 0.0303kg. Used in supporting pairs, they feature precise and stable transmission, suitable for the transmission needs of sewing equipment.
Bevel Gear Shaft 4037013
The 4037013 Bevel Gear Shaft is a special transmission component for reducers, made of 20CrMnTi material and manufactured through multiple precision processes including normalization, turning, keyway machining, gear milling and heat treatment. Its core parameters are 20° pressure angle, 2.12 module, 8 teeth and 35° right-hand rotation, with a shaft diameter of 17mm, total length of 78.11mm and weight of 0.1295kg. It features stable transmission, wear resistance and durability.
NBRX-1530 Short-Type – φ8 Gear and NBRX-1530-T24 Long-Type Gear
The NBRX-1530 series of spiral bevel gears (including the short type φ8 and the long type T24) are made of 20CrMo material and manufactured through multiple precision processes. With parameters of 20° pressure angle, 0.9 module and 24 teeth, their helix angles are 35° left-hand rotation and 35° right-hand rotation respectively, and the tooth outer diameter is 21.8mm. The short type has a total length of 10.5mm and a weight of 0.0148kg, while the long type has a total length of 16mm and a weight of 0.0235kg. Specifically designed for sewing equipment, these gears feature stable transmission, wear resistance and durability.
Top Feed Drive Gear
Top Feed Spiral Bevel Drive Gear (exclusive for sewing machinery): 20° pressure angle, 1 module, 26 teeth, 35°/L spiral angle, 7mm inner diameter, 26mm outer tooth diameter, 12.7mm overall length, 0.0294kg weight. Made of 20CrMo via multi-step precision processes, it meets the transmission needs of the top feed mechanism of sewing equipment.
