SNKG200-2-1-03 Bevel Gear Shaft
$3.50piece

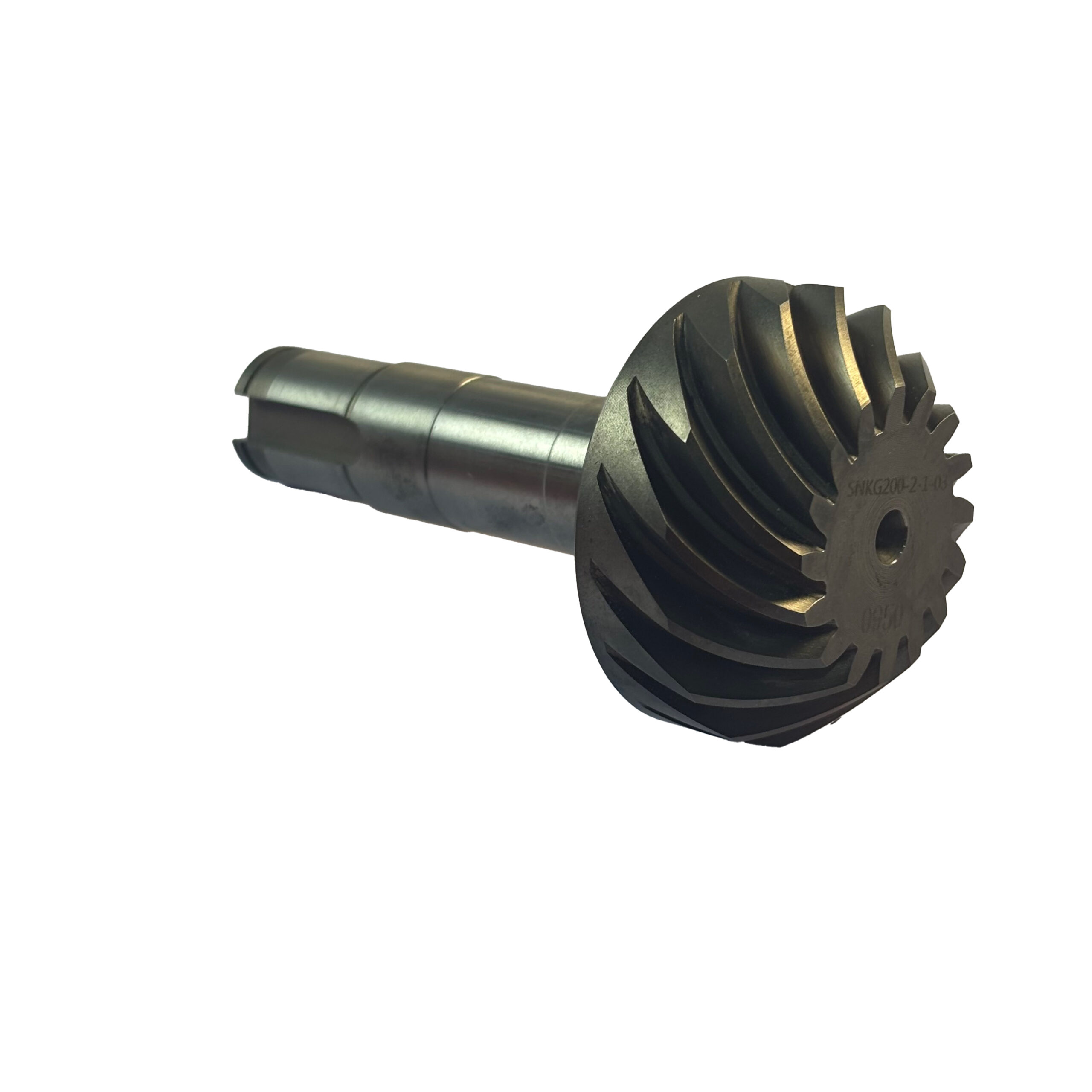

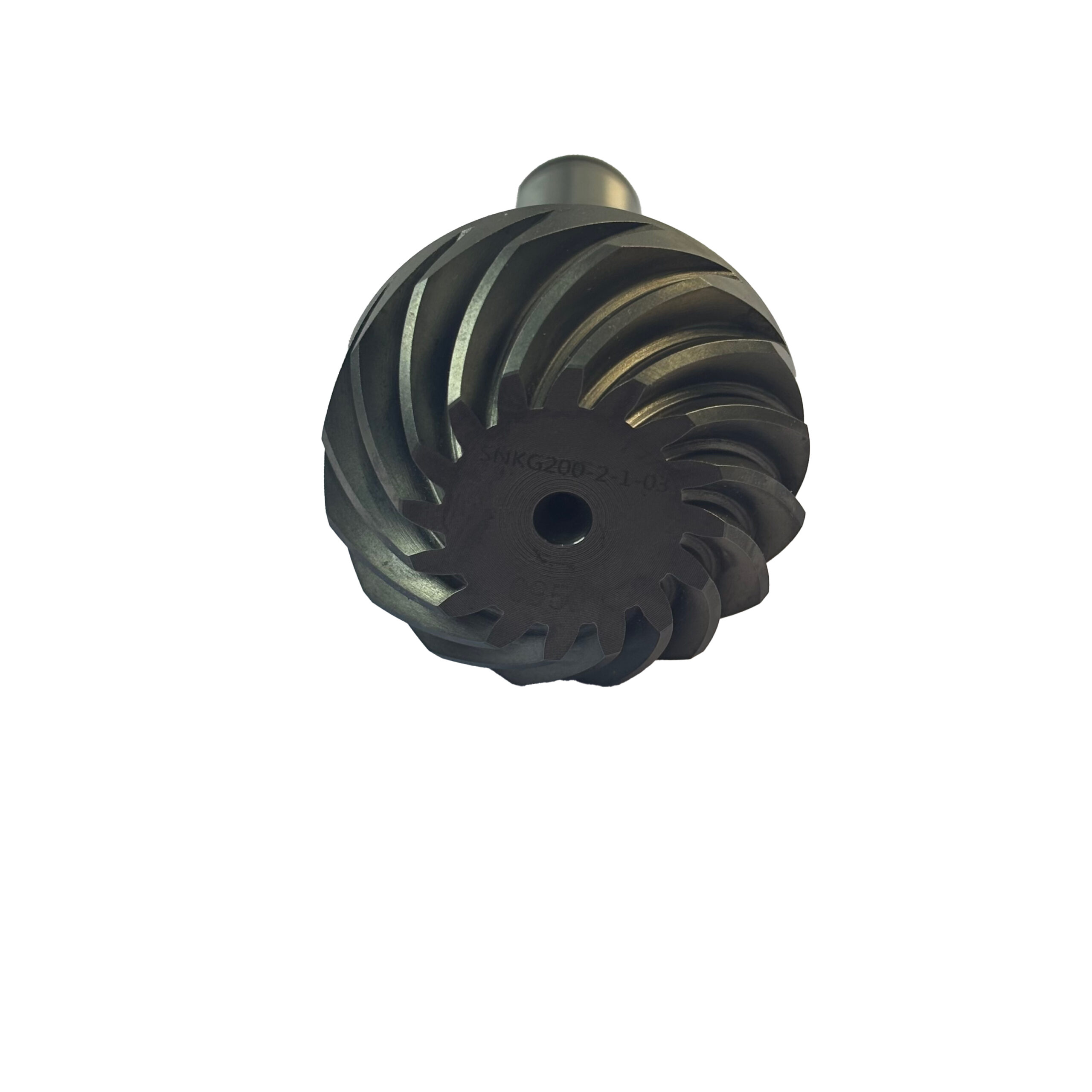

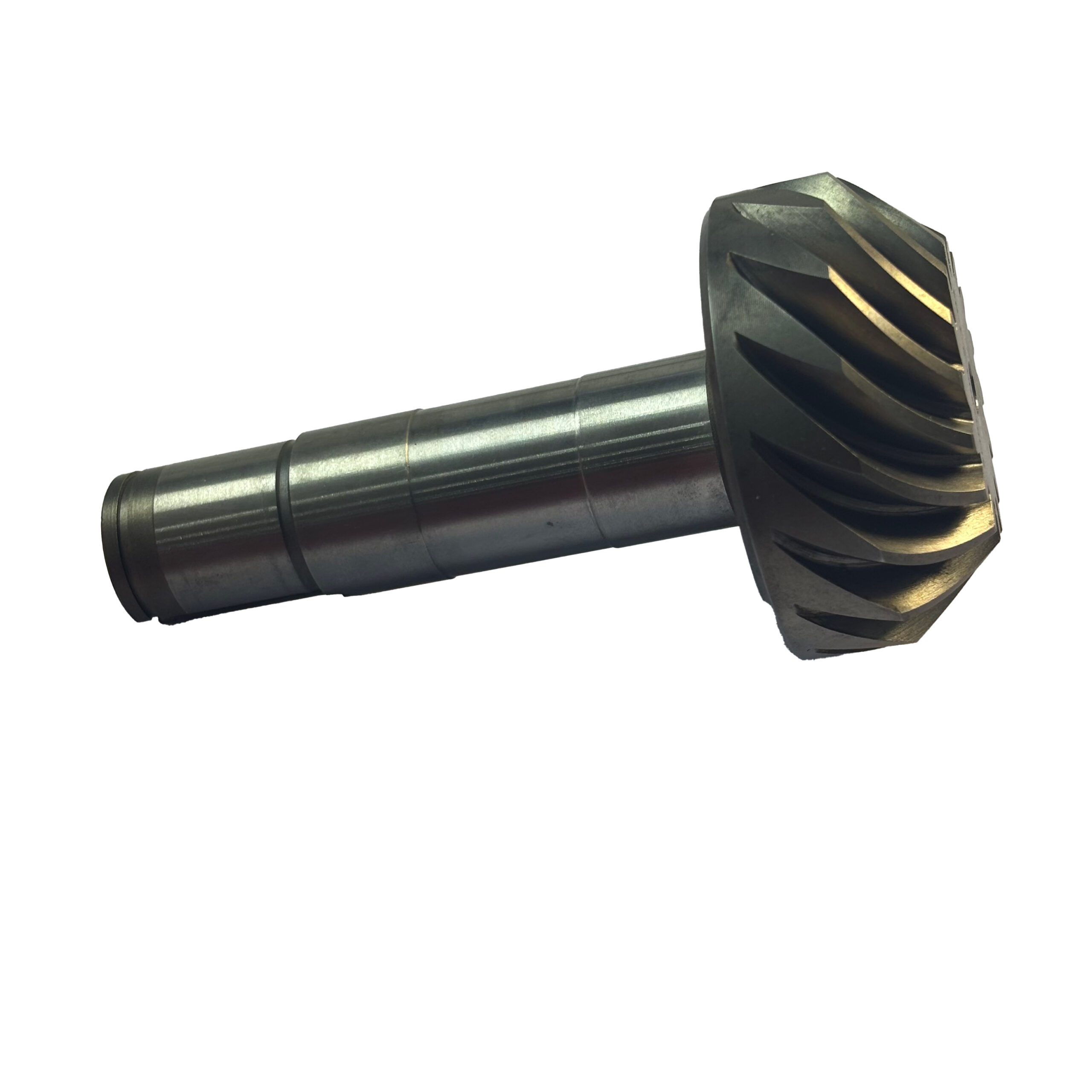

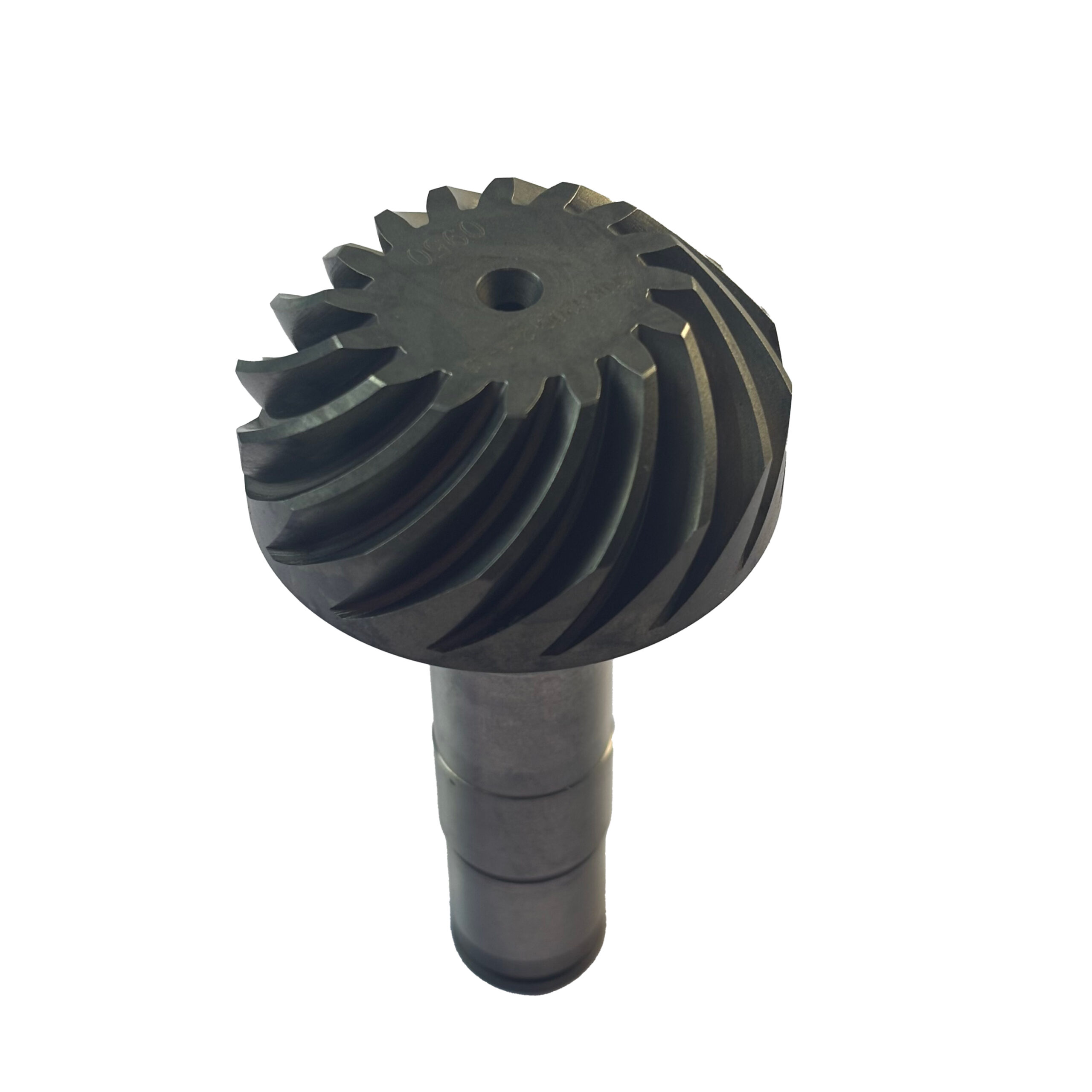

SNKG200-2-1-03 bevel gear shaft is made of 20CrMnTi, with a module of 2.5 and a pressure angle of 20°. Manufactured through a series of precision processes, it has a shaft diameter of 17mm, an overall length of 84.33mm and a weight of 0.2933kg. Suitable for reducer transmission systems, it features precise meshing and stable, reliable operation.
Description
Additional information
| weight |
0.2933 |
|---|---|
| Core Components |
gear |
| Craftsmanship |
Precision Casting |
Reviews (0)
Shipping & Delivery
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
Related products
2024044
2024044 Spiral Bevel Gear is a dedicated transmission component for electric tools. Made of 20CrMnTi material, it has a pressure angle of 20°, a module of 1.5, 38 teeth, and a spiral angle of 35°/R, with an inner diameter of 37mm, an outer diameter of 57.4mm, a total length of 33.49mm, and a single weight of 0.1706kg. Produced via multiple precision machining and full inspection procedures, it ensures stable transmission and high durability.
CJBB002F-1 (5-hole outer diameter non-turned) Finished Product
CJBB002F-1 (5-hole outer diameter non-turned) finished spiral bevel gear features a pressure angle of 20°, module of 1.2118, spiral angle of 35°/L, inner diameter of 5mm, tooth outer diameter of 11.6mm and total length of 19.5mm. It is a dedicated core transmission component for reducers with simplified processes and stable transmission performance.
KA09104 Small Steel Gear 15T
KA09104 Small Steel Gear 15T is a dedicated spiral bevel gear for reducers. Made of 20CrMnTi material, it has a pressure angle of 20°, a module of 1.54, 15 teeth, and a spiral angle of 10°/R, with a shaft diameter of 10mm, a tooth outer diameter of 28mm, a total length of 59.25mm, and a single weight of 0.0541kg. Manufactured via multiple precision machining and surface treatment processes, it delivers stable transmission and high wear resistance.
NBRX-1530 Short-Type – φ8 Gear and NBRX-1530-T24 Long-Type Gear
The NBRX-1530 series of spiral bevel gears (including the short type φ8 and the long type T24) are made of 20CrMo material and manufactured through multiple precision processes. With parameters of 20° pressure angle, 0.9 module and 24 teeth, their helix angles are 35° left-hand rotation and 35° right-hand rotation respectively, and the tooth outer diameter is 21.8mm. The short type has a total length of 10.5mm and a weight of 0.0148kg, while the long type has a total length of 16mm and a weight of 0.0235kg. Specifically designed for sewing equipment, these gears feature stable transmission, wear resistance and durability.
Top Feed Drive Gear
Top Feed Spiral Bevel Drive Gear (exclusive for sewing machinery): 20° pressure angle, 1 module, 26 teeth, 35°/L spiral angle, 7mm inner diameter, 26mm outer tooth diameter, 12.7mm overall length, 0.0294kg weight. Made of 20CrMo via multi-step precision processes, it meets the transmission needs of the top feed mechanism of sewing equipment.
Φ14.73 Left-hand (LH) Straight Teeth and Φ7.94 Right-hand (RH) Straight Teeth
The two models of spur spiral bevel gears (Φ14.73 Left-hand, Φ7.94 Right-hand) are made of 20CrMo material and manufactured through multiple precision processes. With parameters including 20° pressure angle, 0.97 module, 33 teeth and 0° helix angle, both gears have a tooth outer diameter of 32mm. The Φ14.73 model has a total length of 17.65mm and a weight of 0.0487kg, while the Φ7.94 model has a total length of 15.65mm and a weight of 0.0566kg. Specially designed for sewing equipment, these gears are characterized by stable transmission, wear resistance and durability.
