Z-91-145220-05 Pinion
$1.20piece

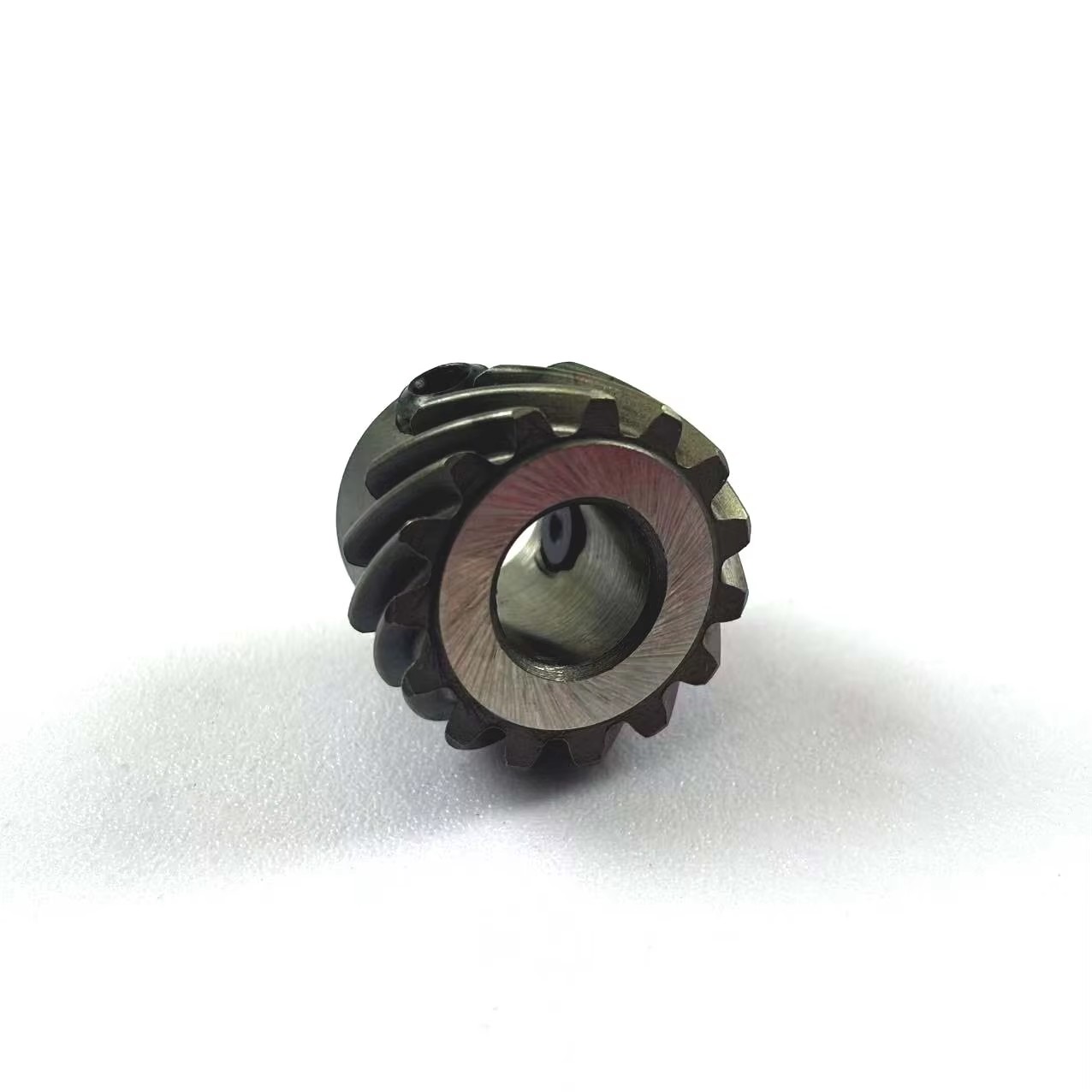

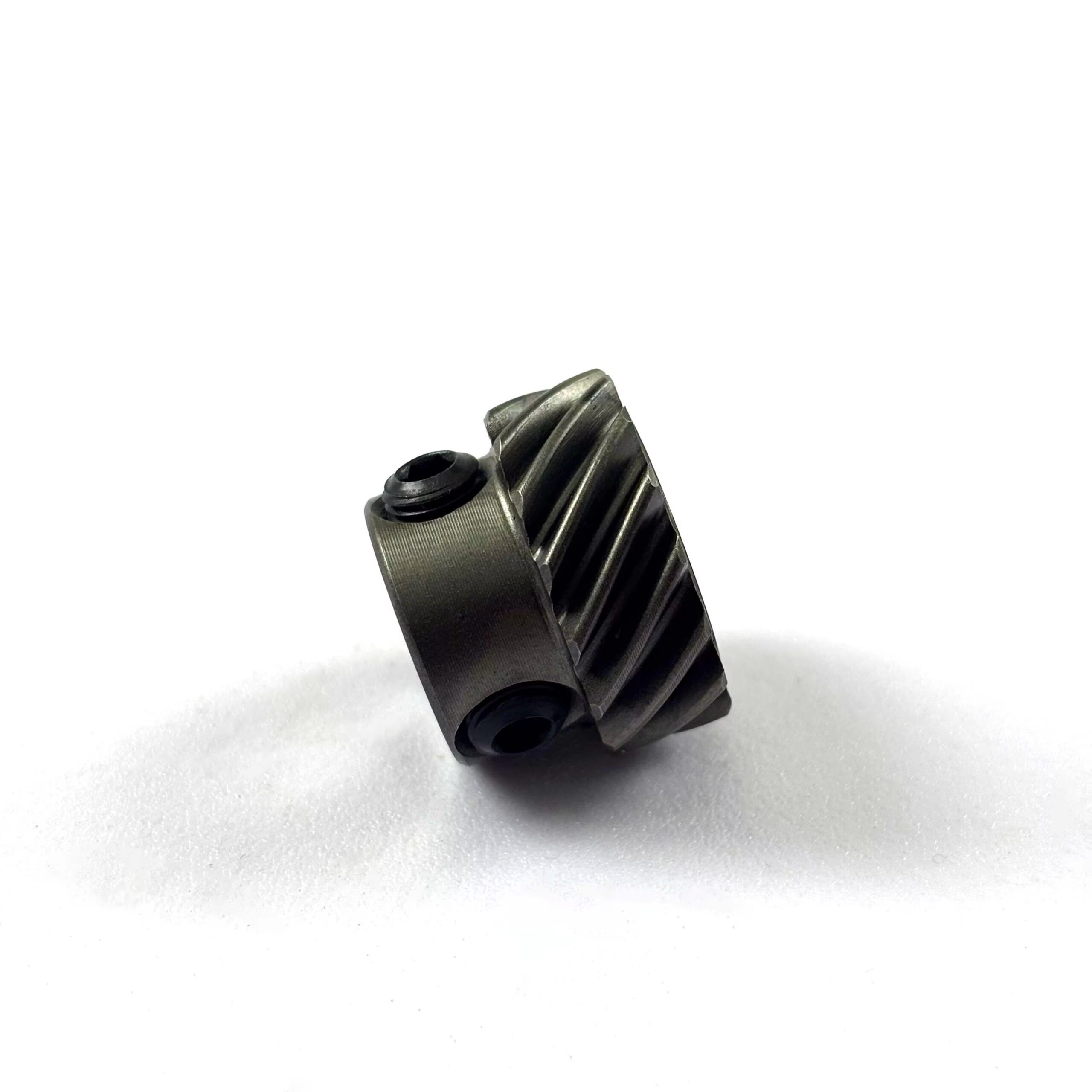

Z-91-145220-05 pinion (helical gear) is made of 20CrMo, with a pressure angle of 20°, module of 0.9769, 15 teeth and 45° left-hand helix angle. Produced via precision processes including hobbing, heat treatment and demagnetization, it has a tooth outer diameter of 22.66mm, total length of 17mm and weight of 0.0258kg, and acts as a dedicated transmission component for sewing equipment.
描述
其他信息
| weight |
ZJ-032-C |
|---|---|
| Core Components |
gear |
| Craftsmanship |
Hobbing |
用户评价 (0)
Shipping & Delivery
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
相关产品
12925004 Small Helical Gear
The 12925004 small helical gear (helical gear type) has a module of 0.9769, pressure angle of 14.5° and helix angle of 45°/L, with 15 teeth. Made of 20CrMo material, it is fabricated via sophisticated processes including normalizing, hobbing and nitriding heat treatment. Boasting a compact size (addendum circle diameter 22.67mm, total length 17mm, weight 0.0171kg), it is a dedicated transmission component for sewing equipment, featuring stable transmission, wear resistance and long service life.
1533-6 Tooth Gear and 1533-T36 Gear
1533-6 Tooth Helical Gear: 20CrMo helical gear for sewing machines, module 0.8, 6 teeth, 15.12°R helix angle, precision-engineered, stable and efficient transmission
1533-T36 Helical Gear: 20CrMo helical gear for sewing equipment, module 0.8, 36 teeth, 15.12°R helix angle, high-precision, strong adaptability
2020909 PINION GEAR
Model 2020909 helical gear is made of 20CrMo, refined through multiple processes including normalizing, hobbing and heat treatment. It has a pressure angle of 20°, module of 0.75, 7 teeth, shaft diameter of 8mm, tooth outer diameter of 7.3mm and weight of 0.0227kg, serving as a dedicated transmission component for power tools.
2024409（2024502）
The 2024409 (2024502) helical gear (dedicated for power tools) has a pressure angle of 20°, module of 1.25, 19 teeth and helix angle of 20°/R. With an inner diameter of 17mm, outer diameter of 28.9mm, total length of 12mm and weight of 0.0289kg, it is made of 20CrMnTi material through precision processes including normalizing, hobbing and heat treatment, featuring stable transmission, wear resistance and impact resistance.
32001099-00
Model 32001099-00 helical gear is made of 20CrMo, produced via precision processes including normalizing, hobbing, heat treatment correction and multiple outer diameter grinding. It has a pressure angle of 20°, module of 0.8, 8 teeth, 20° left-hand helix angle, 8mm shaft diameter, 8.894mm tooth outer diameter and 0.0429kg weight, serving as a dedicated transmission component for power tools.
855718 Finished Lower Shaft Main Gear and 855717 Hook Shaft Pinion
855718 Finished Lower Shaft Main Gear and 855717 Hook Shaft Pinion are helical gears made of 20CrMo, with a pressure angle of 20° and a module of 1, and their helix angles are set as 15°/R and 15°/L respectively. Processed via multiple precision manufacturing procedures, they are suitable for the transmission system of sewing equipment, delivering stable transmission with excellent wear resistance.
