SCK75-2-1-03 and SCK75-2-2-04
$6.50piece
1. XG-025-C (SCK75-2-1-03)

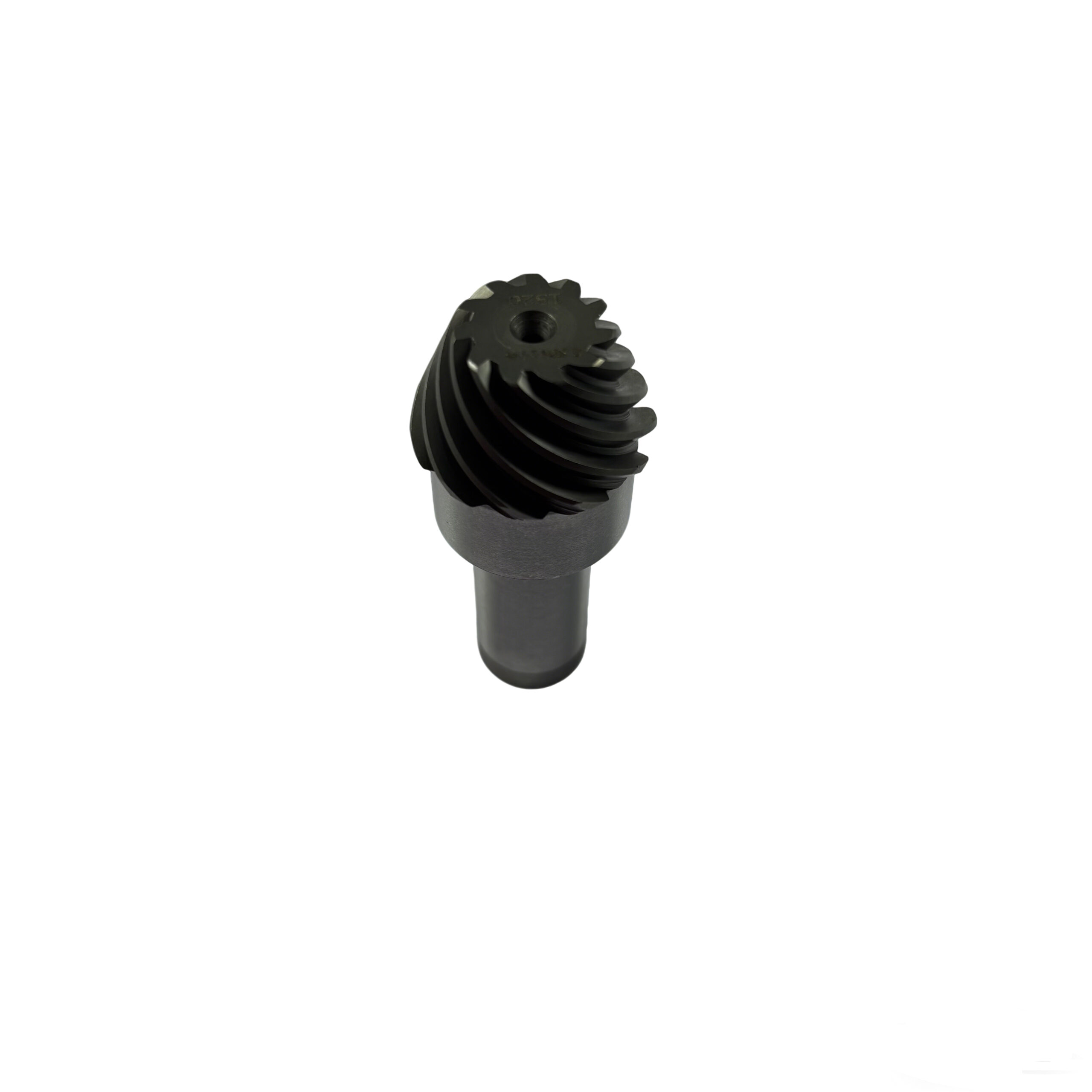

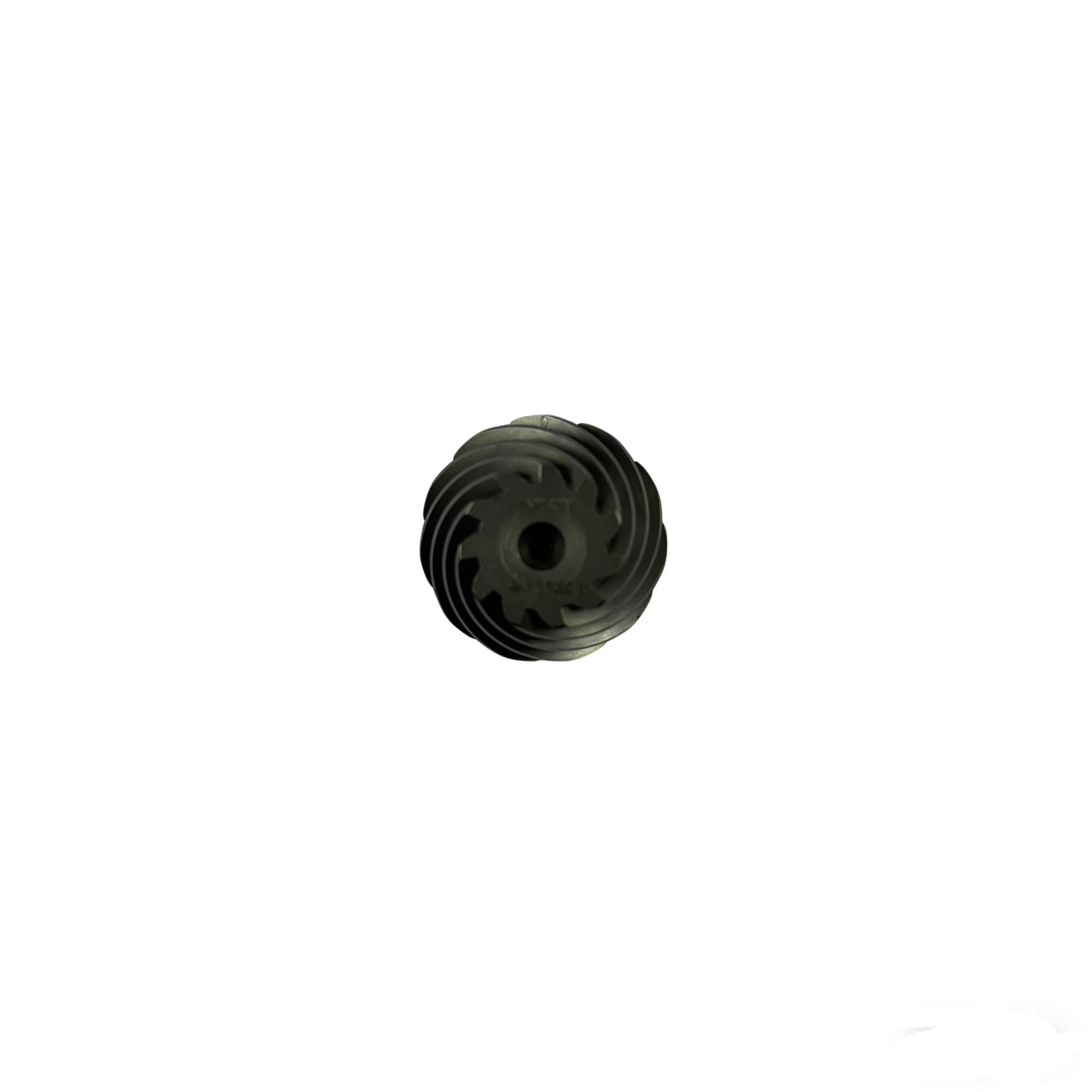

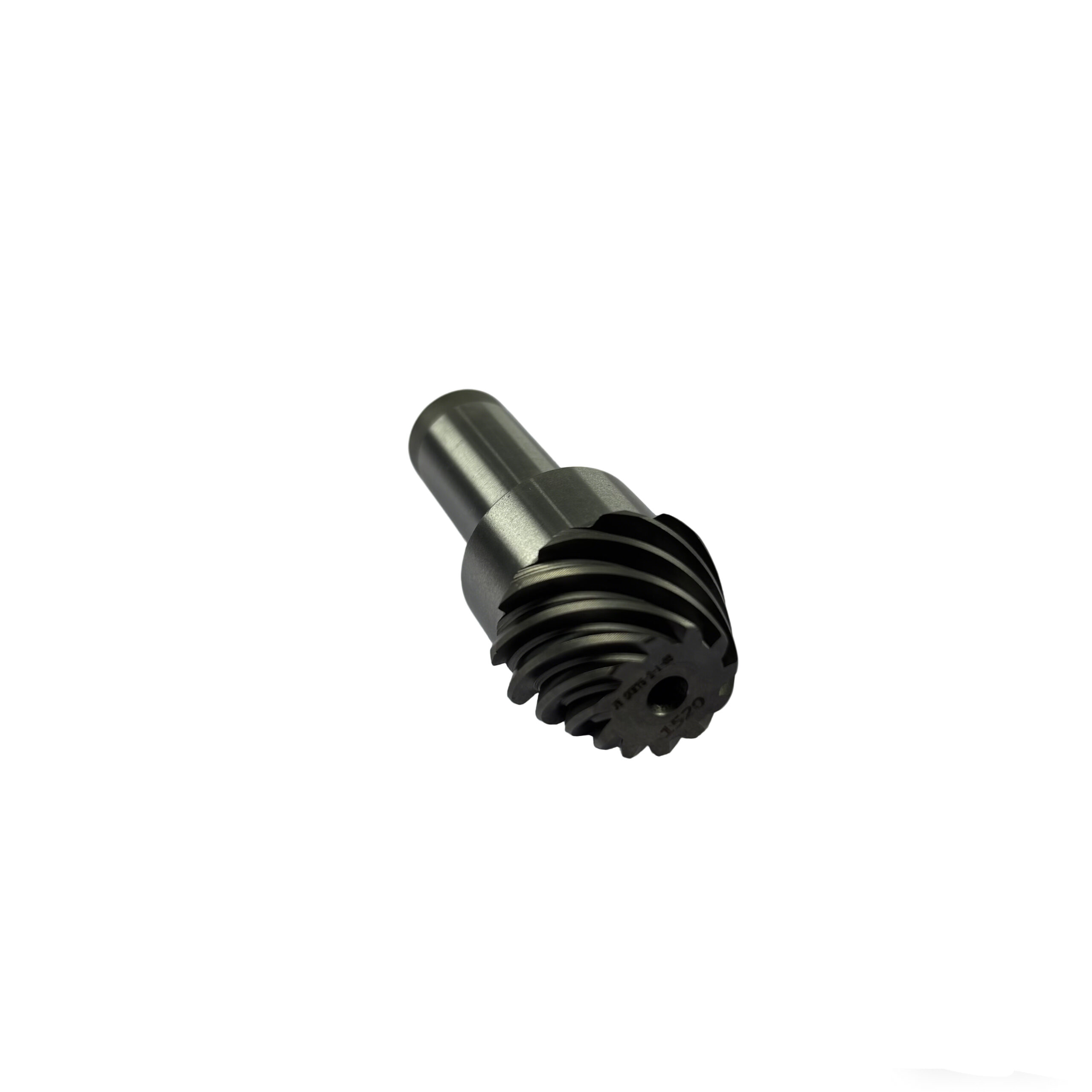

XG-025-C (SCK75-2-1-03) Hypoid Gear Shaft, 20CrMnTi, module 1.55, 11T, speed ratio 4, helix angle 48°L, shaft Ø16mm, gear OD 28.62mm, total length 62mm, weight 0.1484kg, precision lapped, for reducers.
2. XG-026-C (SCK75-2-2-04)

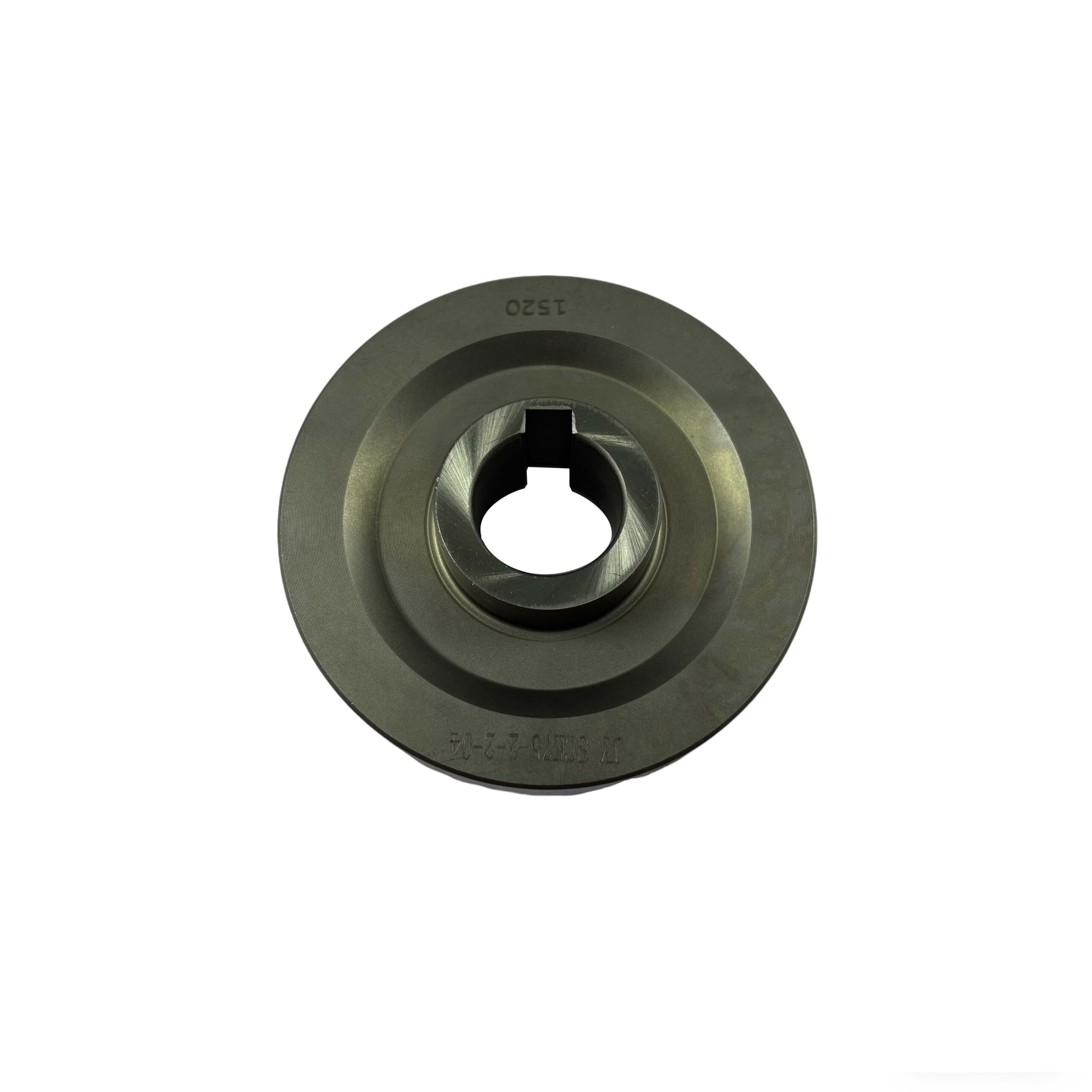

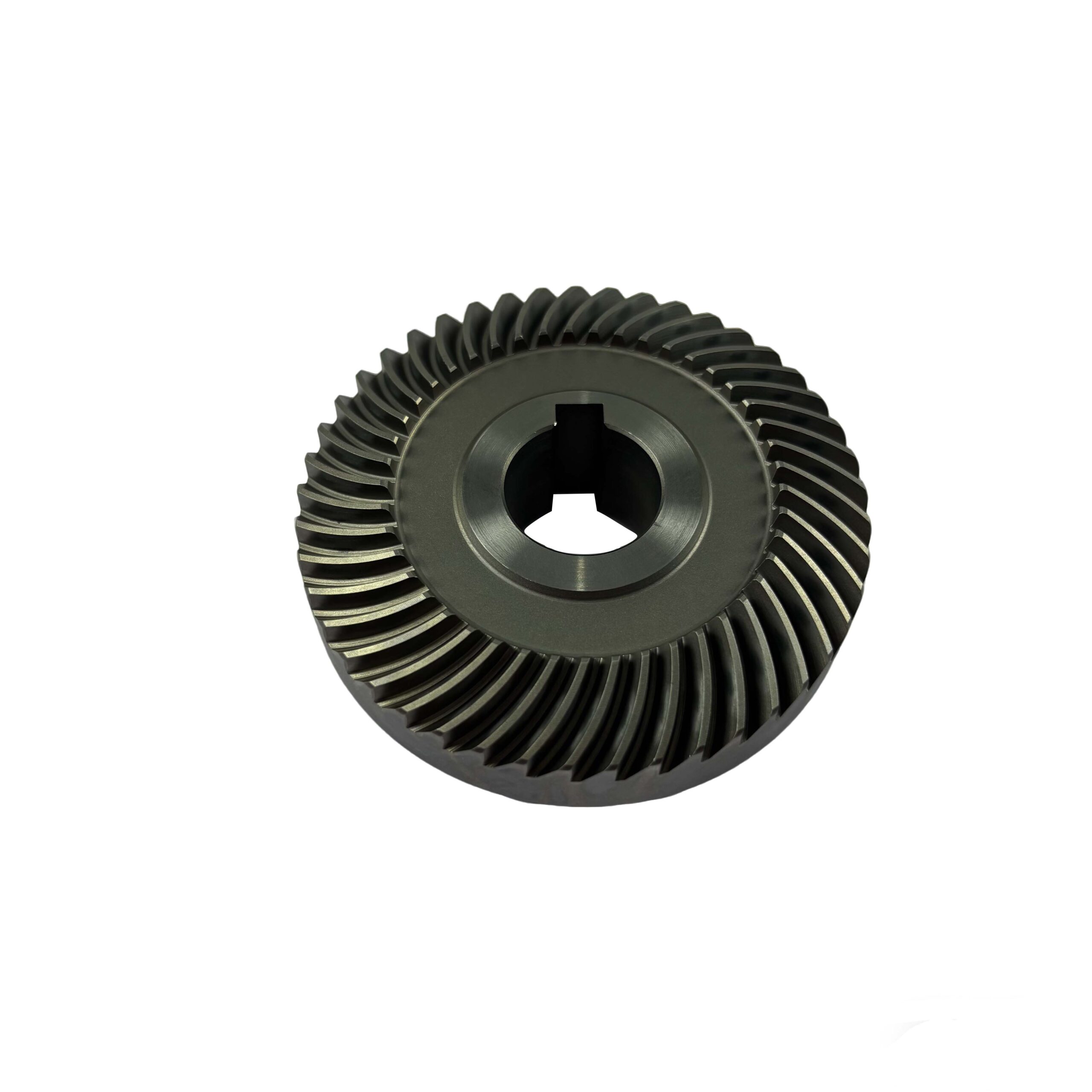

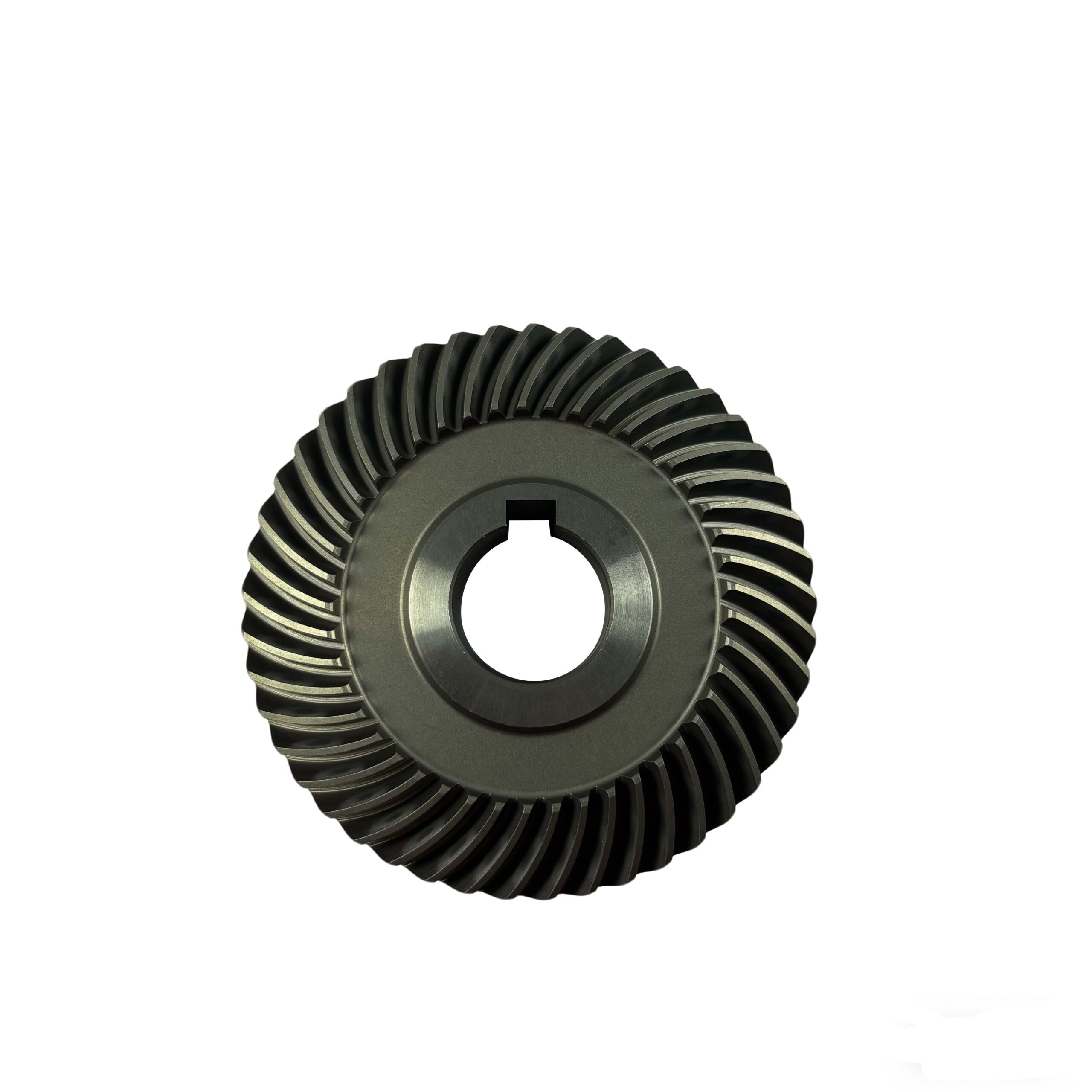

XG-026-C (SCK75-2-2-04) Hypoid Gear, 20CrMnTi, module 1.55, 45T, helix angle 25°10′R, inner bore Ø19mm, gear OD 69.9mm, total length 21.36mm, weight 0.3465kg, precision processed, matched with XG-025-C for reducers.
描述
1. XG-025-C (SCK75-2-1-03) Hypoid Gear Shaft
This is a core transmission component specially designed for speed reducers, a hypoid gear shaft made of high-quality 20CrMnTi alloy structural steel. It has excellent wear resistance, structural strength and transmission stability, and can be used with XG-026-C gear to form a complete transmission unit of the reducer.
Parameters: Pressure angle 20°, module 1.55, 11 teeth, speed ratio 4, offset 12mm, helix angle 48° Left Hand, shaft diameter 16mm, gear outer diameter 28.62mm, total length 62mm, weight 0.1484kg.
Process: Strictly follow the complete process of normalizing – turning – rough grinding of clamping position – gear milling – heat treatment – shot blasting – facing – outer diameter grinding – matched lapping – marking – full visual inspection. Through multiple precision machining and surface treatment processes, the tooth profile accuracy, dimensional tolerance and meshing stability of the gear are ensured, which effectively reduces noise and wear during transmission and ensures long-term and efficient operation of the equipment.
Application: As the core transmission component of the reducer, it mainly undertakes the functions of power transmission and direction change, and is suitable for various reducer equipment that requires precise transmission and stable operation.
2. XG-026-C (SCK75-2-2-04) Hypoid Gear

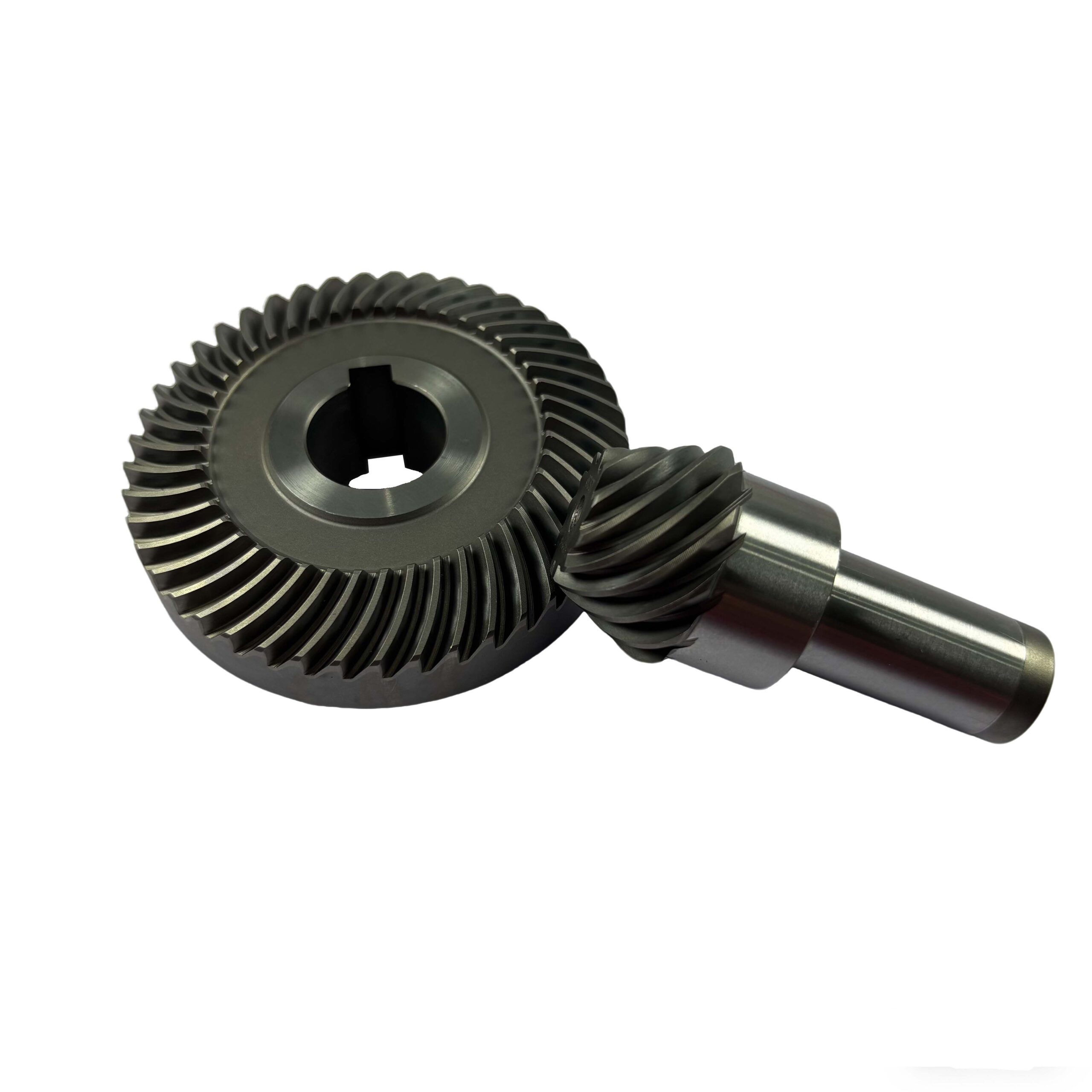

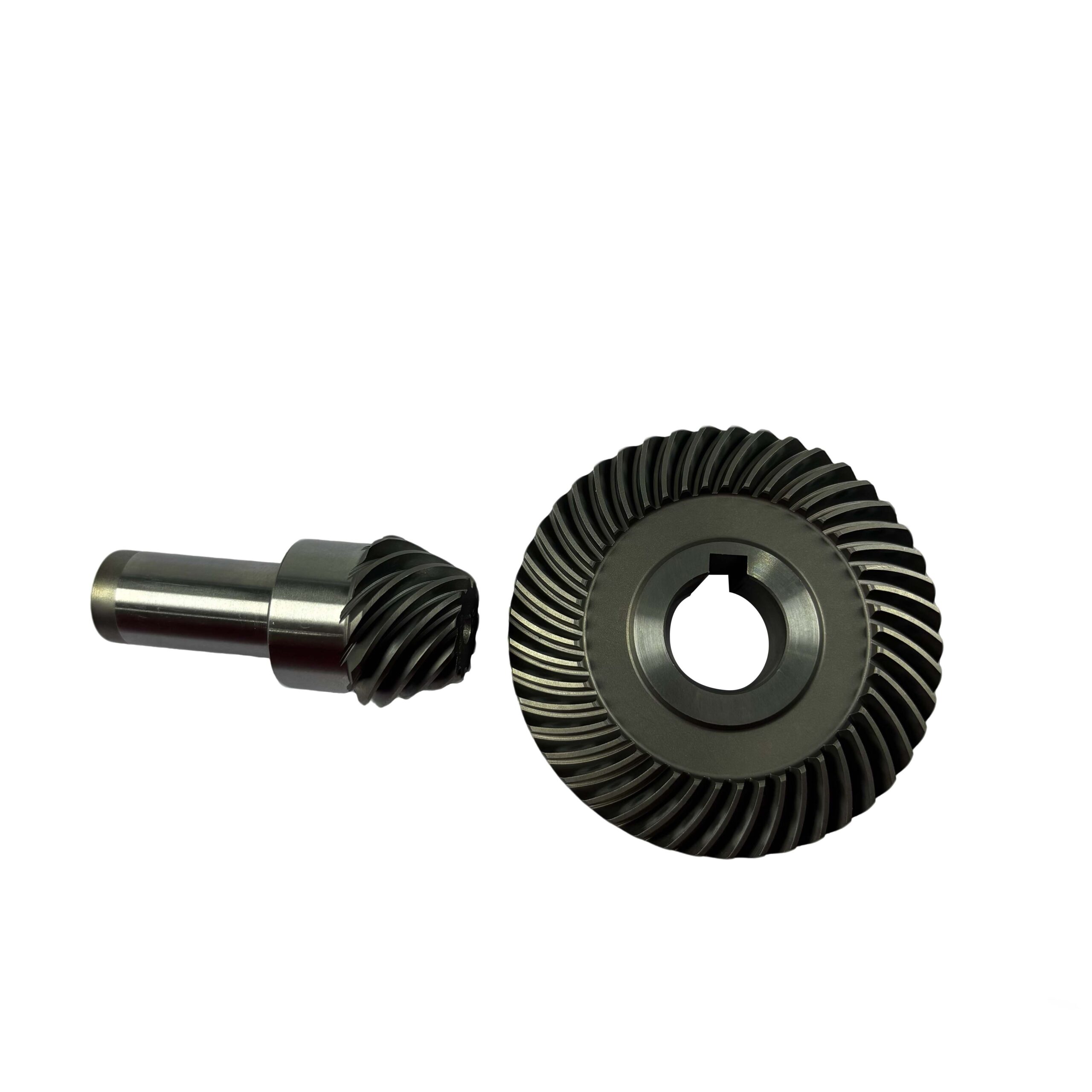

This is a matching hypoid gear for speed reducers, refined from 20CrMnTi alloy structural steel. It is compact, wear-resistant and durable. It is used with XG-025-C (SCK75-2-1-03) gear shaft to accurately match the transmission demand and ensure efficient power transmission.
Parameters: Pressure angle 20°, module 1.55, 45 teeth, offset 12mm, helix angle 25°10′ Right Hand, inner bore 19mm, gear outer diameter 69.9mm, total length 21.36mm, weight 0.3465kg.
Process: Adopt the precision process of normalizing – turning – gear milling – heat treatment – chamfering – shot blasting – reaming – facing – matched lapping – marking – full visual inspection. The meshing accuracy with the matching gear shaft is ensured through matched lapping, and multiple quality inspections are carried out to eliminate appearance defects and dimensional deviations, improving transmission efficiency and product service life.
Application: As a matching transmission gear for the reducer, it cooperates with the corresponding gear shaft to realize stable power transmission and direction change, and is widely used in various reducer transmission systems.
其他信息
| XG-025-C and XG-026-C weight |
0.1484and0.3465 |
|---|---|
| XG-025-C and XG-026-C Core Components |
gear |
| XG-025-C and XG-026-C Craftsmanship |
Milling |
