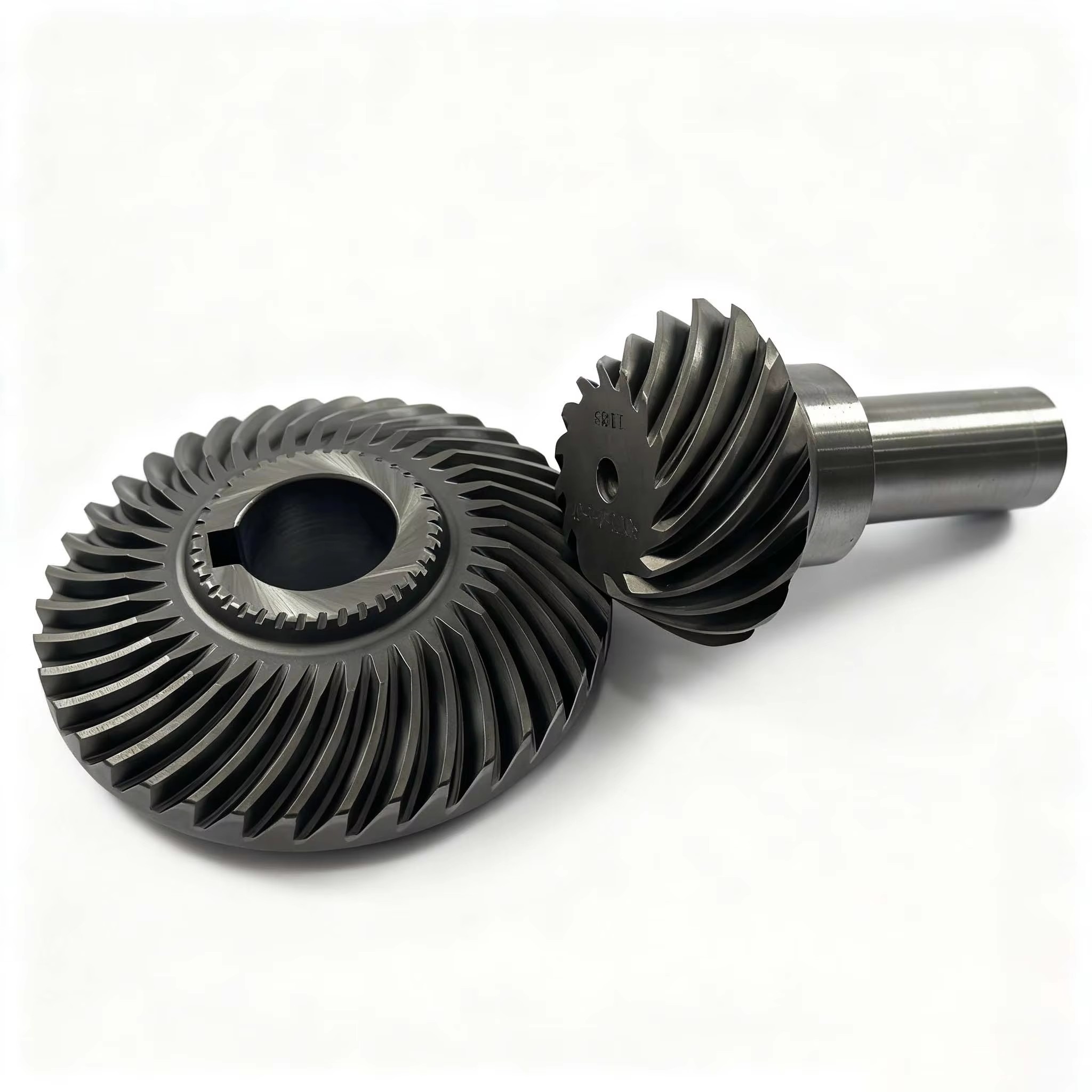

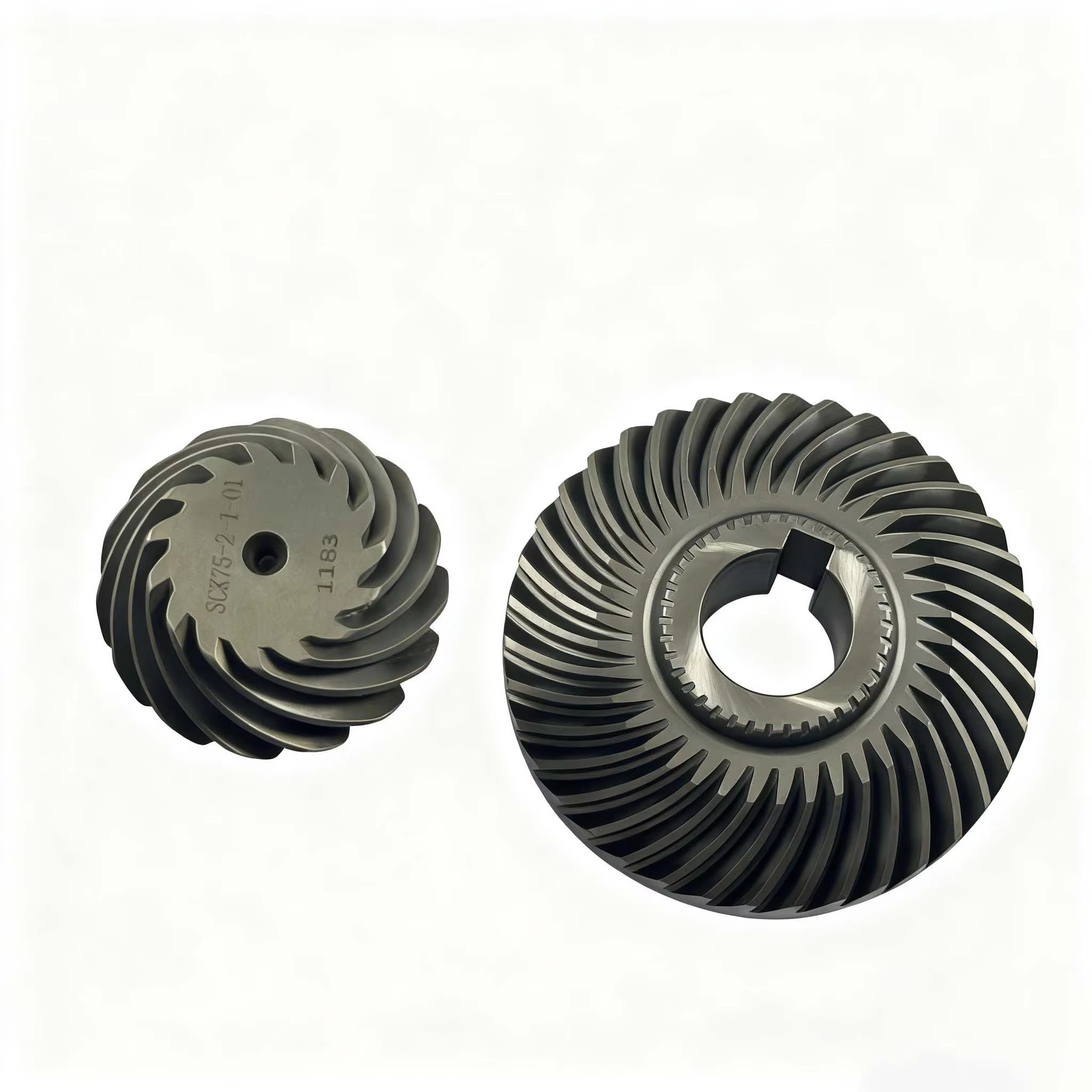

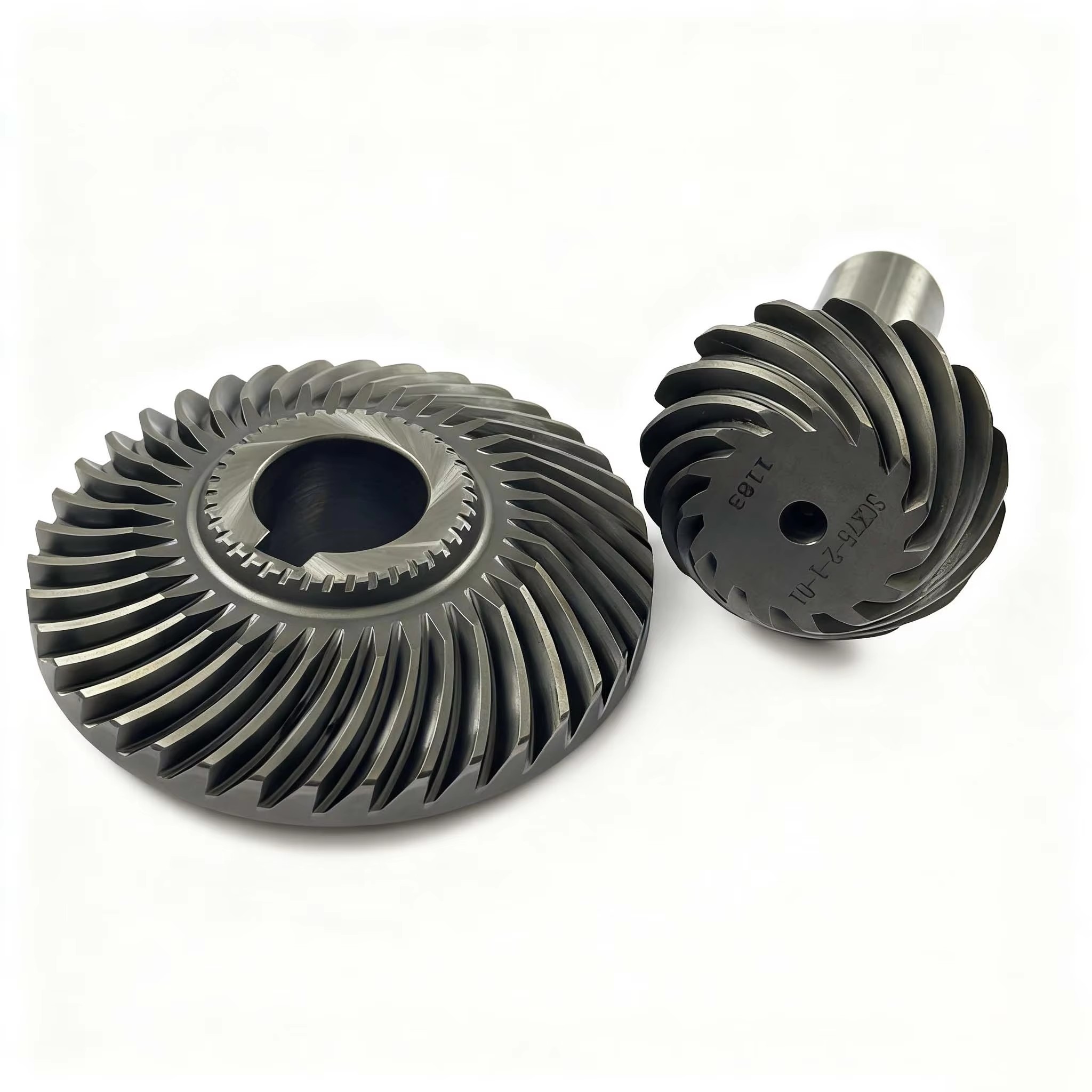

SCK75-2-1-01andSCK75-2-2-02
$8.10piece
XG-019-C (SCK75-2-1-01)
XG-019-C Hypoid Gear Shaft, 20CrMnTi, module 1.84, 15T, 49°58′L, shaft Ø16mm, L=62.2mm, precision lapped for reducers.
XG-020-C (SCK75-2-2-02)
XG-020-C Hypoid Gear, 20CrMnTi, module 1.84, 38T, 28°47′R, bore Ø19mm, L=20mm, precision lapped for reducers.
描述

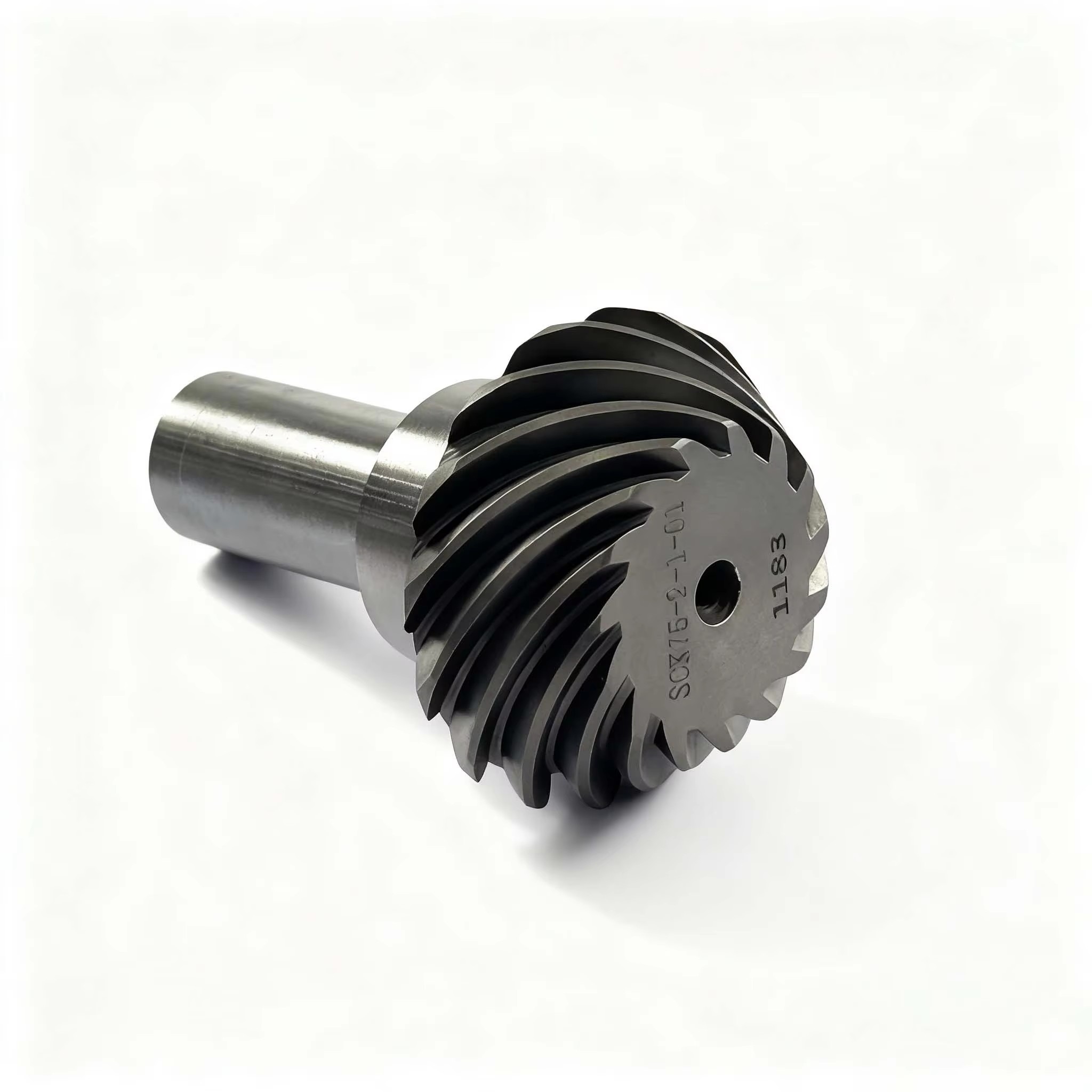

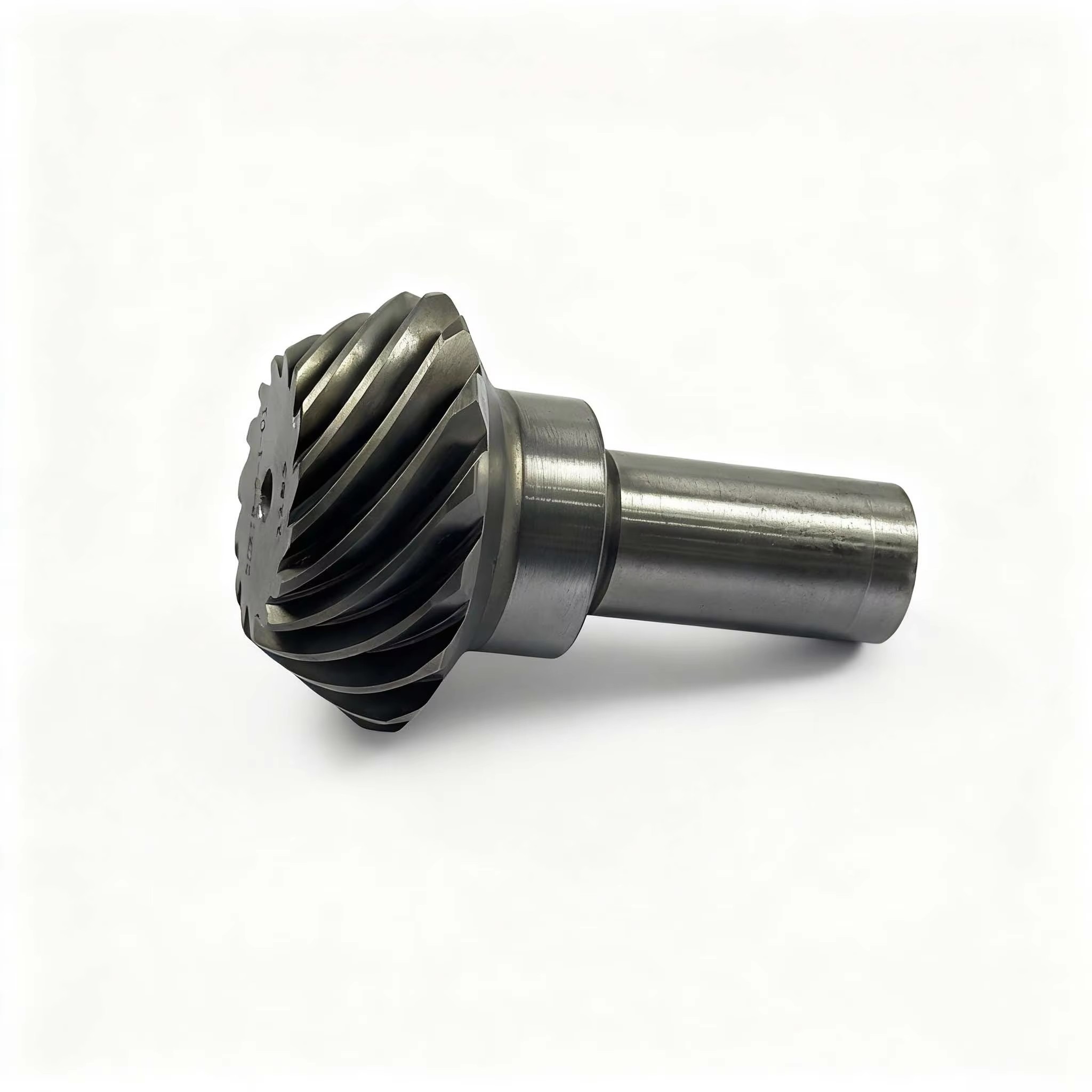

XG-019-C (SCK75-2-1-01) Hypoid Gear Shaft
This is a hypoid gear shaft for speed reducers, made of 20CrMnTi alloy steel.
Parameters: pressure angle 20°, module 1.84, 15 teeth, ratio 2, offset 12mm, helix angle 49°58′ Left Hand, shaft diameter 16mm, gear OD 41.5mm, total length 62.2mm, weight 0.2200kg.
Process: normalizing, turning, rough grinding, gear milling, heat treatment, shot blasting, facing, OD grinding, matched lapping, marking and full visual inspection.
It features high meshing precision and stable transmission, mainly used in reducer drive systems.

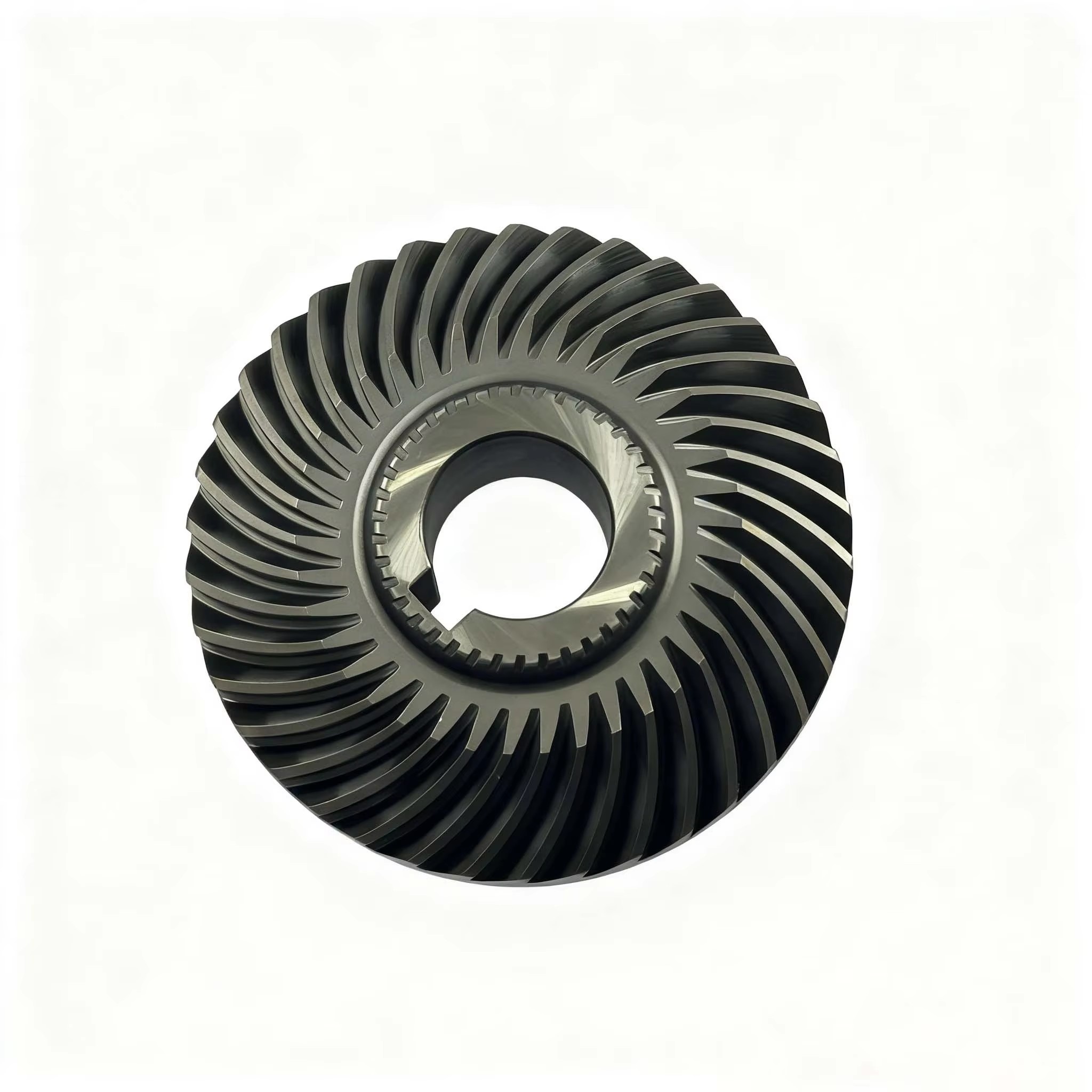

XG-020-C (SCK75-2-2-02) Hypoid Gear
This is a matching hypoid gear for reducers, made of 20CrMnTi alloy steel.
Parameters: pressure angle 20°, module 1.84, 38 teeth, offset 12mm, helix angle 28°47′ Right Hand, inner bore 19mm, gear OD 70.5mm, total length 20mm, weight 0.2795kg.
Process: normalizing, turning, gear milling, heat treatment, chamfering, shot blasting, reaming, facing, matched lapping, marking and full visual inspection.
It is wear-resistant and high-precision, matched with the gear shaft for reducer transmission.
其他信息
| XG-019-C and XG-020-C weight |
0.22and0.2795 |
|---|---|
| XG-019-C and XG-020-C Core Components |
gear |
| XG-019-C and XG-020-C Craftsmanship |
Milling |
