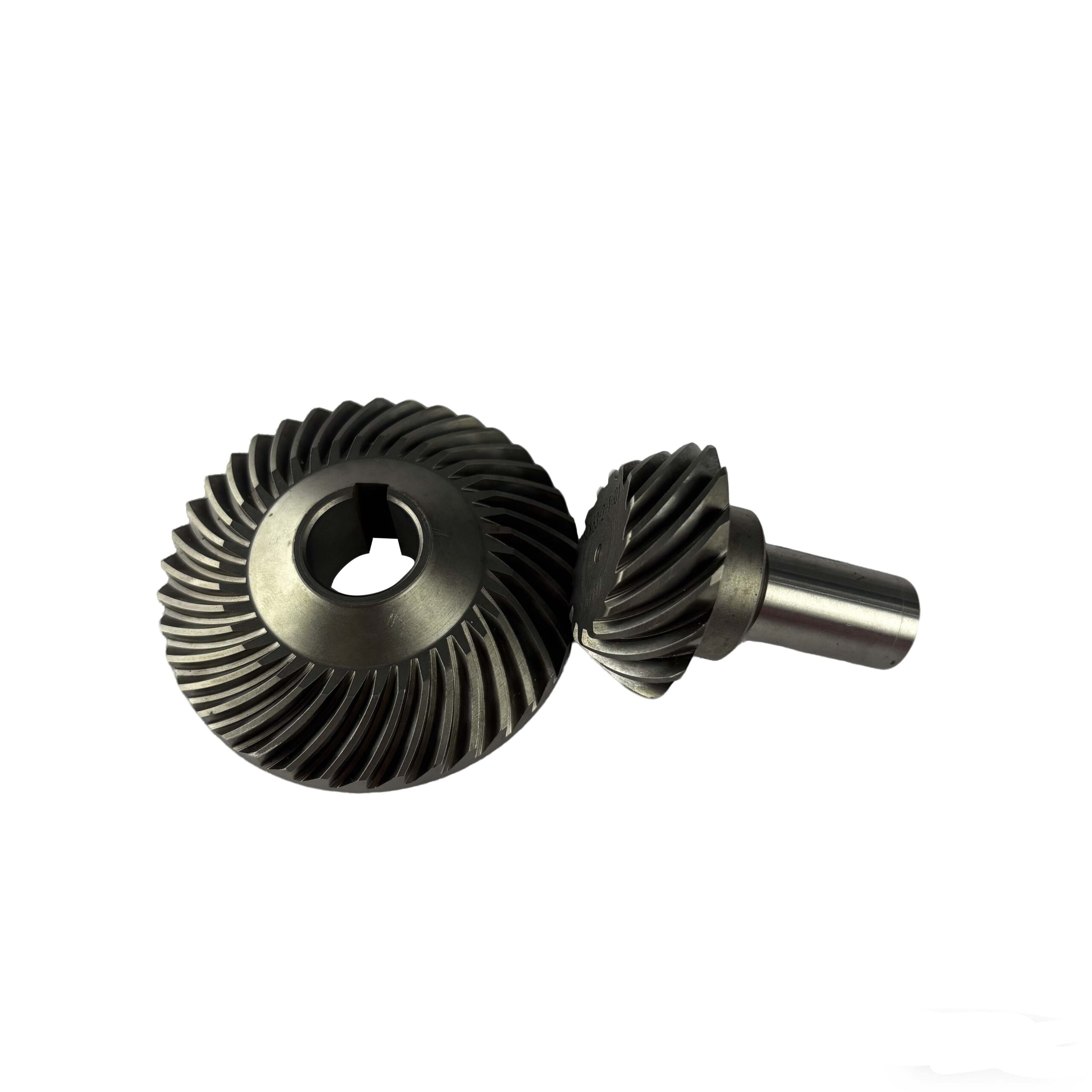

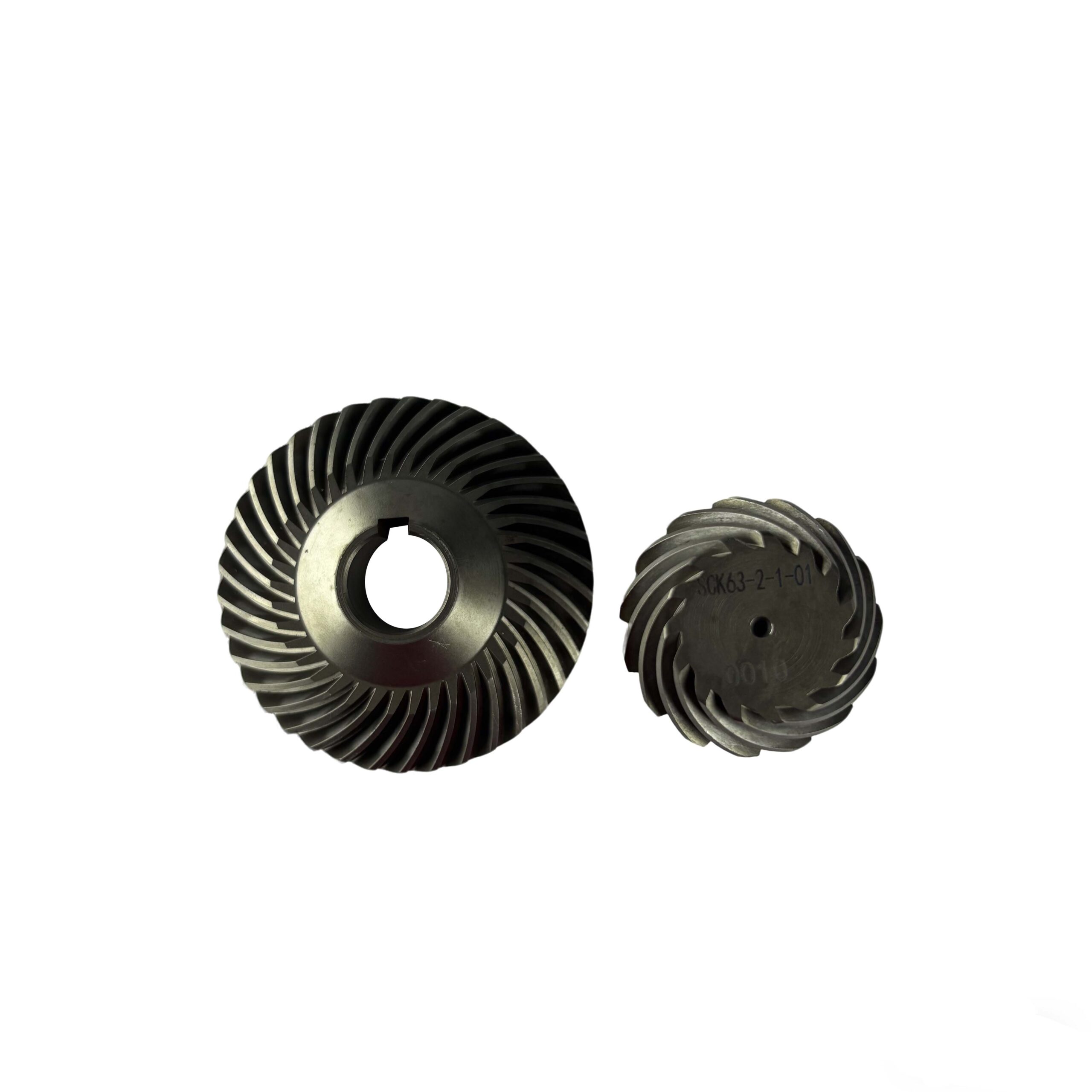

SCK63-2-1-01 and SCK63-2-2-02
$6.70piece
SCK63-2-1-01
SCK63-2-1-01 Hypoid Gear Shaft, 20CrMnTi, module 1.66, 15T, 49°59′L, shaft Ø14mm, L=46.22mm, precision lapped for reducers.
SCK63-2-2-02
SCK63-2-2-02 Hypoid Gear, 20CrMnTi, module 1.66, 38T, 30°43′R, bore Ø16mm, L=18mm, precision lapped for reducers.
描述

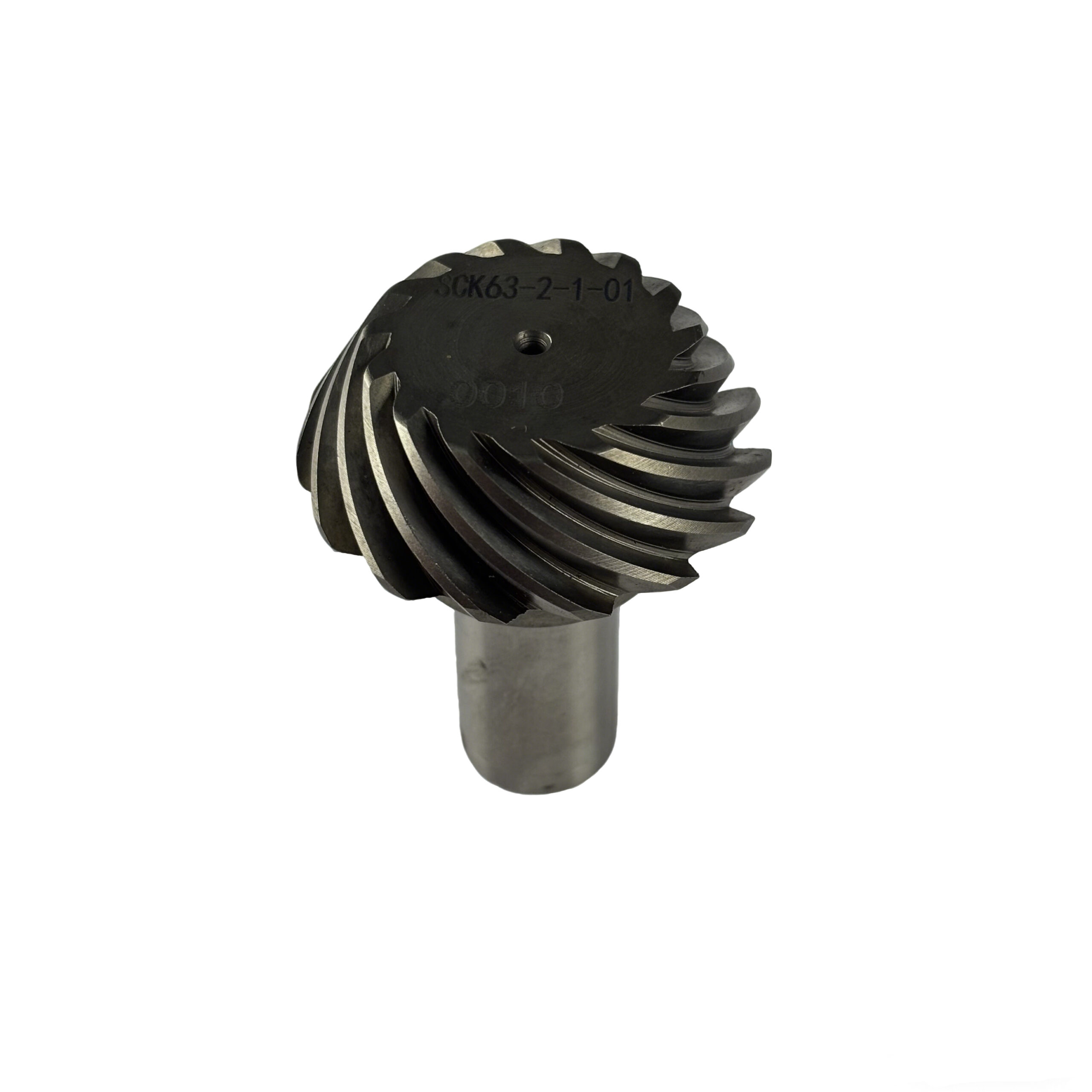

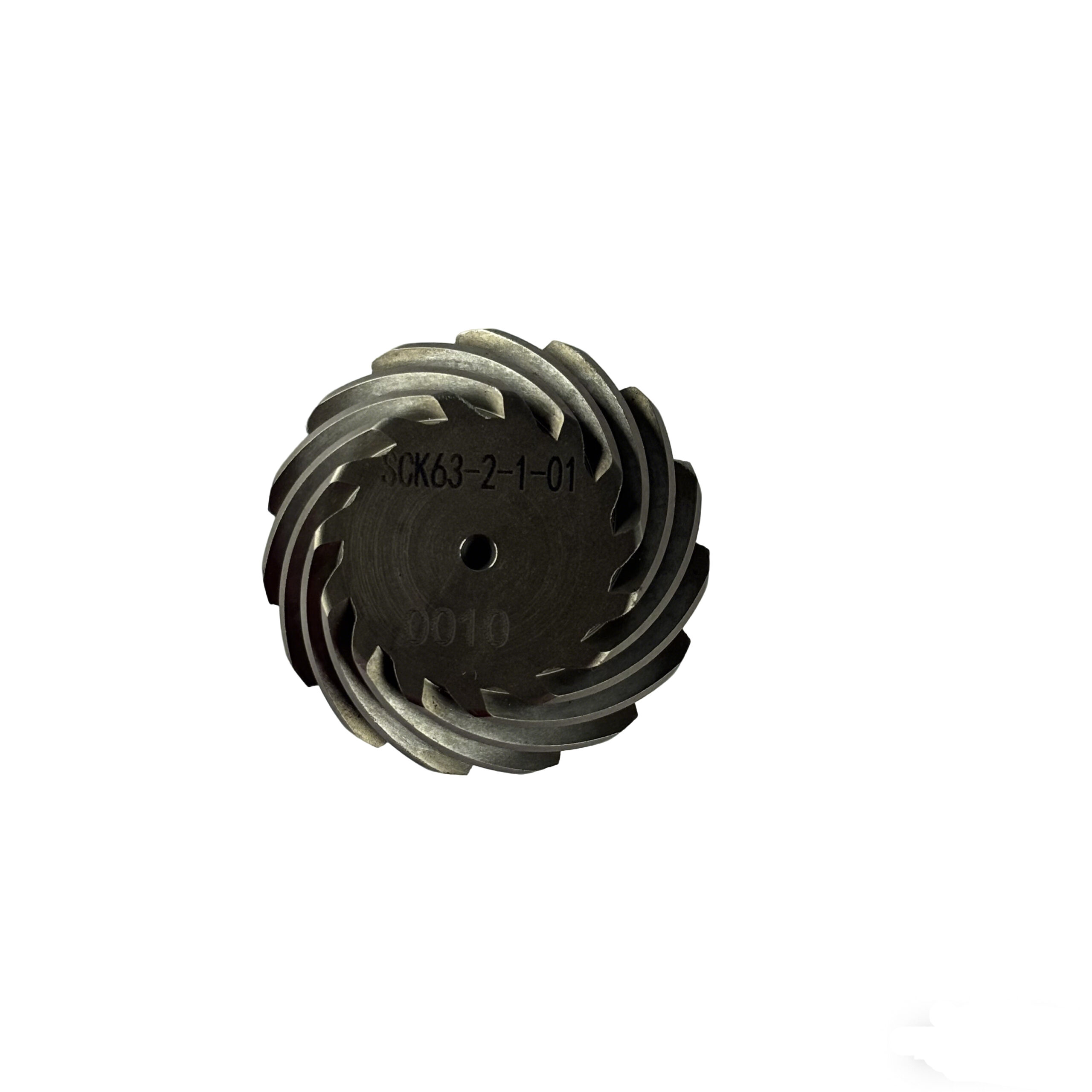

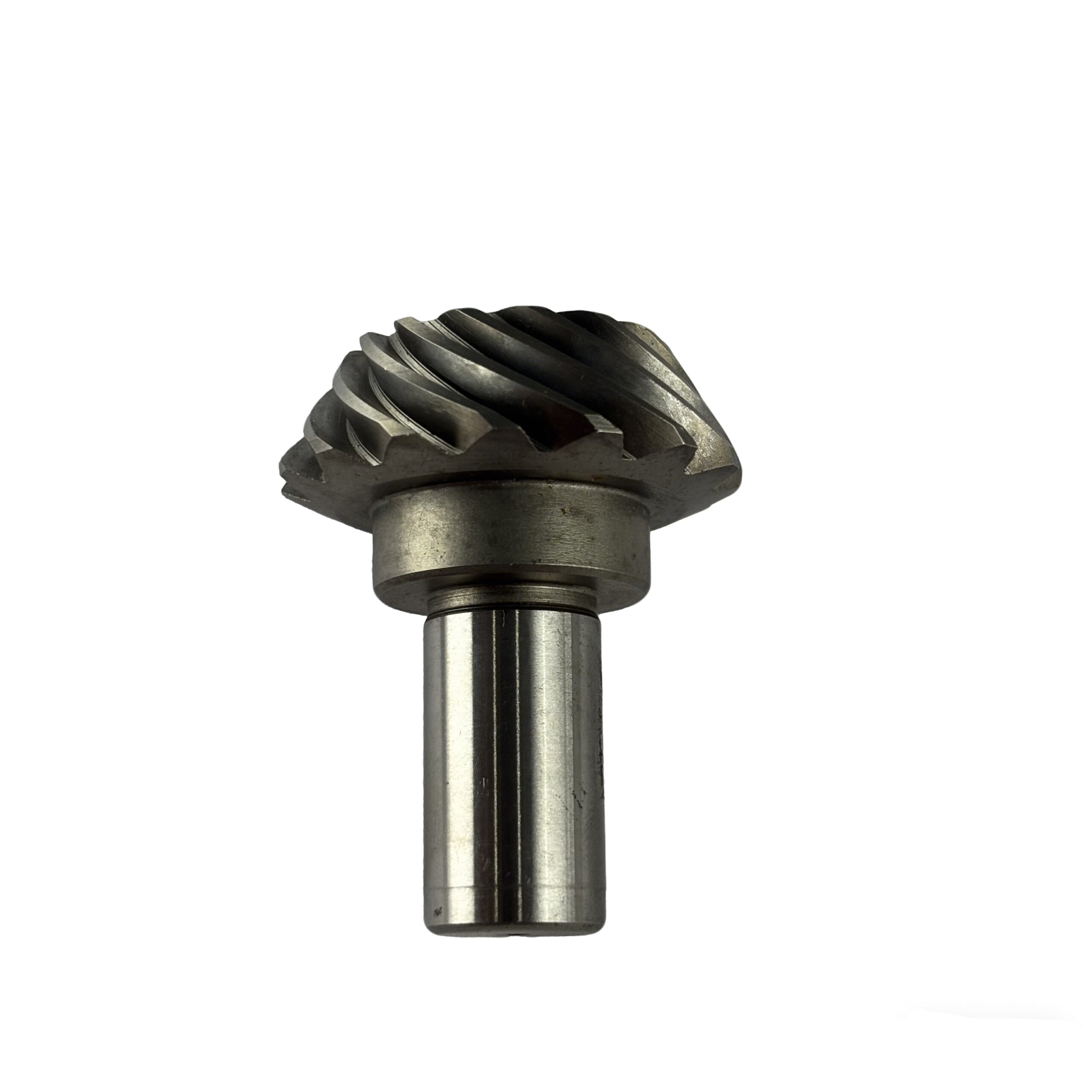

SCK63-2-1-01 Hypoid Gear Shaft
This hypoid gear shaft is designed for reducers, made of 20CrMnTi alloy steel.
Parameters: pressure angle 20°, module 1.66, 15 teeth, ratio 2, offset 10mm, helix angle 49°59′ Left Hand, shaft diameter 14mm, gear OD 37mm, total length 46.22mm, weight 0.1242kg.
Process: normalizing, turning, rough grinding, gear milling, heat treatment, shot blasting, facing, OD grinding, matched lapping, marking, full visual inspection.
Features high meshing accuracy and stable transmission for reducer drive systems.

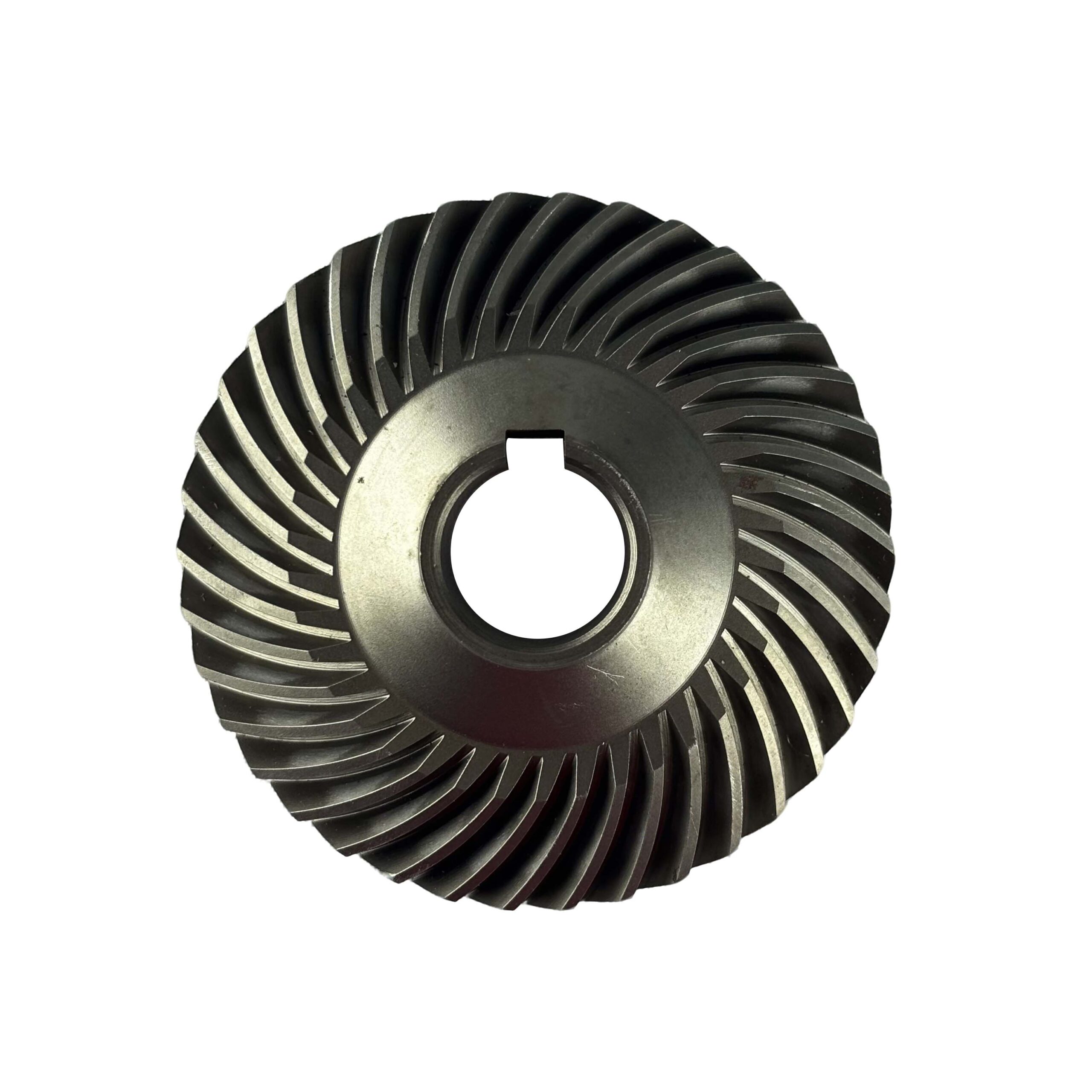

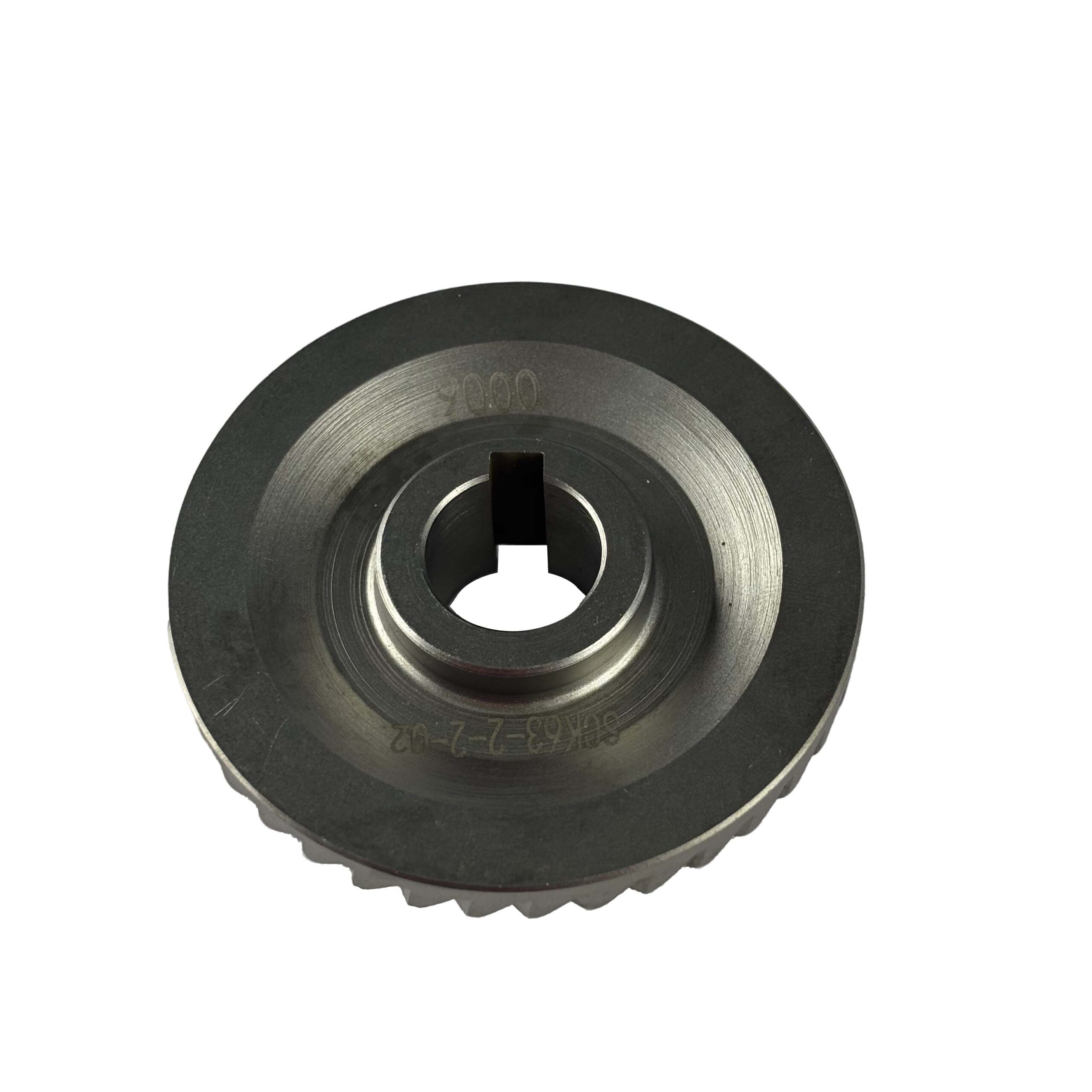

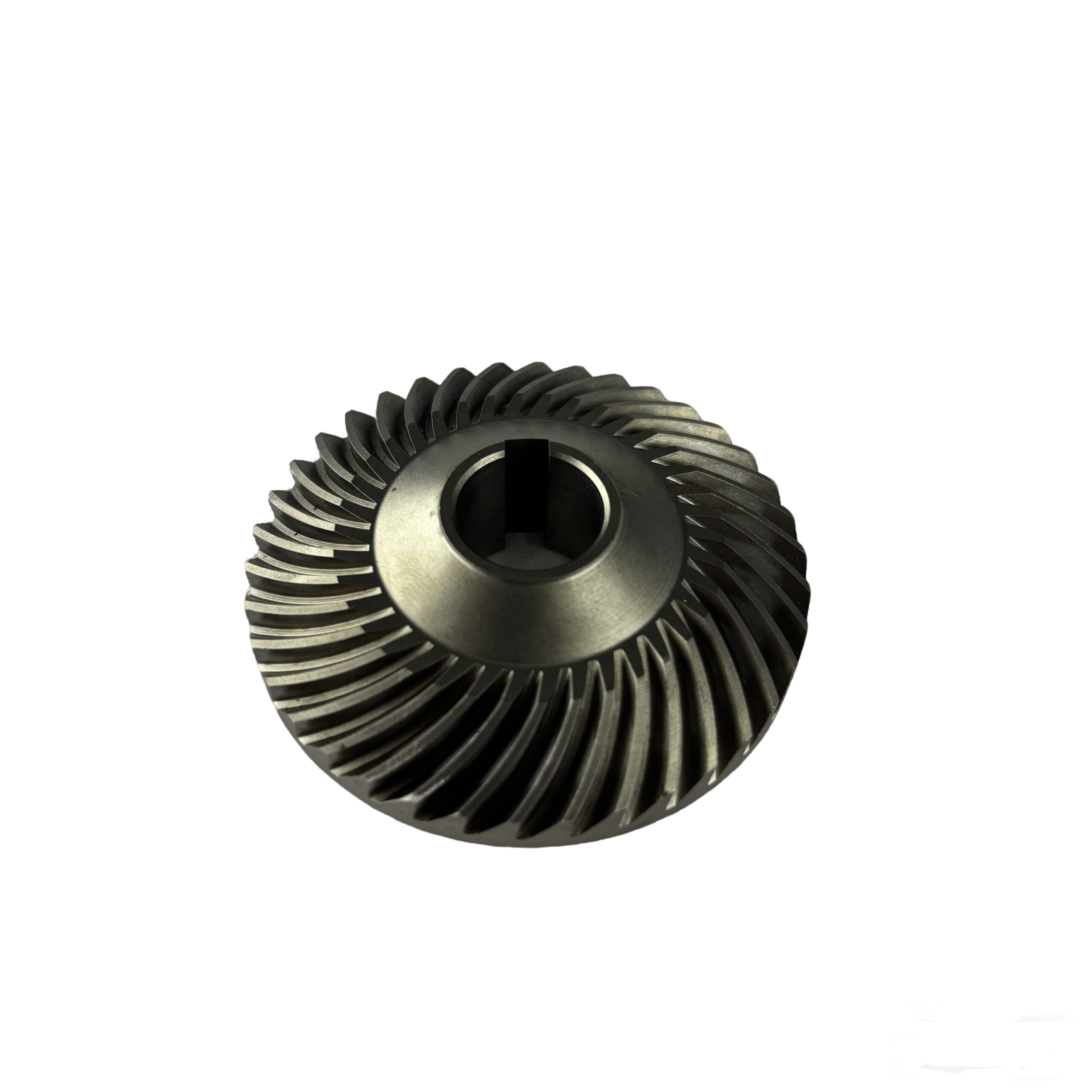

SCK63-2-2-02 Hypoid Gear
This hypoid gear is for reducer applications, manufactured from 20CrMnTi alloy steel.
Parameters: pressure angle 20°, module 1.66, 38 teeth, offset 10mm, helix angle 30°43′ Right Hand, inner bore 16mm, gear OD 63.4mm, total length 18mm, weight 0.1935kg.
Process: normalizing, turning, gear milling, heat treatment, chamfering, shot blasting, reaming, facing, matched lapping, marking, full visual inspection.
Precision lapped for smooth, durable and reliable transmission.
其他信息
| XG-017-C and XG-018-C weight |
0.1242and0.1935 |
|---|---|
| XG-017-C and XG-018-C Core Components |
gear |
| XG-017-C and XG-018-C Craftsmanship |
Milling |
