M0313M10 (060-1:2) Input Bevel Gear and M0314M10 (060-1:2) Output Bevel Gear
$7.84piece
A set of spiral bevel gears for reducers made of 20CrMnTi, module 1.55, 20° pressure angle. AEP-01-C is 15-tooth left-hand input gear, AEP-02-C is 30-tooth right-hand output gear, precision machined.
描述
This series contains a set of spiral bevel gears for reducers, both made of 20CrMnTi with 20° pressure angle, module 1.55 and 35° spiral angle. They are manufactured through precise processes including sawing, turning, keyway machining, gear milling, heat treatment, shot blasting, boring, end facing, chamfering and gear grinding.

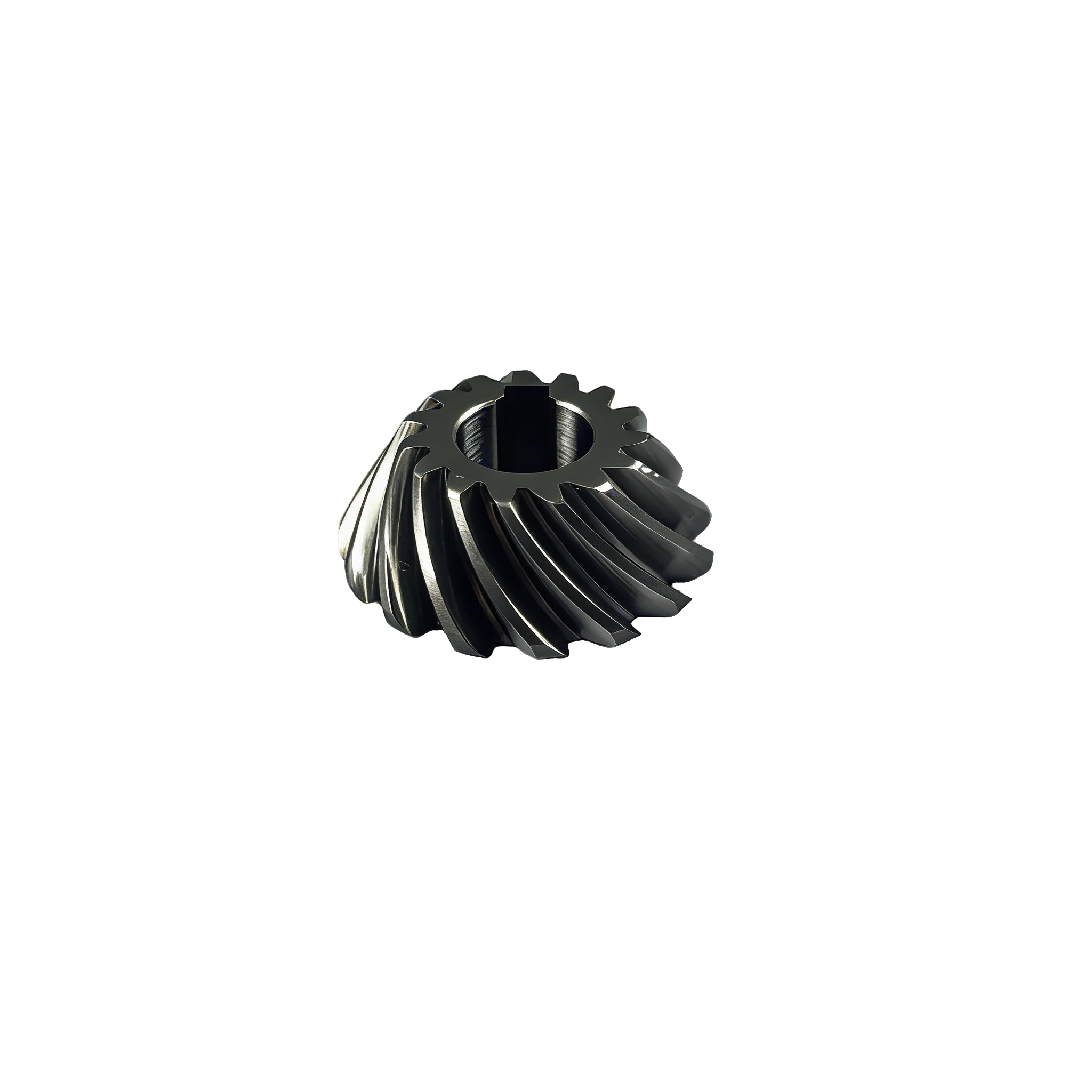

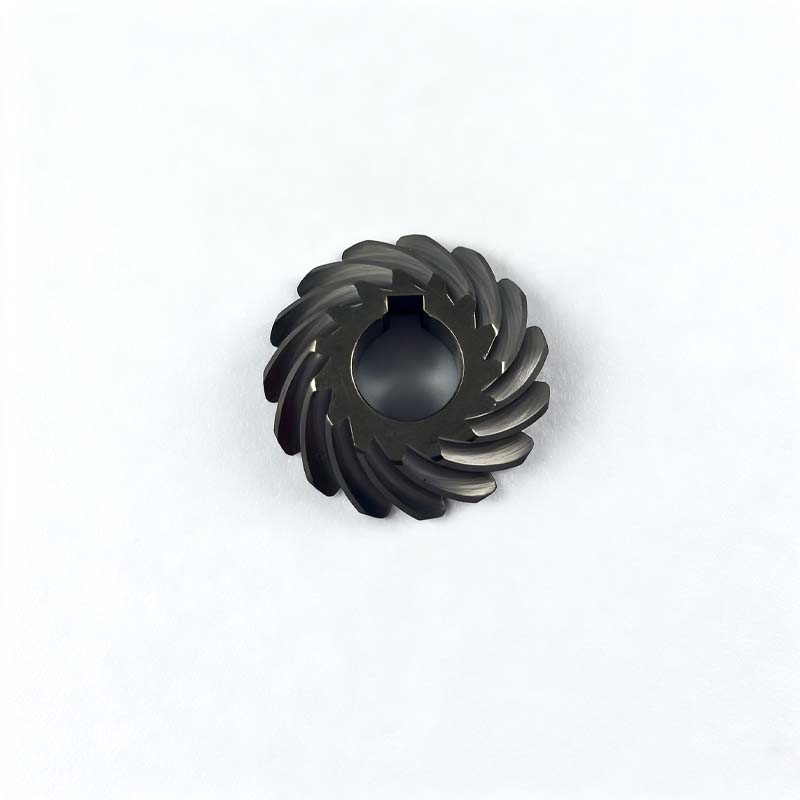

- AEP-01-C Input Bevel Gear: 15 teeth, speed ratio 2, left-hand, ID 9mm, OD 25.6mm, total length 9.7mm, weight 0.0193kg.

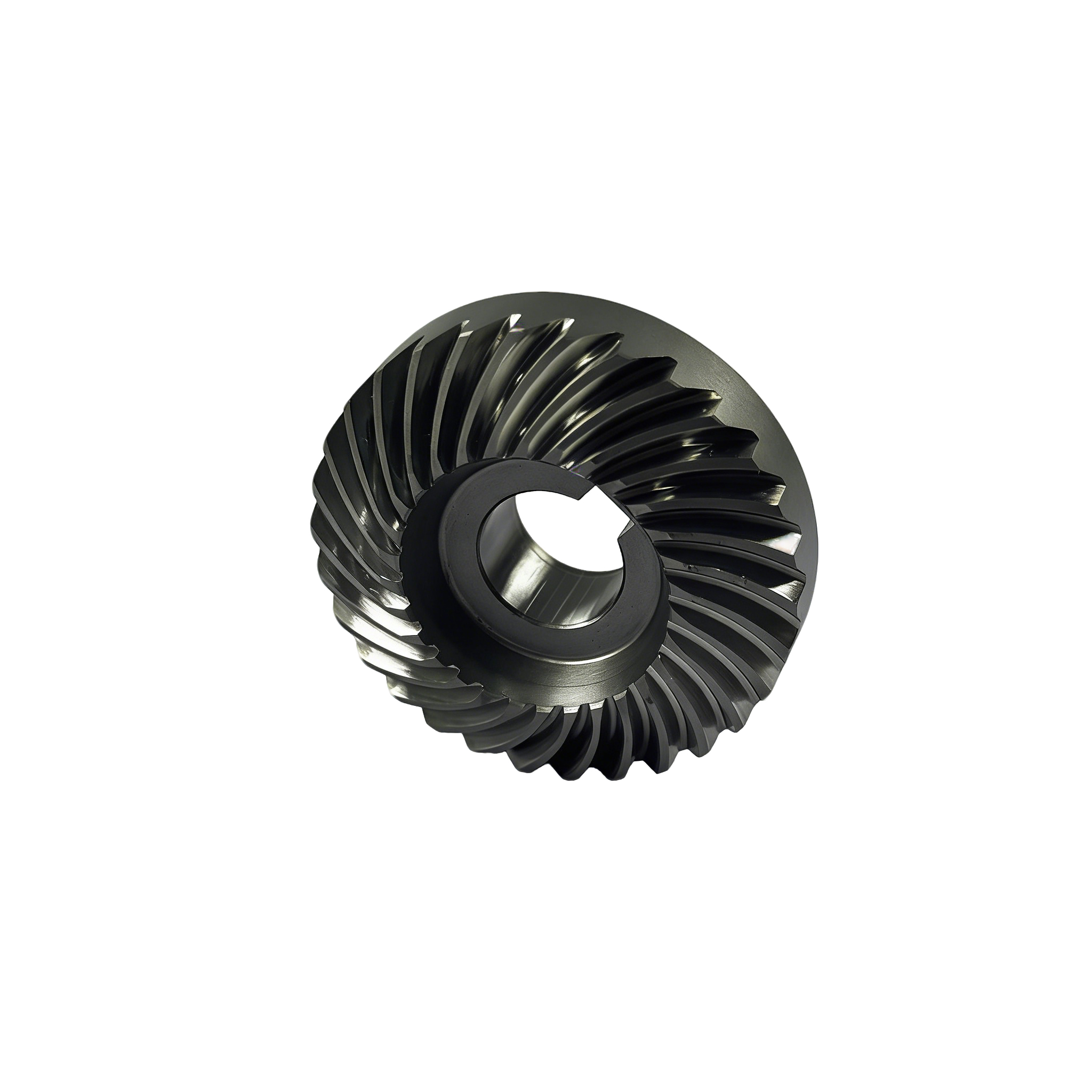

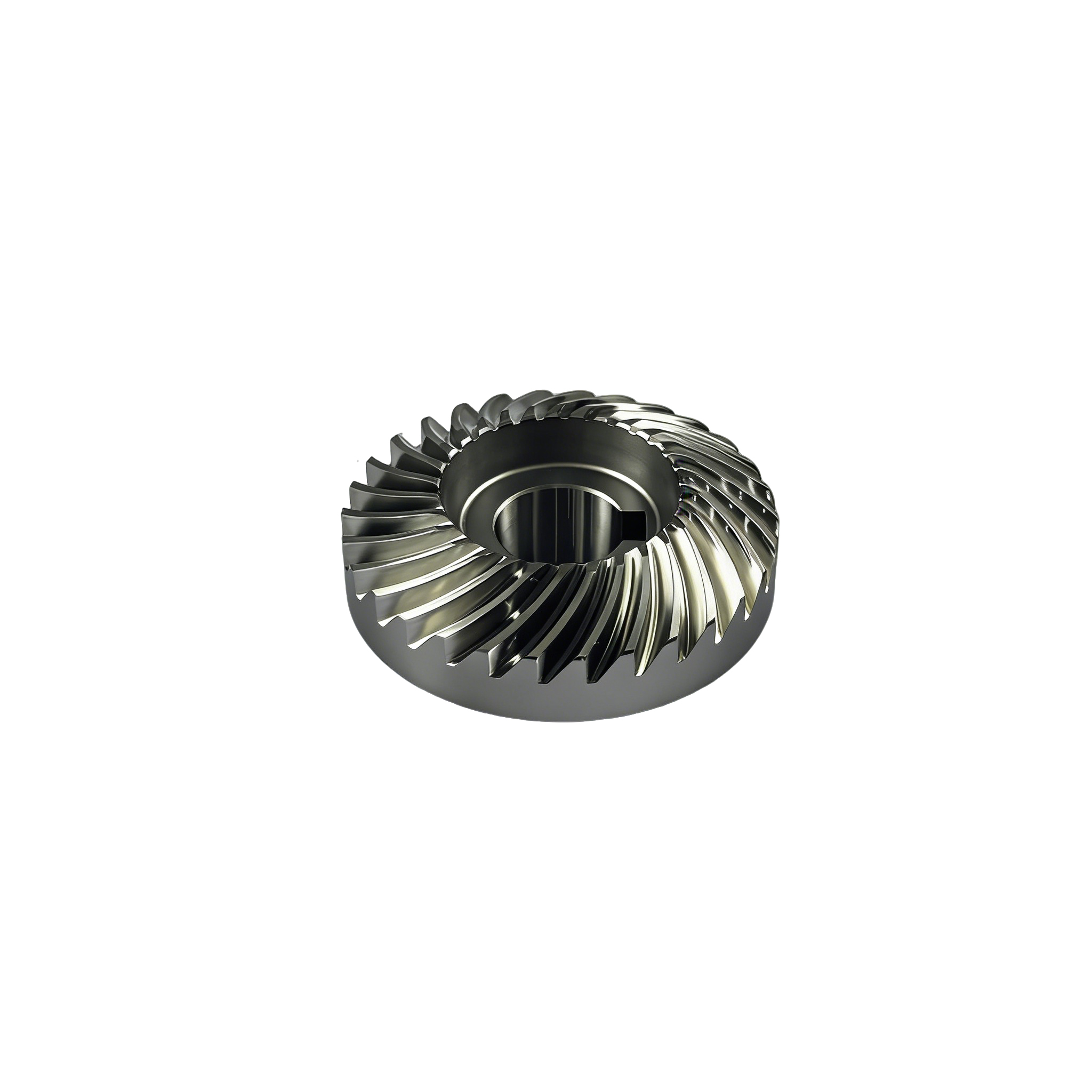

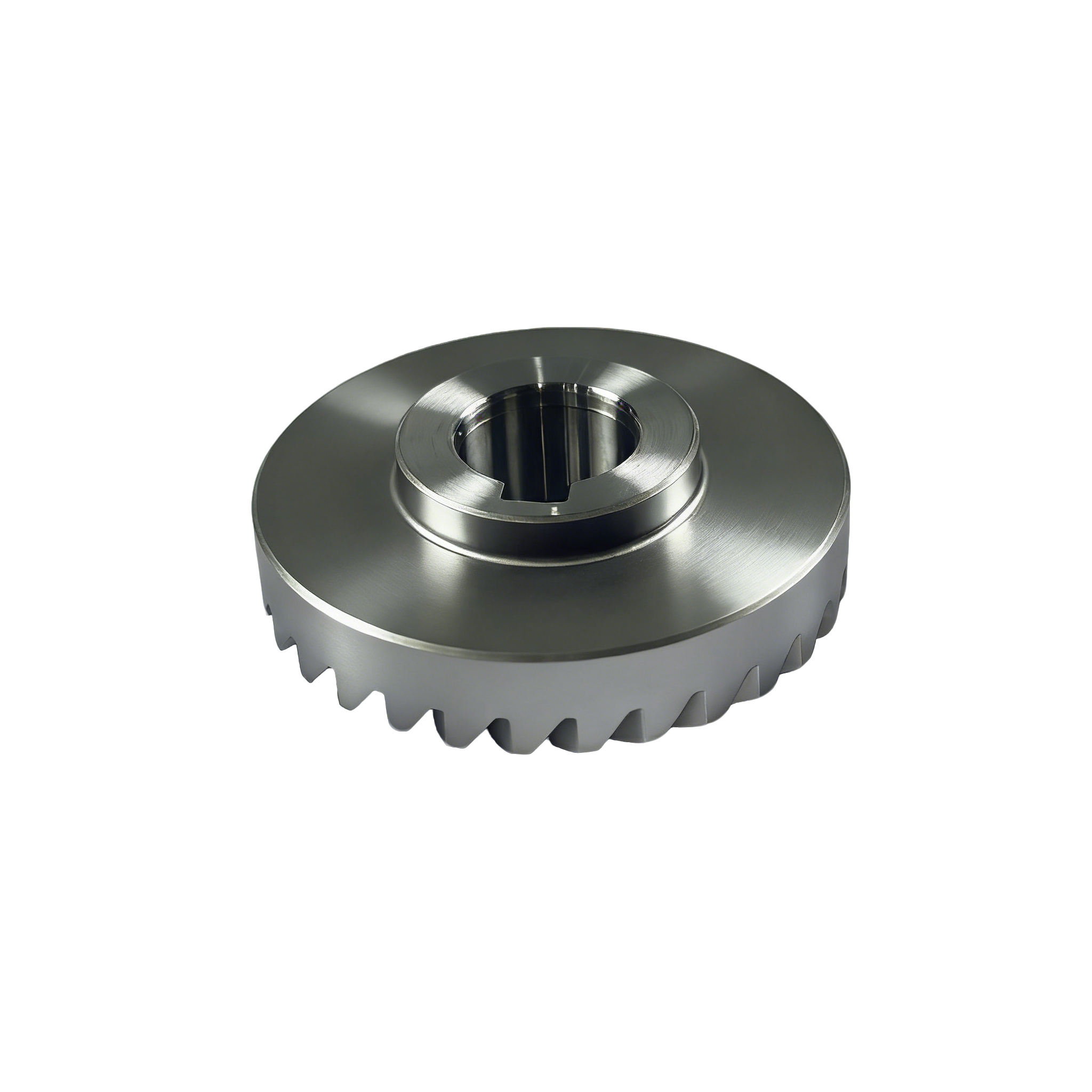

- AEP-02-C Output Bevel Gear: 30 teeth, right-hand, ID 14mm, OD 47.2mm, total length 17mm, weight 0.1315kg.

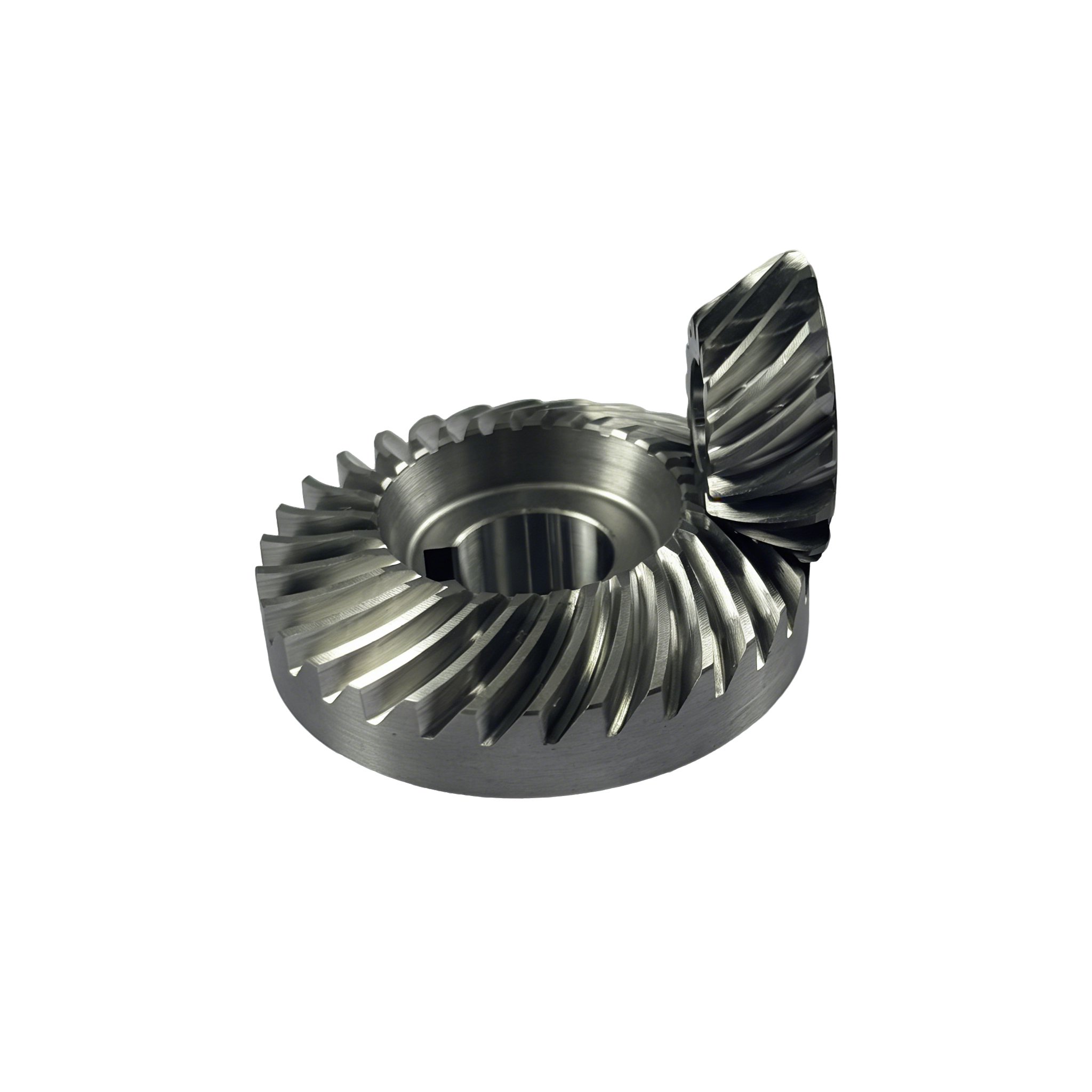

They are used as a matched pair for reducer transmission systems.
其他信息
| AEP-01-C and AEP-02-C weight |
0.0193and0.1315 |
|---|---|
| AEP-01-C and AEP-02-C Core Components |
gear |
| AEP-01-C and AEP-02-C Craftsmanship |
Milling |
