M0292M10 (140-1:1) Output Bevel Gear (without keyway) and M0291M10 (140-1:1) Input Bevel Gear (without keyway)
$23.24piece

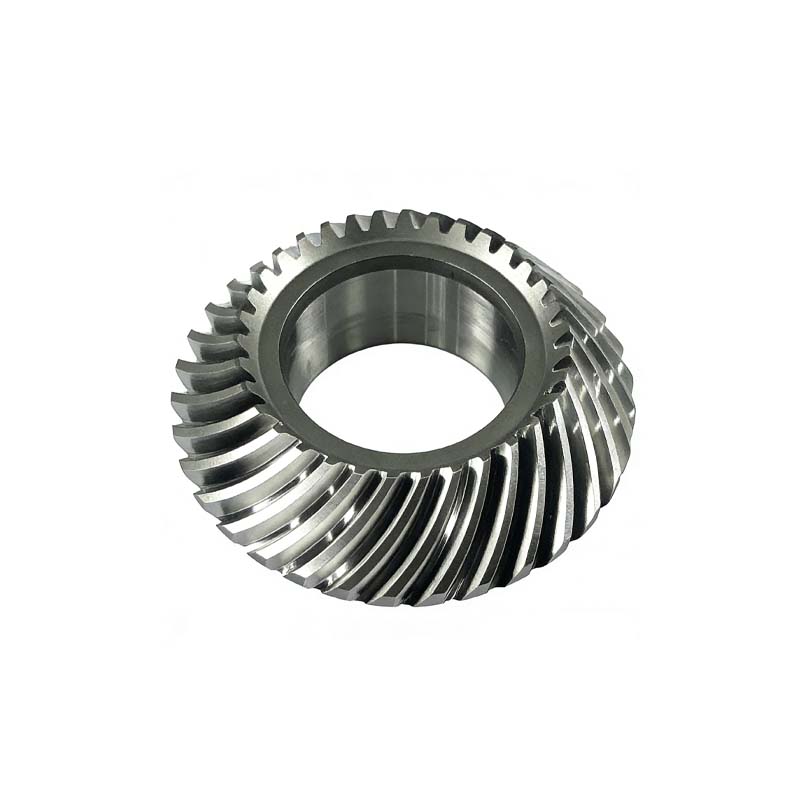

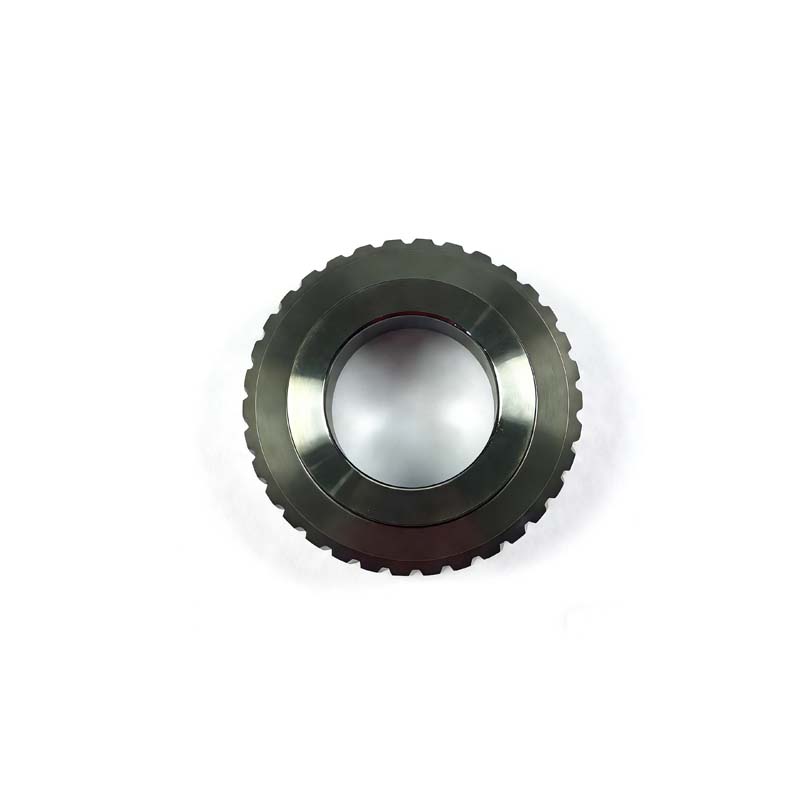

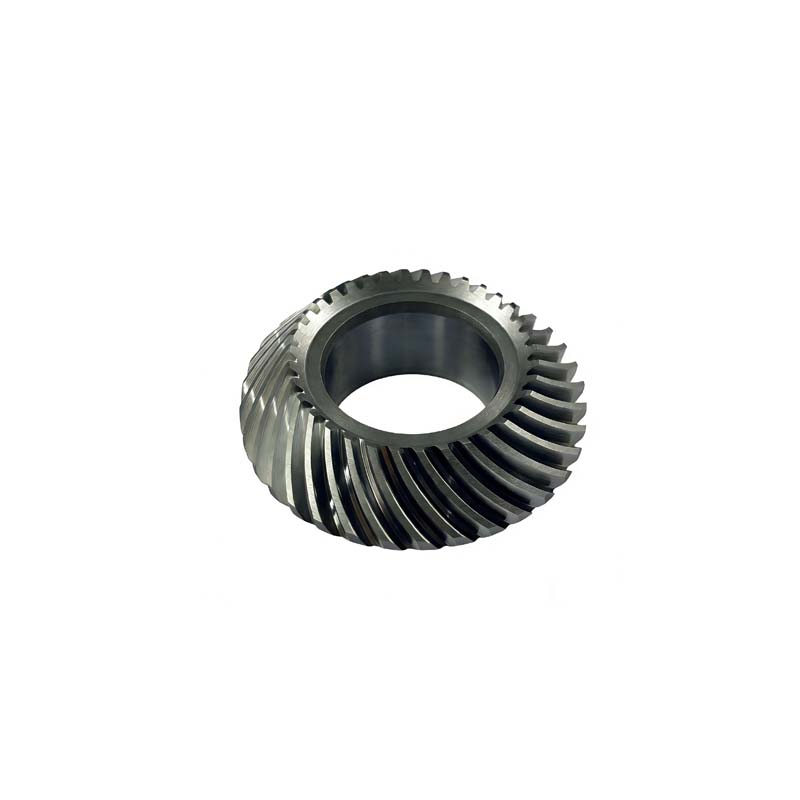

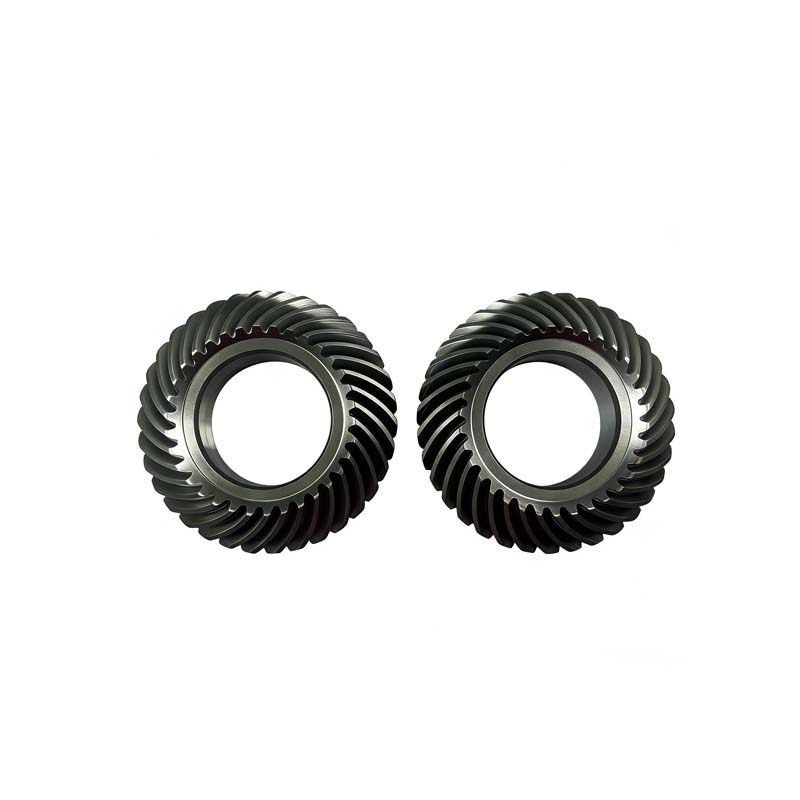

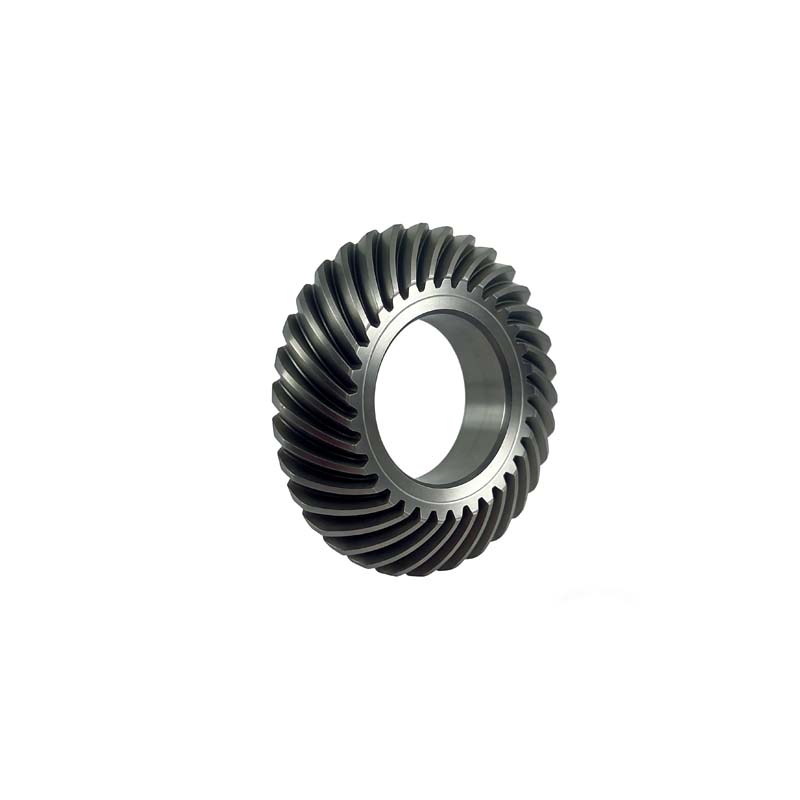

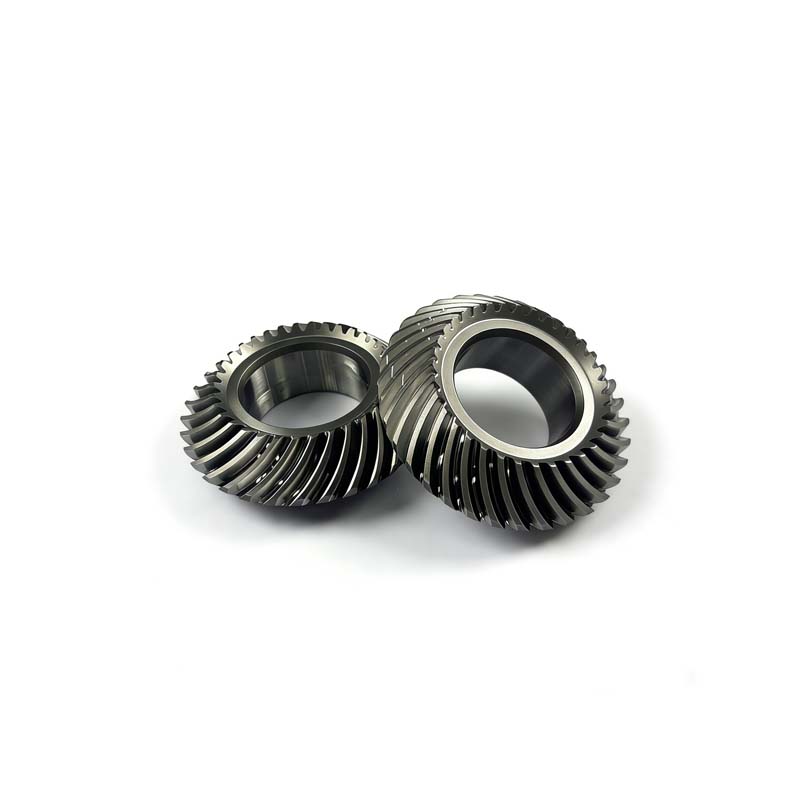

A set of keyless spiral bevel gears for reducers made of 20CrMnTi, with module 2.4, 20° pressure angle, 34 teeth and speed ratio 1. AEP-07-C1 is a left-hand output gear, AEP-08-C1 is a right-hand input gear, with the same size, precision-machined for reducer keyless installation scenarios.
Description
This series is a set of keyless spiral bevel gears for reducers, including input and output gears, with models AEP-07-C1 (M0292M10 (140-1:1) Output Bevel Gear) and AEP-08-C1 (M0291M10 (140-1:1) Input Bevel Gear). Specially designed for reducer transmission systems, they are suitable for installation scenarios without keyway connection, ensuring precise power transmission.
The two gears share the same core characteristics: both are made of 20CrMnTi, with excellent strength, wear resistance and transmission stability; pressure angle of 20°, module of 2.4, 34 teeth, speed ratio of 1, spiral angle of 35°, inner diameter of 40mm, gear outer diameter of 81.6mm, total length of 24.5mm; the processing technology is uniform, including sawing, turning, gear milling, heat treatment, shot blasting, boring + end facing + guide arc chamfering, and gear grinding. The keyless design simplifies installation while ensuring gear precision and smooth transmission.
Specific parameter differences:
– AEP-07-C1 Output Bevel Gear (keyless): Left-hand design (spiral angle 35°/L), weight 0.4198kg, suitable for the reducer output end, responsible for stable power output.
– AEP-08-C1 Input Bevel Gear (keyless): Right-hand design (spiral angle 35°/R), weight 0.4213kg, suitable for the reducer input end, paired with the output gear to achieve 1:1 speed ratio transmission.
Additional information
| AEP-07-C1 and AEP-08-C1 weight |
0.4198and0.4213 |
|---|---|
| AEP-07-C1 and AEP-08-C1 Core Components |
gear |
| AEP-07-C1 and AEP-08-C1 Craftsmanship |
Milling |
