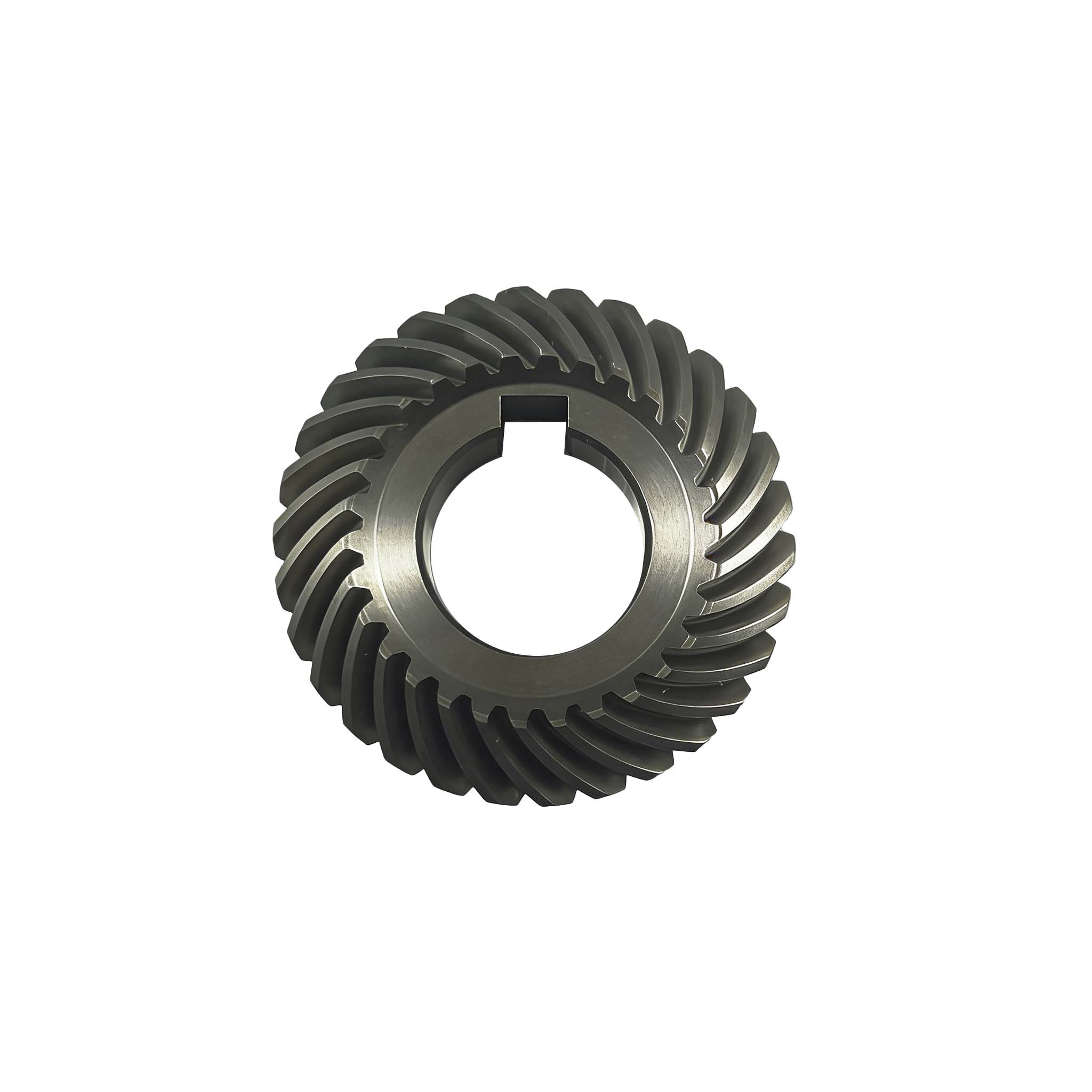

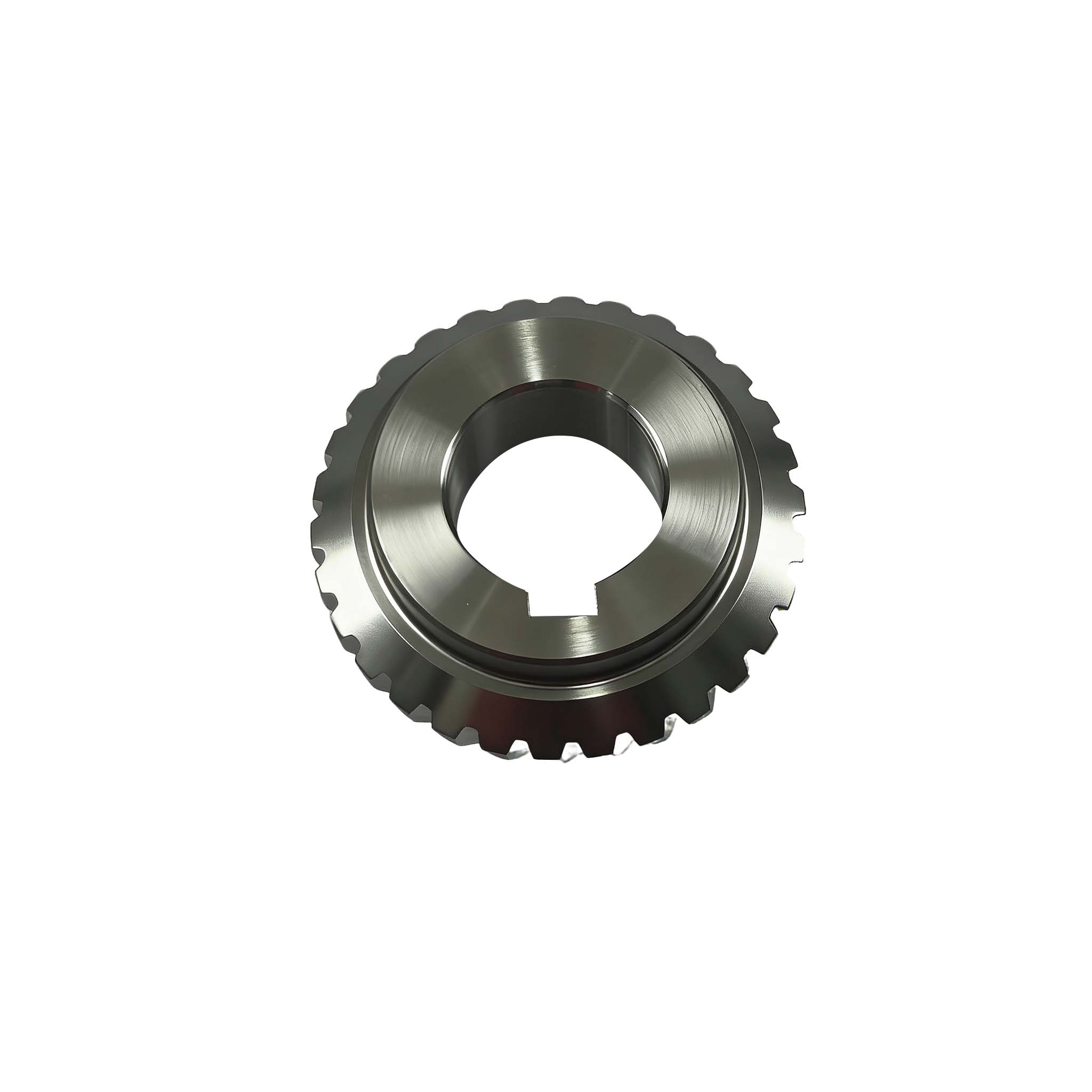

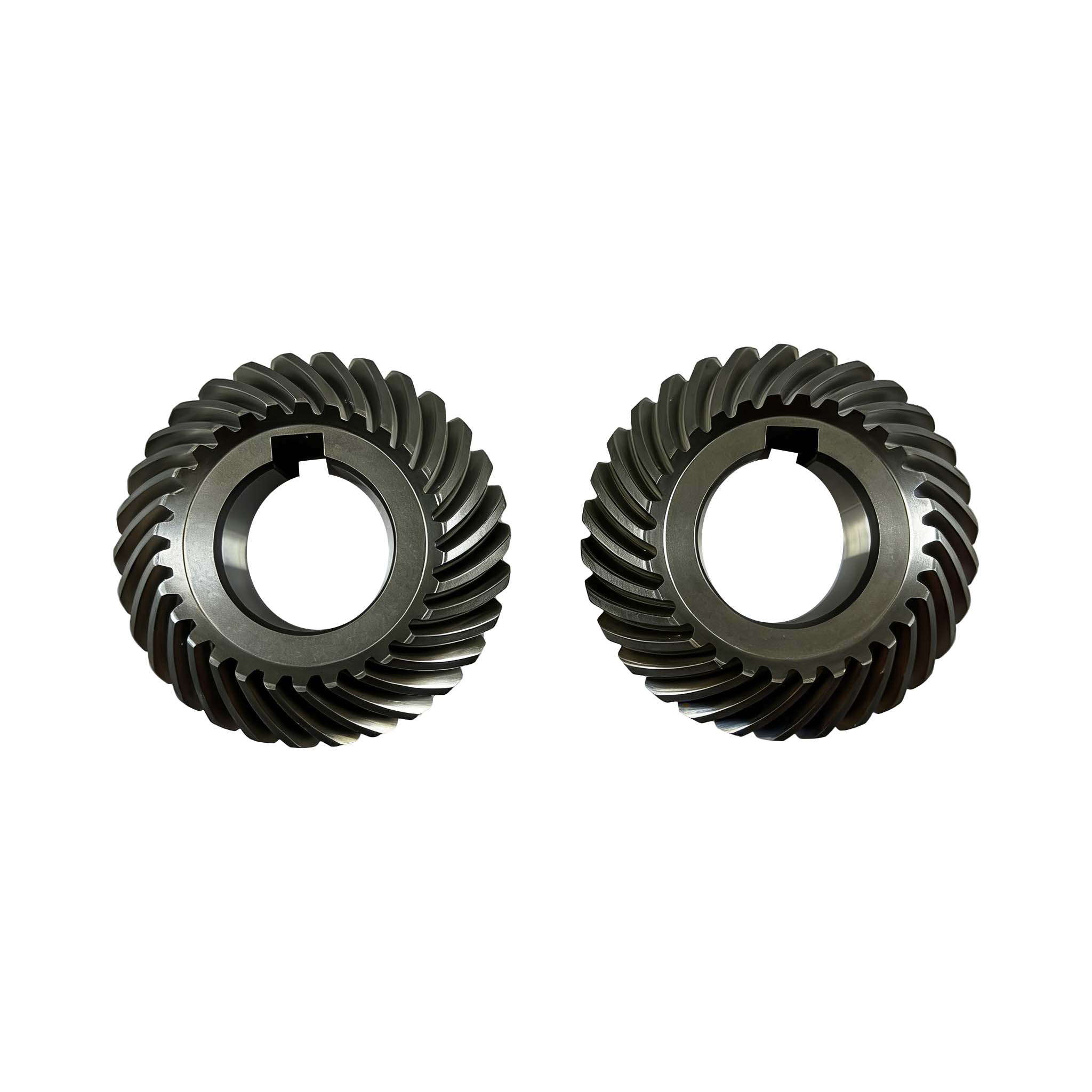

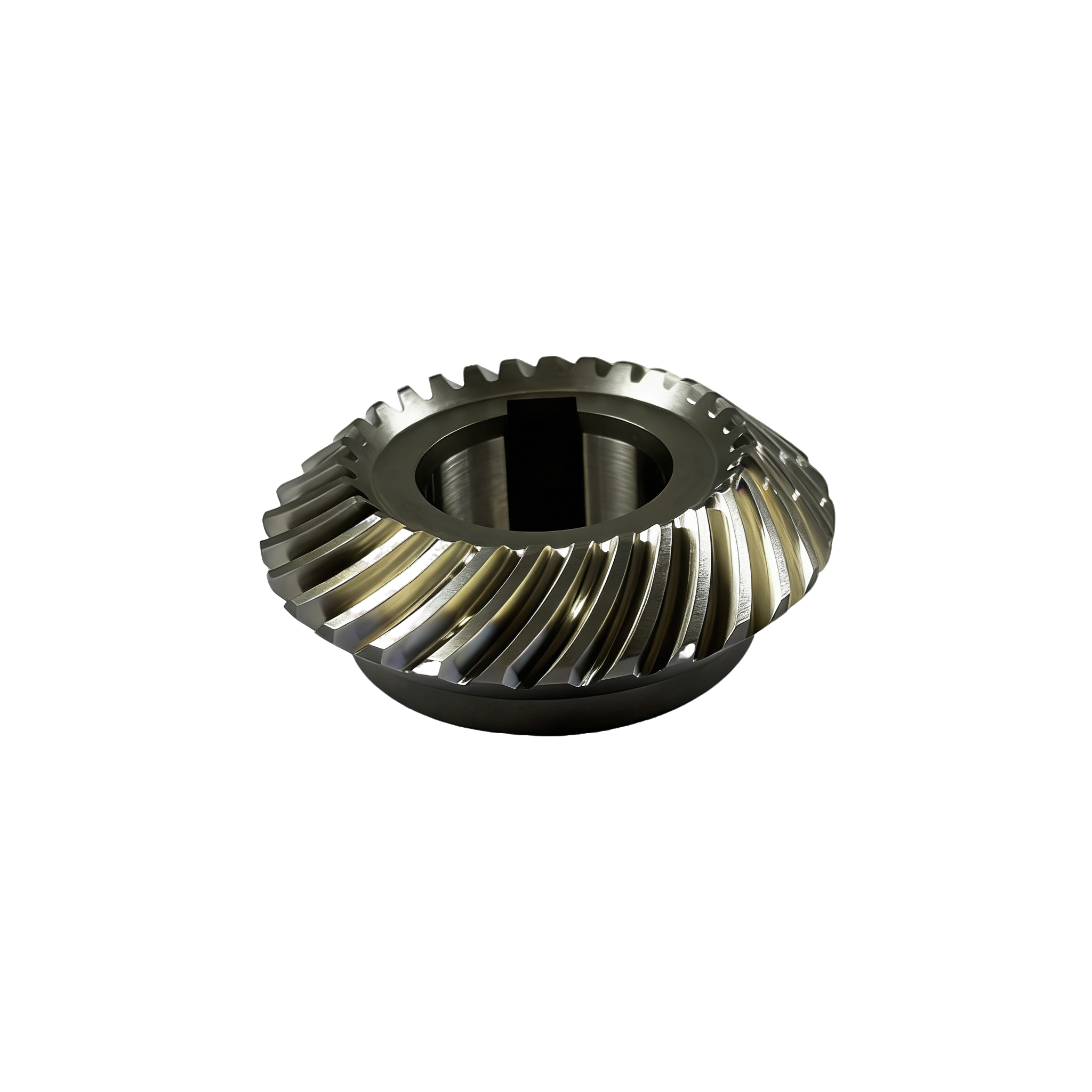

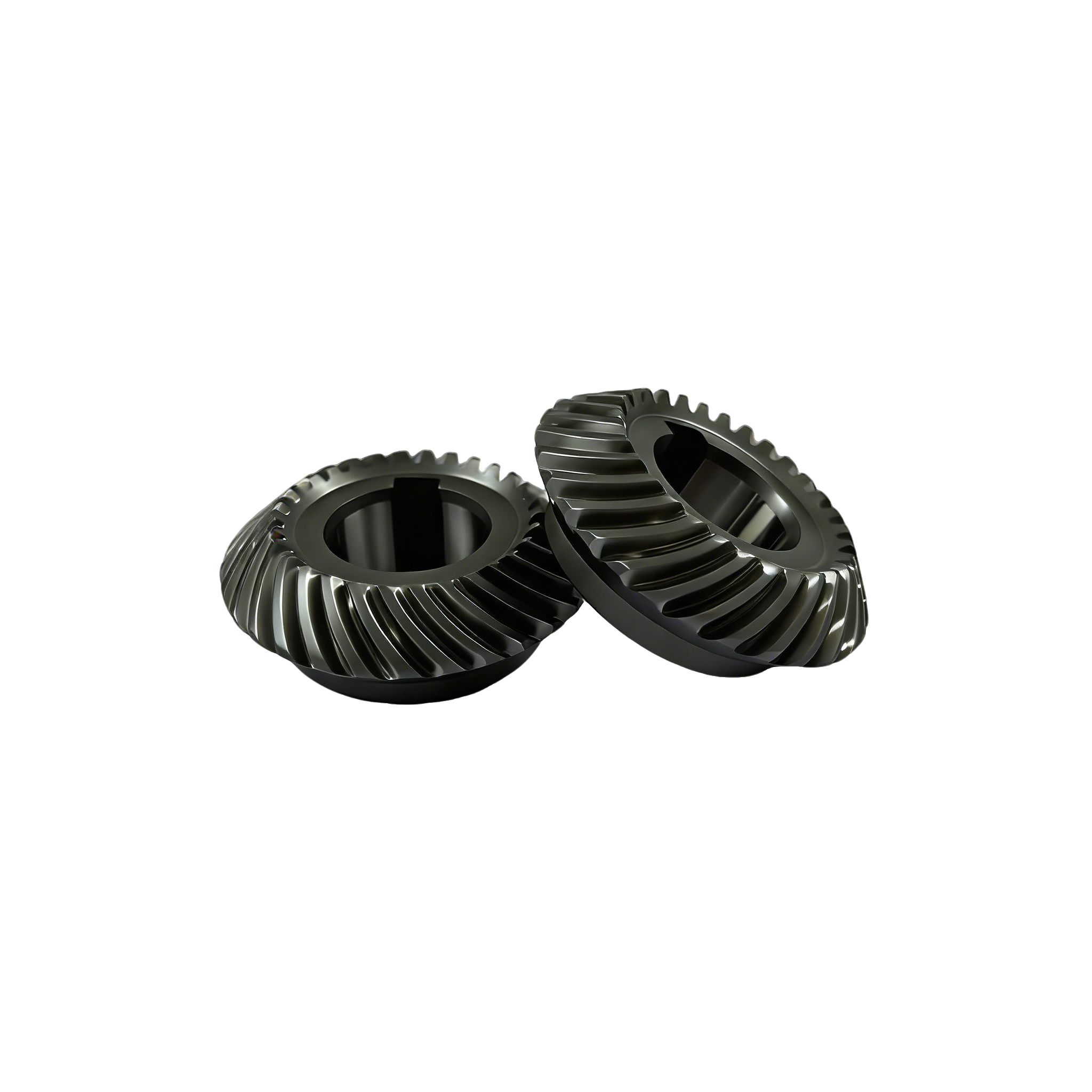

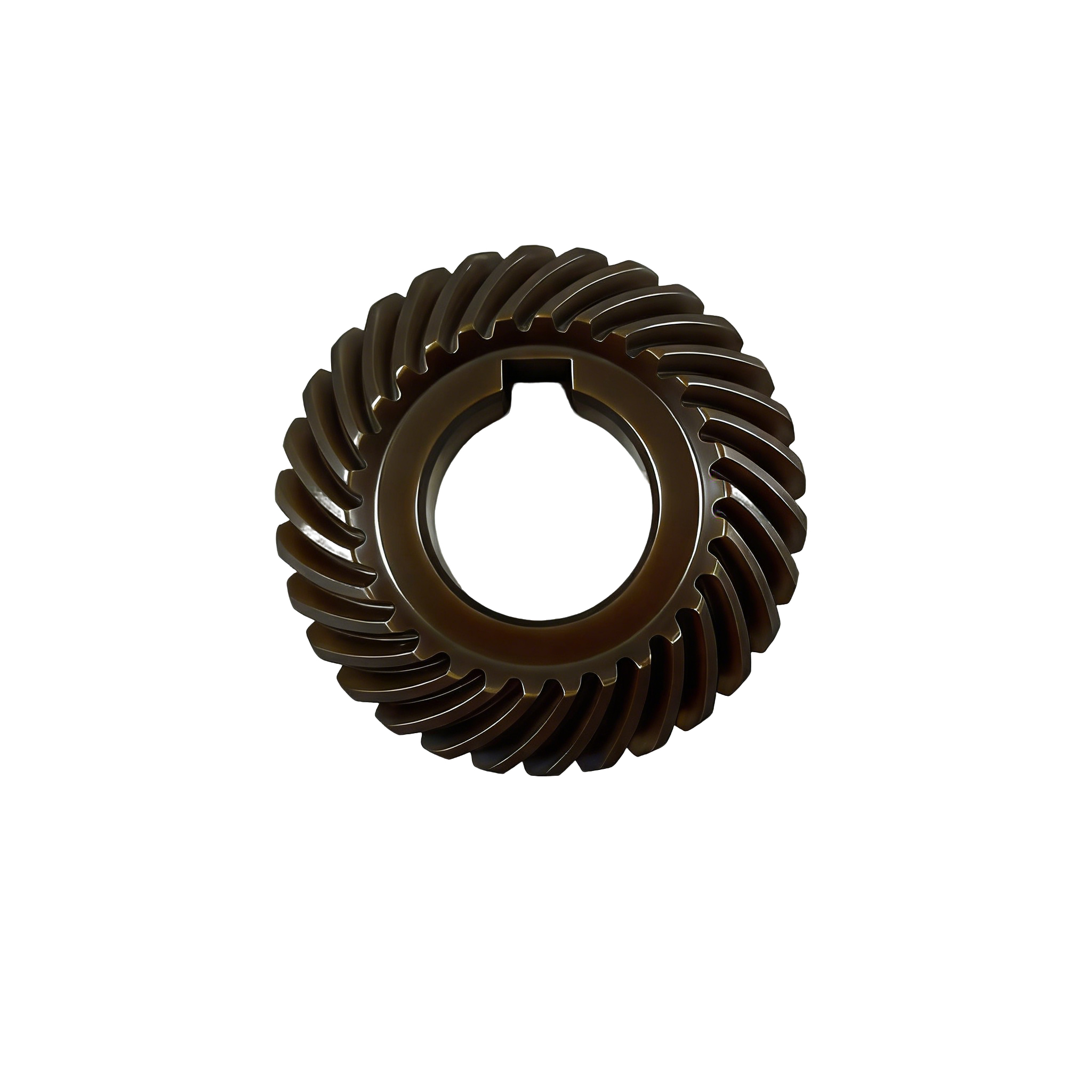

M0215M10 (090-1:1) Left-hand Gear (with keyway) and M0216M10 (090-1:1) Right-hand Gear (with keyway)
$9.24piece
AEP‑17‑C left-hand and AEP‑18‑C right-hand are a pair of 20CrMnTi spiral bevel gears for reducers, module 1.58, 20° pressure angle, 30 teeth with keyway, for 1:1 constant speed transmission.
Description
This series consists of a pair of spiral bevel gears with keyway for reducers, including left-hand and right-hand versions, model AEP‑17‑C and AEP‑18‑C, suitable for 1:1 constant speed transmission.
Both gears are made of 20CrMnTi, with pressure angle 20°, module 1.58, 30 teeth, speed ratio 1, spiral angle 35°, inner diameter 20mm, gear outer diameter 47.6mm, total length 17mm, weight 0.1147kg.
They are manufactured through unified processes: sawing, turning, keyway machining, gear milling, heat treatment, shot blasting, boring, end facing, guide arc chamfering and gear grinding, featuring high precision, good wear resistance and reliable keyway connection.
Additional information
| AEP-17-C and AEP-18-C weight |
0.1147and0.1147 |
|---|---|
| AEP-17-C and AEP-18-C Core Components |
gear |
| AEP-17-C and AEP-18-C Craftsmanship |
Milling |
