M0201M11 (180-1:2) Left-hand Large Bevel Gear and M0202M10 (180-1:2) Right-hand Large Bevel Gear
$24.64piece
Two large spiral bevel gears for reducers made of 20CrMnTi, with module 4.5, 20° pressure angle and speed ratio 2, precision-machined. AEP-13-C is a 15-tooth left-hand gear, and AEP-14-C is a 30-tooth right-hand gear, with obvious differences in size and weight, suitable for different direction transmission needs of reducers.
Description

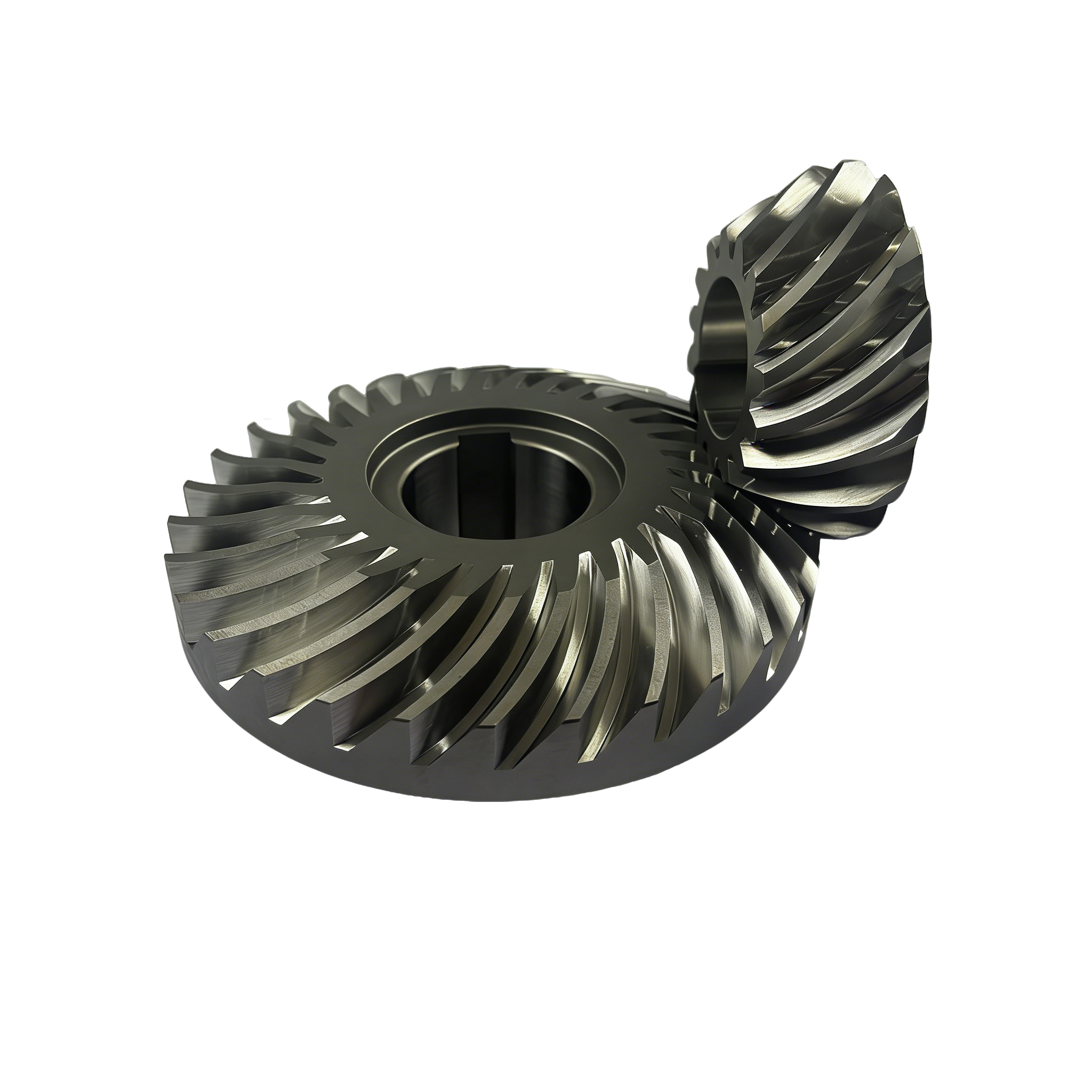

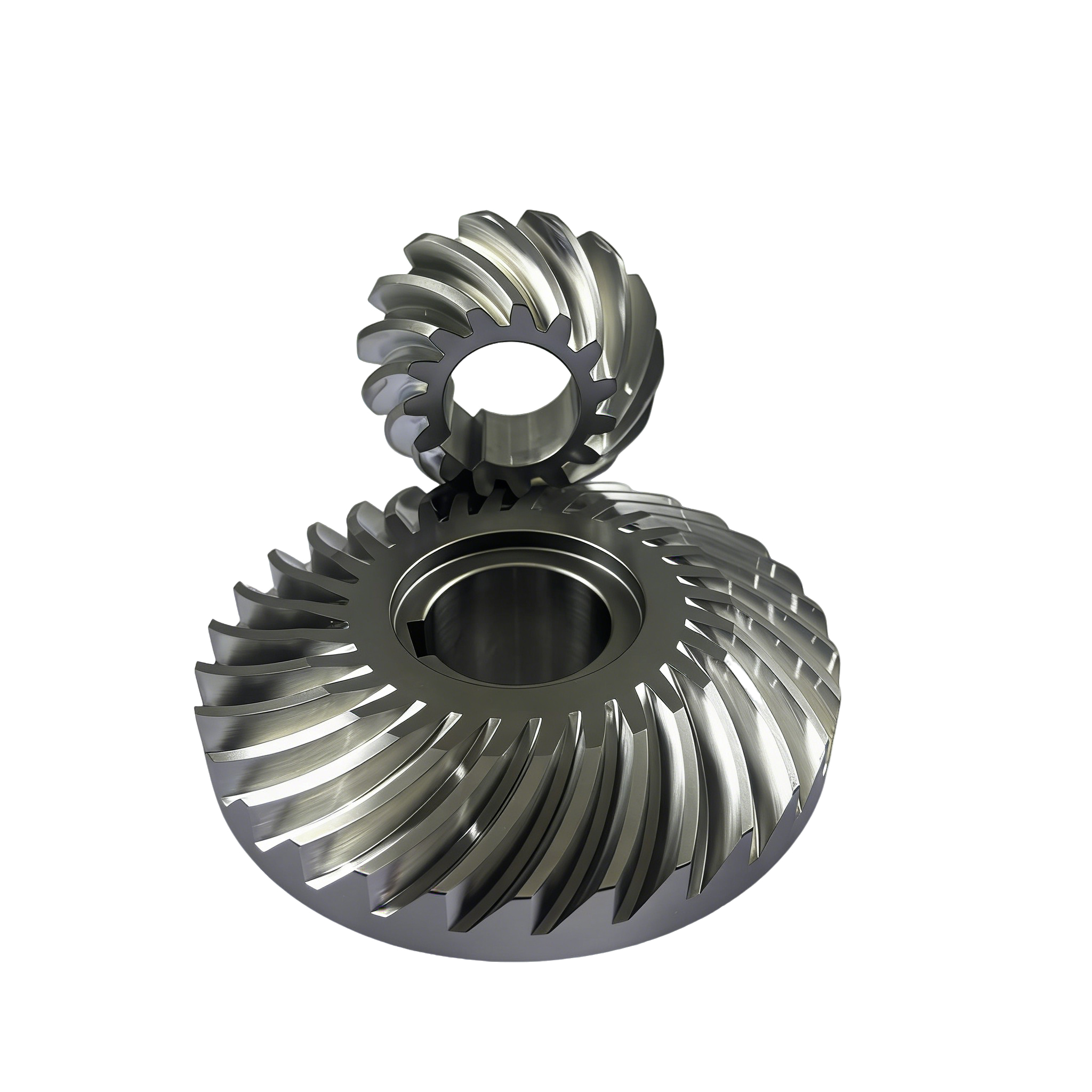

This series consists of two large-sized spiral bevel gears for reducers with a speed ratio of 2, model AEP-13-C (M0201M11 (180-1:2) Left-hand Large Bevel Gear) and AEP-14-C (M0202M10 (180-1:2) Right-hand Large Bevel Gear). Both are made of 20CrMnTi, with excellent strength, wear resistance and transmission stability, specially designed for heavy-duty transmission scenarios of reducers, meeting the power transmission needs of speed ratio 2.
The two gears have the same core process and basic parameters: pressure angle of 20°, module of 4.5, speed ratio of 2, spiral angle of 35°, all manufactured through precise processes including sawing, turning, keyway machining, gear milling, heat treatment, shot blasting, boring + end facing + guide arc chamfering, and gear grinding. They have high transmission accuracy and stable operation, and the keyway design is suitable for the conventional connection needs of reducers.
Specific parameter differences:

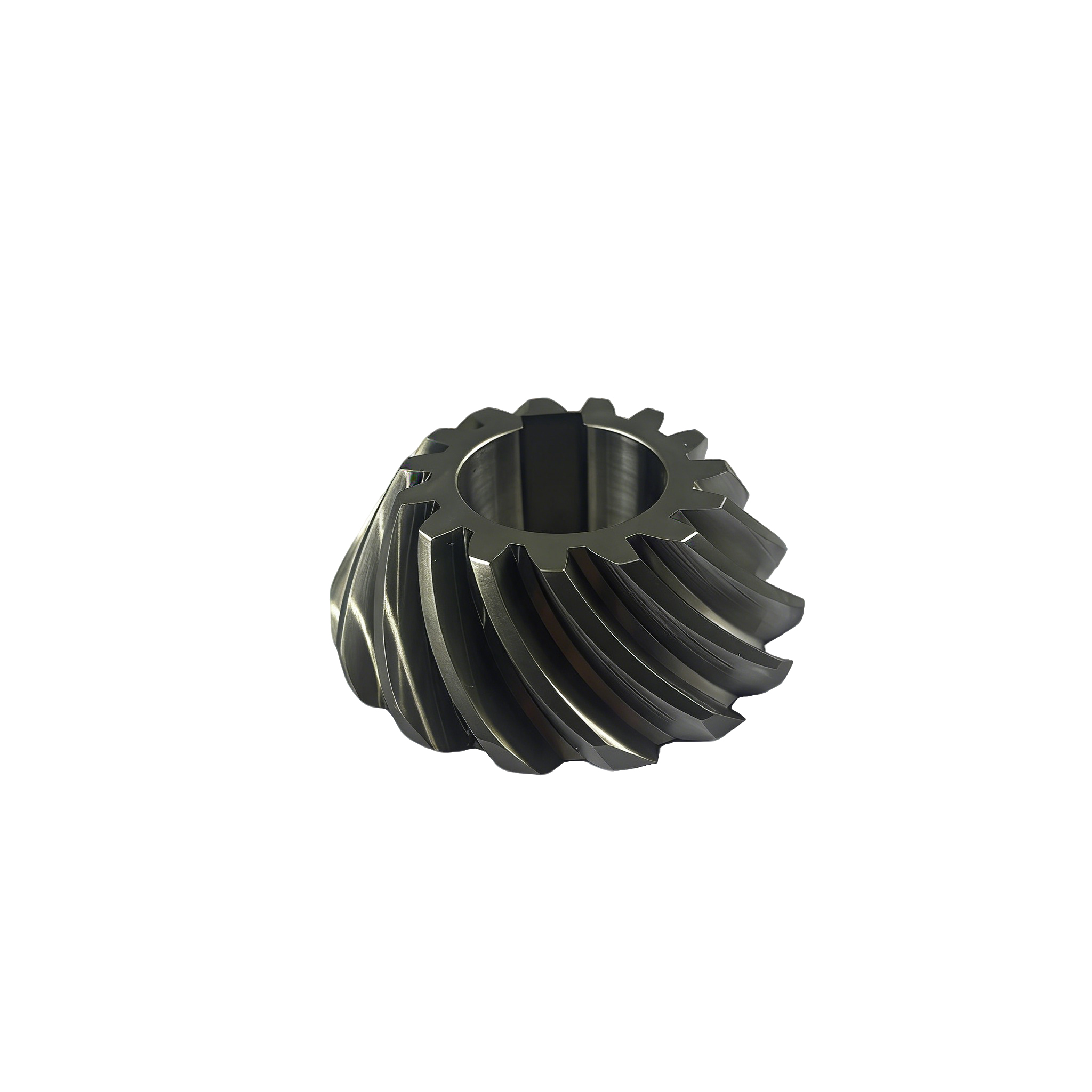

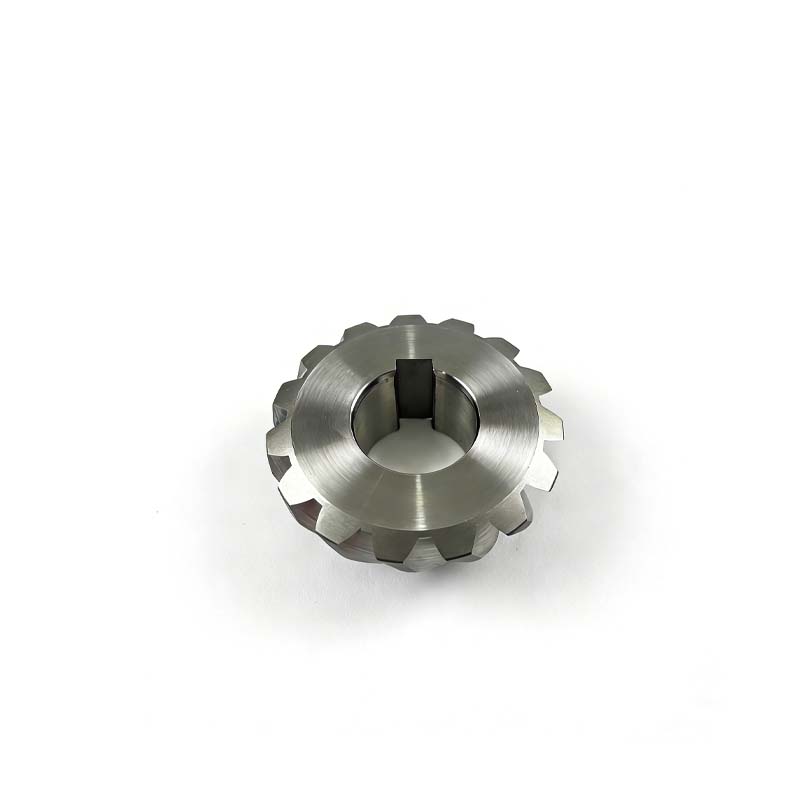

- AEP-13-C Large Bevel Gear (Left-hand): Spiral angle 35°/L, 15 teeth, inner diameter 32mm, gear outer diameter 77mm, total length 29mm, weight 0.5017kg, suitable for the left-hand transmission installation scenario of the reducer.

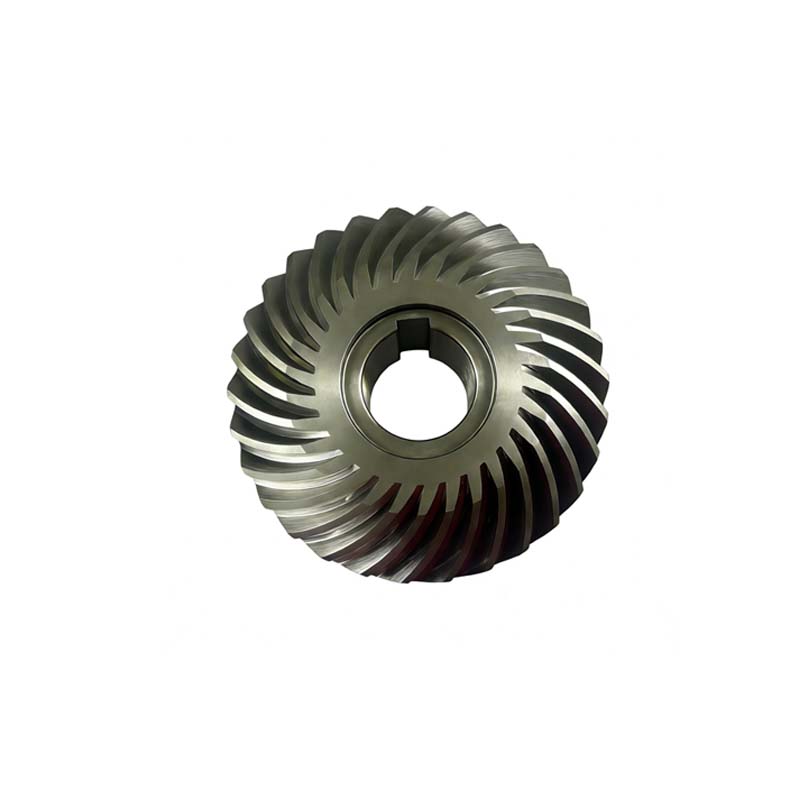

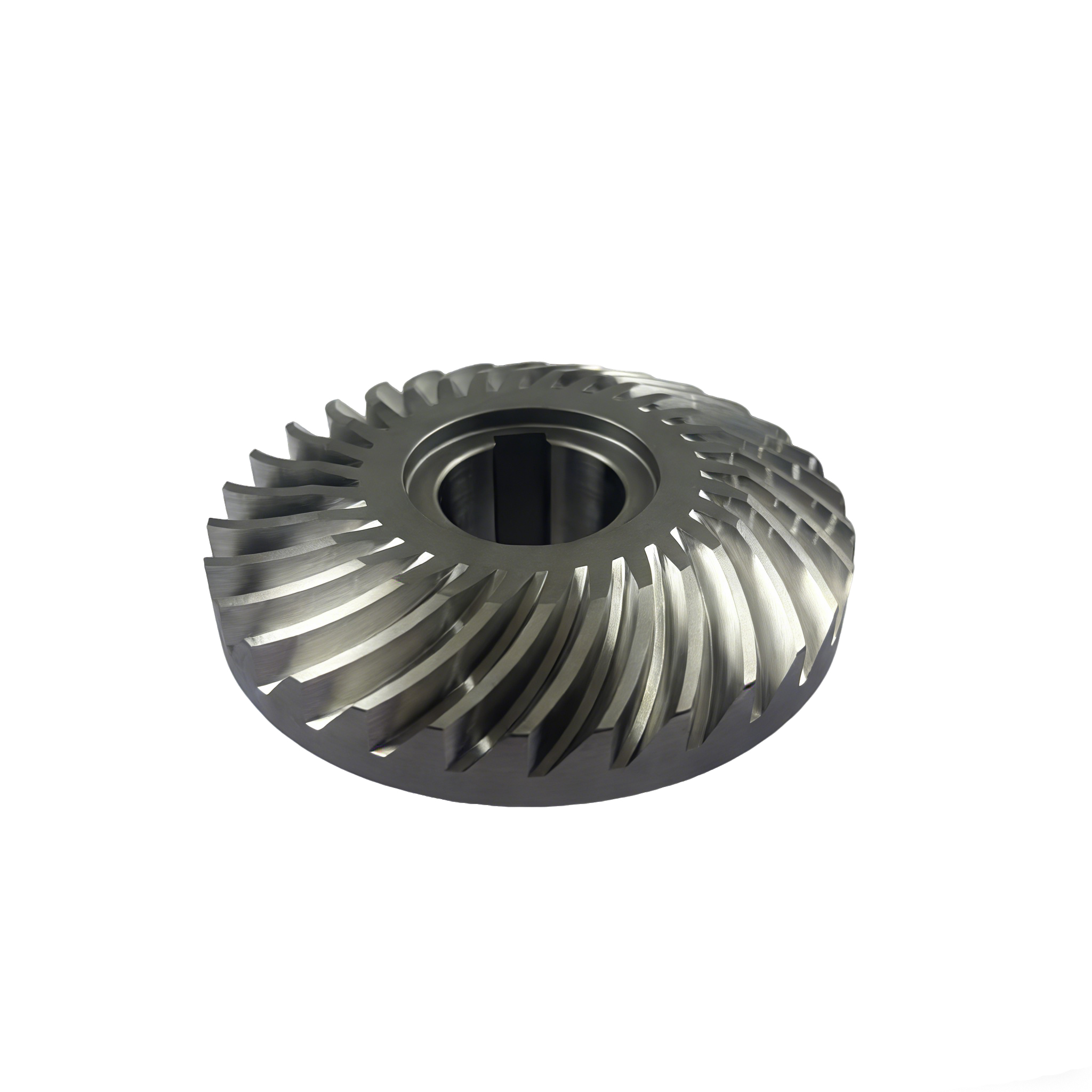

- AEP-14-C Large Bevel Gear (Right-hand): Spiral angle 35°/R, 30 teeth, inner diameter 40mm, gear outer diameter 137mm, total length 48.7mm, weight 2.691kg, suitable for the right-hand transmission installation scenario of the reducer. Both can be used alone according to the installation direction or paired to meet specific transmission needs.
Additional information
| AEP-13-C and AEP-14-C weight |
0.5071and2.691 |
|---|---|
| AEP-13-C and AEP-14-C Core Components |
gear |
| AEP-13-C and AEP-14-C Craftsmanship |
Milling |
