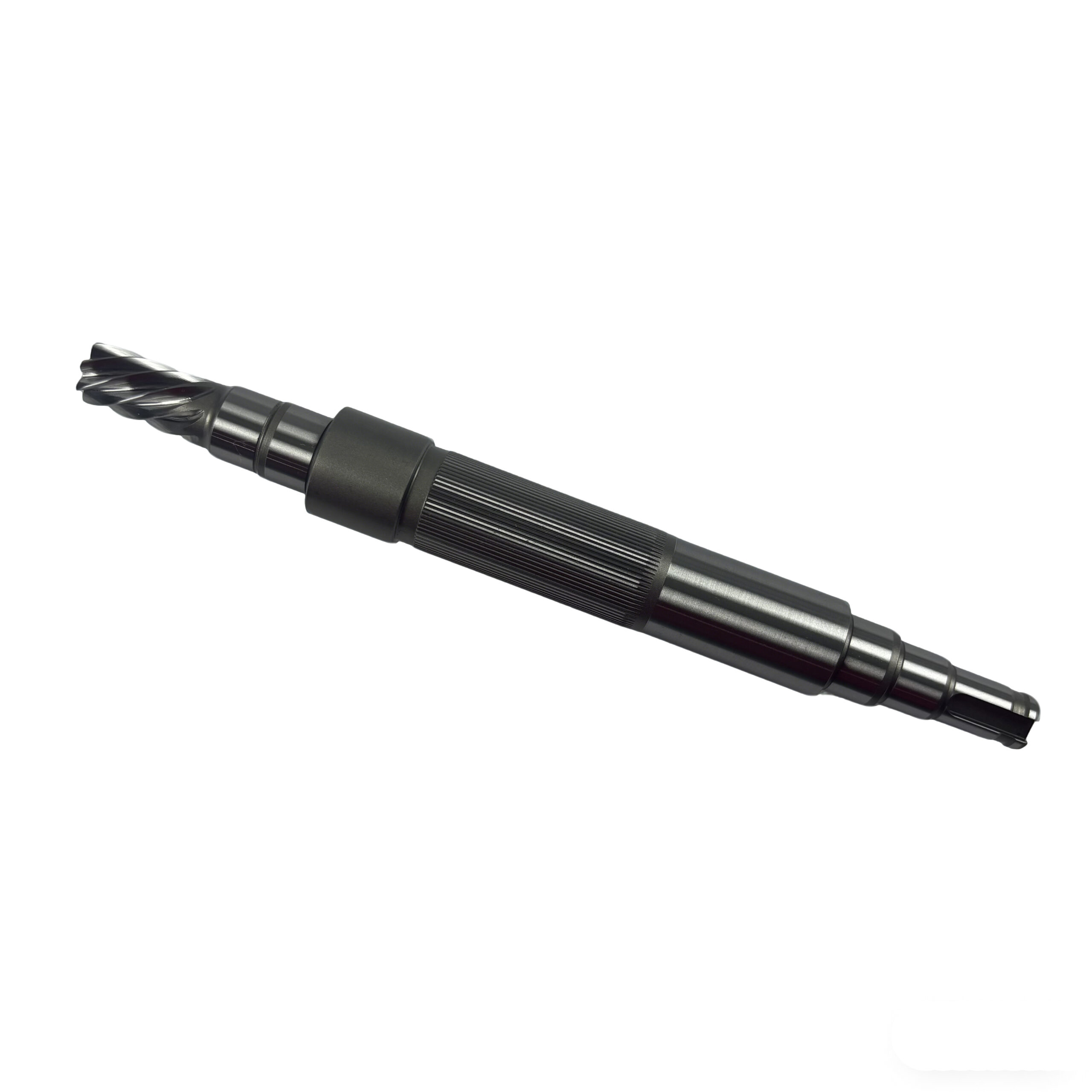

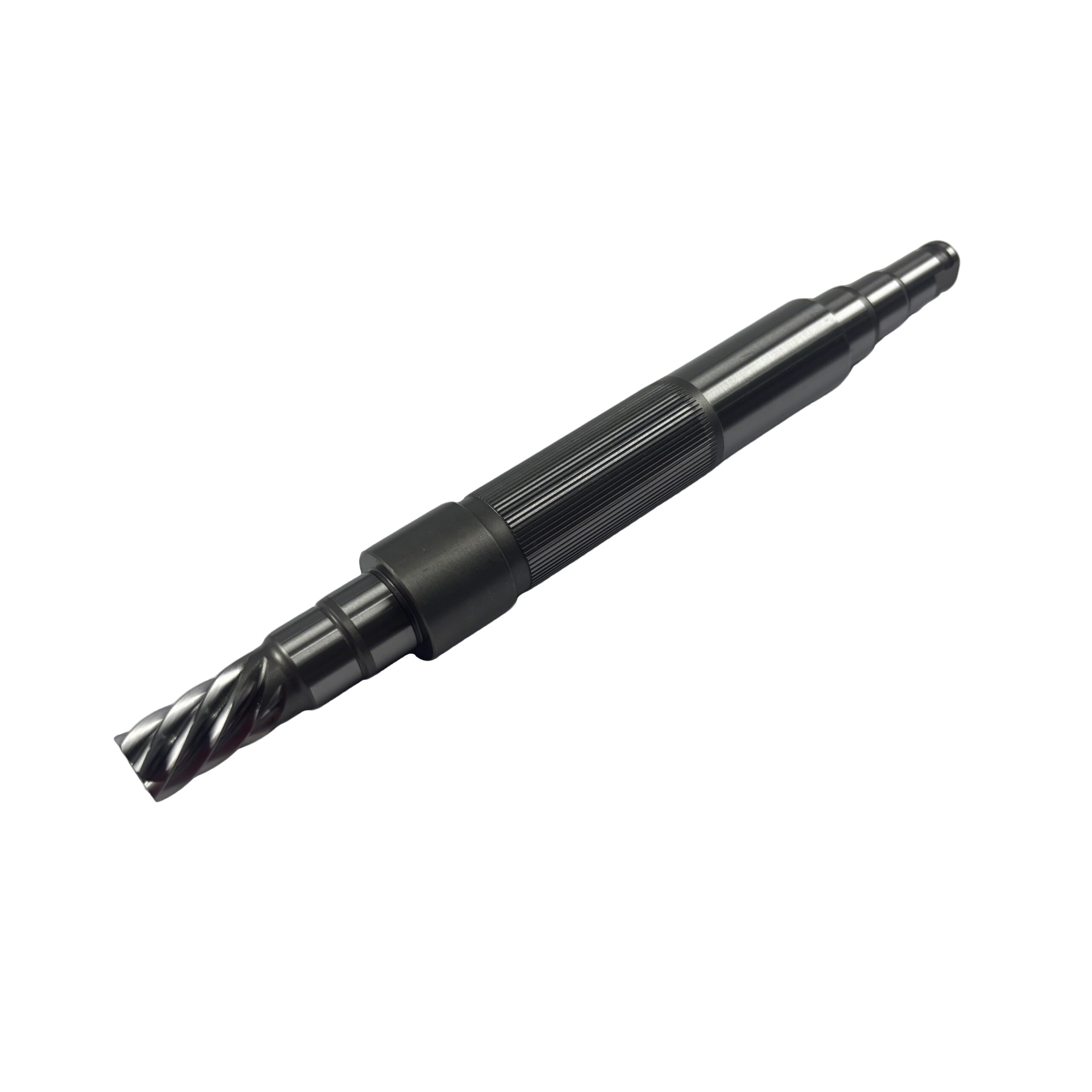

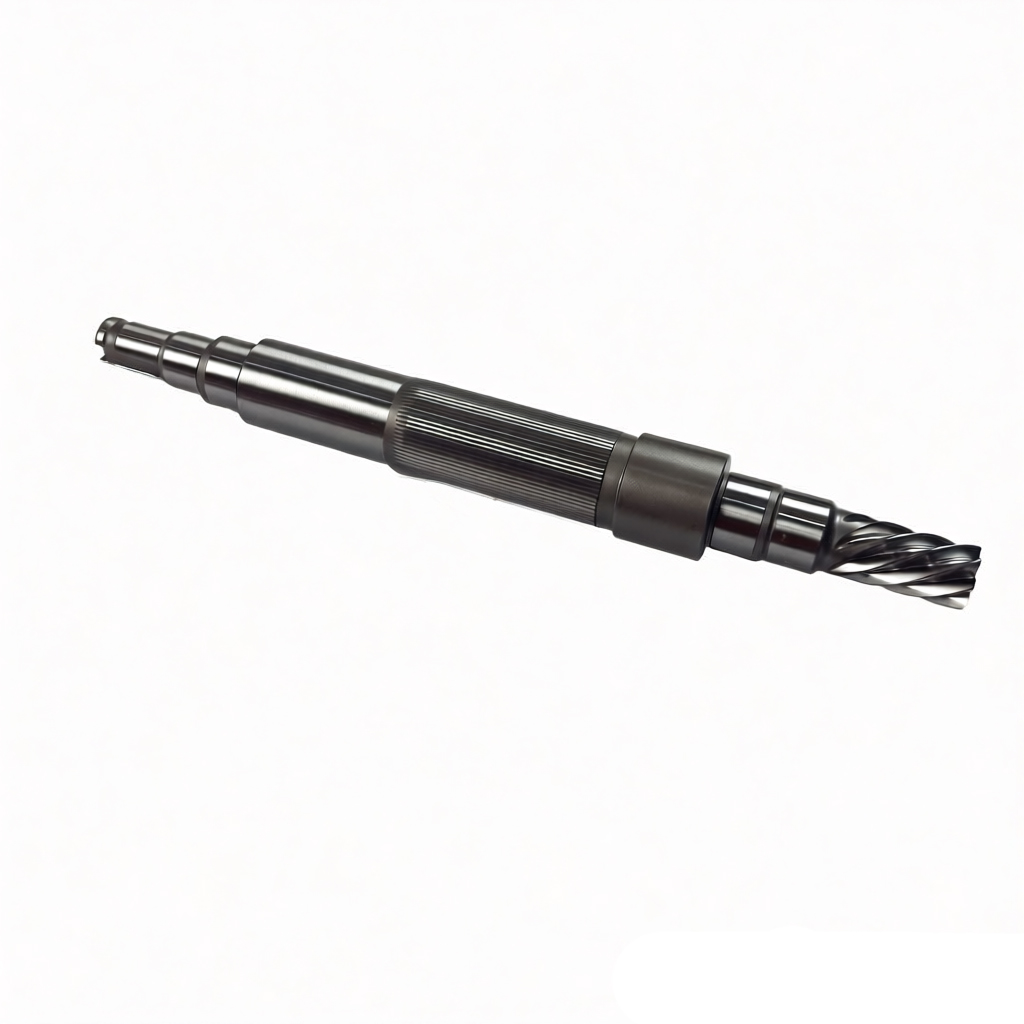

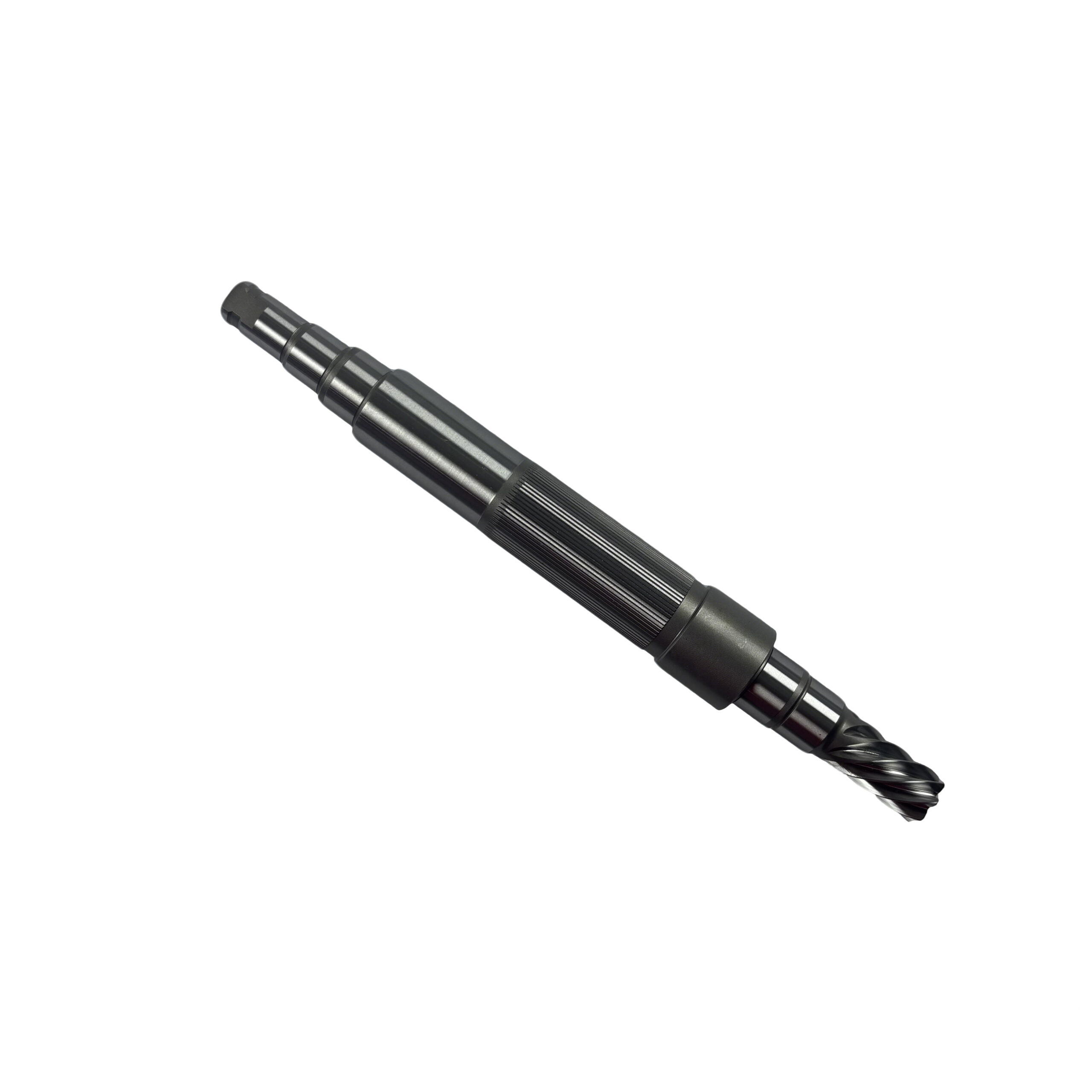

RJ-026-C Precision Gear Shaft for Reducer, 20CrMo, module 1.25, 7 teeth 28° LH, finished by fine hobbing, grinding, keyway and heat treatment.
Description
Model: RJ-026-C (J80676173 (CMS MD400G) Gear Shaft)
This is a precision gear shaft for reducers, made of 20CrMo alloy steel.
Parameters: pressure angle 20°, module 1.25, 7 teeth, helix angle 28° left hand, shaft diameter 24mm, gear OD 13.65mm, total length 210mm, weight 0.4546kg.
Process: normalizing, turning, rough grinding of clamping position, rough grinding of alignment datum, gear hobbing, keyway machining (CNC), heat treatment & straightening, shot blasting, outer diameter grinding, finish gear hobbing, outer diameter grinding, full visual inspection.
With high dimensional accuracy, wear-resistant tooth surface and stable transmission, suitable for reducer drive mechanism.
Additional information
| weight |
0.4546 |
|---|---|
| Core Components |
gear |
| Craftsmanship |
Hobbing |
