J80610544 (C OP GOB-9391E) Gear Shaft
$2.38piece
J80676173 (CMS MD400G) Gear Shaft
$6.44piece
C GEAR MS 105VP-020G RE-CUT 00
$11.34piece

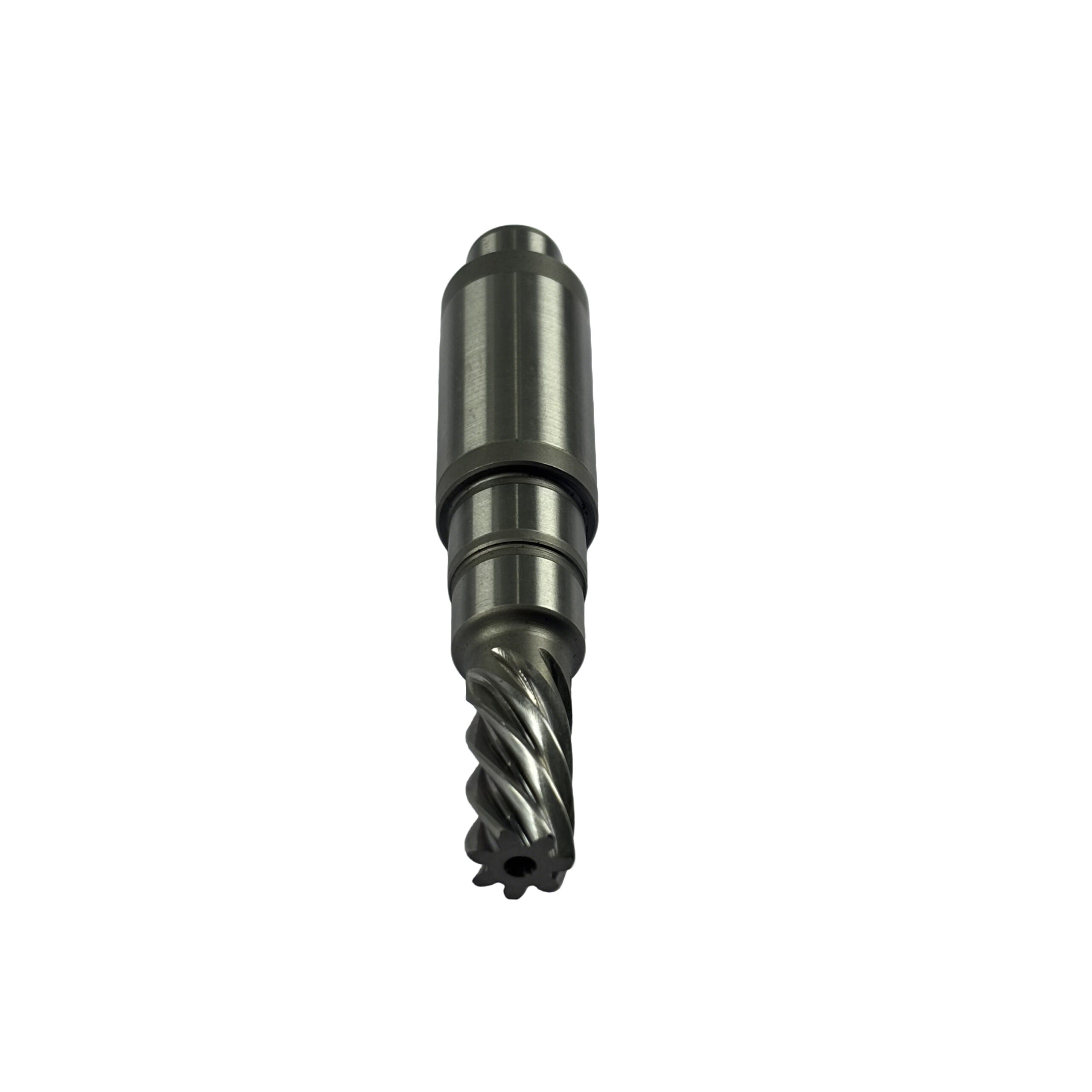

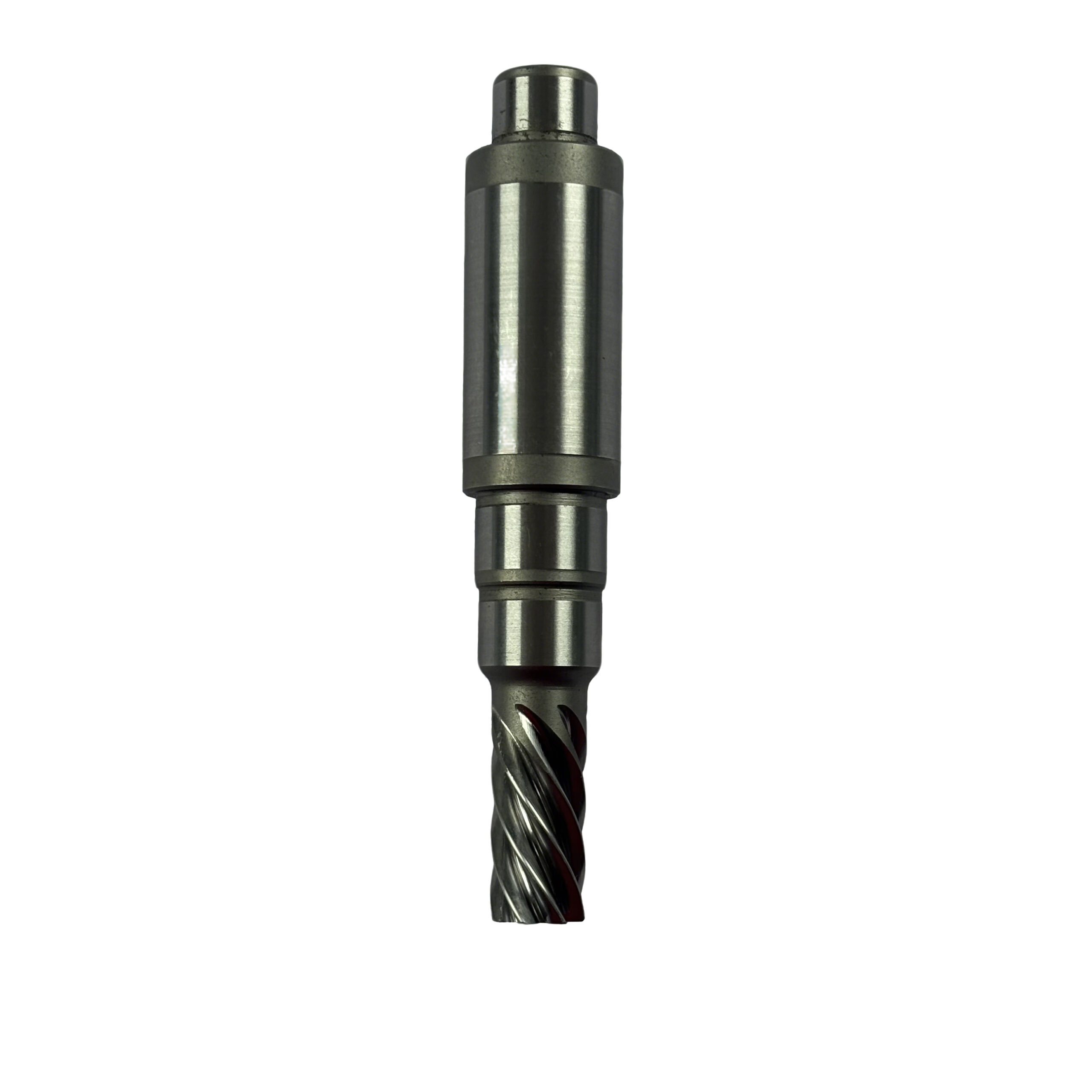

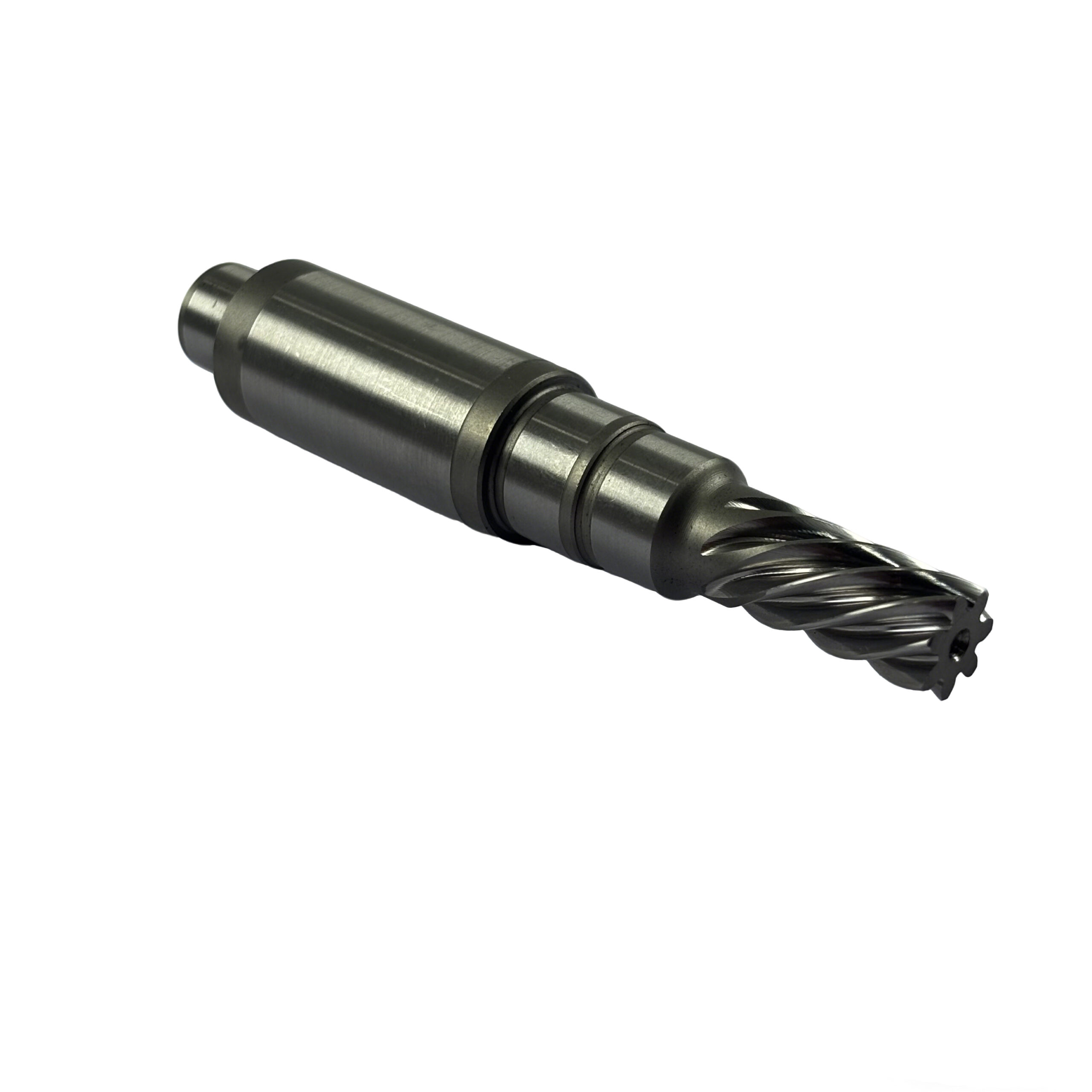

RJ-023-C Gear Shaft for Reducer, 20CrMo, module 1, 7 teeth 28° LH, finished by hobbing, heat treatment and grinding.
Description
Model: RJ-023-C (C GEAR MS 105VP-020G RE-CUT 00 Gear Shaft)
This is a precision gear shaft for reducers, made of 20CrMo alloy steel.
Parameters: pressure angle 20°, module 1, 7 teeth, helix angle 28° left hand, shaft diameter 18mm, gear OD 10.73mm, total length 95mm, weight 0.1281kg.
Process: normalizing, turning, rough grinding of clamping position, gear hobbing, heat treatment, shot blasting, outer diameter grinding, full visual inspection.
With high dimensional accuracy and stable tooth surface performance, suitable for reducer drive mechanism.
Additional information
| weight |
0.1281 |
|---|---|
| Core Components |
gear |
| Craftsmanship |
Hobbing |
Reviews (0)
