J80676237 (CMS MR150G) Gear Shaft
$11.20piece

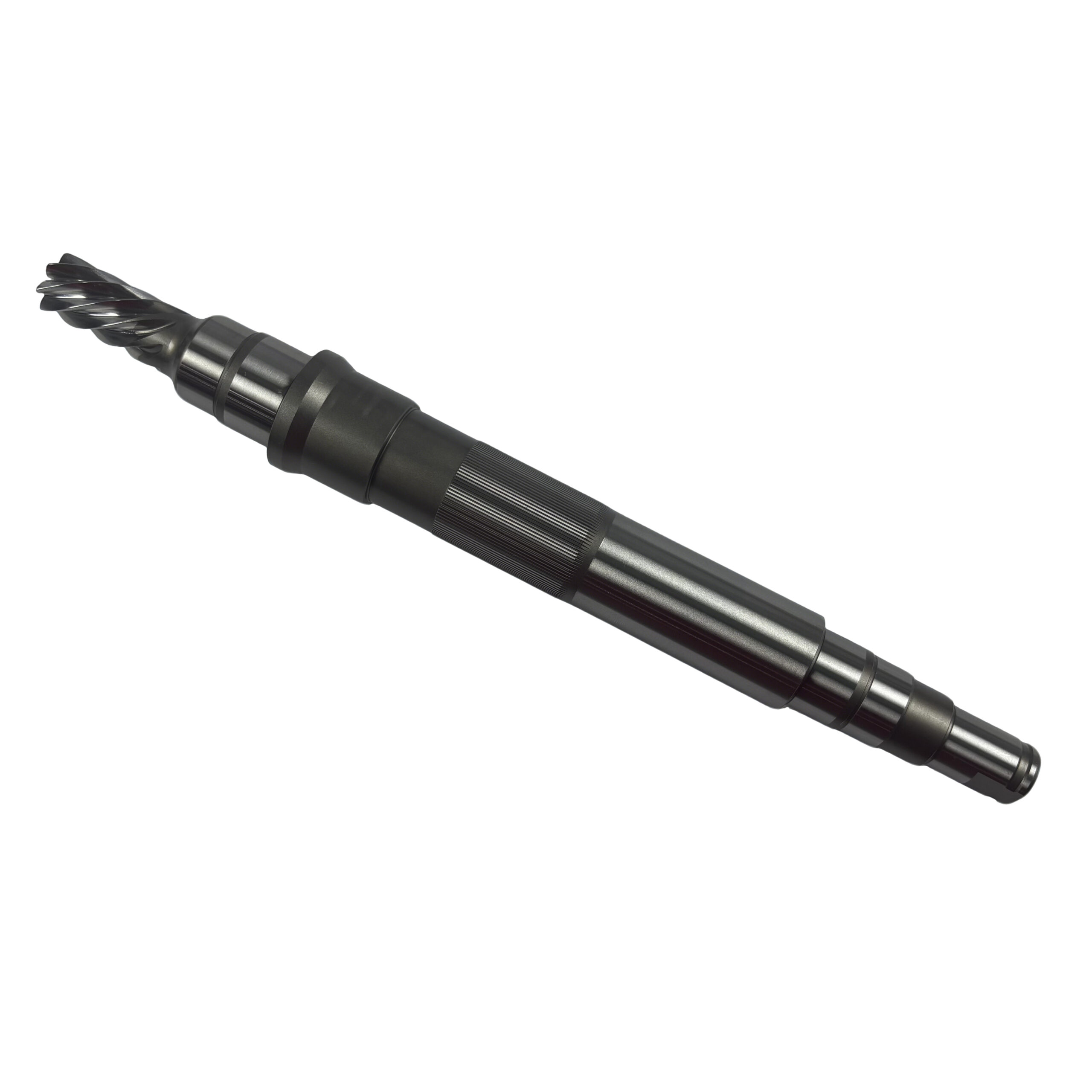

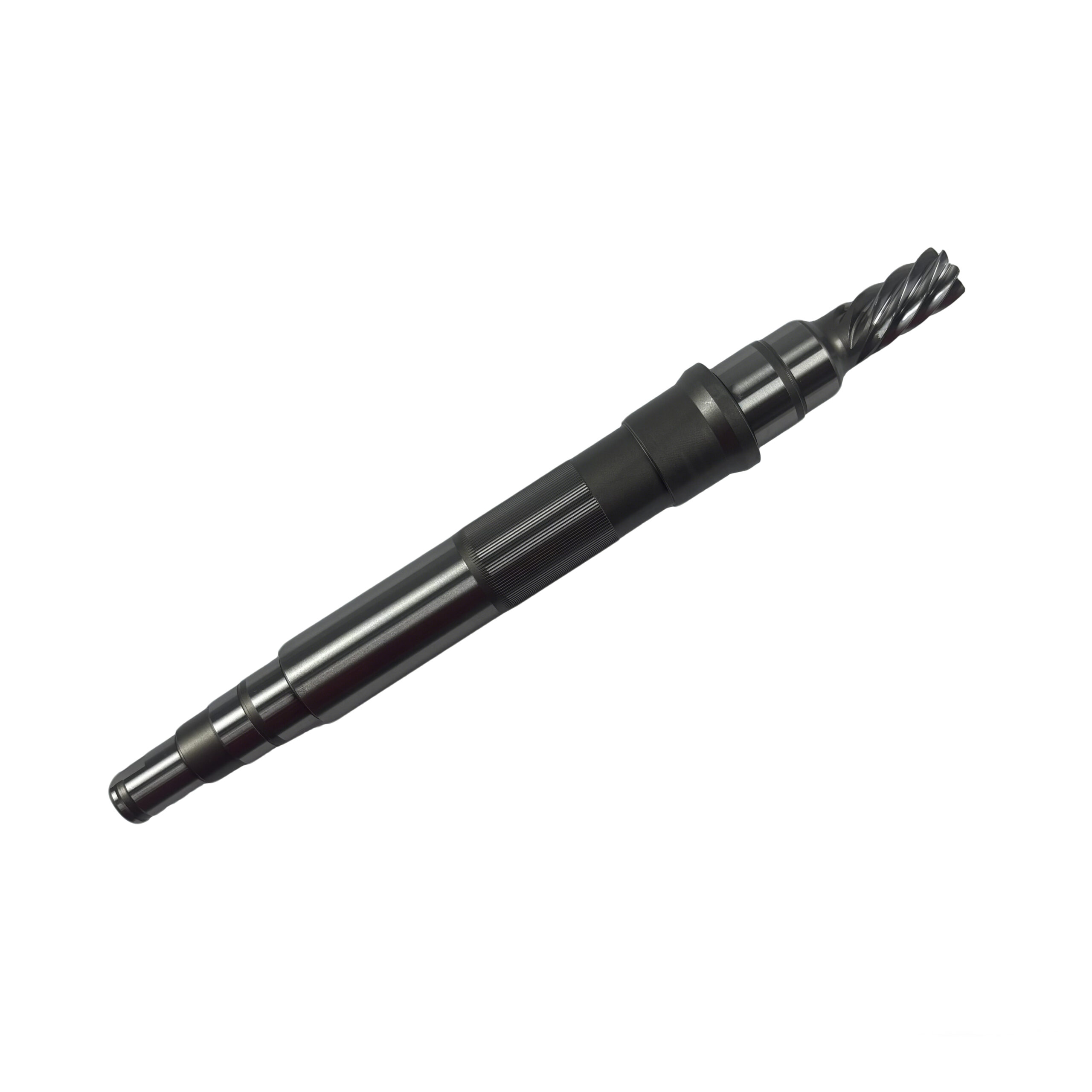

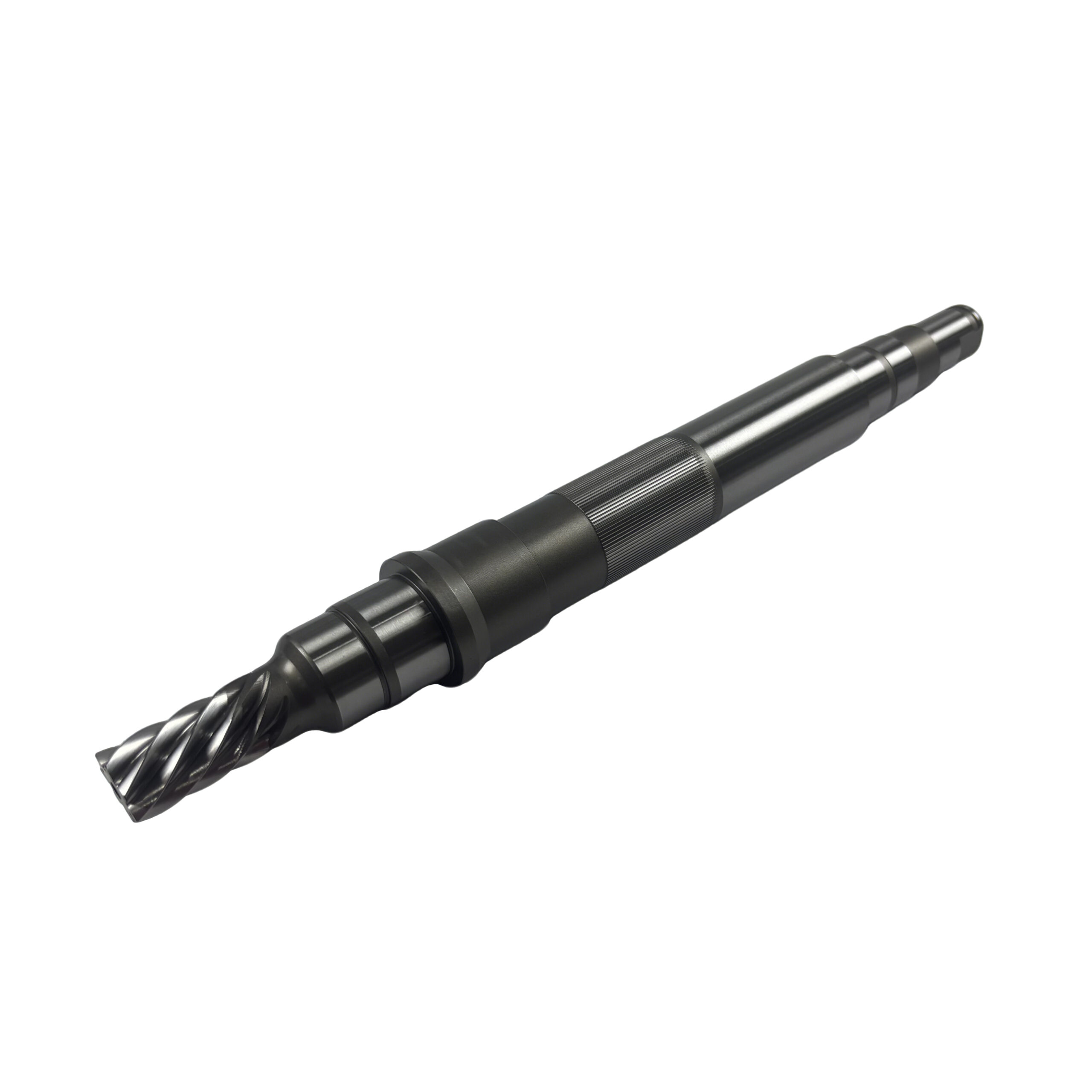

RJ-038-C Gear Shaft for Reducer, 20CrMo, module 1.75, 7 teeth 28° LH, with keyway, finished by fine hobbing and multiple grinding.
Description
Model: RJ-038-C (J80676237 (CMS MR150G) Gear Shaft)
This is a precision gear shaft for reducers, made of 20CrMo alloy steel.
Parameters: pressure angle 20°, module 1.75, 7 teeth, helix angle 28° left hand, shaft diameter 38mm, gear OD 19.12mm, total length 317.5mm, weight 1.469kg.
Process: normalizing, turning, rough grinding of clamping position, rough grinding of alignment datum, keyway machining (CNC), gear hobbing, heat treatment, shot blasting, outer diameter grinding, finish gear hobbing, outer diameter grinding, full visual inspection.
With high dimensional accuracy, good tooth surface strength and stable transmission, suitable for reducer drive mechanism.
Additional information
| weight |
1.469 |
|---|---|
| Core Components |
gear |
| Craftsmanship |
Hobbing |
