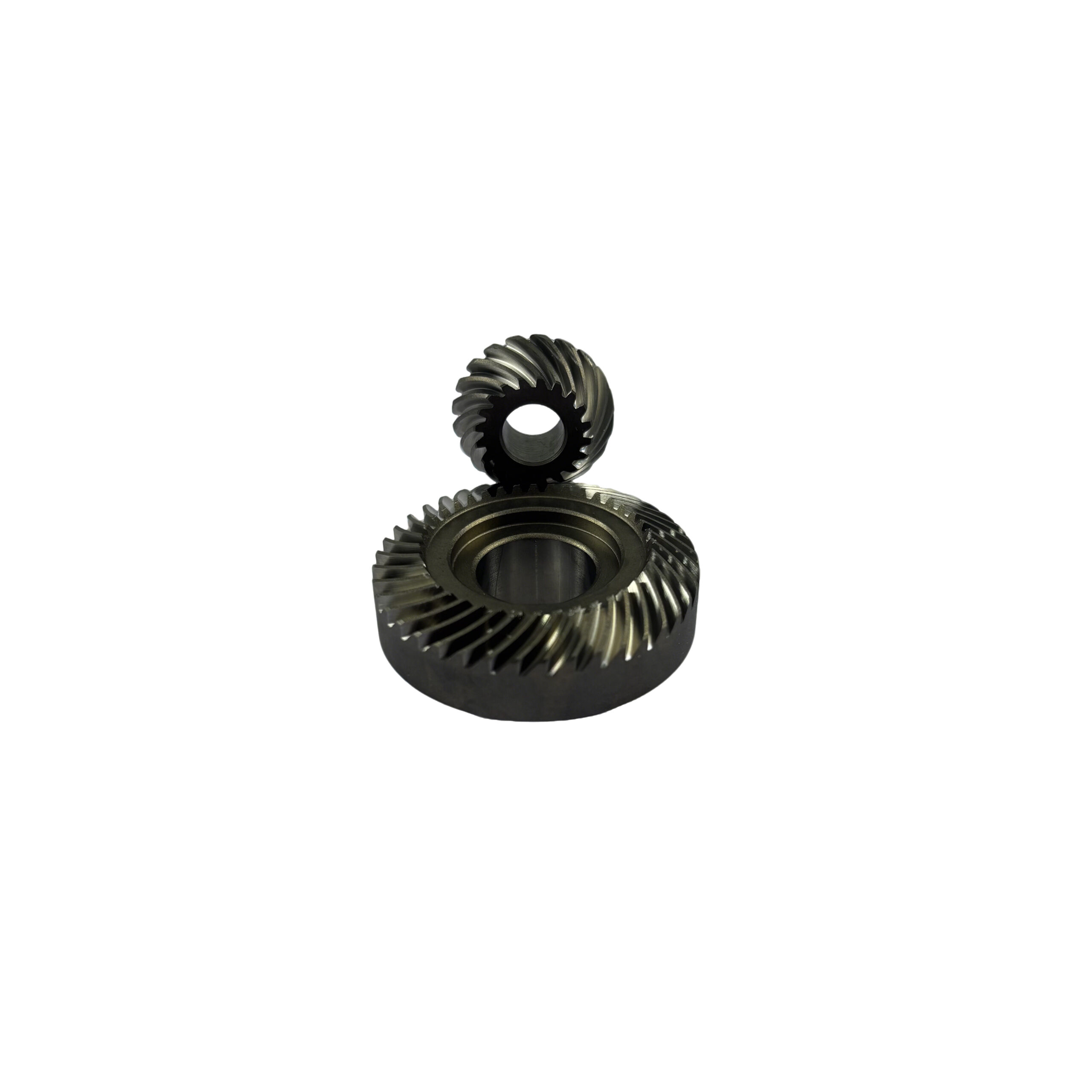

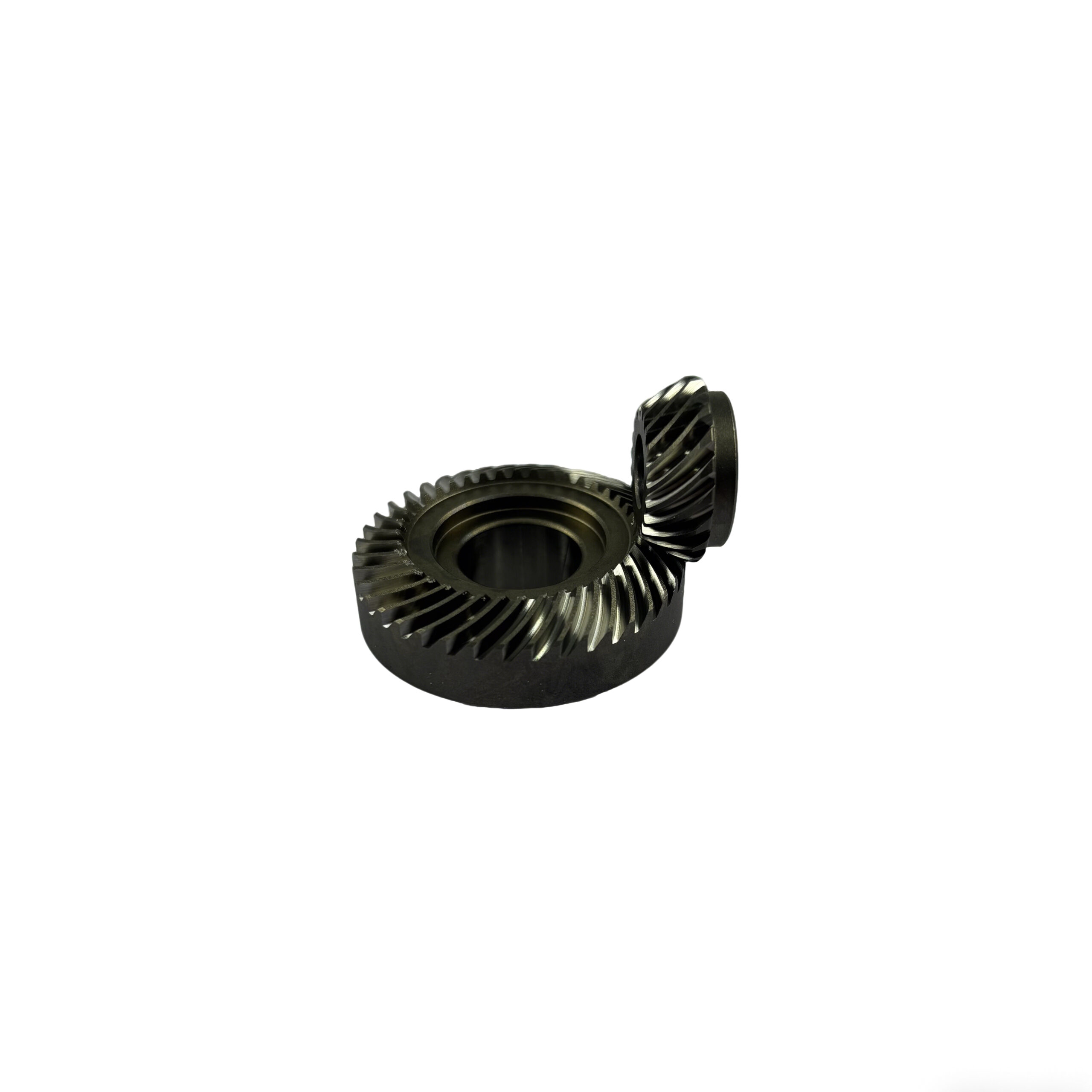

ABR060002-20 Small Spiral Bevel Gear and ABR060002-21 Large Spiral Bevel Gear
$12.22piece
RD-015-C (ABR060002-20)
Small left-hand spiral bevel gear. Parameters: pressure angle 20°, module 1, 20 teeth, gear ratio 2, spiral angle 35°(L). Inner diameter 8 mm, outer gear diameter 21.5 mm, overall length 9.9 mm, weight 0.0159 kg. Manufactured from 20CrMnTi via precision machining, suitable for speed reducers.
RD-016-C (ABR060002-21)
Large right-hand spiral bevel gear. Parameters: pressure angle 20°, module 1, 40 teeth, gear ratio 2, spiral angle 35°(R). Inner diameter 15 mm, outer gear diameter 40.4 mm, overall length 16.7 mm, weight 0.1000 kg. Made of 20CrMnTi, applied to speed reducer transmission.
Description

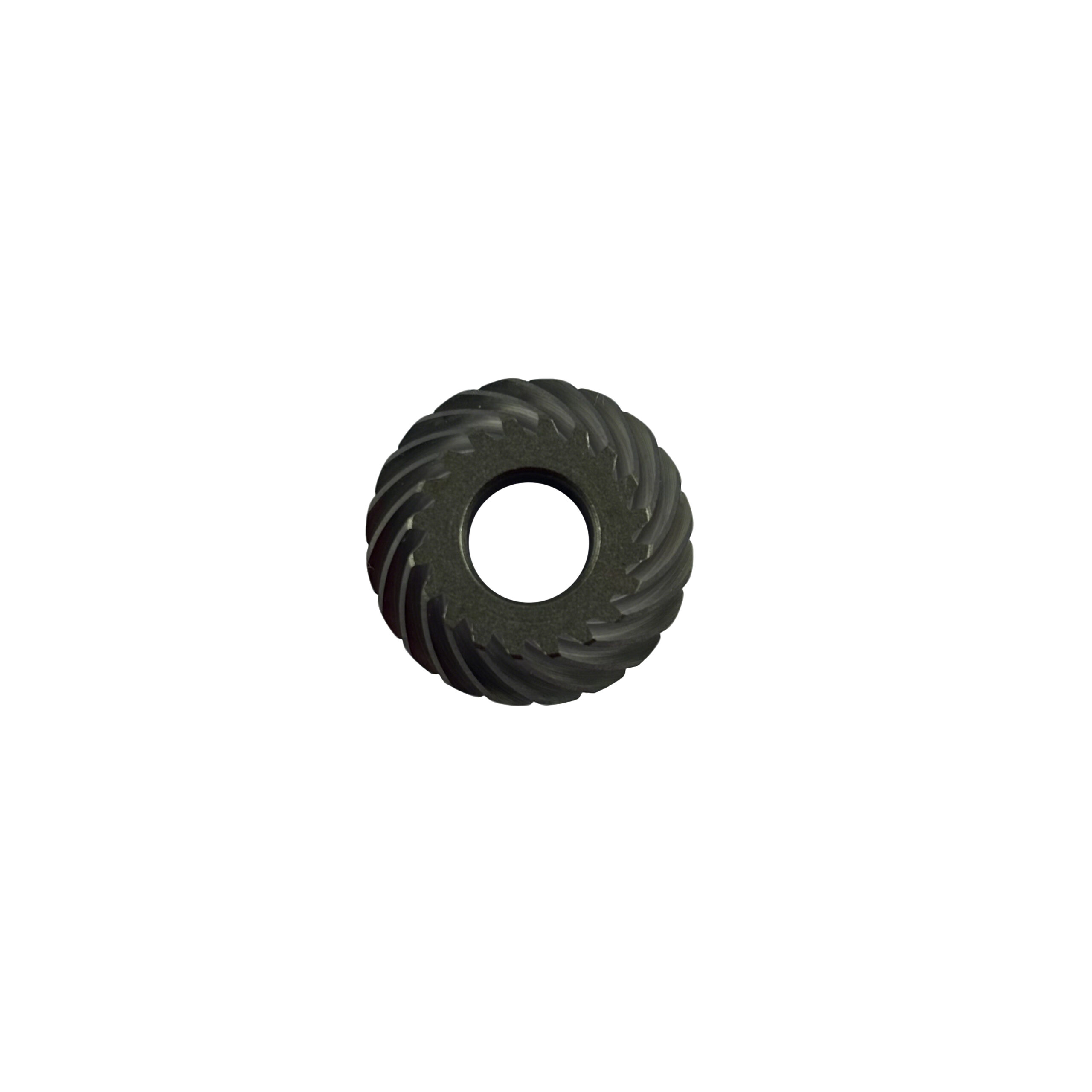

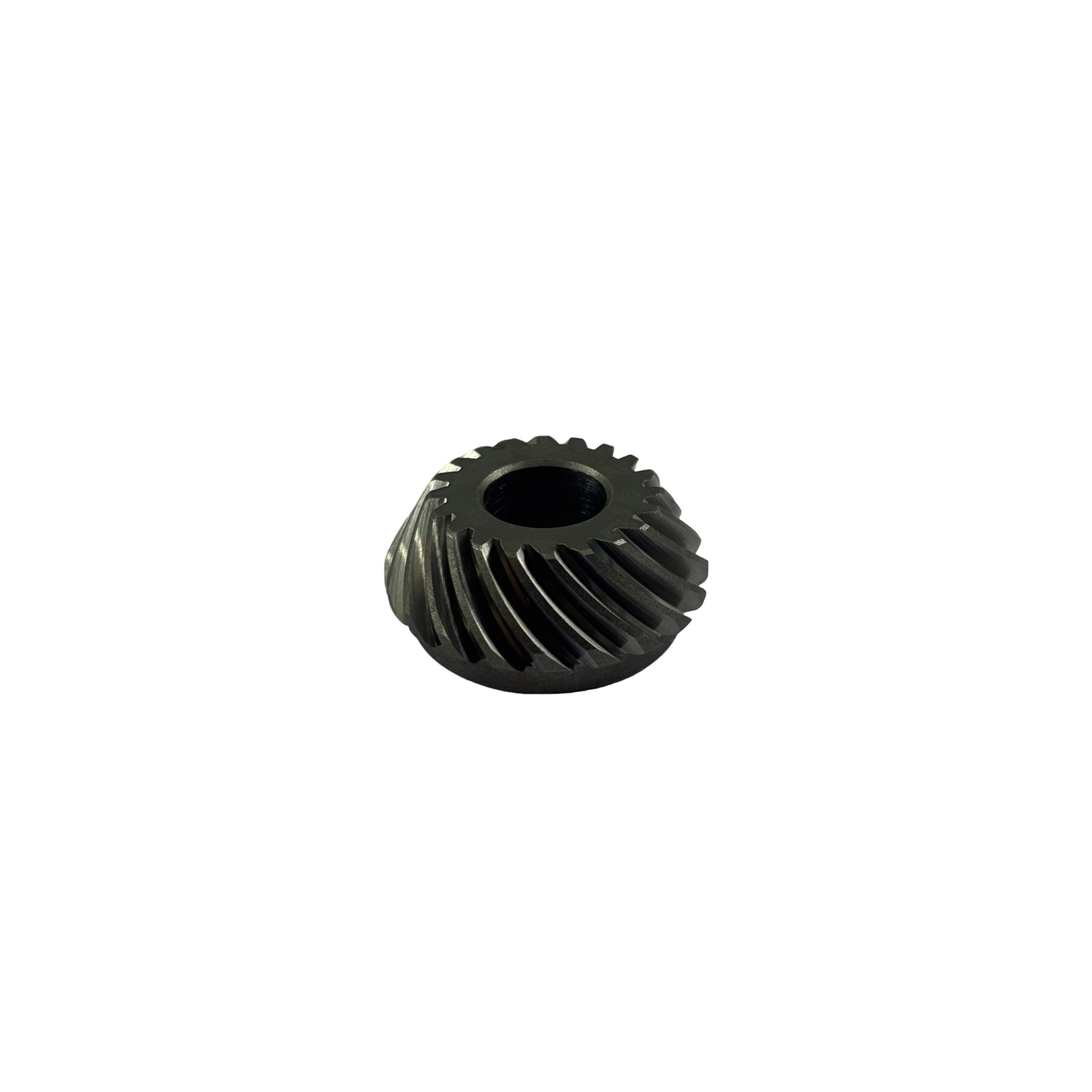

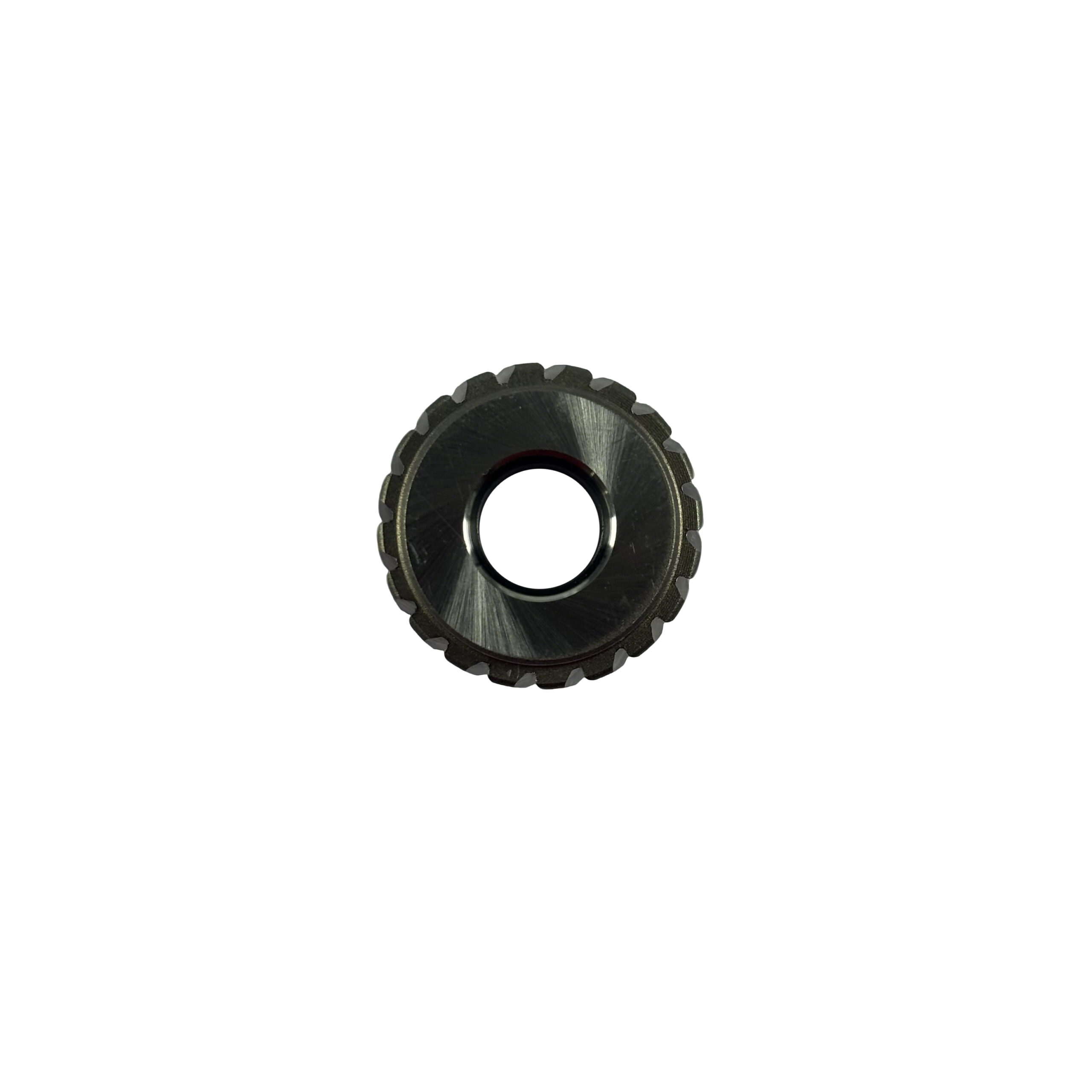

RD-015-C (ABR060002-20 Small Spiral Bevel Gear)
Model RD-015-C is a small left-hand spiral bevel gear. It has a pressure angle of 20°, module 1, 20 teeth and a gear ratio of 2, with a left-hand spiral angle of 35°. The inner diameter is 8 mm, outer gear diameter 21.5 mm, overall length 9.9 mm, and unit weight 0.0159 kg. Made of 20CrMnTi steel, it is processed through cutting, turning, gear milling, heat treatment, hanging shot blasting, boring, facing, guide circular arc chamfering and gear grinding. It features high precision and stable transmission, and is used for speed reducers.

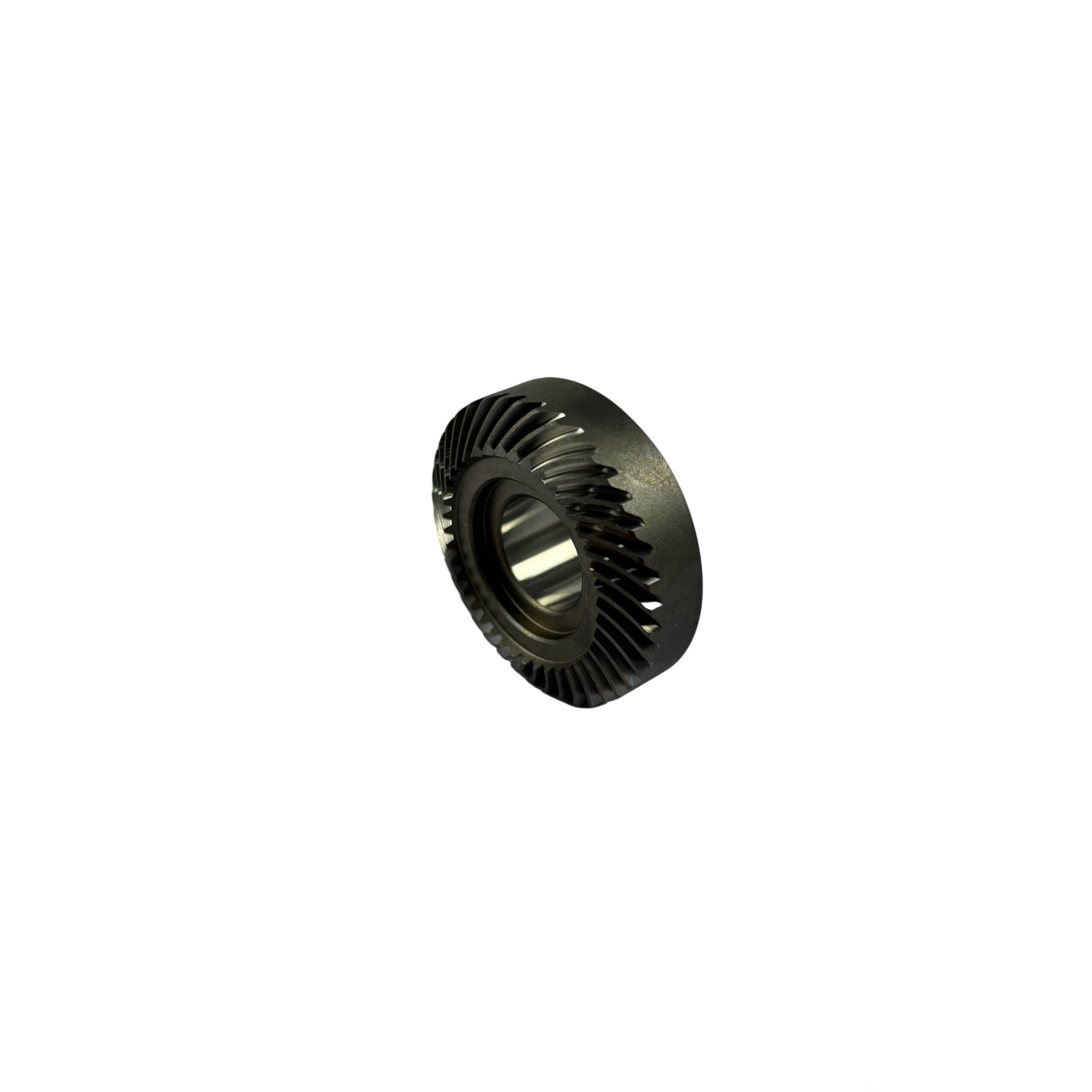

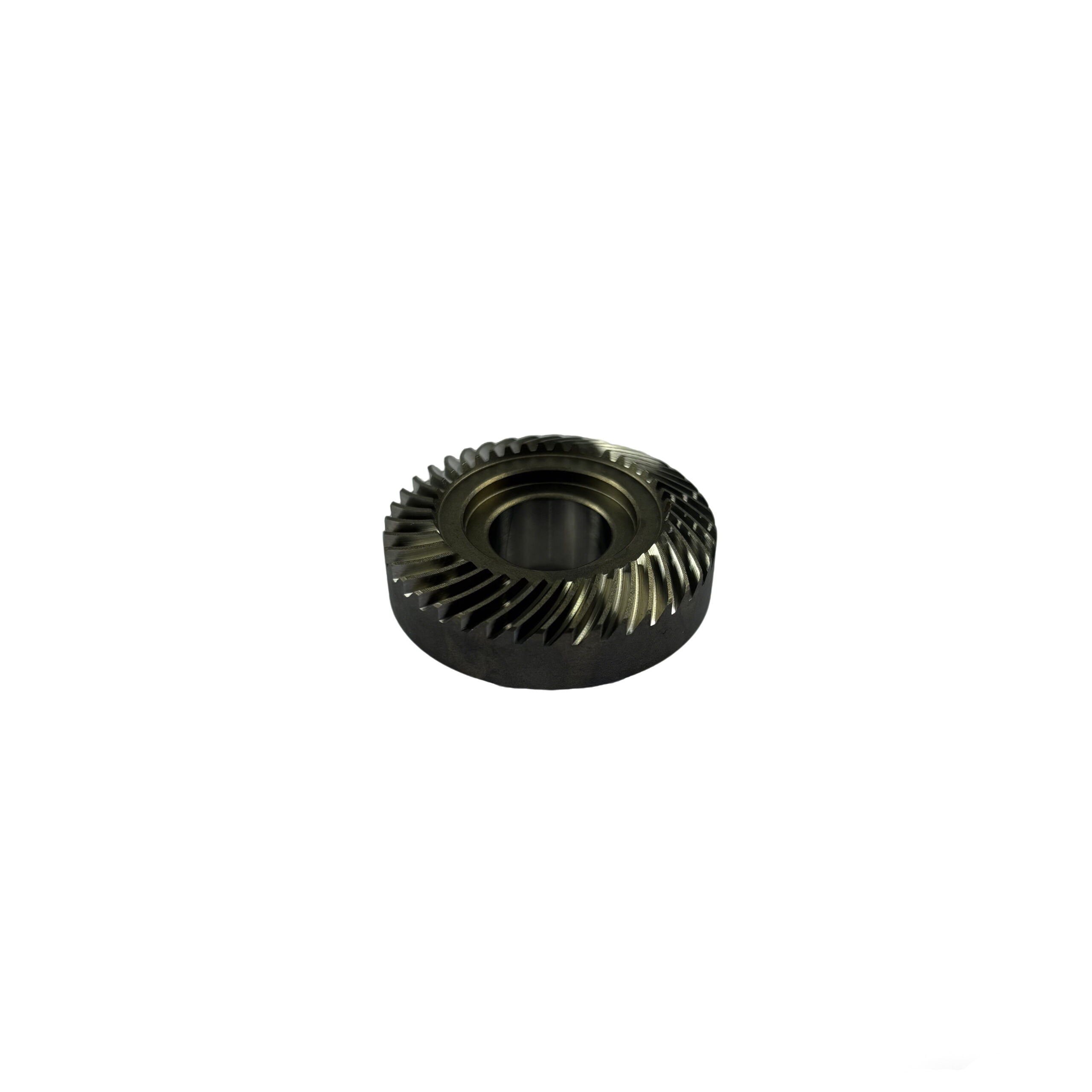

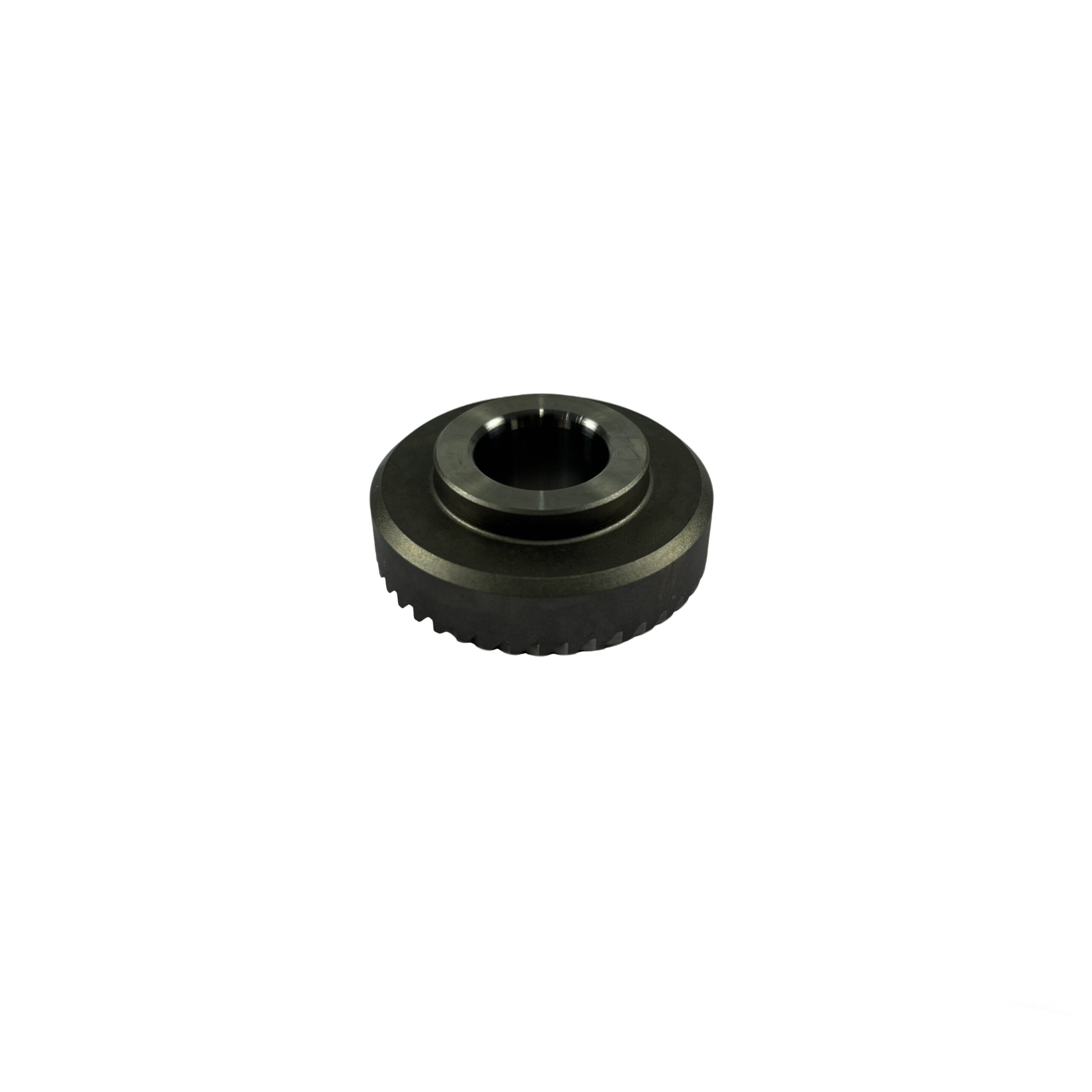

RD-016-C (ABR060002-21 Large Spiral Bevel Gear)
Model RD-016-C is a large right-hand spiral bevel gear. It has a pressure angle of 20°, module 1, 40 teeth and a gear ratio of 2, with a right-hand spiral angle of 35°. The inner diameter is 15 mm, outer gear diameter 40.4 mm, overall length 16.7 mm, and unit weight 0.1000 kg. Adopting 20CrMnTi as raw material, it undergoes complete precision machining processes. The gear is wear-resistant and operates steadily, serving as a transmission part for speed reducers.
Additional information
| RD-015-C and RD-016-C weight |
0.0159and0.1 |
|---|---|
| RD-015-C and RD-016-C Core Components |
gear |
| RD-015-C and RD-016-C Craftsmanship |
Milling |
