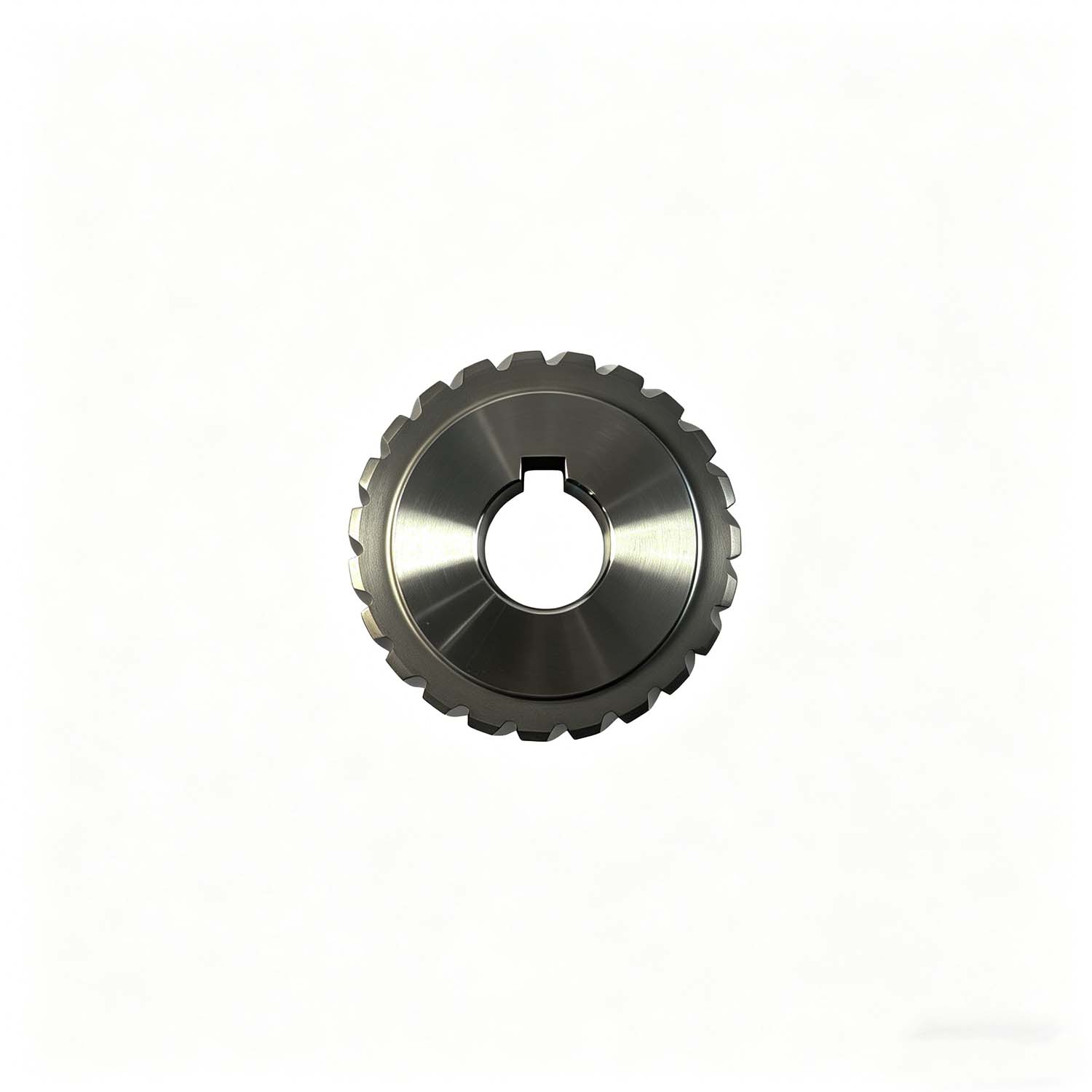

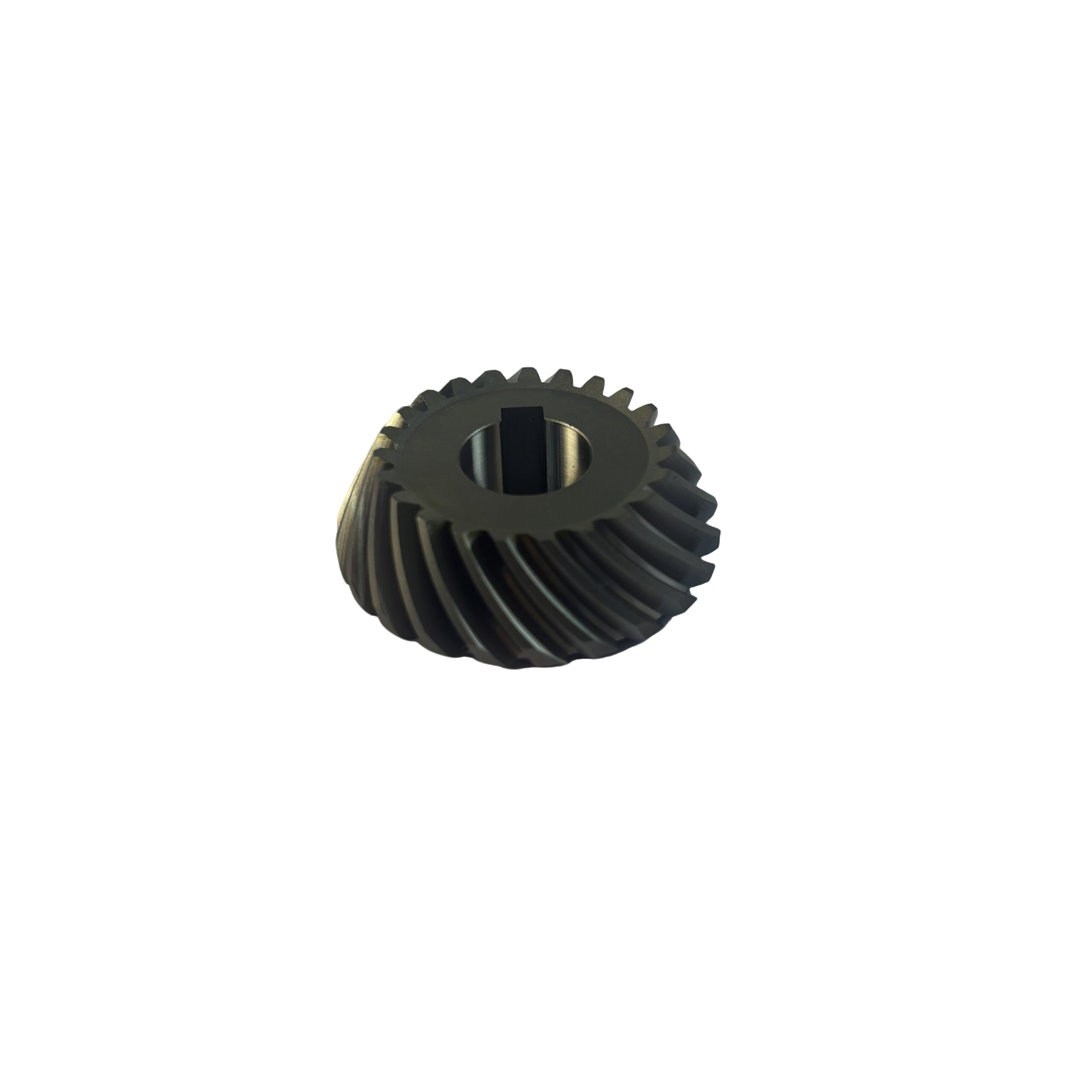

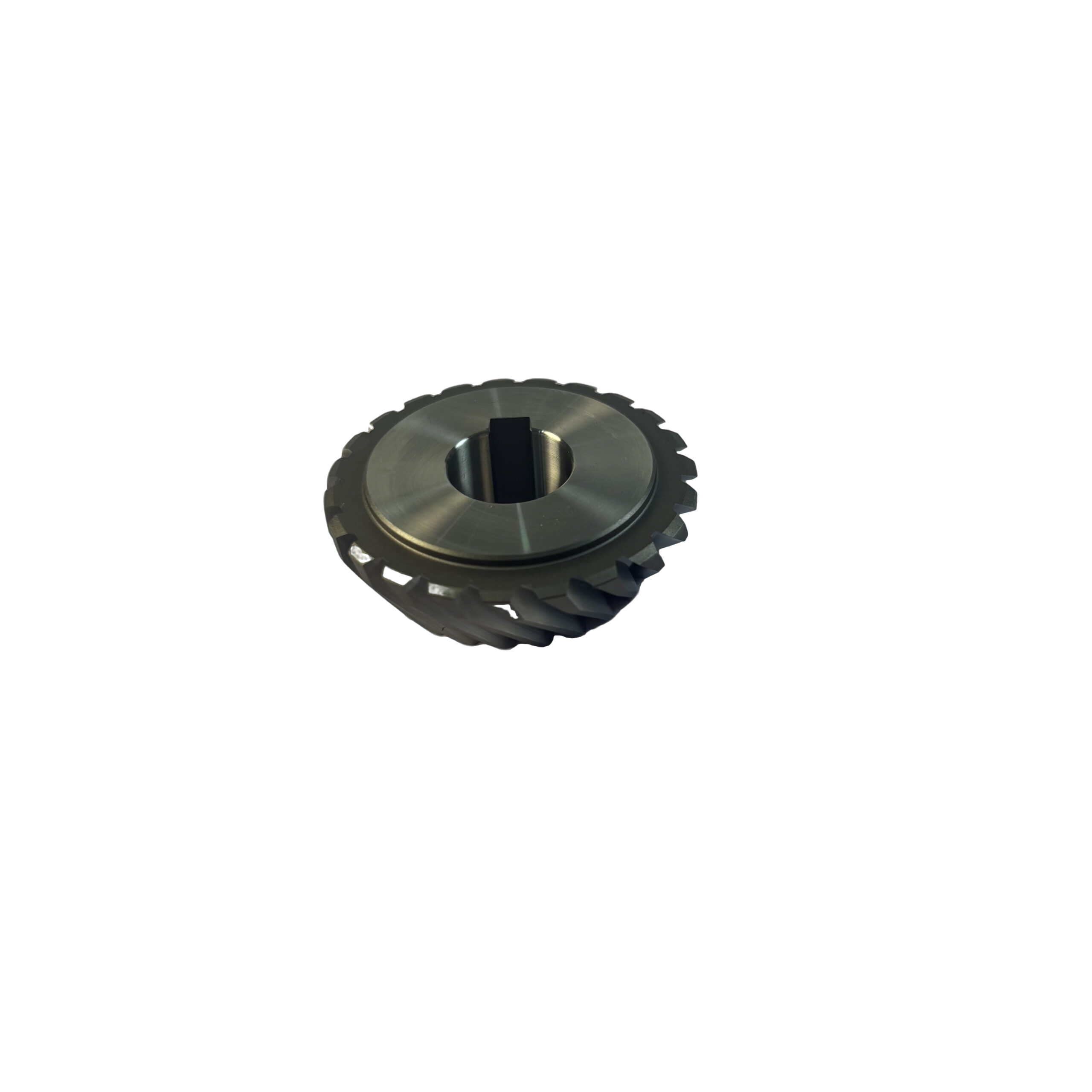

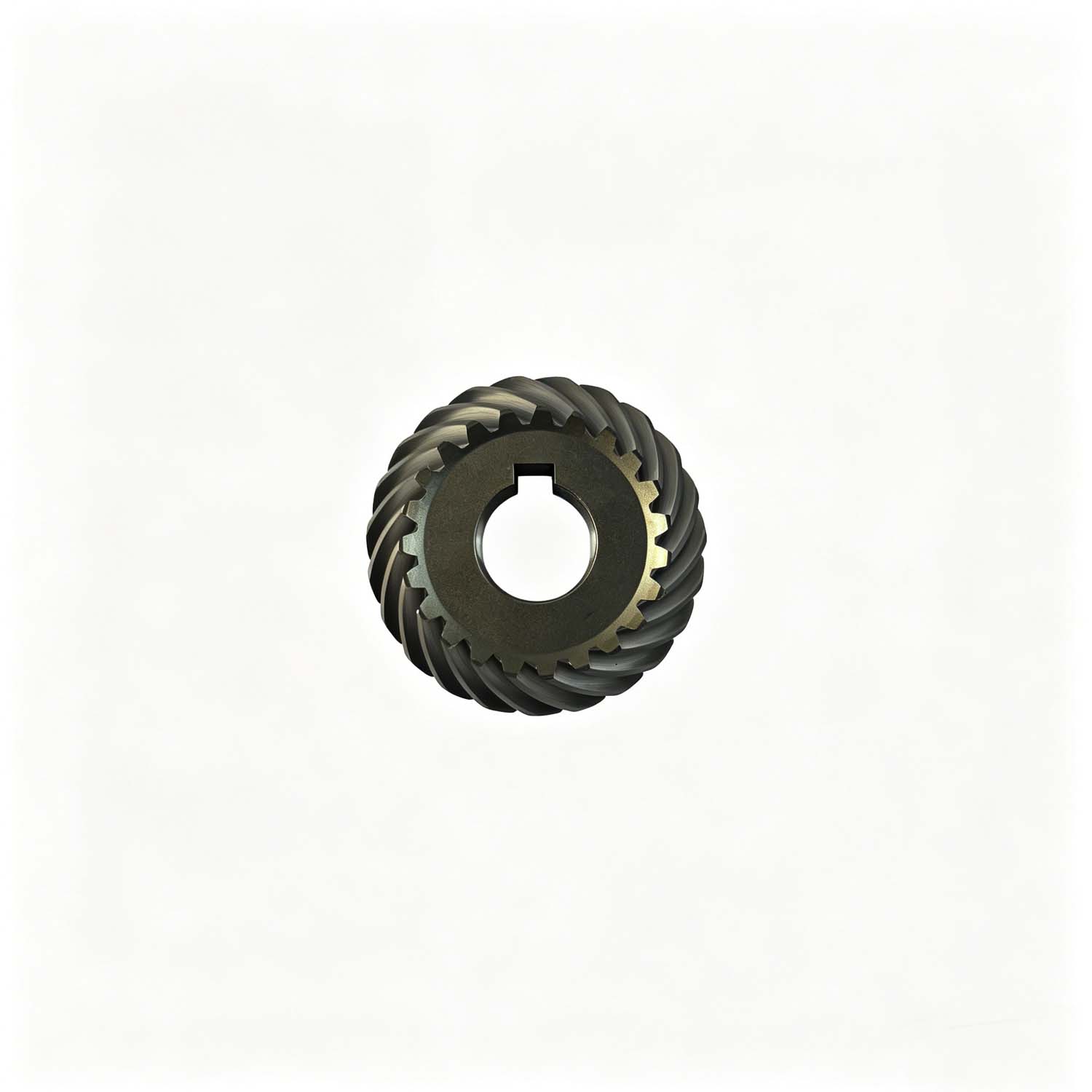

ABR115002-20 Small Spiral Bevel Gear
$10.22piece
RD-011-C (ABR115002-20)
Small left-hand spiral bevel gear. Parameters: pressure angle 20°, module 1.9, 23 teeth, gear ratio 2, spiral angle 35°(L). Inner diameter 15 mm, outer gear diameter 45 mm, overall length 15 mm, weight 0.1080 kg. Manufactured from 20CrMnTi via precision machining, suitable for speed reducers.
Description
RD-011-C (ABR115002-20 Small Spiral Bevel Gear)
Model RD-011-C is a small left-hand spiral bevel gear. It has a pressure angle of 20°, module 1.9, 23 teeth and a gear ratio of 2, with a left-hand spiral angle of 35°. The inner diameter is 15 mm, outer gear diameter 45 mm, overall length 15 mm, and unit weight 0.1080 kg. Made of 20CrMnTi steel, it is processed through cutting, turning, gear milling, heat treatment, hanging shot blasting, boring, facing, guide circular arc chamfering and gear grinding. Featuring high dimensional accuracy and stable transmission, it is used as a gear for speed reducers.
Additional information
| RD-011-C weight |
0.1080 |
|---|---|
| RD-011-C Core Components |
gear |
| RD-011-C Craftsmanship |
Milling |
