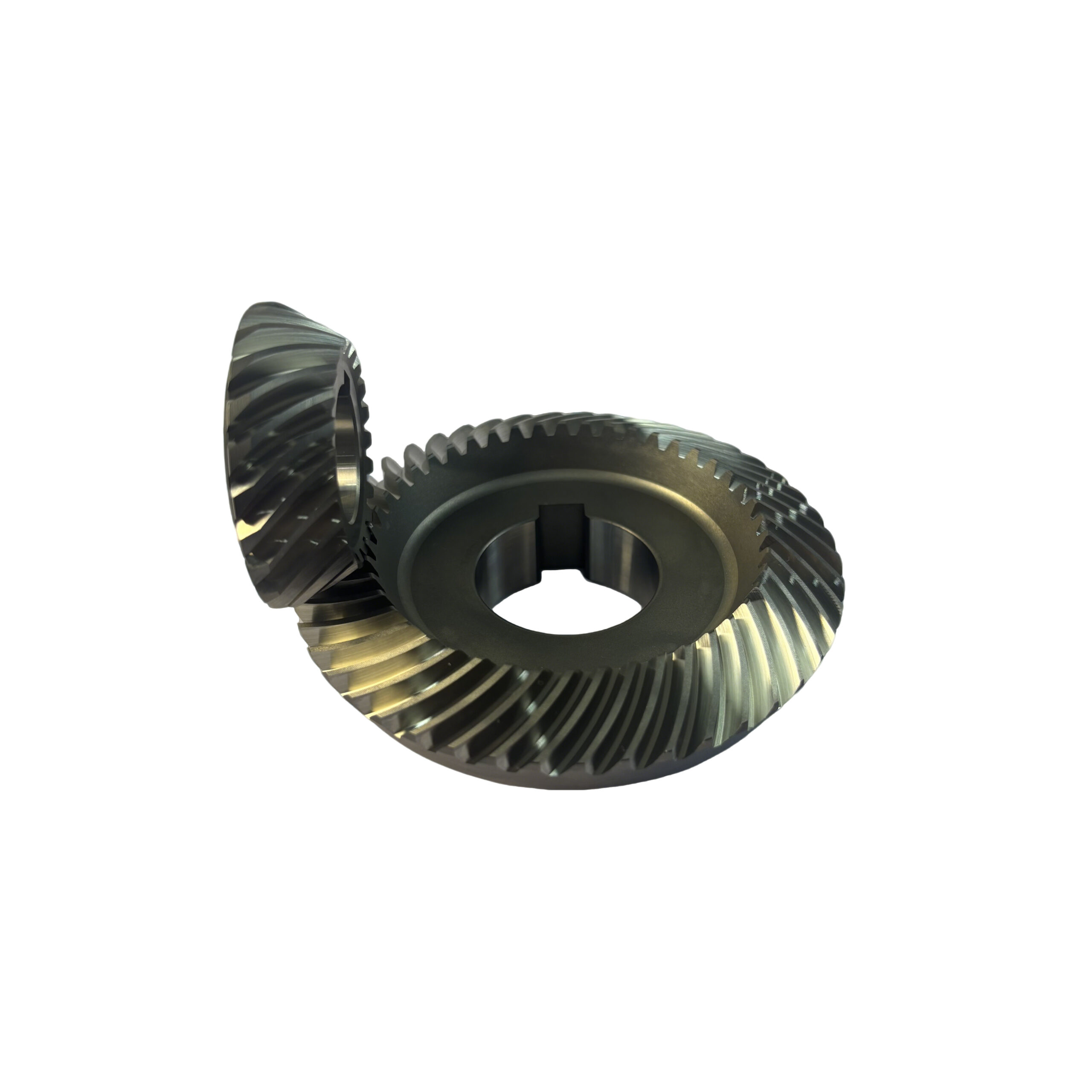

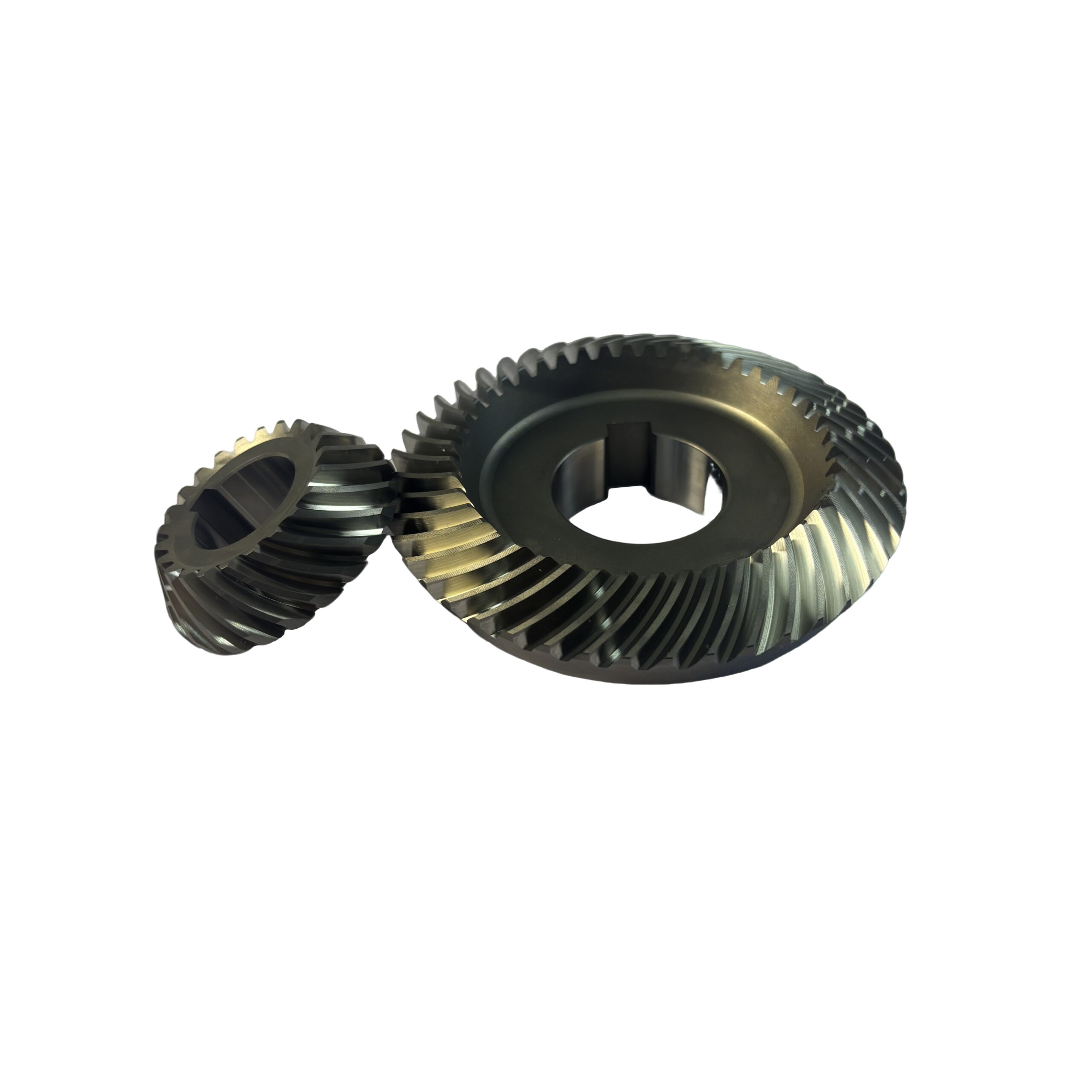

ABR115002-20XK Small Spiral Bevel Gear and ABR115002-21 Large Spiral Bevel Gear
$20.40piece
RD-011-C1 (ABR115002-20XK)
Small left-hand spiral bevel gear. Parameters: pressure angle 20°, module 1.9, 23 teeth, gear ratio 2, spiral angle 35°(L). Inner diameter 20 mm, outer gear diameter 45 mm, overall length 15 mm, weight 0.1080 kg. Produced from 20CrMnTi via precision machining, suitable for speed reducers.
RD-012-C (ABR115002-21)
Large right-hand spiral bevel gear. Parameters: pressure angle 20°, module 1.9, 46 teeth, gear ratio 2, spiral angle 35°(R). Inner diameter 30 mm, outer gear diameter 87 mm, overall length 24 mm, weight 0.4654 kg. Made of 20CrMnTi with fine machining, for speed reducer assembly.
Description

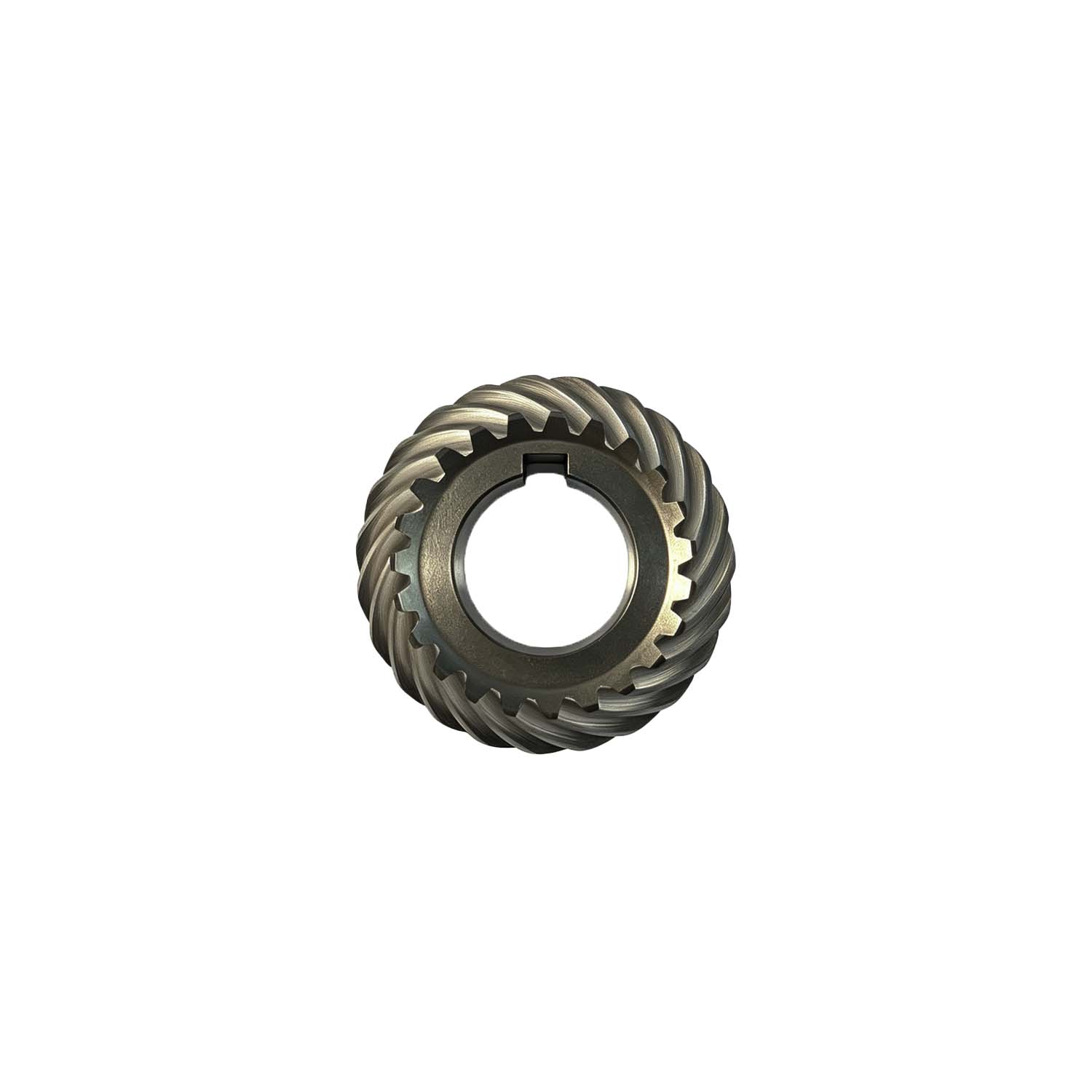

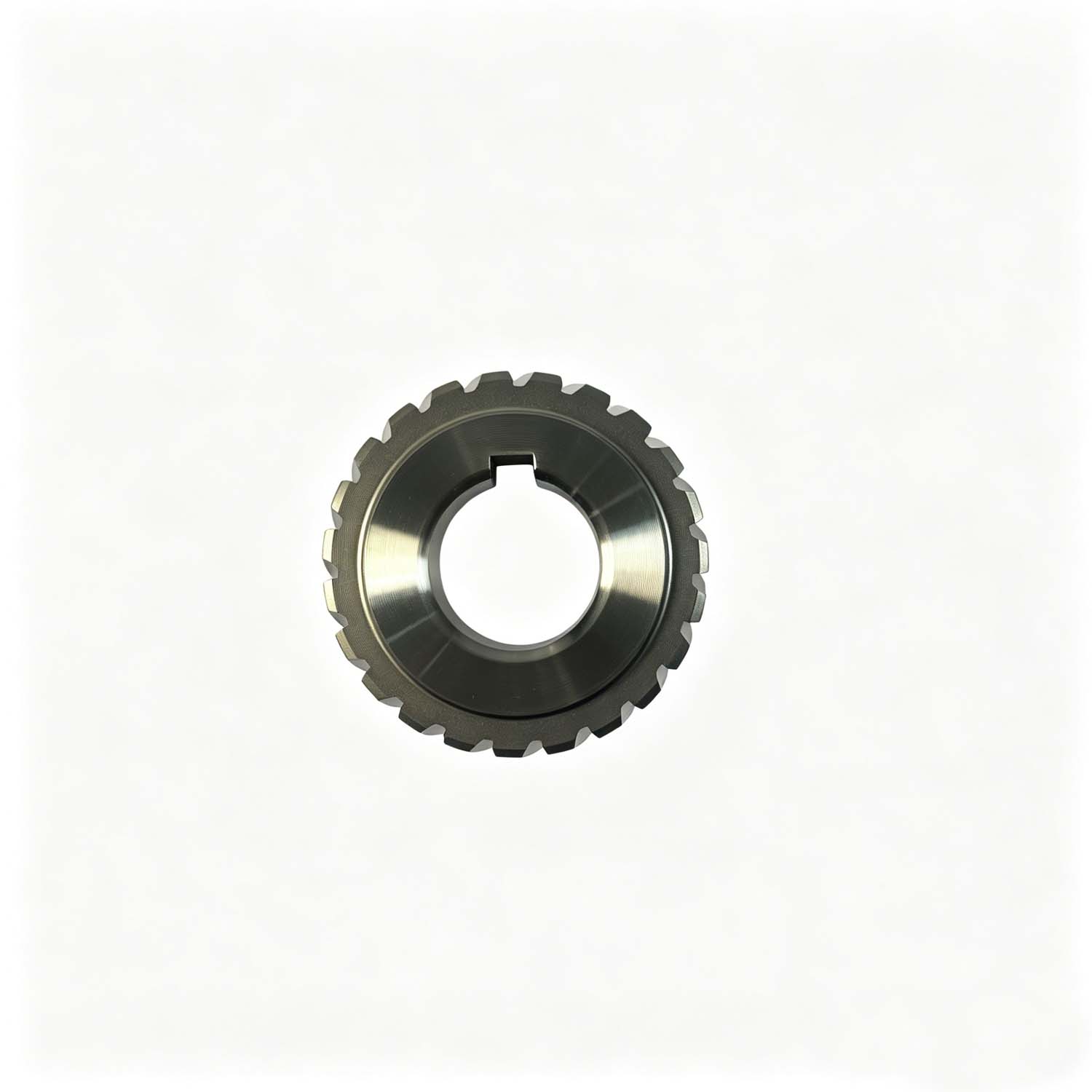

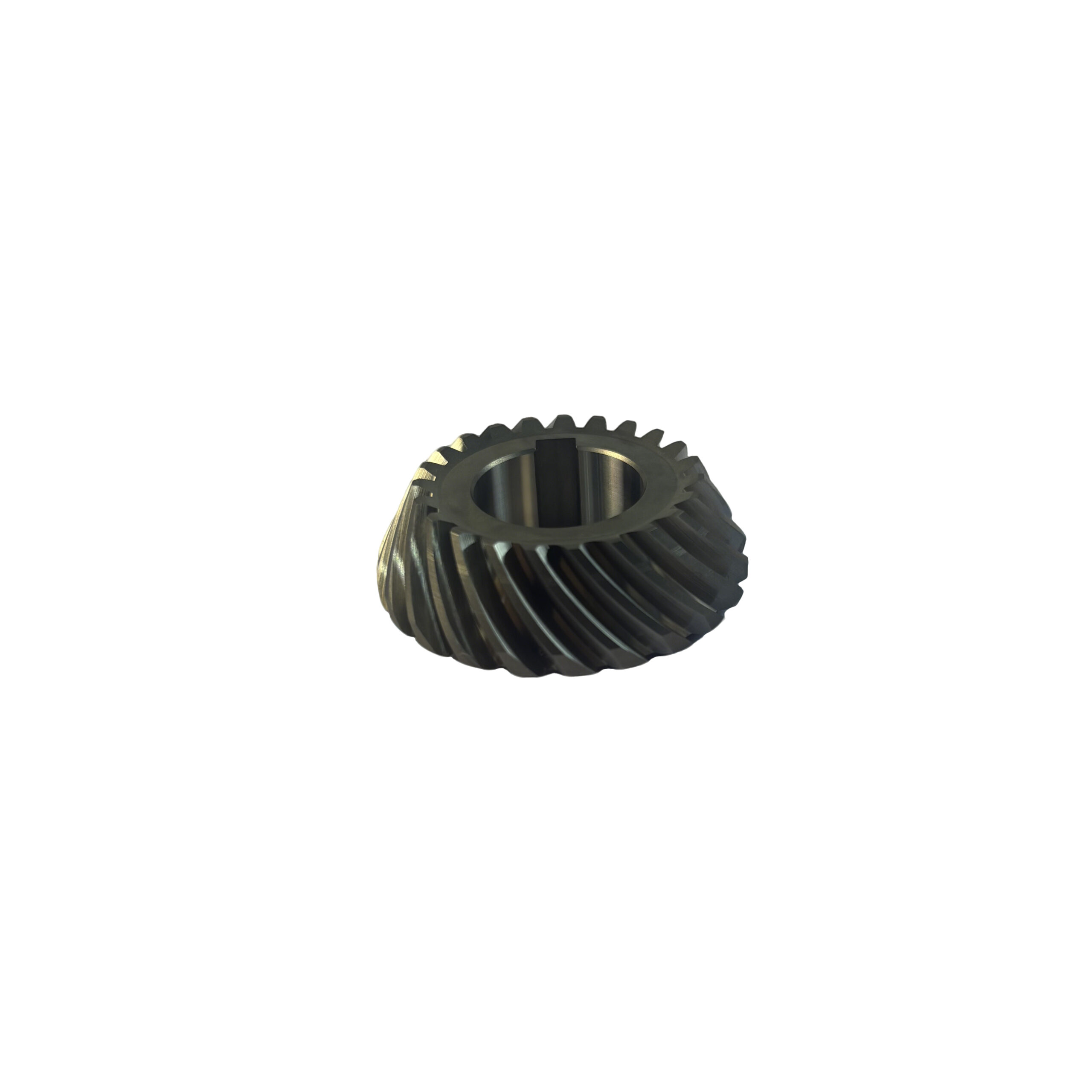

RD-011-C1 (ABR115002-20XK Small Spiral Bevel Gear)
Model RD-011-C1 is a small left-hand spiral bevel gear. It features a pressure angle of 20°, module 1.9, 23 teeth and a gear ratio of 2, with a left-hand spiral angle of 35°. The inner diameter is 20 mm, outer gear diameter 45 mm, overall length 15 mm, and unit weight 0.1080 kg. Made of 20CrMnTi steel, it is processed through cutting, turning, gear milling, heat treatment, hanging shot blasting, boring, facing, guide circular arc chamfering and gear grinding. With high precision and stable transmission performance, it is applied to speed reducers.

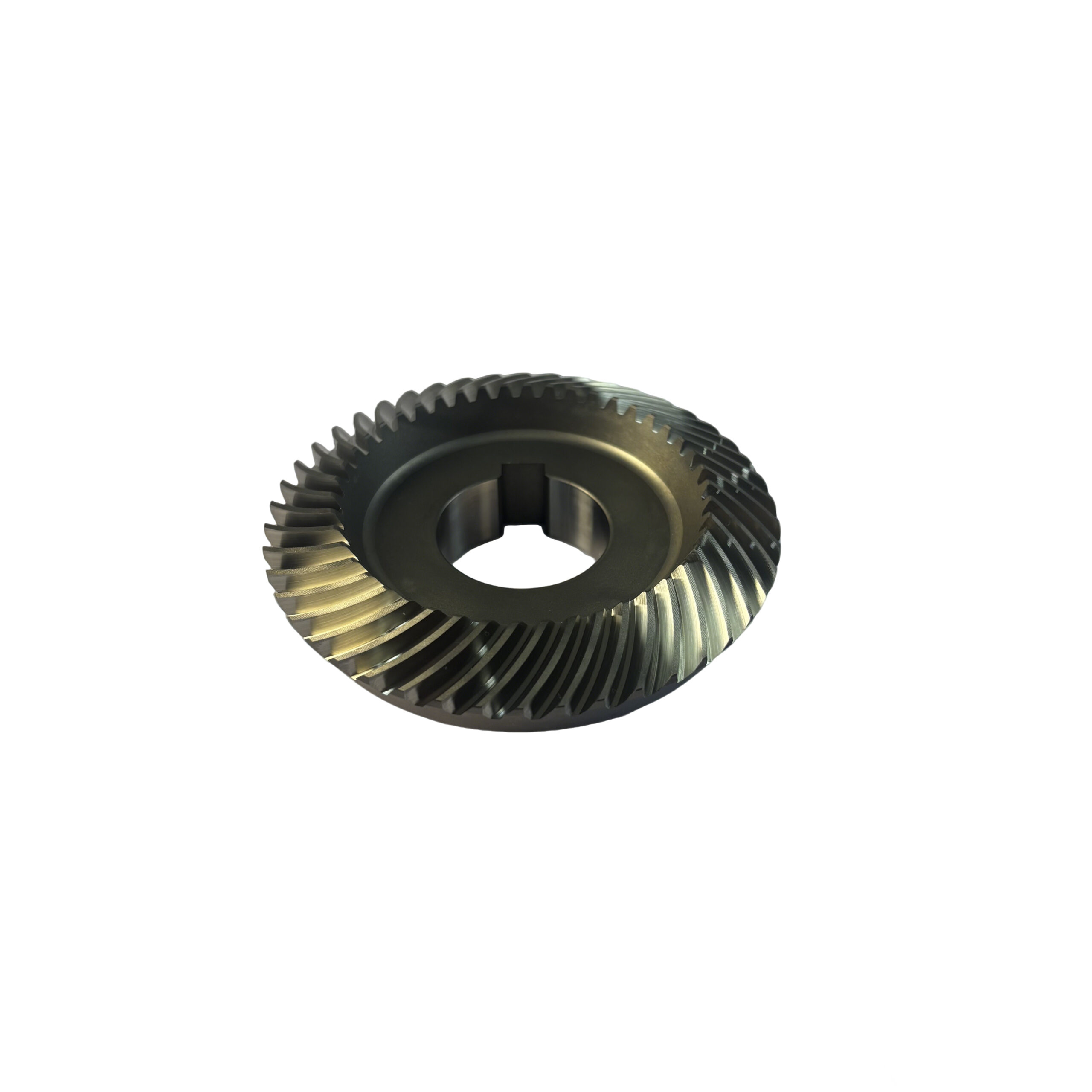

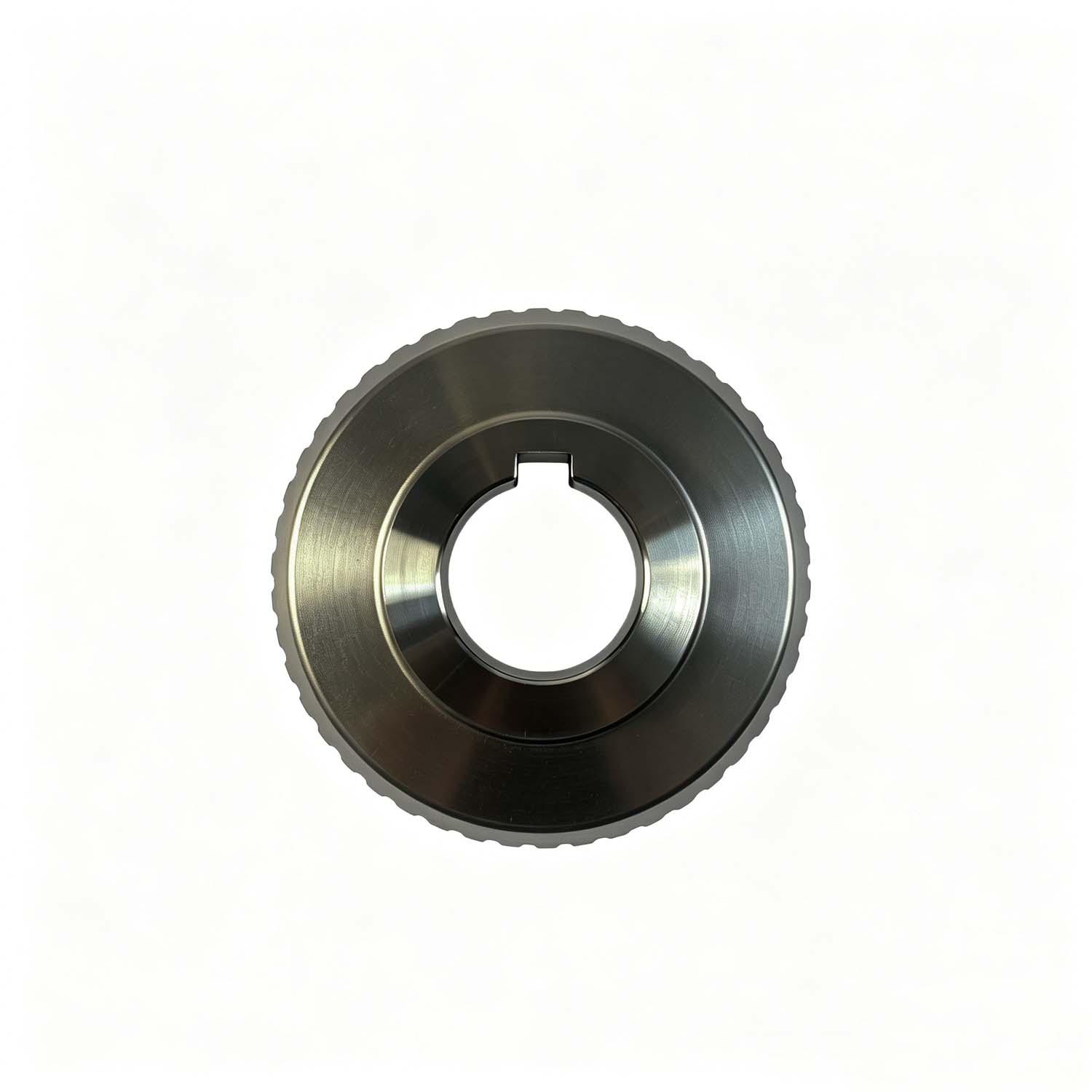

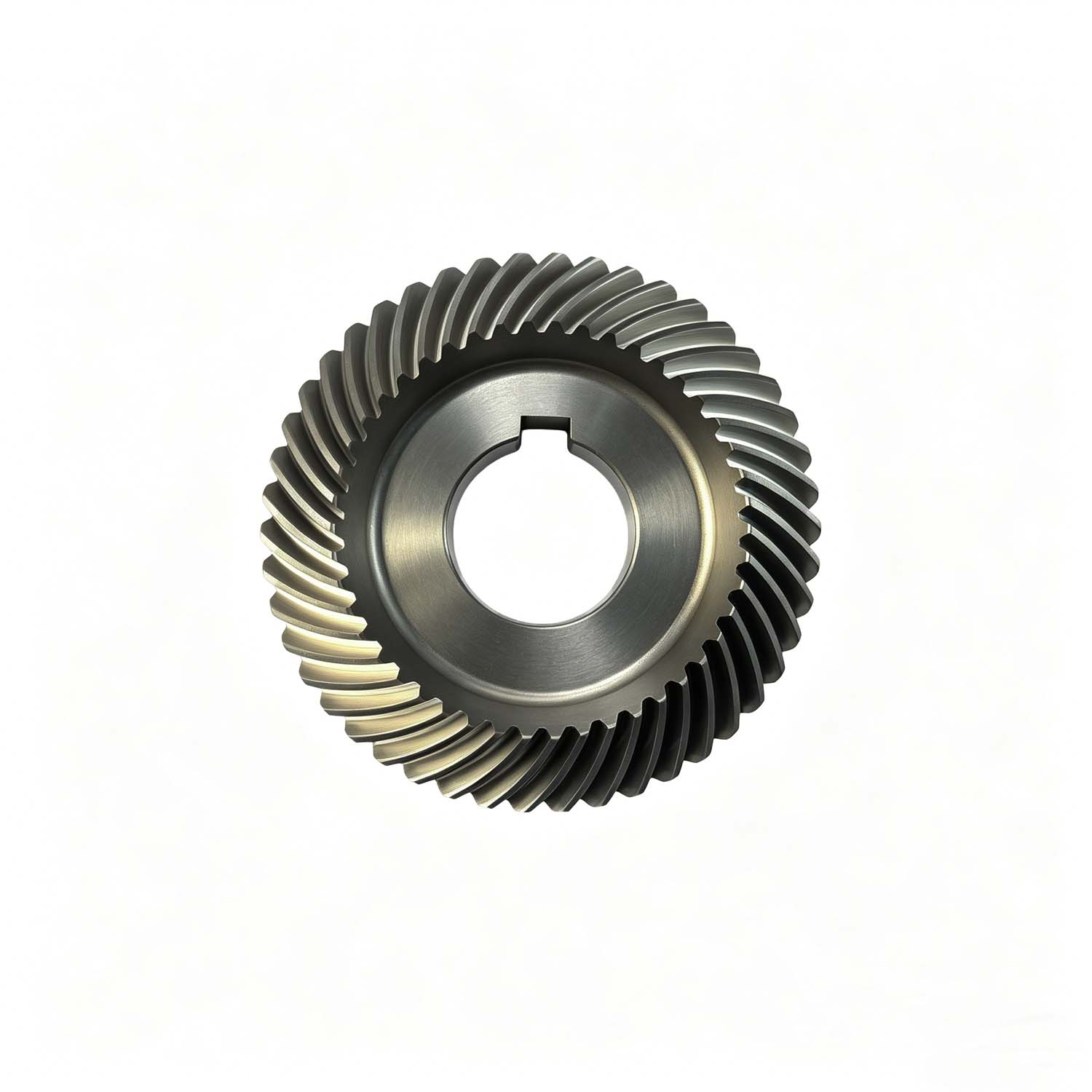

RD-012-C (ABR115002-21 Large Spiral Bevel Gear)
Model RD-012-C is a large right-hand spiral bevel gear. It has a pressure angle of 20°, module 1.9, 46 teeth and a gear ratio of 2, with a right-hand spiral angle of 35°. The inner diameter is 30 mm, outer gear diameter 87 mm, overall length 24 mm, and unit weight 0.4654 kg. Manufactured from 20CrMnTi, it undergoes cutting, turning, gear milling, heat treatment, hanging shot blasting, boring, facing, guide circular arc chamfering and gear grinding. This gear boasts reliable structure and strong load capacity, and serves as a matching part for speed reducers.
Additional information
| RD-011-C1 and RD-012-C weight |
0.108 and 0.4654 |
|---|---|
| RD-011-C1 and RD-012-C Core Components |
gear |
| RD-011-C1 and RD-012-C Craftsmanship |
Milling |
