80501102328 (Gear 45×2.3)
$78.43piece

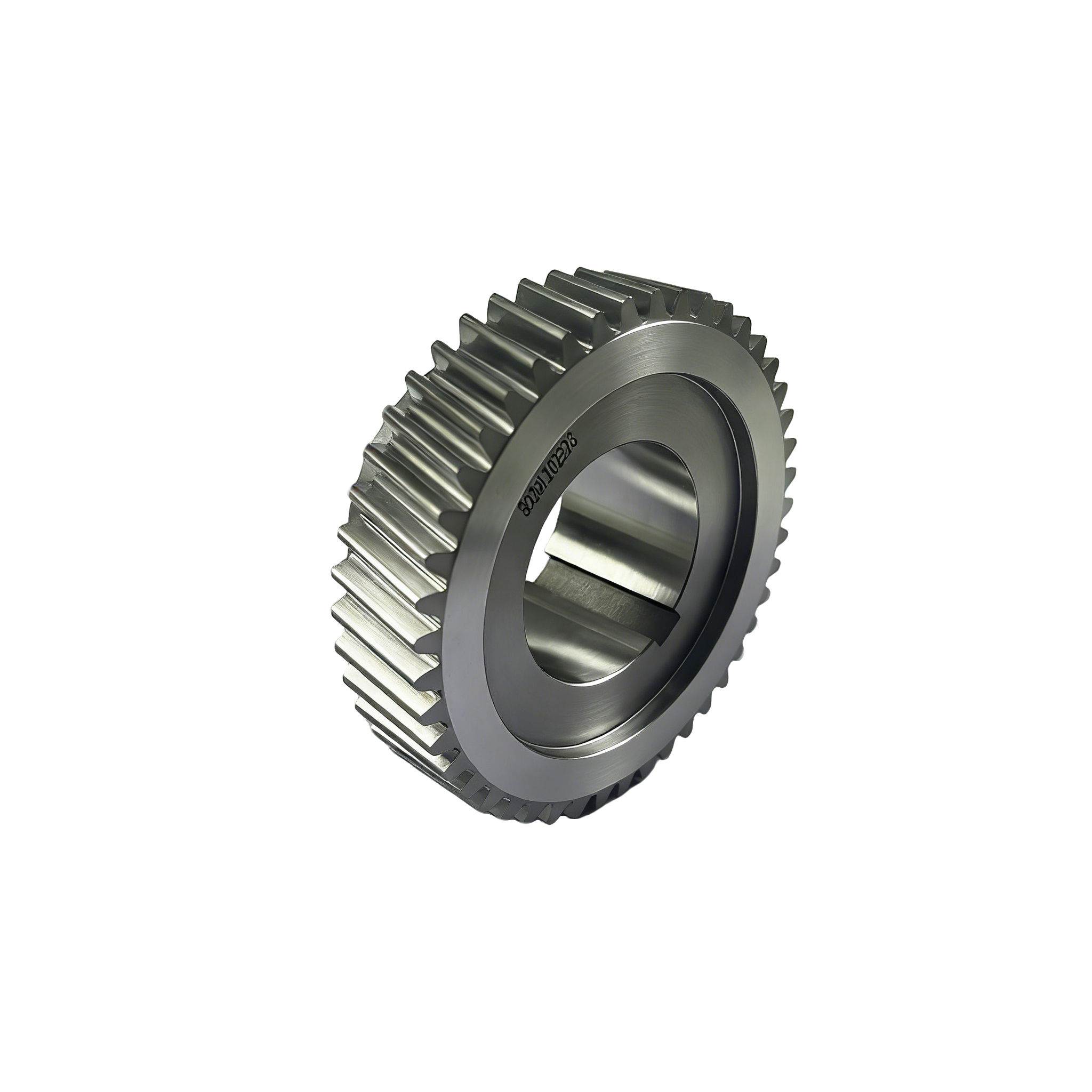

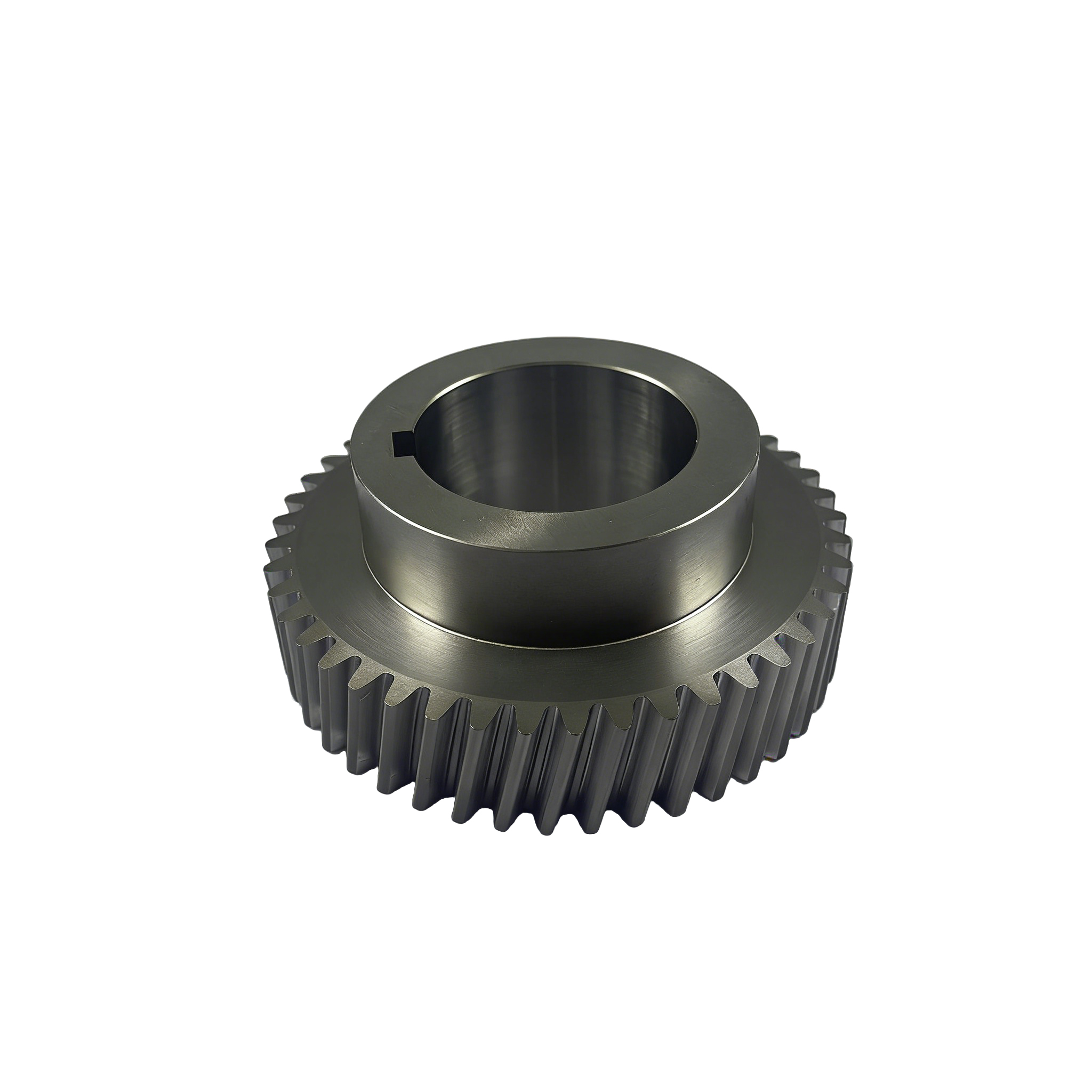

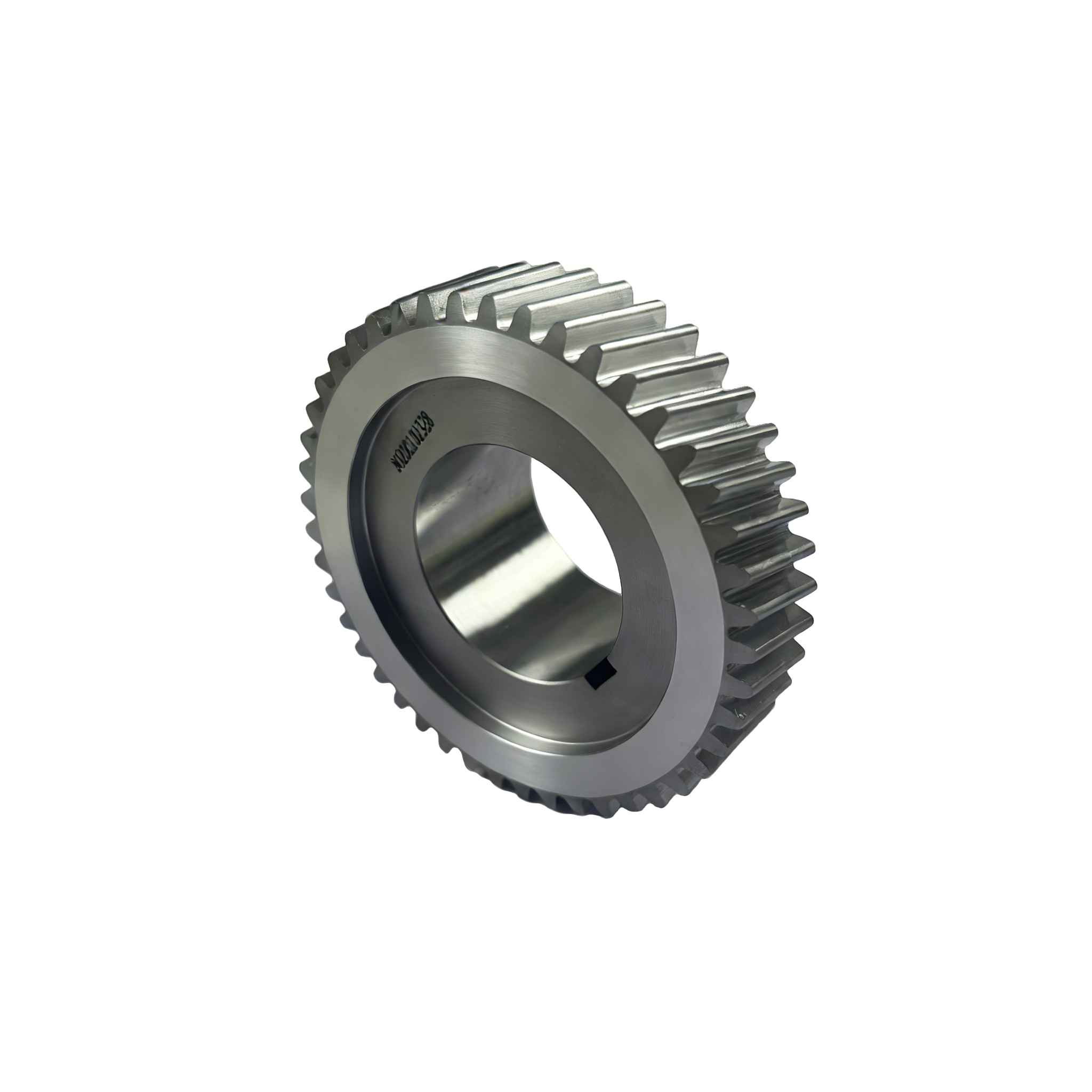

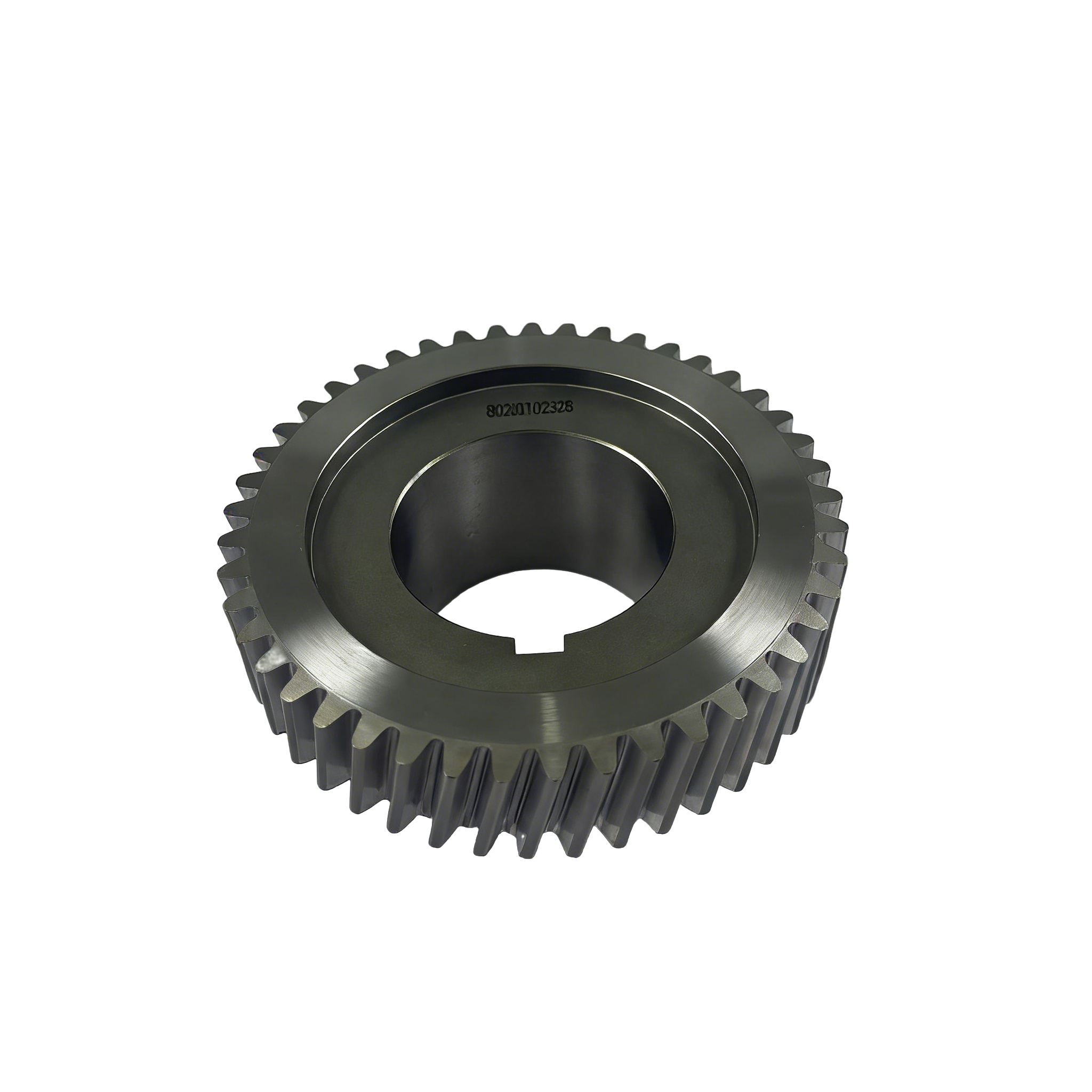

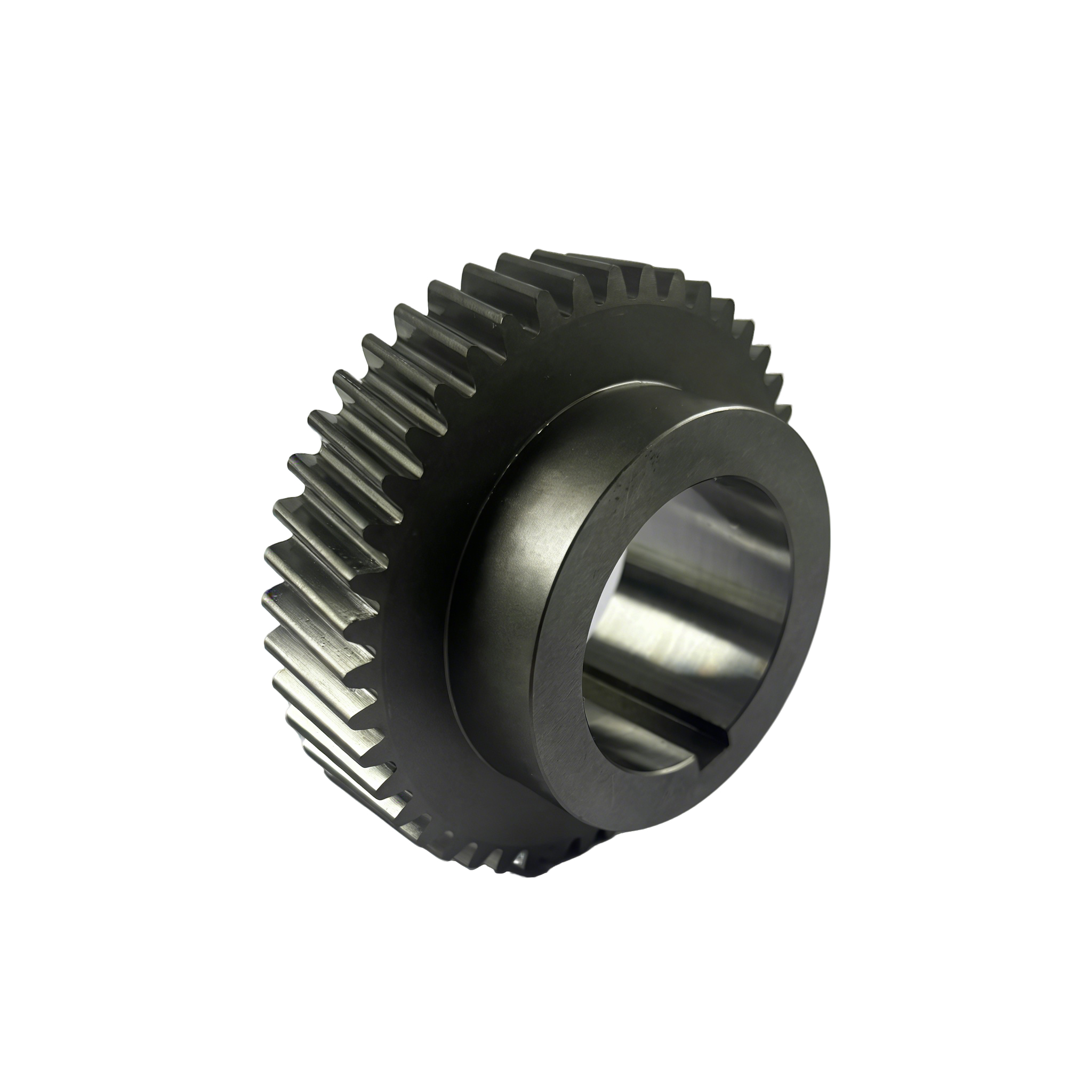

SPKJ-034-C helical gear, module 2.3, 45 teeth, 12° right-hand helix, made of 20CrMnTi for speed reducers.
描述
SPKJ-034-C (Model 80501102328, Gear 45×2.3) is a helical gear for reducers, with pressure angle 20°, module 2.3, 45 teeth, 12° right-hand helix angle, gear outer diameter 108.264 mm, total length 44.8 mm, weight 1.447 kg. Made of 20CrMnTi through precision processes including sawing, turning, rough hobbing, heat treatment, shot blasting, boring & facing, total length grinding, gear grinding, wire-cut keyway and marking. It is mainly used as a transmission part in reducers.
其他信息
| weight |
1.447 |
|---|---|
| Core Components |
gear |
| Craftsmanship |
Hobbing |
用户评价 (0)
Shipping & Delivery
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
相关产品
2020909 PINION GEAR
Model 2020909 helical gear is made of 20CrMo, refined through multiple processes including normalizing, hobbing and heat treatment. It has a pressure angle of 20°, module of 0.75, 7 teeth, shaft diameter of 8mm, tooth outer diameter of 7.3mm and weight of 0.0227kg, serving as a dedicated transmission component for power tools.
2024351 Finished Product
The 2024351 finished helical gear (dedicated for power tools) has a pressure angle of 20°, module of 1.25, 41 teeth and helix angle of 5°/R. With an inner diameter of 16mm, outer diameter of 53.45mm, total length of 10mm and weight of 0.0962kg, it is made of 20CrMnTi material through precision processes including normalizing, hobbing and heat treatment, featuring stable transmission, wear resistance and impact resistance.
2024421(2024524)
The 2024421 (2024524) helical gear (dedicated for power tools) has a pressure angle of 20°, module of 1.25, 51 teeth and helix angle of 20°/L. With an inner diameter of 14mm, outer diameter of 69.5mm, total length of 10.5mm and weight of 0.1747kg, it is made of 20CrMo material through precision processes including normalizing, hobbing, heat treatment and boring. It is characterized by high torque resistance, stable transmission and long service life.
531.06-78 45° Helical Gear (Driven) and 531.06-77 45° Helical Gear (Driving)
531.06-78 Driven Helical Gear and 531.06-77 Driving Helical Gear are 45° helical gears made of 20CrMo, with a pressure angle of 20°, a module of 1 and 18 teeth. Processed via multiple precision procedures, they realize precise meshing and stable transmission, and are suitable for the transmission system of sewing equipment.
D-94-172270-91 Presser Foot Lifting Gear
The D-94-172270-91 Presser Foot Lifting Gear is a helical gear made of 20CrMnTi, featuring a pressure angle of 20°, a module of 1 and 72 teeth. Processed via multiple precision procedures, it offers excellent wear resistance and corrosion protection, and is ideal for the presser foot lifting mechanism of sewing equipment with accurate and stable transmission performance.
Z-91-145220-05 Pinion
Z-91-145220-05 pinion (helical gear) is made of 20CrMo, with a pressure angle of 20°, module of 0.9769, 15 teeth and 45° left-hand helix angle. Produced via precision processes including hobbing, heat treatment and demagnetization, it has a tooth outer diameter of 22.66mm, total length of 17mm and weight of 0.0258kg, and acts as a dedicated transmission component for sewing equipment.
