80501102327 (Gear 40×1.5)
$42.02piece

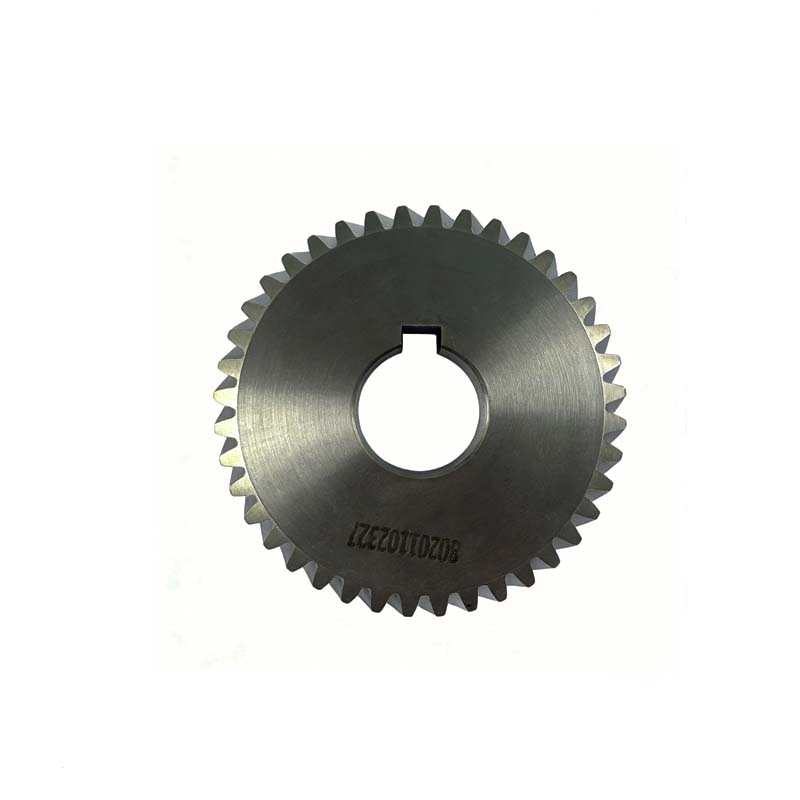

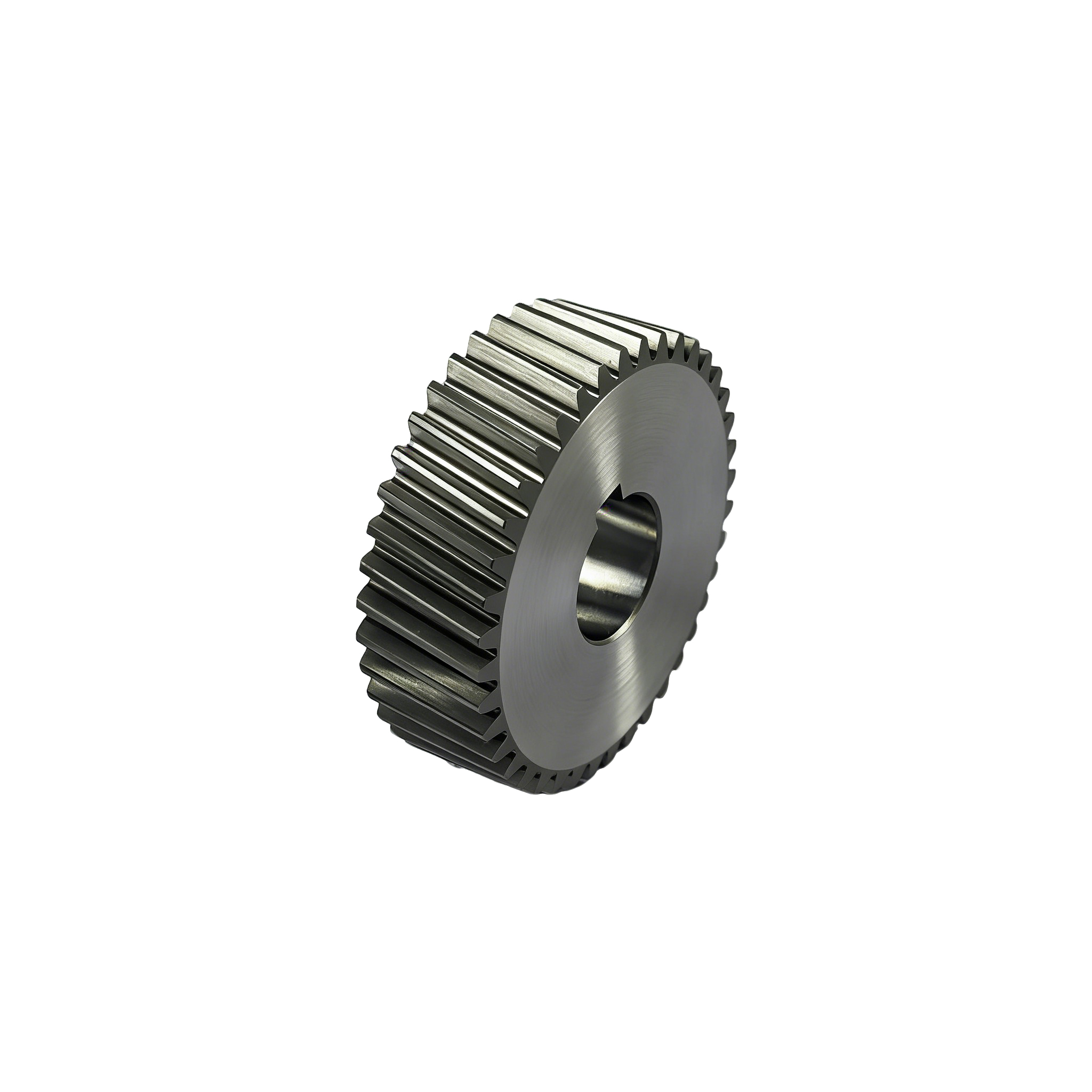

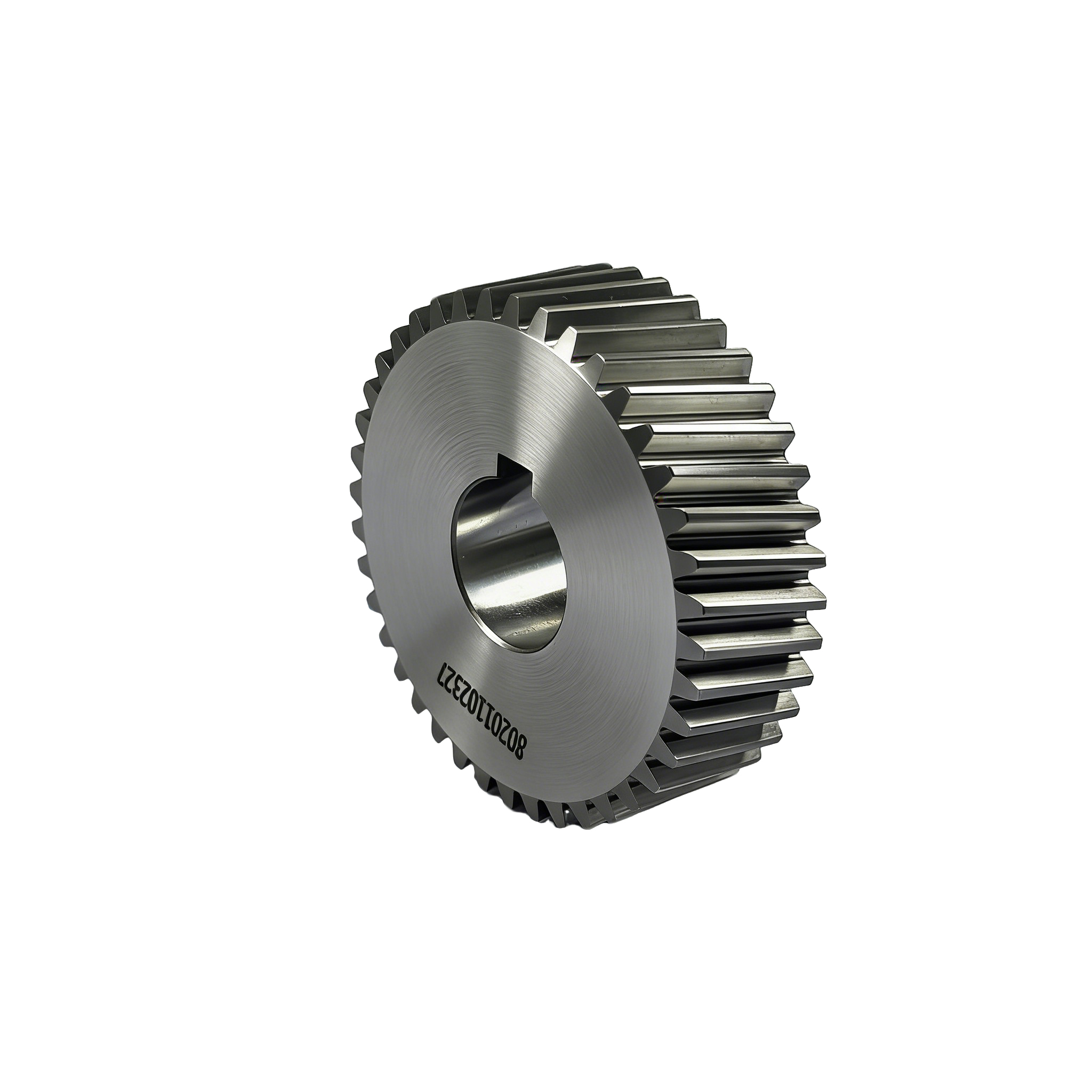

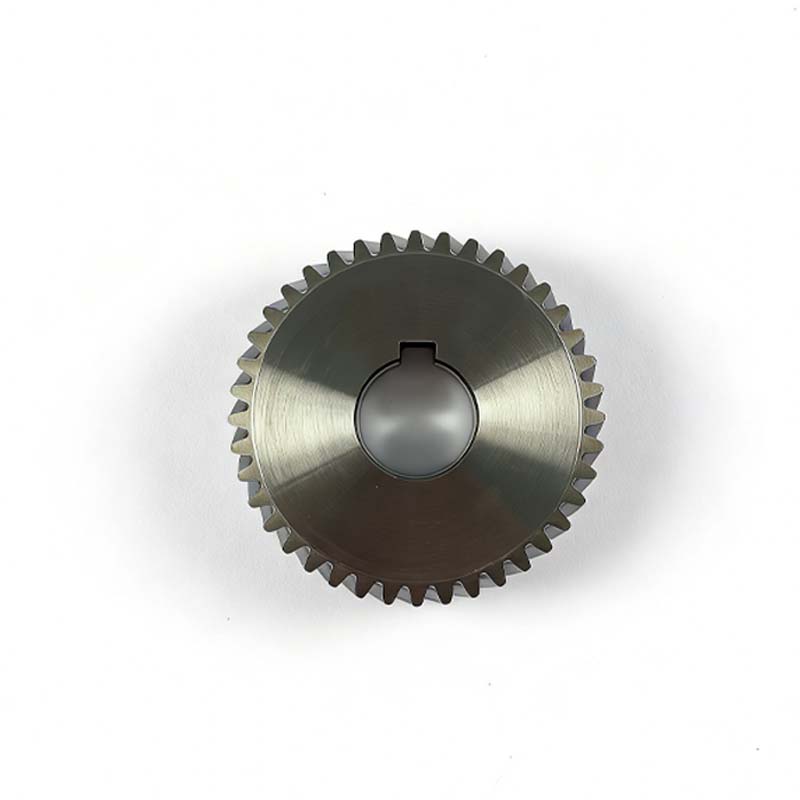

SPKJ-033-C helical gear, module 1.5, 40 teeth, 12° right-hand helix, made of 20CrMo for speed reducers.
Description
SPKJ-033-C (Model 80501102327, Gear 40×1.5) is a helical gear for reducers, with pressure angle 20°, module 1.5, 40 teeth, 12° right-hand helix angle, gear outer diameter 63.629 mm, total length 20 mm, weight 0.4006 kg. Made of 20CrMo through precision processes including sawing, turning, rough hobbing, heat treatment, shot blasting, boring & facing, total length grinding, gear grinding, wire-cut keyway and marking. It is mainly used as a transmission part in reducers.
Additional information
| weight |
0.4006 |
|---|---|
| Core Components |
gear |
| Craftsmanship |
Hobbing |
