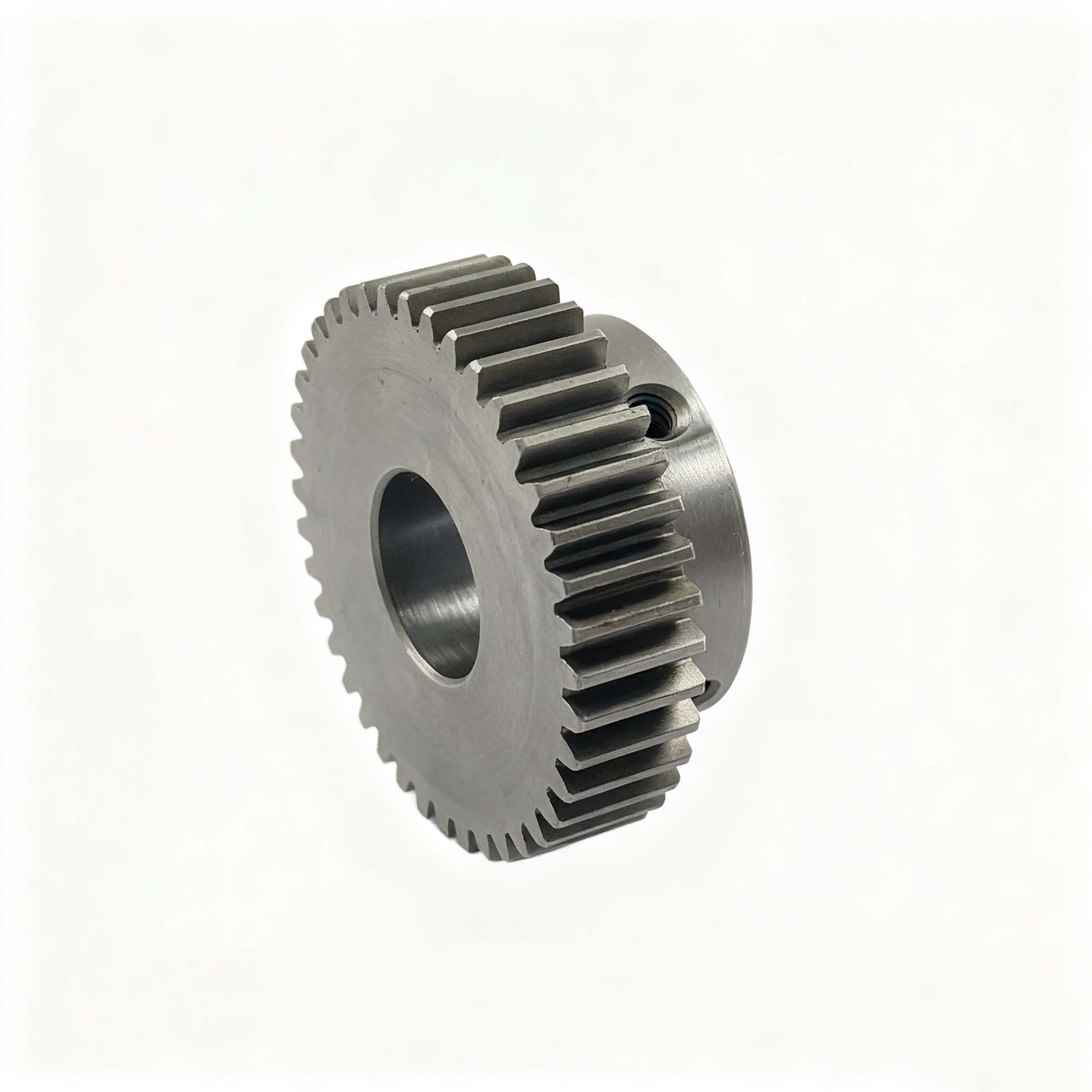

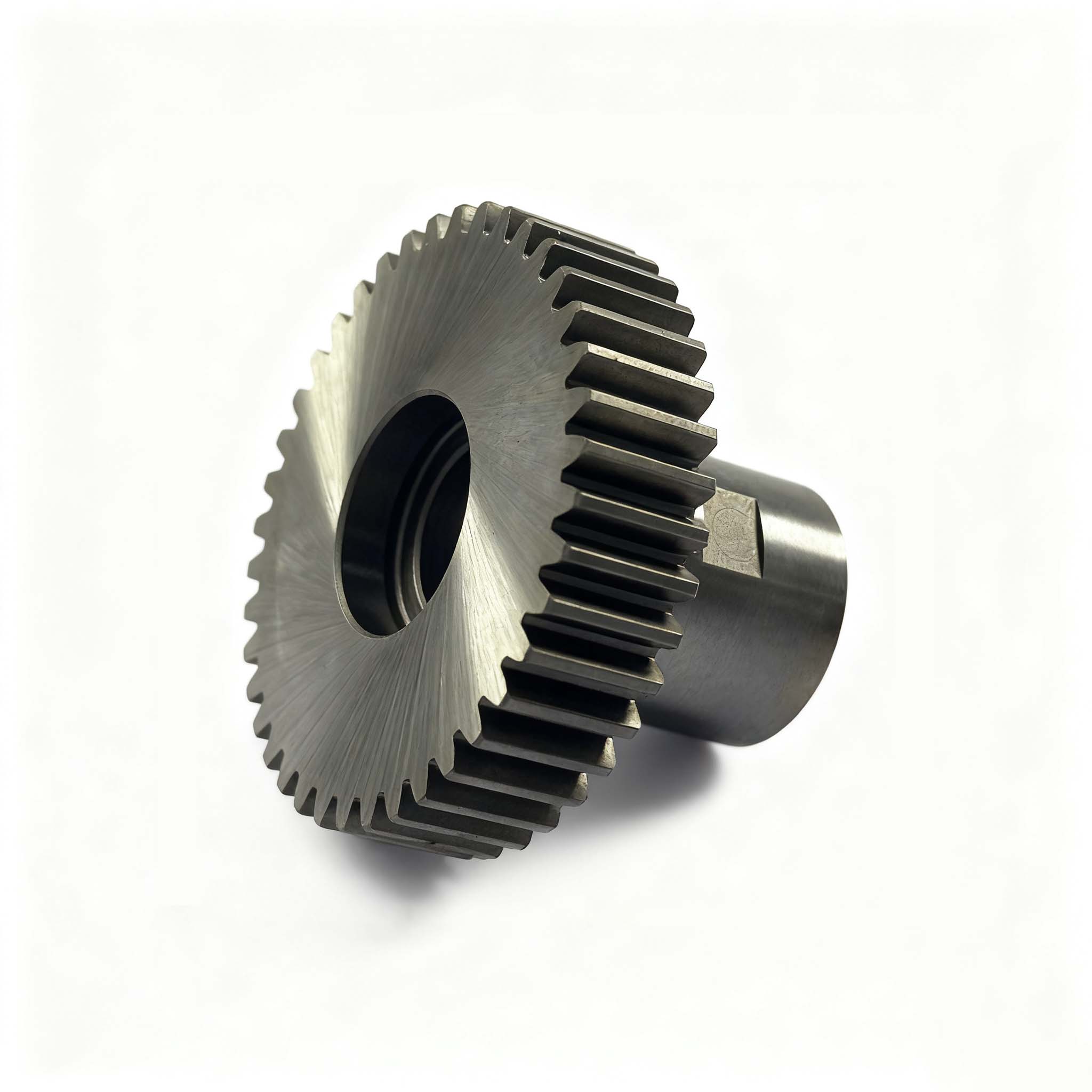

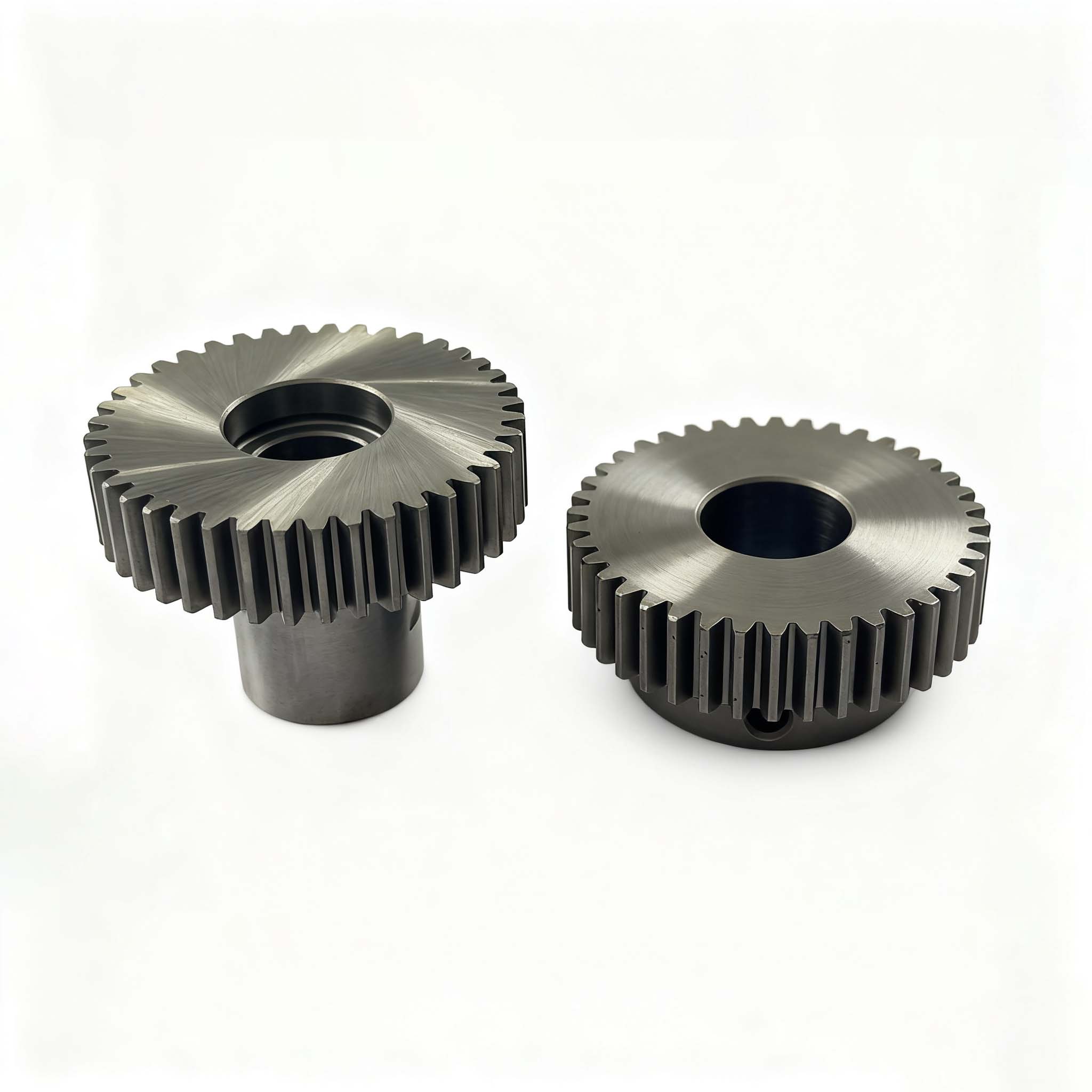

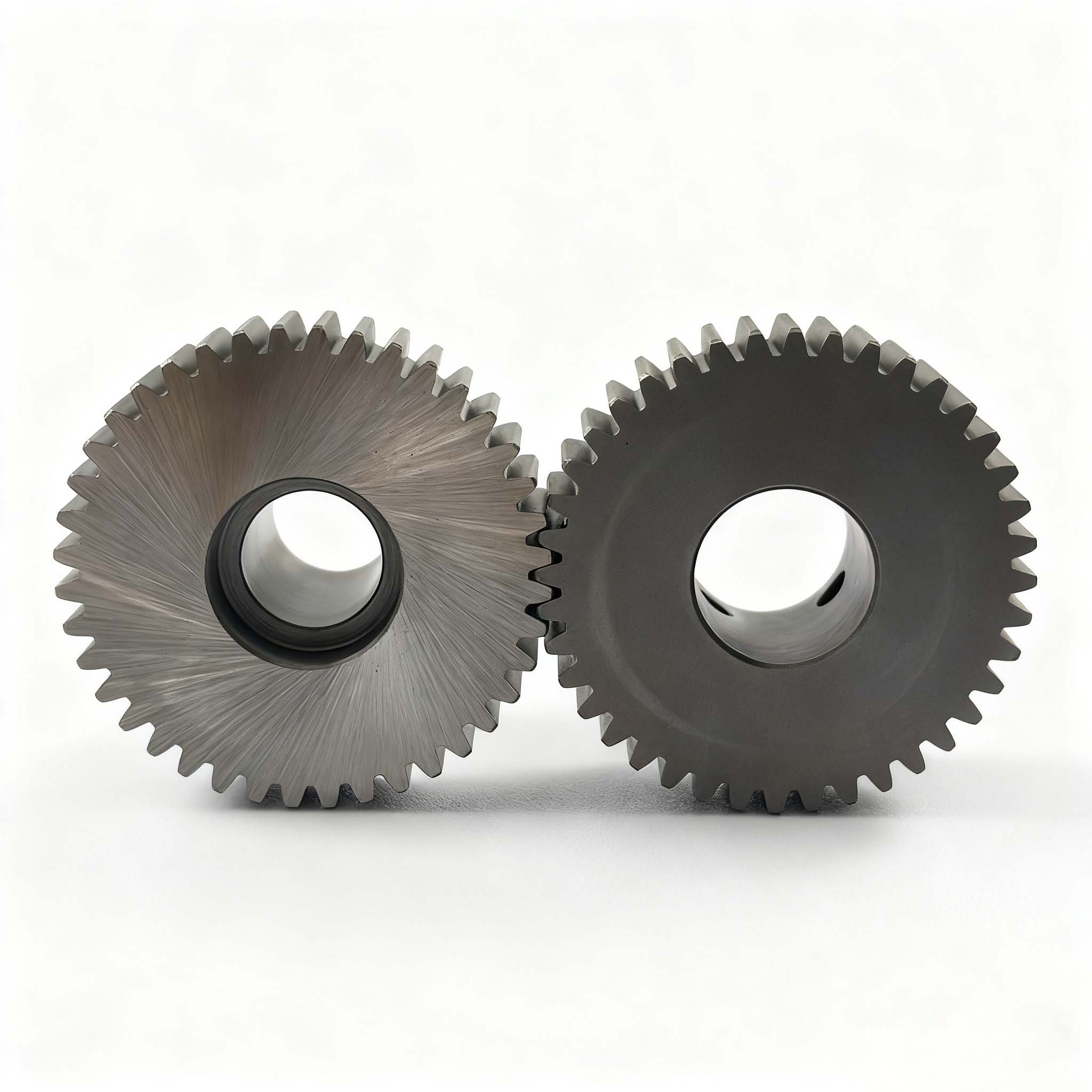

560.02-02-03-02 Gear and 560.02-10-04 Gear

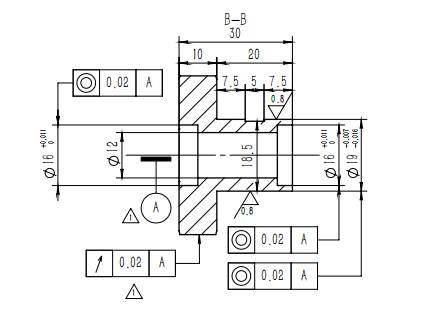

Product Name: 560.02-02-03-02 GearProduct Category: Spur GearCore Technical Parameters: Pressure angle 20°, module 1, number of teeth 40, speed ratio 1, helix angle 0°, inner diameter 12mm, tooth outer diameter 42mm, total length 30mm; Parameters including offset distance, shaft diameter and weight are to be supplemented.Production Process: Adopting a full-process precision manufacturing process of sawing → turning → flat milling (machining center) → gear hobbing → heat treatment → shot blasting → reaming → outer diameter grinding → boring and facing → boring. The flat milling process is completed by the machining center to ensure dimensional accuracy; multiple finishing processes further improve the transmission stability and assembly adaptability of the gear.Product Material: Made of 20CrMo alloy structural steel, which has high strength, wear resistance and fatigue resistance, and can meet the long-term and high-frequency operation requirements of sewing equipment.Product Attribute & Application: Custom-made product, a core transmission component specially designed for sewing equipment, which can realize precise power transmission and help the equipment operate efficiently and stably.Quotation Information: Unit price $8, minimum order quantity 30 pieces.
