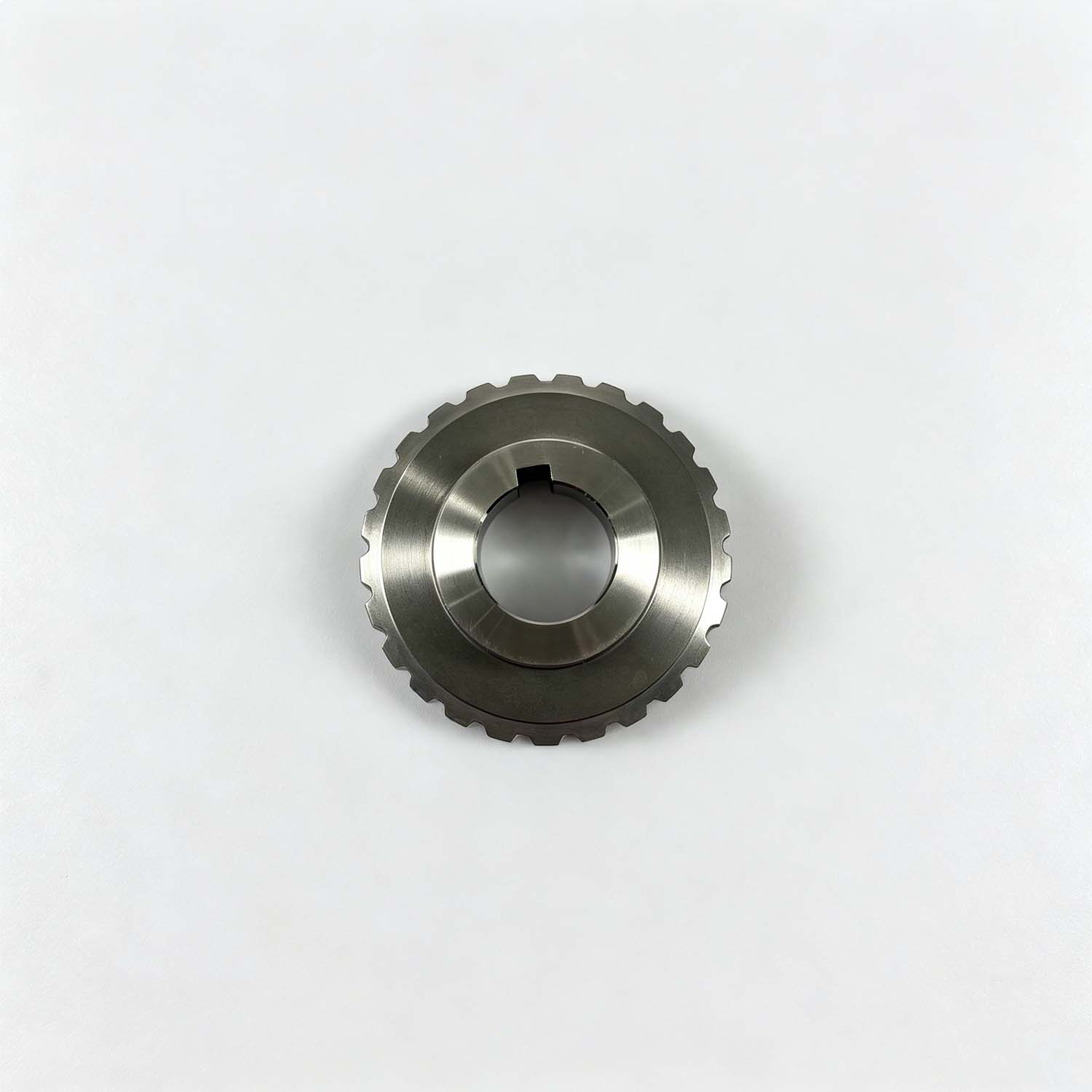

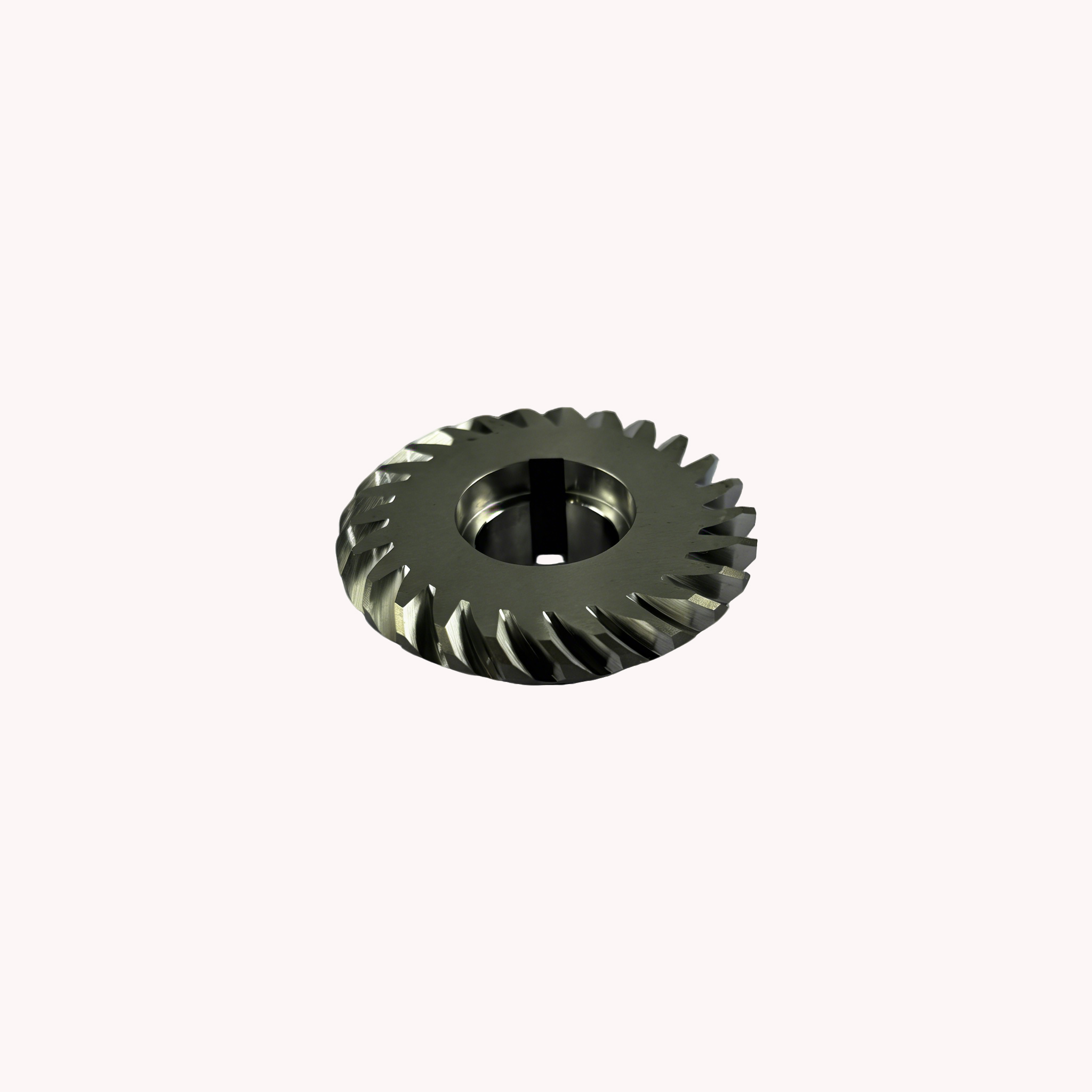

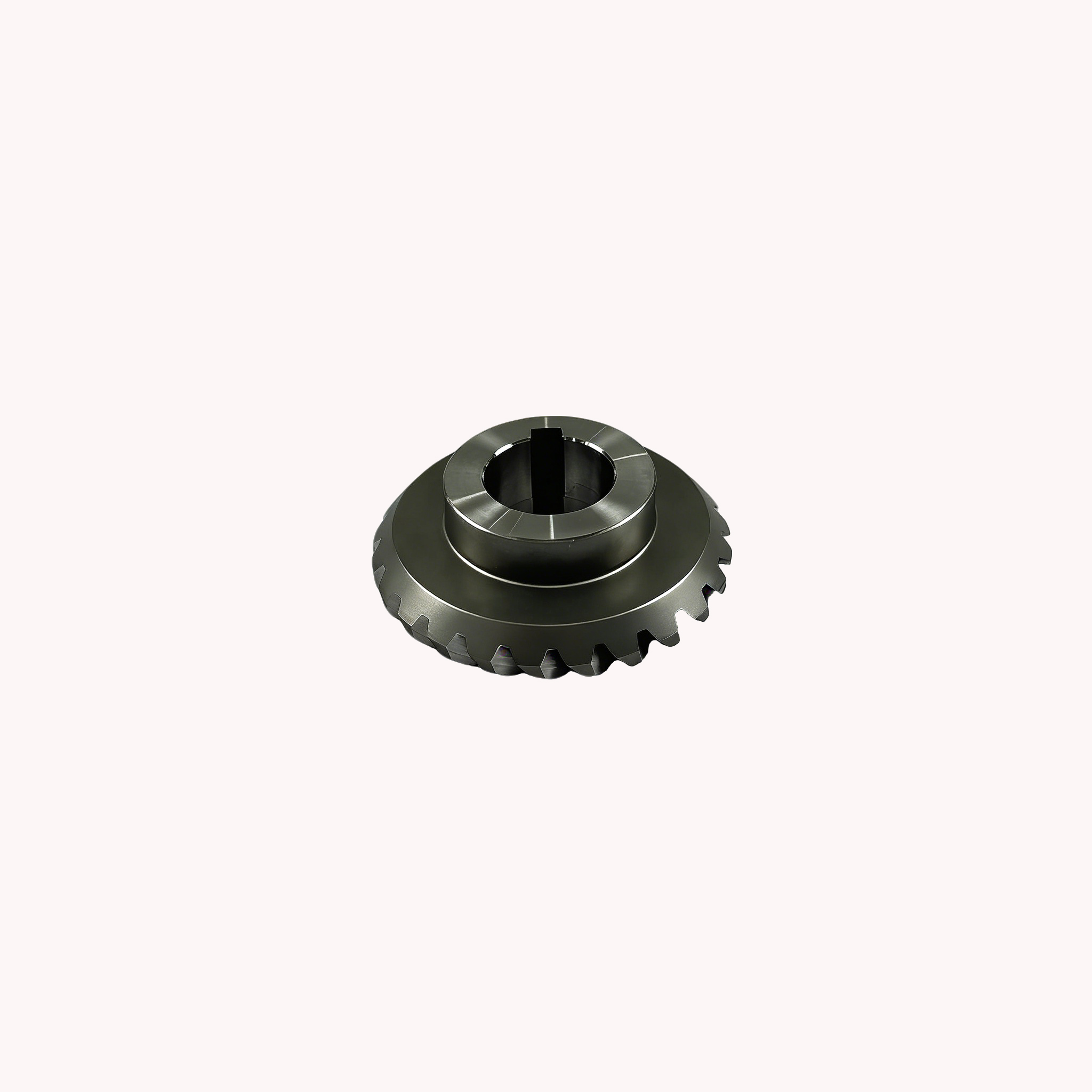

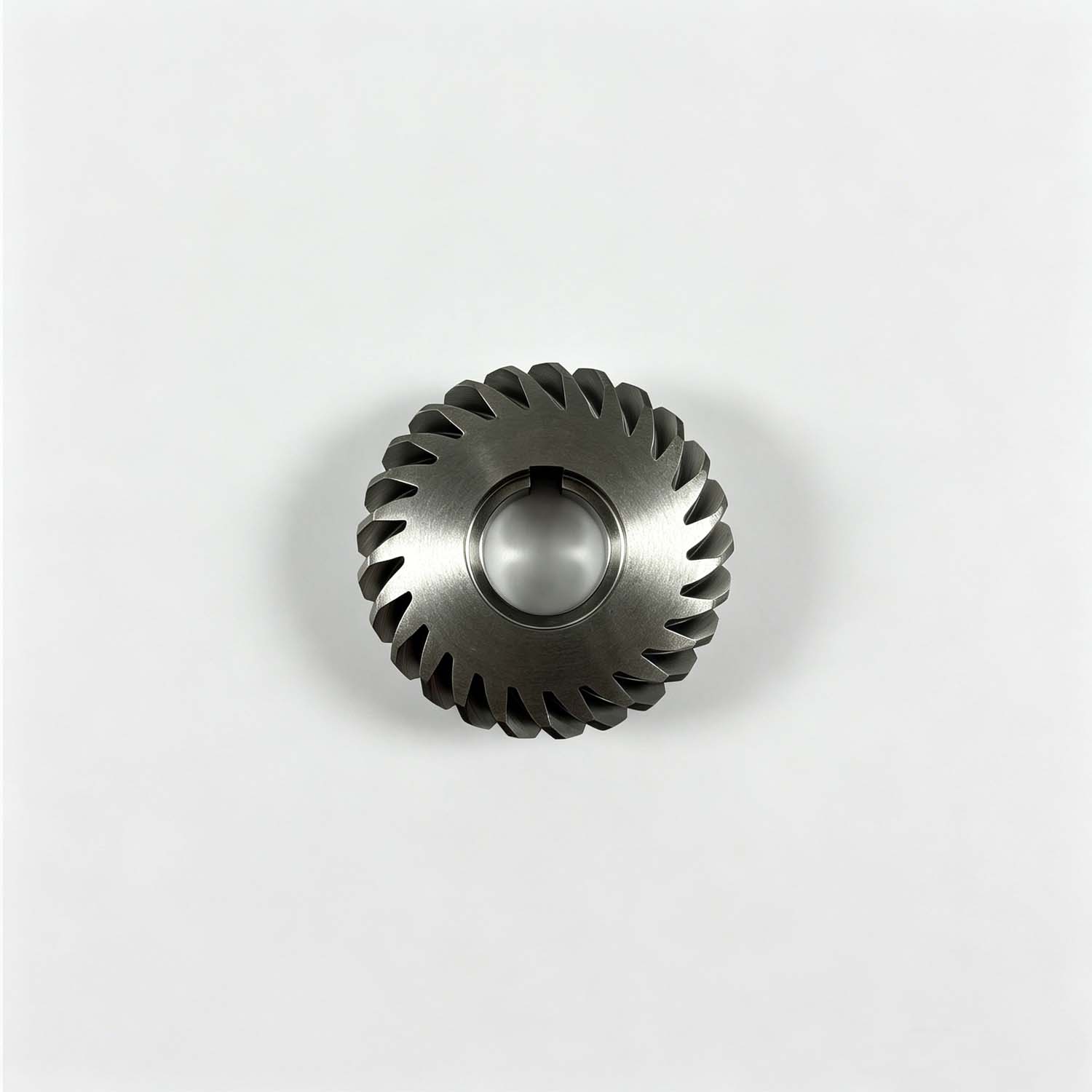

55-WX-13 Left Hand Spiral Bevel Gear
$23.44piece
TBW-005-C
Model 55-WX-13 Left Hand Spiral Bevel Gear, module 1.75, 32 teeth, 20° pressure angle and 35° left-hand spiral angle, made of 20CrMnTi carburizing steel.
Processed by multiple precision manufacturing steps including turning, gear milling, heat treatment, shot blasting and precision gear grinding, all gears pass full visual inspection before shipment. It provides smooth transmission and superior wear resistance, applicable to the transmission system of sewing equipment.
Description
TBW-005-C Model 55-WX-13 Left Hand Spiral Bevel Gear
This left-hand spiral bevel gear is designated Model 55-WX-13. It features a standard 20° pressure angle, module of 1.75, 32 teeth, a transmission ratio of 1, and a 35° left-hand spiral angle, specially designed for the transmission system of sewing equipment.
It has an inner diameter of 20mm, tooth outer diameter of 57mm, overall length of 17.5mm, and a unit weight of 0.1630kg.
Constructed from 20CrMnTi carburizing steel with favorable hardenability, the gear teeth achieve high hardness after carburizing heat treatment, offering excellent wear resistance and fatigue resistance.
Its full manufacturing process covers blank cutting, turning, gear milling, heat treatment, hanging shot blasting, reaming, wire-cut keyway processing, boring & facing, secondary boring, surface grinding, precision gear grinding, and 100% full visual inspection for all finished products before delivery.
The gear boasts high machining precision, smooth transmission, low running noise and long service life, serving as a core transmission component for various sewing machines.
Additional information
| TBW-005-C weight |
0.1630 |
|---|---|
| TBW-005-C Core Components |
gear |
| TBW-005-C Craftsmanship |
Milling |
