220825005 X Pinion Gear
$4.00piece

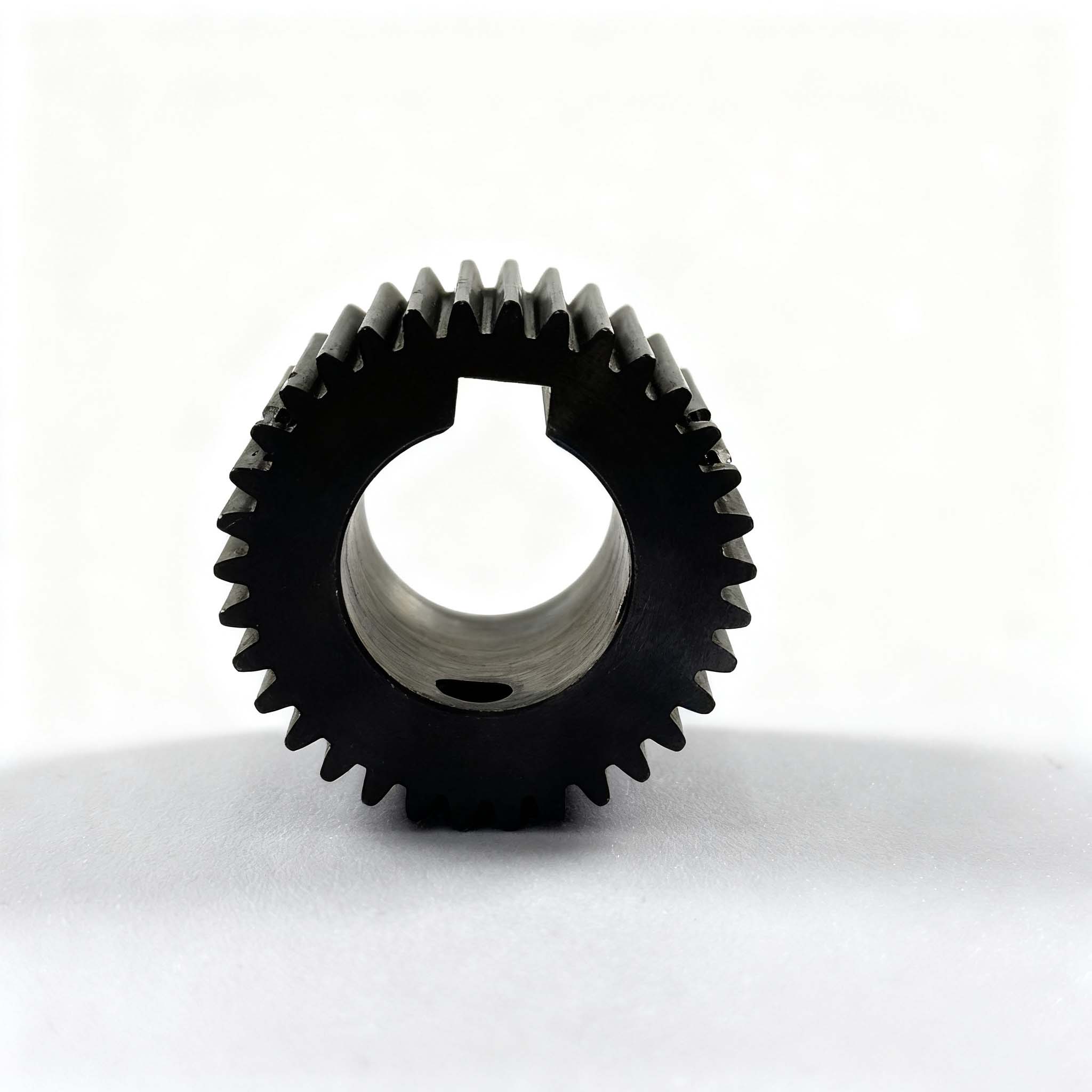

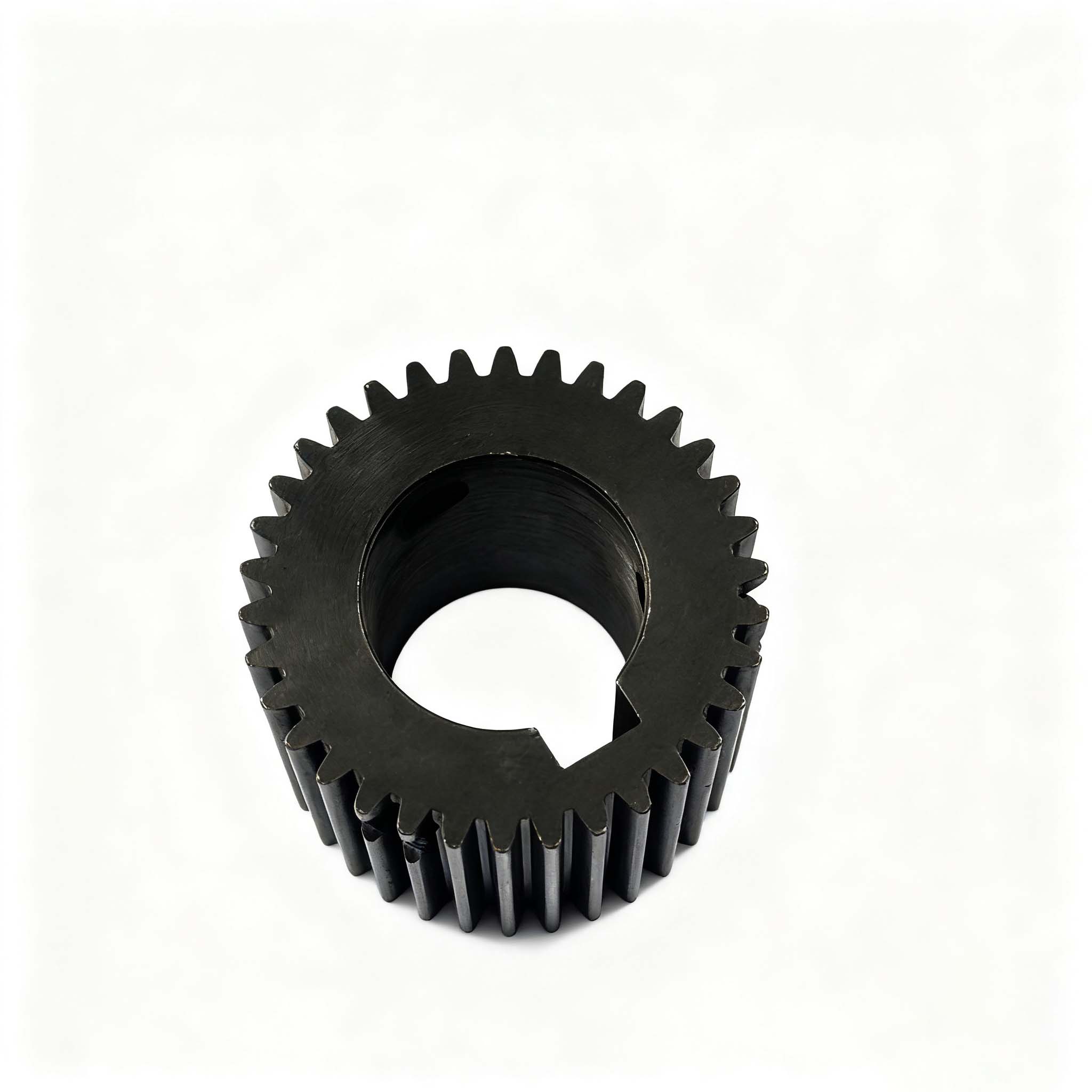

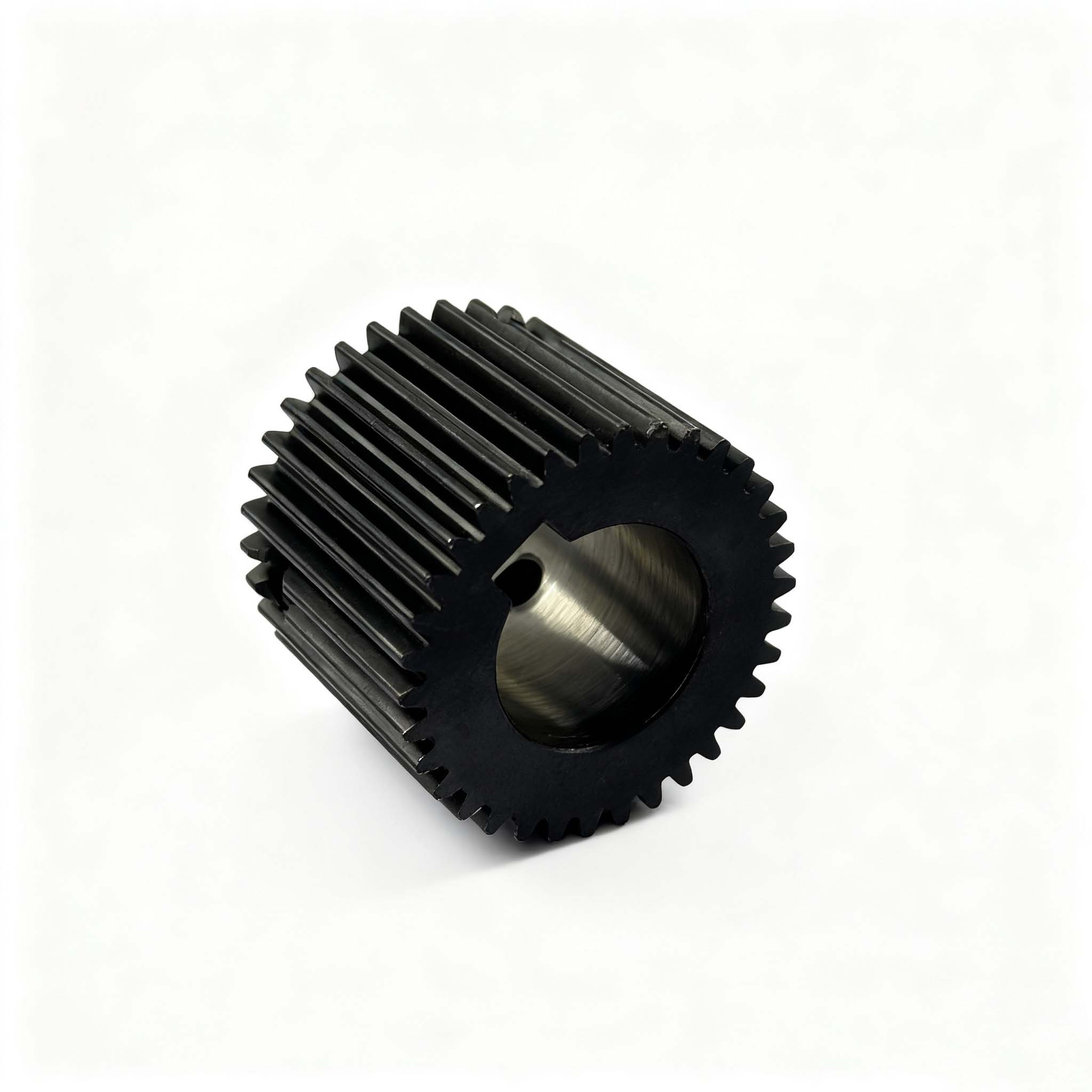

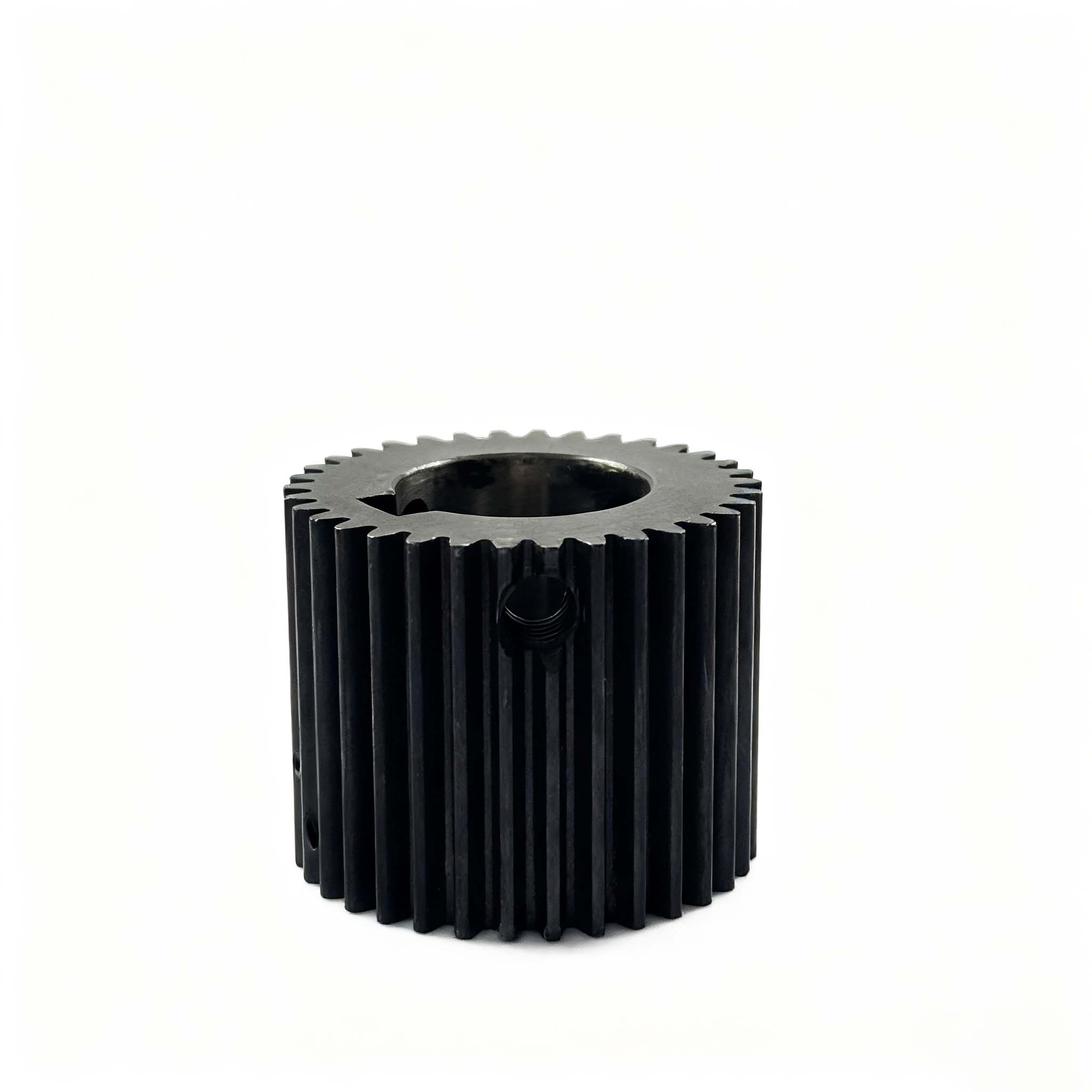

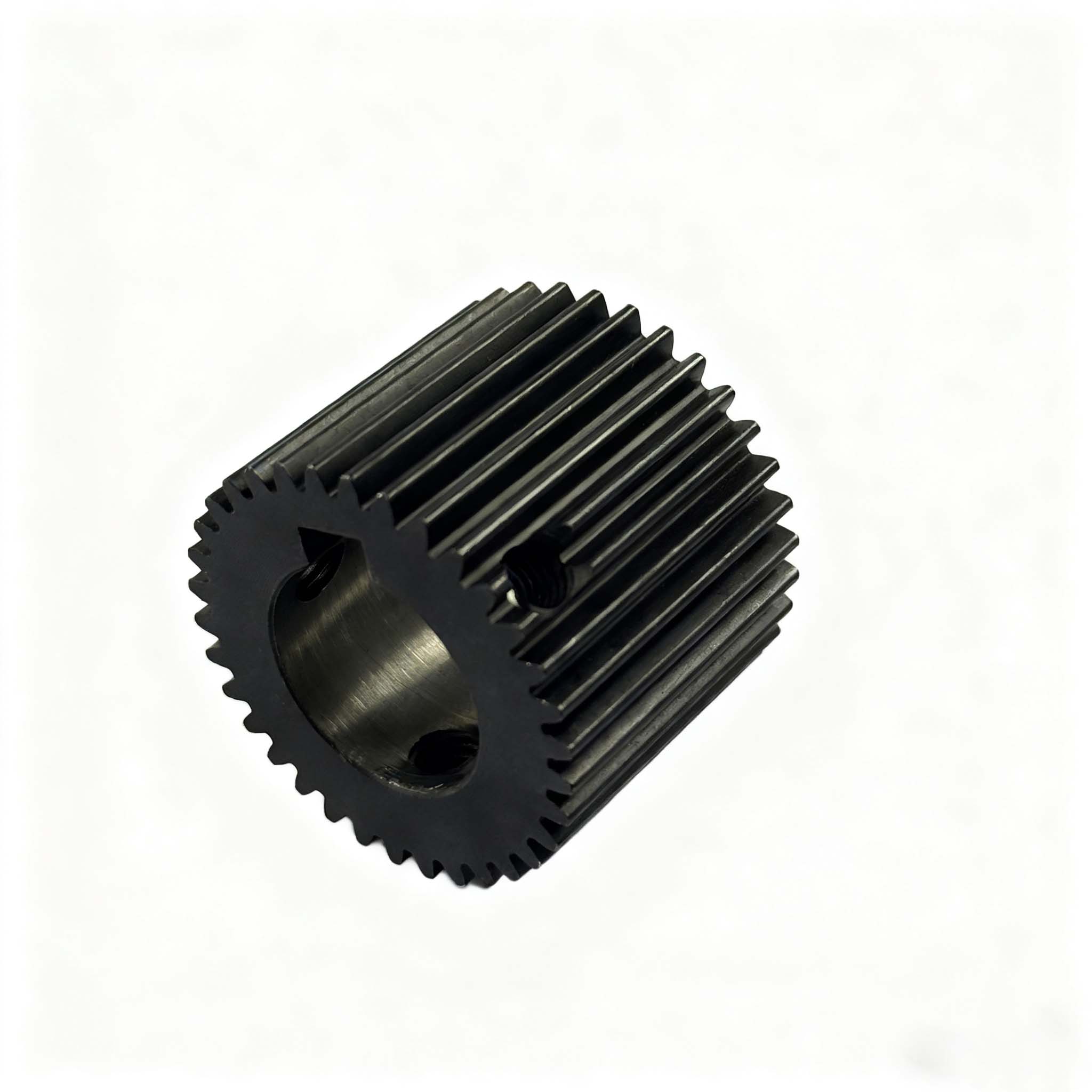

220825005 X Spur Gear: Pressure angle 20°, module 1, 34 teeth; inner diameter 19/15, outer tooth diameter 36mm, total length 29mm. Made of 20CrMo material through multiple precision processing and heat treatment processes. Specialized transmission component for sewing equipment, with stable and reliable transmission.
描述

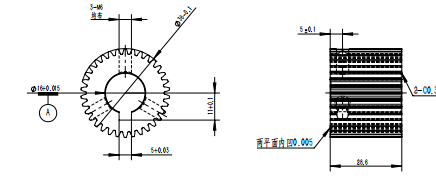

The X pinion with product number 220825005 belongs to the spur gear category, and its core transmission parameters are accurately adapted to the needs of sewing equipment. This gear has a pressure angle of 20°, a module of 1, 34 teeth, a helix angle of 0°, and adopts a non-offset design, featuring excellent transmission stability. In terms of structural dimensions, its inner diameter specification is 19/15, the outer diameter of the tooth part is 36mm, and the total length is 29mm; the material is 20CrMo alloy structural steel, which has good strength and wear resistance. The production process adopts a combination of multiple precision processes, including sawing, turning, threaded hole processing, reaming, hobbing, heat treatment, shot peening, blackening, and secondary reaming in sequence, ensuring the tooth precision and overall assembly performance. As a key transmission component of sewing gears, this pinion provides reliable power transmission for the transmission system of sewing equipment through precise tooth design and stable structural characteristics, guaranteeing the stability and efficiency of equipment operation.
其他信息
| weight |
0.0294 |
|---|---|
| Core Components |
gear |
| Craftsmanship |
Hobbing |
用户评价 (0)
Shipping & Delivery
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
相关产品
12BGL-8X-Head-006-Lower Shaft Gear-52-1.25
The 12BGL-8X-Head-006-Lower Shaft Gear-52-1.25 is a dedicated spur gear for sewing equipment. Crafted from 20CrMo material, it undergoes a series of precision processes including sawing, hobbing, heat treatment and blackening. With a pressure angle of 20°, module of 1.25, 52 teeth, inner diameter of 20mm, addendum circle diameter of 67.5mm, total length of 45mm and weight of 0.5575kg, it can transmit power stably and is suitable for the transmission systems of various industrial sewing machines.
220825007 X Transmission Gear
The 220825007 X Transmission Gear is a spur gear made of 20CrMo material, with a pressure angle of 20°, a module of 1, 35 teeth and a helix angle of 0°. It has a shaft diameter of 12mm, an outer tooth diameter of 37mm, a total length of 50mm and a weight of 0.1642kg. Manufactured through a series of precision processes including normalizing, hobbing and heat treatment, it is suitable for the transmission system of sewing equipment.
32001088-00 Shaft
The 32001088-00 Shaft is a spur gear component made of 20CrMo steel. It features a pressure angle of 20°, module of 0.8, 9 teeth, and a helix angle of 0°, with a shaft diameter of 10mm, outer tooth diameter of 9.4mm, total length of 96.5mm, and unit weight of 0.041kg. Precision-machined via multiple processes, it is a dedicated transmission gear for power tools.
6040-X Feed Gear – Finished Product
The 6040-X Feed Gear is a finished spur gear made of 20Cr steel. It features a pressure angle of 20°, module of 1, 35 teeth, and a helix angle of 0°, with an inner diameter of 12mm, outer tooth diameter of 37mm, total length of 23.5mm, and unit weight of 0.1202kg. Precision-machined through multiple processes, it serves as a dedicated fabric-feeding component for sewing equipment.
D-91-185660-05\齿轮 D-91-185667-05\齿轮 and D-91-185667-05\Gear
D-91-185667-05\Spur Gear, with pressure angle 20°, module 0.8, 60 full-circumference teeth, inner diameter 10mm, tooth outer diameter 49.6mm, total length 24mm and weight 0.0764kg. Made of 20CrMo material and processed by precision technologies like gear shaping and bore grinding, it is a custom transmission component for sewing equipment.
HR-3000-T46 (Outer Diameter: 48 mm)
The HR-3000-T46 (Outer Diameter: 48 mm) is a spur gear component made of 20CrMo steel. It features a pressure angle of 20°, module of 1, 46 teeth, and a helix angle of 0°, with an inner diameter of 12mm, outer tooth diameter of 48mm, total length of 18mm, and unit weight of 0.1364kg. Precision-machined through multiple processes, it is a dedicated transmission gear for power tools.
