203169 Left Hand Spiral Bevel Gear
$14.56piece
QZ-046-C
Module 1.579 left-hand spiral bevel gear, 20° pressure angle, 26 teeth, 35°L spiral angle; ID 25mm, OD 62mm, total length 16.7mm, weight 0.2525kg. Made of 20CrMo steel, precision processed for power tool transmission parts.
Description

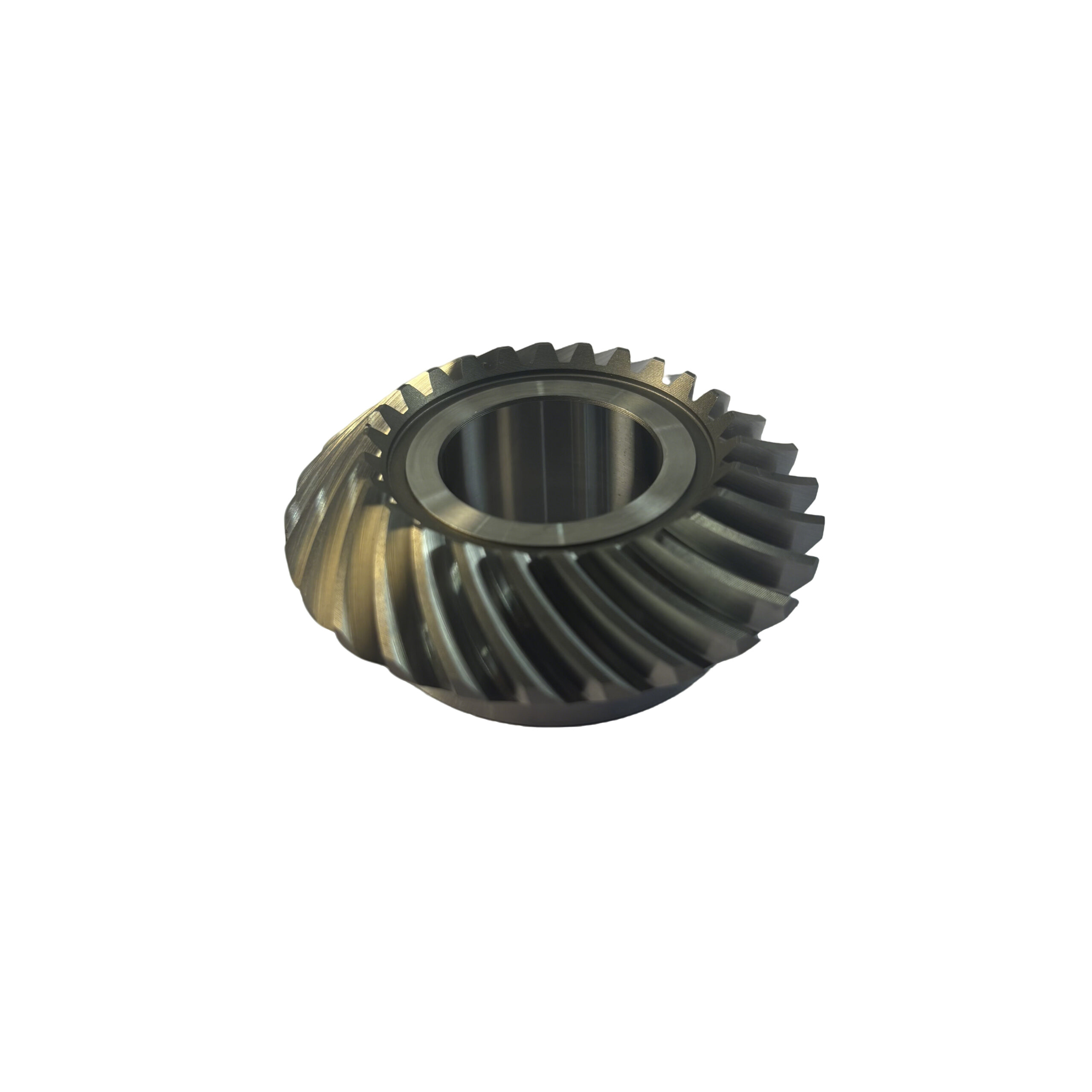

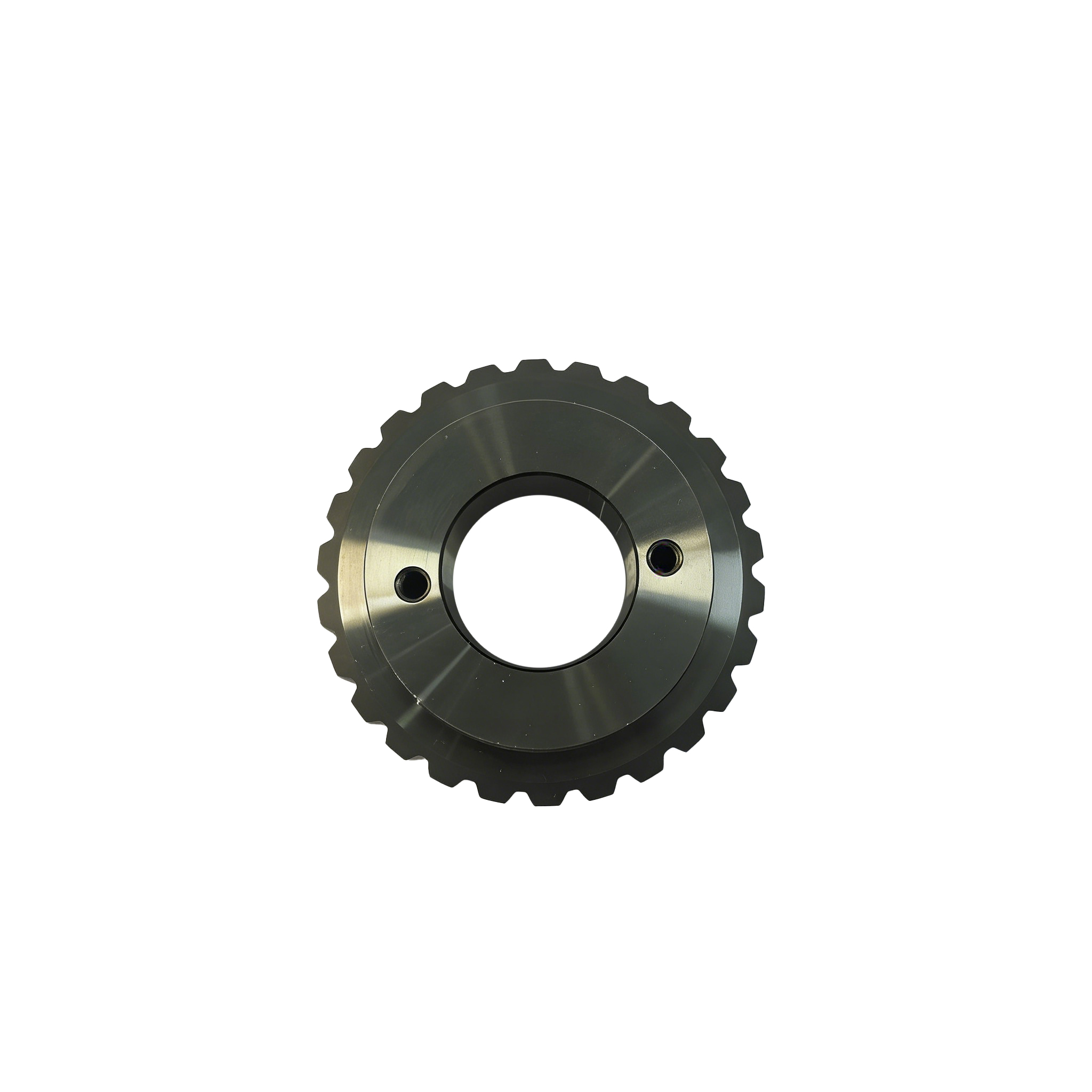

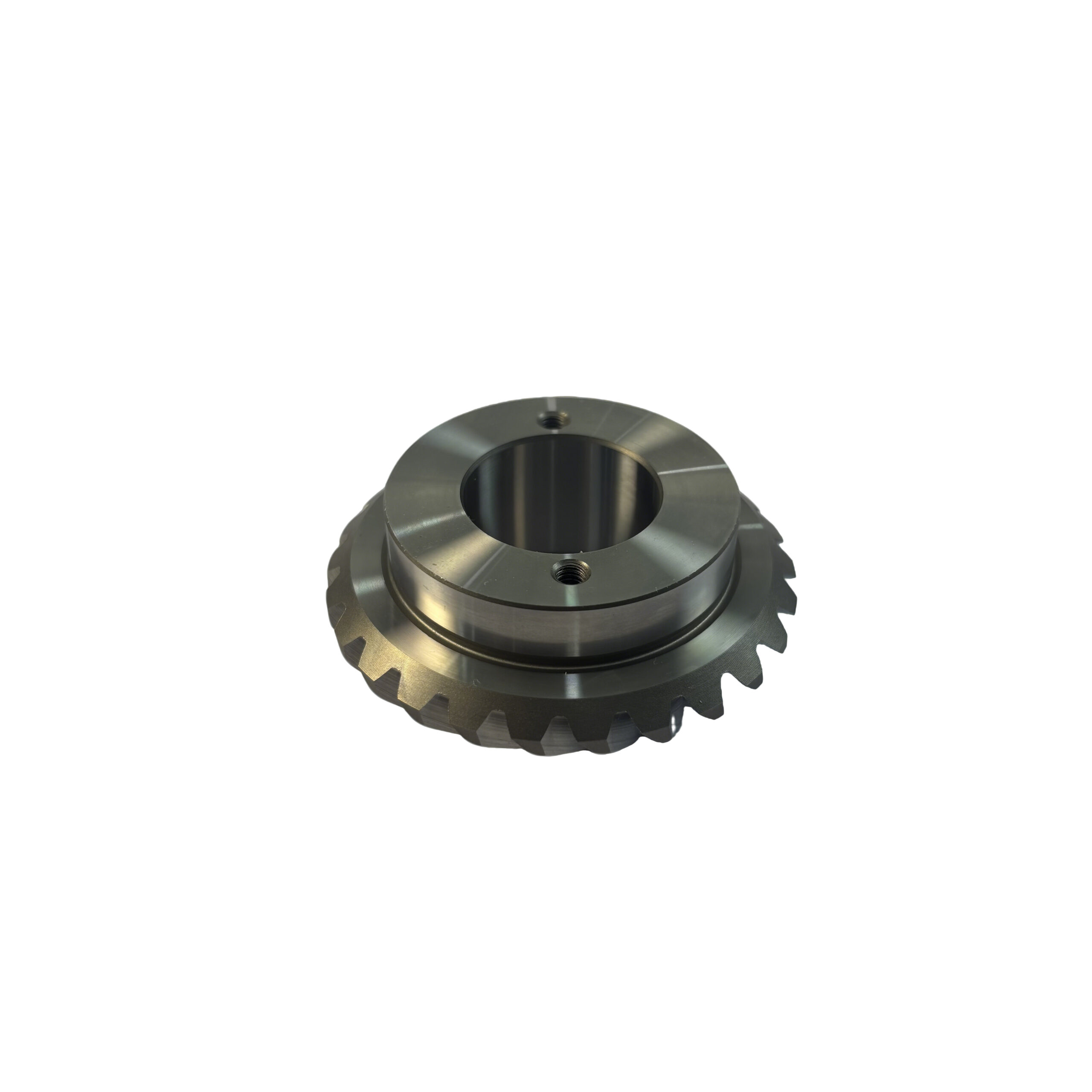

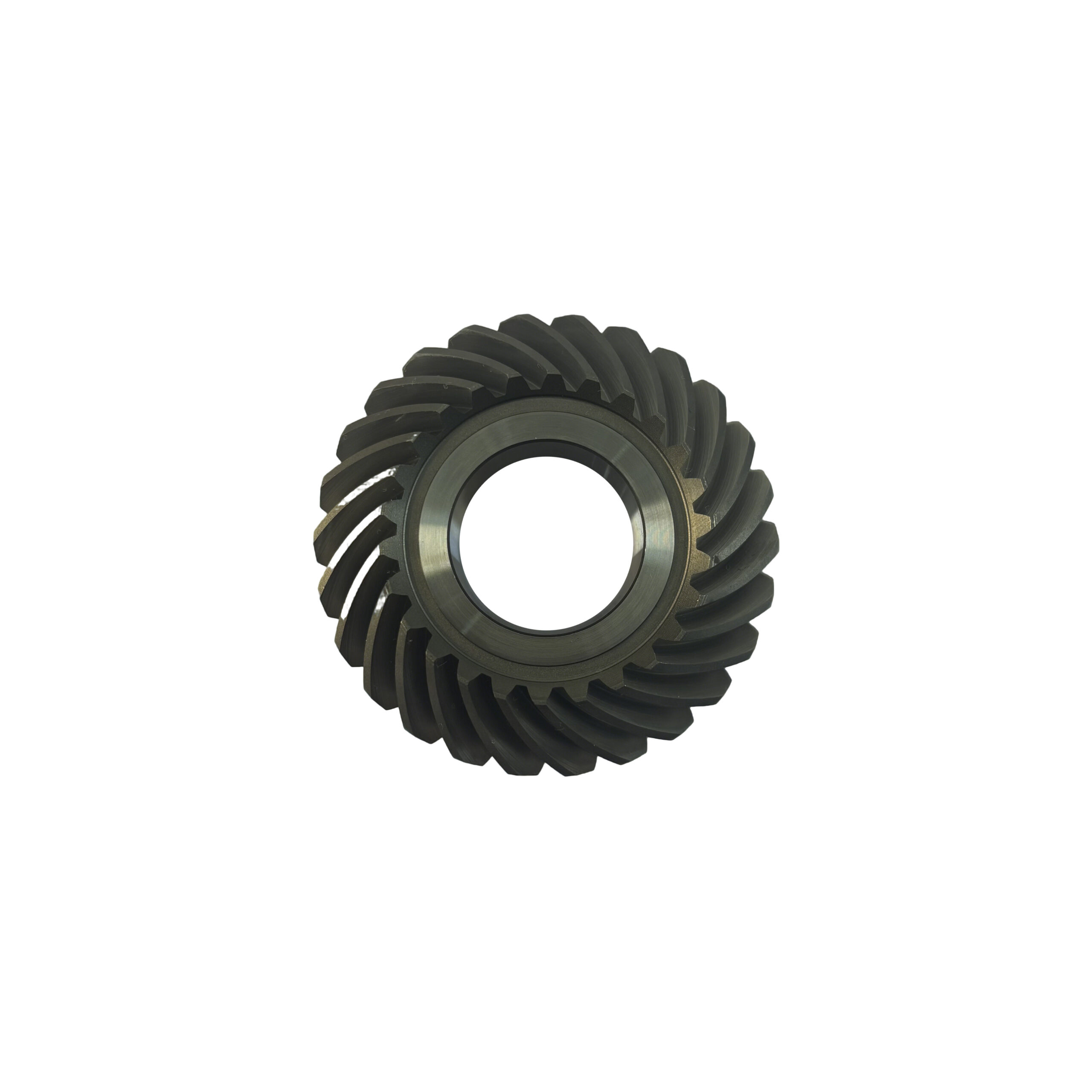

QZ-046-C 203169 Left Hand Spiral Bevel Gear
Spiral bevel gear, left hand, pressure angle 20°, module 1.579, 26 teeth, gear ratio 1, spiral angle 35°L.
Inner diameter 25mm, gear outer diameter 62mm, total length 16.7mm, weight 0.2525kg.
Material: 20CrMo alloy steel.
Process: Sawing, turning, threaded hole machining, finishing turning, gear milling, heat treatment, hanging shot blasting, boring & facing & outer diameter turning, length trimming, gear grinding.
High precision and stable transmission, widely used for power tool transmission assembly.
Additional information
| QZ-046-C weight |
0.2525 |
|---|---|
| QZ-046-C Core Components |
gear |
| QZ-046-C Craftsmanship |
Milling |
