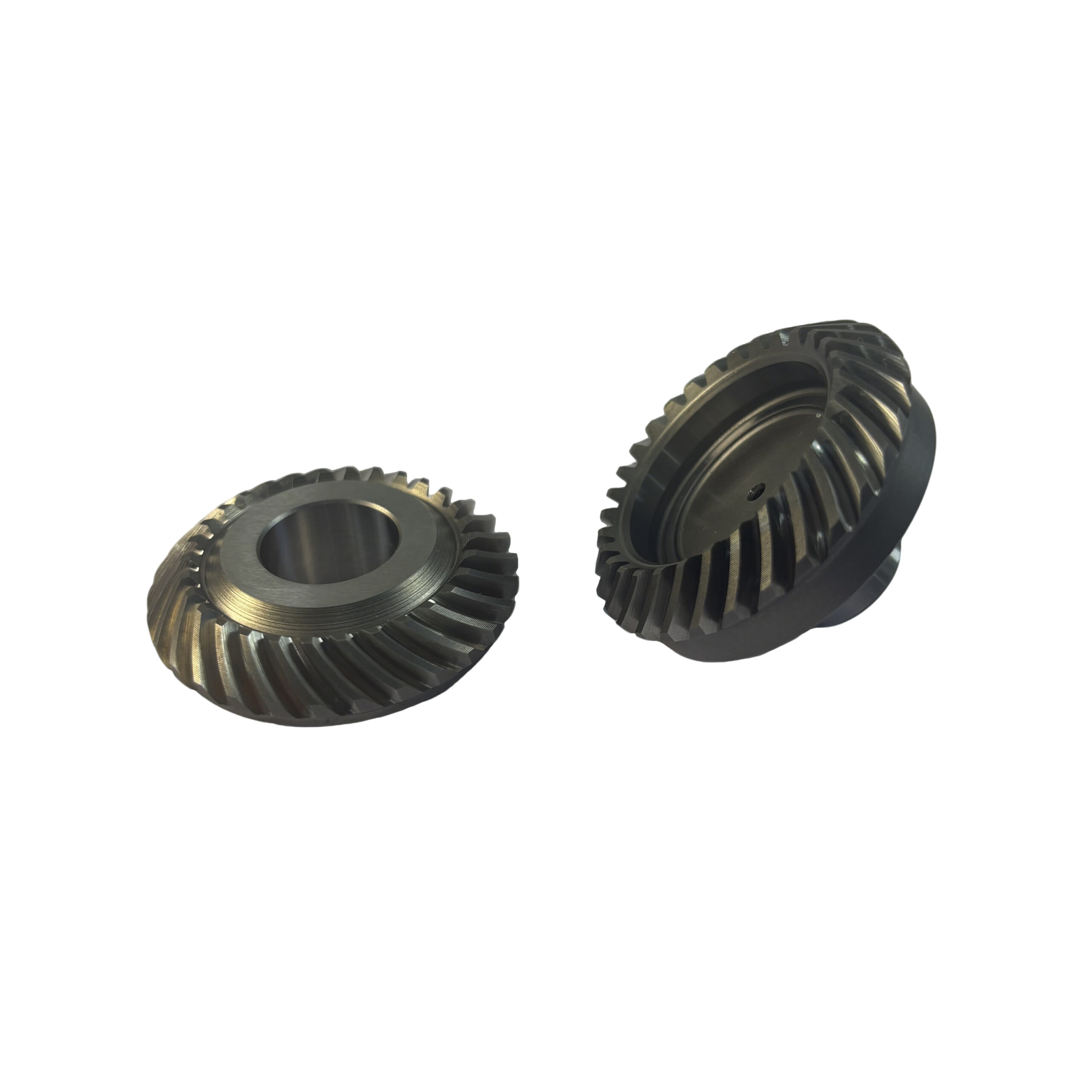

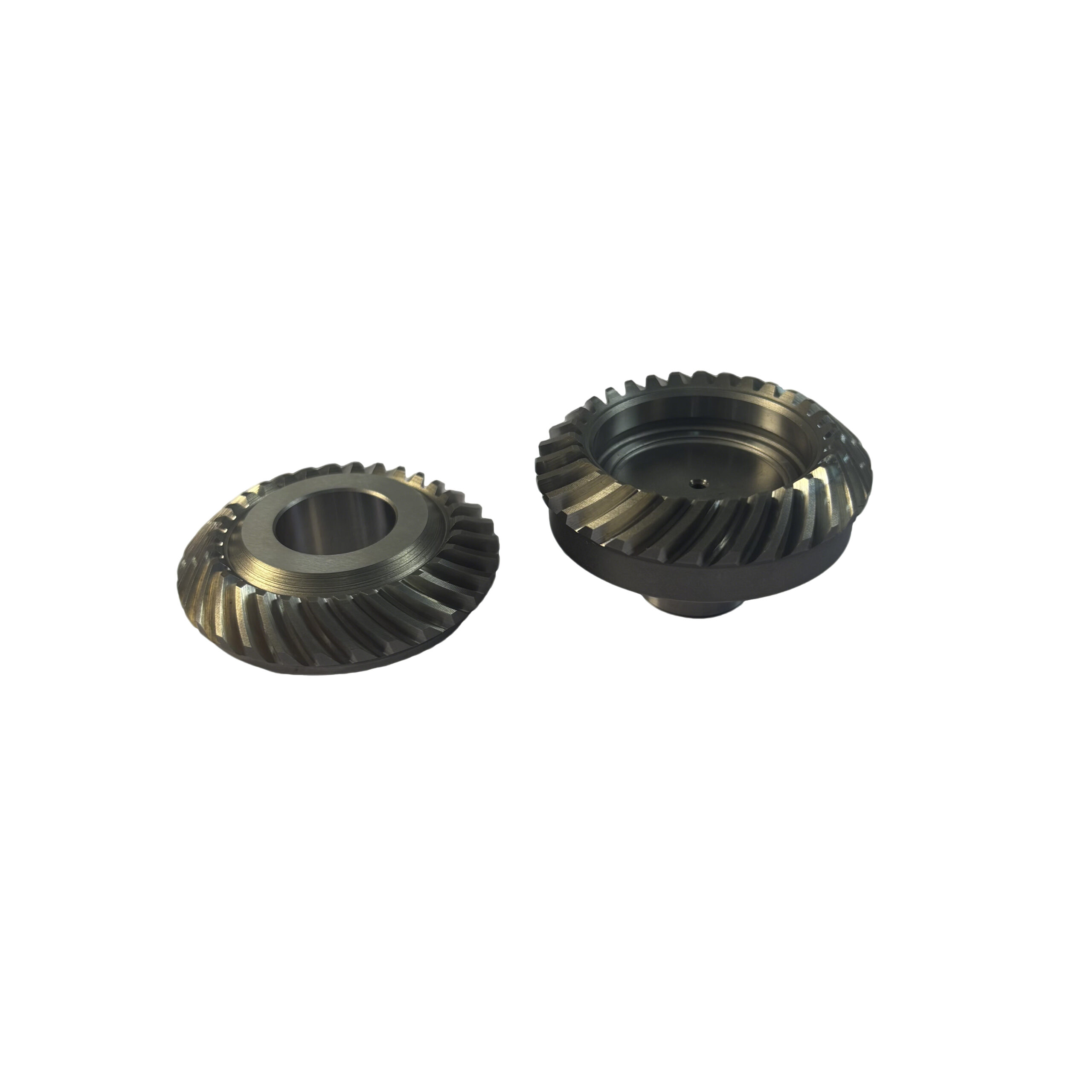

200942-00060641 Left Hand Gear (Without Keyway) and 200942-00060641 Right Hand Gear (Without Keyway)
$29.12
QZ-044-C1
Module 1 left-hand spiral bevel gear, no keyway, 20° pressure angle, 30 teeth, 35°L spiral angle; shaft diameter 17mm, OD 46.5mm, total length 26.5mm, weight 0.0965kg. 20CrMo steel, precision machined for power tools.
QZ-045-C1
Module 1 right-hand spiral bevel gear, no keyway, 20° pressure angle, 30 teeth, 35°R spiral angle; ID 17mm, OD 46.5mm, total length 12mm, weight 0.0965kg. 20CrMo alloy steel, high precision for power tool transmission.
Description
QZ-044-C1

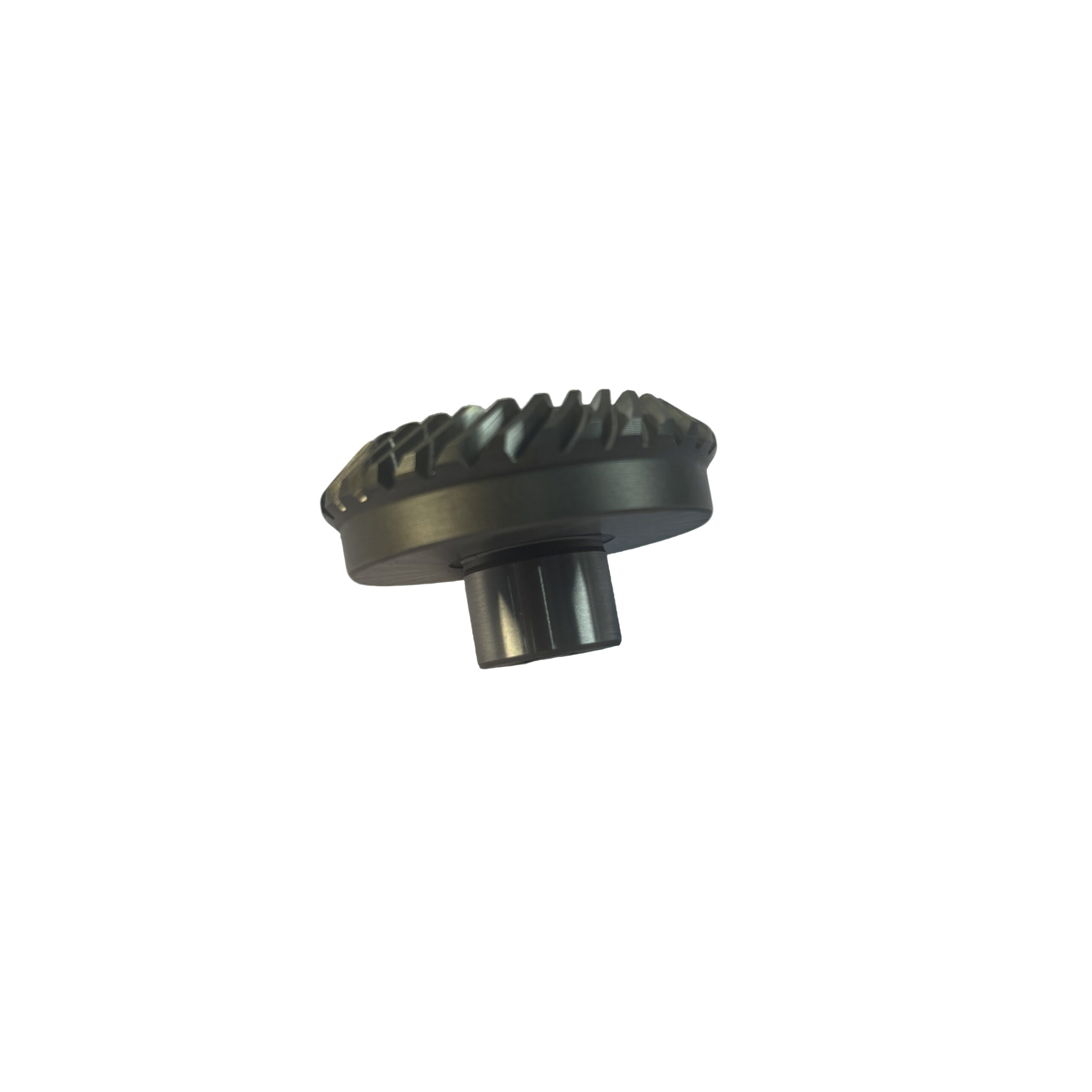

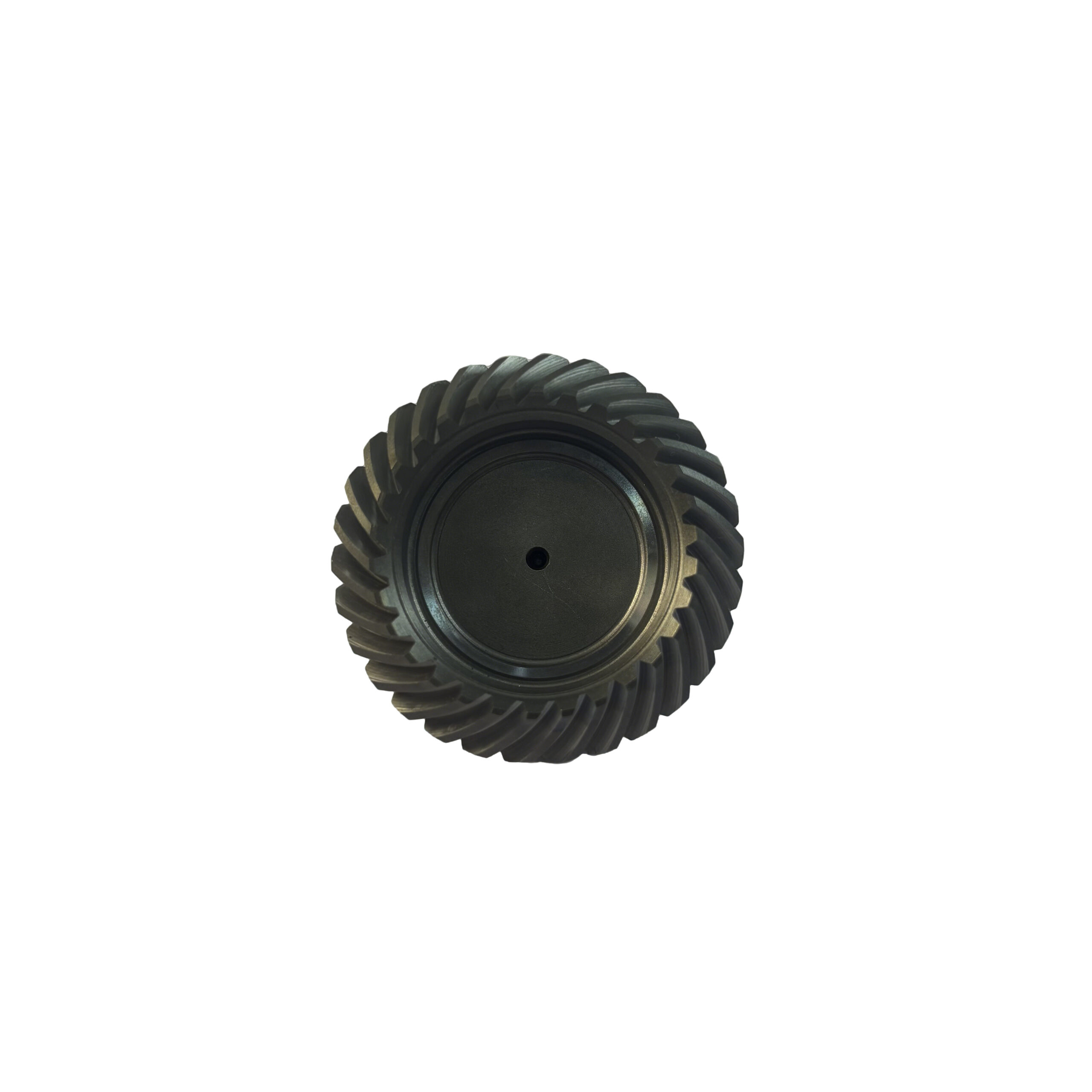

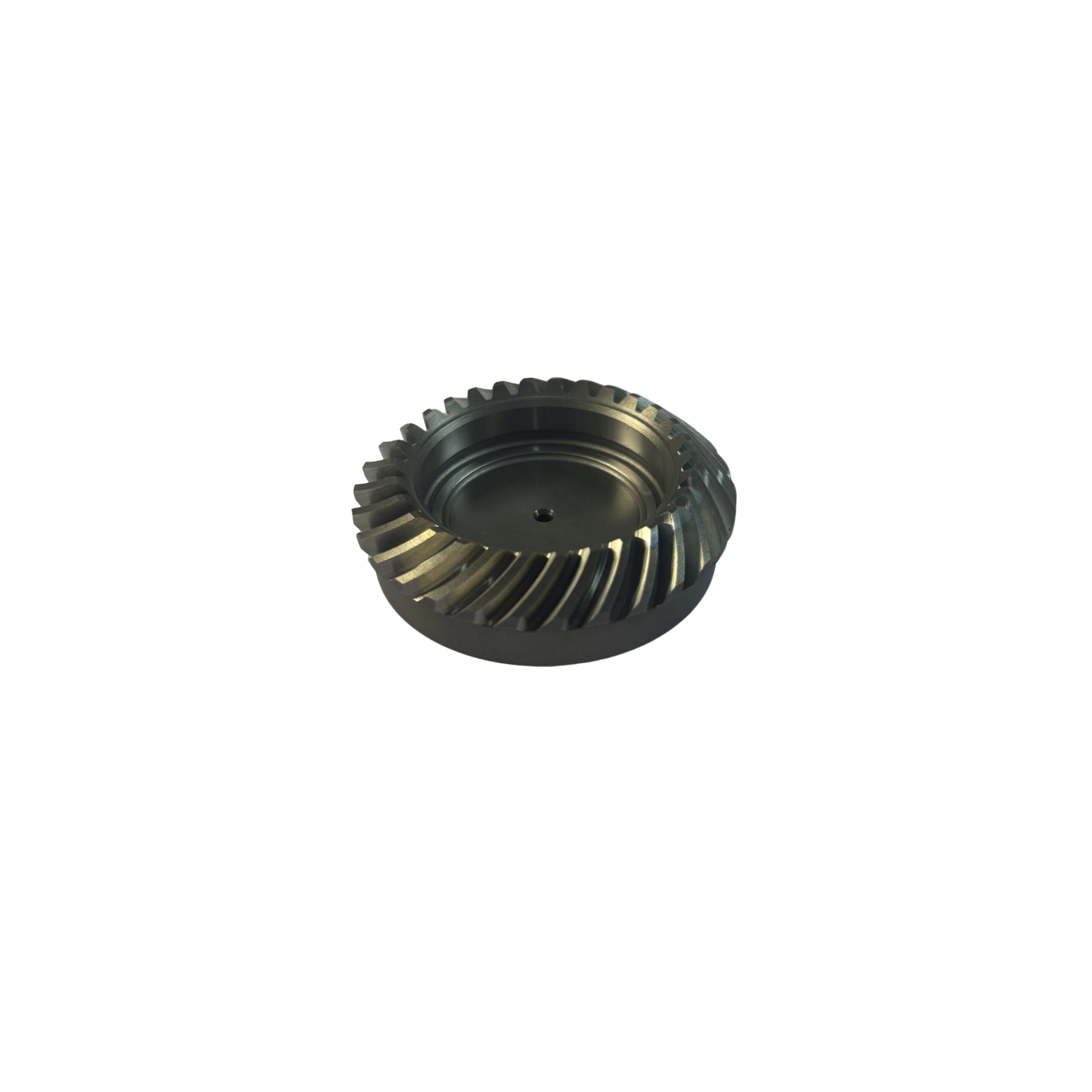

200942-00060641 Left Hand Spiral Bevel Gear (No Keyway)
Pressure angle 20°, module 1, 30 teeth, gear ratio 1, spiral angle 35°L.
Shaft diameter 17mm, gear outer diameter 46.5mm, total length 26.5mm, weight 0.0965kg.
Material: 20CrMo alloy steel.
Process: Sawing, turning, gear milling, heat treatment, hanging shot blasting, boring, facing & length grinding, gear grinding.
No keyway design, high precision and stable transmission for power tool drive system.
QZ-045-C1

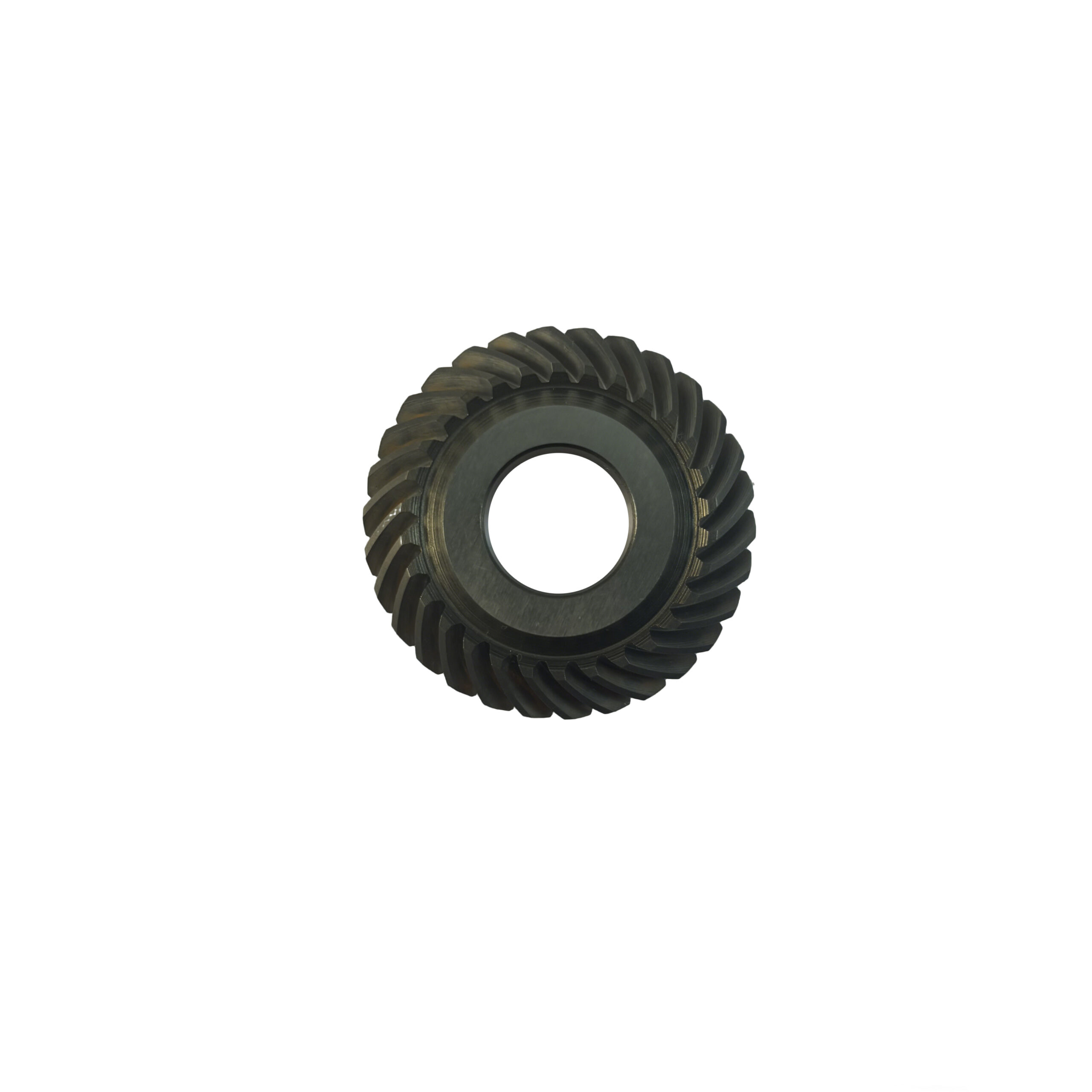

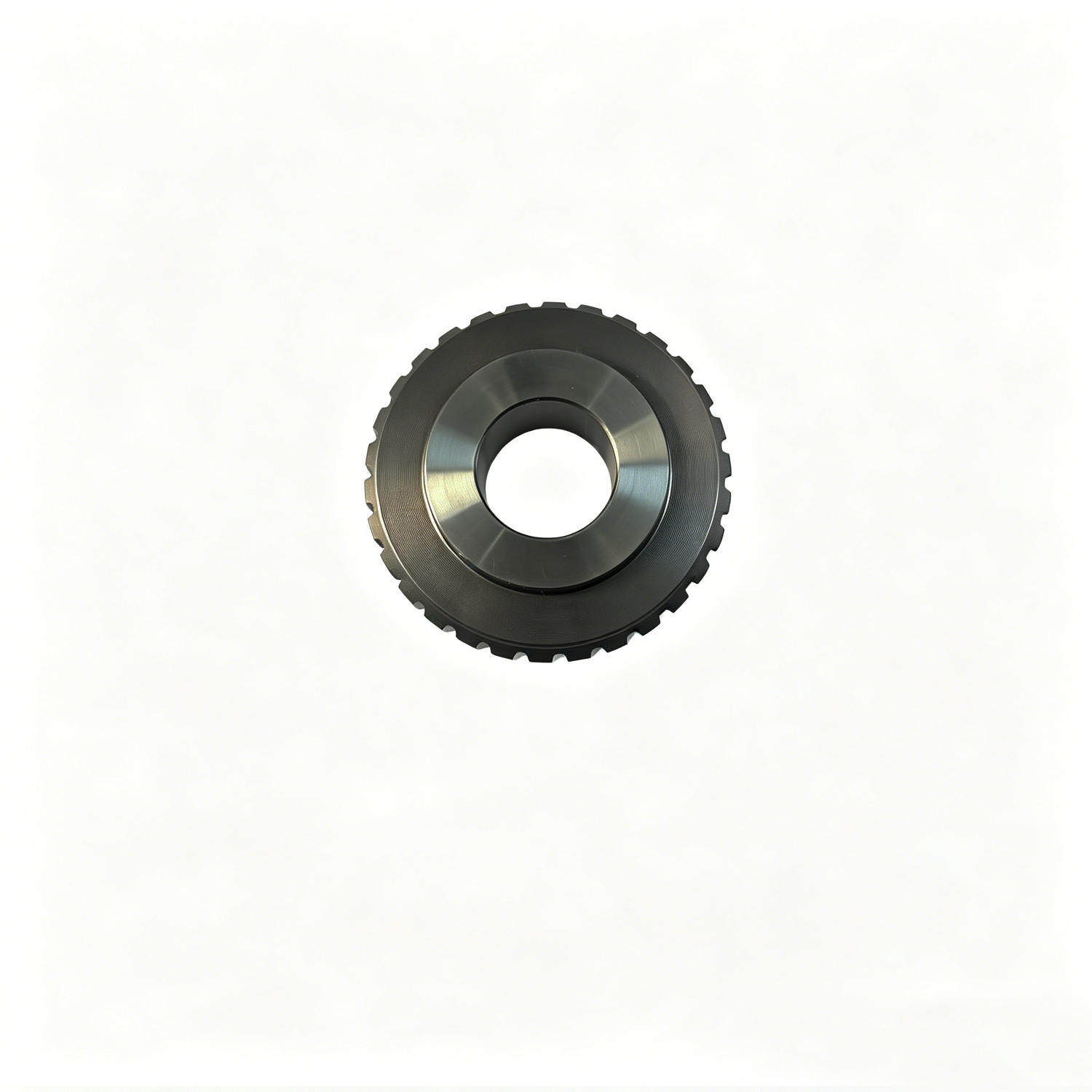

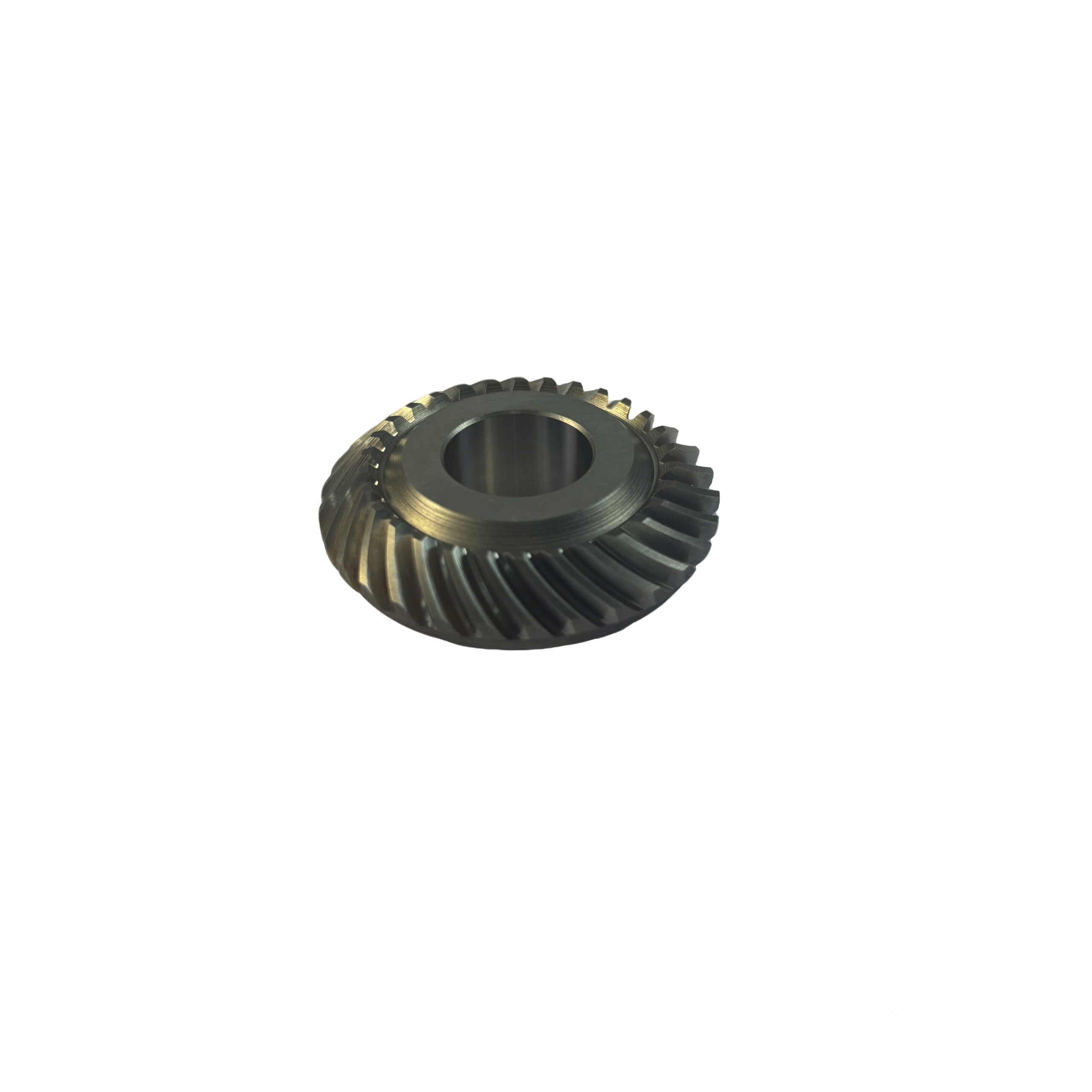

200942-00060641 Right Hand Spiral Bevel Gear (No Keyway)
Pressure angle 20°, module 1, 30 teeth, gear ratio 1, spiral angle 35°R.
Inner diameter 17mm, gear outer diameter 46.5mm, total length 12mm, weight 0.0965kg.
Material: 20CrMo alloy steel.
Process: Sawing, turning, gear milling, heat treatment, hanging shot blasting, boring, facing & length grinding, gear grinding.
Precision finished without keyway, suitable for power tool gear assembly.
Additional information
| QZ-044-C1 and QZ-045-C1 weight |
0.0965 and 0.0965 |
|---|---|
| QZ-044-C1 and QZ-045-C1 Core Components |
gear |
| QZ-044-C1 and QZ-045-C1 Craftsmanship |
Milling |
