203169 Left Hand Spiral Bevel Gear
$14.56piece

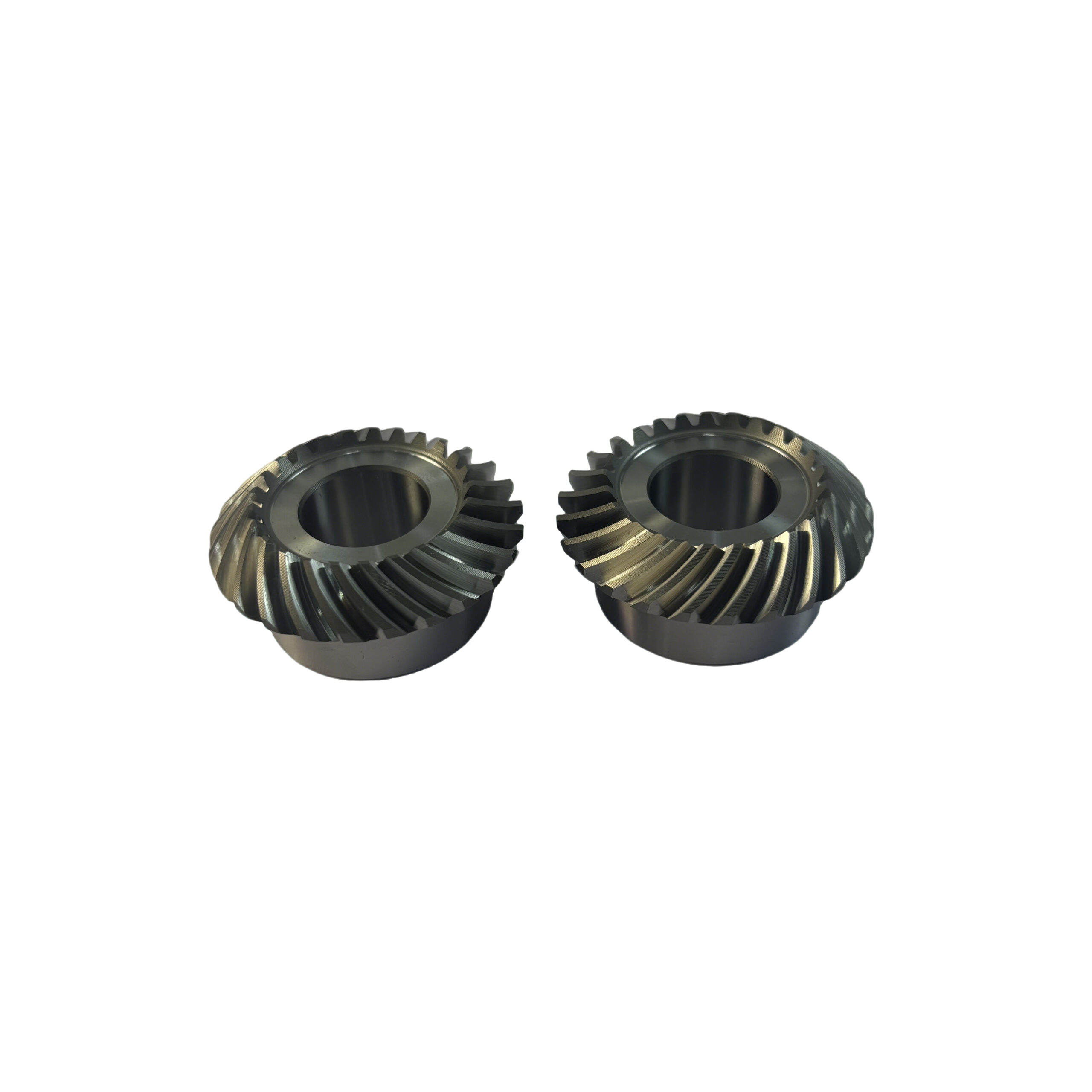

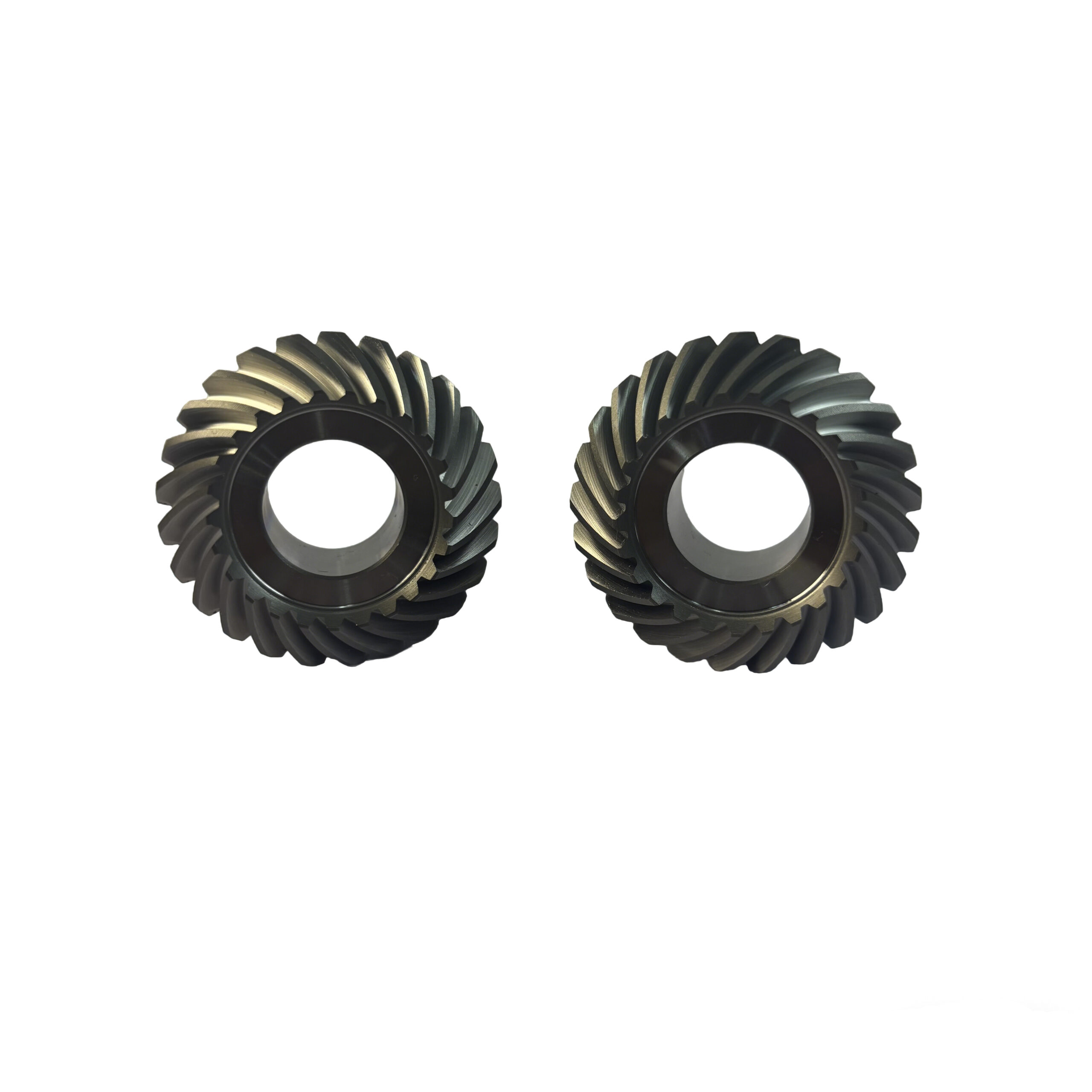

177977 Left-hand Gear and 177977 Right-hand Gear
$29.12piece
175093 Left-hand Gear and 175093 Right-hand Gear
$29.12piece
QZ-050-C
175093 Left Hand Spiral Bevel Gear, 20CrMo steel, module 1, 25 teeth, 35°L spiral angle, precision grinding process, high strength and wear resistance for power tools.
QZ-051-C
175093 Right Hand Spiral Bevel Gear, 20CrMo alloy steel, 25 teeth, 35°R spiral angle, smooth transmission, professional power tool drive gear.
Description

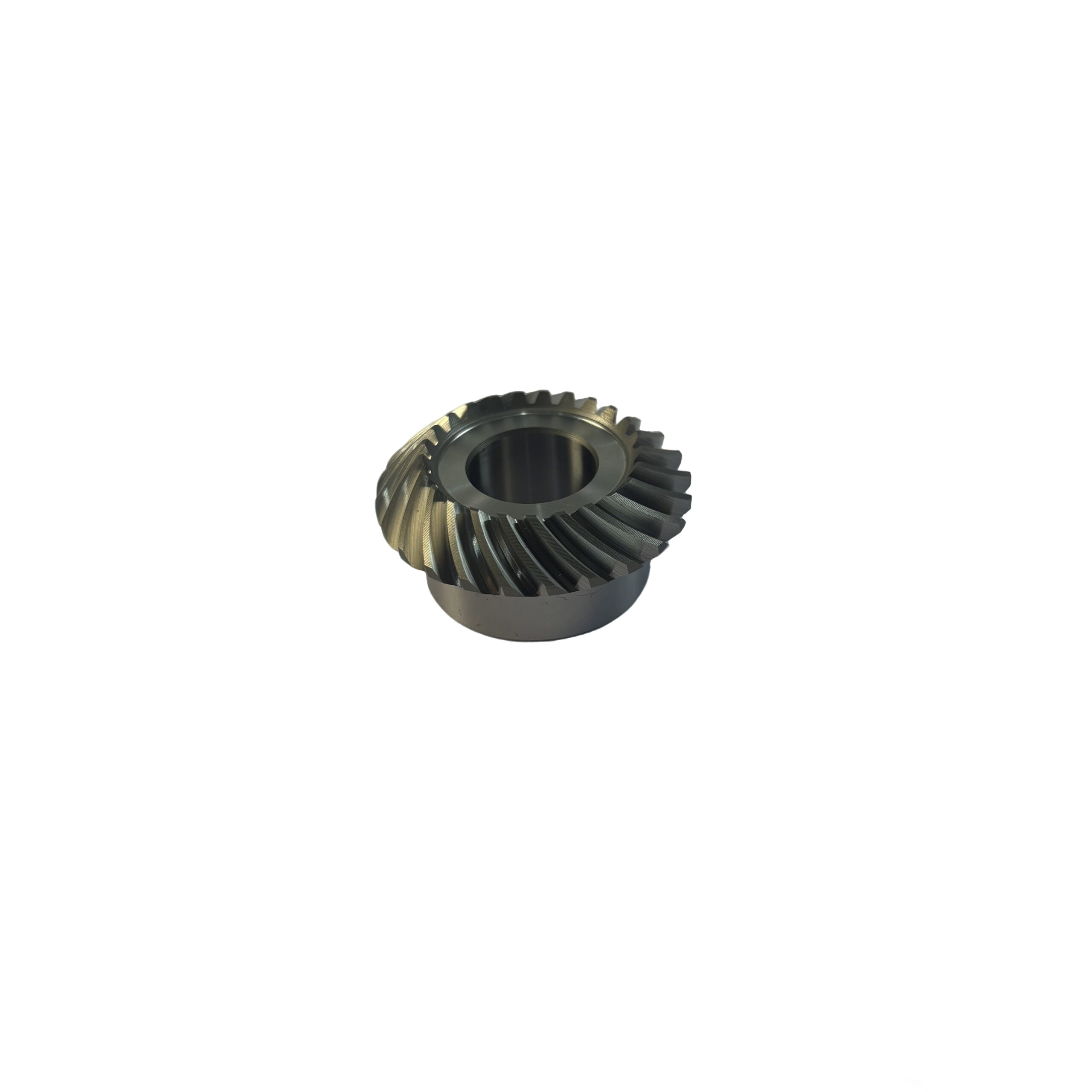

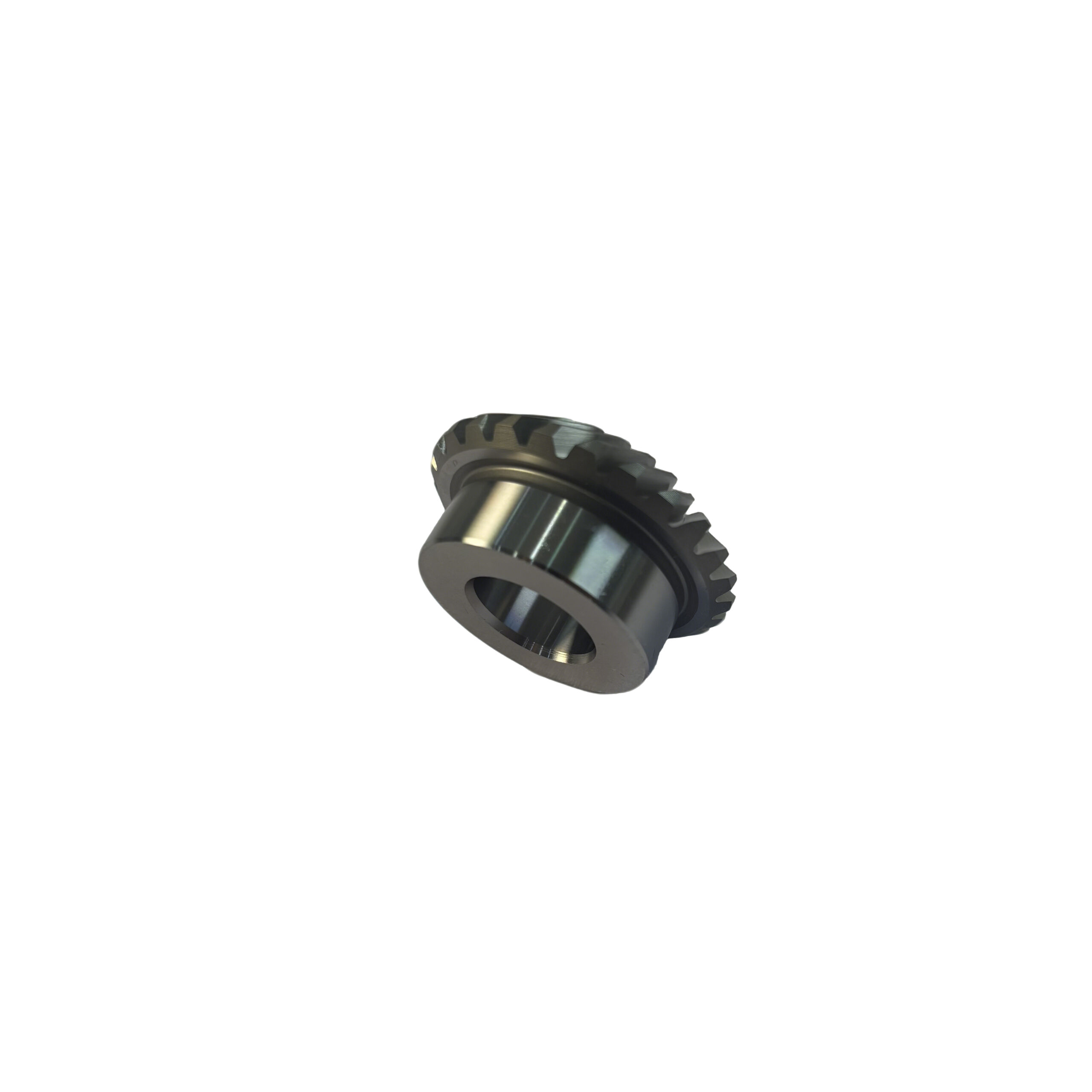

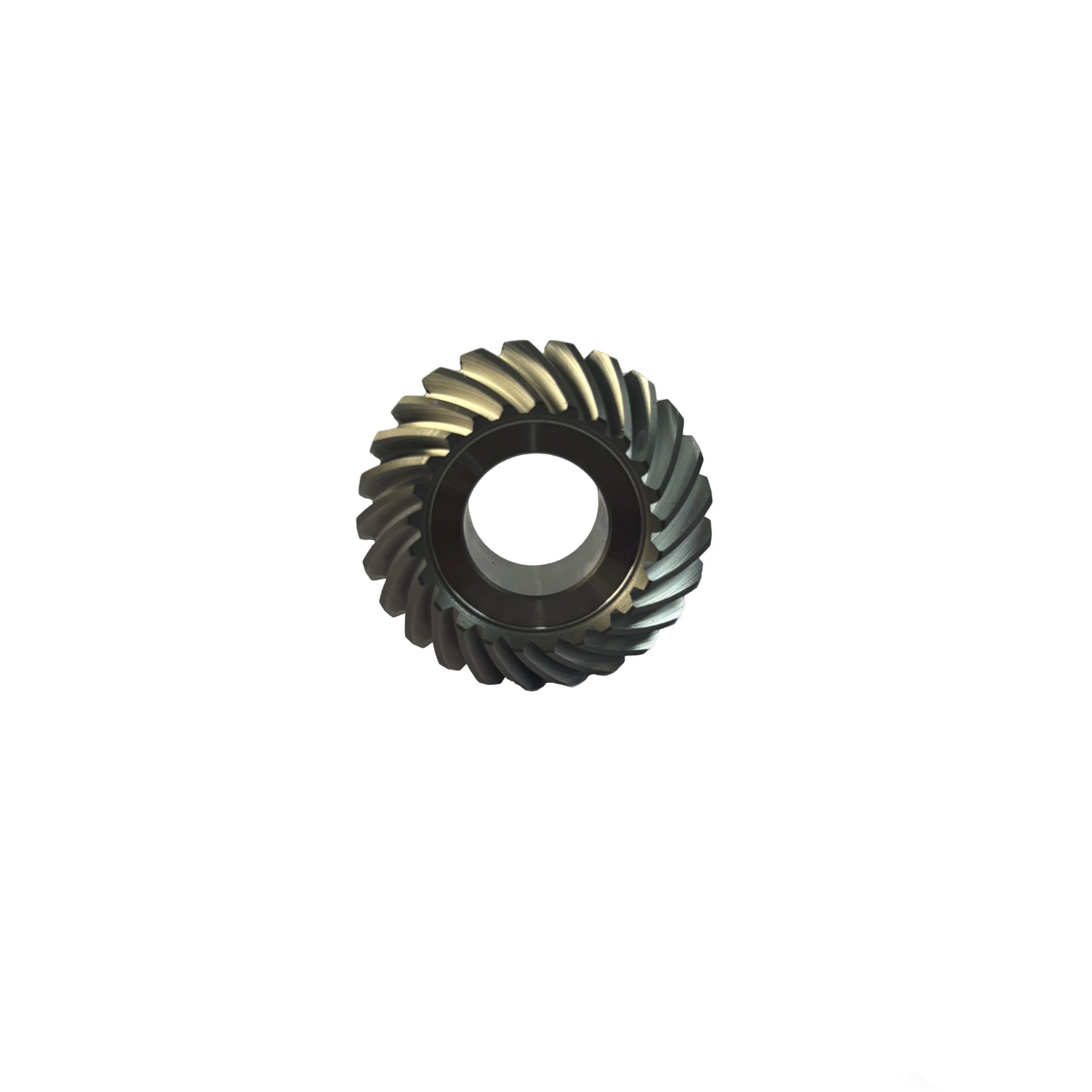

QZ-050-C 175093 Left Hand Spiral Bevel Gear
Model QZ-050-C is a 175093 left hand spiral bevel gear.
Pressure angle: 20°, Module: 1, Teeth number: 25, Gear ratio: 1, Spiral angle: 35°/L.
Inner diameter: 16mm, Outer gear diameter: 40mm, Overall length: 19mm, Weight: 0.0850kg.
Made of 20CrMo alloy steel.
Manufactured by complete processes: sawing, turning, gear milling, heat treatment, hanging shot blasting, boring, facing & OD turning, re-turning, surface grinding and gear grinding.
Features high precision, good wear resistance and stable load capacity, specially used for power tool transmission.

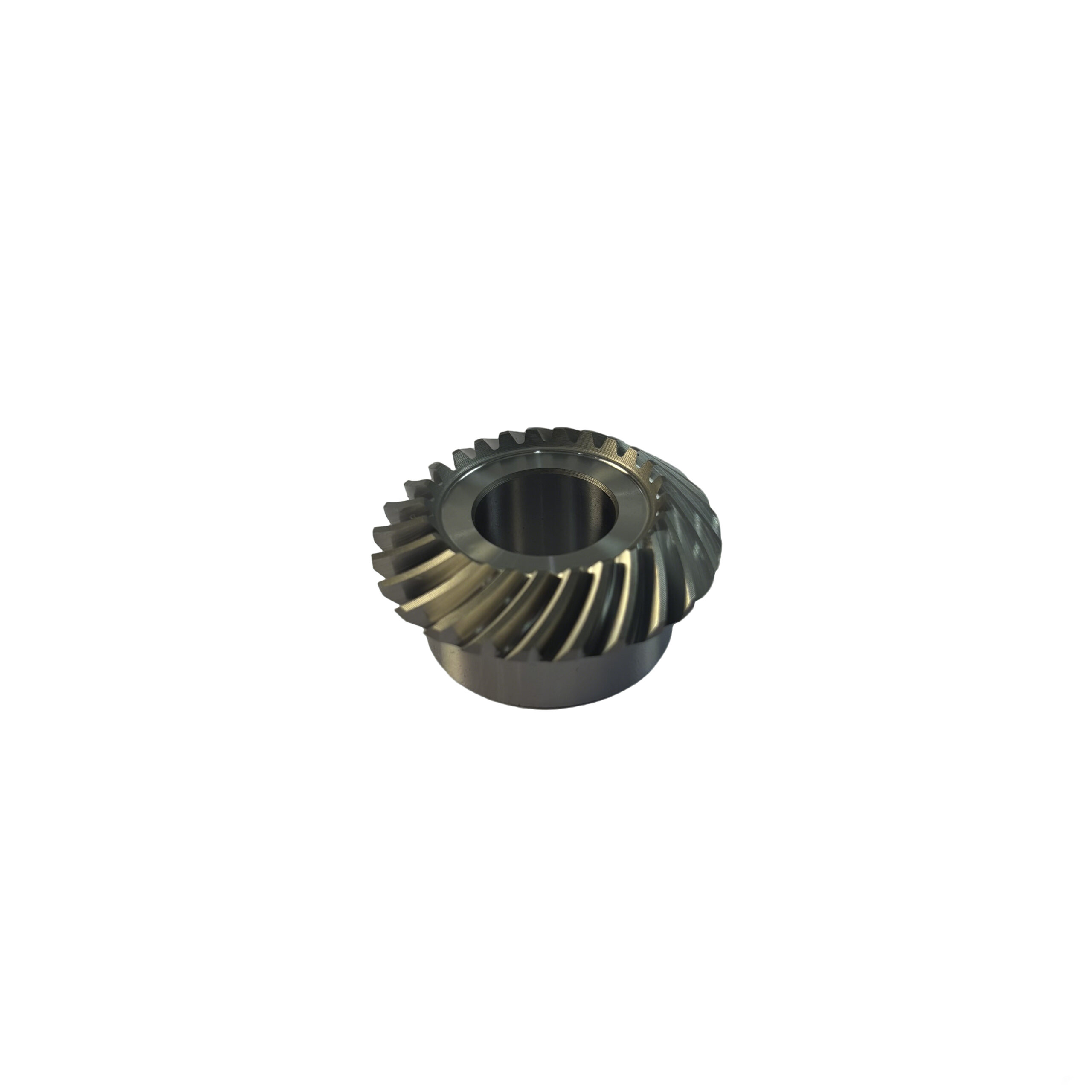

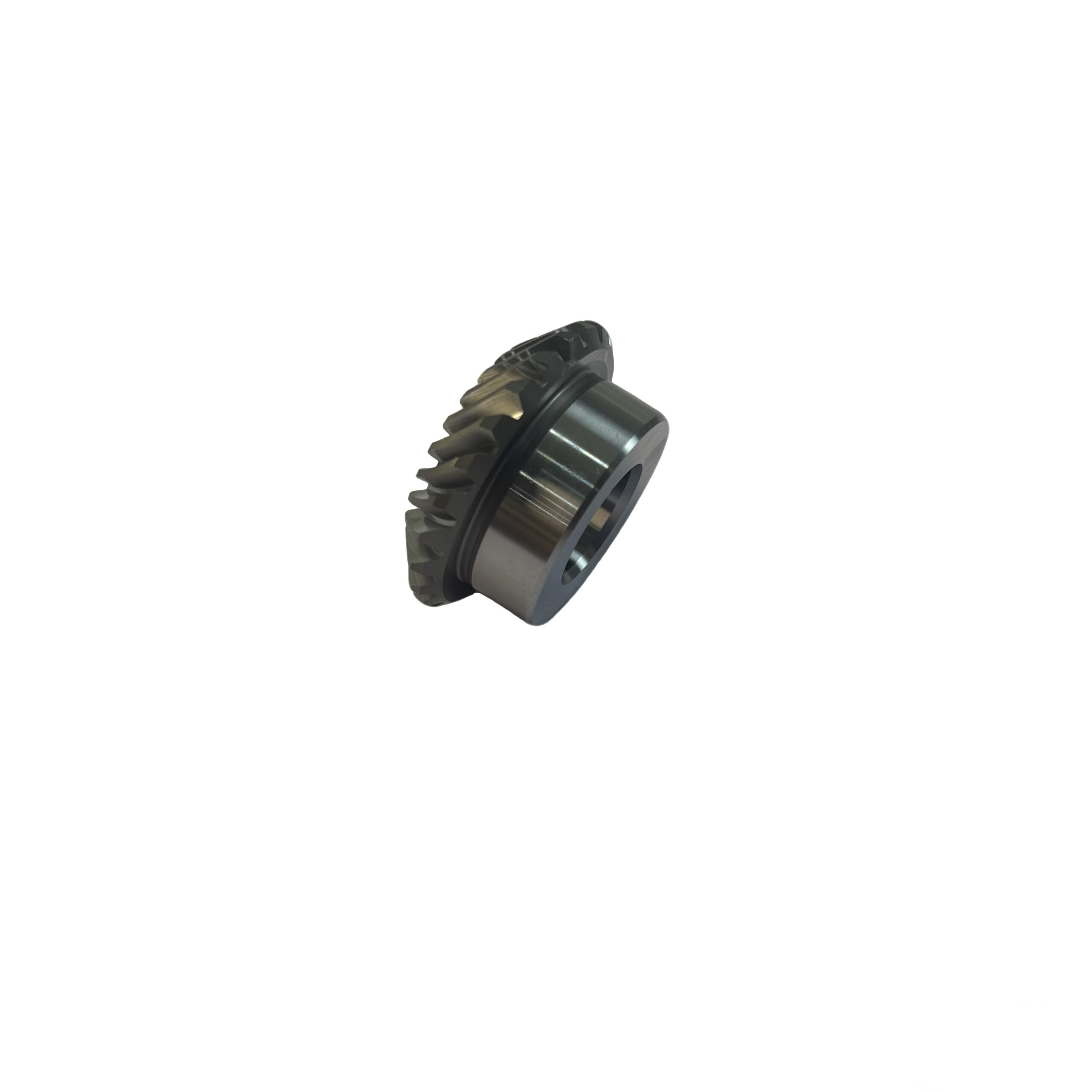

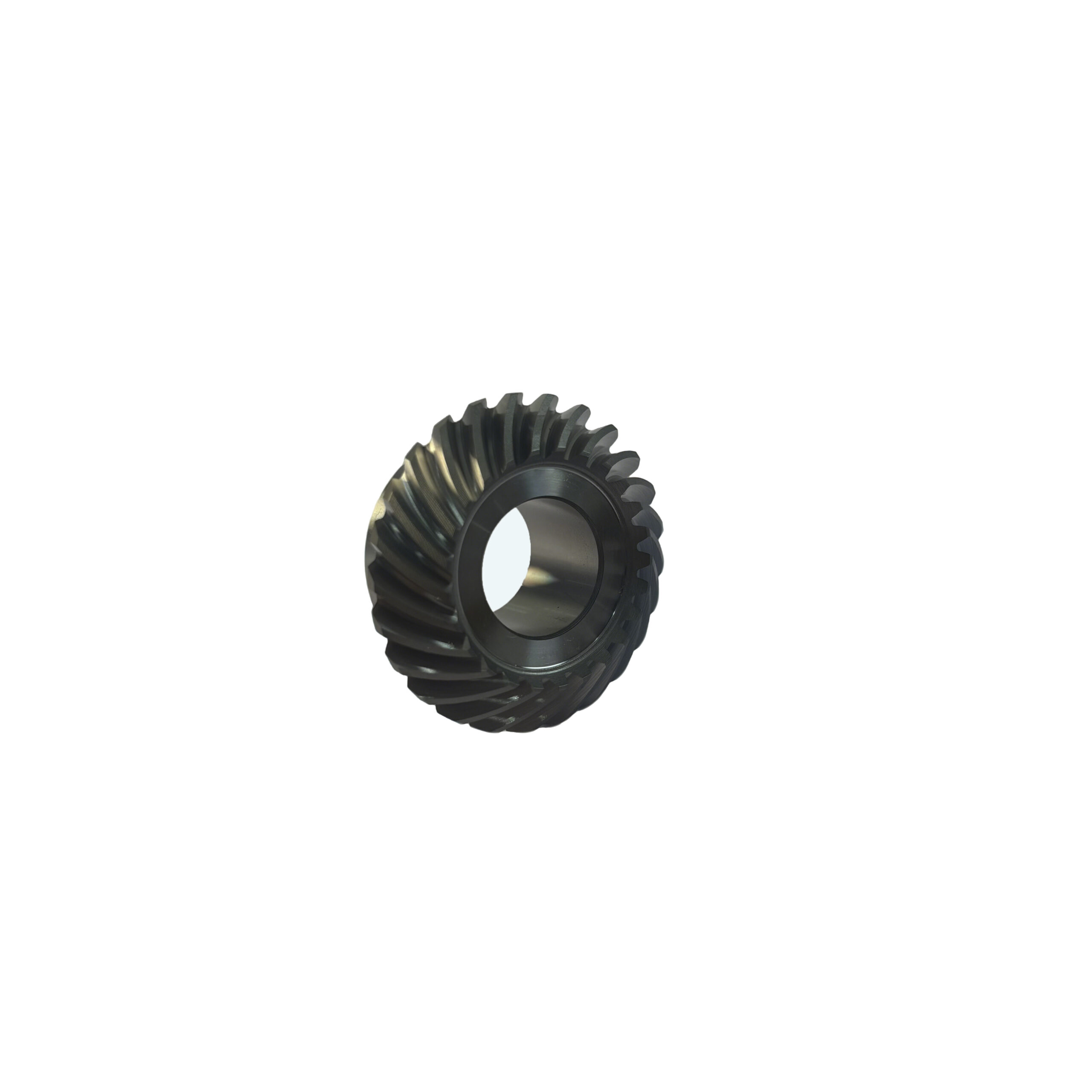

QZ-051-C 175093 Right Hand Spiral Bevel Gear
Model QZ-051-C is a 175093 right hand spiral bevel gear.
Pressure angle: 20°, Module: 1, Teeth number: 25, Gear ratio: 1, Spiral angle: 35°/R.
Inner diameter: 16mm, Outer gear diameter: 40mm, Overall length: 19mm, Weight: 0.0850kg.
Adopts 20CrMo material.
Processed by sawing, turning, gear milling, heat treatment, hanging shot blasting, boring, facing, OD finishing, surface grinding and gear grinding.
It runs smoothly with high durability, ideal for power tool gear matching.
Additional information
| QZ-050-C and QZ-051-C weight |
0.0850 and 0.0850 |
|---|---|
| QZ-050-C and QZ-051-C Core Components |
gear |
| QZ-050-C and QZ-051-C Craftsmanship |
Milling |
