2024356
$5.60piece

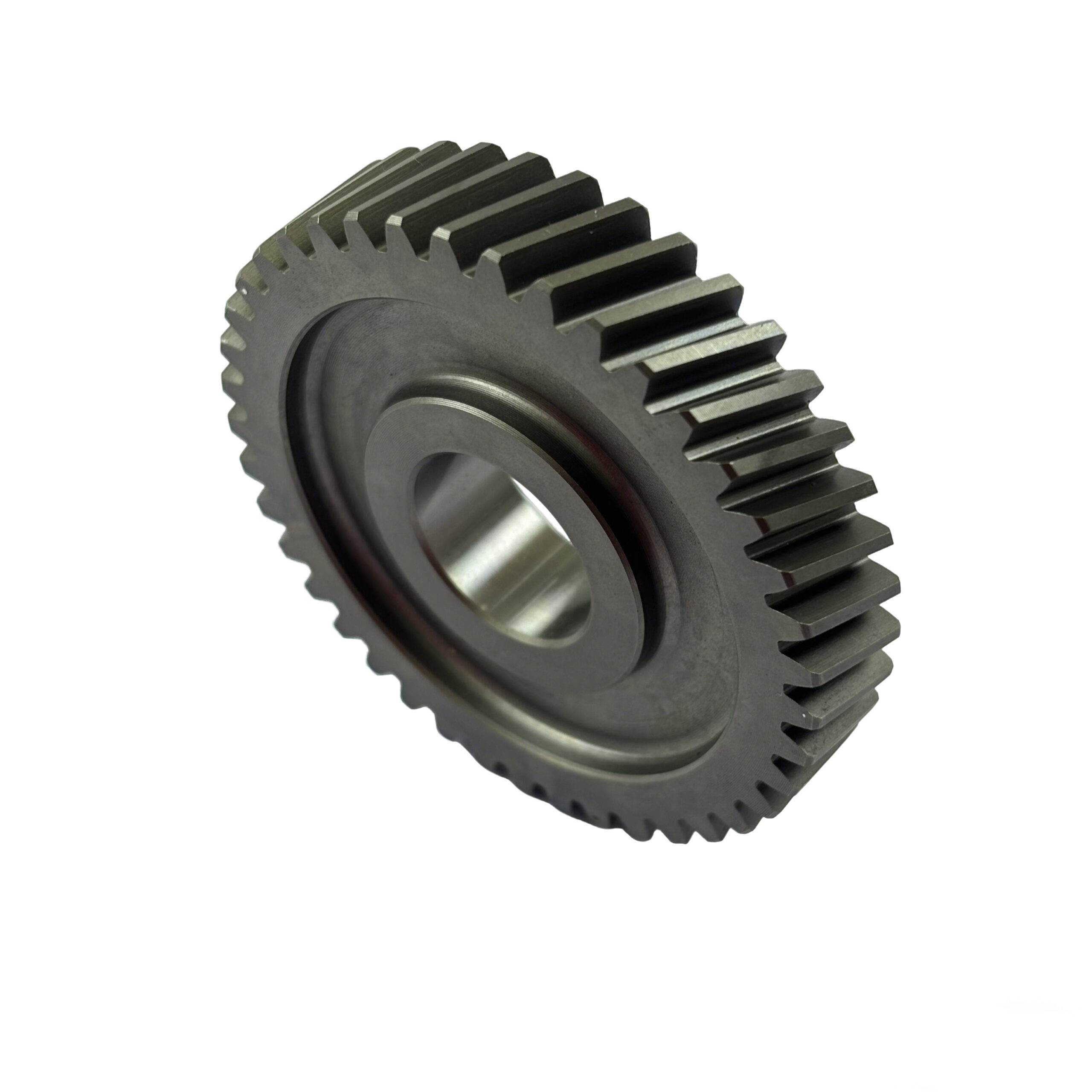

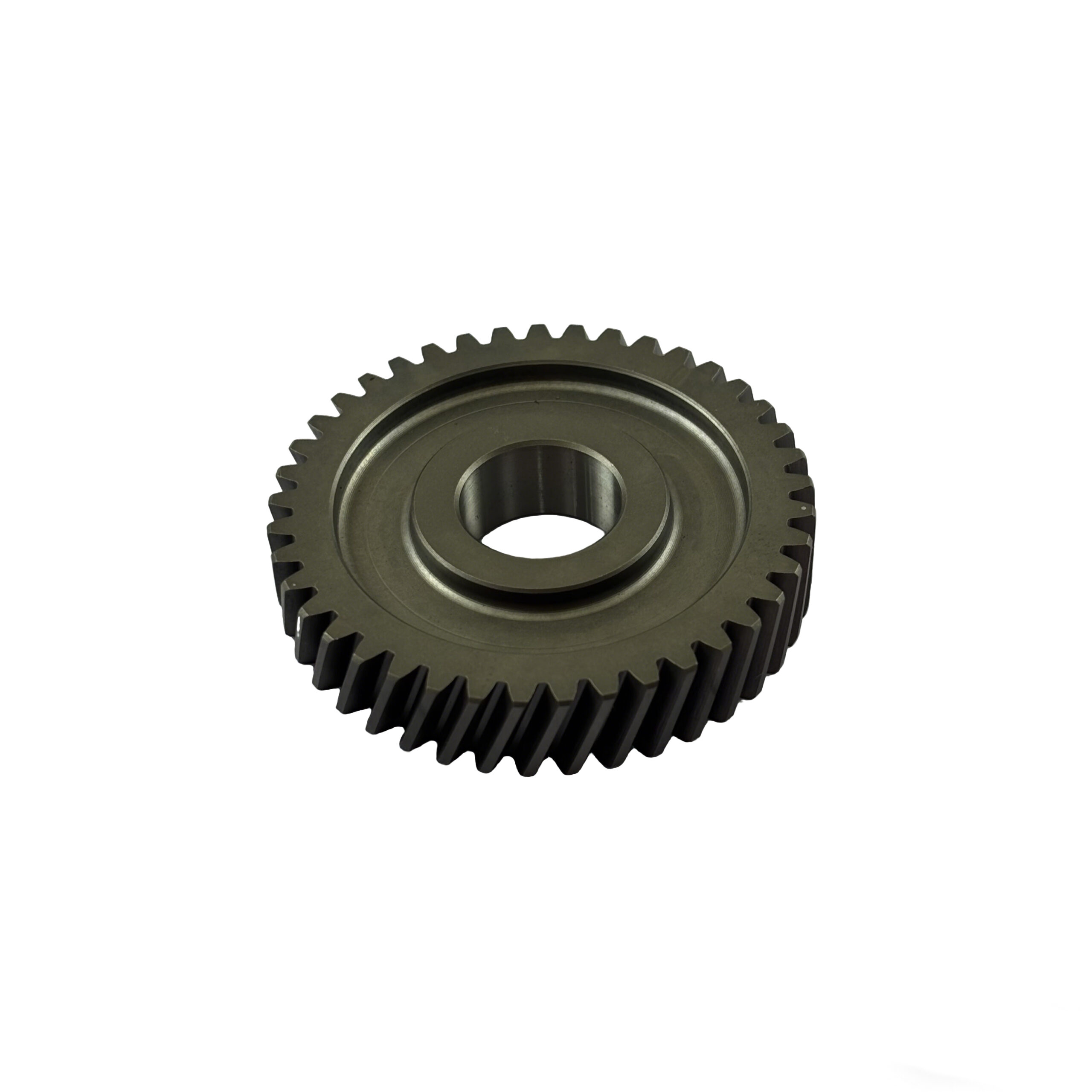

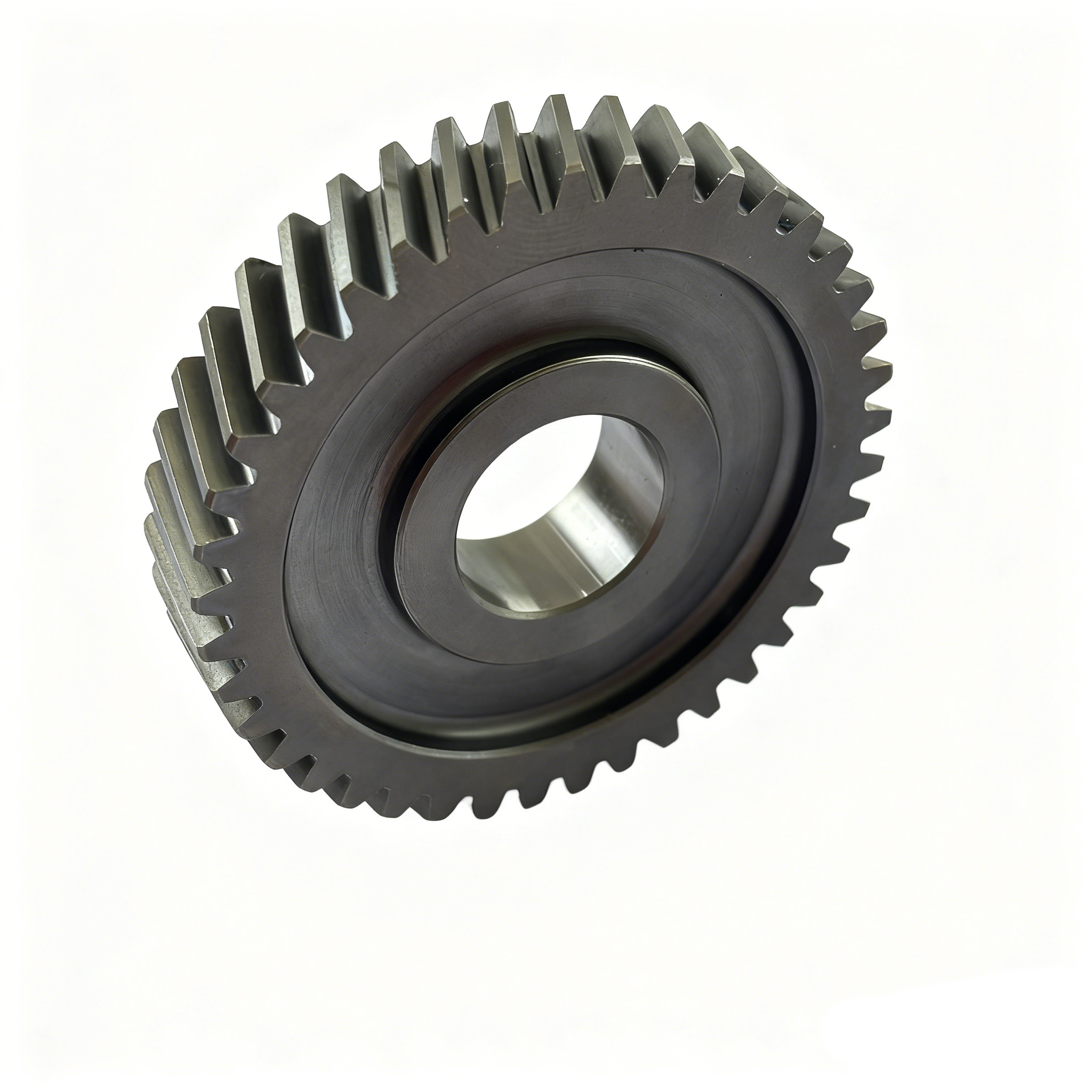

Model QY-011-C/2024356 helical gear is made of 20CrMo, with a pressure angle of 20°, module of 1.25, 41 teeth and 20° right-hand helix angle. Produced via multiple processes including hobbing and heat treatment, it has a tooth outer diameter of 56.8mm and weight of 0.138kg, serving as a dedicated transmission component for power tools.
描述
其他信息
| weight |
0.138 |
|---|---|
| Core Components |
gear |
| Craftsmanship |
Hobbing |
用户评价 (0)
Shipping & Delivery
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
相关产品
1533-6 Tooth Gear and 1533-T36 Gear
1533-6 Tooth Helical Gear: 20CrMo helical gear for sewing machines, module 0.8, 6 teeth, 15.12°R helix angle, precision-engineered, stable and efficient transmission
1533-T36 Helical Gear: 20CrMo helical gear for sewing equipment, module 0.8, 36 teeth, 15.12°R helix angle, high-precision, strong adaptability
2020909 PINION GEAR
Model 2020909 helical gear is made of 20CrMo, refined through multiple processes including normalizing, hobbing and heat treatment. It has a pressure angle of 20°, module of 0.75, 7 teeth, shaft diameter of 8mm, tooth outer diameter of 7.3mm and weight of 0.0227kg, serving as a dedicated transmission component for power tools.
2024351 Finished Product
The 2024351 finished helical gear (dedicated for power tools) has a pressure angle of 20°, module of 1.25, 41 teeth and helix angle of 5°/R. With an inner diameter of 16mm, outer diameter of 53.45mm, total length of 10mm and weight of 0.0962kg, it is made of 20CrMnTi material through precision processes including normalizing, hobbing and heat treatment, featuring stable transmission, wear resistance and impact resistance.
2024421(2024524)
The 2024421 (2024524) helical gear (dedicated for power tools) has a pressure angle of 20°, module of 1.25, 51 teeth and helix angle of 20°/L. With an inner diameter of 14mm, outer diameter of 69.5mm, total length of 10.5mm and weight of 0.1747kg, it is made of 20CrMo material through precision processes including normalizing, hobbing, heat treatment and boring. It is characterized by high torque resistance, stable transmission and long service life.
531.06-78 45° Helical Gear (Driven) and 531.06-77 45° Helical Gear (Driving)
531.06-78 Driven Helical Gear and 531.06-77 Driving Helical Gear are 45° helical gears made of 20CrMo, with a pressure angle of 20°, a module of 1 and 18 teeth. Processed via multiple precision procedures, they realize precise meshing and stable transmission, and are suitable for the transmission system of sewing equipment.
855718 Finished Lower Shaft Main Gear and 855717 Hook Shaft Pinion
855718 Finished Lower Shaft Main Gear and 855717 Hook Shaft Pinion are helical gears made of 20CrMo, with a pressure angle of 20° and a module of 1, and their helix angles are set as 15°/R and 15°/L respectively. Processed via multiple precision manufacturing procedures, they are suitable for the transmission system of sewing equipment, delivering stable transmission with excellent wear resistance.
