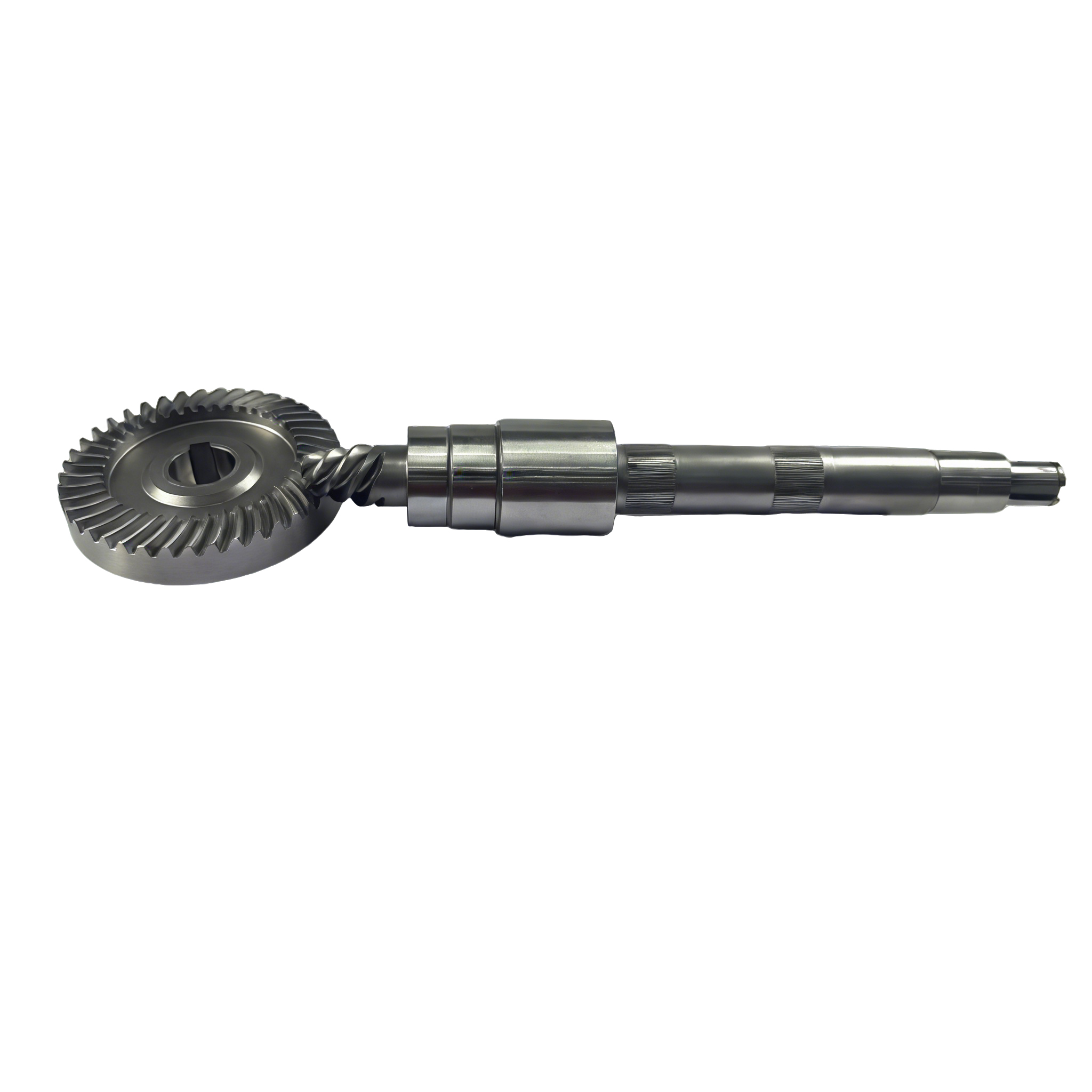

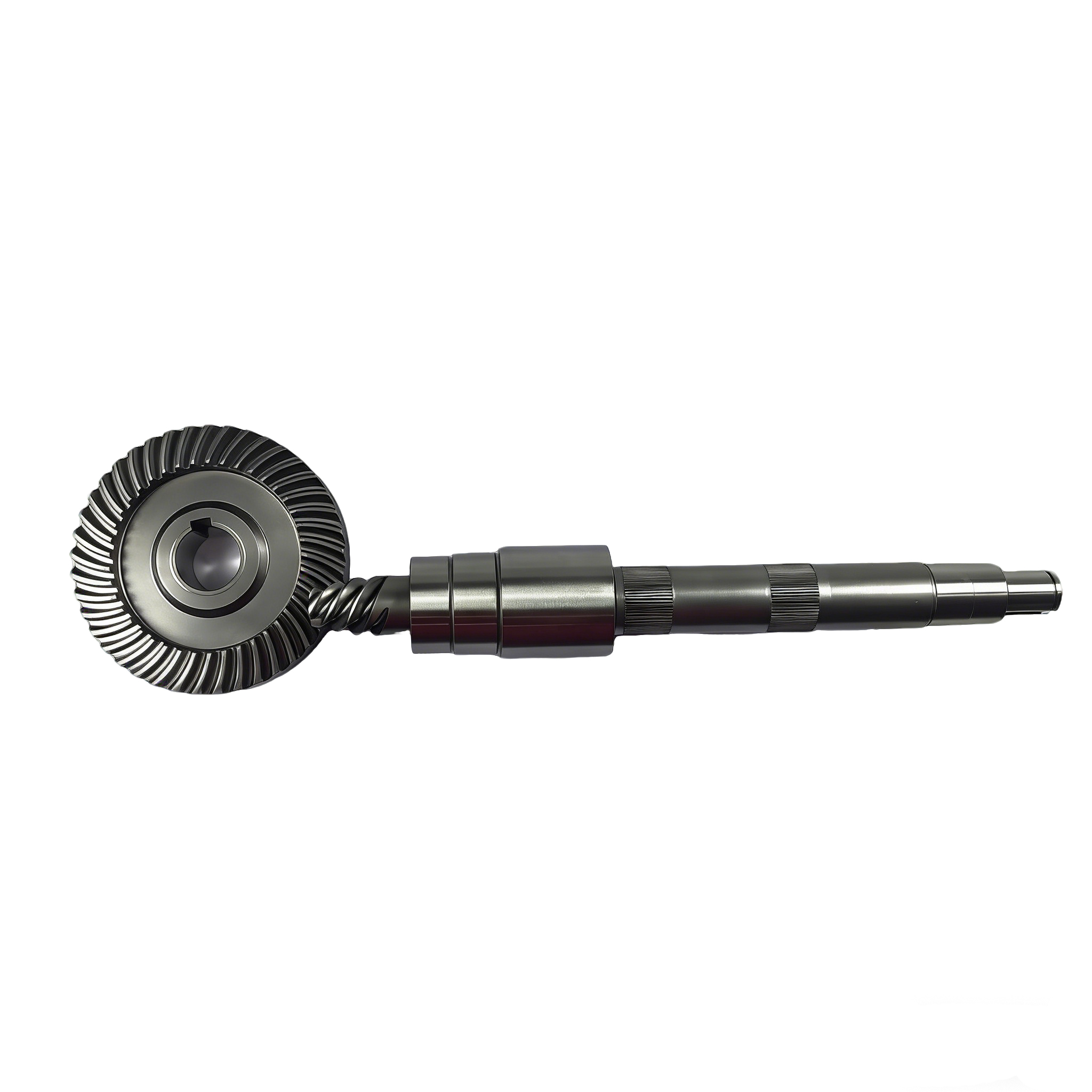

ZDF3-45H20-1500-S-013-00001 Rotating Shaft and ZDF3-45H60-1500-516-002 Primary Driven Gear
$21.00piece

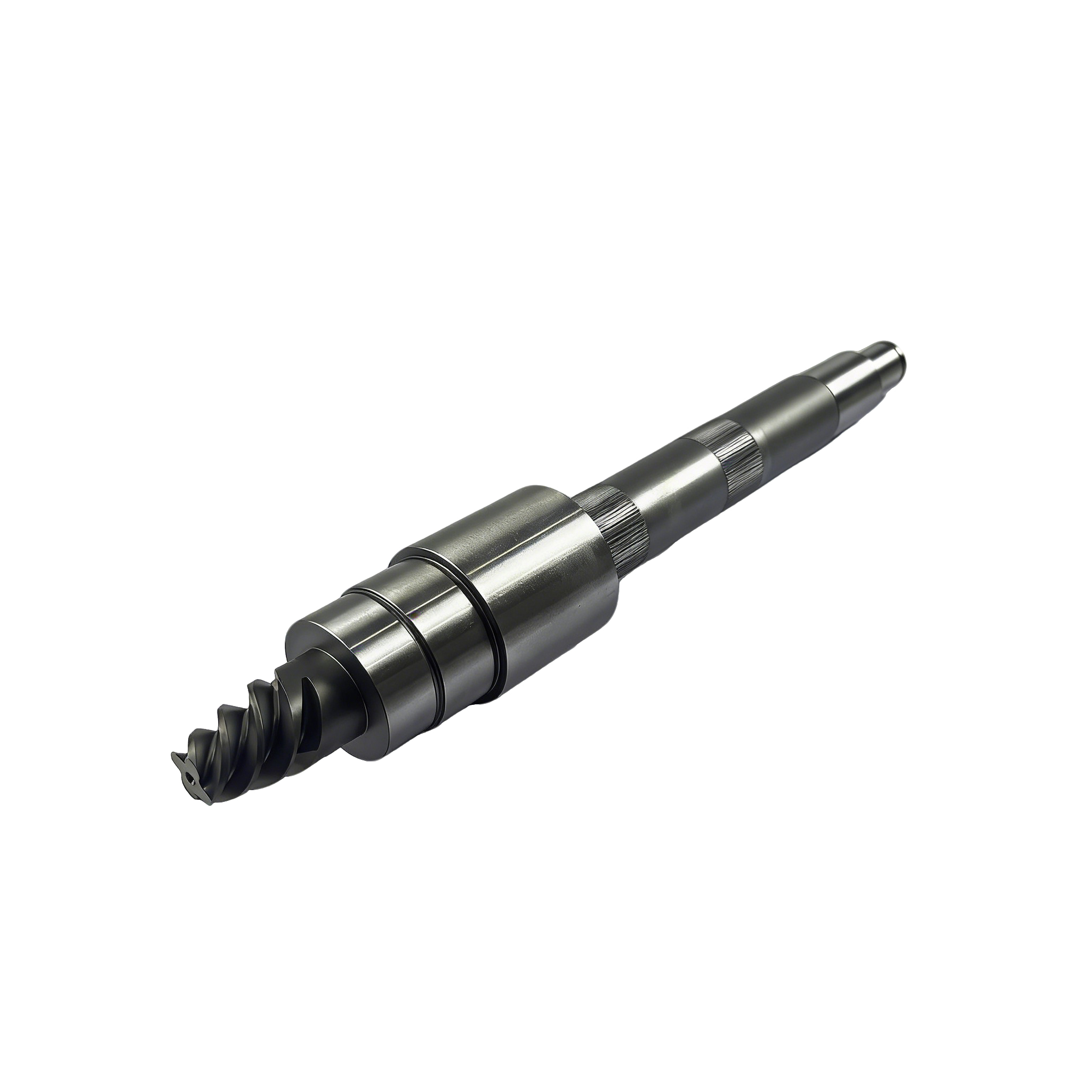

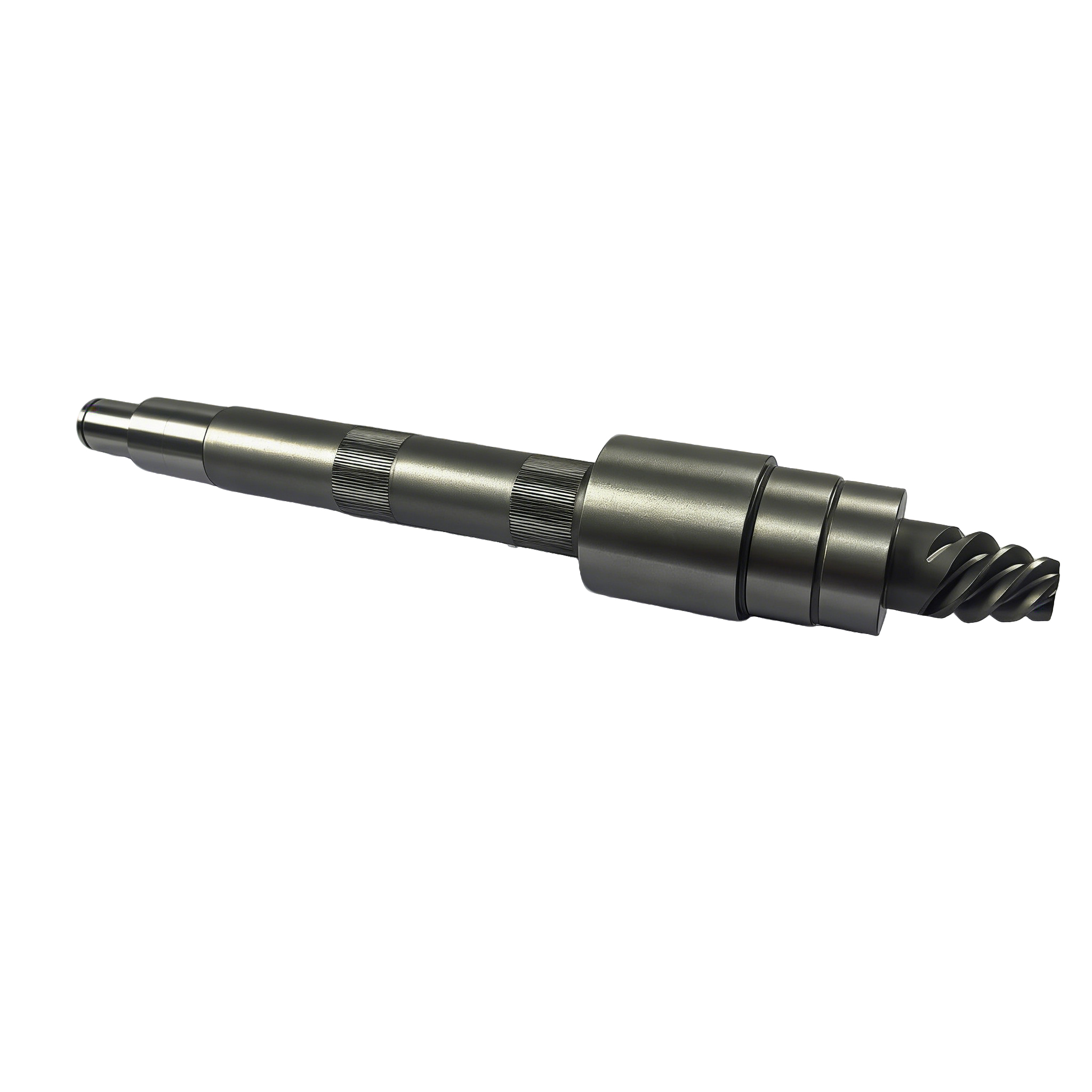

ZD-011-C is a hypoid gear shaft made of 20CrMnTi, with module 2.586, 4 teeth and 50° left-hand helix. It is precision-machined and heat-treated for stable, durable transmission in reducers.

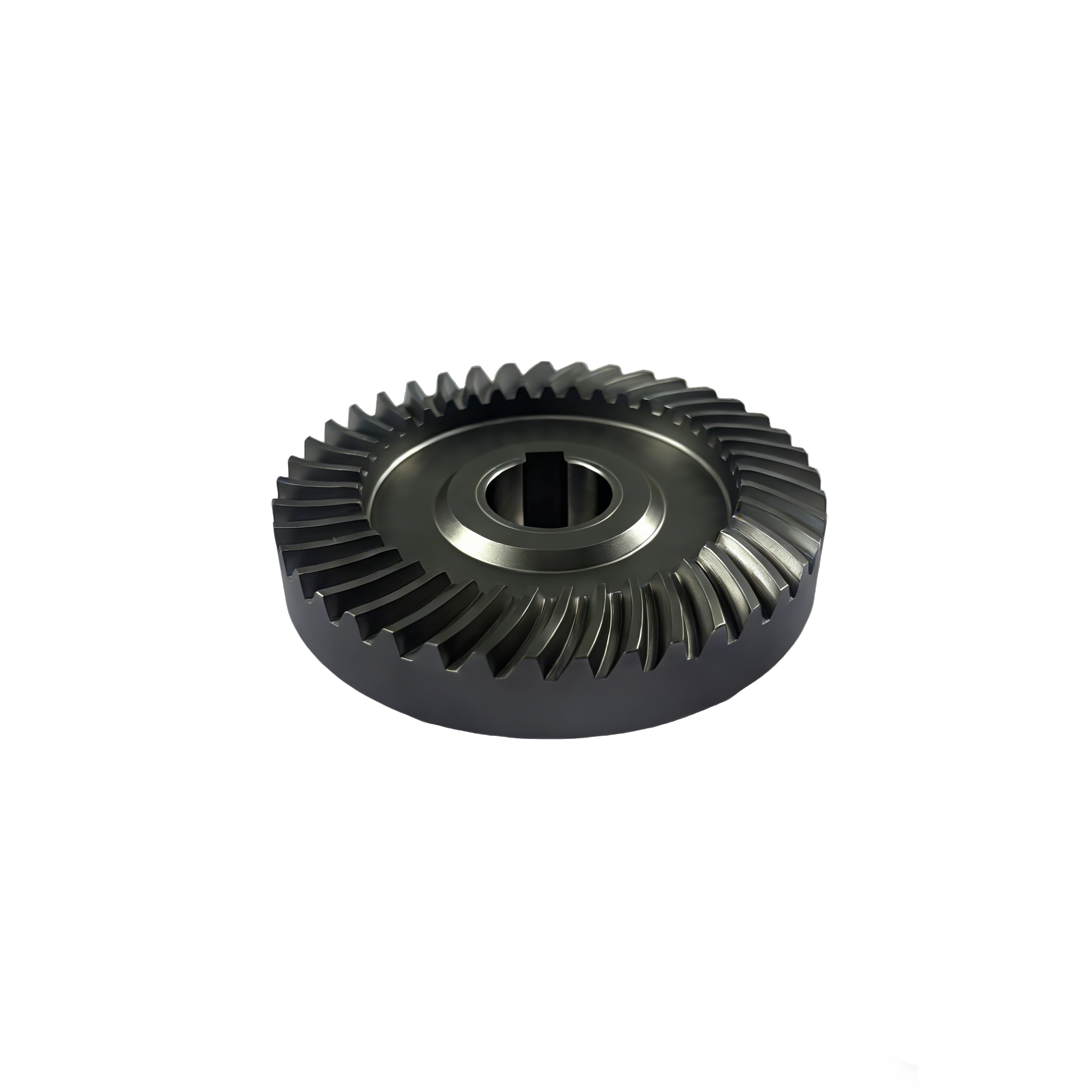

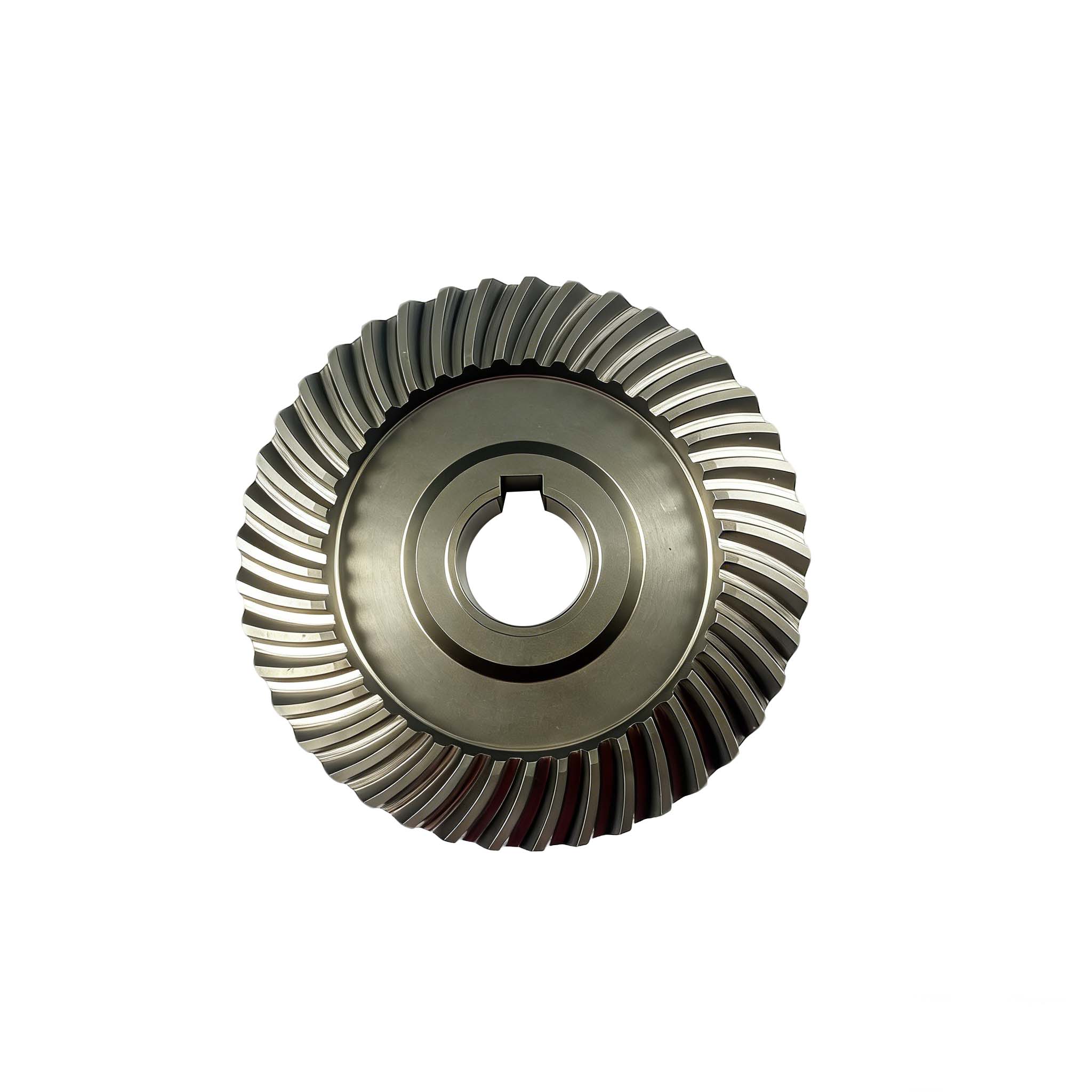

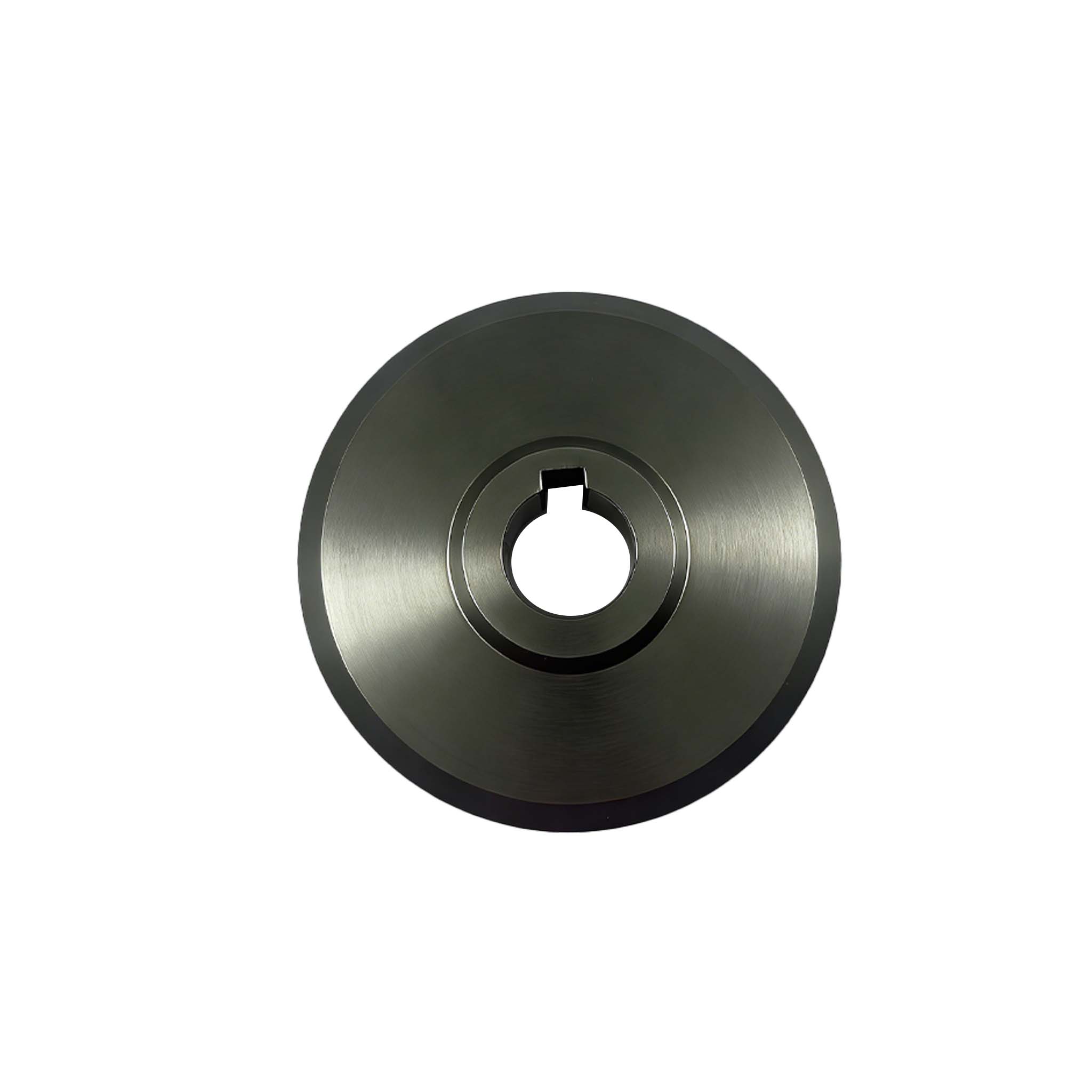

ZD-012-C is a hypoid primary driven gear made of 20CrMnTi, with module 2.586, 41 teeth and 50° right-hand helix. It is ideal for reducer primary transmission with stable performance and long service life.
描述
Model: ZD-011-C
Product Name: ZDF3-45H20-1500-S-013-00001 Shaft
Type: Hypoid Gear
Parameters: Pressure angle 20°, module 2.586, 4 teeth, offset distance 21, helix angle 50° LH, shaft diameter 45 mm, tooth outer diameter 23.25 mm, total length 295.27 mm, weight 1.6525 kg
Material: 20CrMnTi
Process: Sawing, turning, rough grinding for positioning, rough grinding for clamping, rough grinding for reference, gear milling, heat treatment & straightening, shot blasting, outer diameter grinding, marking, full appearance inspection
Application: Reducer gear
This hypoid gear shaft is made of 20CrMnTi alloy steel through complete precision machining and heat treatment. It features high dimensional stability, high strength and excellent wear resistance, ensuring stable and reliable transmission for reducers.
Model: ZD-012-C
Product Name: ZDF3-45H60-1500-516-002 Primary Driven Gear
Type: Hypoid Gear
Parameters: Pressure angle 20°, module 2.586, 41 teeth, offset distance 21, helix angle 50° RH, inner bore 25 mm, tooth outer diameter 106 mm, total length 28.38 mm, weight 1.3265 kg
Material: 20CrMnTi
Process: Sawing, turning, gear milling, heat treatment, shot blasting, boring, total length facing, marking, full appearance inspection
Application: Reducer gear
This primary driven gear is manufactured from 20CrMnTi with high machining accuracy and good mechanical properties. It runs smoothly and is suitable for primary transmission in reducers with high reliability and wear resistance.
其他信息
| ZD-011-C and ZD-012-C weight |
1.6525and1.3265 |
|---|---|
| ZD-011-C and ZD-012-C Core Components |
gear |
| ZD-011-C and ZD-012-C Craftsmanship |
Milling |
