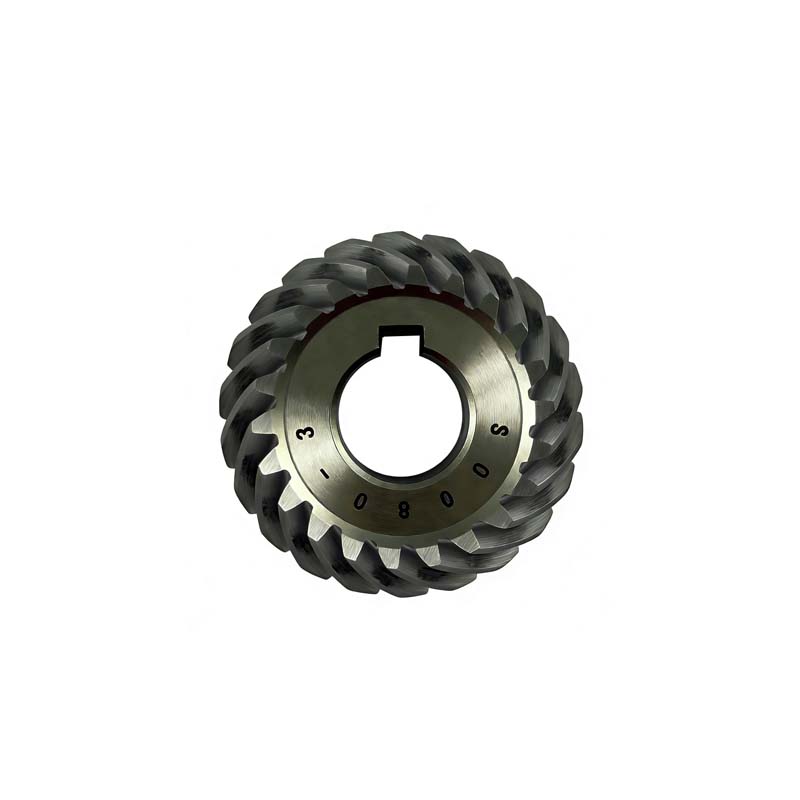

SUY-S0080 No.3 Bevel Gear A (1.5 Module, 22 Teeth, Left-Hand Rotation)
$7.00piece
SuYou-009 is a 35° left-hand spiral bevel gear made of 20CrMo, with module 1.5 and 22 teeth. Produced by precision milling, grinding and heat treatment, it has high accuracy, stable transmission and good wear resistance.
描述
Model: SuYou-009
Product Name: SUY-S0080 No.3 Spiral Bevel Gear A (1.5 Module, 22 Teeth, Left-Hand)
Type: Spiral Bevel Gear
Main Parameters: Pressure angle 20°, module 1.5, number of teeth 22, helix angle 35° left-hand, inner bore 12 mm, outer diameter 34 mm, total length 13.5 mm, weight 0.0559 kg
Material: 20CrMo alloy steel
Process: Sawing, turning, gear milling, heat treatment, shot blasting, boring & facing, total length grinding, gear grinding, keyway by wire cutting
This gear is manufactured through precision machining and heat treatment, featuring high dimensional accuracy, excellent tooth surface quality, stable transmission, and good strength and wear resistance, suitable for precision transmission equipment.
其他信息
| weight |
0.0559 |
|---|---|
| Core Components |
gear |
| Craftsmanship |
Milling |
用户评价 (0)
Shipping & Delivery
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
相关产品
2020802
2020802 Spiral Bevel Gear is a dedicated transmission component for electric tools. Made of 20CrMnTi material, it has a pressure angle of 20°, a module of 1.5, 18 teeth, and a spiral angle of 35°/L, with a shaft diameter of 12mm, an outer diameter of 29.165mm, a total length of 145.5mm, and a single weight of 0.147kg. Produced via multiple correction and precision machining procedures, it features accurate transmission and high stability.
2024479 Gear
2024479 Spiral Bevel Gear is a dedicated transmission component for electric tools. Made of 20CrMnTi material, it has a pressure angle of 20°, a module of 1.5, 47 teeth, and a spiral angle of 35°/R, with an inner diameter of 14mm, an outer diameter of 68.8mm, a total length of 18.05mm, and a single weight of 0.2636kg. Produced via multiple precision machining and full inspection procedures, it delivers stable transmission and high durability.
32721.150020 Bevel Gear-32721.150010 Bevel Gear
32721 series spiral bevel gears (including 32721.150020/32721.150010) are specially designed for sewing equipment. Made of 20CrMo, they are manufactured through full-process precision processes such as normalizing and turning + full appearance inspection. Core parameters: pressure angle 17°30′, module 1.05, helix angle 40° (right-hand/left-hand rotation respectively); Model 150020: 18 teeth, speed ratio 2, inner diameter 8mm, addendum diameter 21mm, weight 0.0118kg; Model 150010: 36 teeth, inner diameter 15mm, addendum diameter 38.33mm, weight 0.0428kg. Suitable for transmission of sewing equipment, with precise transmission, stability and durability.
Bevel Gear Shaft 4037013
The 4037013 Bevel Gear Shaft is a special transmission component for reducers, made of 20CrMnTi material and manufactured through multiple precision processes including normalization, turning, keyway machining, gear milling and heat treatment. Its core parameters are 20° pressure angle, 2.12 module, 8 teeth and 35° right-hand rotation, with a shaft diameter of 17mm, total length of 78.11mm and weight of 0.1295kg. It features stable transmission, wear resistance and durability.
HL-T19 Right-hand Gear
HL-T19 right-hand spiral bevel gear (exclusive for sewing machinery): 20° pressure angle, 1.3 module, 19 teeth, 35°/R spiral angle, 10mm inner diameter, 25mm shaft diameter, 24.7mm outer tooth diameter, 49.92mm overall length, 0.3003kg weight. Made of 20CrMo via multi-step precision processes, it meets the transmission needs of sewing equipment.
