SCK50-2-2-02
$4.31 Piece
✅ Core Advantages: High-precision transmission, high load-bearing capacity, low noise, long service life, lightweight
✅ Key Parameters (SCK50-2-2-02): 20° Pressure Angle | 1.36 Modulus | 38 Teeth | 28°26′/R Helix Angle | 9mm Offset | 14mm Inner Diameter | 51.65mm Tooth Outer Diameter | 16mm Total Length | 0.1205kg Weight
✅ Exquisite Craftsmanship: Normalizing – Turning – Gear Milling – Heat Treatment – Chamfering – Shot Blasting – Reaming – Facing – Pairing Grinding – Marking – Full Inspection, Full-process Precision Control
✅ Application Scenarios: Power transmission for automobiles, construction machinery, precision instruments, automation equipment, etc.
✅ Product Features: High-quality alloy material | Precise meshing | Impact resistance | Low loss | Compliance with international industrial standards | Adaptation to high-load working conditions
描述

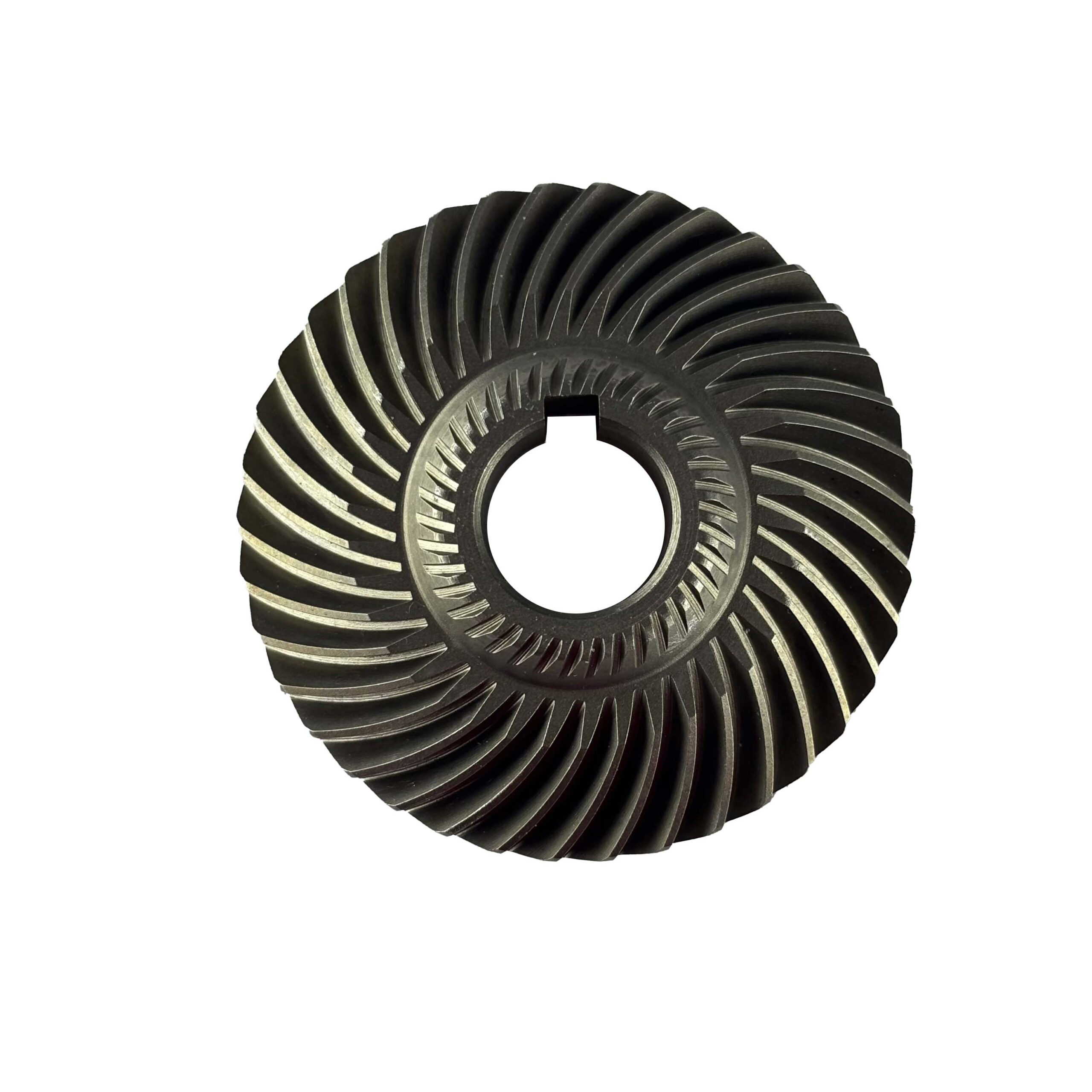

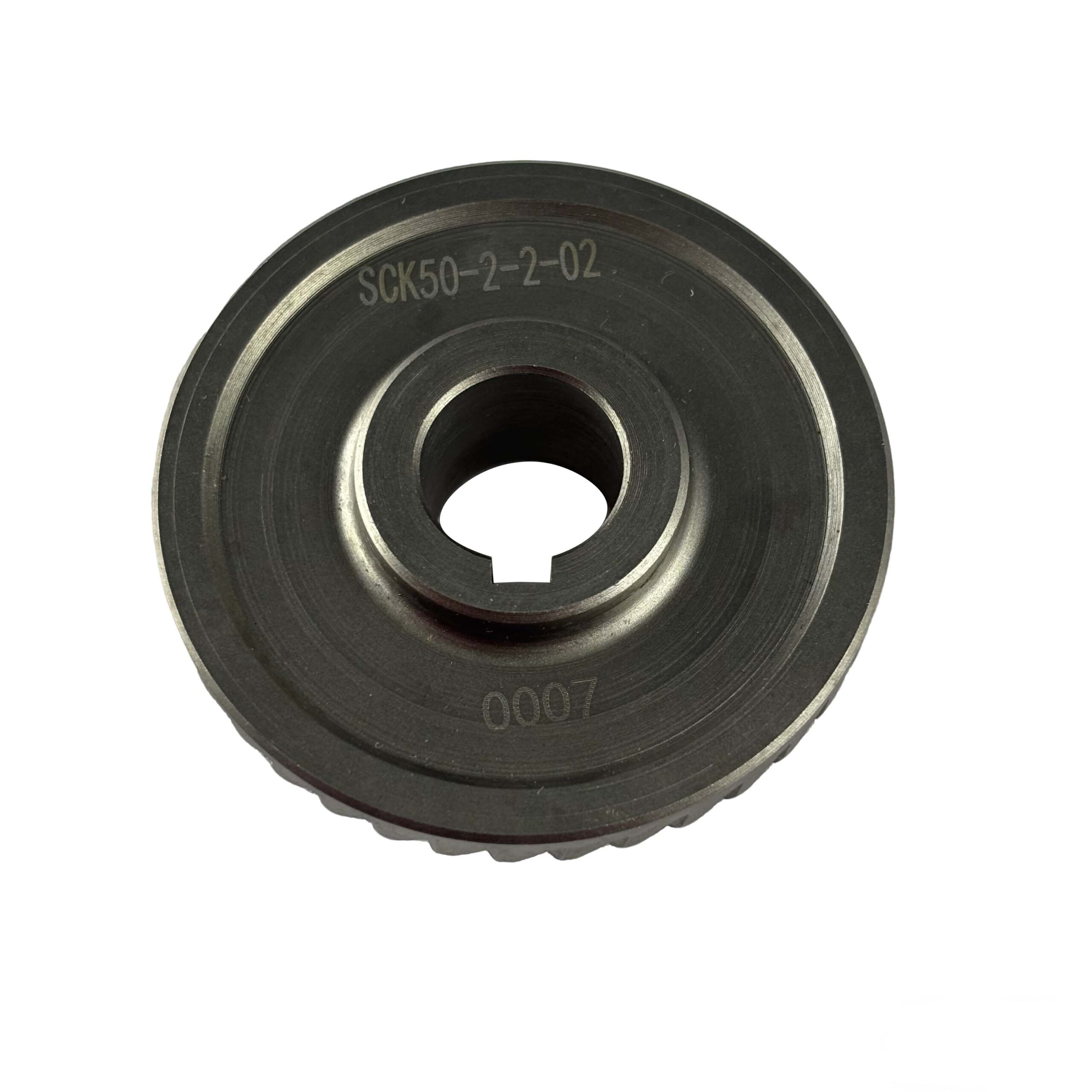

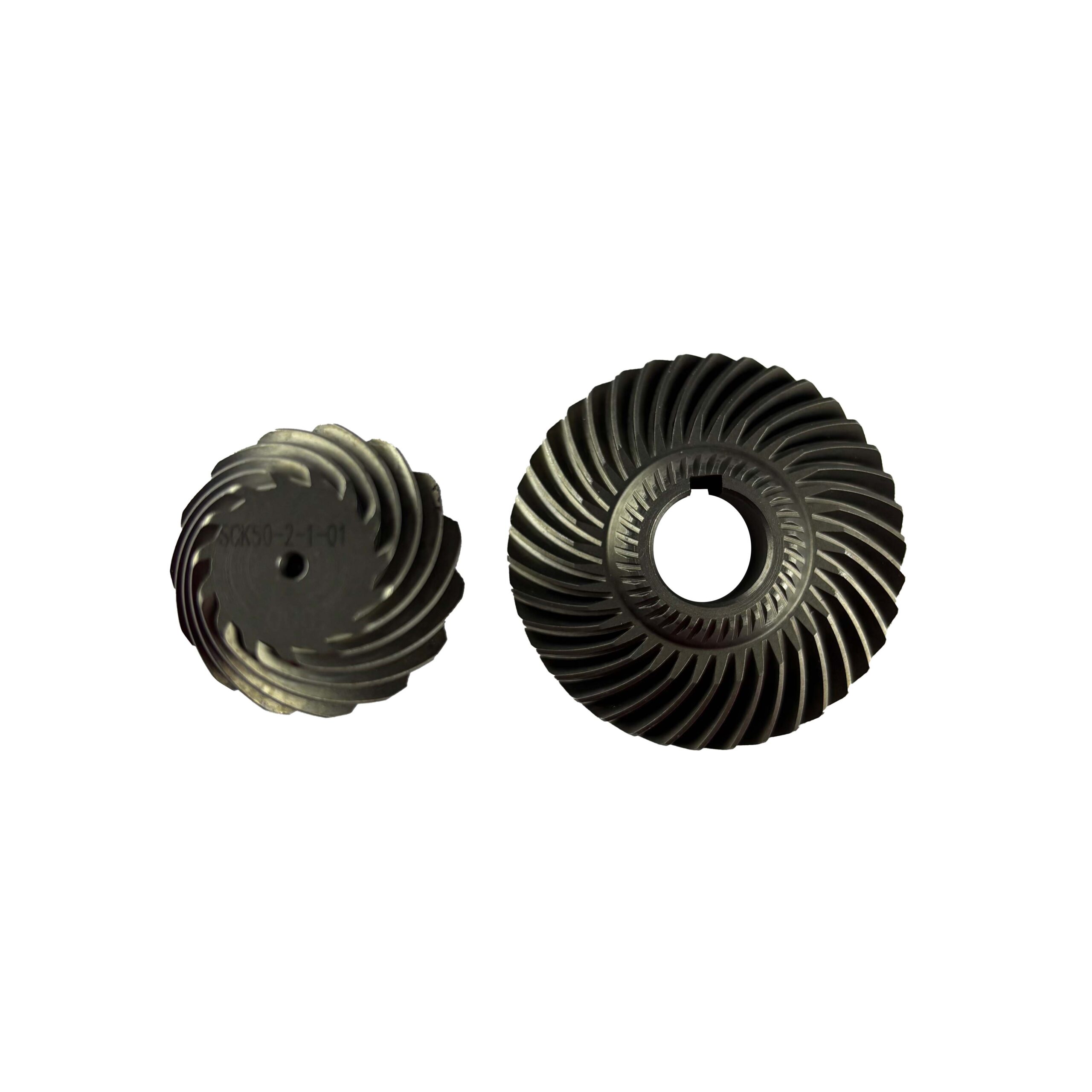

Product Model: SCK50-2-2-02 / XG-016-C Hypoid Gear
Detailed Product Description
The SCK50-2-2-02 and XG-016-C hypoid gears are core power components specially developed for high-precision transmission scenarios. With exquisite manufacturing processes and optimized structural design, they achieve a triple breakthrough in transmission efficiency, load-bearing capacity and operational stability, and are widely suitable for power transmission needs in fields such as automobiles, construction machinery, precision instruments and automation equipment.
Both products are made of high-quality alloy materials, and their core parameters have undergone rigorous calculation and adjustment to ensure that every detail meets industrial-grade high standards. Among them, the SCK50-2-2-02 gear adopts a 20° standard pressure angle design, matched with 1.36 modulus and 38 teeth, realizing precise transmission meshing and low power loss; the optimized combination of 28°26′/R helix angle and 9mm offset effectively improves the gear’s load-bearing torque and impact resistance, adapting to long-term stable operation under high-load working conditions. In terms of structural dimensions, the inner diameter of this model is 14mm, the outer diameter of the tooth part reaches 51.65mm, and the total length is 16mm. The lightweight design (weight only 0.1205kg) can effectively reduce the overall load of the equipment and improve the response speed of the transmission system.
In terms of craftsmanship, we adhere to strict manufacturing processes, from normalizing treatment, precision turning, high-precision gear milling, to professional heat treatment, chamfering, shot blasting, reaming, facing, then to one-to-one pairing grinding, precise marking and full-dimensional appearance inspection. Each process is operated by senior technicians and monitored by advanced testing equipment throughout the process to ensure that the gear’s dimensional accuracy, surface finish and meshing performance reach the top level in the industry. The pairing grinding process greatly improves the smoothness of gear meshing, reduces noise and wear during operation, and extends the service life of the product and the maintenance cycle of the equipment.
As a core model in the same series, the XG-016-C hypoid gear inherits the high-quality genes and exquisite craftsmanship of the SCK50-2-2-02, maintaining consistent standards in transmission stability, load-bearing capacity and adaptability. It can be flexibly matched according to different equipment needs to provide customers with diversified transmission solutions.
We always adhere to the concept of “Precise Transmission, Quality First”. Both gears have passed multiple quality inspections, comply with international industrial standards, and have the advantages of high reliability, long service life and high cost performance. They are the ideal choice for upgrading and replacing your equipment’s transmission system.
其他信息
| Weight |
0.1205 |
|---|---|
| Core component |
Gear |
