M0215M10 (090-1:1) Left-hand Gear (without keyway) and M0216M10 (090-1:1) Right-hand Gear (without keyway)
$13.44piece

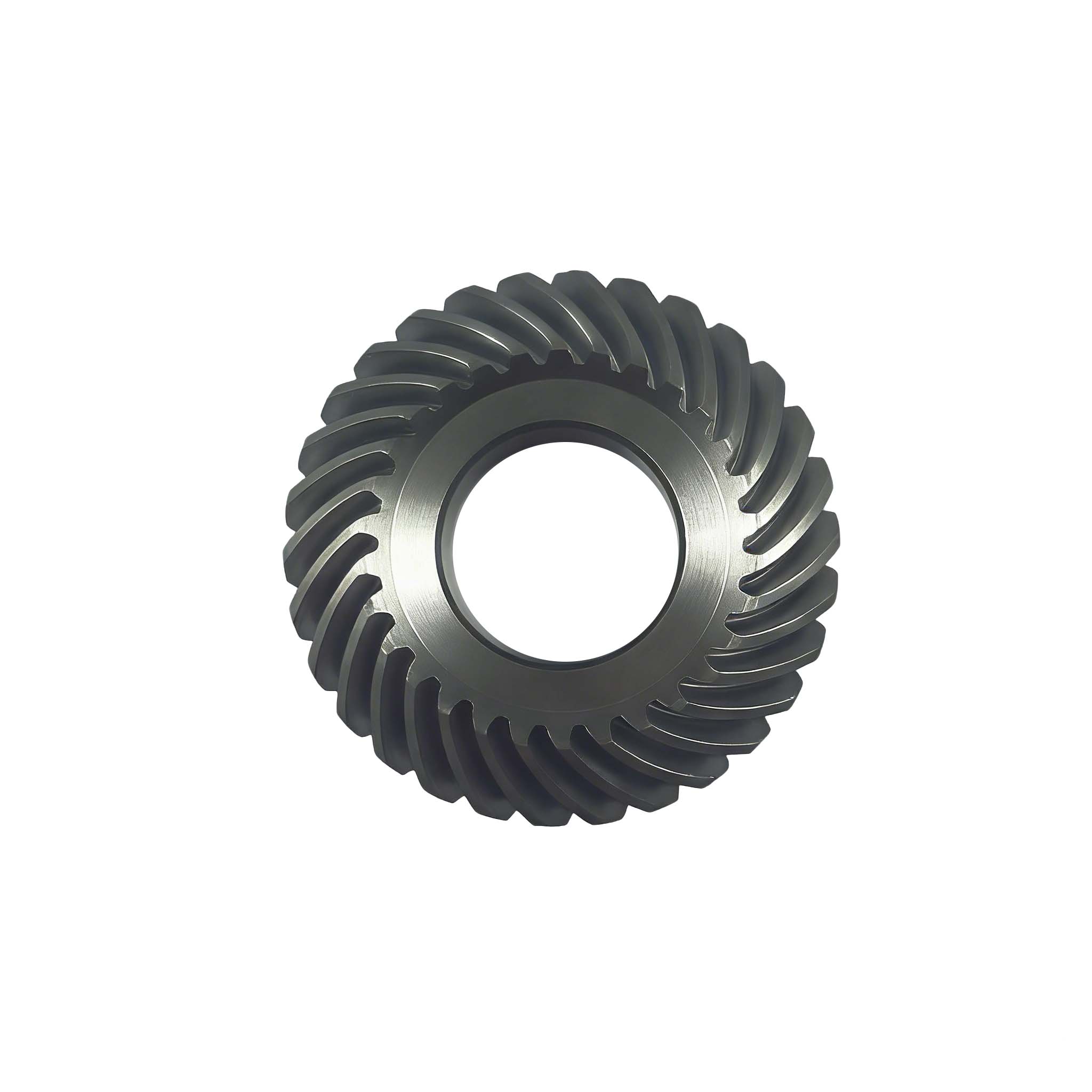

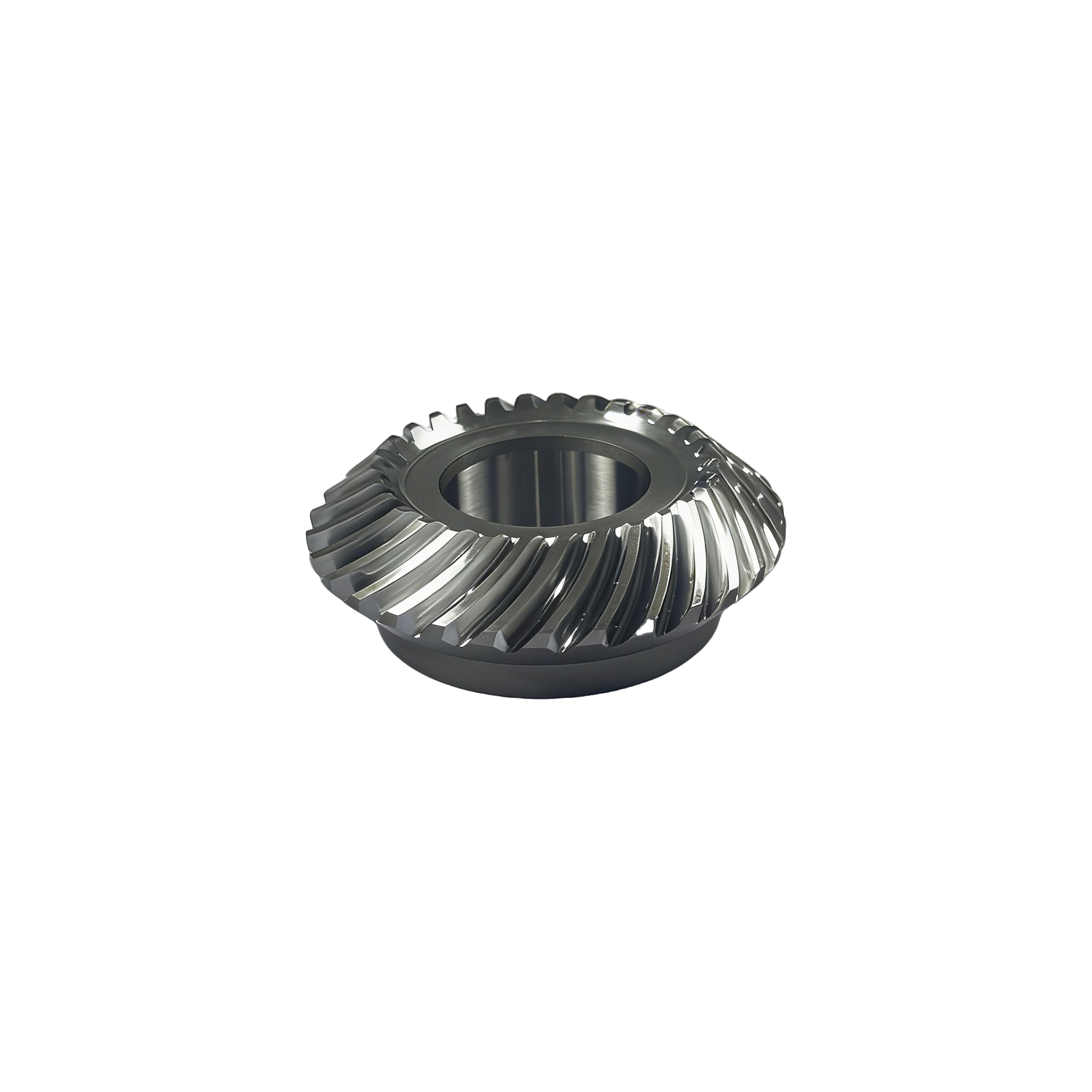

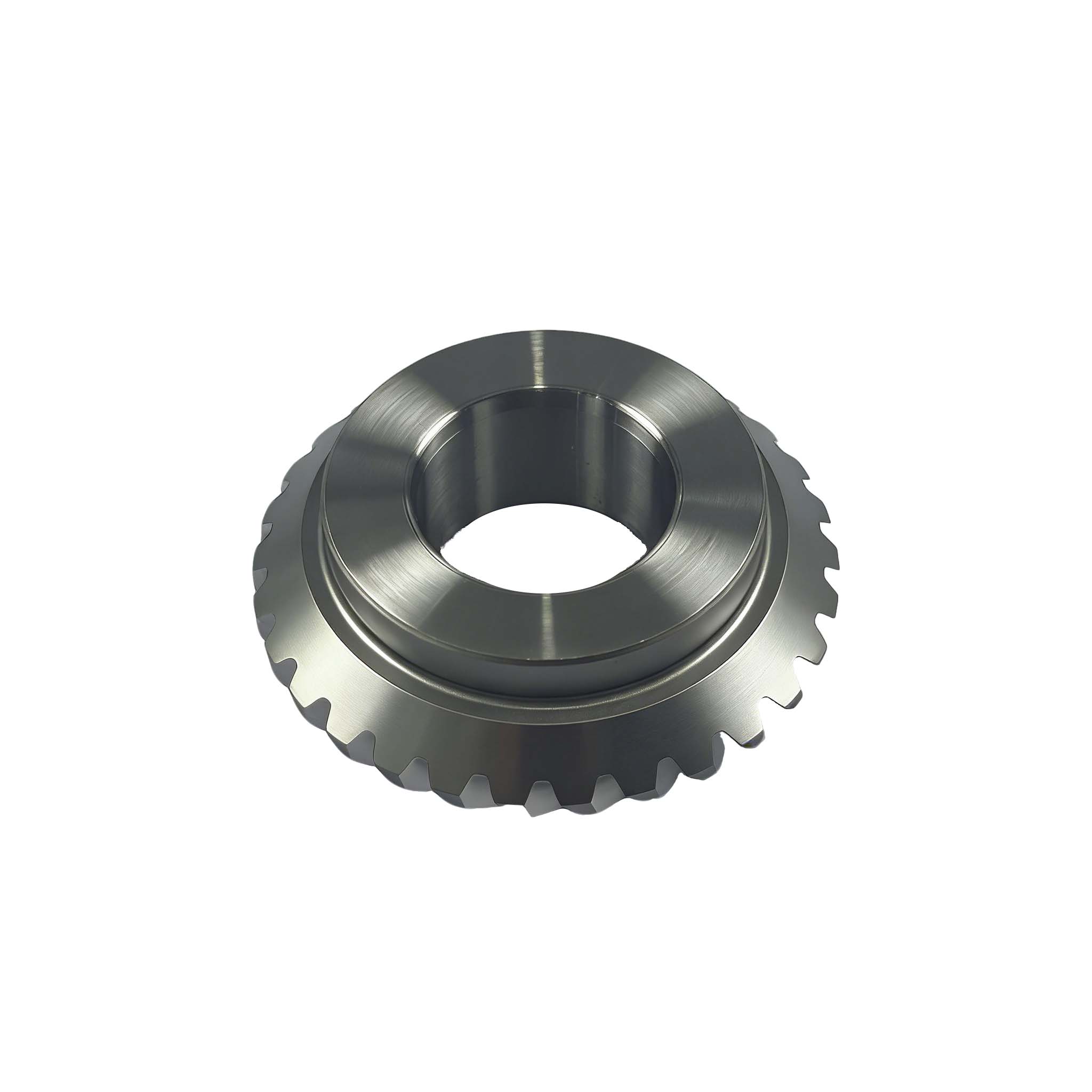

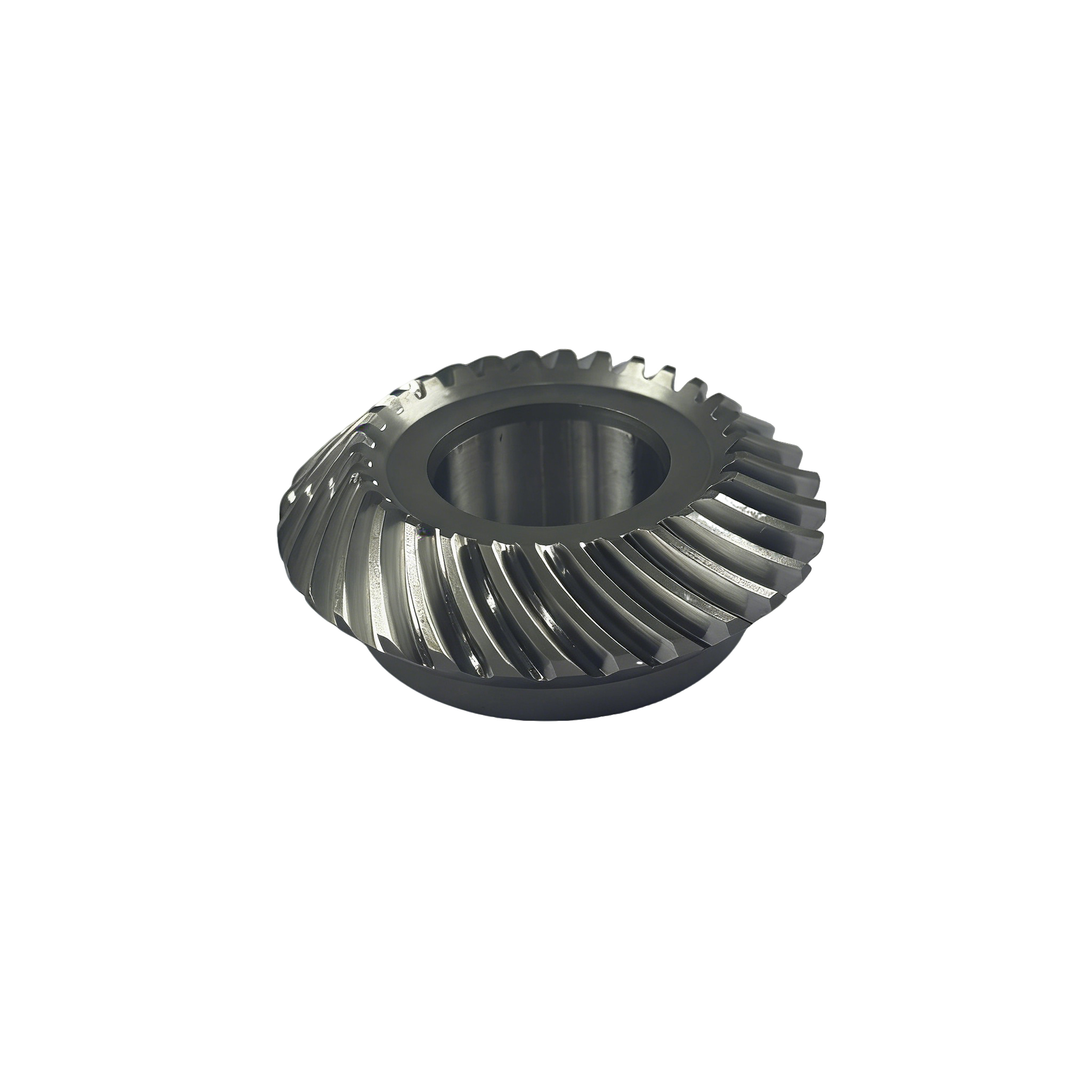

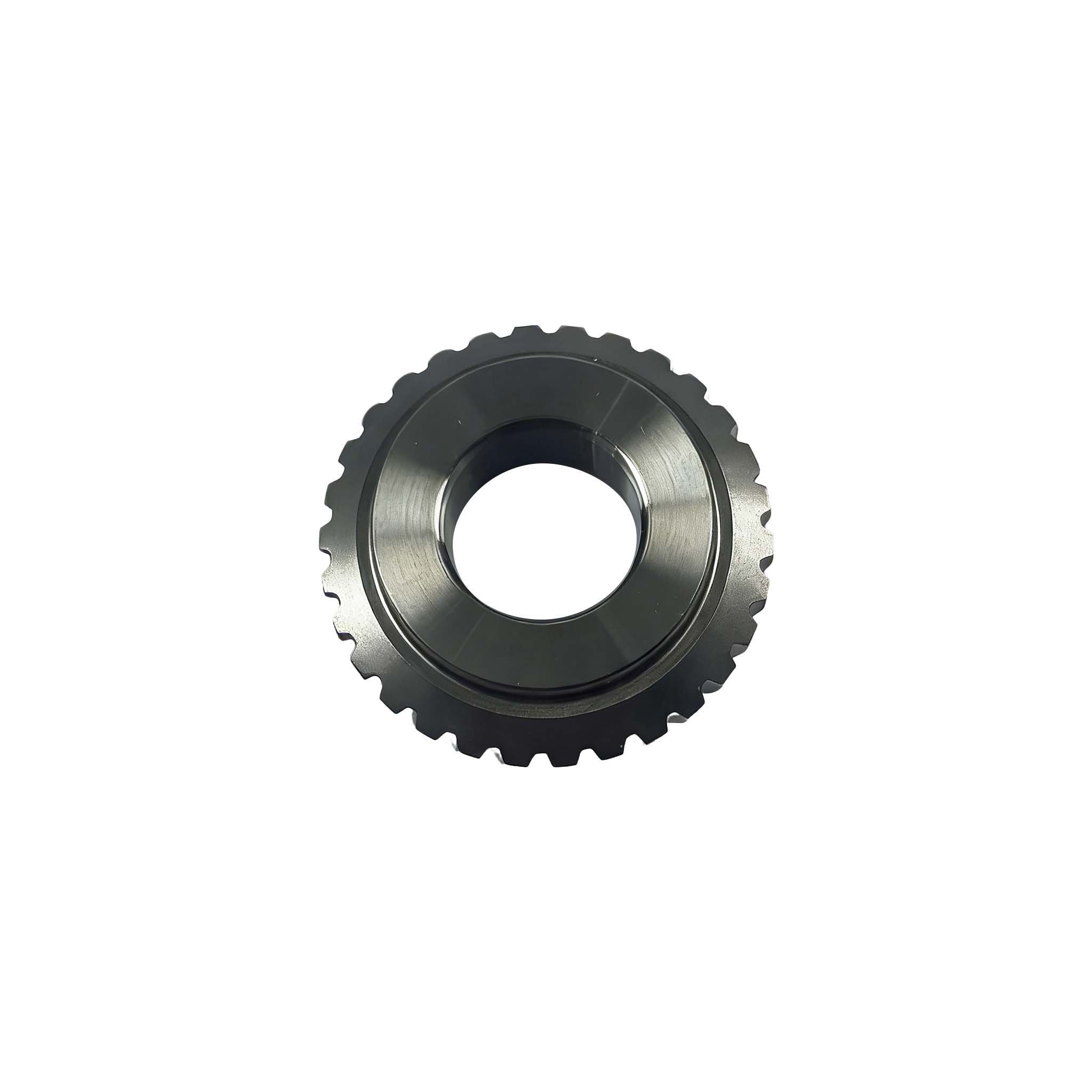

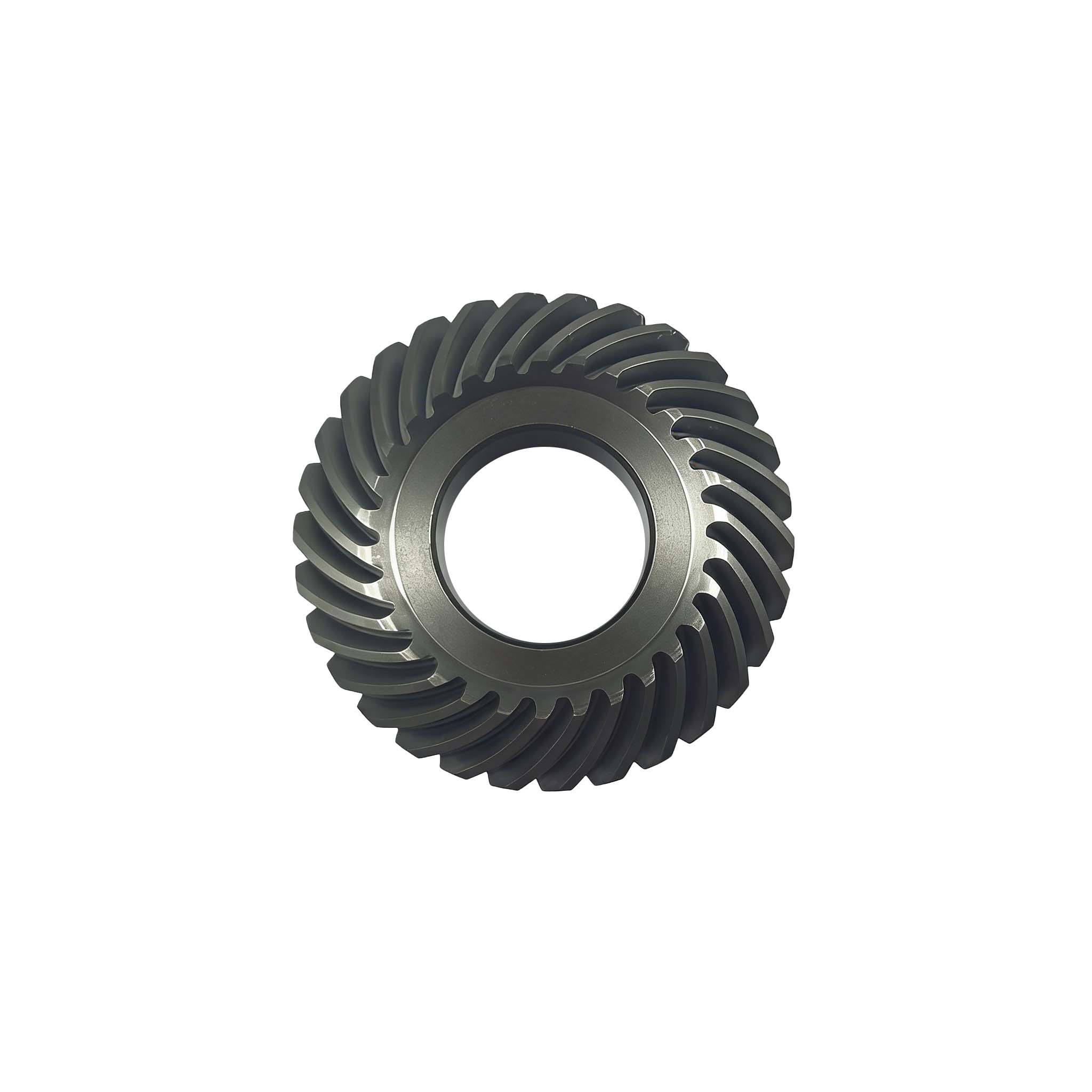

AEP-17-C1 (left-hand) and AEP-18-C1 (right-hand) are a pair of keyless spiral bevel gears made of 20CrMnTi, module 1.58, 20° pressure angle, 30 teeth, precision-machined for reducer transmission.
描述

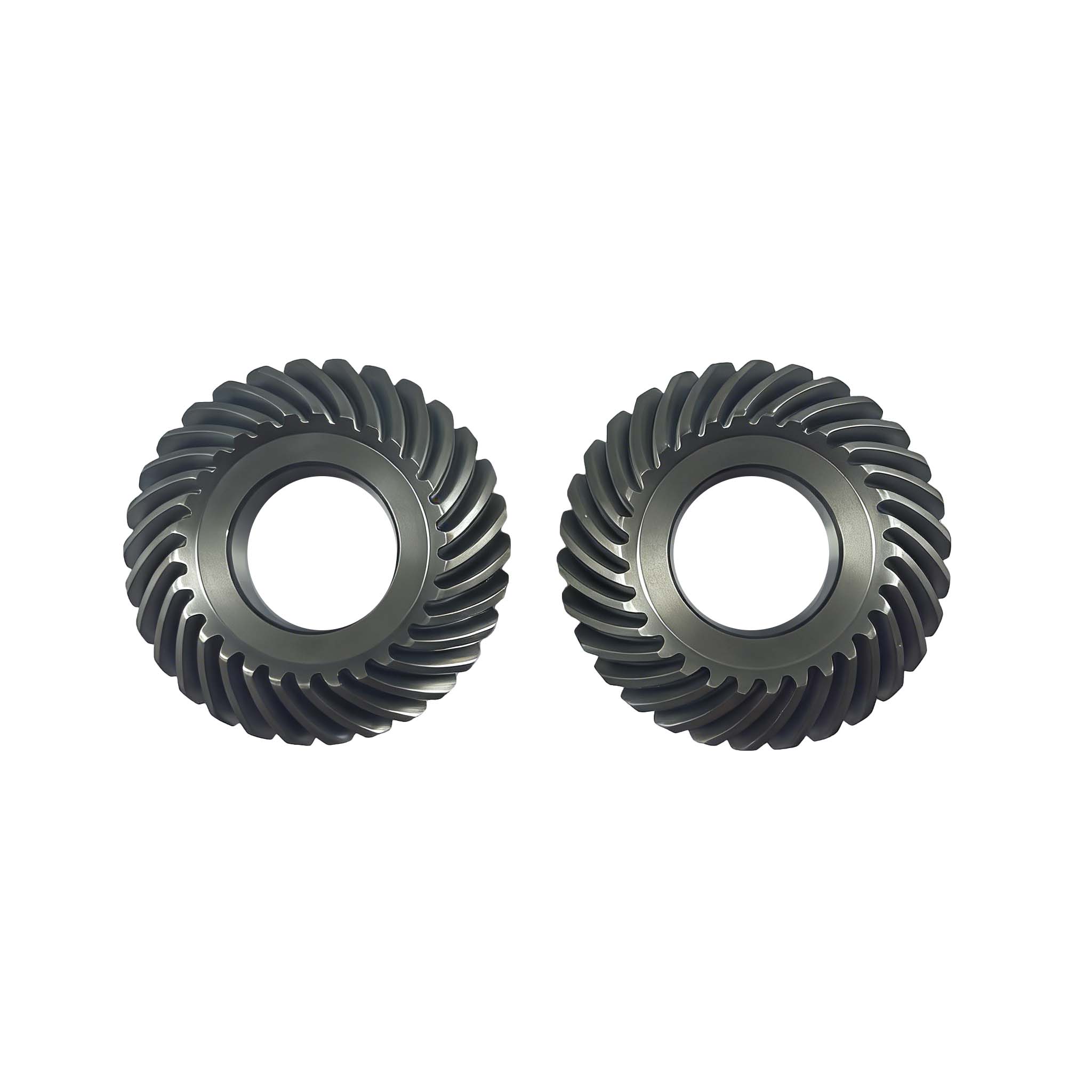

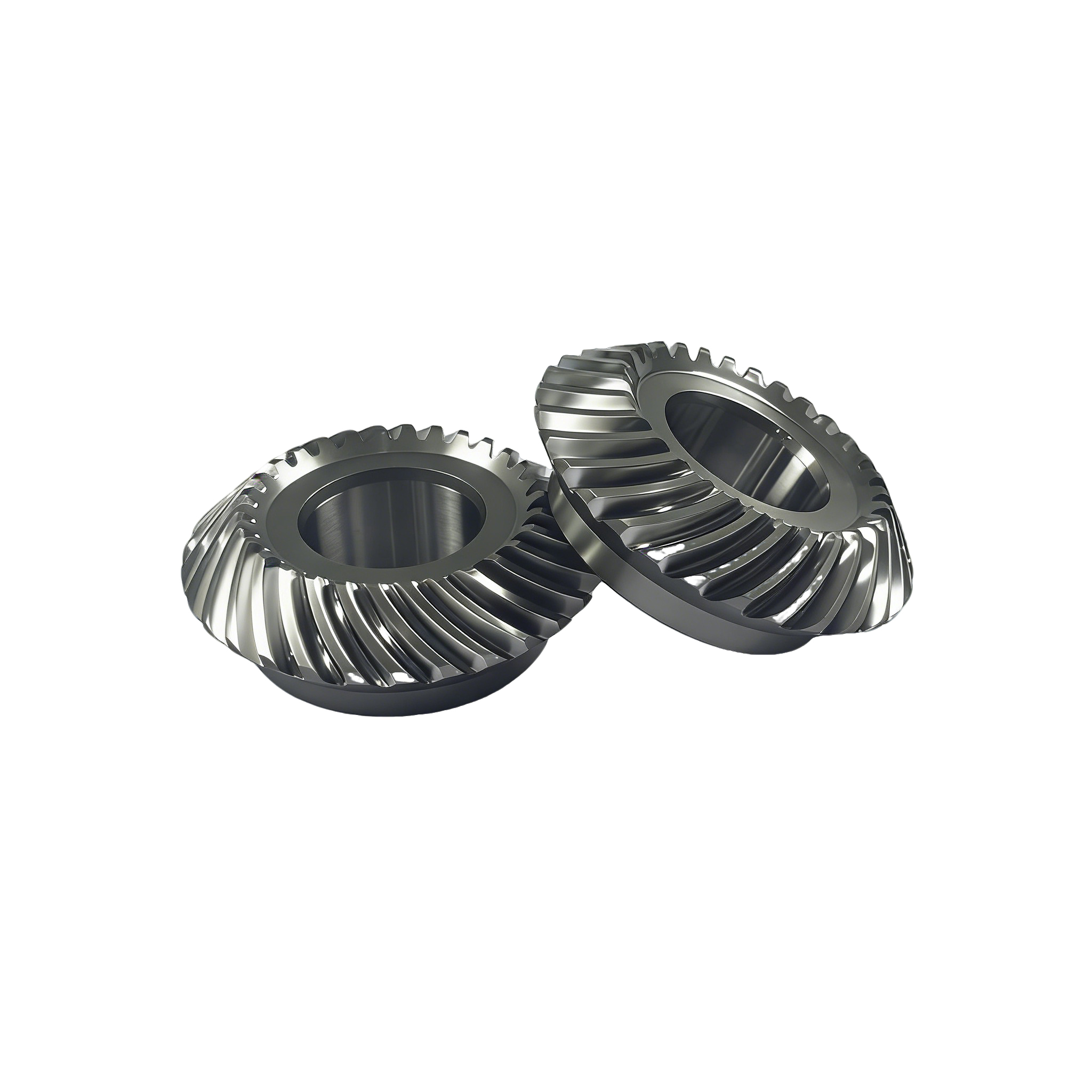

This series includes a pair of keyless spiral bevel gears for reducers: left-hand AEP-17-C1 and right-hand AEP-18-C1. Both gears are made of 20CrMnTi, with 20° pressure angle, module 1.58, 30 teeth, 35° spiral angle, inner diameter 20mm, gear outer diameter 47.6mm, total length 17mm, and weight 0.1157kg.
They are manufactured through precise processes including sawing, turning, gear milling, heat treatment, shot blasting, boring, end facing, guide arc chamfering and gear grinding. With a keyless structure, they feature high precision, good wear resistance and stable operation, mainly used in reducer transmission systems.
其他信息
| AEP-17-C1 and AEP-18-C1 weight |
0.1157and0.1157 |
|---|---|
| AEP-17-C1 and AEP-18-C1 Core Components |
gear |
| AEP-17-C1 and AEP-18-C1 Craftsmanship |
Milling |
